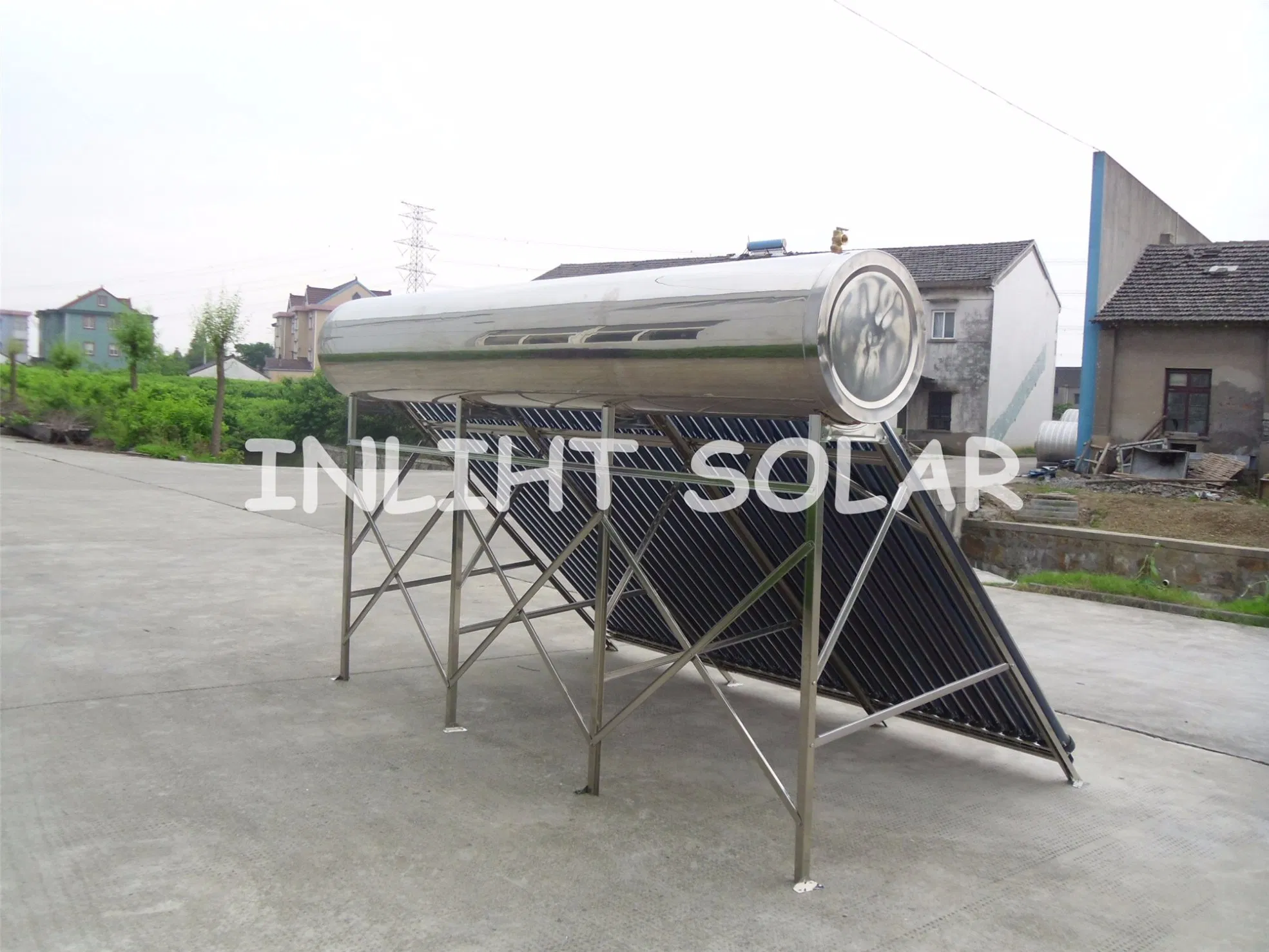

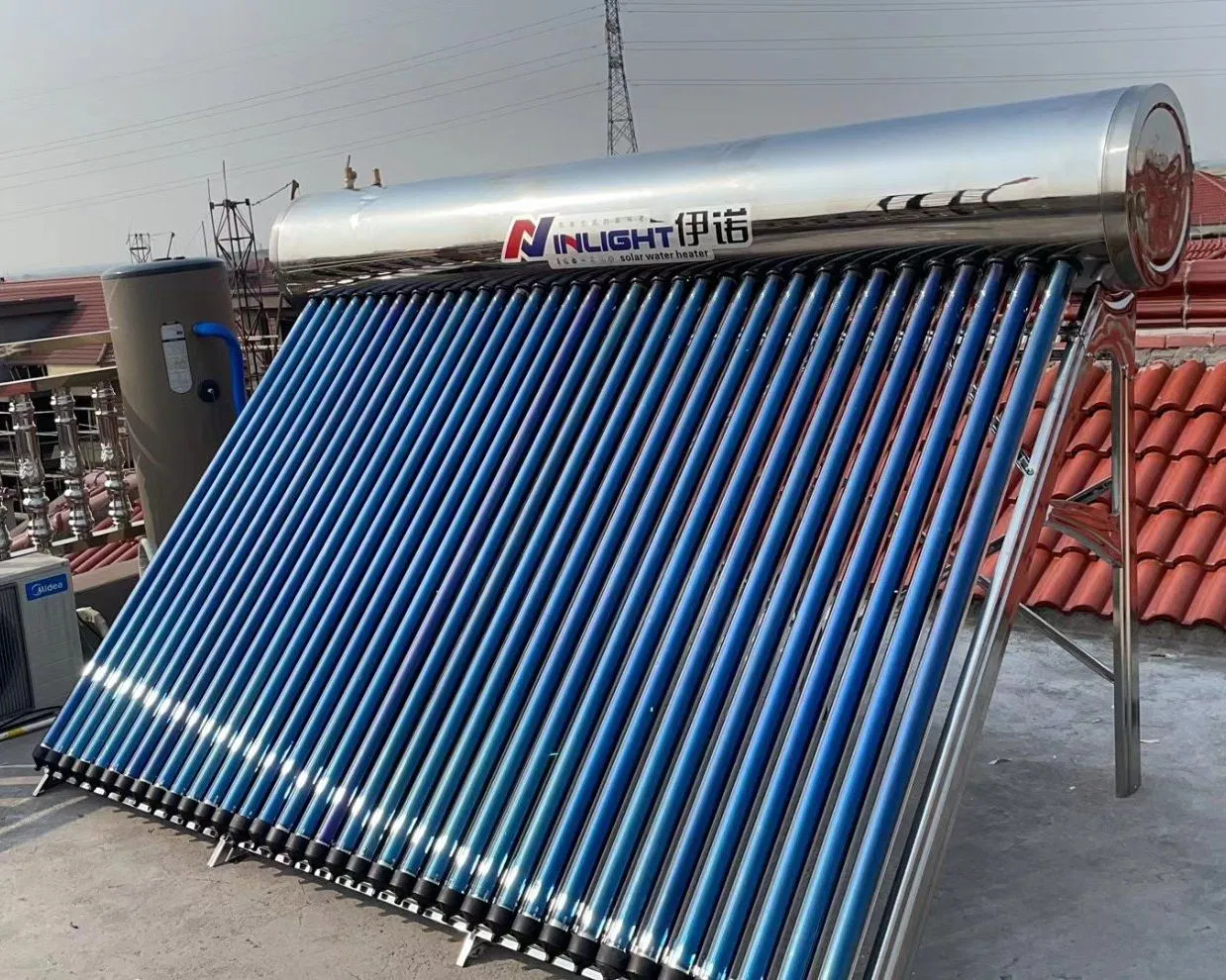

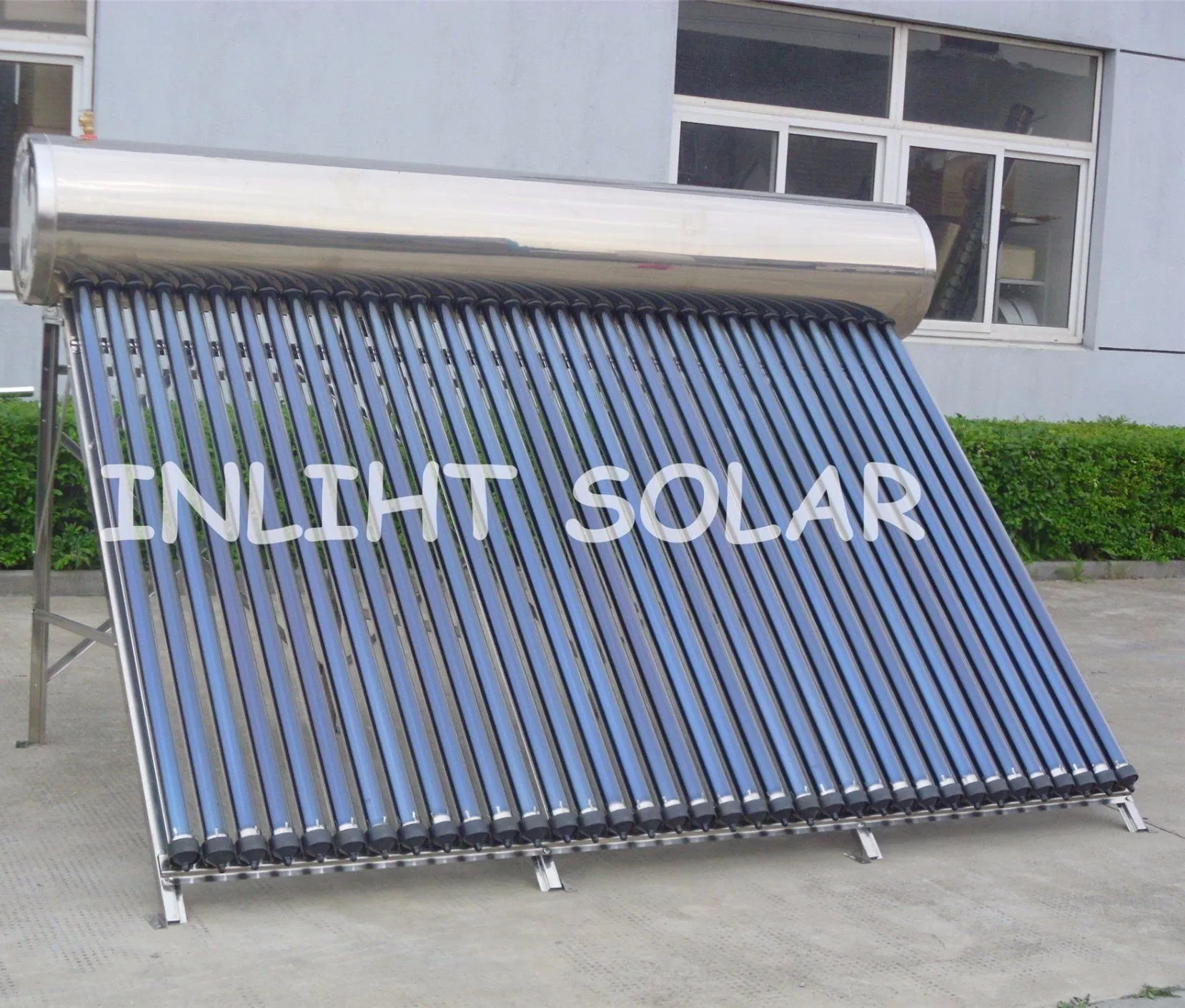

10tubes to 36tubes Compact Pressure Stainles Steel SUS201 Solar Water Heater

1 / 5

10tubes to 36tubes Compact Pressure Stainles Steel SUS201 Solar Water Heater

Customization:	Available
After-sales Service:	Overseas Call Centers,Free Spare Parts
Warranty:	3 Years

Send Inquiry

Product Description

Product Overview

Model NO.

ILH-5818S470S-36H

Max. Capacity

>200L

Structure

Compact Type

Pressure

Pressurized

Interior Material

Stainless Steel

Collector

Glass Vacuum Tube

Certification

CE, ISO9001, CCC, En12975

Capacity Range

20 - 70 US Gallon

Insulation

High Density Polyurethane Foam

Working Temp.

-40℃ ~ 60℃

Max Pressure

0.7 MPa

Warranty

5 Years

Key Advantages

36 Tubes Stainless Steel Solar Water Heater

Professional manufacturer with 20 years experience and strong technical support.
CE approved with high heat efficiency and superior quality build.
Short and punctual delivery times for all orders.
Easy installation process and virtually maintenance-free operation.
OEM and ODM orders are fully accepted.
Samples available for quality evaluation and testing.

Technical Specifications

Item No.	Water Tank	Solar Vacuum Tube		Insulation	Container Loading
Item No.	Capacity (Gal)	Qty (Pcs)	Size (mm)	mm	20GP	40HQ
ILH-5818S470S-12H	22	12	Φ58*1800	55	63	154
ILH-5818S470S-15H	28	15	Φ58*1800	55	53	130
ILH-5818S470S-18H	33	18	Φ58*1800	55	44	107
ILH-5818S470S-20H	38	20	Φ58*1800	55	40	99
ILH-5818S470S-24H	45	24	Φ58*1800	55	35	86
ILH-5818S470S-30H	55	30	Φ58*1800	55	27	68
ILH-5818S470S-36H	70	36	Φ58*1800	55	24	58

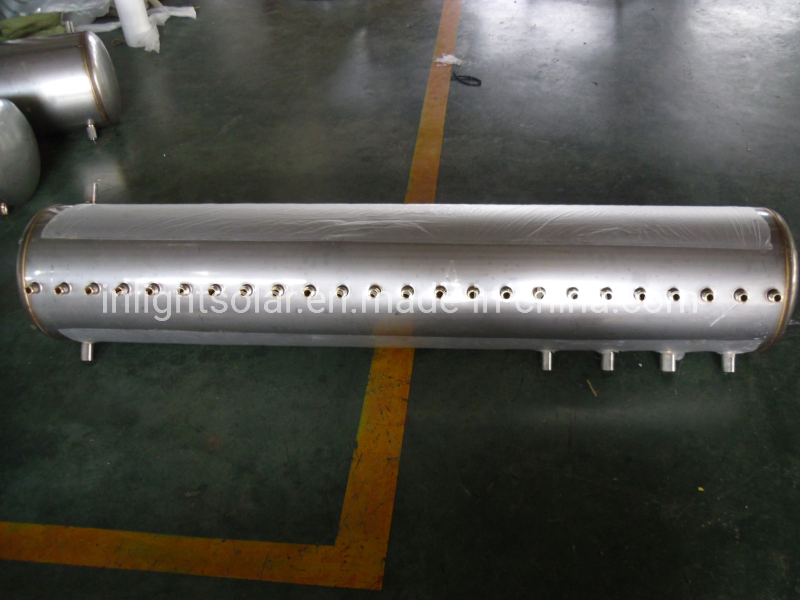

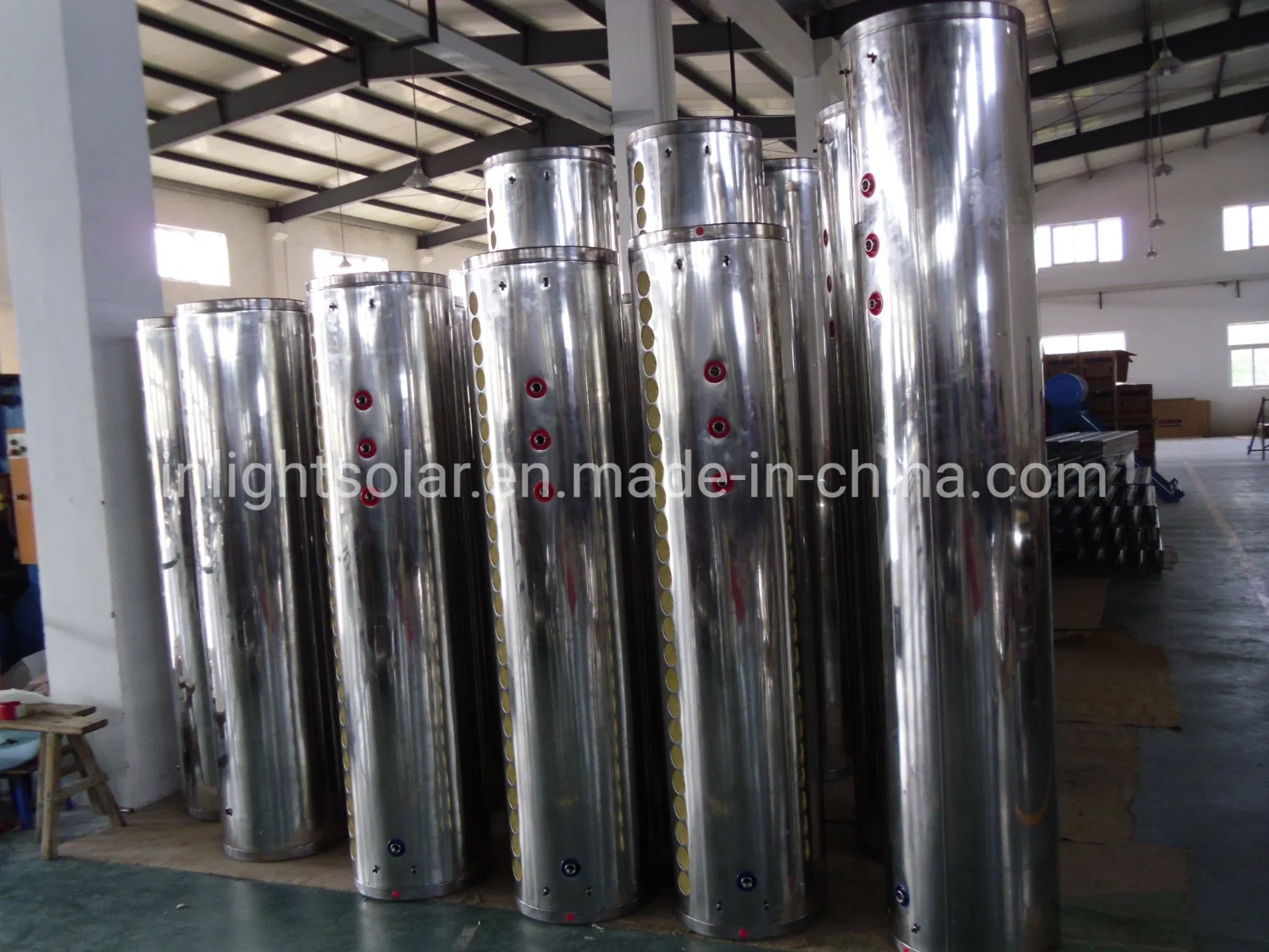

1. Inner tank: Food-grade SUS304-2B or SUS316L (1.2mm-1.5mm thickness)

2. Tank Exterior: High quality Inox 0.4mm

3. Vacuum Tube: Red copper heat pipe, three-target glass tube, aluminium fin

4. Rated Working pressure: 6.0 Bar | Anti-freezing: > -40°C

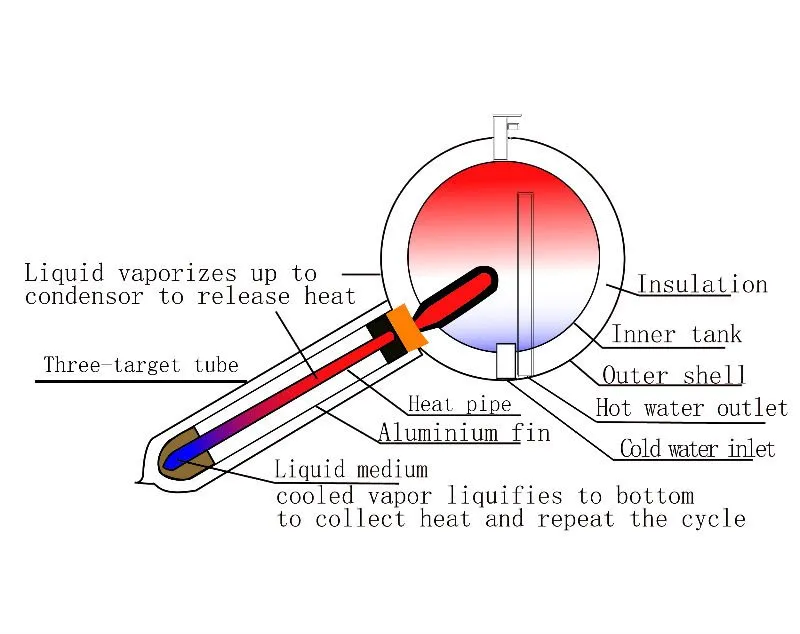

Working Principle

The pressurized tank bears direct tap water pressure; hot water is pushed out by inlet pressure.
Vacuum tubes absorb solar energy, and conductive copper heat pipes transfer heat into the tank.
No water flows inside the heat pipes, ensuring the system remains operational even if a tube is damaged.
High efficiency and rapid warming even in cold climates.

Competitive Advantages

Adopts high-performance metal heat pipes (copper) for maximum conduction.
System pressure rated up to 0.6Mpa, allowing direct connection to tap water.
Inner tank design has passed 100,000 fatigue tests without damage.
Dual-purpose brackets suitable for both flat and inclined roof installations.
Maintains constant water temperature and avoids water level controller malfunctions.

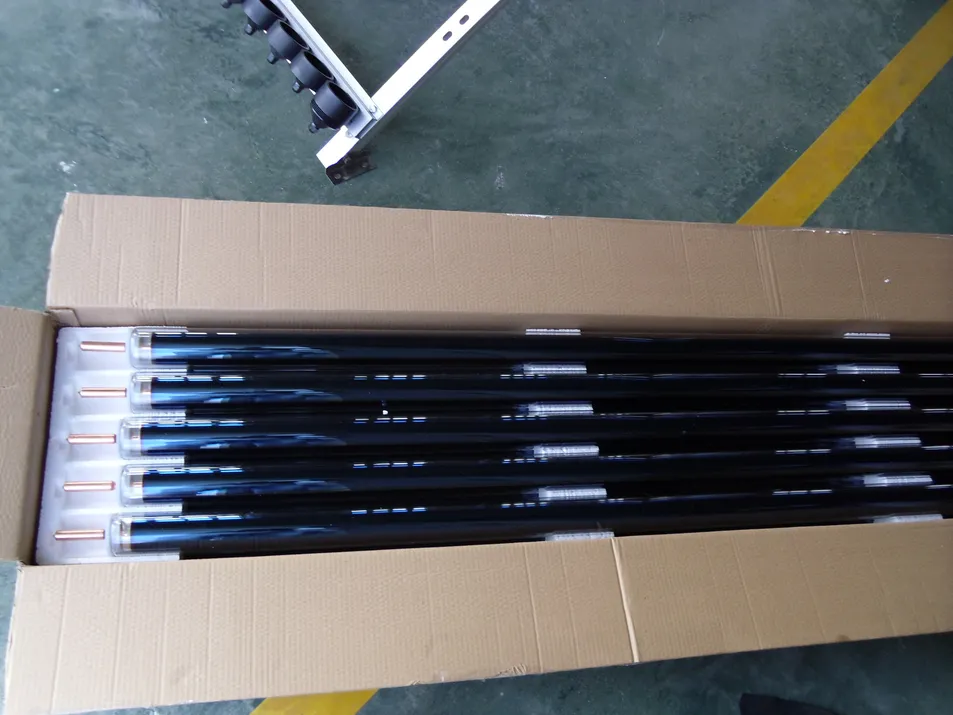

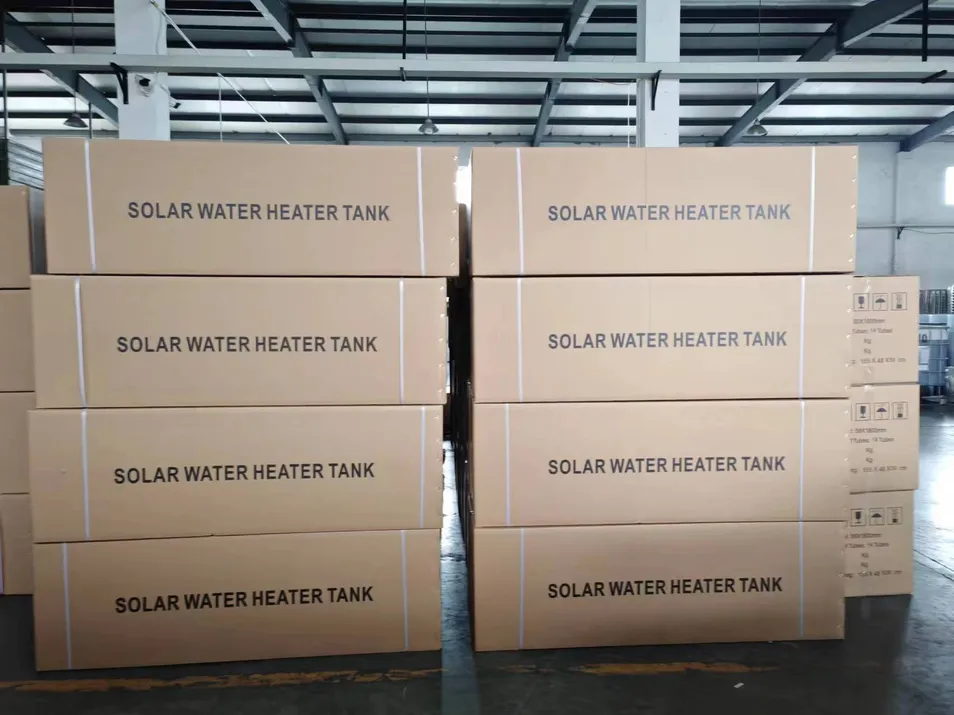

Packing & Delivery

Package Details: For full container loading (FCL), we use standard seaworthy cartons. For less than container loading (LCL), we utilize a combination of plywood crates and seaworthy cartons for maximum protection.

Frequently Asked Questions

Can this solar water heater work in freezing temperatures?

Yes, the system is designed with an anti-freezing capability down to -40°C, making it suitable for cold climates year-round.

What happens if one of the vacuum tubes breaks?

Because the system uses heat pipes and there is no water inside the tubes, the rest of the system will continue to work normally even if one tube is damaged.

Is it compatible with high-pressure tap water?

Absolutely. This is a pressurized type solar water heater that can handle working pressures up to 0.6 MPa (6.0 Bar) and connects directly to your tap water line.

What is the lifespan and warranty of the product?

We provide a 5-year quality warranty. With high-quality stainless steel (SUS304/316L) and professional manufacturing, the system is built for long-term durability.

Can the bracket be installed on a flat roof?

Yes, we provide dual-purpose brackets that are scientifically designed for both flat and inclined roof installations at angles between 25° and 51°.

Does it require an intelligent controller?

While the basic system works automatically, optional devices like intelligent controllers, electric heaters, and magnesium bars can be added for enhanced convenience and protection.
