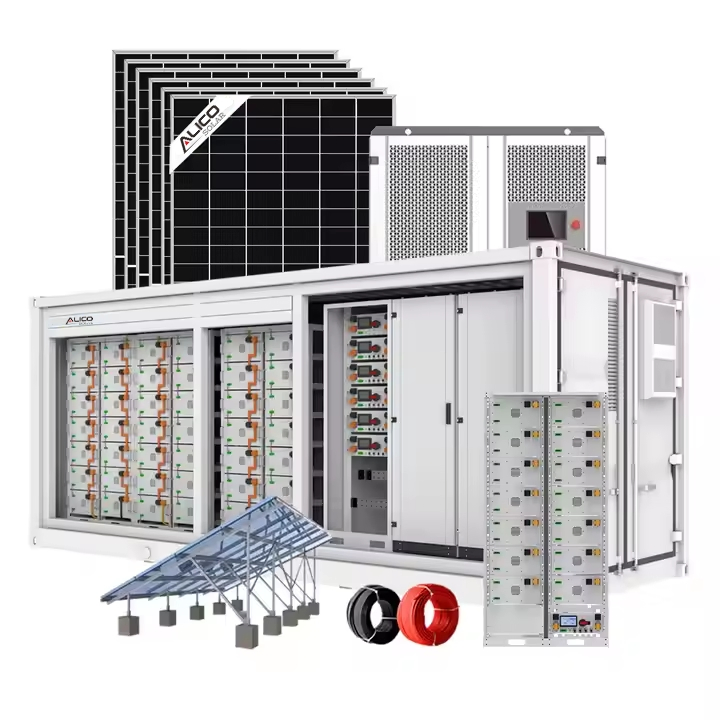

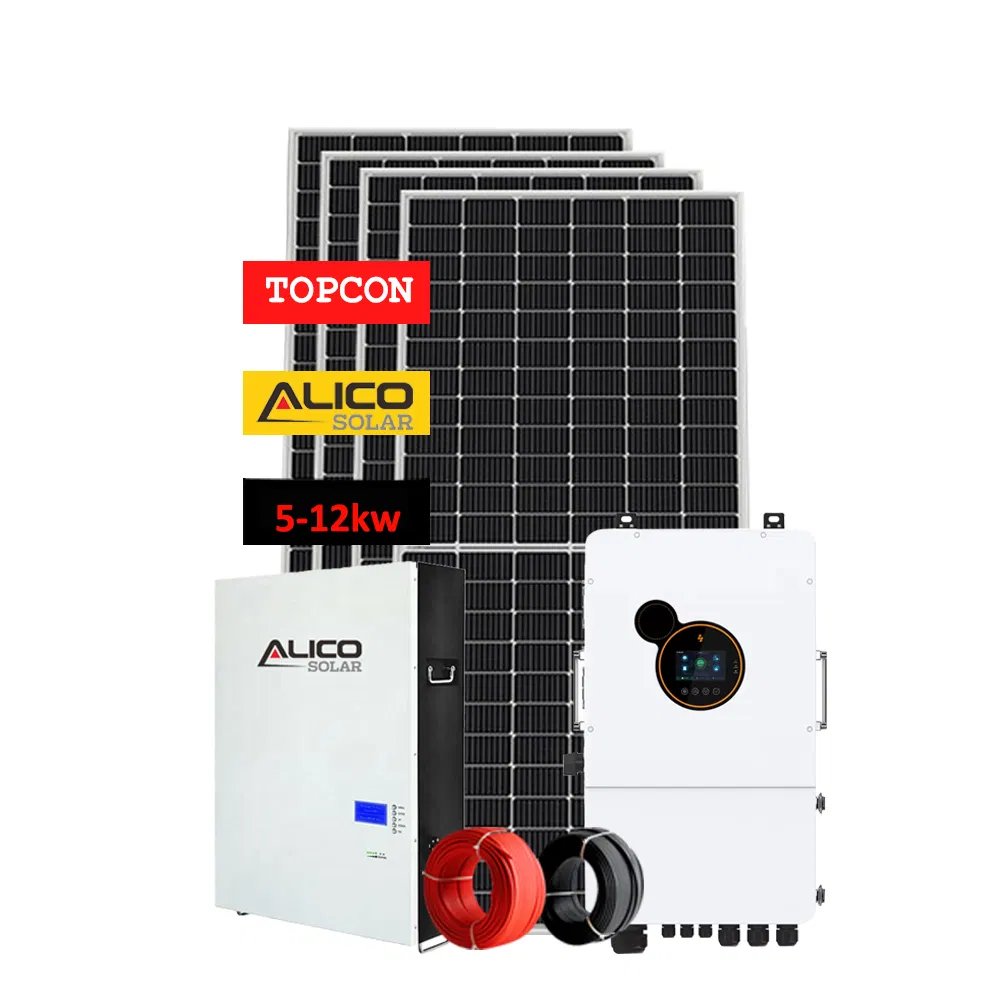

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type Hjt

Battery

Gel or Lithium Battery or No

Transport Package

Carton/Wooden Box

HS Code

8507600090

Production Capacity

2 Gw/Year

Packaging & Delivery

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Package Gross Weight

2000.000kg

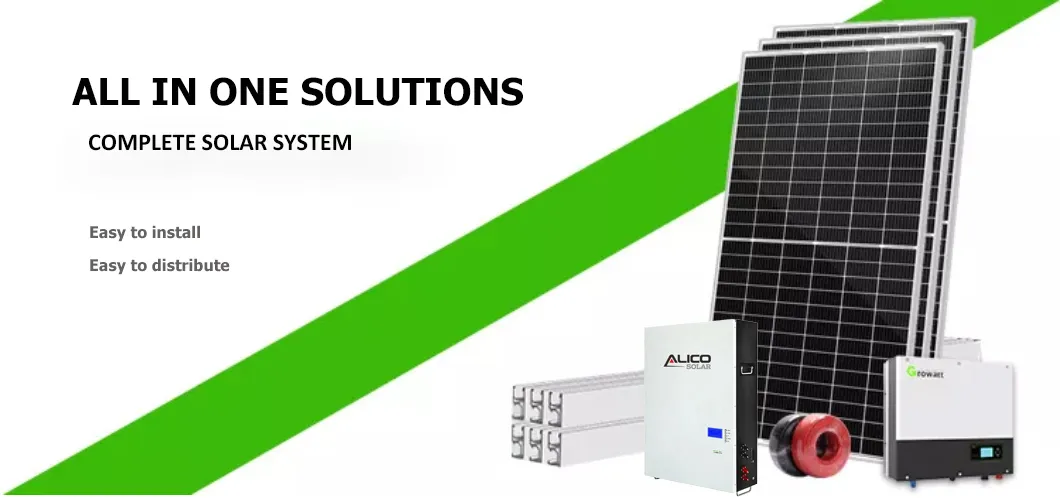

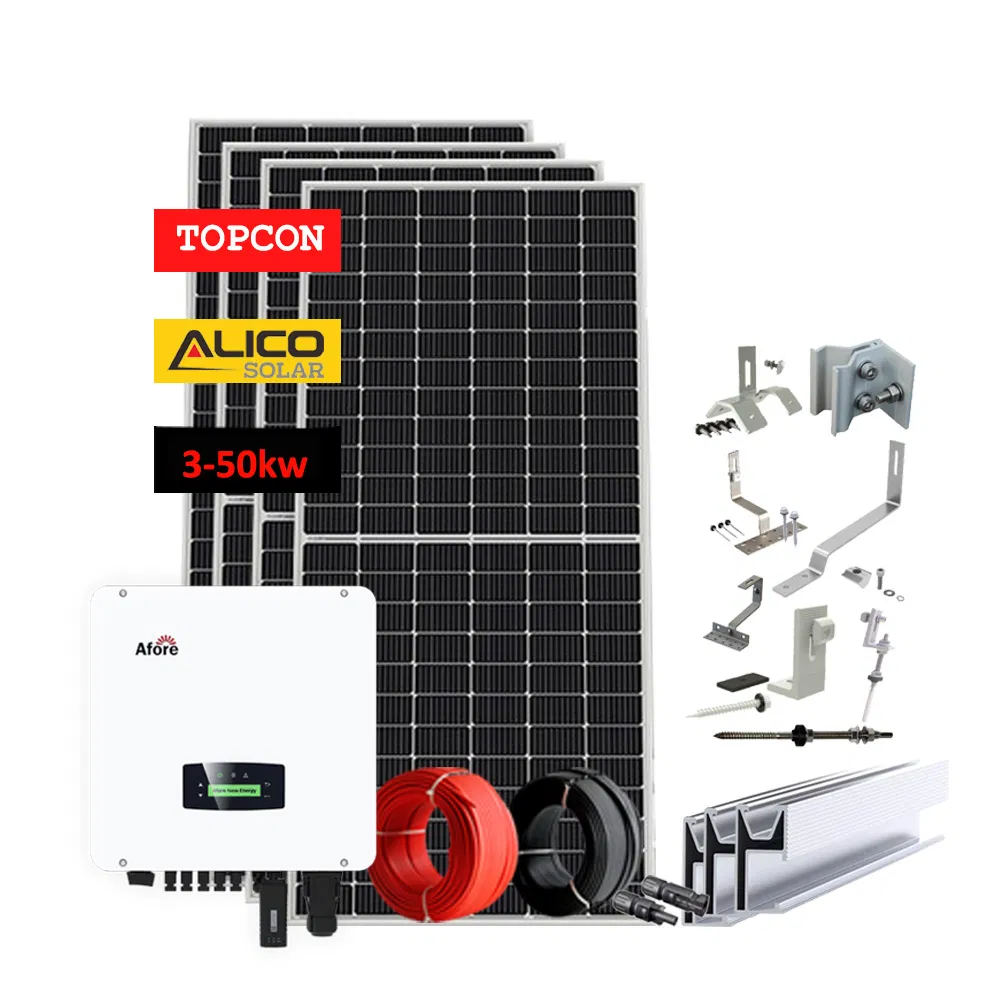

On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Product Description & Components

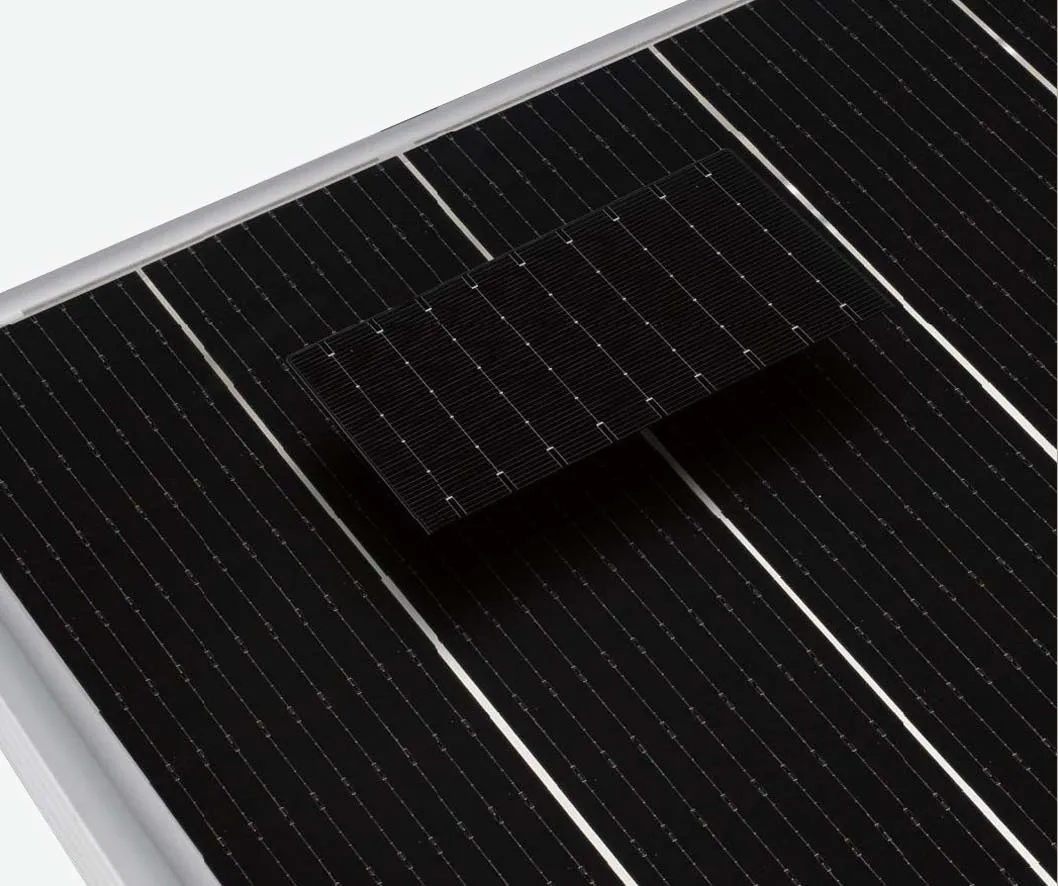

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

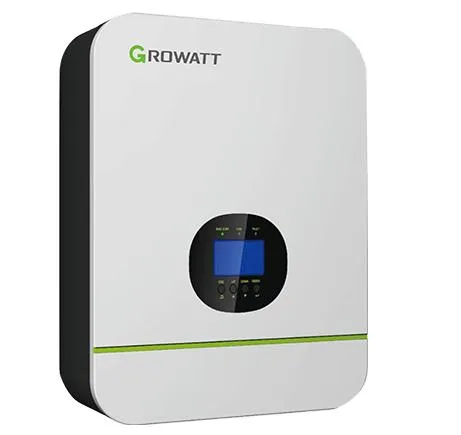

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

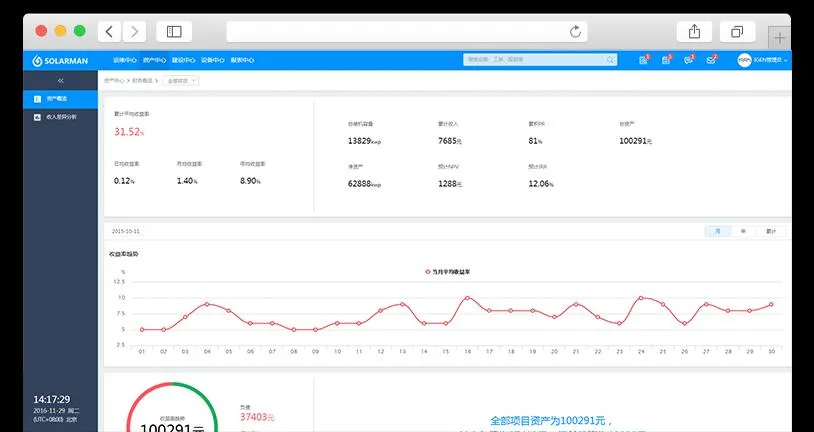

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system via web server (Wi-Fi, Lan or GPRS). App Available for PC, IOS & Android.

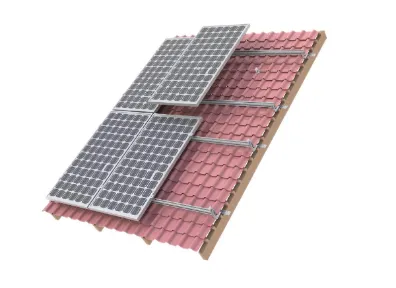

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.

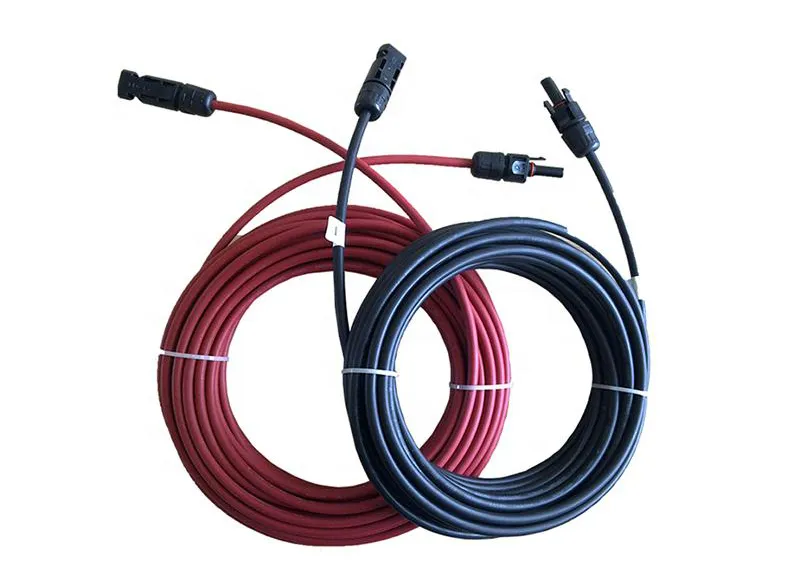

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years

Packaging & Shipping

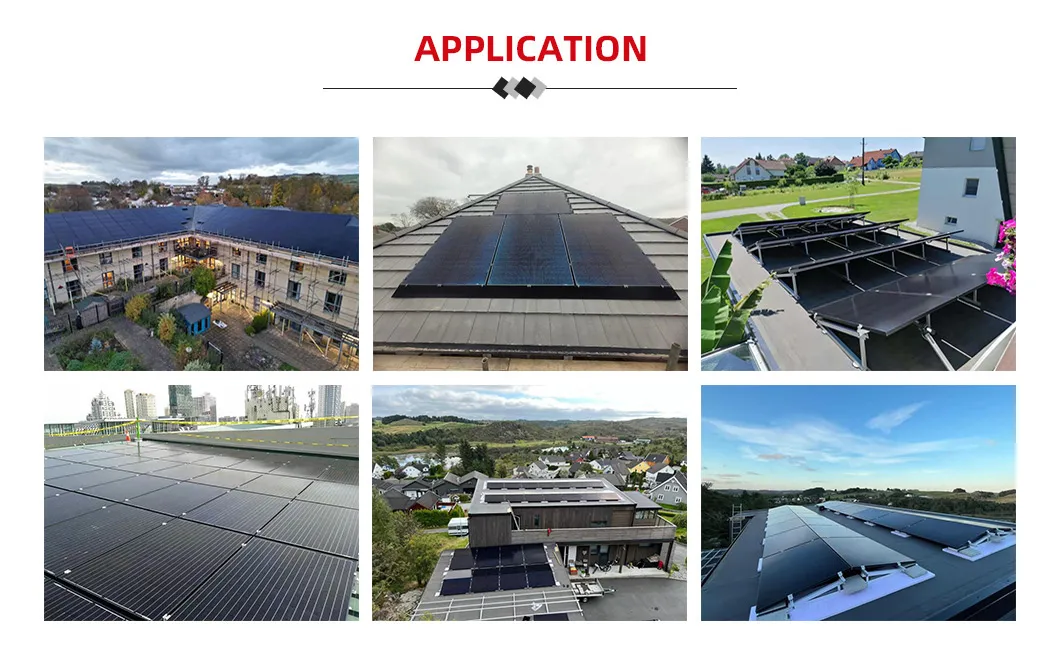

Global Projects

12MW Commercial Metal Roof Solar Plant

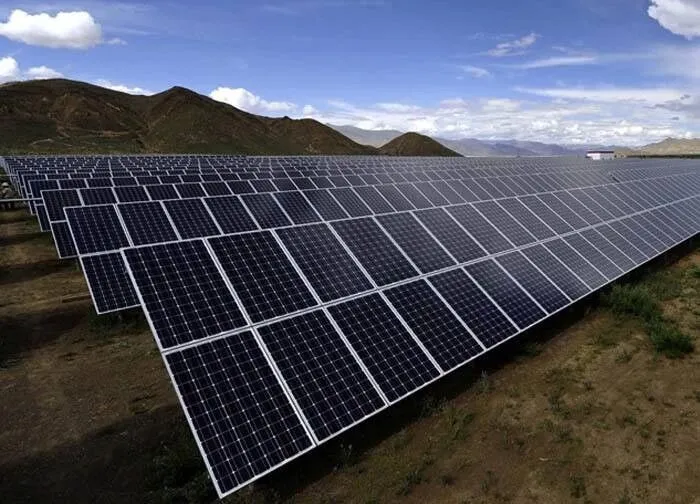

20MW Ground Solar Plant in USA

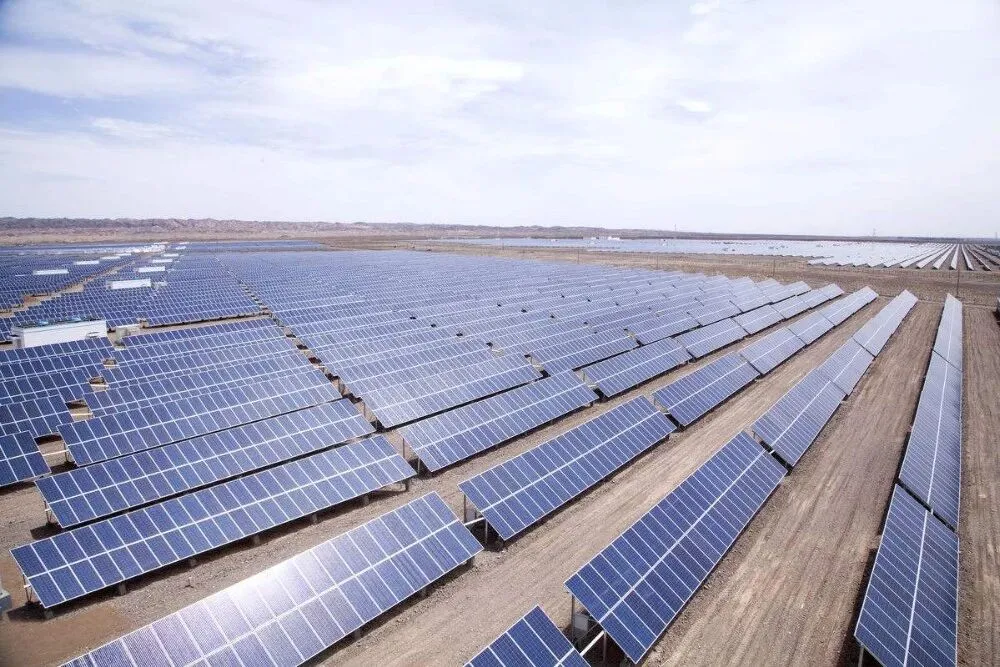

50MW Solar Plant in Brazil

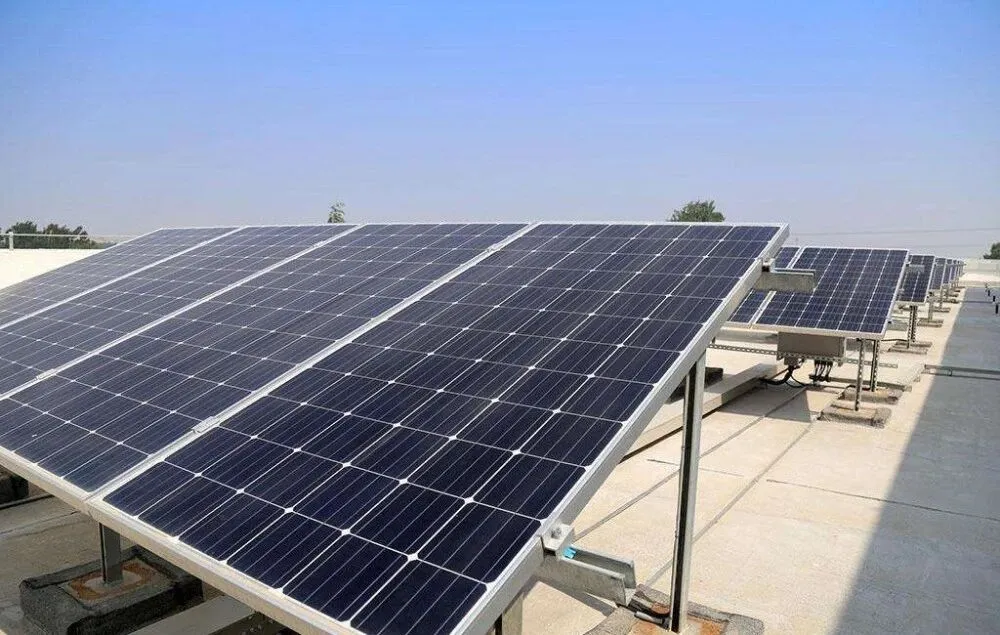

20KW Solar Plant in Mexico

Frequently Asked Questions

What is included in a complete on-grid solar system?

A standard system includes high-efficiency Mono solar panels, an on-grid inverter, mounting structures, DC/AC disconnect switches, DC cables, and MC4 connectors.

Can I monitor the system performance remotely?

Yes, our systems come with a data logging stick that supports Wi-Fi, Lan, or GPRS, allowing you to monitor production via PC, iOS, or Android apps.

Is the mounting system suitable for my roof type?

We provide standard pitched roof mounting kits and customizable options for asphalt shingles, metal roofs, or ground-mounted installations.

What is the lifespan of the system components?

Solar panels and cables are designed to last over 25 years. Inverters typically come with a 5 to 10-year warranty depending on the region and model.

Does this system include battery storage?

This specific configuration is for an on-grid system. However, we offer options for Gel or Lithium-Ion batteries if a hybrid energy storage solution is required.

Are the components certified for international use?

Yes, all core components are ISO and CE certified, meeting strict international safety and quality standards for home and industrial applications.
