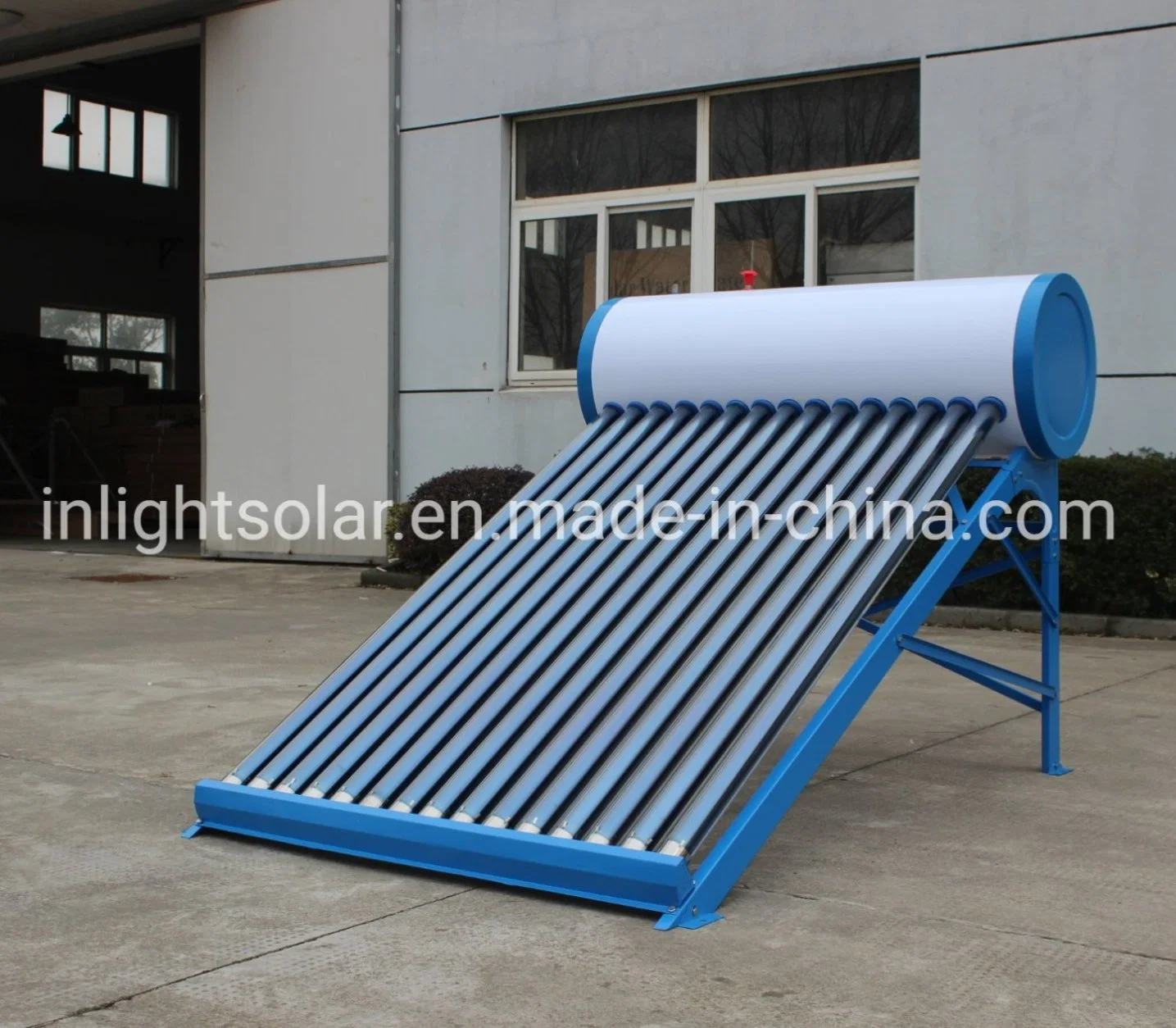

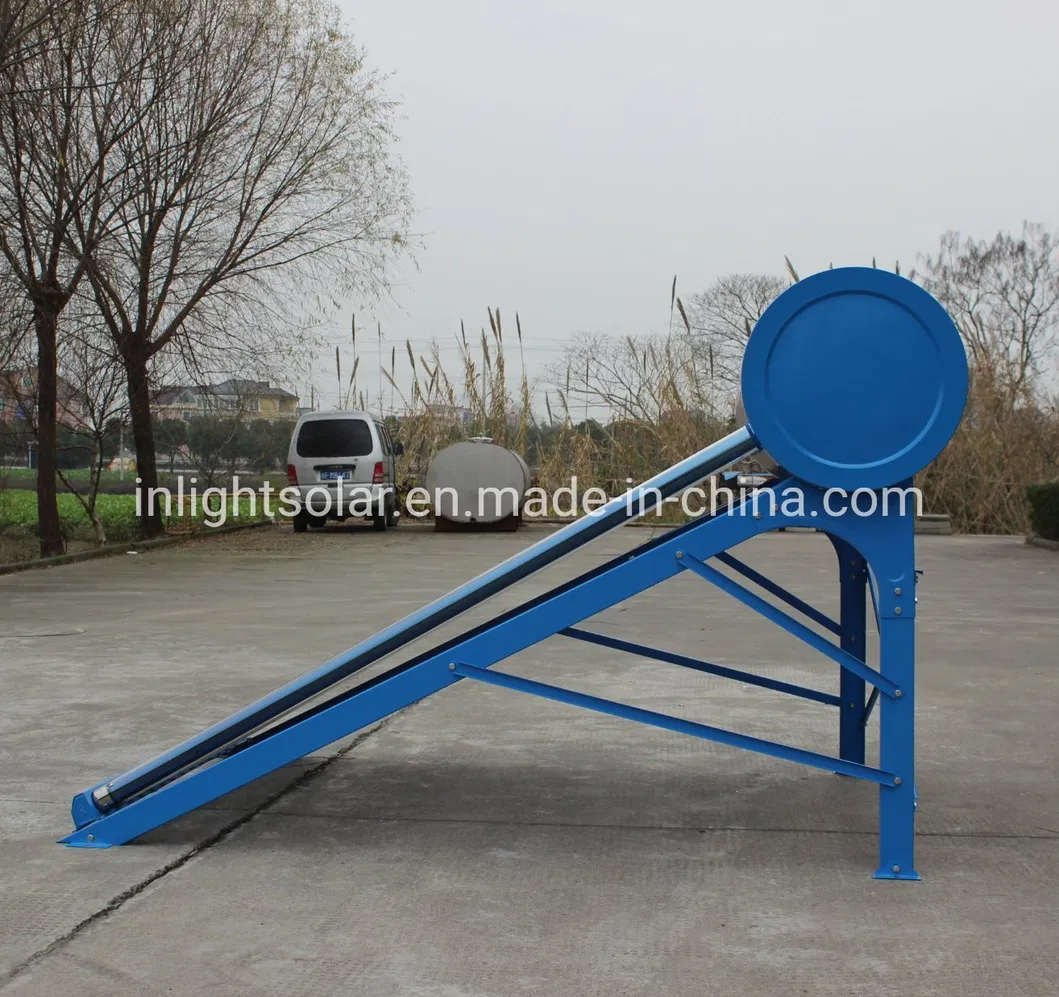

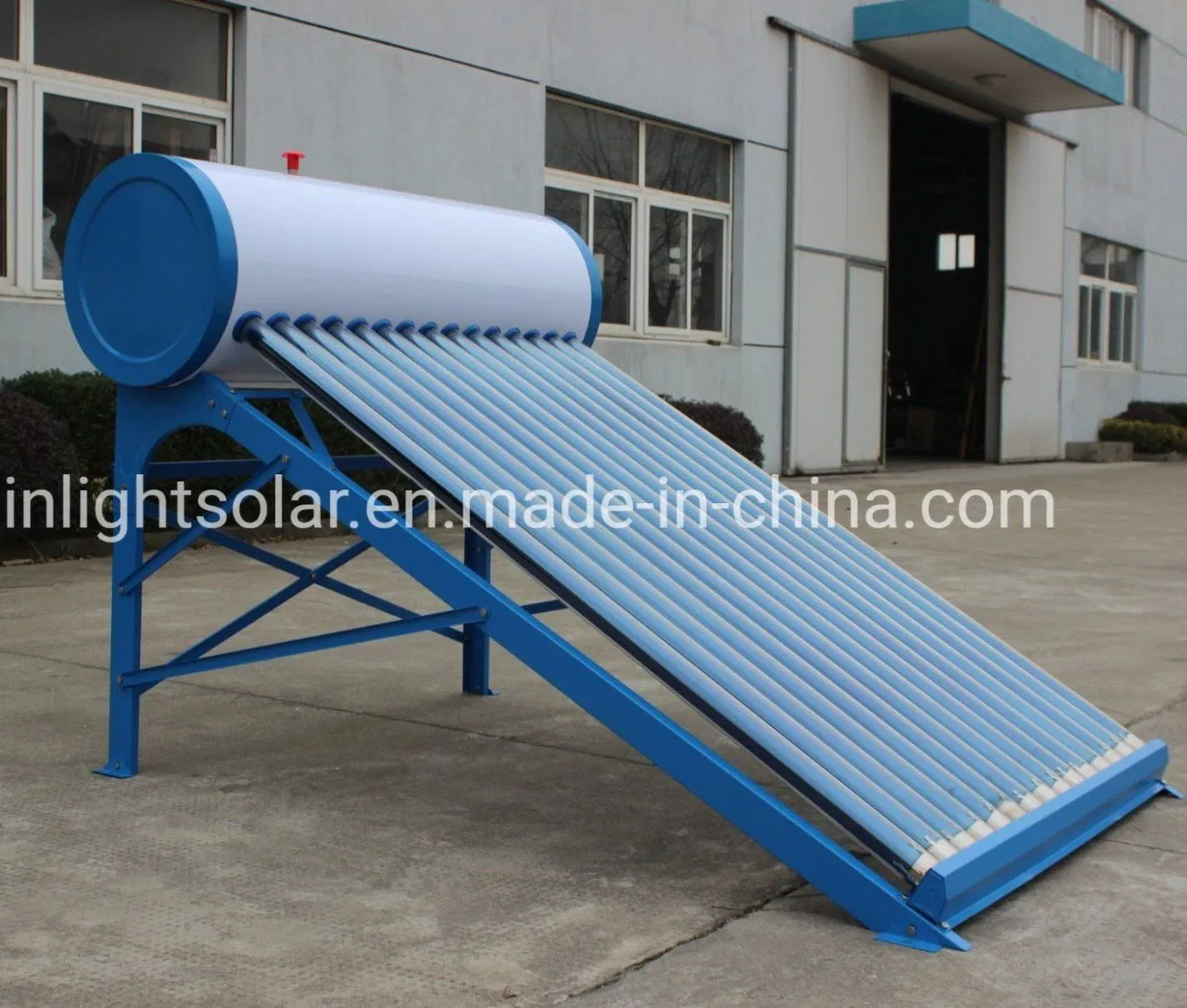

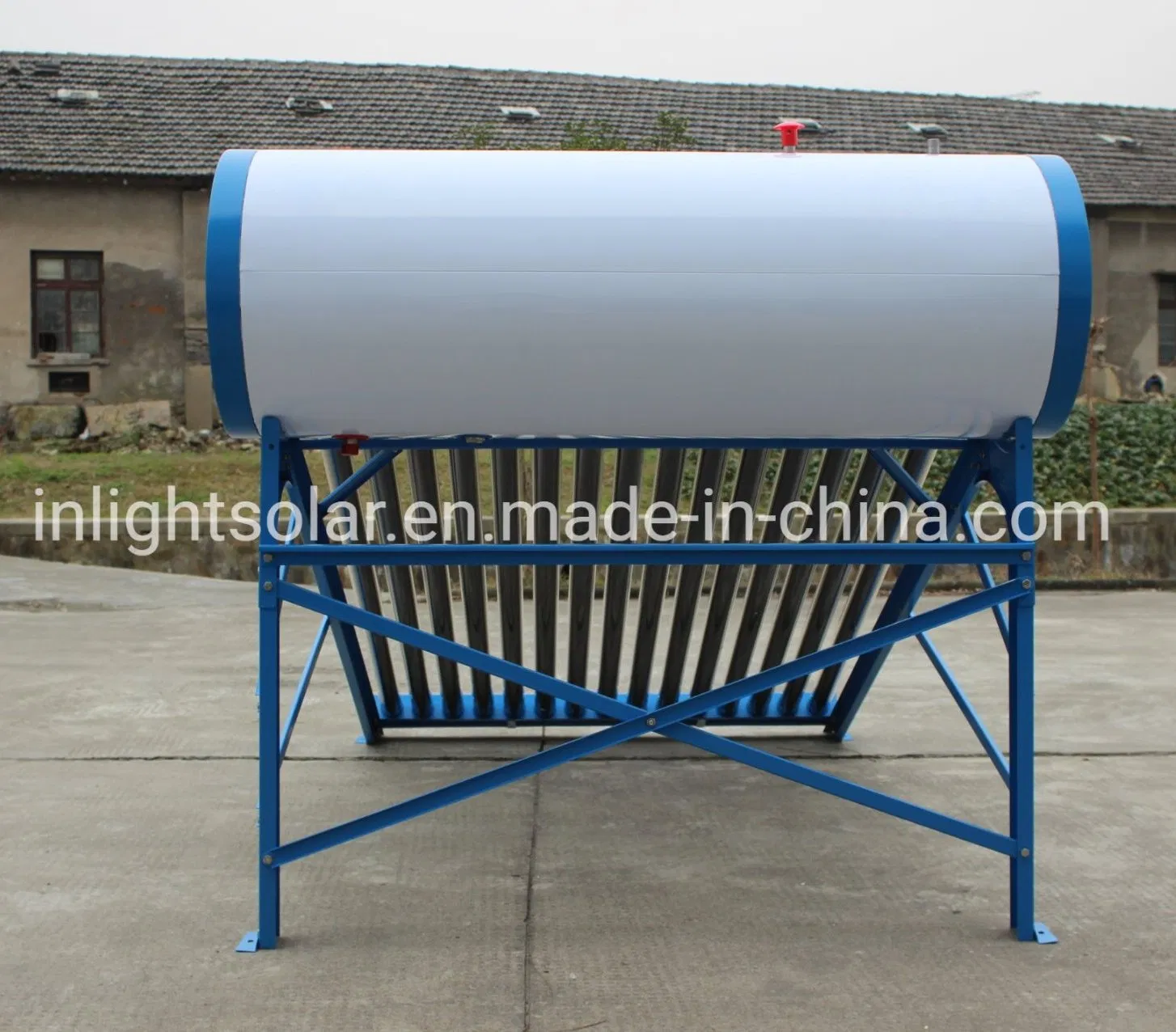

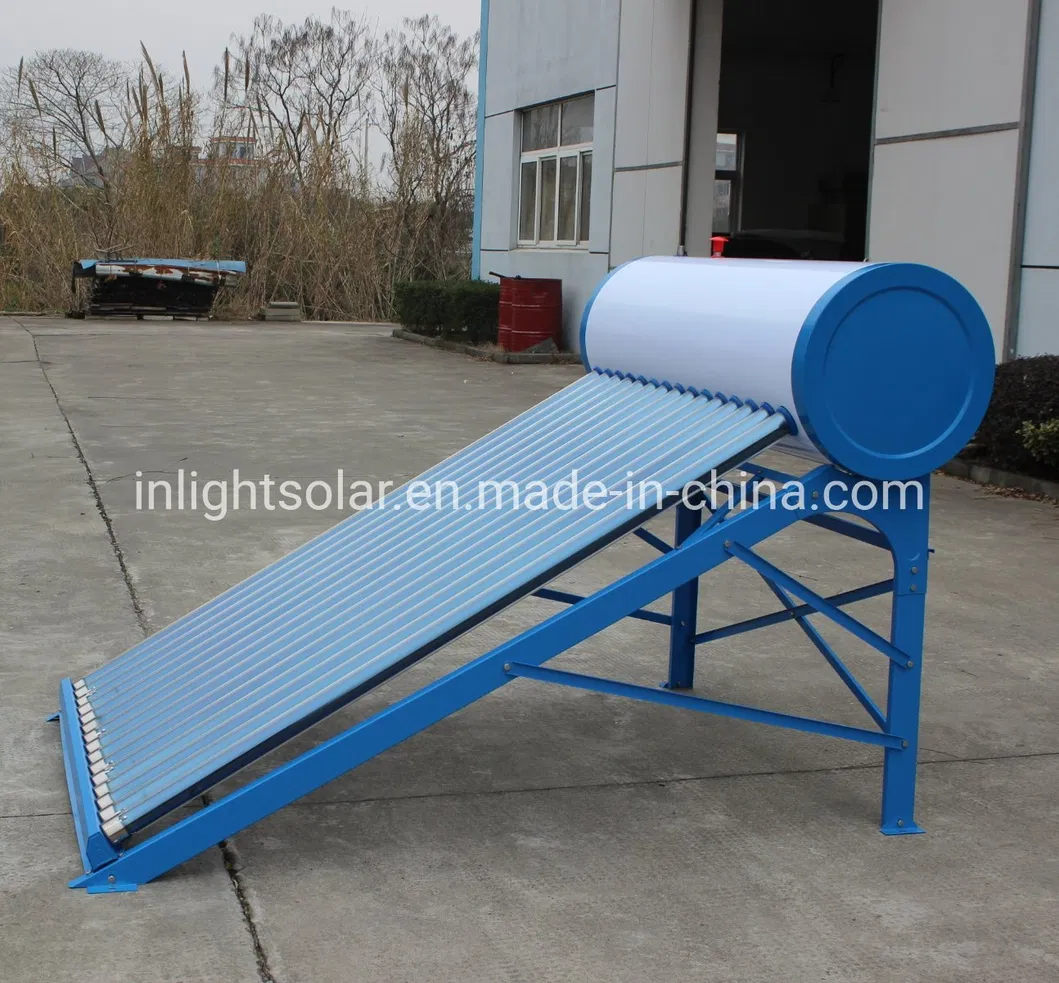

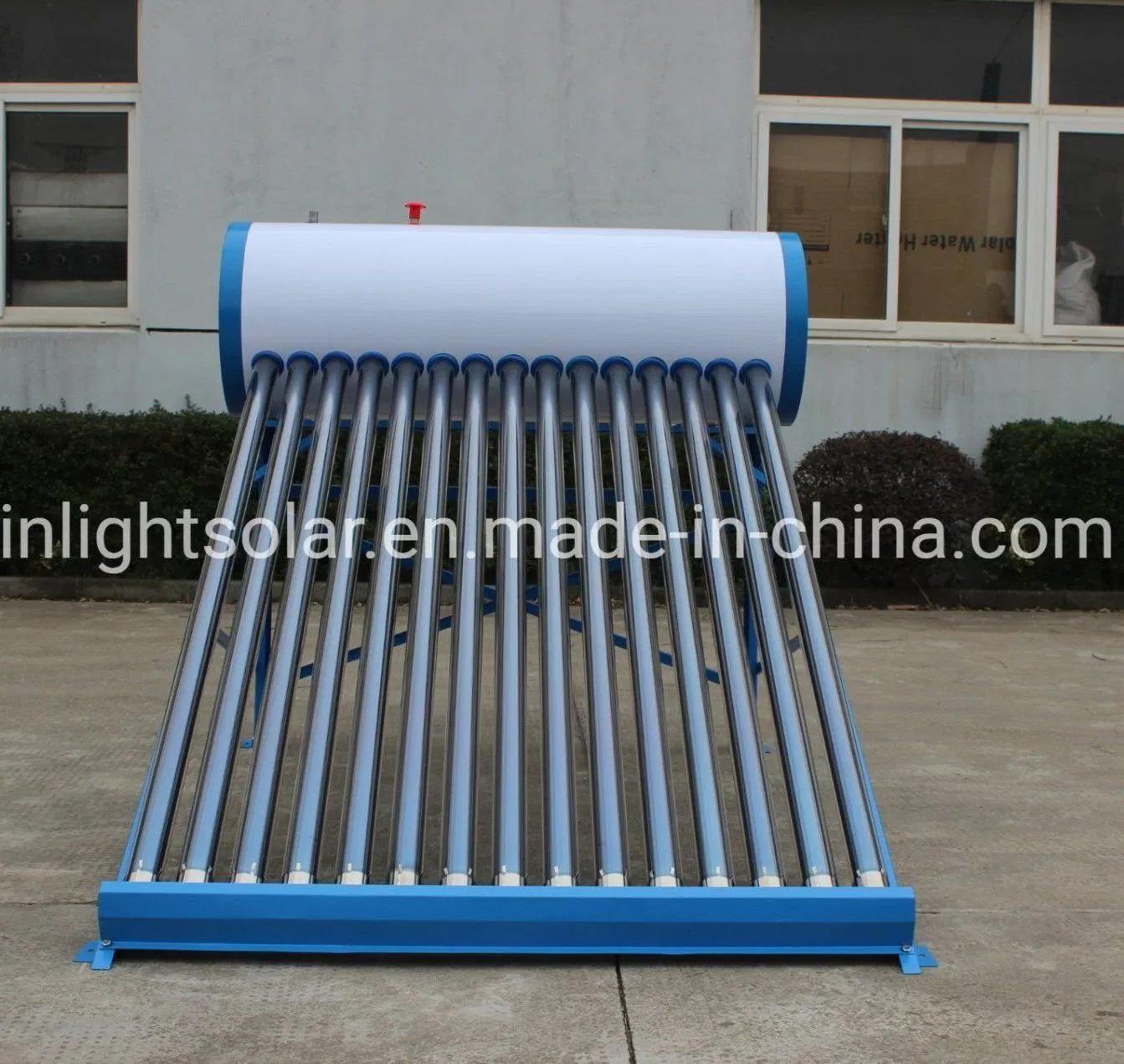

150L Non-pressure Color Steel Solar Water Heater Specifications:
| Component | Specification Details |
|---|---|
| Vacuum Tube | Φ 58× 1800mm, 15 pcs, Borosilicate glass, Cu/SS-ALN(H)/SS-ALN(L)/ALN coating |

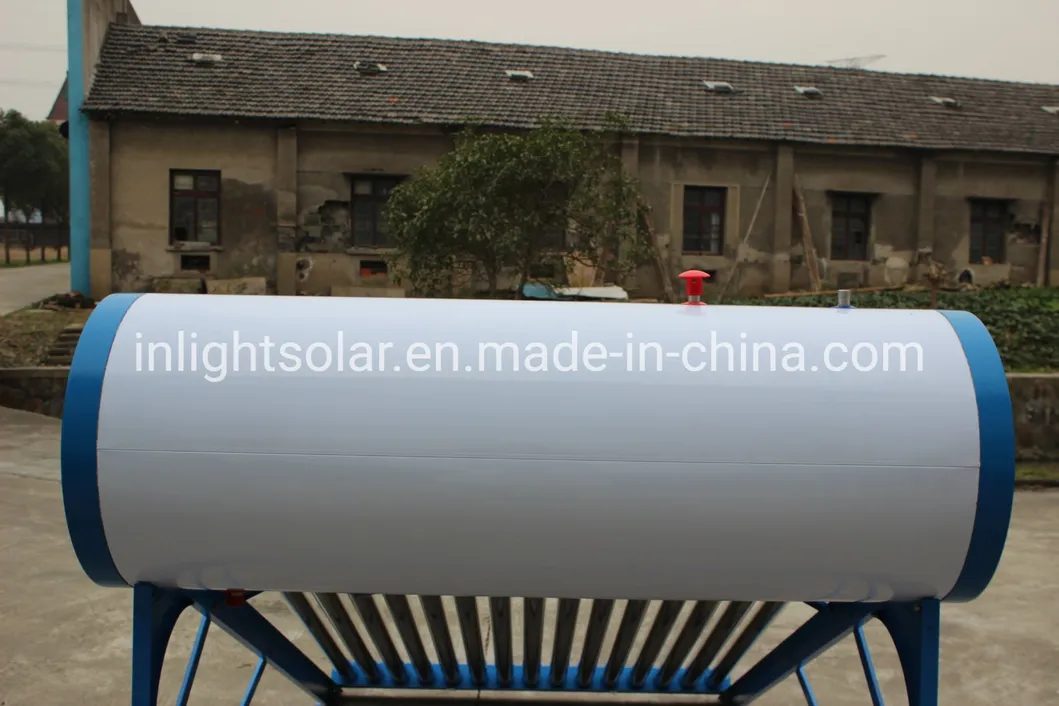

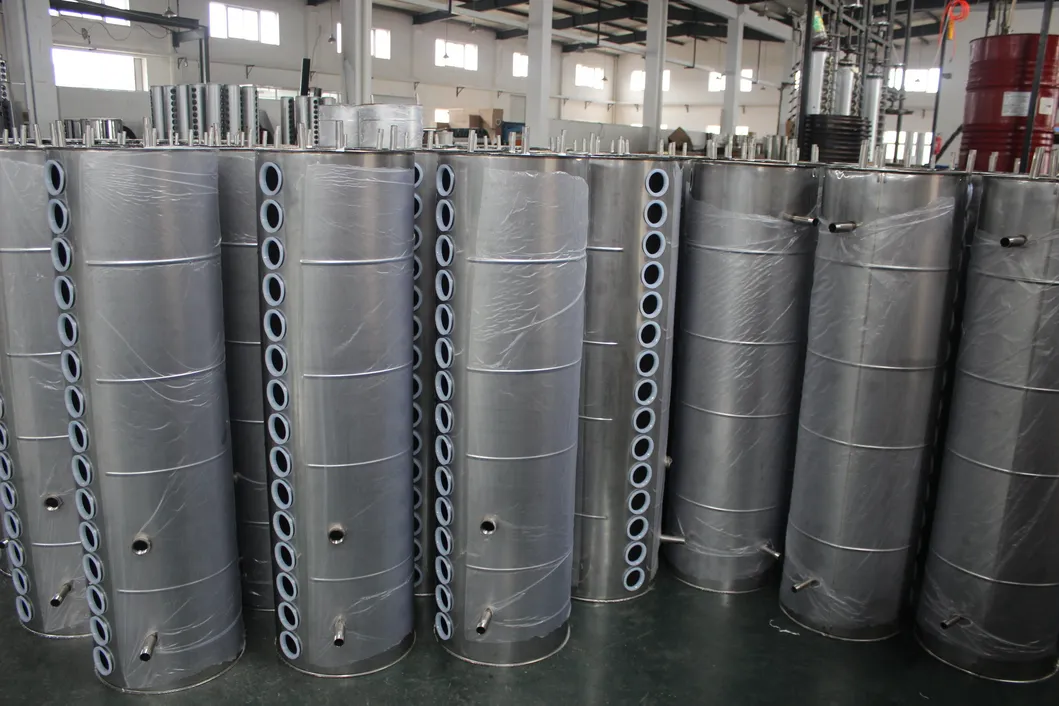

| Water Tank | 150L Capacity, Food-grade SUS304-2B Inner Tank, 50-60mm Polyurethane Insulation, Color Steel Shell |
| Bracket | 1.2 ~ 1.5mm thickness, Hot-dip galvanized steel / Stainless steel / Aluminum alloy |
| Accessories | Stainless bolts & nuts, Silicon rubber seal, Dust proof rubber seal, Plastic pipe holder |
| Optional Devices | Electrical heater, Intelligent controller, Assistant tank, Anode magnesium bar |
| Performance | Tilt angle: 25° ~ 50°, Water output: 45-95° C, Hail resistance: Φ 25mm |

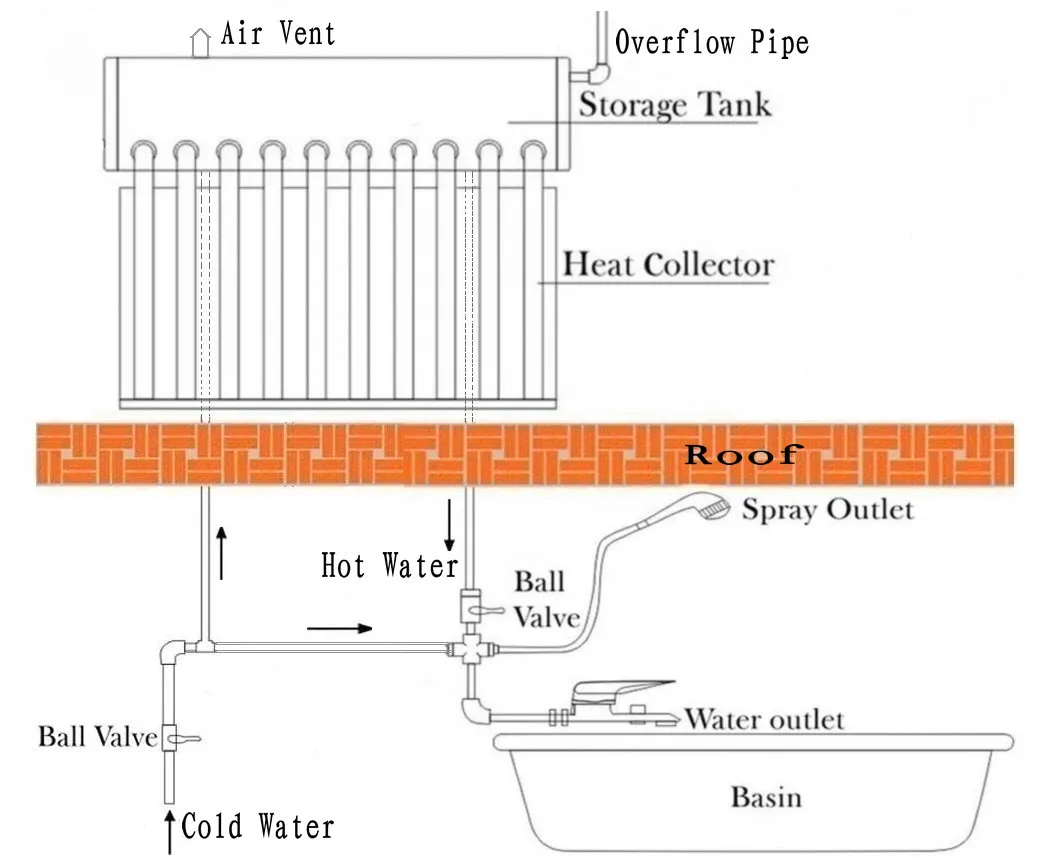

The non-pressure vacuum tube solar water heater operates as an open loop thermosyphon system. The vacuum tubes absorb solar energy and convert it into heat. Based on the thermosyphon principle, heated water in the tubes rises into the tank, while colder water in the tank descends into the tubes. This continuous natural circulation heats the entire water volume efficiently without the need for pumps.
