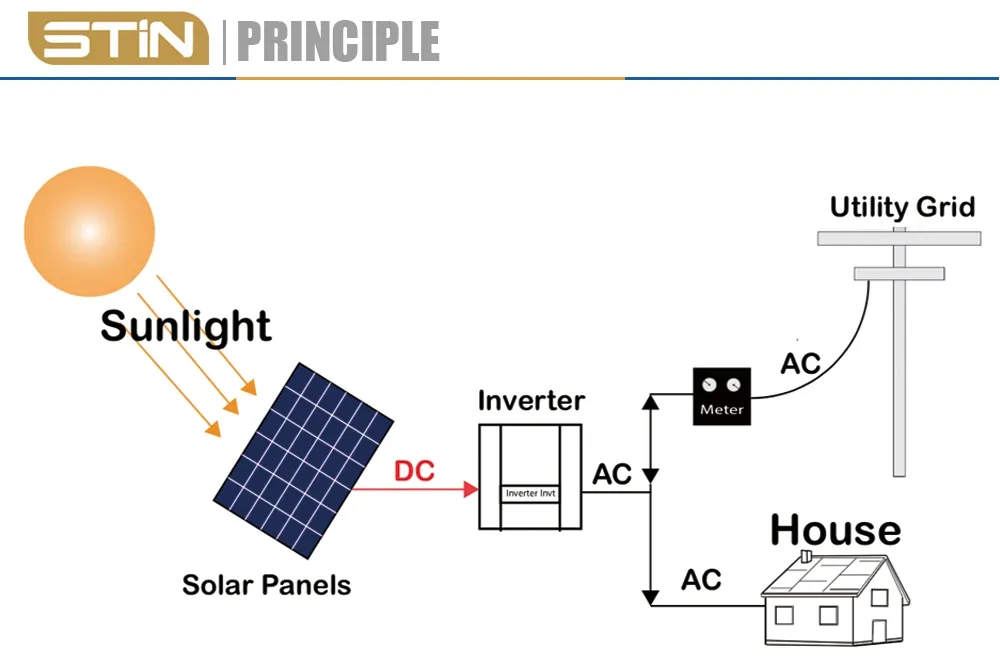

The solar photovoltaic power system connected to the public grid is called an on-grid photovoltaic power generation system. The system structure includes solar battery arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other high-performance components.
This system converts the DC power output by the solar array into AC power with the same amplitude, frequency, and phase as the grid voltage. When sunshine is strong, it supplies the AC load with excess electric energy while feeding it into the grid. During insufficient sunshine, it seamlessly obtains electrical energy from the grid to ensure a continuous power supply.

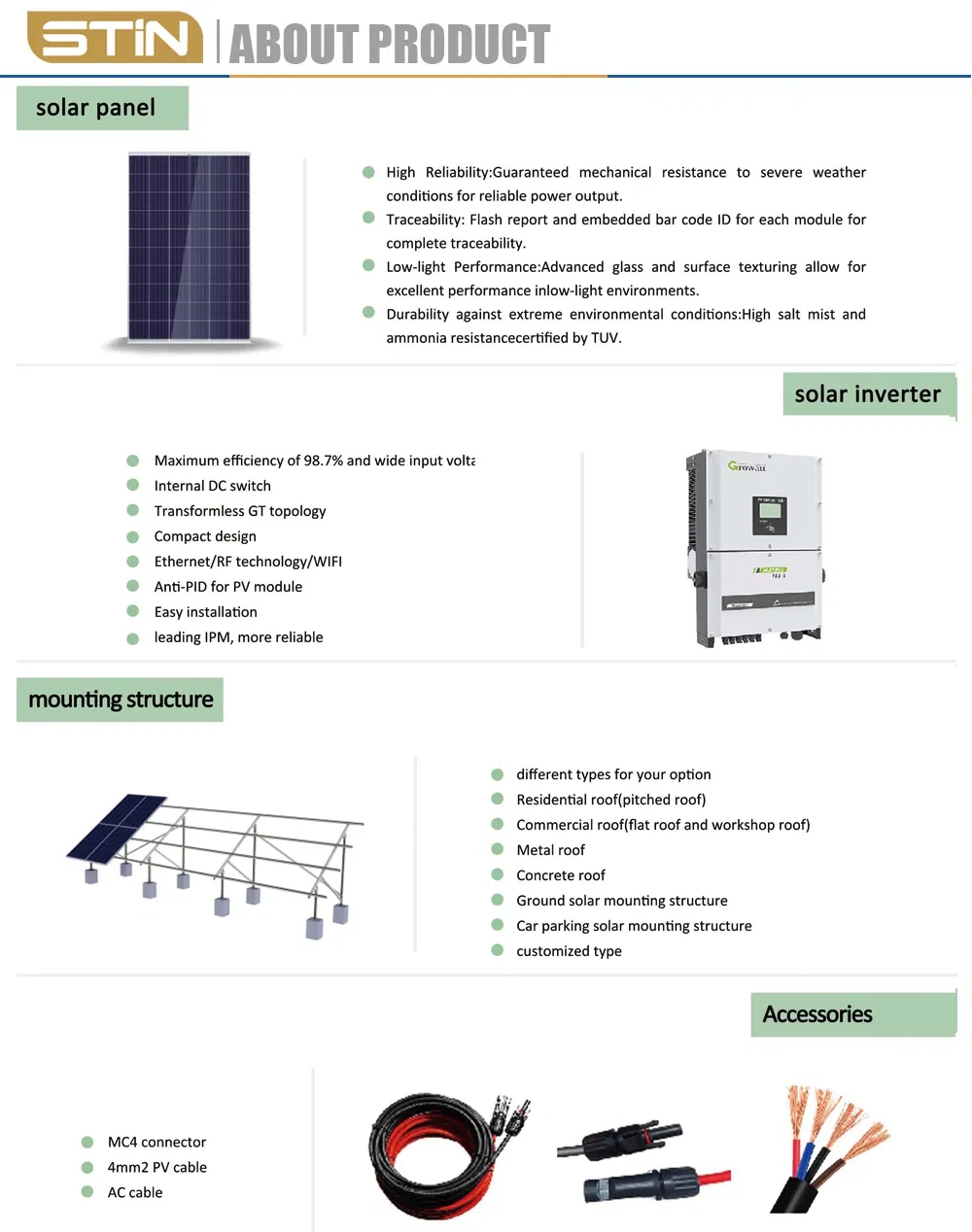

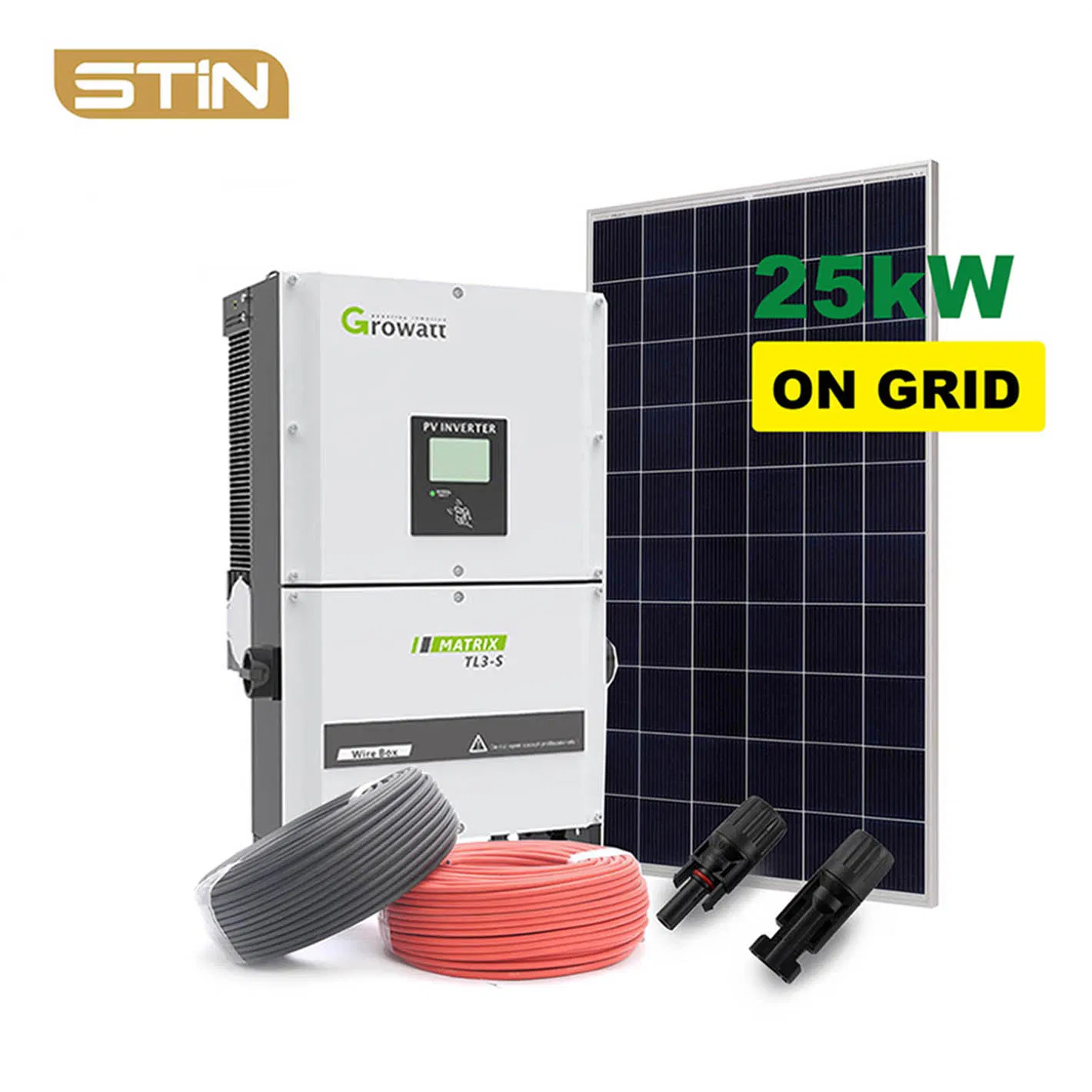

| Item | Part Name | Specification | Quantity | Remarks |
|---|---|---|---|---|

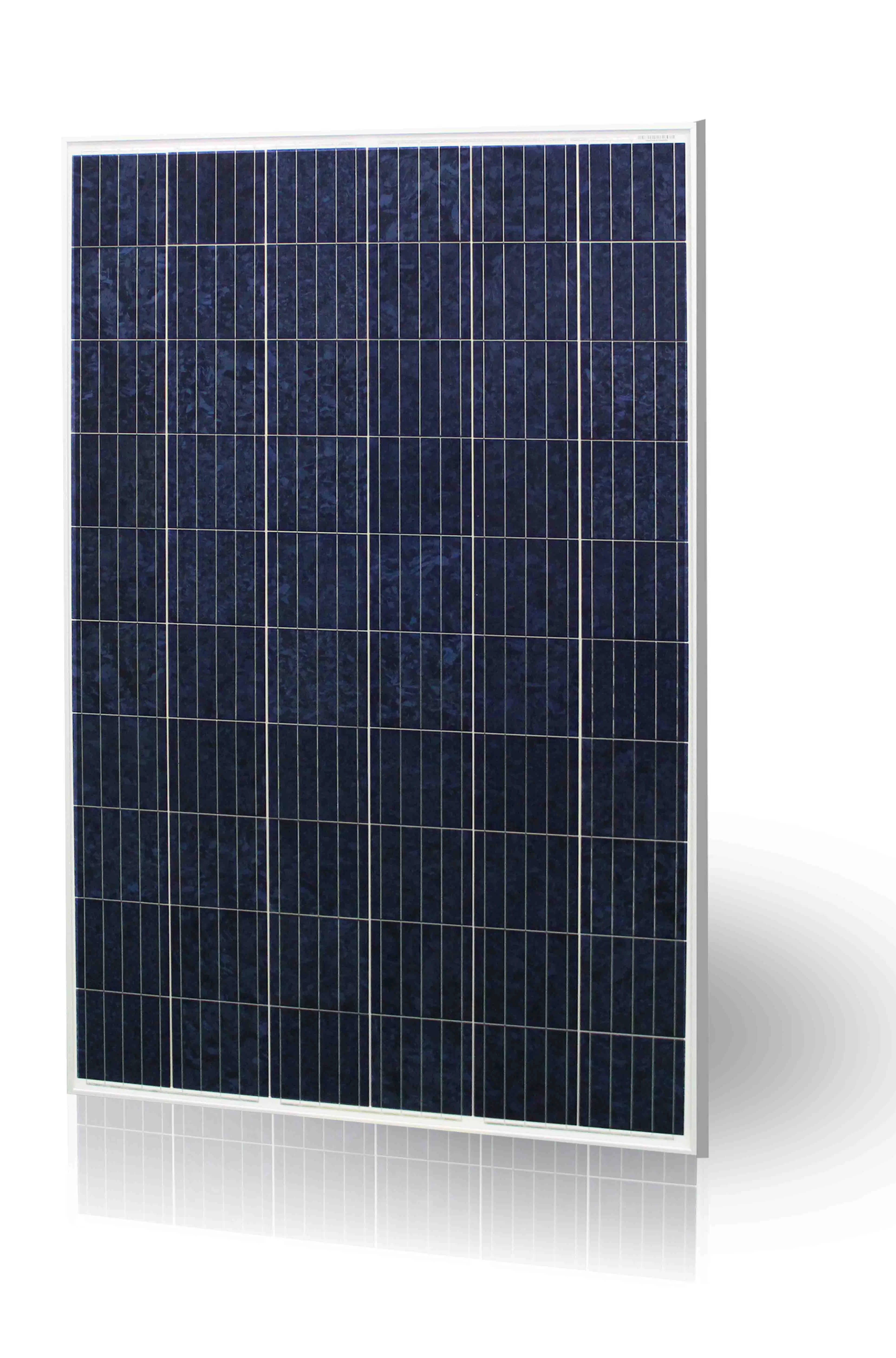

| 1 | Solar Panel | High-Efficiency 290W | 96 | 16pcs in string, 6 strings in parallel |

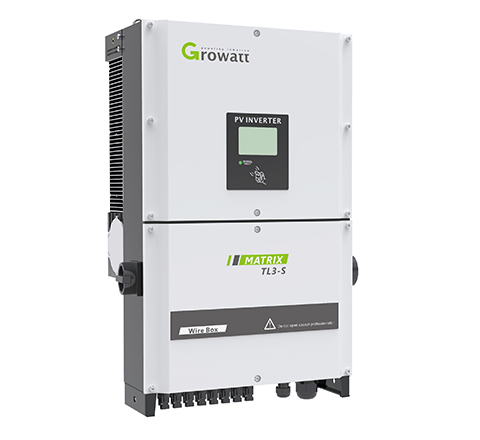

| 2 | Inverter | Growatt 25000TL3-S | 1 | Three Phase Grid-tied |

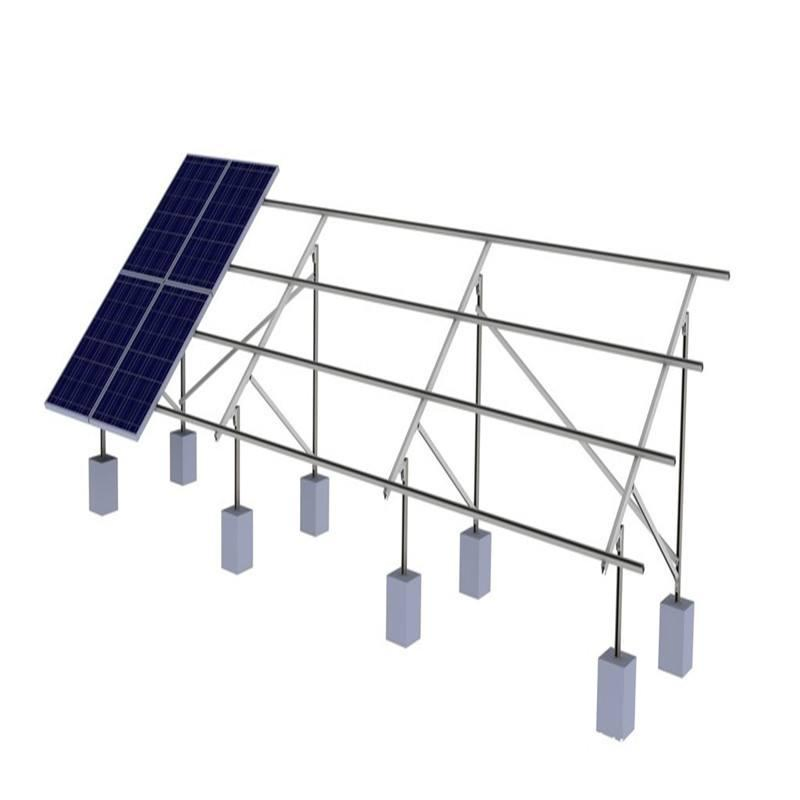

| 3 | Bracket | C-shaped Steel | 1 Set | Hot-dip zinc coating |

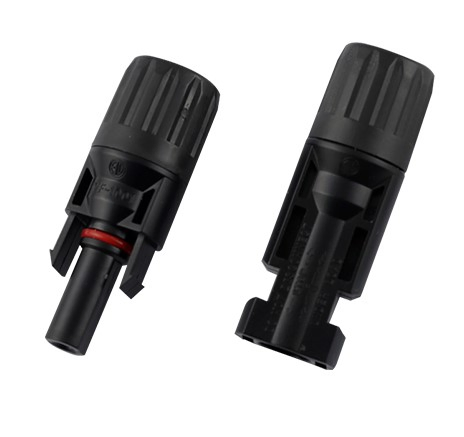

| 4 | Connector | MC4 Standard | 4 Pairs | Weather-resistant |
| 5 | AC Cables | 4*10mm² | 20m | High conductivity |
| 6 | PV Cables | 4mm² | 500m | Solar array to inverter |
| 7 | Distribution Box | AC Distribution | 1 | With breaker and SPD |
Focusing on clean sustainable solar energy, we provide total solutions for the global green energy market. Our expertise spans across the solar industry value chain, including raw materials, PV equipment, EPC (Engineering, Procurement, and Construction), and O&M (Operations and Maintenance).
With a commitment to environmental protection and high-quality raw materials, we supply everything from 3KW residential kits to large-scale industrial solutions. We endeavor to protect precious environmental values through the promotion of efficient photovoltaic utilization.
