Industrial and Commercial 25kwh Air Bess Solar Energy Storage Lithium Ion Battery System Solution Container

1 / 5

Industrial and Commercial 25kwh Air Bess Solar Energy Storage Lithium Ion Battery System Solution Container

Customization:	Available
Container Size:	800X1200X2100 mm
Weight:	800kg

Send Inquiry

Product Description

Industrial and Commercial Energy Storage Solution

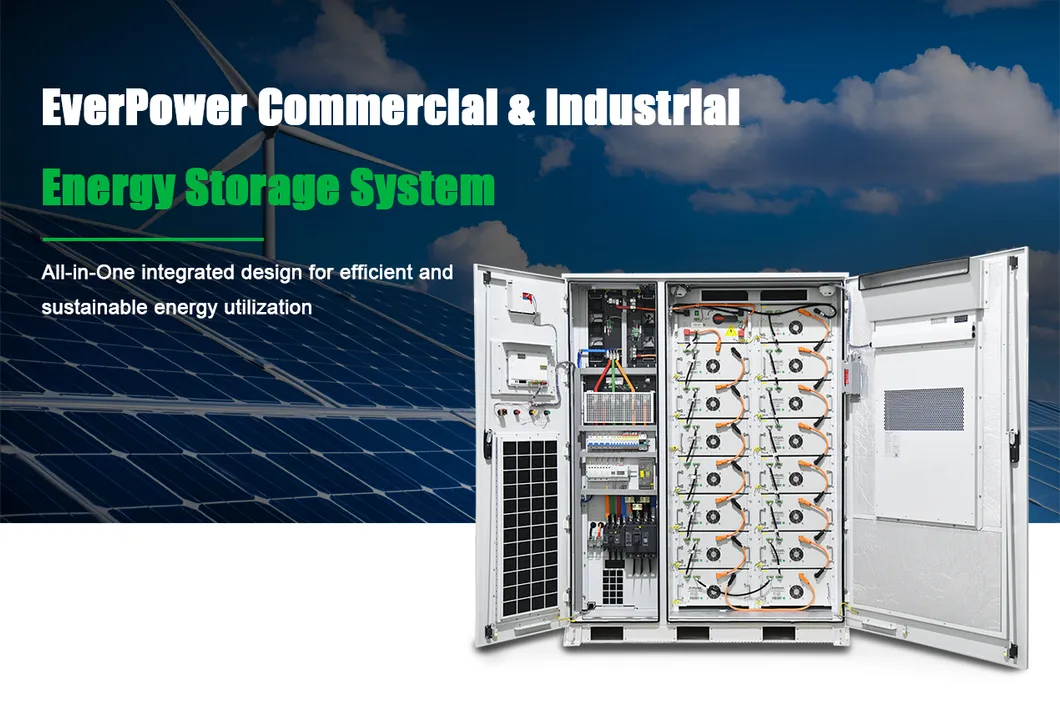

The All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting systems, and heat dissipation systems within a single cabinet. This high-power backup power solution is designed for commercial, industrial, and grid-level customers. Featuring a high-voltage energy storage system, it offers maximum flexibility for both rack-mounted and cabinet-based constructions. Engineered to be "Safer, Smarter, and Simpler," it is the ideal solution for substations, microgrids, factories, shopping malls, and solar storage charging stations.

Model CO50K-100E

Nominal Voltage 512V

Nominal Capacity 100Ah

Cycle Life 6000 Cycles

Battery Type Lithium Iron Phosphate

Ingress Protection IP54 / IP21

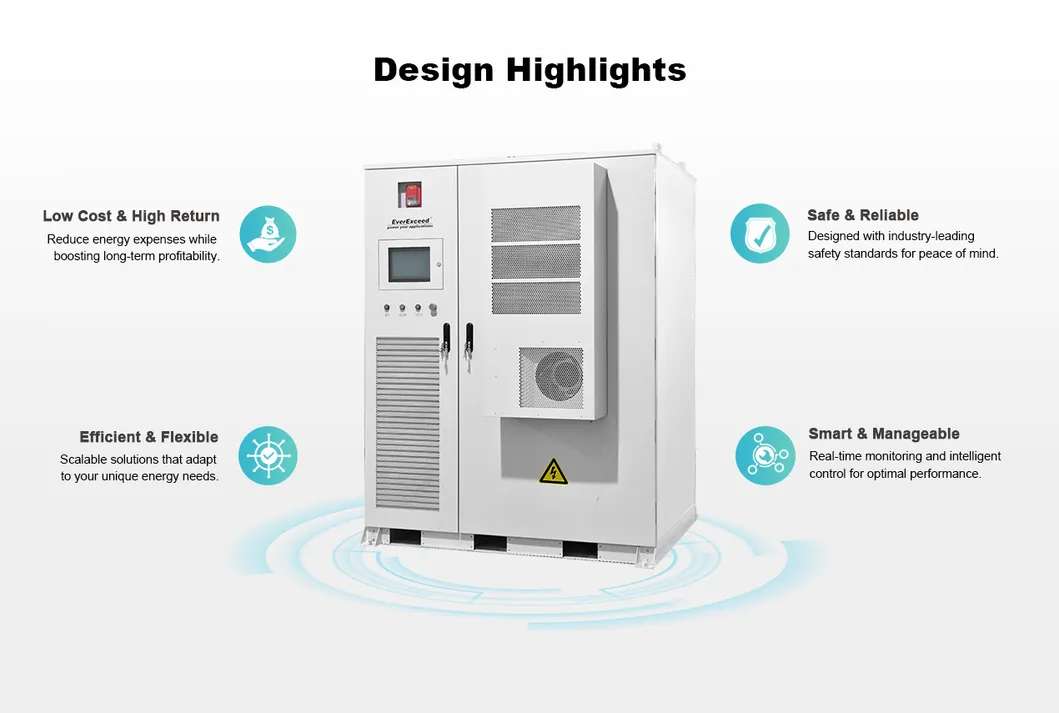

Technical Features

🔌

Wide Compatibility

Compatible with diverse operation environments and fully supports both lead-acid and lithium-ion battery integration.

❄️

Cold Start Function

Supports off-grid cold start and multi-machine parallel functions for enhanced reliability.

🛡️

Multiple Protection

Comprehensive protection against overcharge, over-discharge, short-circuit, and extreme temperatures.

⚡

High Efficiency

Boasts the highest power density with peak efficiency reaching up to 97.5%.

📱

Smart Interface

Flexible communication accepting real-time BMS commands via RS485 and CAN protocols.

📐

Compact Design

Small footprint for easy installation, transportation, and long-term maintenance.

Product Parameters

Product Model	CO25K-50E	CO50K-100E	CO100K-215E	CO150K-300E
Electrical Parameters
Nominal AC Power	25 kW	50 kW	100 kW	150 kW
Grid Type	3W+N
Nominal Grid Voltage	400 Vac
Rated AC Output Current	36.2 A	72 A	152 A	200 A
Battery Parameters
Cell Chemistry	Lithium Iron Phosphate (LFP)
Battery Energy Capacity	51.2 kWh	100 kWh	215 kWh	315 kWh
Cycle Life	6000+ cycles	10000+ cycles	10000+ cycles	10000+ cycles
Mechanical & Solar
Cooling Method	Air-conditioner
Fire Fighting System	Yes
Max. PV Input Power	30 kW	60 kW	120 kW	240 kW
Dimensions (WDH) mm	800x1200x2100	1000x1450x2100	1738x1250x2330	Customized

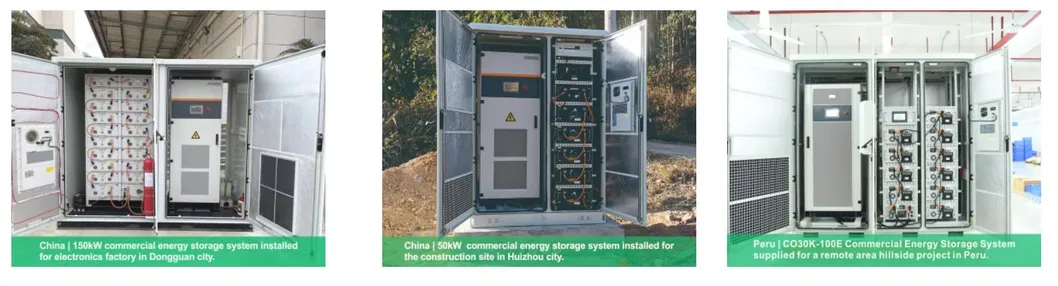

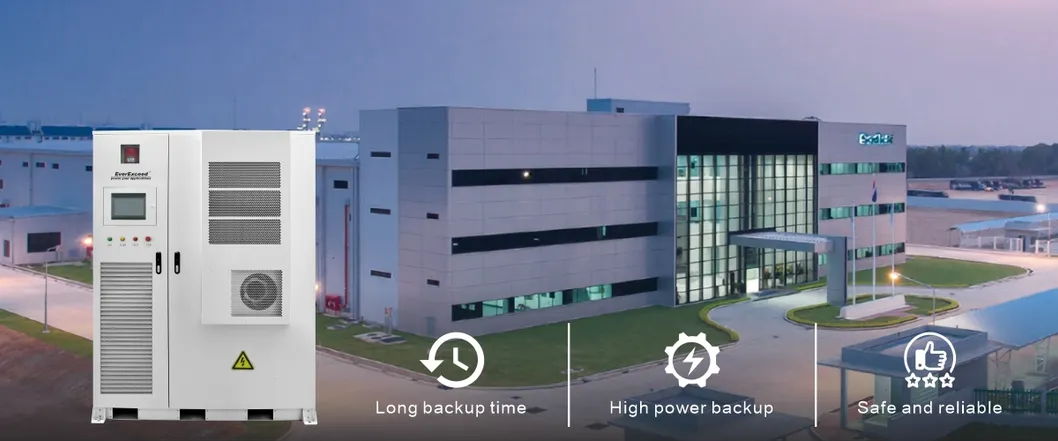

Main Applications

Solar + Storage for uninterrupted power supply
Off-grid applications with generator integration
Peak load shifting for TOU tariff arbitrage
Peak shaving to reduce demand charges
Emergency backup power for factories

Packaging & Logistics

Payment Terms	T/T, L/C, Cash, Western Union (Flexible terms available)
Delivery Methods	Sea, Air, Train, or Truck transportation
Lead Time	Standard 4 weeks ex-factory (excluding shipping time)
Packing	Reinforced carton boxes secured on wooden pallets or crates

Frequently Asked Questions

Q1: What is the lifespan of this energy storage system? A: The system uses high-quality LiFePO4 cells, providing over 6,000 to 10,000 cycles with a design life of 15 to 20 years depending on the specific model and usage conditions.

Q2: Is the system safe for outdoor installation? A: Yes, the system features an IP54-rated cabinet and includes an integrated air-conditioning system and fire-fighting system to ensure safe operation in various outdoor environments.

Q3: Can this ESS be used with solar panels and diesel generators? A: Absolutely. It supports "Solar + Storage + Generator" configurations, making it ideal for off-grid applications or areas with unstable grid supply.

Q4: How does peak load shifting help save money? A: The system charges during off-peak hours (low electricity rates) and discharges during peak hours (high rates), significantly reducing your overall energy costs through tariff arbitrage.

Q5: What kind of maintenance is required? A: Thanks to the integrated Smart EMS and BMS, the system is mostly self-monitored. Regular inspections of the cooling system and cleaning of air filters are typically the only required maintenance.

Q6: Are the capacities customizable for larger projects? A: Yes, the systems are modular and can be customized in terms of both power (kW) and energy (kWh) to meet the specific requirements of your industrial or commercial facility.
