Professional manufacturer of Solar Water Heaters, providing both Pressurized and Non-pressurized solutions. We offer OEM and ODM manufacturing services to meet specific technical requirements.

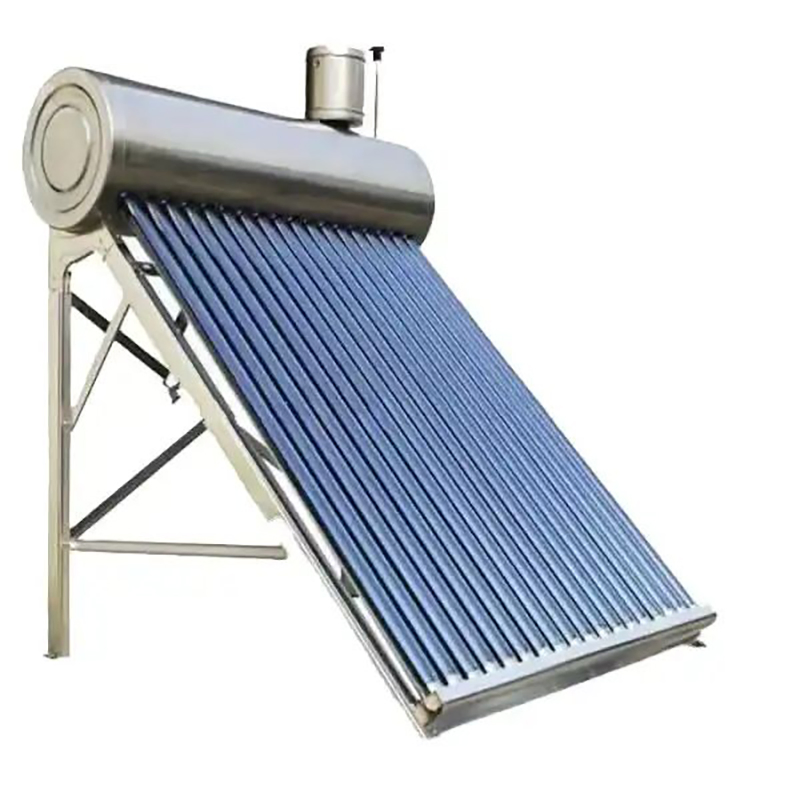

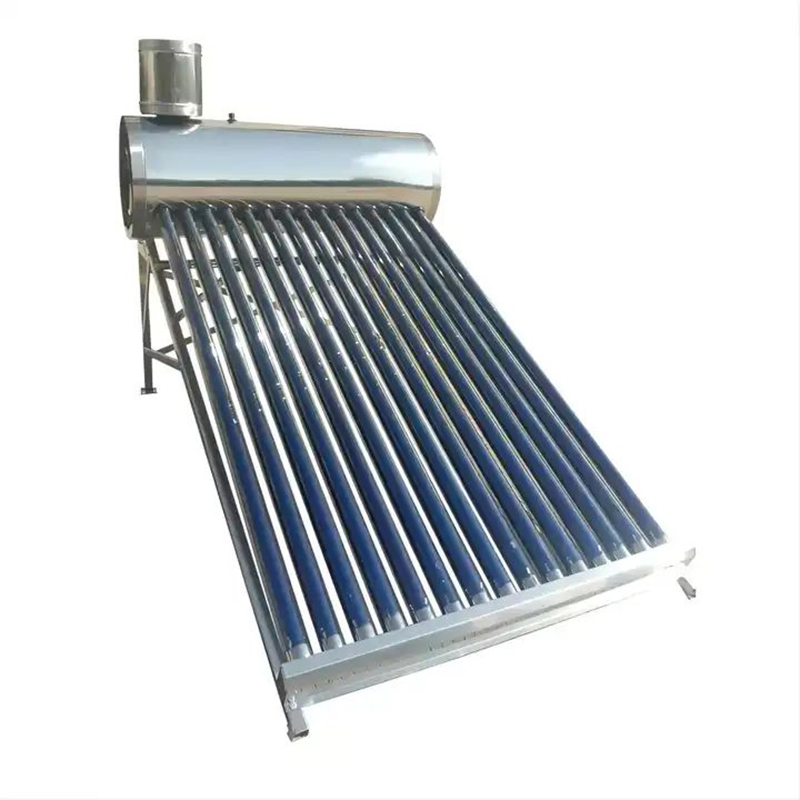

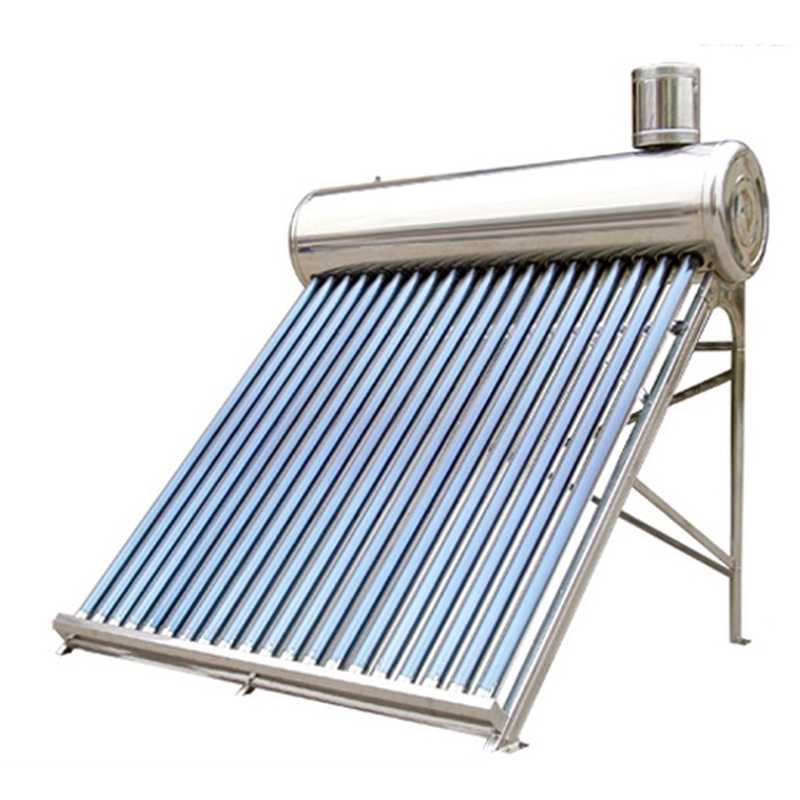

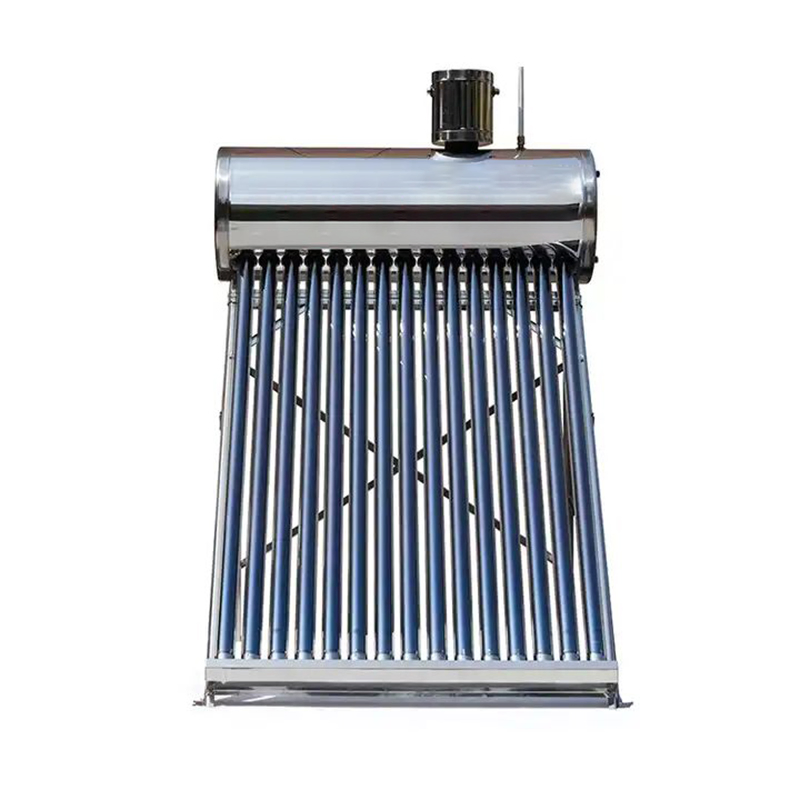

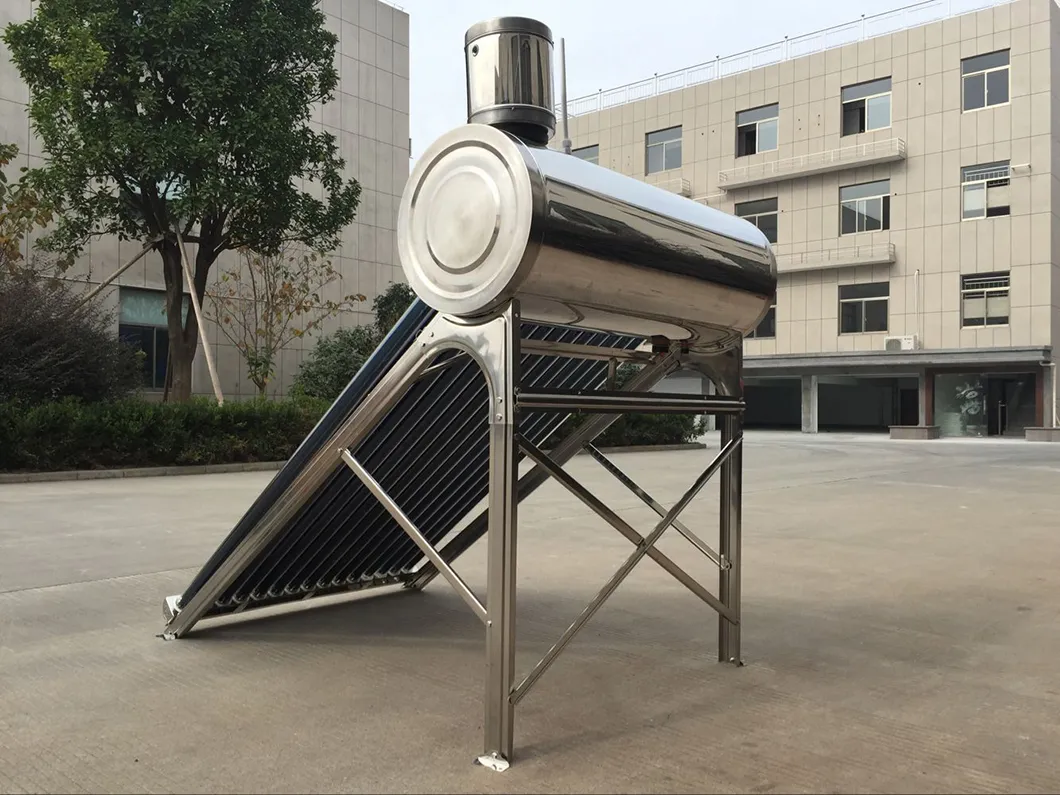

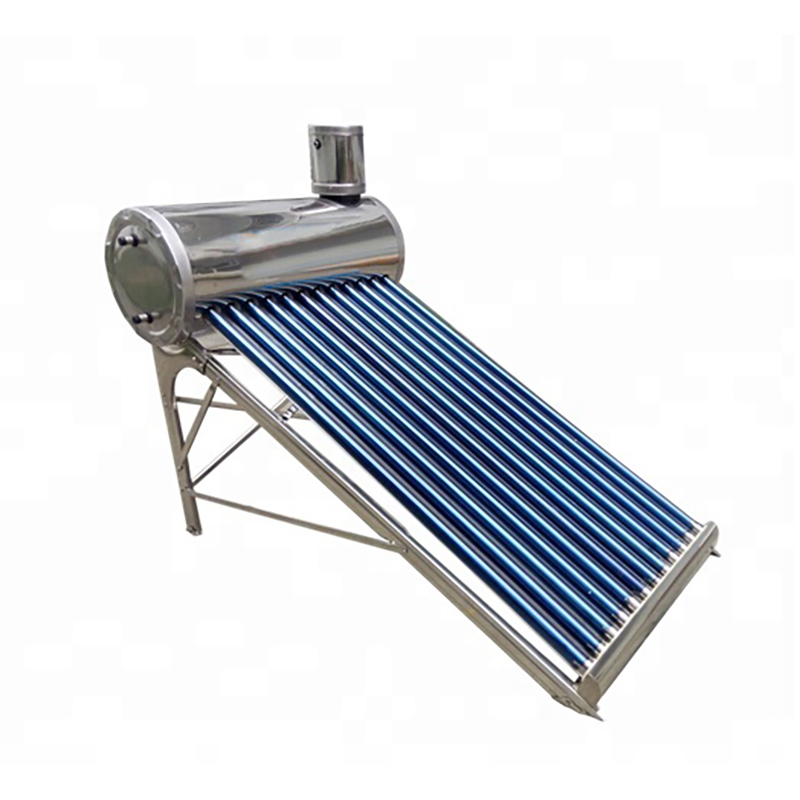

All Stainless Steel Solar Water Heaters (with Assistant Tank)
Capacity Range: 105 liters - 365 liters
| Specification | 105L | 155L | 205L | 255L | 305L | 365L | |
|---|---|---|---|---|---|---|---|
| Technical Details | Tube Quantity | 10 | 15 | 20 | 25 | 30 | 36 |
| Vacuum Tube | Ø58×1800mm | ||||||
| Coating | CU-SS-AL three targets coating | ||||||
| Inner Tank | Stainless steel SUS304, thickness 0.41mm | ||||||
| Outer Tank | Stainless steel SUS201, thickness 0.31mm | ||||||
| Tank Diameter | Inner 360mm / Outer 460mm | ||||||
| Insulation | Polyurethane 50mm, high density 40kg/m3 | ||||||
| Heat Preservation | 72-80 hours | ||||||
| Frame | Stainless steel SUS201, thickness 1.2mm | ||||||

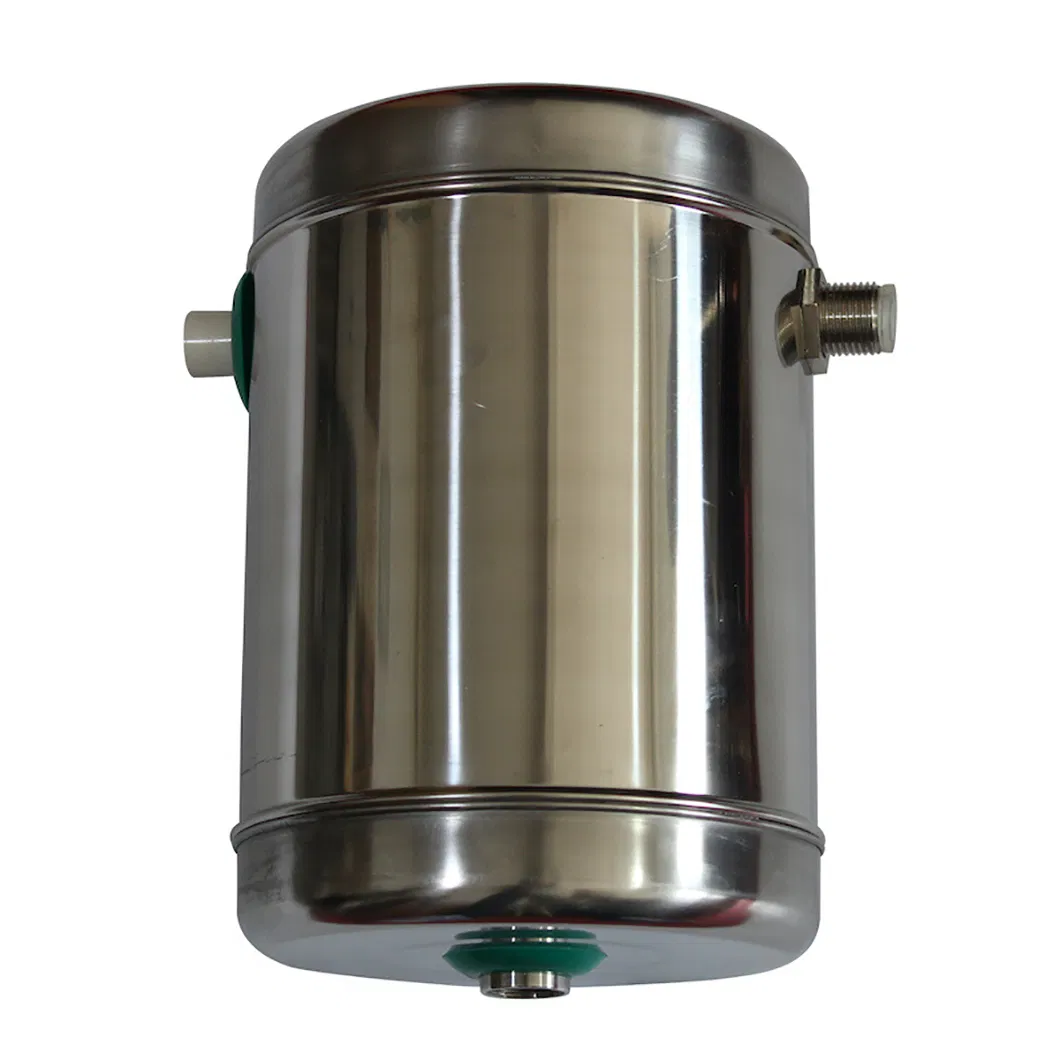

| Assistant Tank | Stainless steel feed tank 5 Liter | ||||||

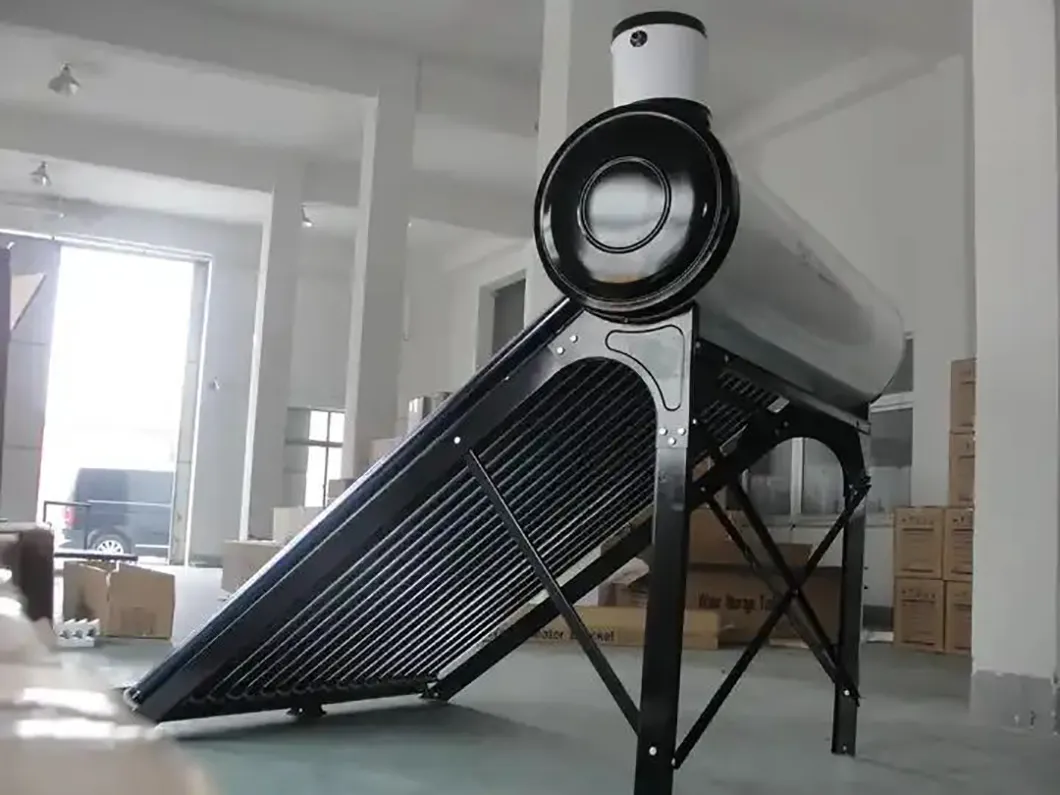

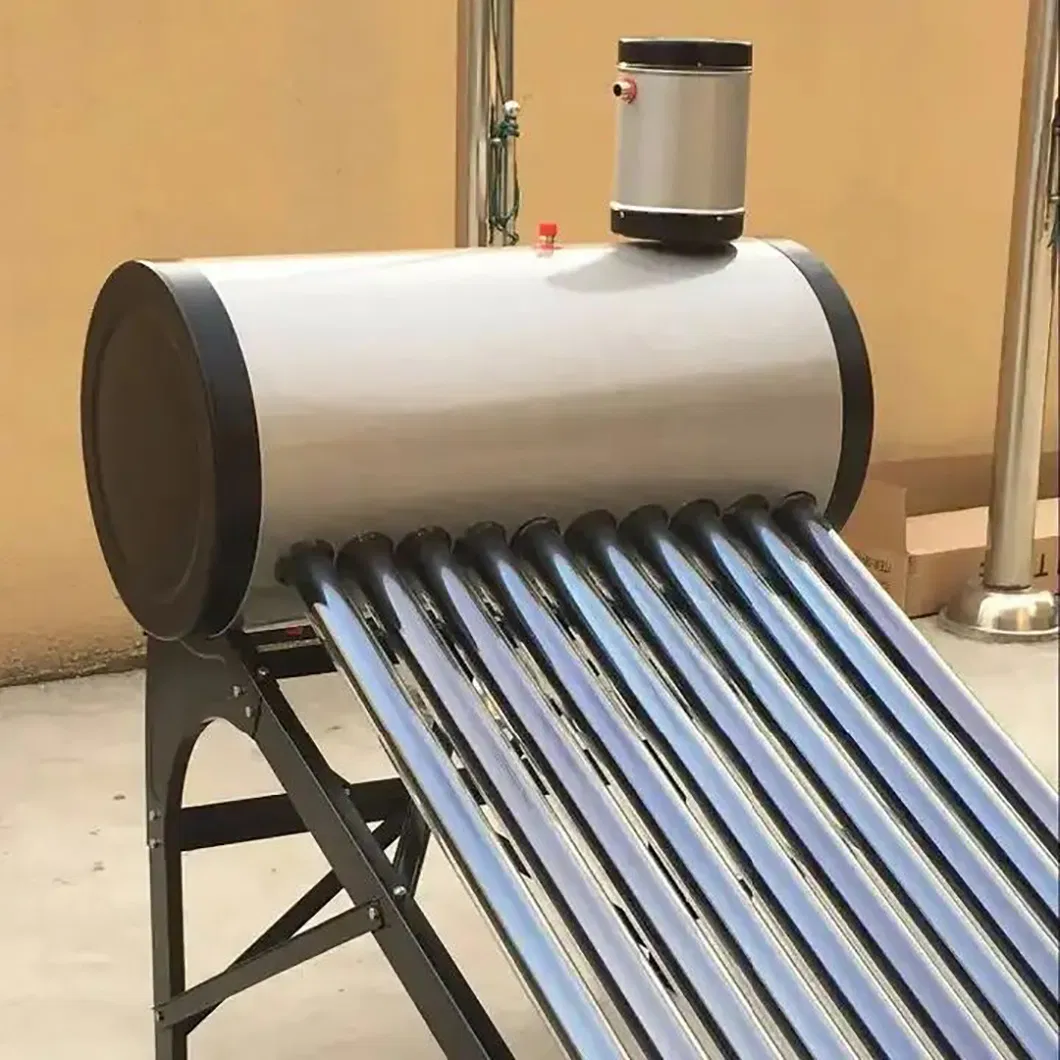

Galvanized Steel Solar Water Heaters (with Assistant Tank)
Capacity Range: 105 liters - 365 liters
| Specification | 105L | 155L | 205L | 255L | 305L | 365L | |
|---|---|---|---|---|---|---|---|
| Technical Details | Tube Quantity | 10 | 15 | 20 | 25 | 30 | 36 |
| Vacuum Tube | Φ58×1800mm | ||||||
| Inner Tank | Stainless steel SUS304, thickness 0.41mm | ||||||
| Outer Tank | Galvanized steel, thickness 0.31mm | ||||||
| Insulation | Polyurethane 50mm, high density 40kg/m3 | ||||||
| Heat Preservation | 72-80 hours | ||||||
| Frame | Galvanized steel, thickness 1.5mm | ||||||
| Assistant Tank | Galvanized steel feed tank 5 Liter | ||||||
