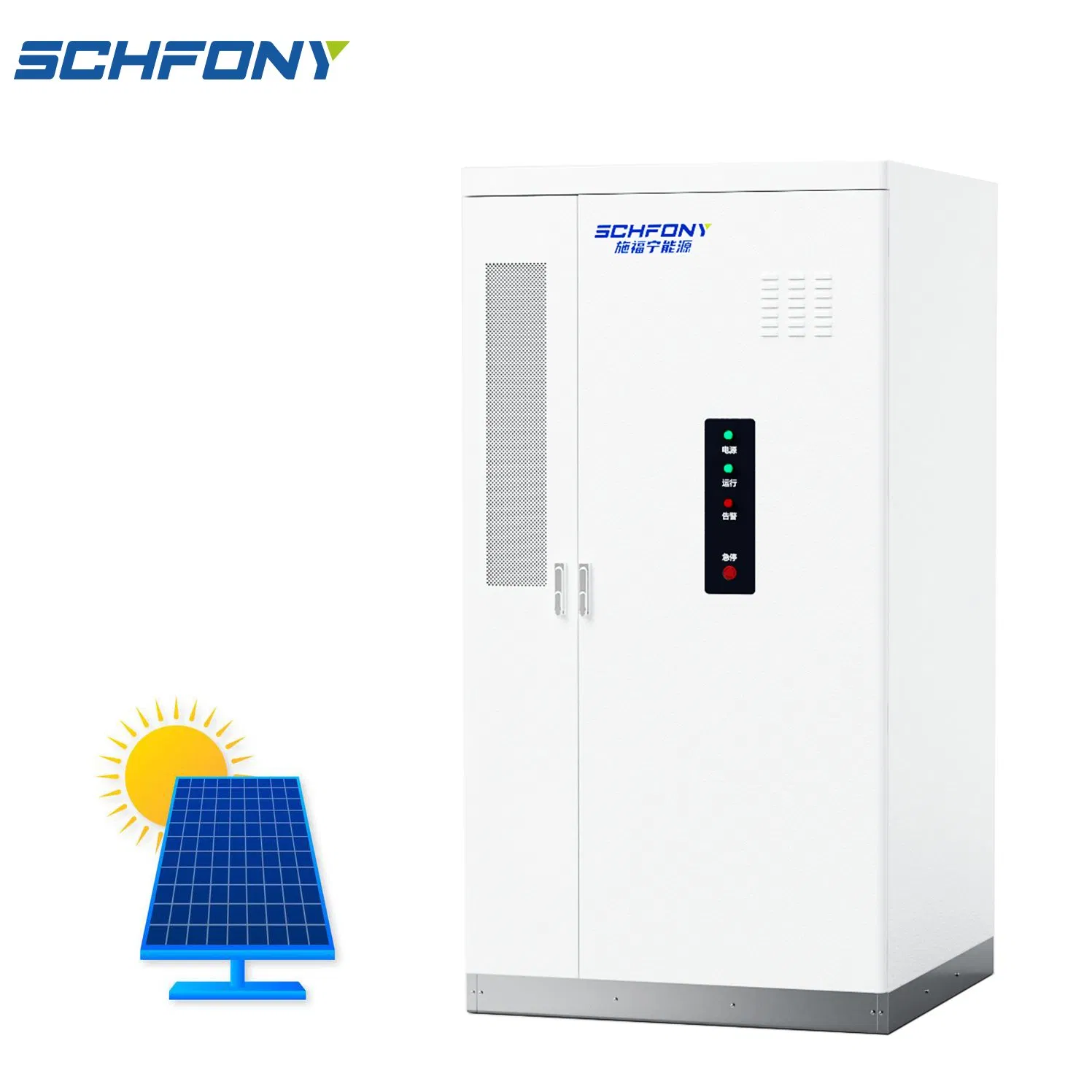

344kwh Battery Energy Storage System Bess Solar Energy System Save Cost

1 / 5

344kwh Battery Energy Storage System Bess Solar Energy System Save Cost

Customization:	Available
Rated capacity:	344KWh
Cooling method:	liquid cooling

Send Inquiry

Product Description

Basic Product Information

Model NO.	SET-ESS-MAT344Y	Size	130013252200mm
Rated Voltage	1228.8Vdc	Weight	3500kg
Origin	China	Specification	Customized Available

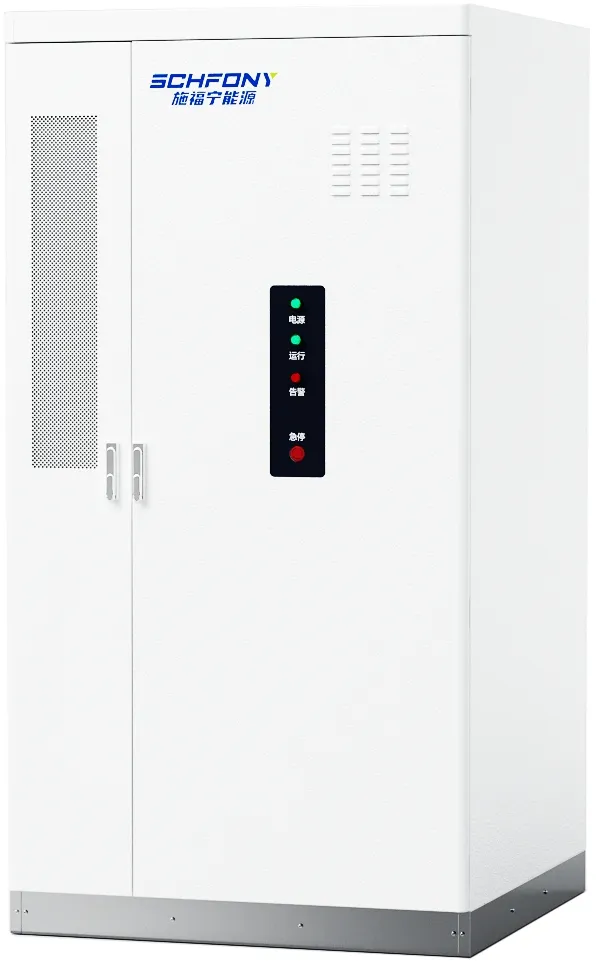

High Voltage Liquid Cooled Energy Storage System

Product Overview

Hot Sale Outdoor Energy Storage Container Inverter System

◈ Rated Capacity: 344kWh

◈ Fire Fighting: Perfluorohexanone + water immersion for enhanced safety.

◈ Cooling Mode: Advanced liquid cooling for optimal temperature control.

◈ BMS Control: Smart information acquisition and communication.

Technical Specifications

DC Side Parameters		System Parameters
Core Parameters	LFP-3.2V/280Ah	Protection Level	IP54
Battery Type	Lithium Iron Phosphate	Communication	CAN / RS485

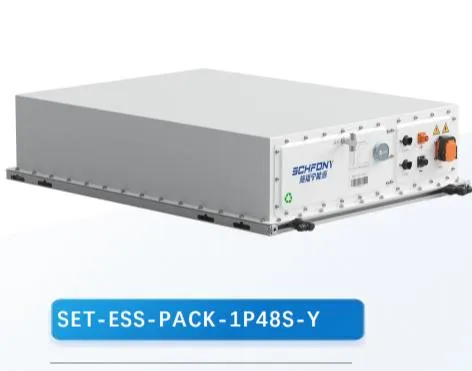

Grouping Method	1P48S*8	Charging Ratio	0.5C
Rated Current	140Adc	Sensor Detection	Temp, Smoke, Gas

Core Advantages

More Safer

Triple-level circuit breaker protection and high-innovation perfluorohexanone fire suppression systems.

More Economic

Intelligent thermal management and modular design to maximize efficiency and ROI.

More Convenient

Plug-and-play deployment with minimalist operation and maintenance requirements.

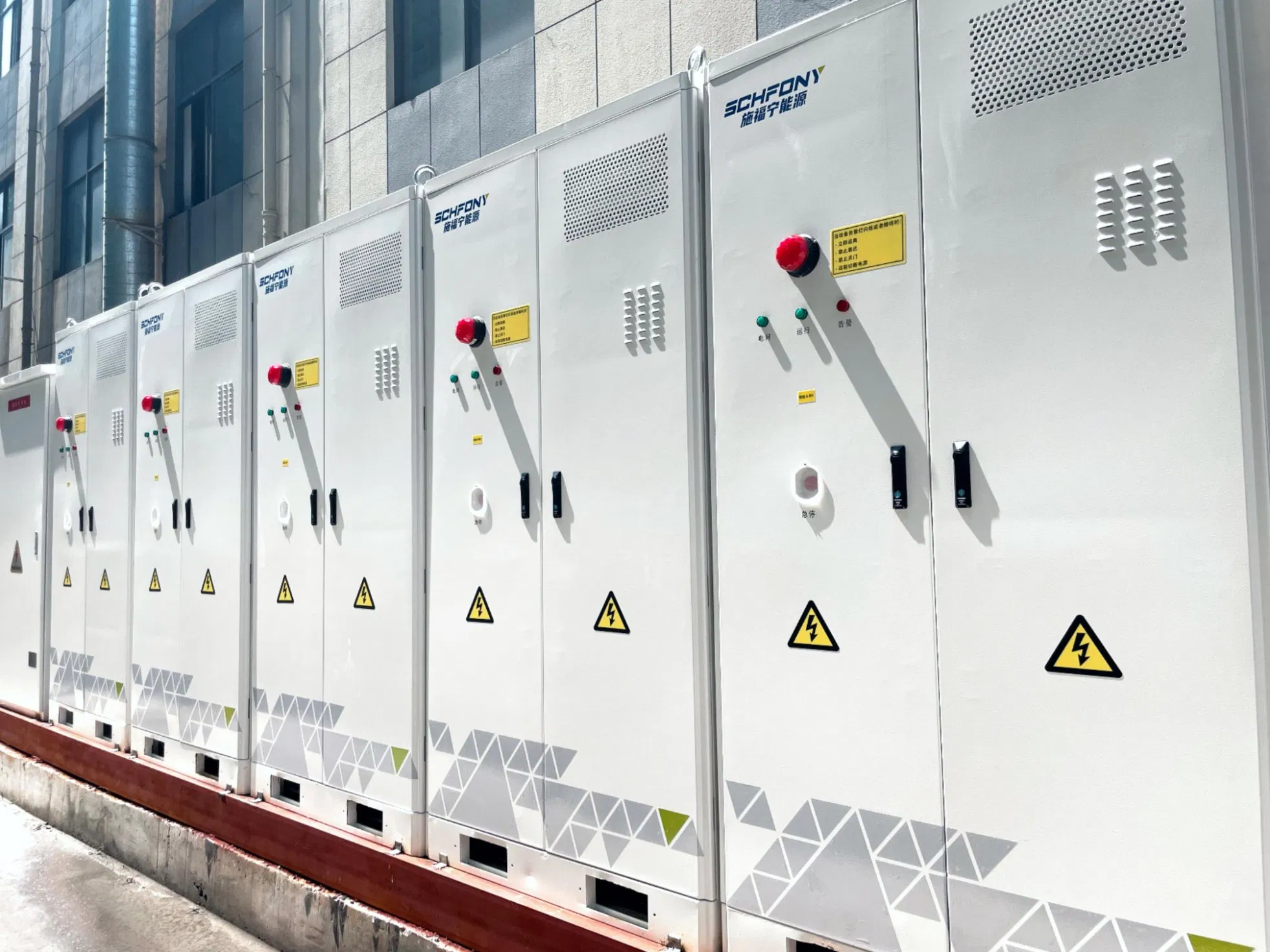

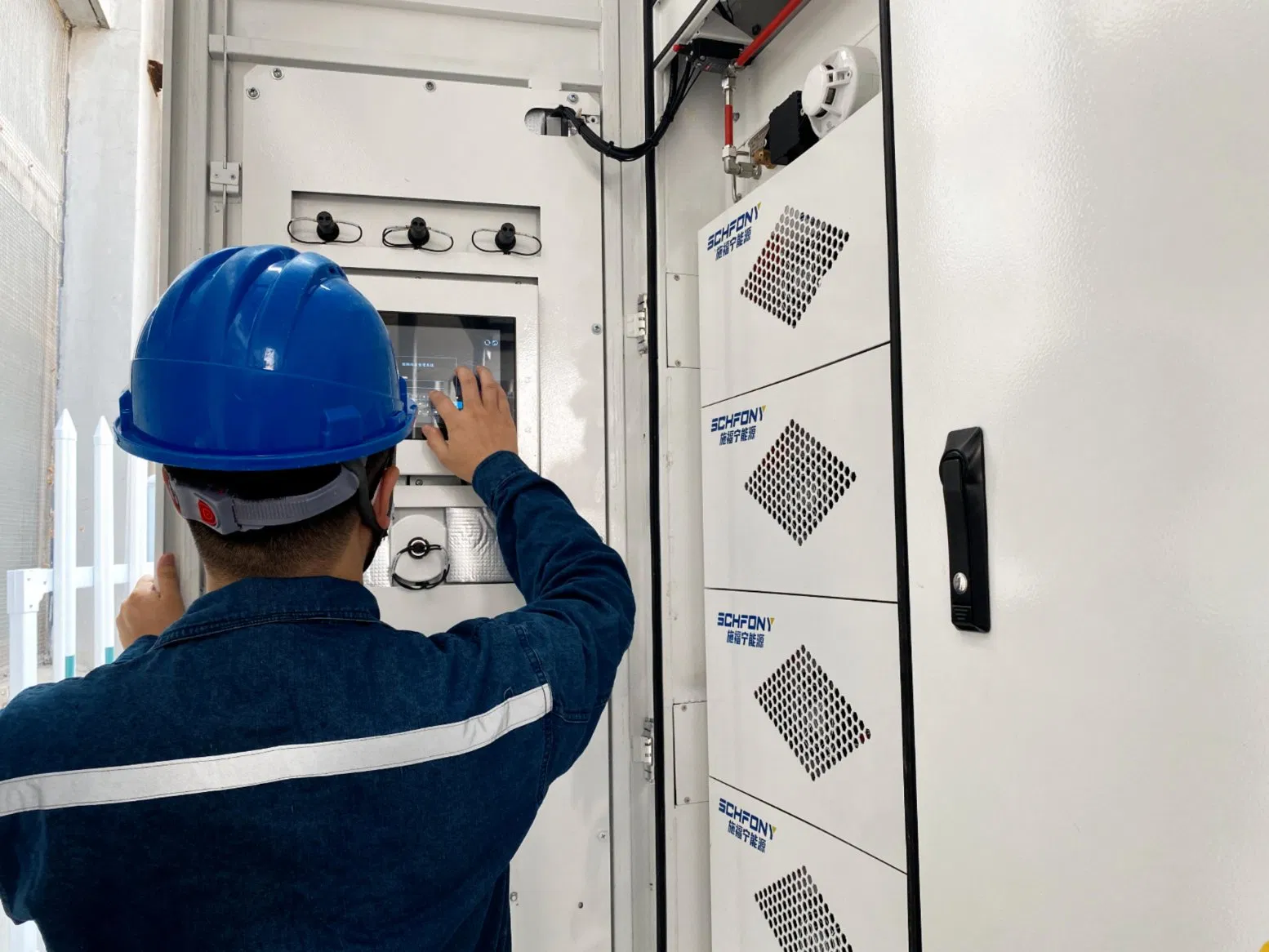

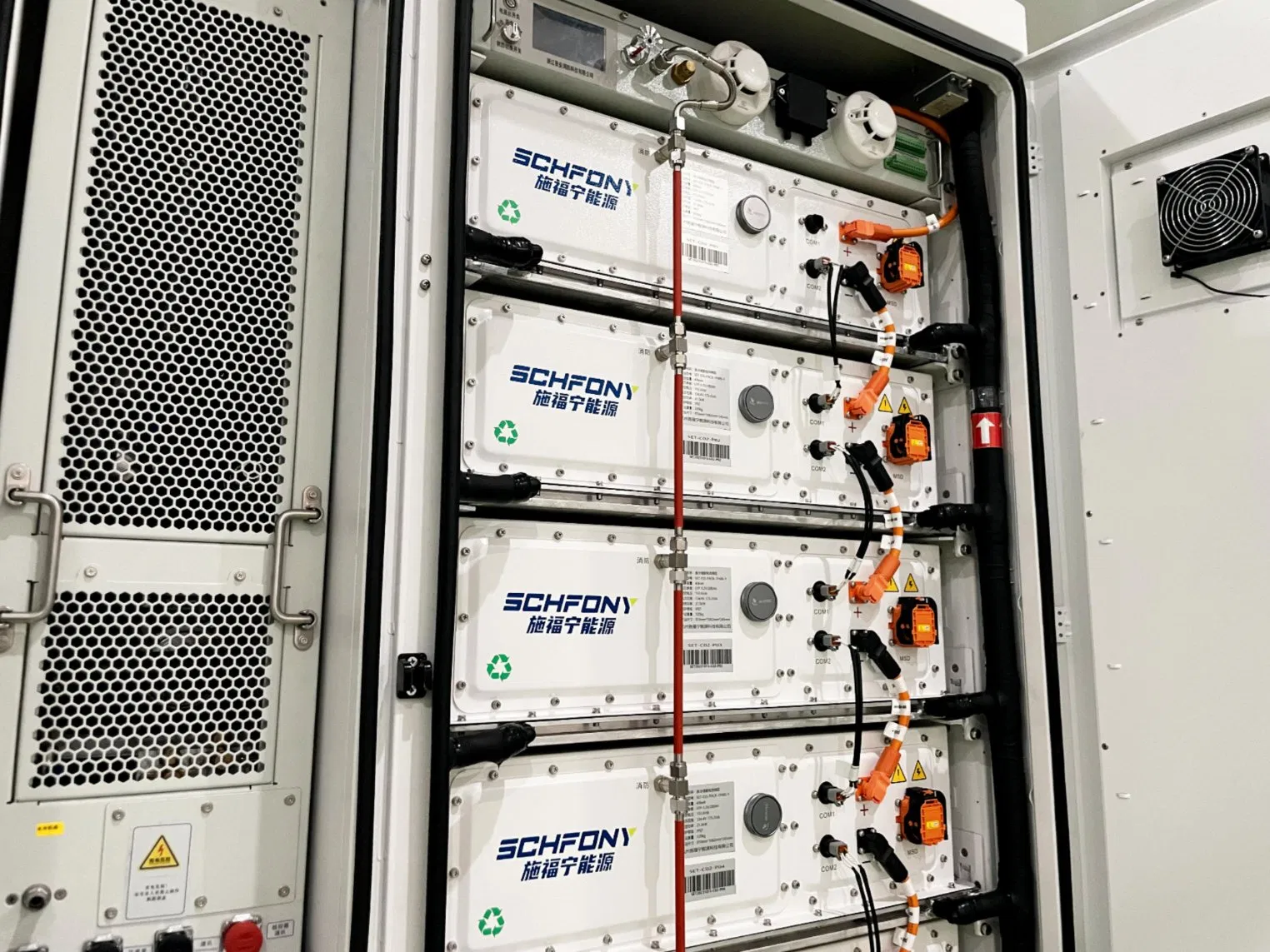

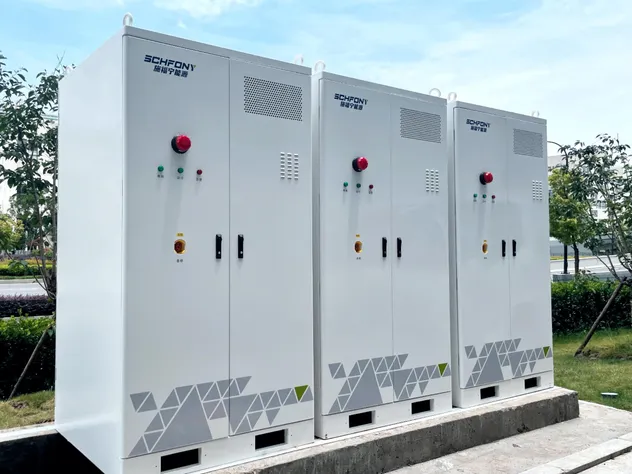

Project Cases

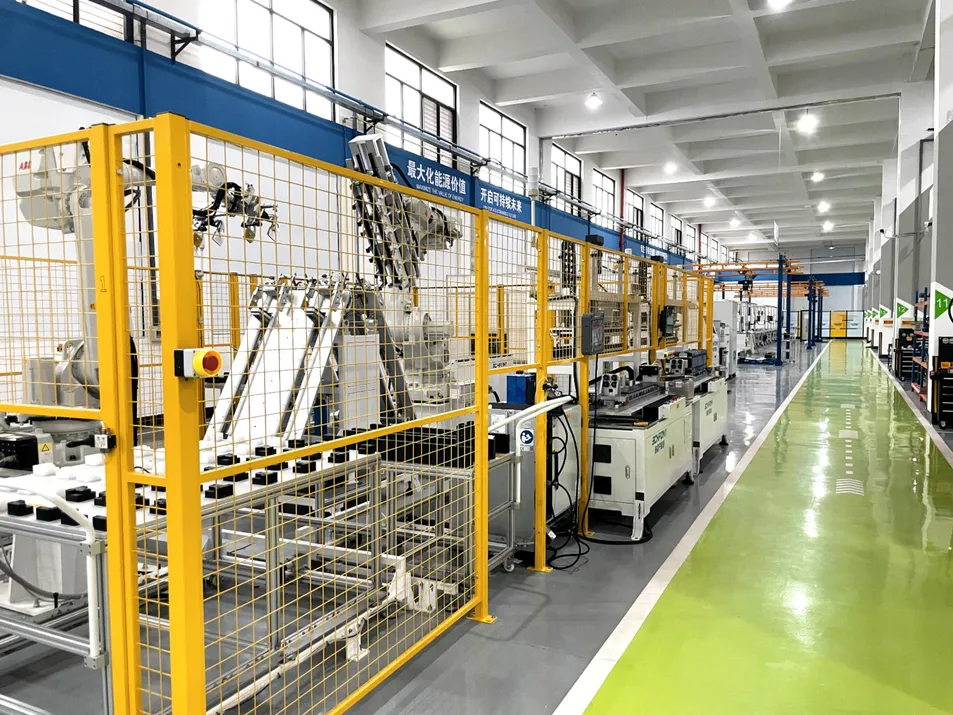

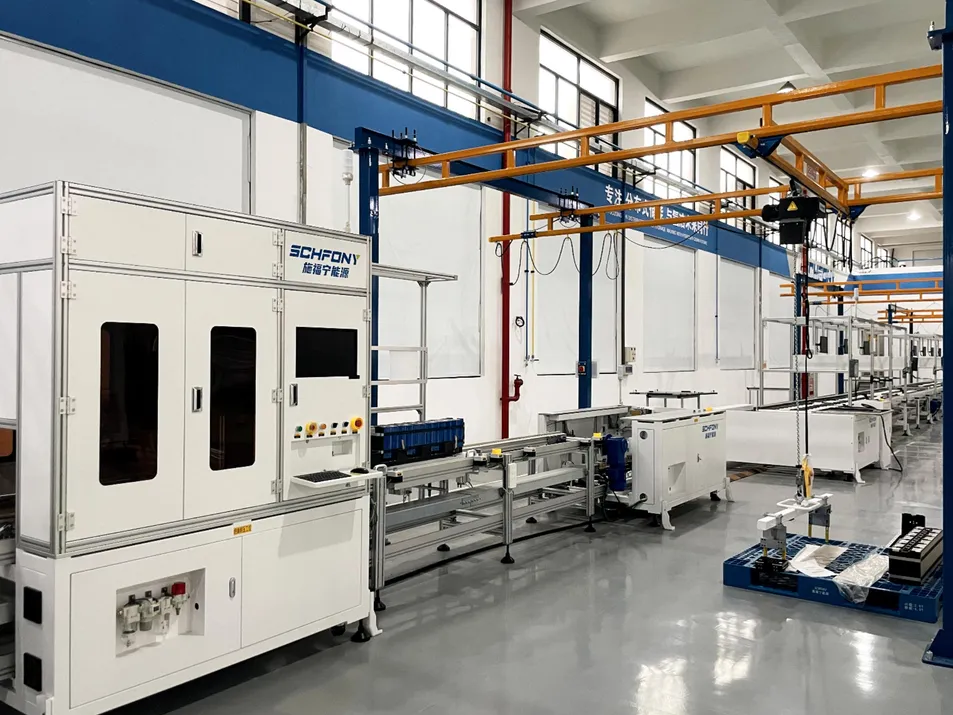

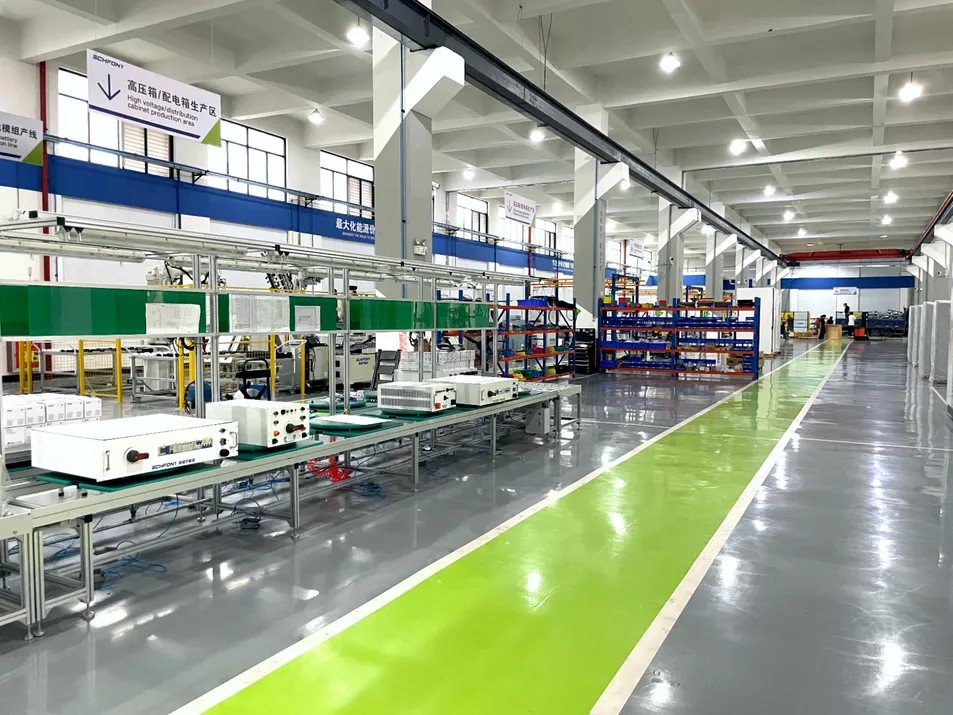

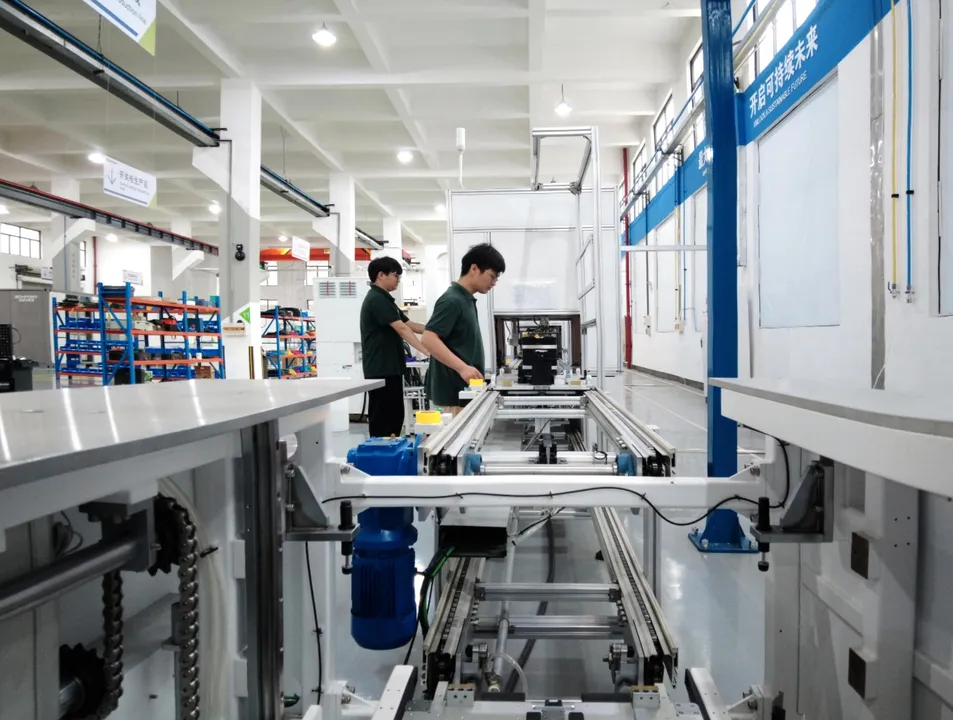

Manufacturing Excellence

Frequently Asked Questions

Q1: What's the lead time for energy storage system orders?

A: Standard models typically ship within 15–30 days. For customized units or large-scale project configurations, the lead time is approximately 30–45 days.

Q2: Can the system be customized for specific climate conditions?

A: Yes, our liquid-cooled systems are highly adaptable. We can customize the thermal management parameters and enclosure specifications for extreme high or low-temperature environments.

Q3: What fire protection standards does this unit meet?

A: The system utilizes a dual-layered safety approach: perfluorohexanone gas suppression combined with a water-immersion backup system for maximum safety and fire containment.

Q4: Does the system support remote monitoring?

A: Absolutely. The integrated BMS supports CAN and RS485 communication protocols, allowing for real-time monitoring of cell voltage, temperature, and overall system health.

Q5: What is the expected cycle life of the LFP batteries?

A: We use high-grade 280Ah LFP cells designed for long-duration energy storage, typically providing over 6000 cycles at standard operating conditions.

Q6: What documents are provided for international shipping and installation?

A: We provide a full documentation package including Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and detailed technical manuals for installation.
