1 / 5

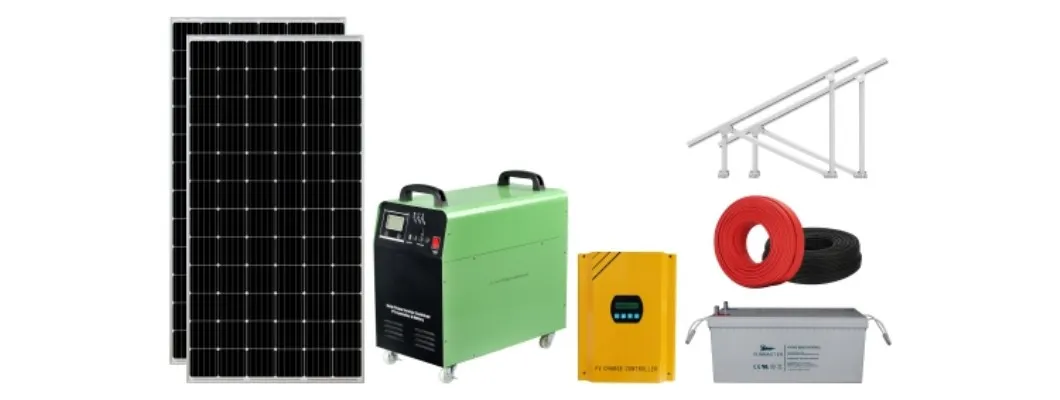

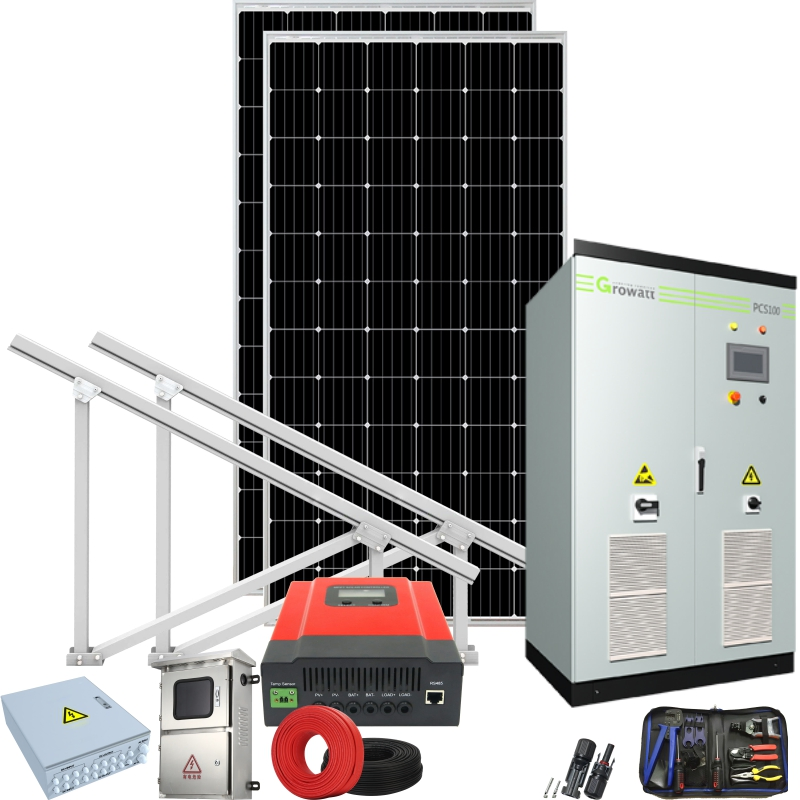

| Item | Certification | Description | Q'ty | Warranty |
|---|---|---|---|---|
| Solar panel | TUV / IEC / EC | Mono or Poly | 2 pcs | 20 years |

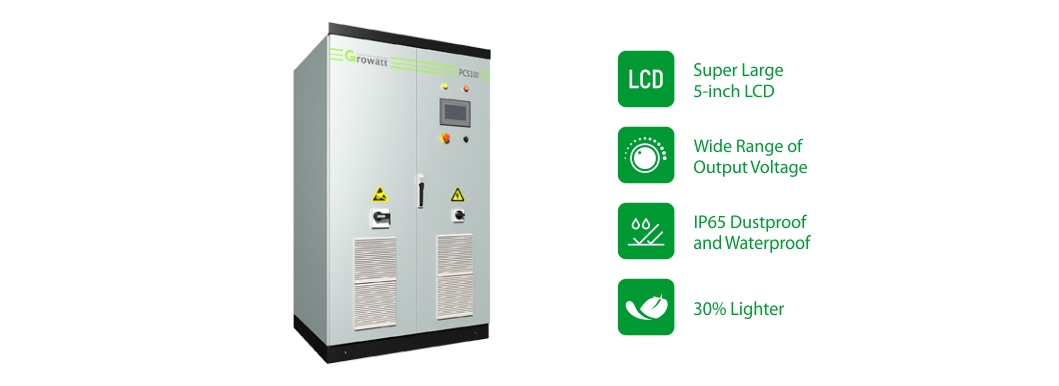

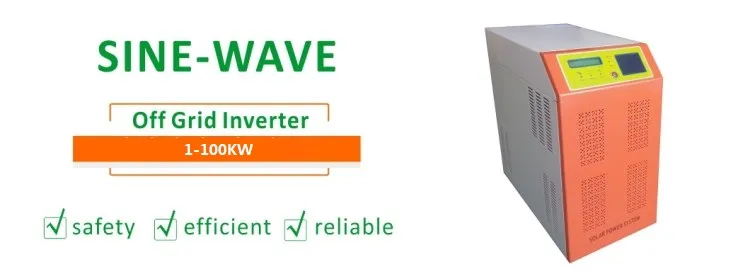

| Inverter | CGC / CQC / VDE | One (MPPT) tracking/ 50/60Hz; 230Vac 1500W | 1 set | 5 years |

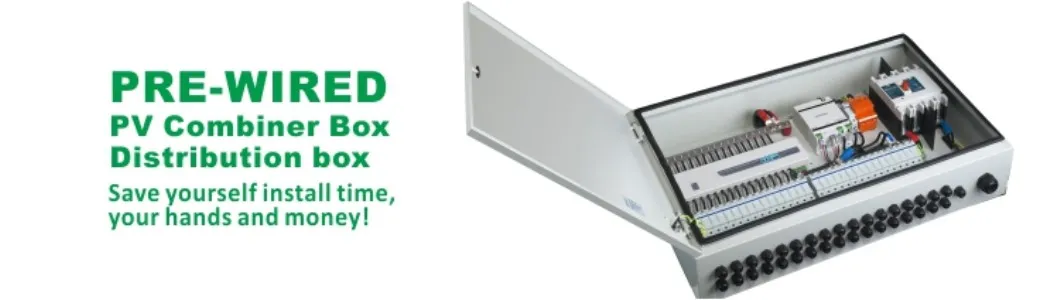

| Distribution box | CE | Lighting Protection, Air switch, Fusegar | 1 set | 5 years |
| Mounting system | CE | Slant roof/Cement/Soil ground bracket | 1 set | 10 years |
| PV cable | TUV/ UL | DC 1*4mm² / AC 3*6mm² | 20m/10m | 10 years |

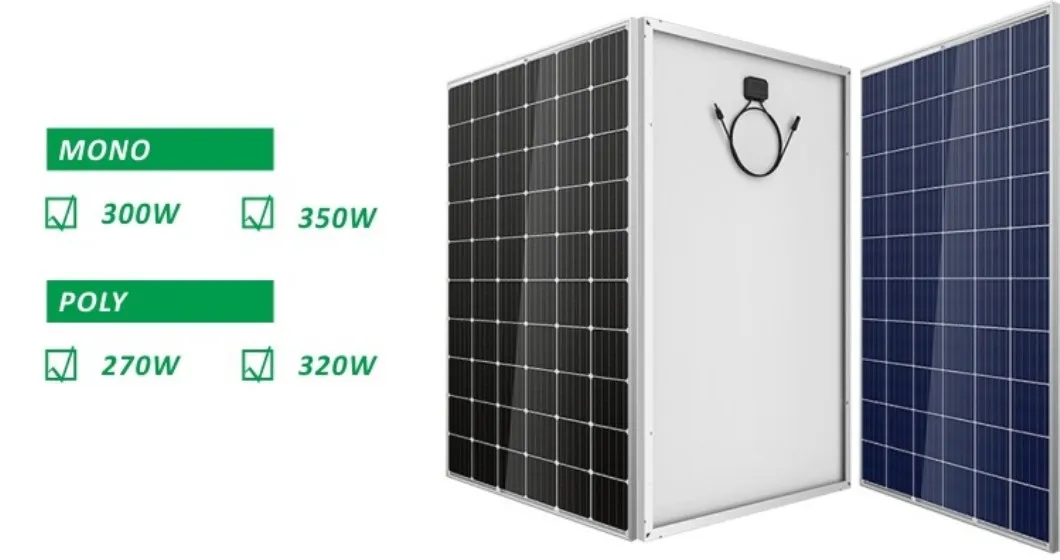

| Type | MONO | POLY | ||
|---|---|---|---|---|
| Power class | 280W | 335W | 270W | 320W |
| Max power Voltage (Vmp) | 36V | 36V | 36V | 36.5V |
| Efficiency | ≥17.1% | ≥17.2% | ≥16.5% | ≥16.4% |
| Feature | Technical Data |
|---|---|
| Protection degree | IP65 |
| Cooling method | Natural convection |
| Noise emission | <25 dB |

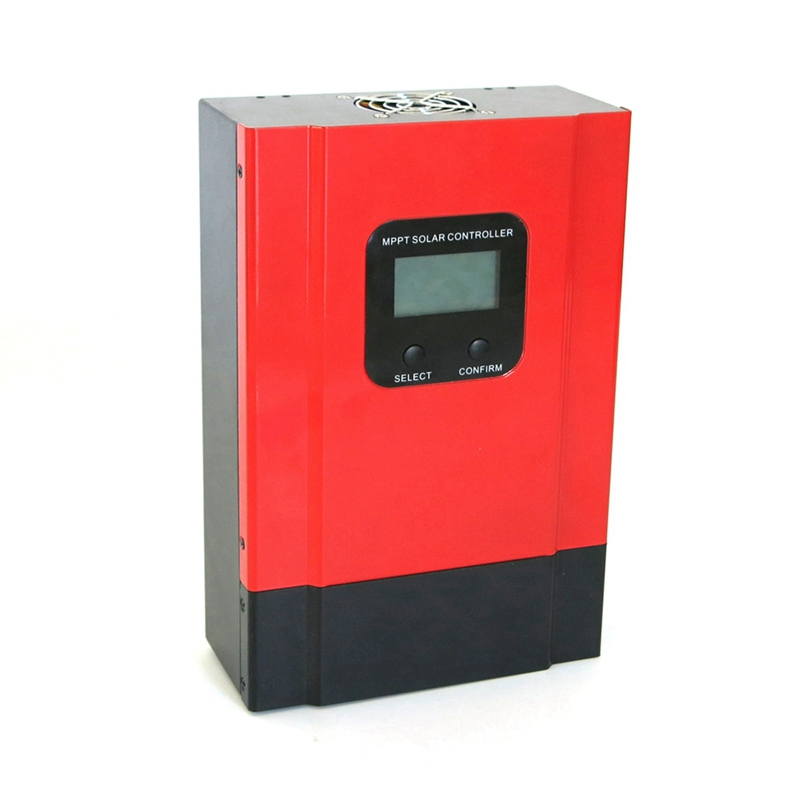

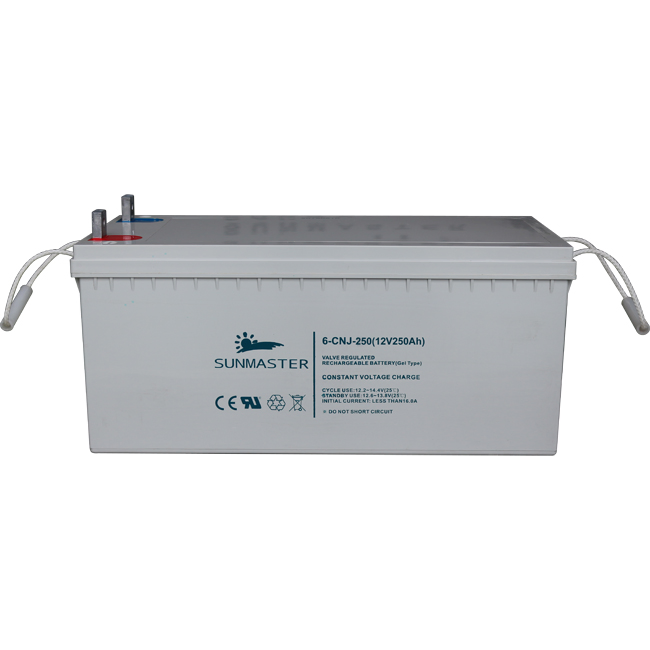

| Rated Charge current | 40A |
| Nominal Voltage | 12V |
| Nominal Capacity | 100Ah(10hr,1.80V/cell,25ºC) |
| Weight | 27.5 kg |
| Case Material | ABS |

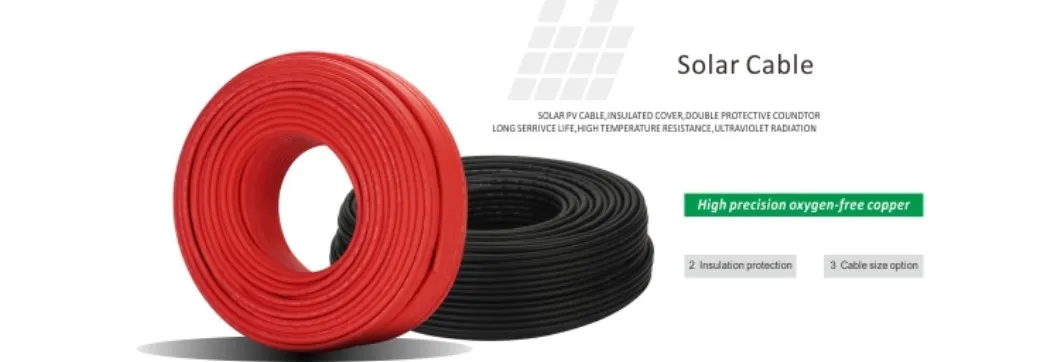

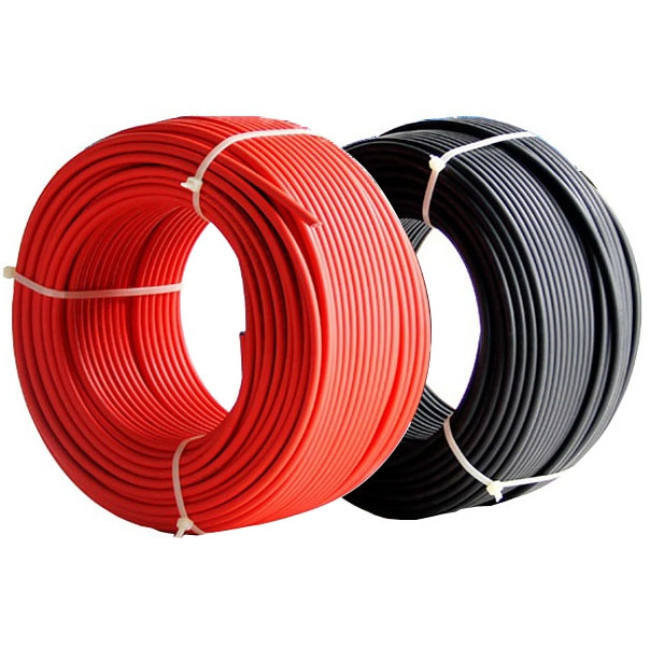

Cable Features: Tinned Fine Copper Strand, VDE0295/IEC60228 Class 5. Rated for over 25 years of service life.

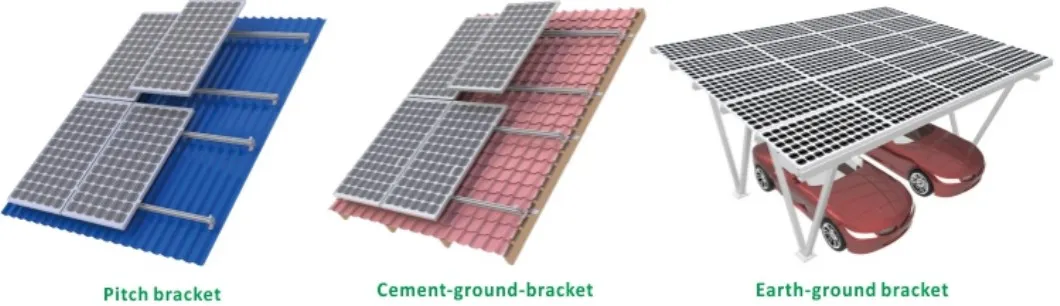

✔ Wind Capacity: 40m/s (Level 13)
✔ Snow Load: 70kg/sq. meter
✔ Versatility: Suitable for slope roofs, flat ground, and soil ground.
