5.015mwh Parallel CE Grid Solar Containe

Customization:	Available
Configuration:	12(1p104s4)
Rated Power:	5mwh

Basic Specifications

Voltage Range 1164.8V - 1497.6V DC

Rated Power ≤ 2.5MW (Charge/Discharge)

Origin China

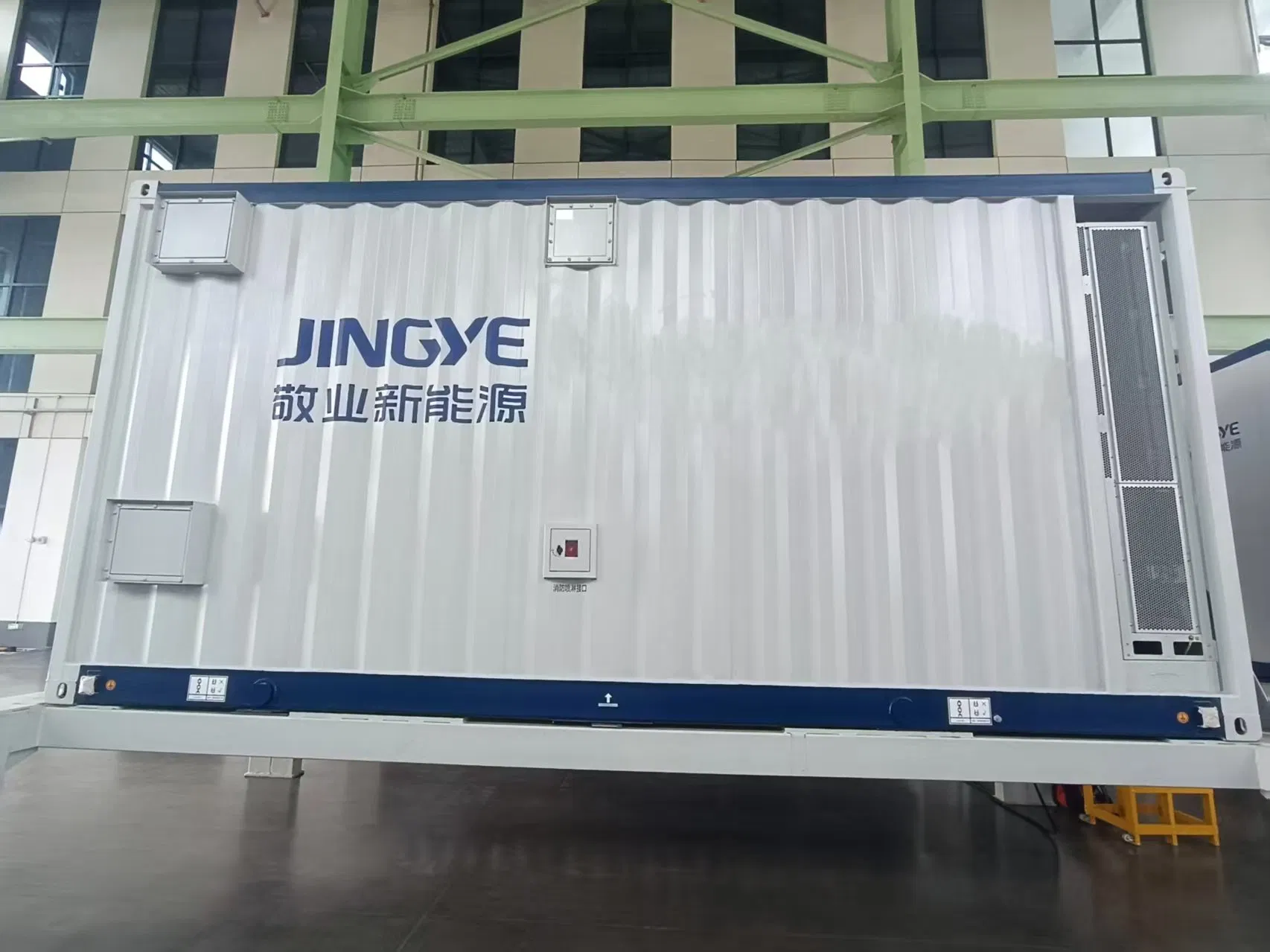

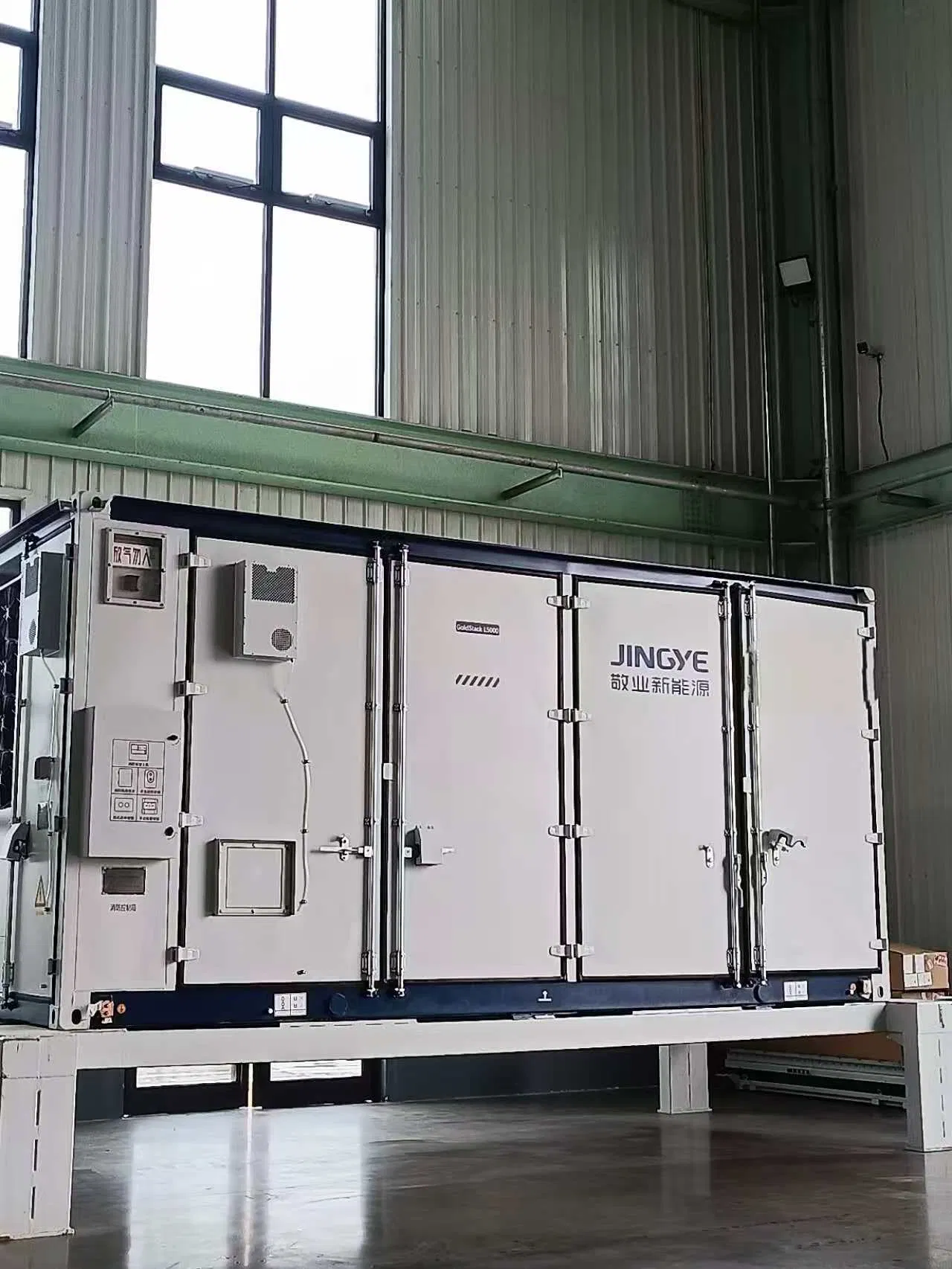

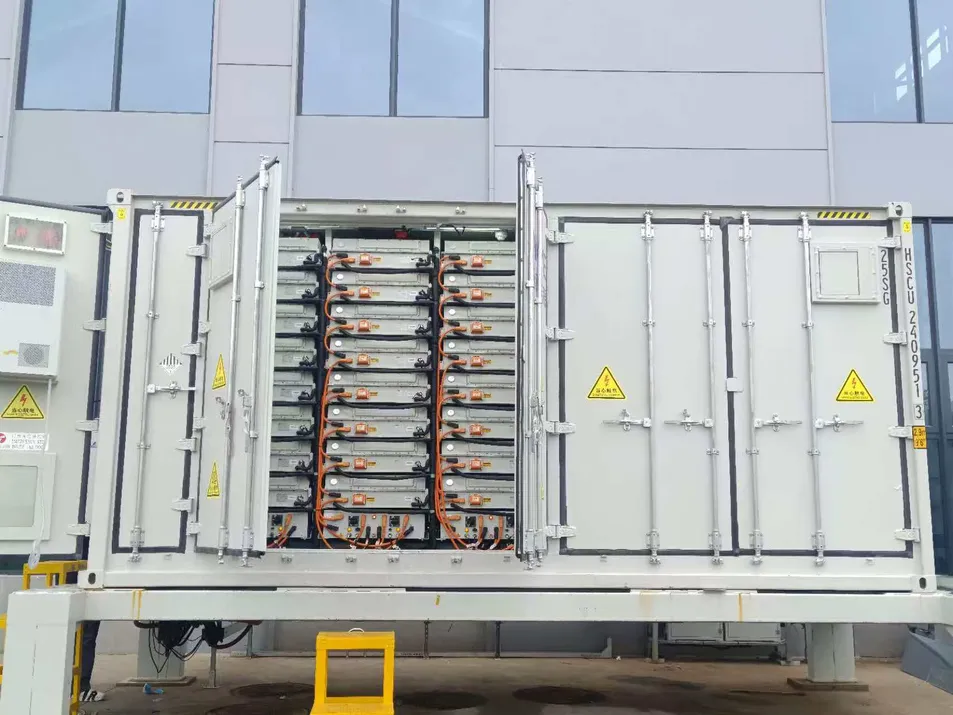

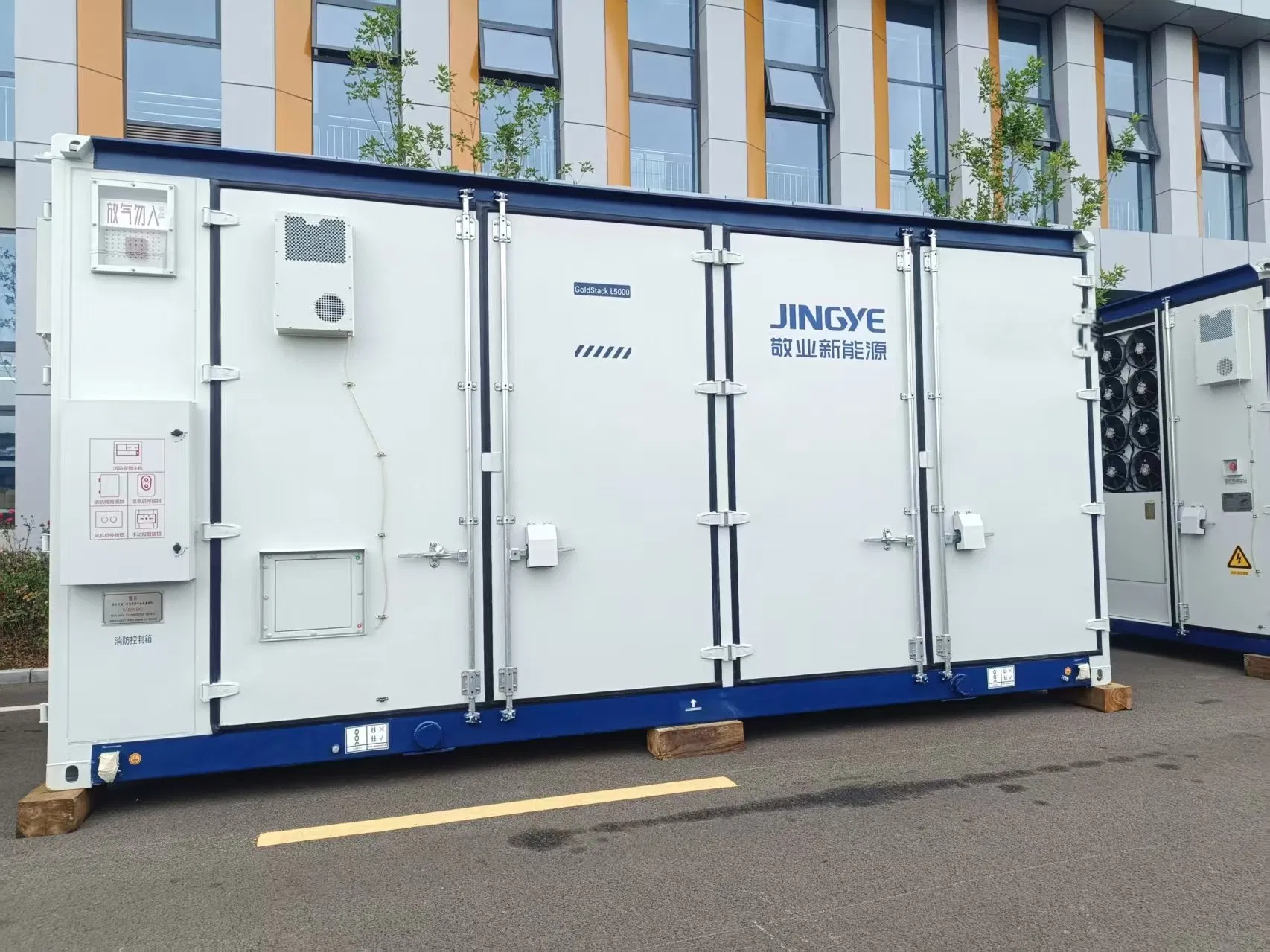

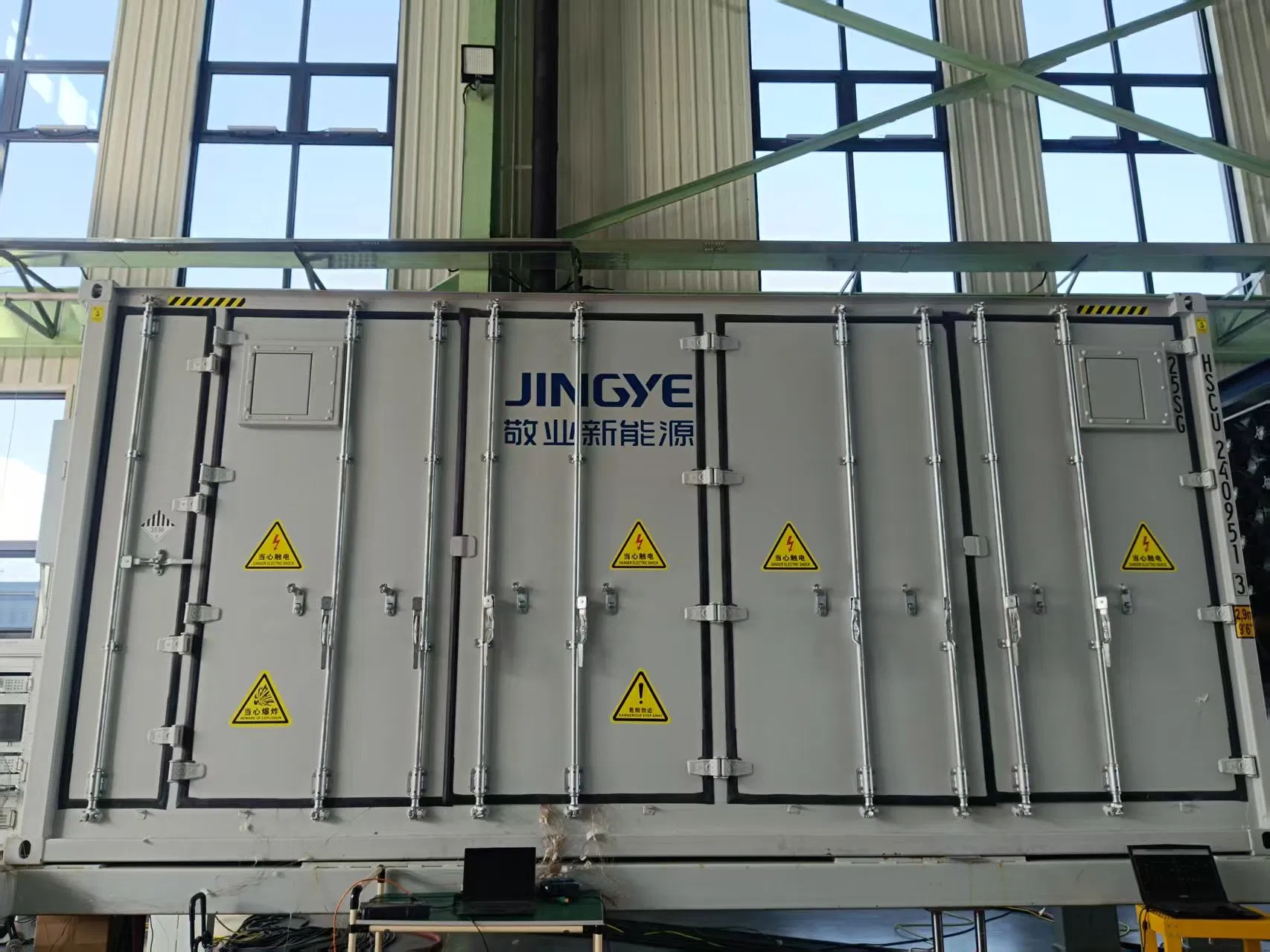

Energy Storage Container

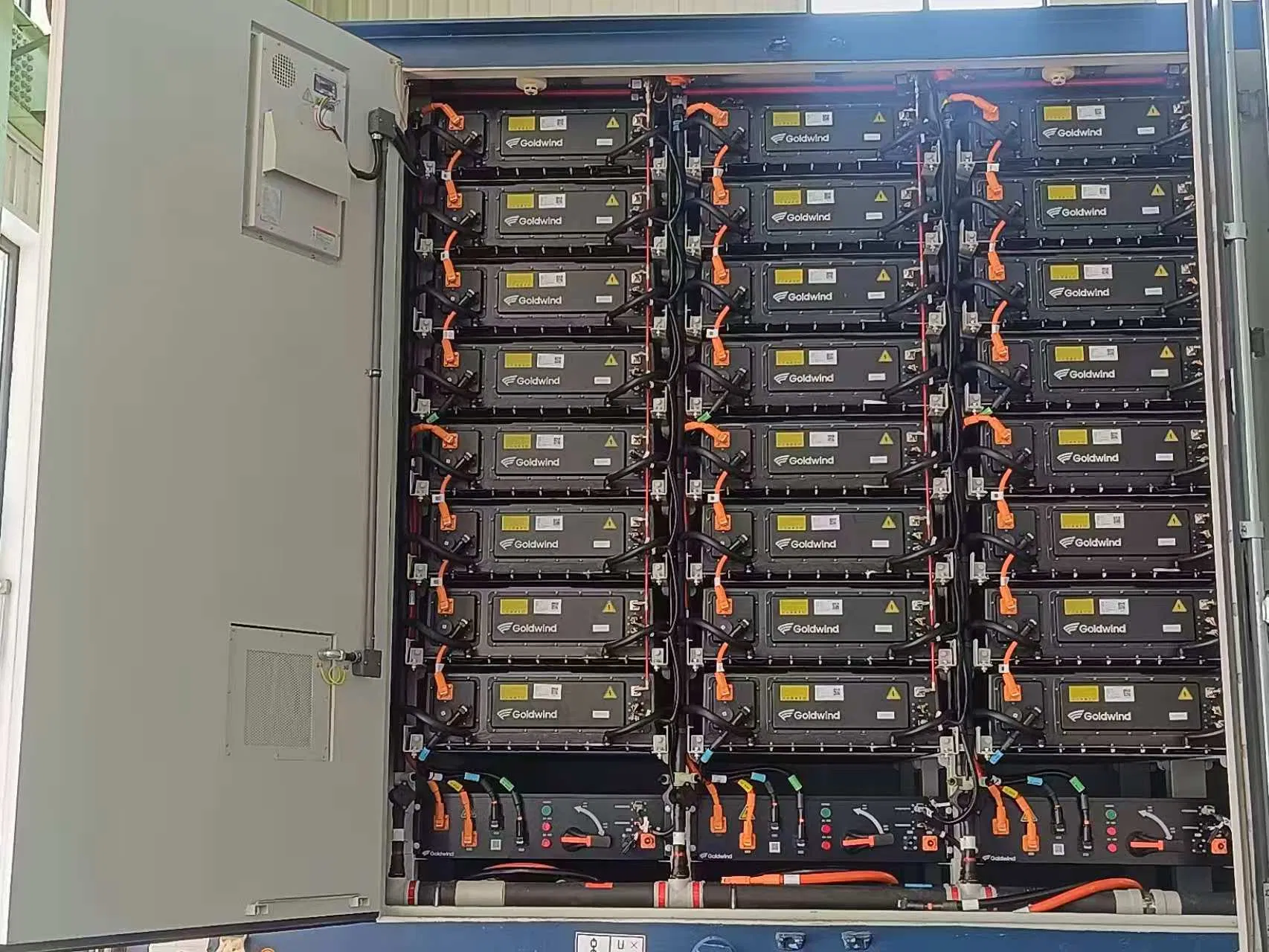

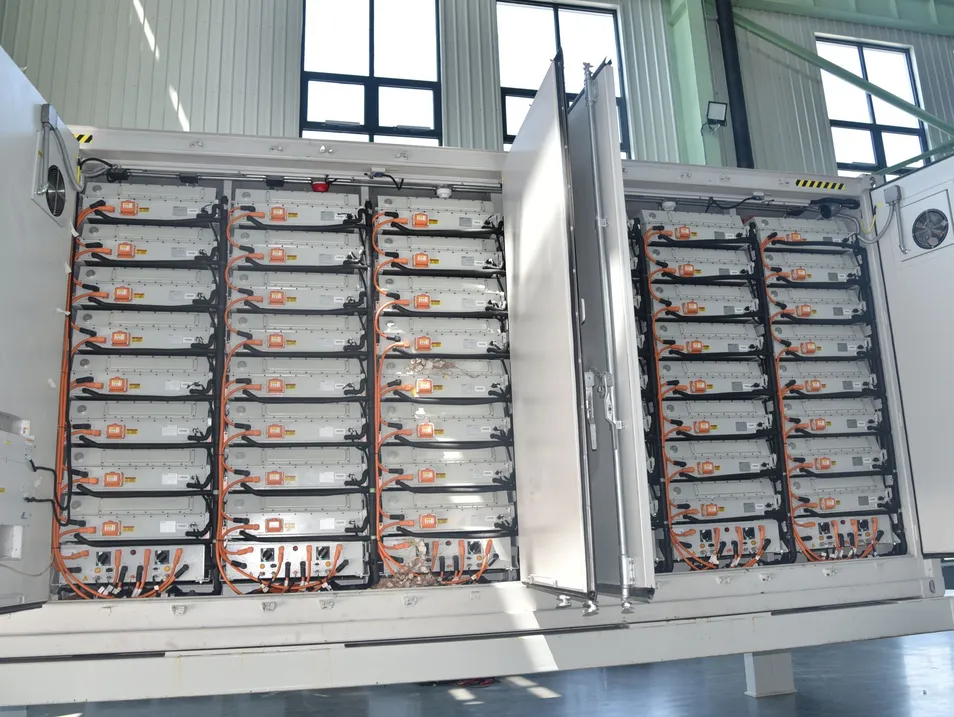

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, BMS, fire protection, and thermal management systems.

This system uses simplified integration technology, installing all components within a standard 20-foot container (L6058 x W2438 x H2896mm), ensuring safety control while being suitable for various transportation conditions and site designs.

Product Features

●
Battery Technology: High-efficiency, long-life lithium iron phosphate batteries.
●
Battery Management: Advanced intelligent BMS for maximum product safety.
●
Thermal Management: High-precision liquid cooling ensures a temperature difference of ≤3℃ inside the PACK.
●
Safety Protection: Fire protection using perfluorohexane or aerosol with a three-level automatic alarm system.
●
Monitoring System: Integrated temperature, humidity, smoke, video, and access state monitoring.
●
Modular Design: Highly modular, simple structure, easy for transportation and installation.

Technical Specifications

No.	Item	Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Voltage Range	1164.8V - 1497.6VDC
5	Rated Charging/Discharge Power	≤ 2.5MW
6	Auxiliary Power Supply	400VAC±5% 50Hz/ 220VAC
7	Work Temperature (Charging)	0℃ < T ≤ 60℃
8	Work Temperature (Discharging)	-30℃ < T ≤ 60℃
9	Altitude	≤ 4000m (derating above 4000m)
10	Dimensions	L6058 x W2438 x H2896mm
11	Weight	About 43t
12	IP Rating	IP54
13	Refrigeration Method	Liquid Cooling
14	Communication Protocol	Ethernet, CAN, ModbusRTU

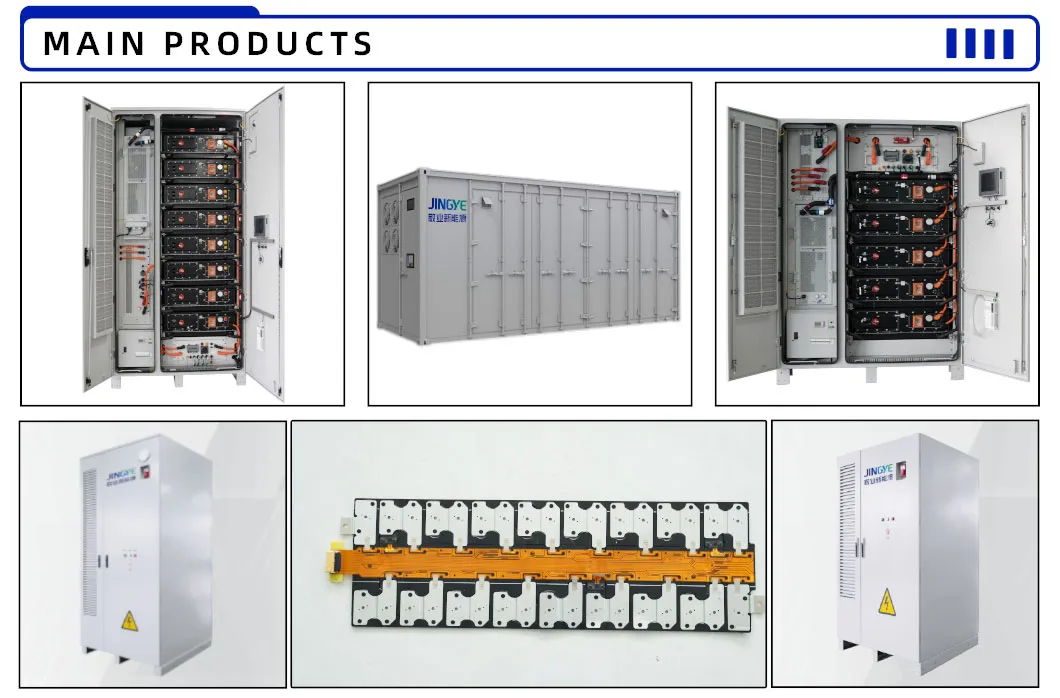

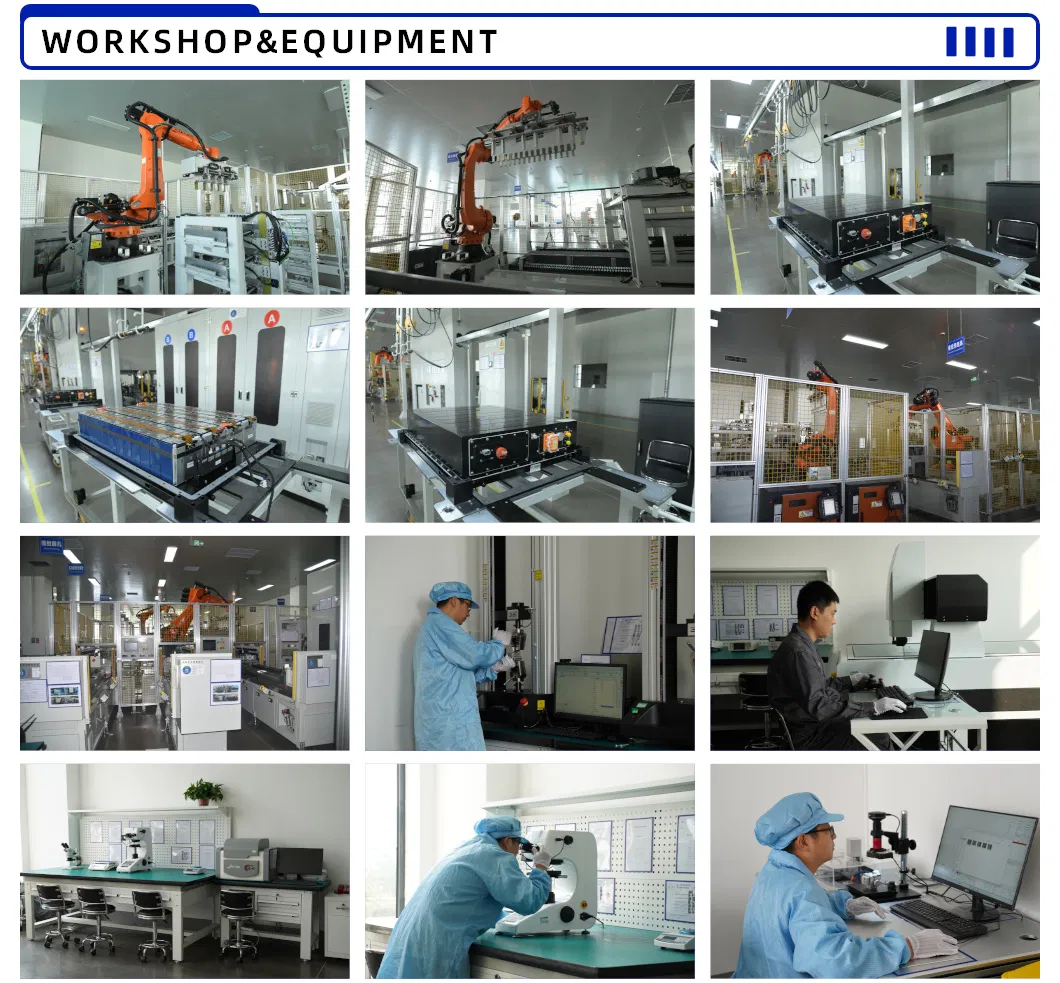

Main Products & Workshop

The company maintains an advanced automated production line with an annual capacity of 5 GWh of energy storage systems and 2.4 million CCS busbars. These products serve smart grids, industrial storage, and green transportation globally.

Quality Assurance & Global Presence

Frequently Asked Questions

What are the primary products offered?

Our core lineup includes 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Do you provide customization for different project needs?

Yes, we offer flexible customization services for our products across various process types to meet specific technical requirements.

How is the production and delivery timeline managed?

Equipped with a comprehensive automated production line and a professional technical team, we ensure stable production cycles and on-time delivery.

Are you a manufacturer or a trading company?

We are a formal source factory with standardized production processes, allowing us to provide competitive pricing alongside high-quality products.

How can I obtain a detailed quotation?

Please contact our online support staff directly via the website; they are ready to provide you with a comprehensive quotation promptly.

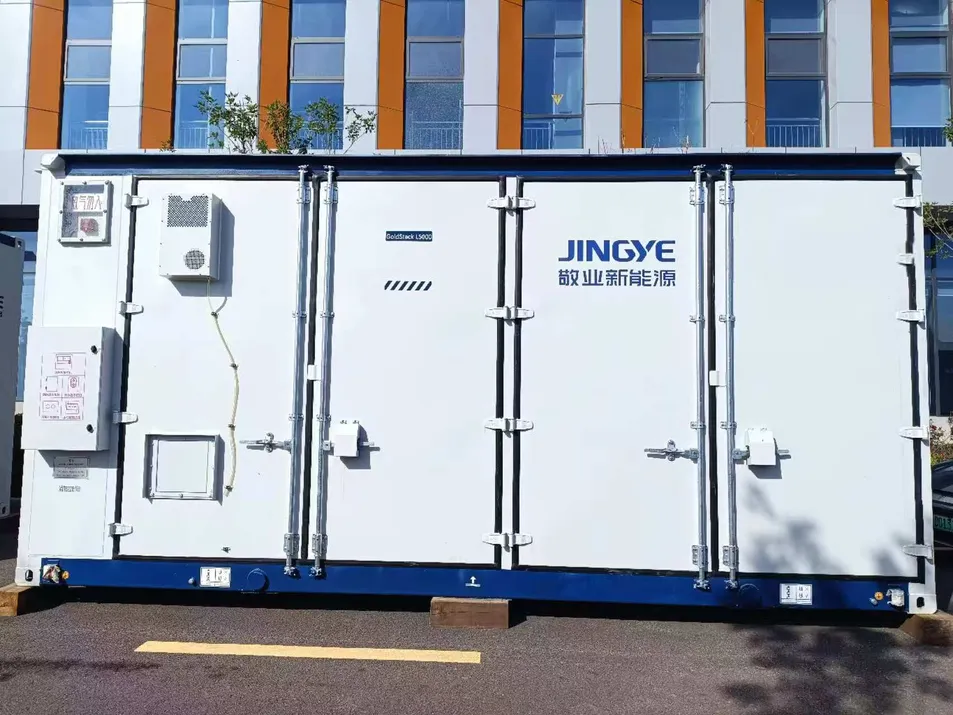

What cooling technology is used in the 5MWh container?

The system utilizes advanced liquid cooling technology, which maintains a high-precision temperature environment, extending the life and safety of the battery cells.
