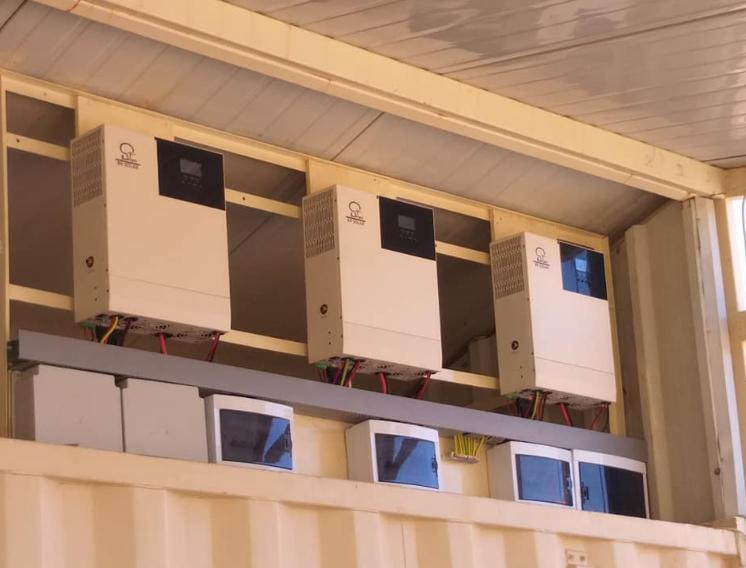

5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
1 / 5
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System
5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
5-30KWH
Condition
New
Certification
ISO, CE, 10 Years Warranty
Application
Home, Industrial, Commercial
Load Power
5kw-30kw
Output Voltage
220V/380V (US 120/240V)
Frequency
50/60Hz
Monitoring
WiFi/GPRS Device
Work Time
24 Hours/Day
System Type
Single Phase / Three Phase
Inverter Type
Pure Sine Wave
Panel Type
Mono Panels
Complete Hybrid off Grid Solar PV System
Solar Energy System Instruction

The 5KW off-grid solar system is designed for high efficiency and versatility, widely utilized in various scenarios:

Mobile equipment such as motor homes, RVs, and marine vessels.
Residential use in remote areas, islands, plateaus, and border posts.
Home rooftop power generation systems for energy independence.
Photovoltaic water pumps for deep well irrigation and drinking water.
Transportation fields including beacon lights and high-altitude obstacle signals.
Communication stations, microwave relays, and rural telephone systems.

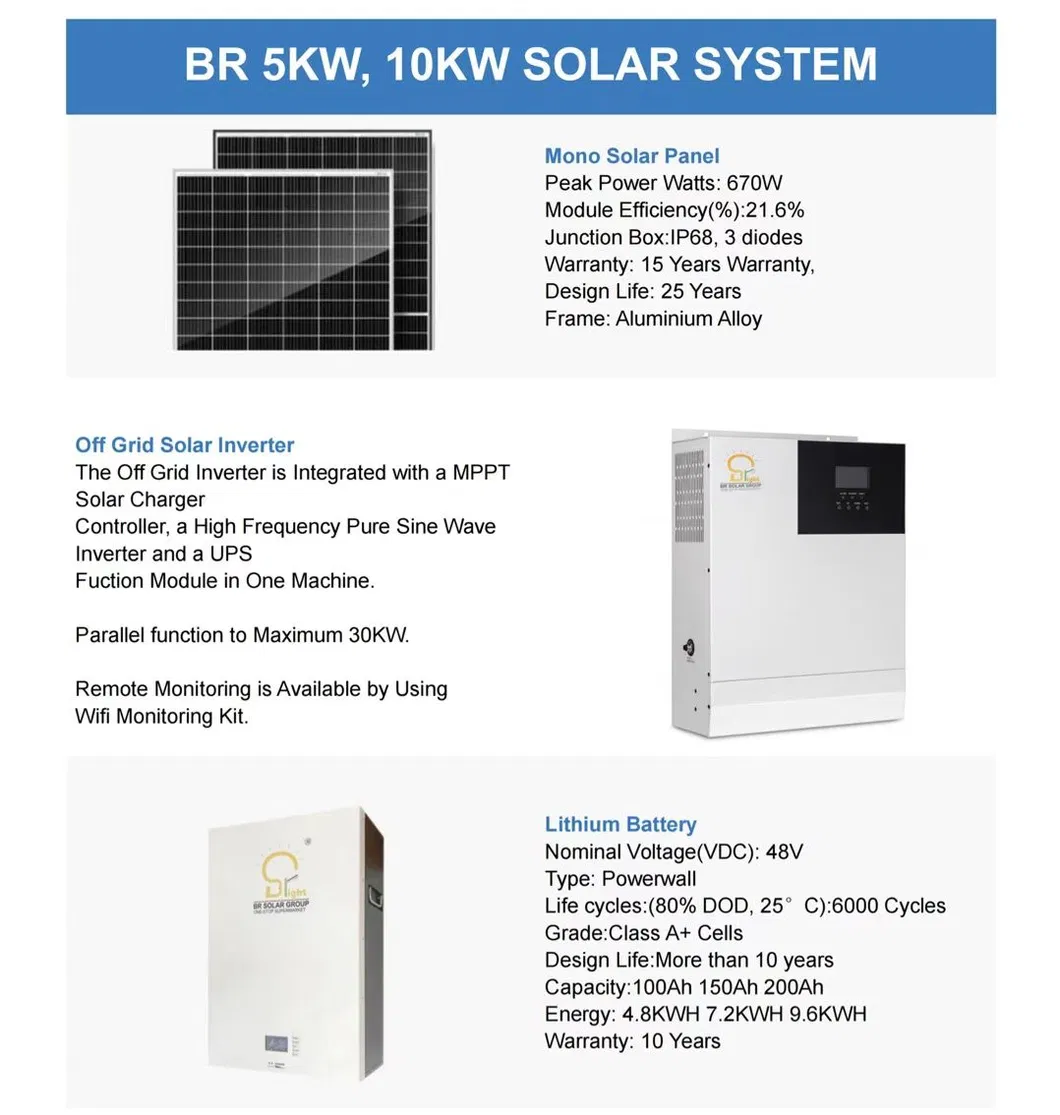

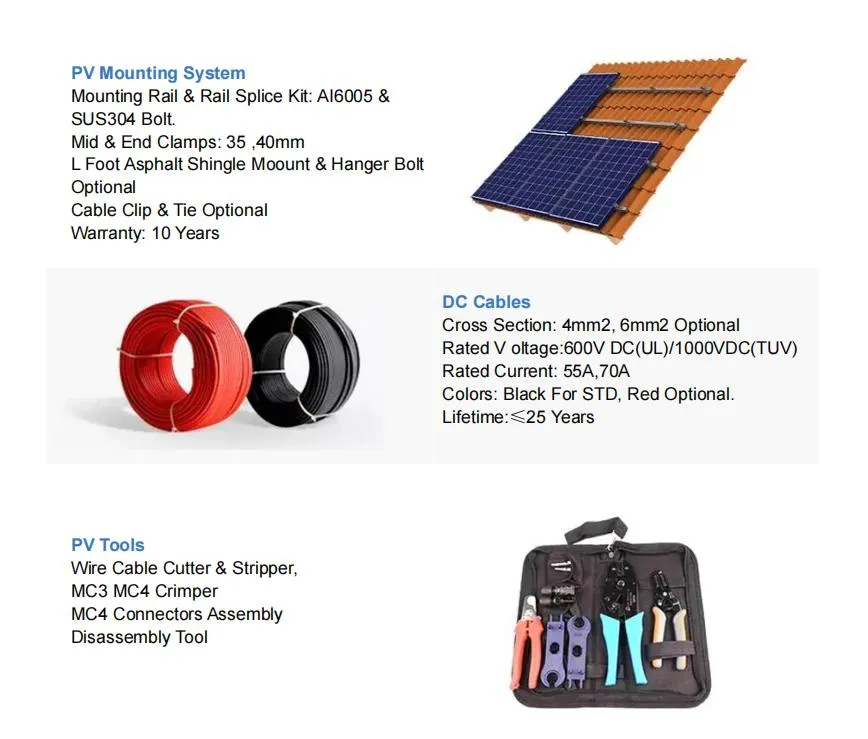

Solar System Detail 1 Solar System Detail 2
5KW Solar System Configuration
Item Part Specification Quantity Remarks
1 Solar Panel Mono Half Cell 550W (Class A+) 4pcs 25 Years Lifespan
2 MC4 Connector Y-Type 2-1 1pc High Durability
3 Mounting Bracket Hot-dip Galvanized Rooftop 1set Anti-Rust, Anti-Corrosion

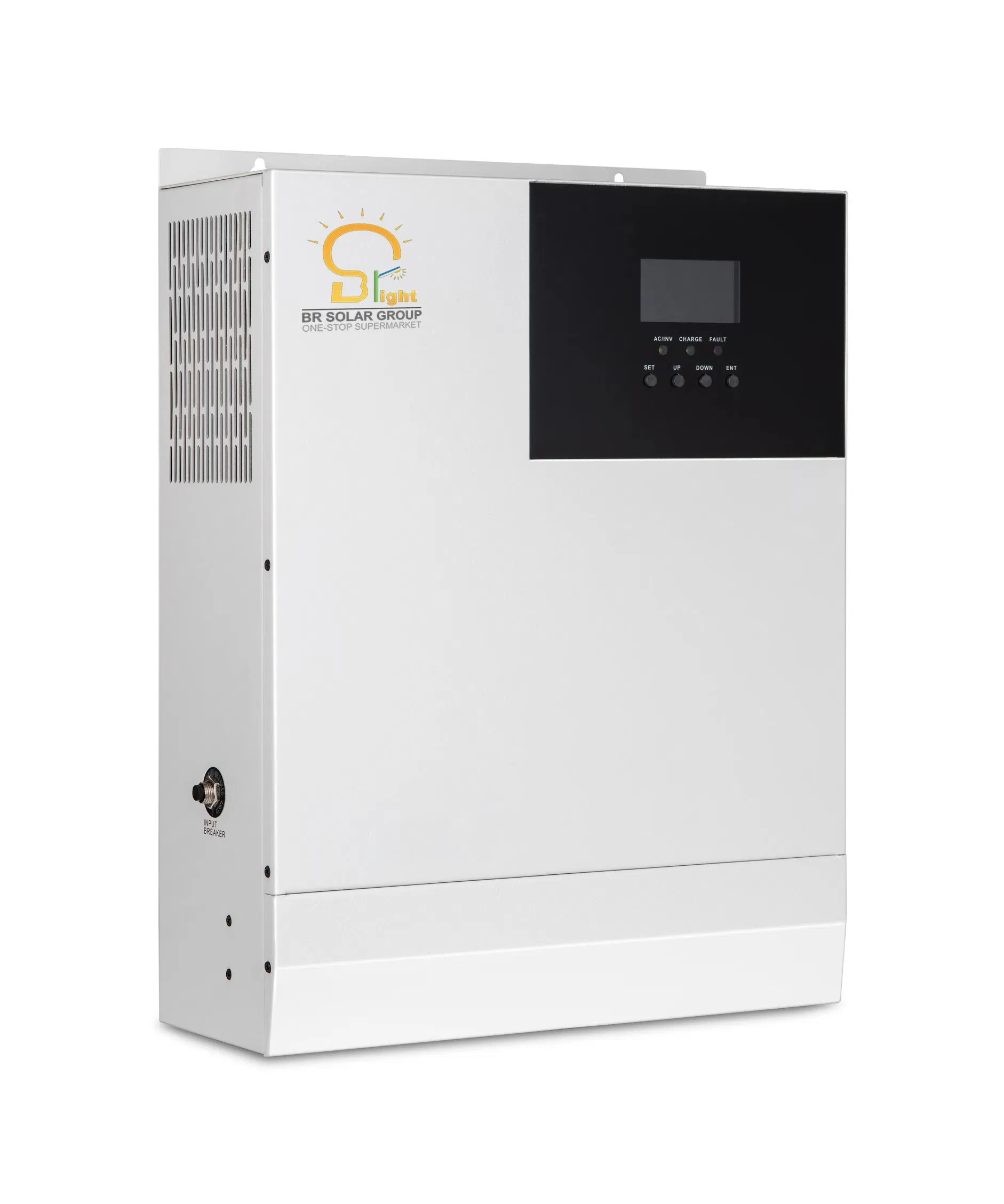

4 Inverter All-in-one 48V/5kw 1set Pure Sine Wave Output
5 GEL Battery Deep Cycle 12V-200AH 4pcs 12 Years Design Life
6-12 Cables & Breakers 4mm2 / 6mm2 / 16mm2 / 25mm2 Various Complete Installation Kit
System Diagram & Parallel Capacity

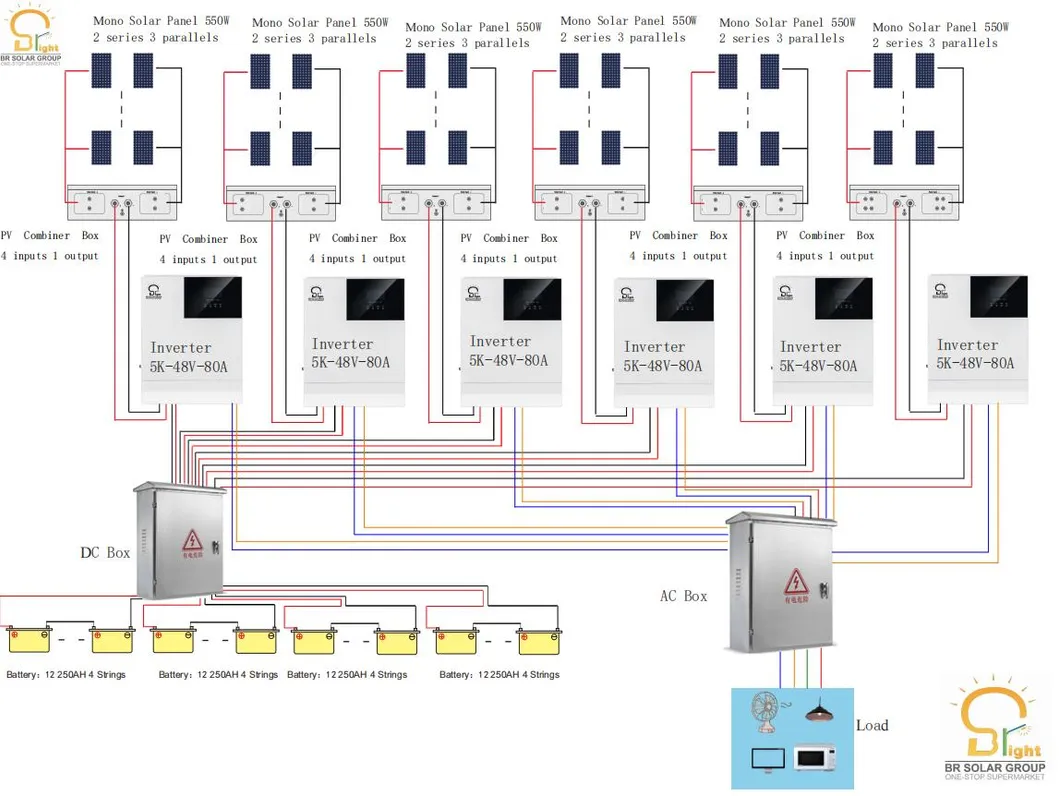

System Connection Diagram
Manufacturing Excellence & Projects

Quality is the core culture. Our solar products have been successfully applied in more than 128 countries, including international UN and NGO projects.

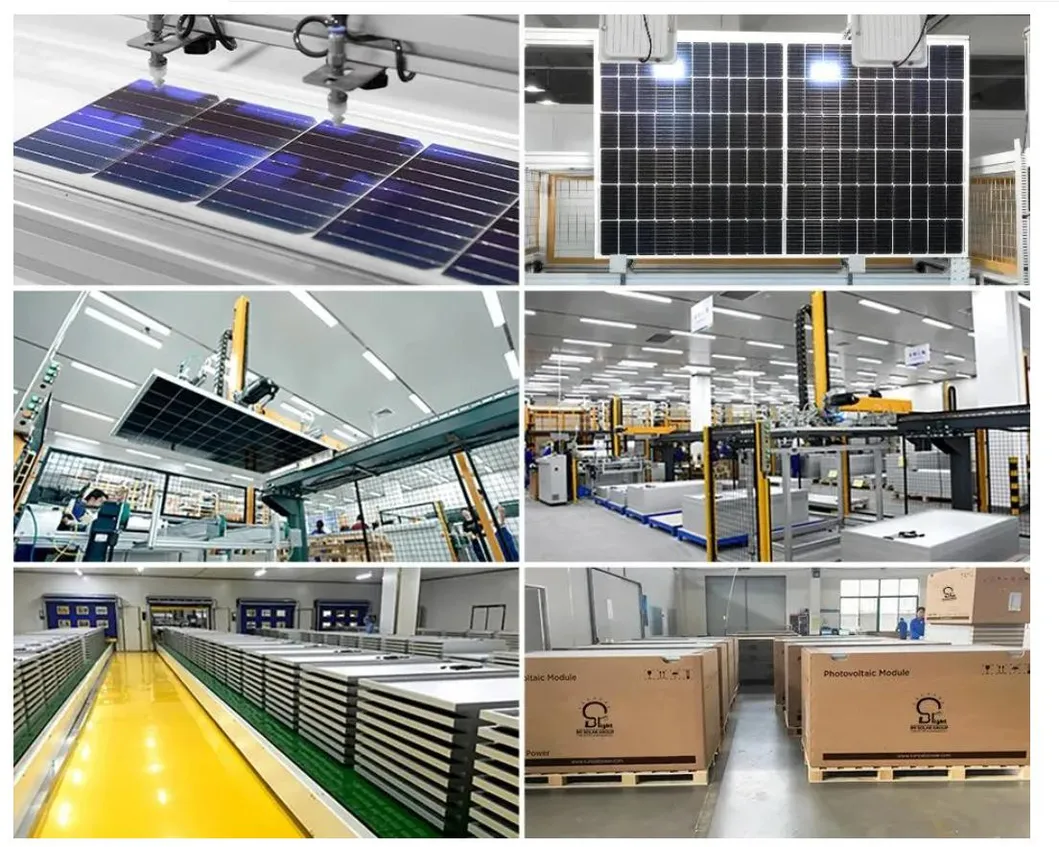

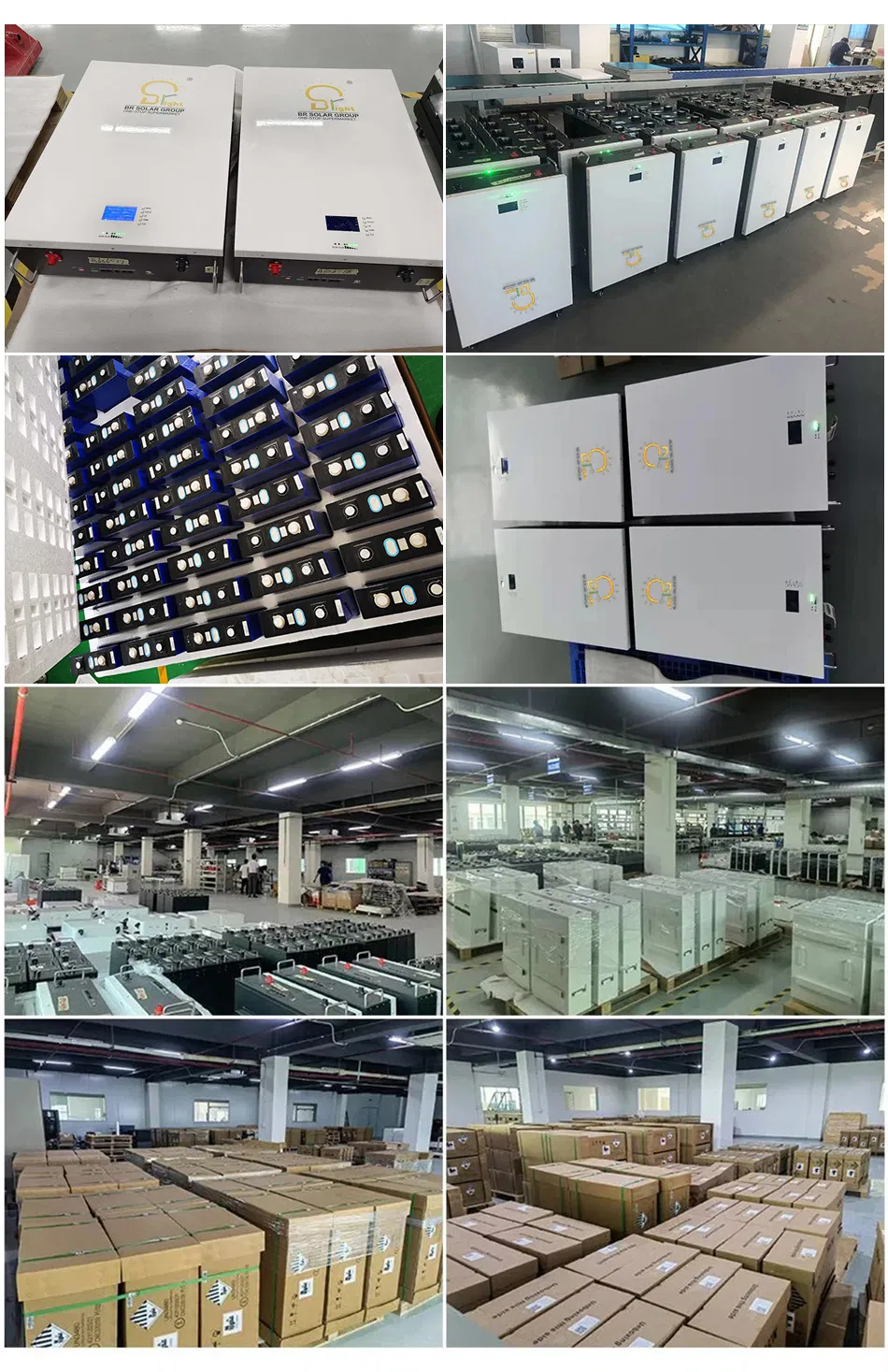

Factory Detail 1 Factory Detail 2 Factory Detail 3

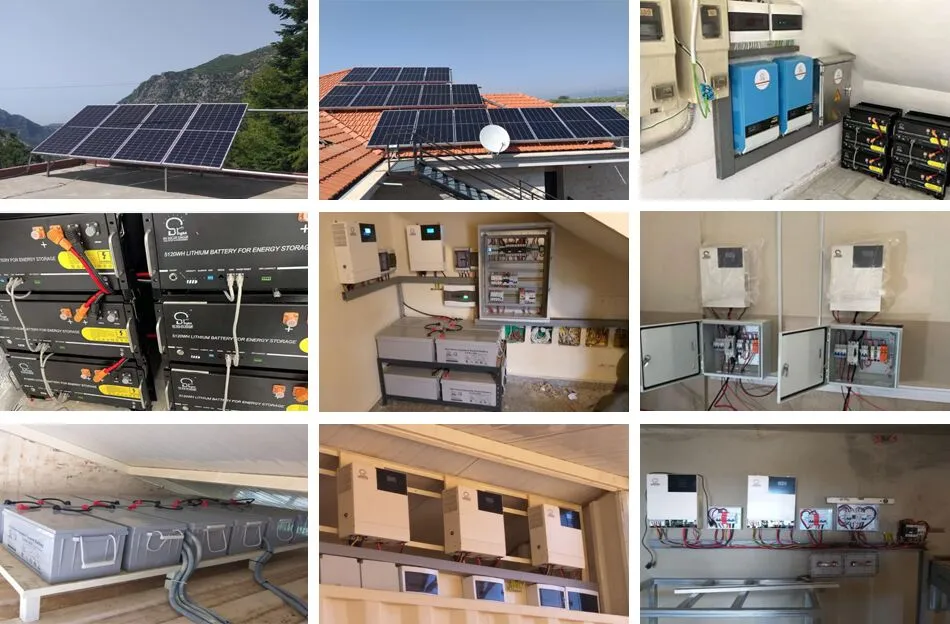

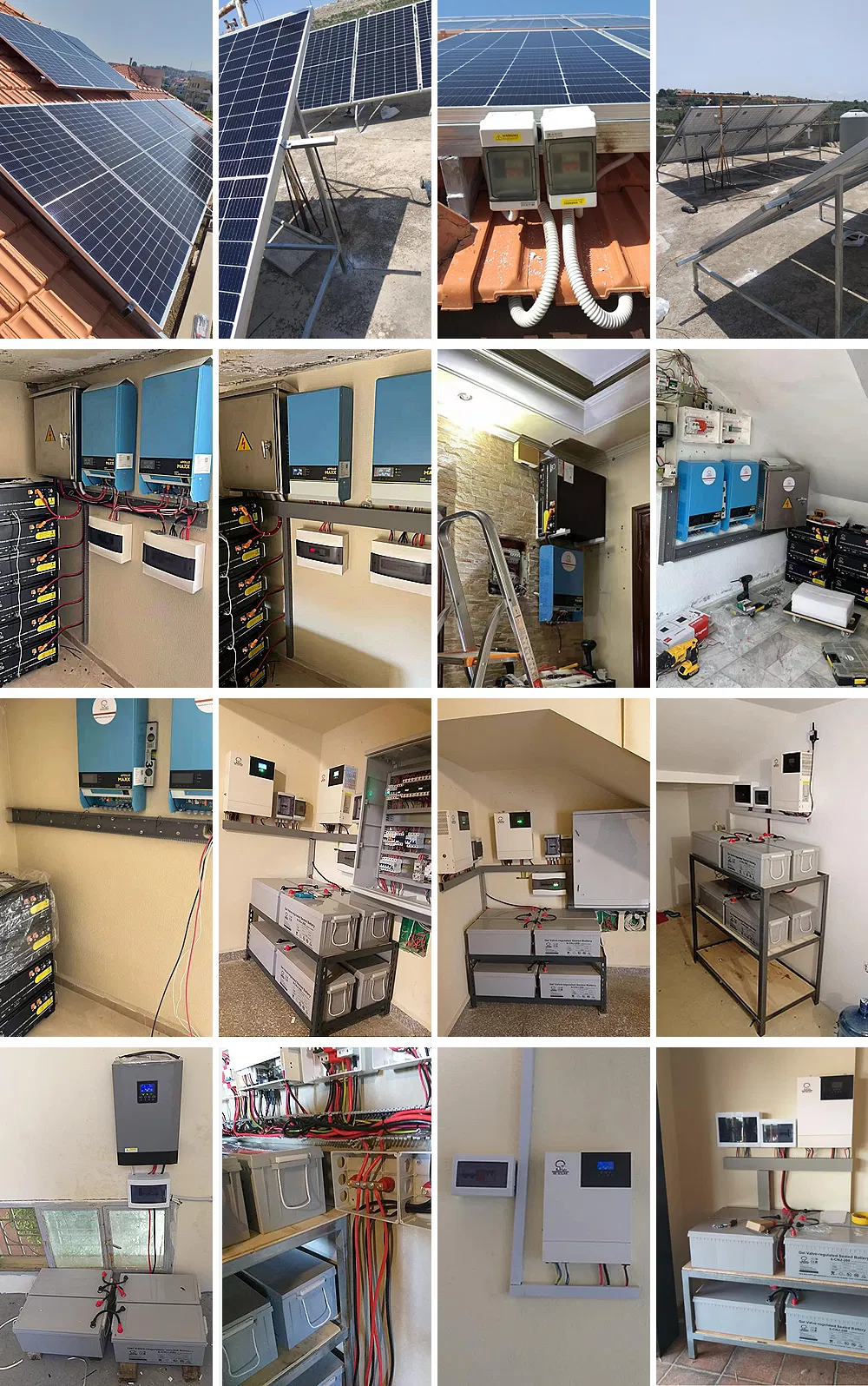

Project Case 1 Project Case 2
International Certification

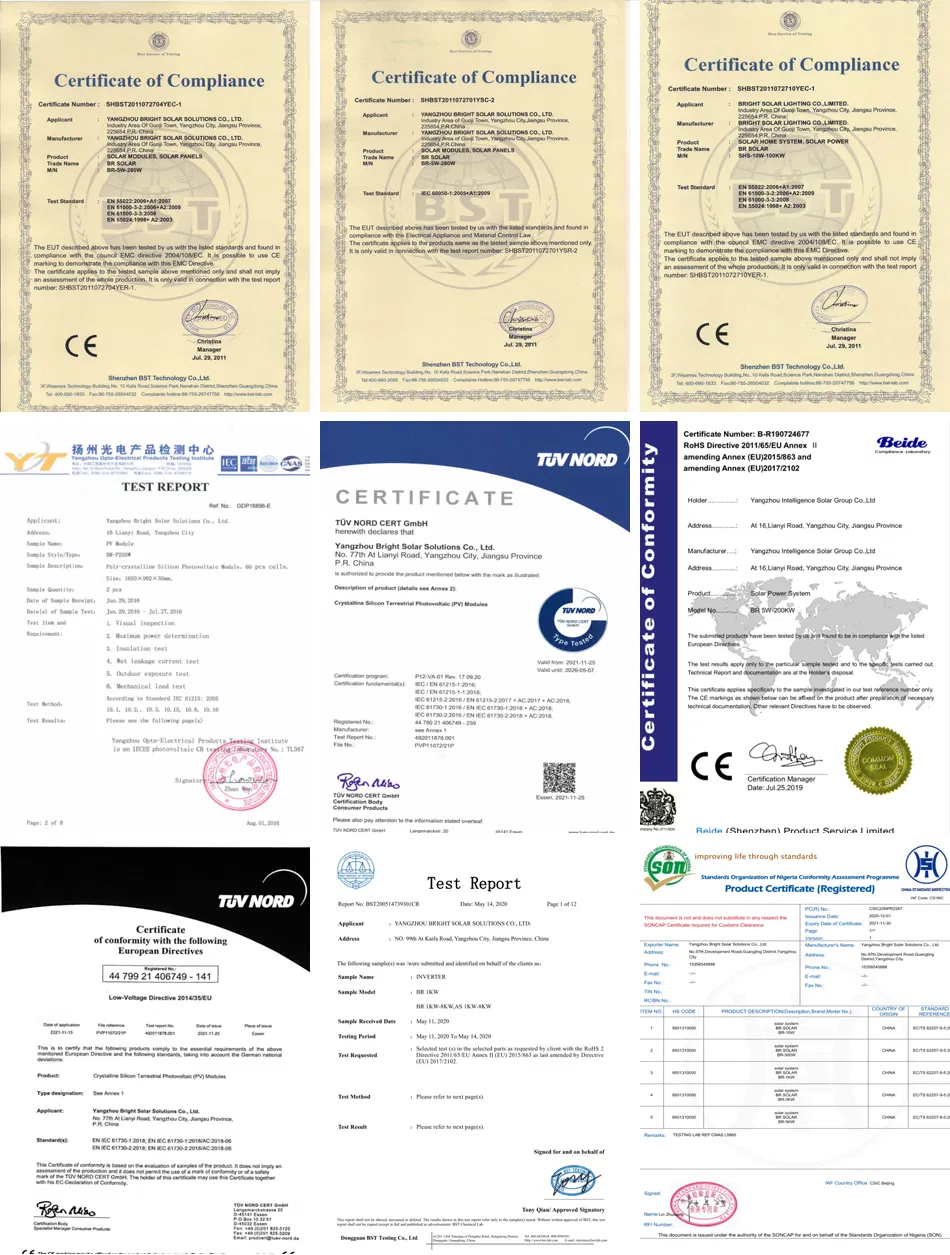

Solar Certificates
Compliance: ISO 9001:2000, CE, RoHS, IEC, TUV, SONCAP, PVOC.
Packaging & Shipping

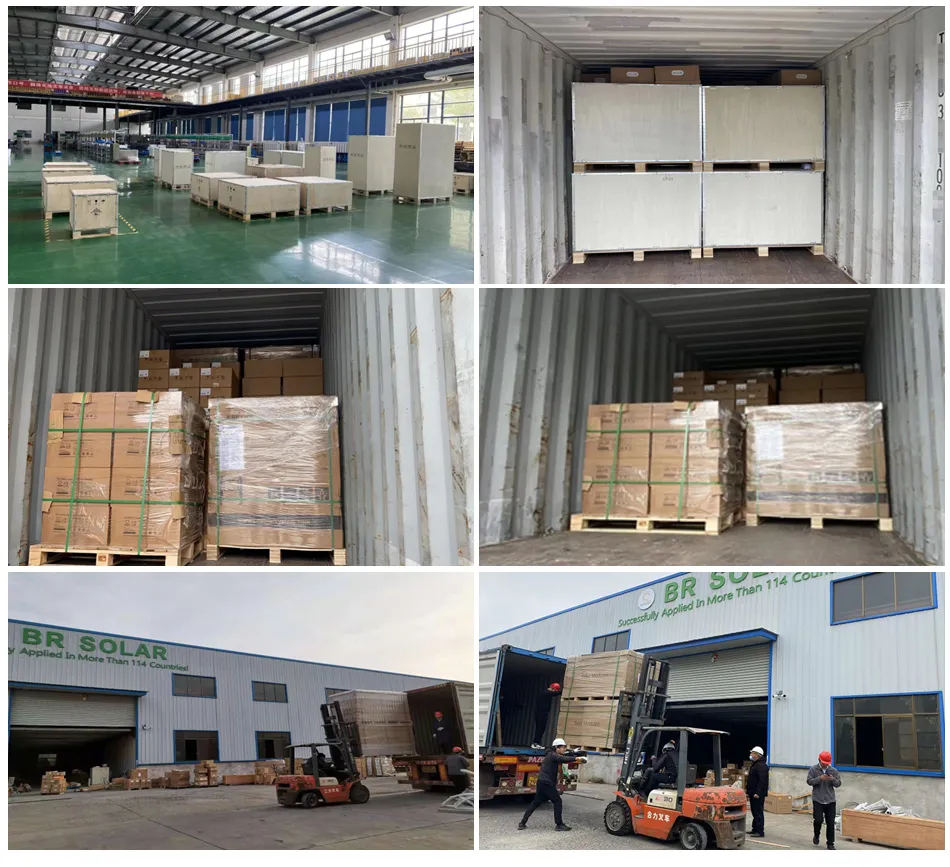

Packaging Detail 1 Packaging Detail 2
Frequently Asked Questions
Can I request a sample for solar products?
Yes, we welcome sample orders to test and verify quality. Mixed samples are also acceptable for initial evaluation.
What is the estimated lead time for orders?
Samples typically require 5-7 days. For mass production, the lead time depends on the specific order quantity and configuration.
Are you a direct manufacturer or a trading company?
We are a specialized factory with high production capacity for a wide range of solar energy products in China.
What shipping methods are available?
Samples are usually shipped via DHL, UPS, FedEx, or TNT (approx. 7-10 days). Bulk orders can be shipped via air or sea freight depending on your preference.
What is the warranty policy for the system?
We provide a 3 to 10-year warranty (depending on components) for the entire system and offer free replacements for any quality-related issues.
Is technical support available for installation?
Yes, we provide detailed installation videos and site guiding services for large container orders to ensure a smooth setup process.
