📊 Overview & Basic Info
Model NO.STAL
Nature of Source FlowActive Inverter
PhaseSingle
Output Power>1000W
CertificationSAA, CE, ROHS, ISO9001, CCC
TypeDC/AC Inverters
Power SourceSolar Power
Wave StringSine Wave Inverter
Lithium Battery50ah/12.8V
Rated Power Options600W to 5000W
Output Voltage220VAC
Controller TypeMPPT
💡 Product Description

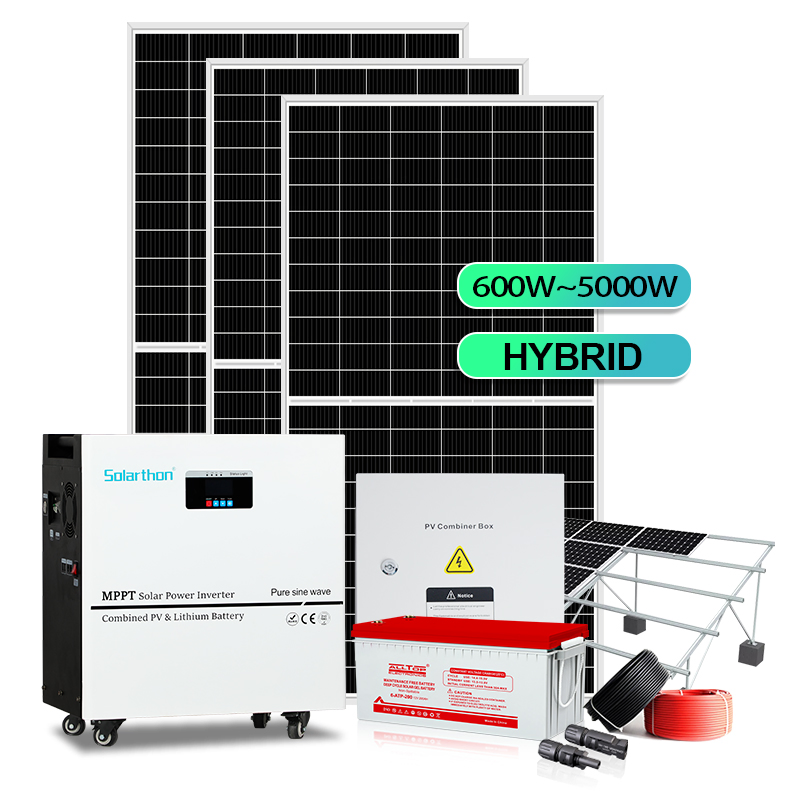

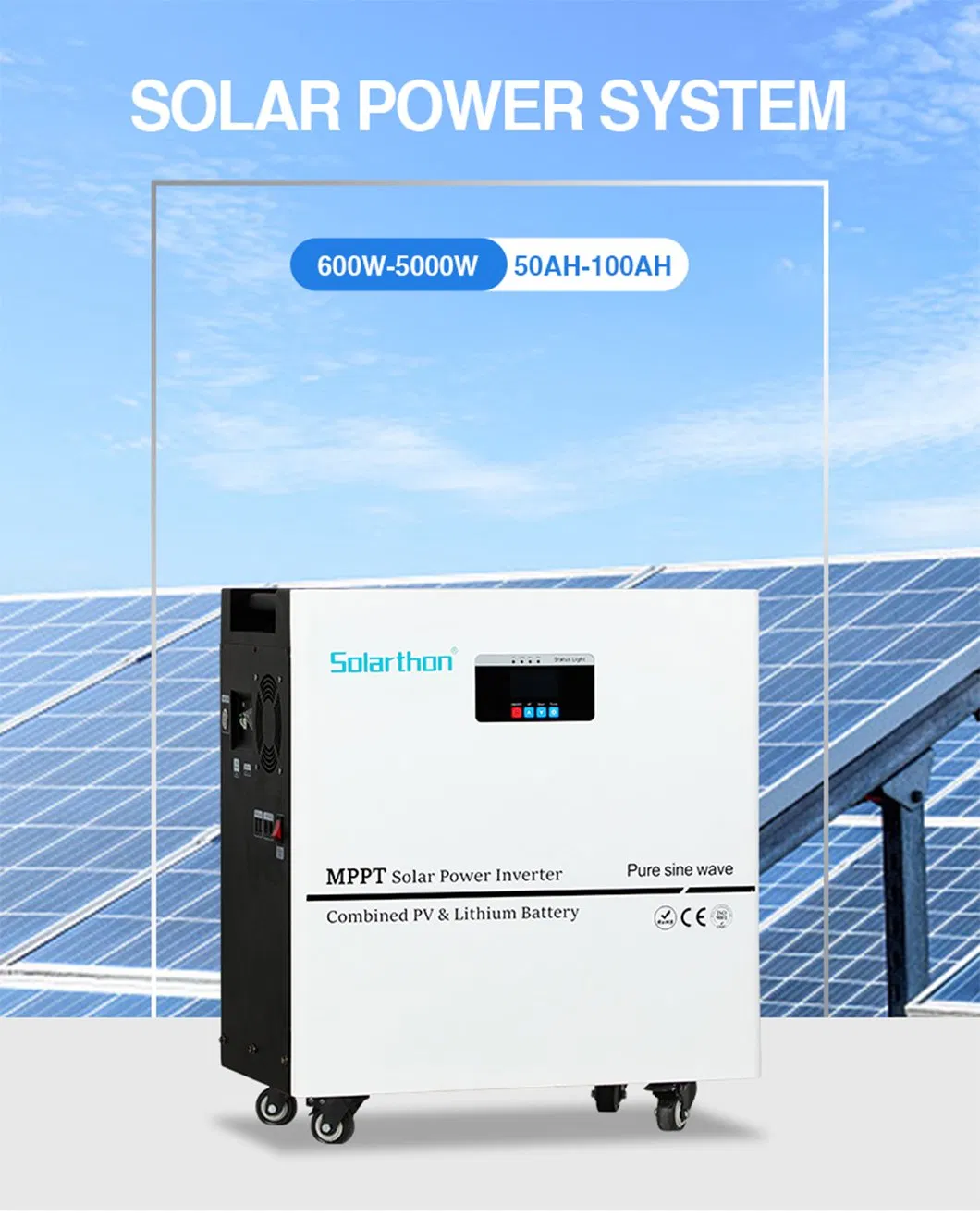

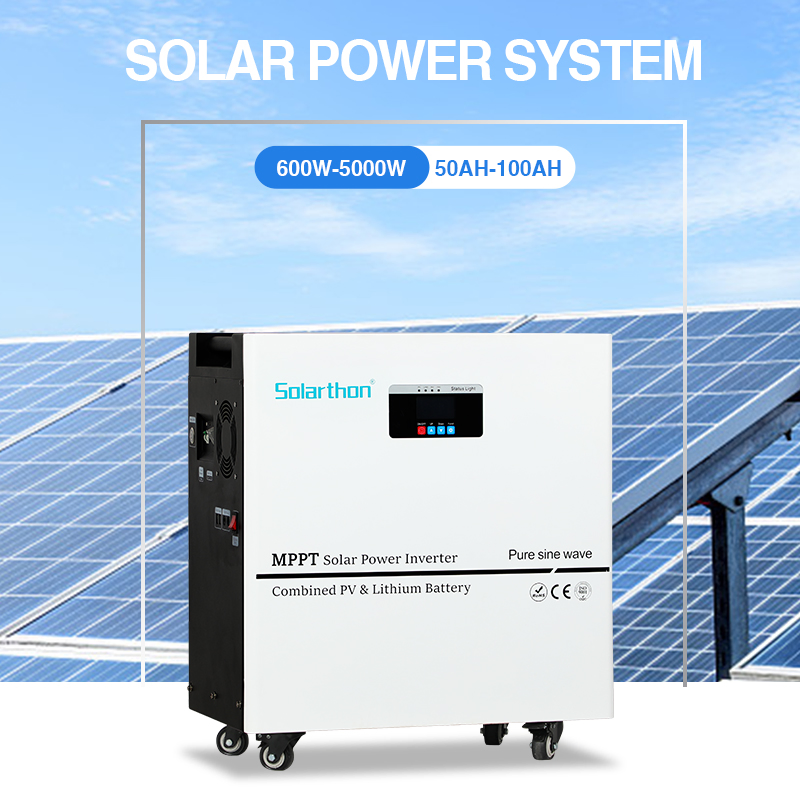

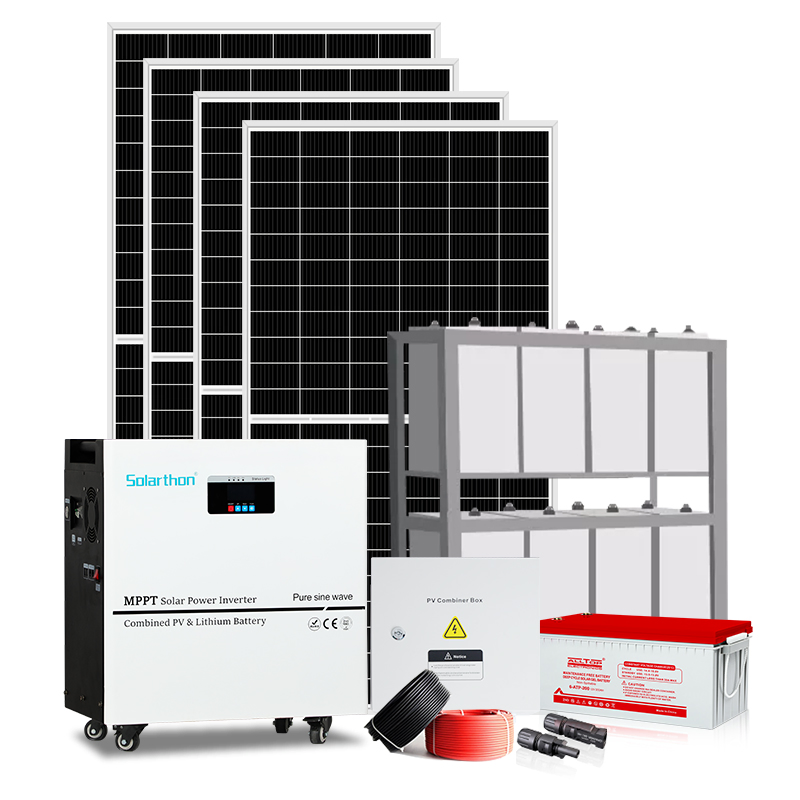

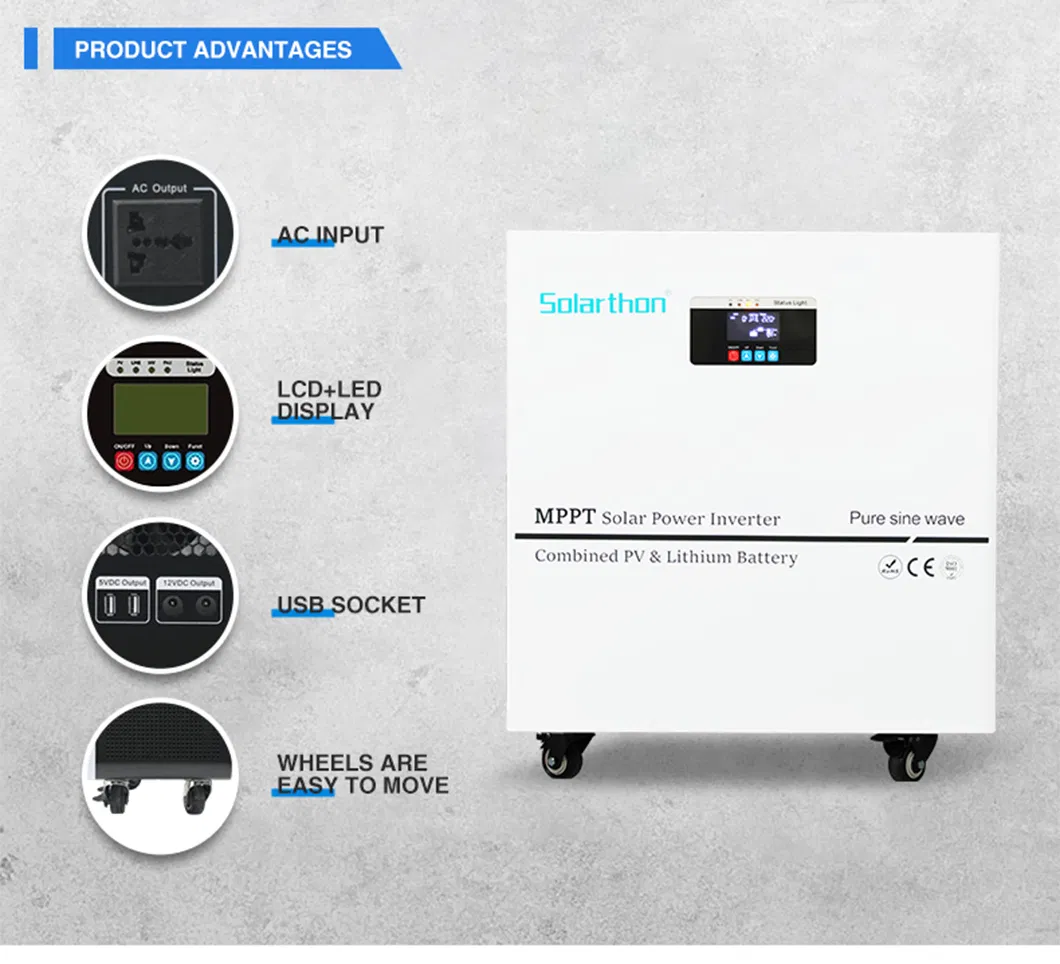

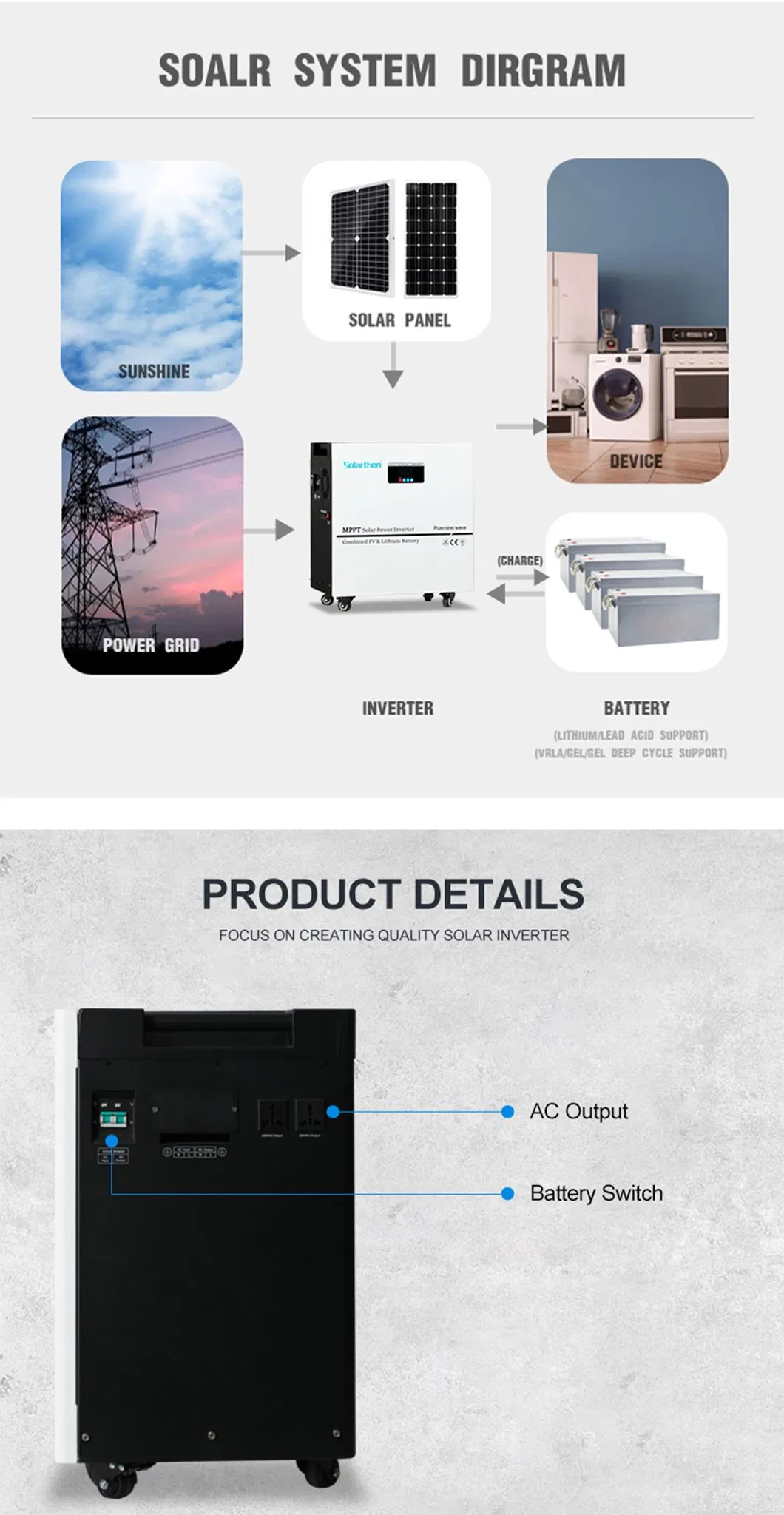

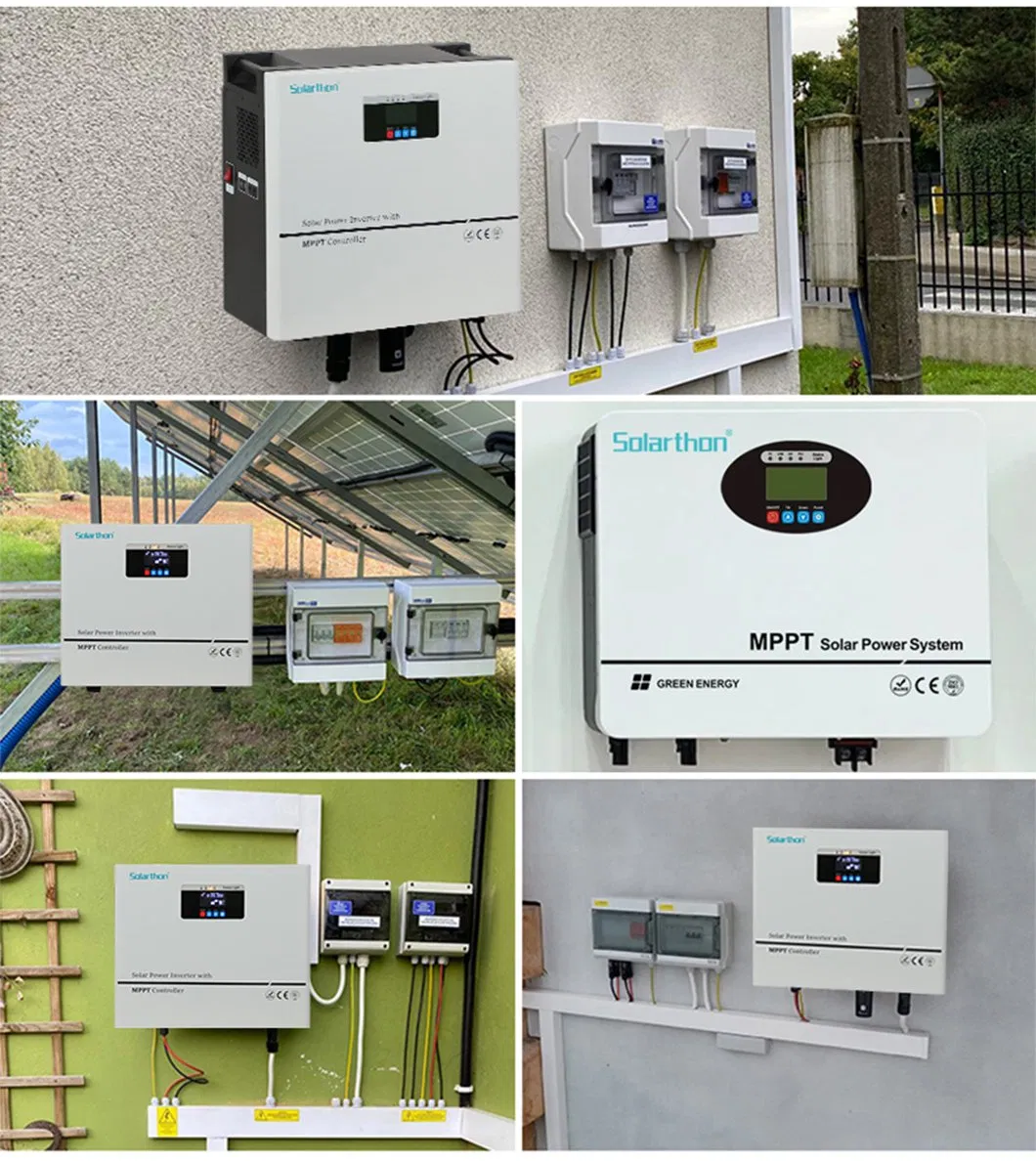

Off-Grid Solar Generator System: Designed to provide stable and reliable power to homes, communities, or areas without access to grid power. Features convenient movement, easy installation, and reliable performance, making it ideal for emergency power situations.
| Model |
STAL601128 |
STAL122256 |
STAL222256 |
STAL352512 |
STAL502512 |
STAL302512K |
STAL502512K |
| Rated Power |
0.6kW |
1.2kW |
2.2kW |
3.5kW |
5kW |
3.0kW |
5kW |
| Lithium Battery |
50Ah/12.8V |
50Ah/25.6V |
100Ah/25.6V |
75Ah/51.2V |
100Ah/51.2V |
75Ah/51.2V |
100Ah/51.2V |
| Output Voltage |
220VAC |
| Output Frequency |
50/60Hz |
| Max PV Voltage |
100VDC |
100VDC |
100VDC |
150VDC |
150VDC |
500VDC |
500VDC |
| MPPT Range |
18-100VDC |
35-100VDC |
35-100VDC |
60-150VDC |
60-150VDC |
120-450VDC |
120-450VDC |
| Warranty |
3 Years |
❓ Frequently Asked Questions
Are your inverters pure sine wave output?
Yes, all of our inverters provide true pure sine wave output, ensuring compatibility with sensitive electronic equipment.
What's the difference between pure sine wave and modified sine wave?
Pure sine wave output is as good as the public power grid, if not better. It has low repair rates, a long lifespan, and no harmonic pollution. Modified sine wave inverters can negatively impact appliances and cannot run inductive loads like air conditioners or refrigerators.
What kind of appliances can your inverters load?
Our inverters can be used for household, office, and agricultural appliances, including inductive loads such as refrigerators, air conditioners, and water pumps.
How do I choose the right inverter?
Simply determine your total power demand and the type of appliances you plan to use, then our team can recommend the most suitable model for your needs.
What is the difference between 12V, 24V, and 48V inverters?
This refers to the input voltage from the battery bank. Higher voltages result in lower current, allowing for smaller wiring between the solar array and the battery bank. Your panels, inverter, and battery must all use the same voltage.
What should I do if a product is faulty?
If any product is faulty, please provide images or video of the issue. We will analyze the problem and provide necessary spare parts, such as PCB boards, for after-sales service.
