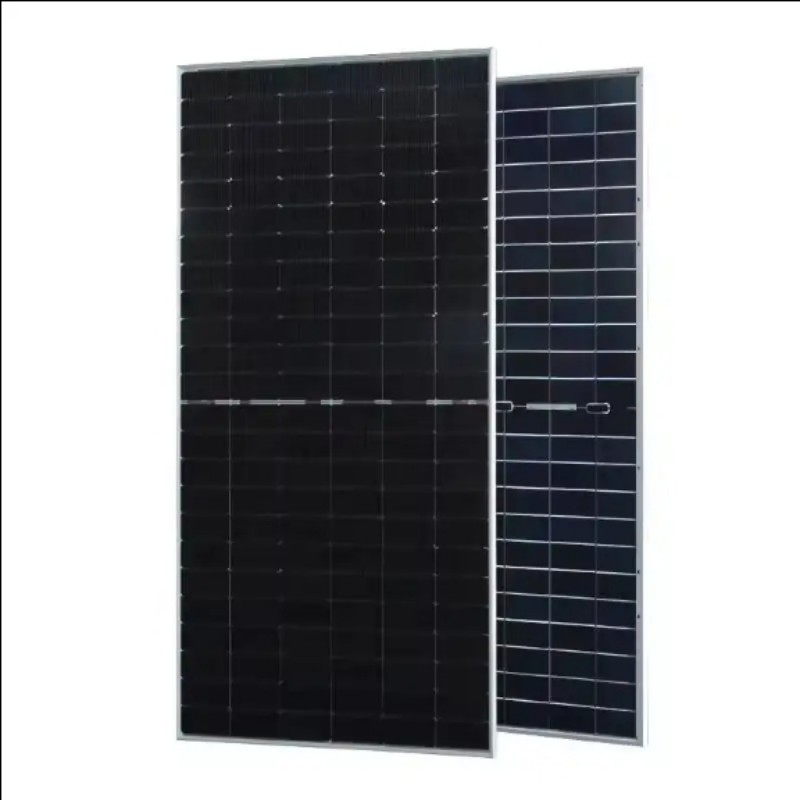

645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
1 / 5
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power
645W Smart MPPT Charge Controller Integration Solar Panel Power

645W Smart MPPT Charge Controller Integration Solar Panel Power

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO.JYSOLAR-8
ApplicationIndustrial
ConditionNew
CertificationISO, CE
MaterialMonocrystalline Silicon
LevelTier 1
Delivery Time30-45 Days
OriginChina
HS Code8541402000
Production Capacity50000 Pieces/Year
Product Description
Solar Panel Power

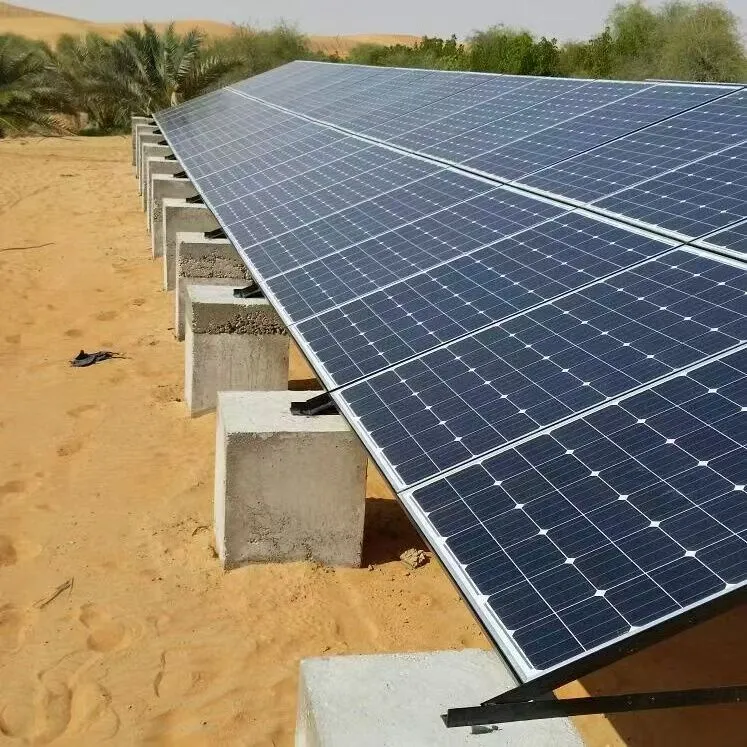

Core Highlights
🚀
Core Highlights:
1. Advanced Technology: Equipped with PERC+ monocrystalline silicon cells, delivering a peak power output of 240W (STC). The bifacial design enhances system yield by up to 30%.
2. Robust Performance: IP65 protection, operating temperature range of -40°C to 85°C.
3. Versatile Installation: Ultra-thin 10mm profile with aluminum frame.
4. Smart Monitoring: Integrated wireless module for real-time data transmission.
🛡️
QUALITY CONTROL
2 EL testing avoid cells cracking of each solar module. 2 Power flash testing avoid false welding and insufficient power. Packing tightly with angle protection. Warranty cover 30 years.
⚙️
SOLAR MODULE BOM
CELLS: TIER 1 BRANDS
GLASS: ULTRA-CLEAR EVA >93%
BACKSHEETS: TPT, JUNCTION BOX: IP68
FRAME: ANODIZED ALUMINUM 6005-T5
Technical Specifications
MECHANICAL CHARACTERISTICS ELECTRICAL PARAMETERS
Model TypeN-type Mono Power ClassLNCU-640ND (STC)
No. of Cells144(6x24) Maximum power(Pmax)640W
Dimensions2465×1134×30mm Open Circuit Voltage(Voc)52.41V
Weight34.5kg Short Circuit Current(lsc)15.36A
Glass2.0mm semi-tempered Voltage at Pmax(Vmpp)44.17V
FrameAnodized aluminium alloy Current at Pmax(lmpp)14.49A
Junction BoxIP68 rated Module Efficiency22.90%
Certifications & Advantages
Certifications

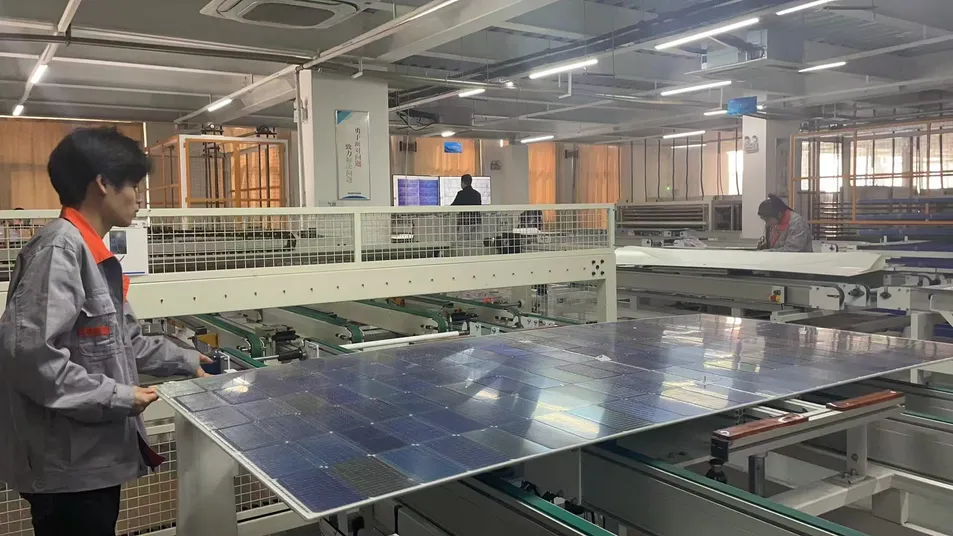

Quality 1

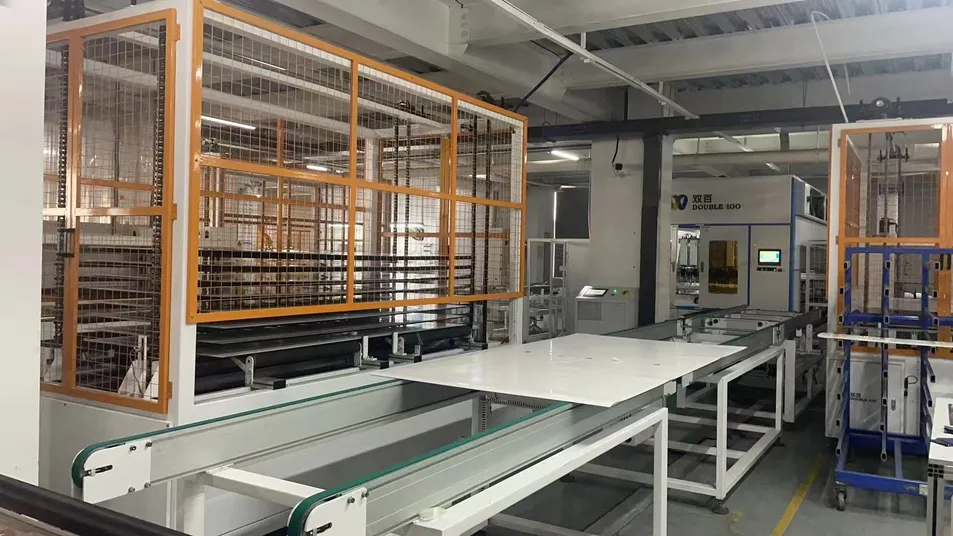

Quality 2
Product Features:
1. High conversion efficiency;
2. High stability +/-3% power tolerance;
3. Beautiful appearance;
4. Anti-aging EVA & high insulation TPT;
5. Withstands high wind and snow load.
Our Advantages:
Maximize sunlight harvest with efficiency up to 22%+. Full customization available for size (100W-700W+), frame style, and wattage. IEC/UL-certified reliability.
Packing & Delivery

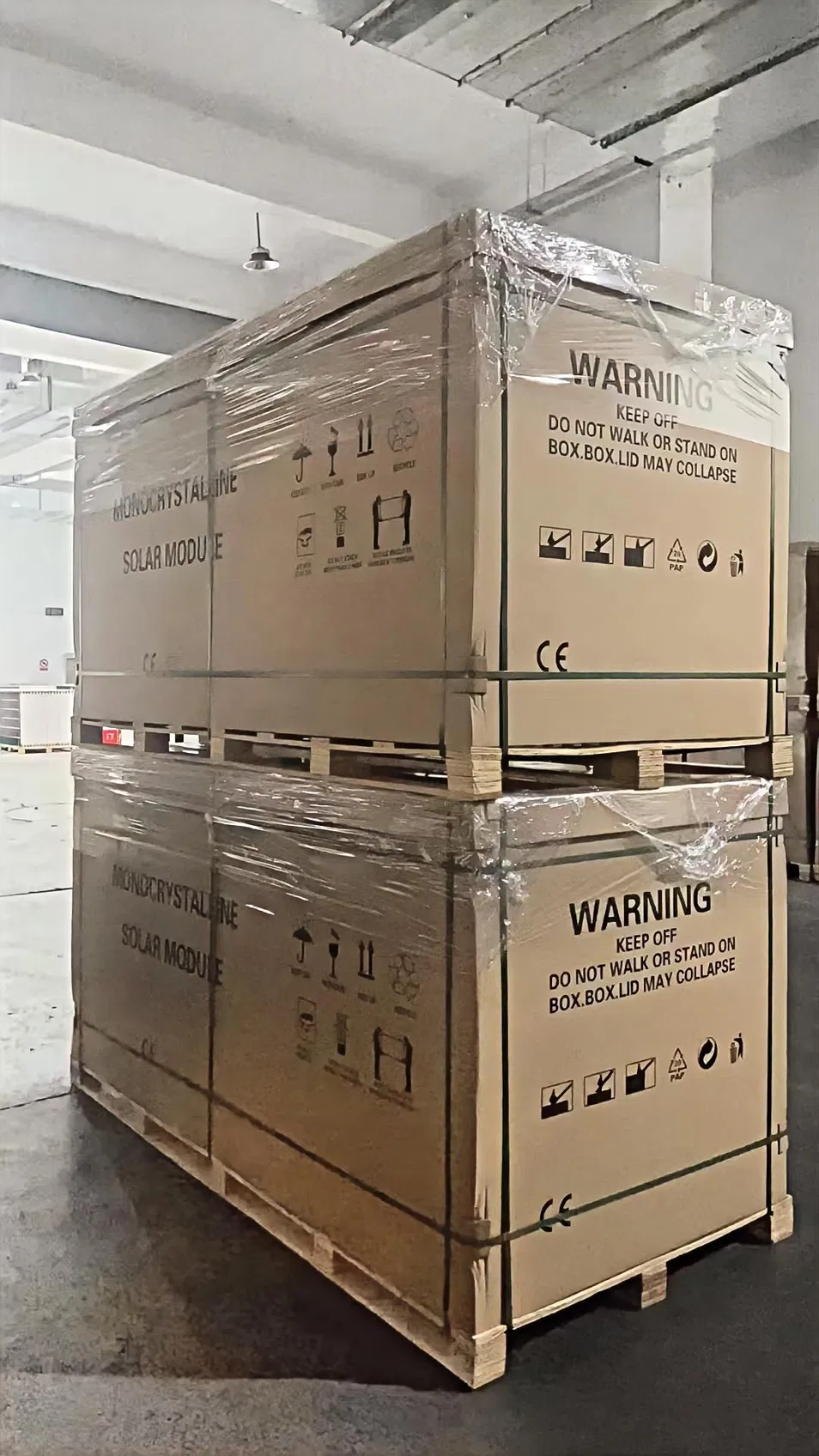

Packing 1

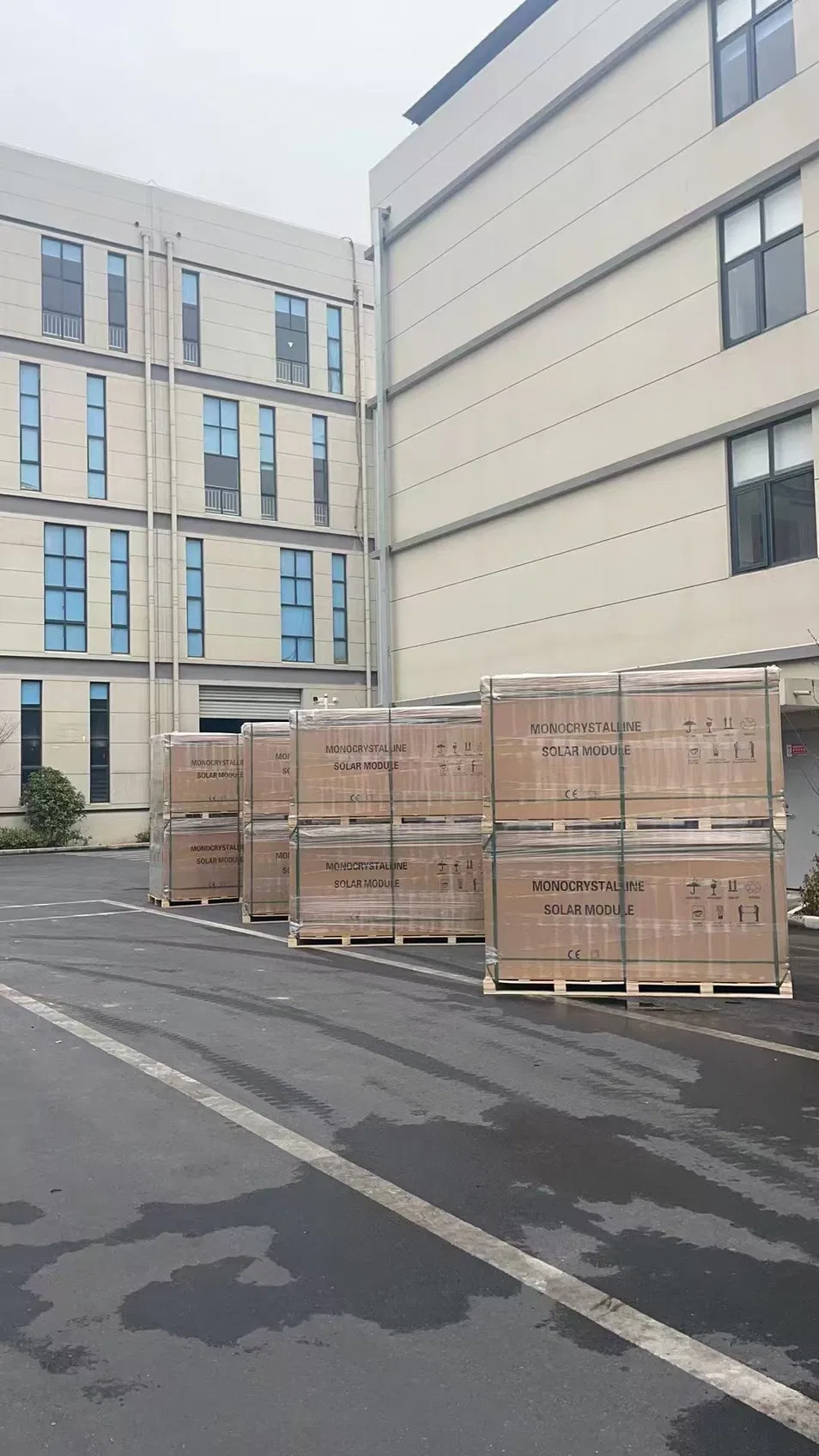

Packing 2
Logistics Info:
FOB Port: Tianjin
Container: 40HQ
Pieces per pallet: 36
Pieces per container: 576
Package Specs:
Size: 2465×1134×30mm
Net Weight: 34.5kg
Gross Weight: 37kg
Lead Time: 30-45 days

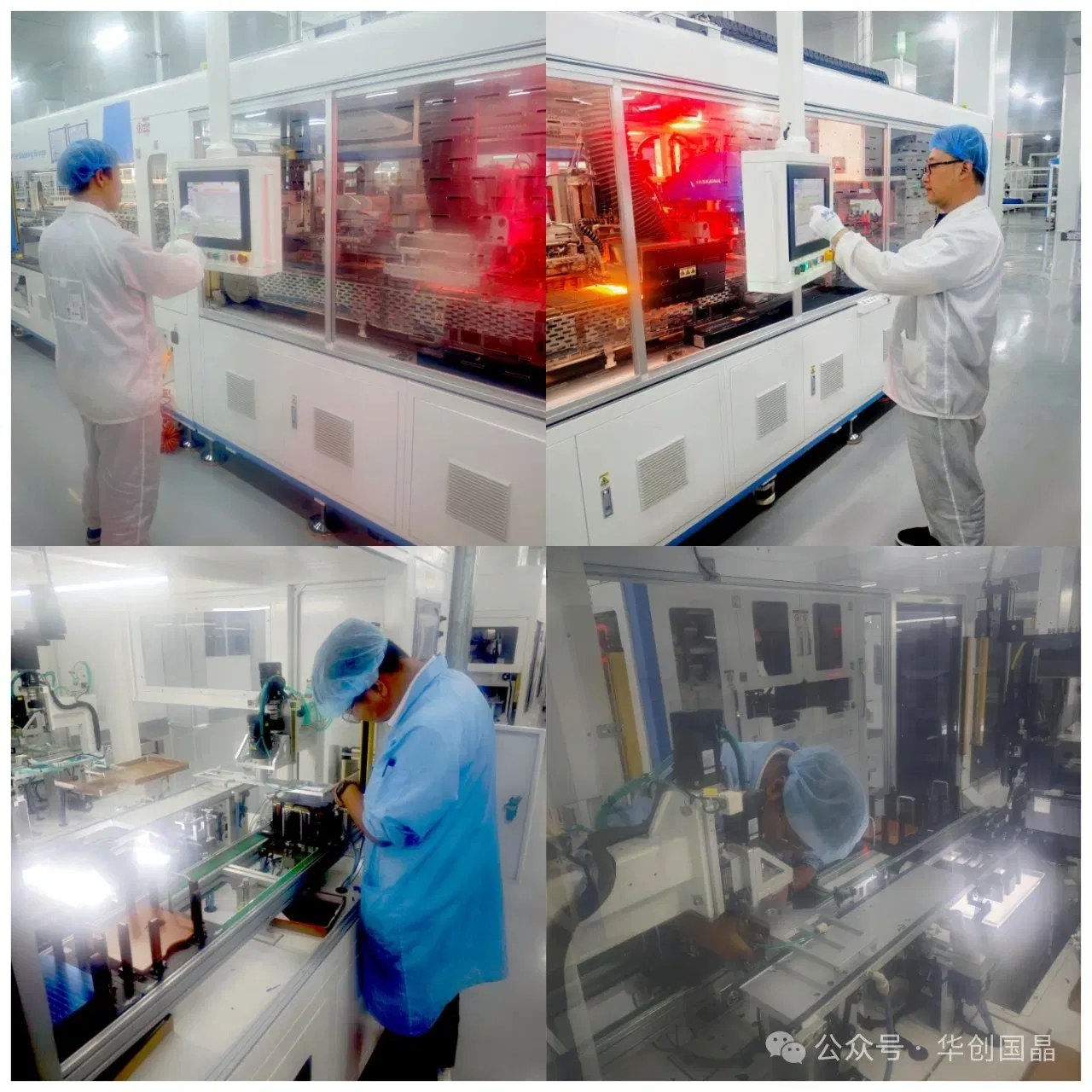

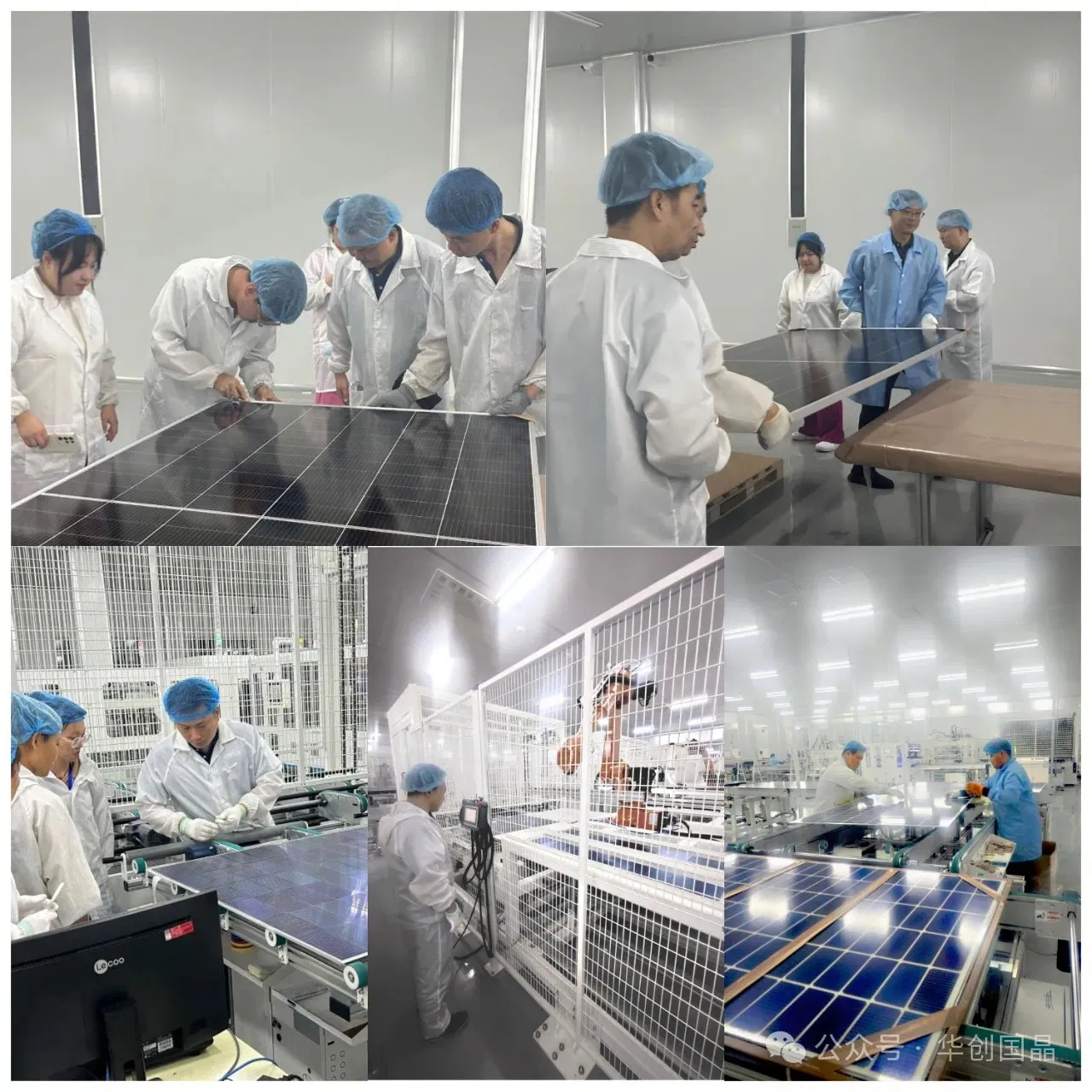

Manufacturing Excellence
🏭
As a leading manufacturer of clean energy products, we specialize in comprehensive solutions for photovoltaic systems and energy storage. We operate two fully automated production lines capable of producing between 10,000 and 20,000 pieces daily. OEM/ODM/Custom-engineered solutions are available.
Factory 1
Factory 2
Frequently Asked Questions
What are the installation requirements for these solar panels?
Ensure a tilt angle ≥15° (for latitude 40° regions), use galvanized brackets, and allow a 10mm thermal expansion gap between modules.
How is power degradation handled under the warranty?
On-site testing is provided. We offer immediate replacement if measured power is less than 90% of the rated value, and free repair for degradation exceeding 10% within 25 years.
Does surface scratching affect the performance of the panel?
Minor scratches (≤3mm) are generally harmless, though regular cleaning is recommended. Deep scratches require replacement to prevent hot-spot damage.
Can I customize the size or colors of the solar modules?
Yes, 12V/24V/48V system-compatible sizes are available. While black matte is standard, custom colors can be provided with a surcharge.
What is the standard lead time for large orders?
The typical lead time for production and delivery preparation is between 30 to 45 days, depending on the order volume and customization requirements.
What certifications do your solar products hold?
Our products are fully certified with ISO and CE standards, ensuring international quality and safety compliance for industrial and residential use.
