Advanced 800W Micro Inverter for Solar Panels with Smart WiFi Integration

1 / 5

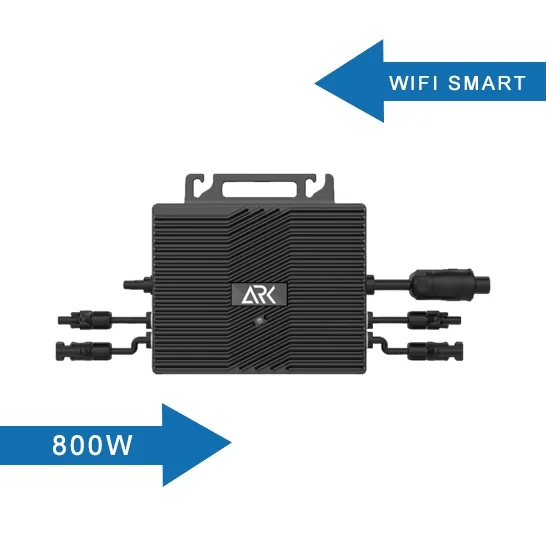

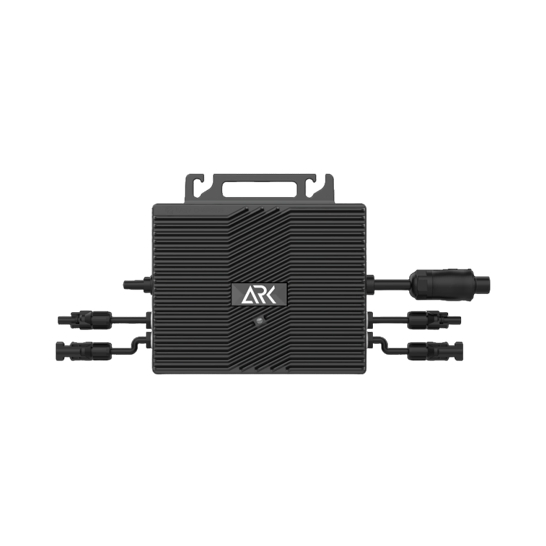

Advanced 800W Micro Inverter for Solar Panels with Smart WiFi Integration

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

General Overview

Output Power	501 - 1000W
Type	DC/AC Inverters
Power Source	Solar Power
Circuit Topologies	Push-pull Type
Nature of Wave String	Sine Wave Inverter
Grid Type	Grid Inverter
Specification	23323242 mm
Origin	China

📦

Packaging & Delivery

Package Size	24.00cm * 24.00cm * 5.00cm
Package Gross Weight	3.000kg
Transport Package	Carton

✨

Product Description

Low Night Power Consumption

Microinverters have very low power consumption at night (<50mW), consuming almost no power when not generating.

Small & Compact Size

Physical dimensions of 233*232*42 (mm) and weight of 2kg allow for easy installation and meet roof load-bearing requirements.

High Compatibility

Compatible with various types and brands of photovoltaic modules. CEC is 95.5%, ensuring high energy conversion.

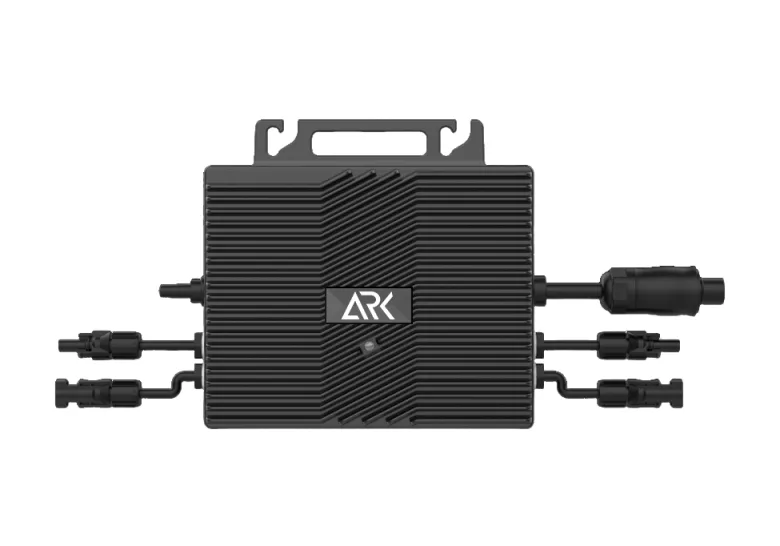

Boost Output by 96.7%

Maximize solar panel yields with industry-leading peak efficiency.

Shade Resistance

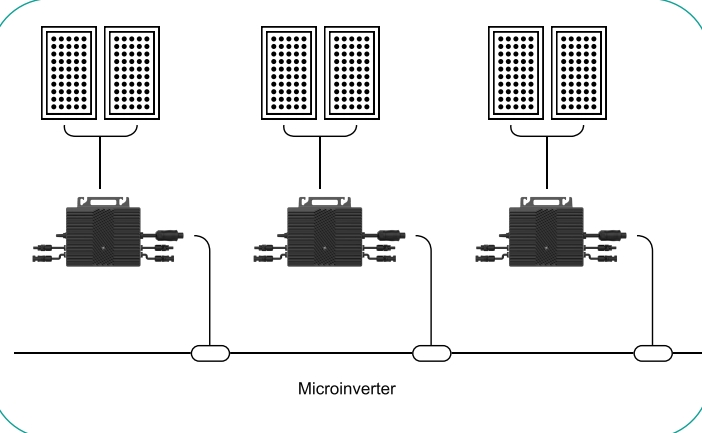

Individual MPPT for each panel ensures optimal performance even with shading or mismatched modules.

Extreme Heat Performance

Operates confidently from -40°C to 70°C, with minimal derating (10% at 55°C) and 50% output even at 70°C.

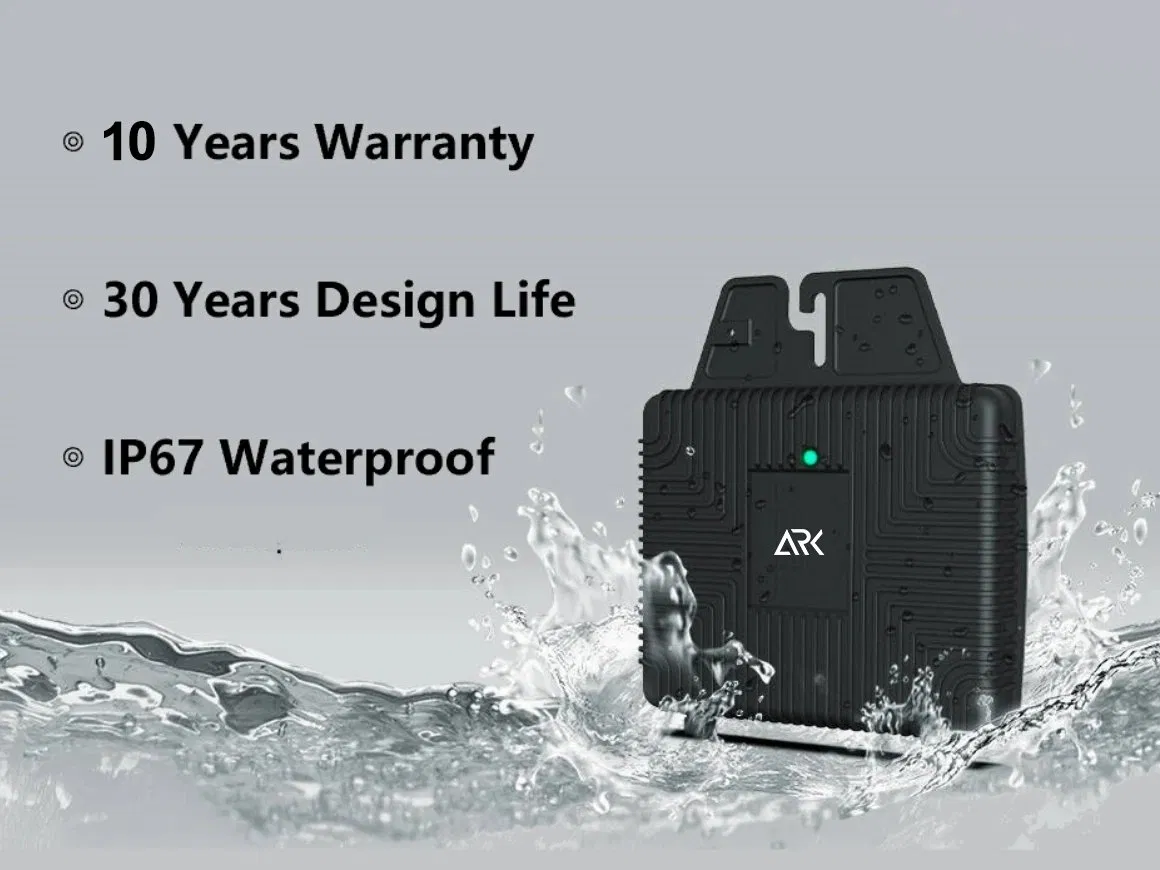

World-Class Reliability & Safety

• Waterproof: IP67-rated for any climate.
• Longevity: 30-year design life and a 10-year warranty.
• Safety First: Low DC voltage minimizes installation risks.

🛠️

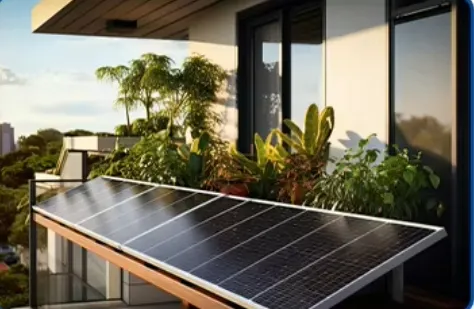

Applications

🏆

Why Choose Us

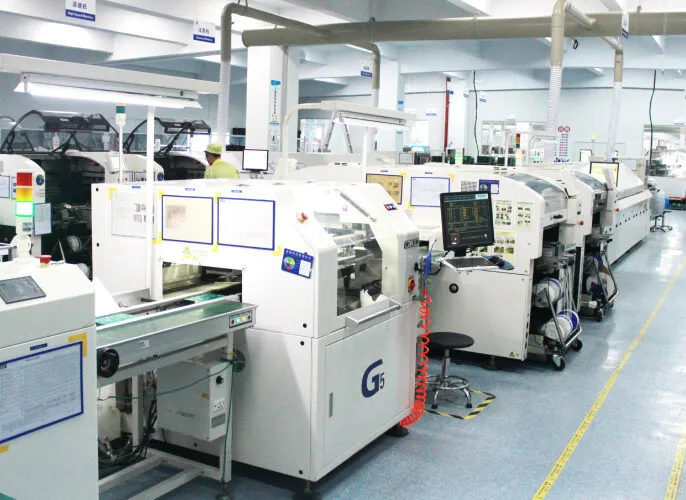

Independent R&D

Independently designed PCBA schemes, energy management systems (EMS), and intelligent monitoring platforms (IoT and Apps).

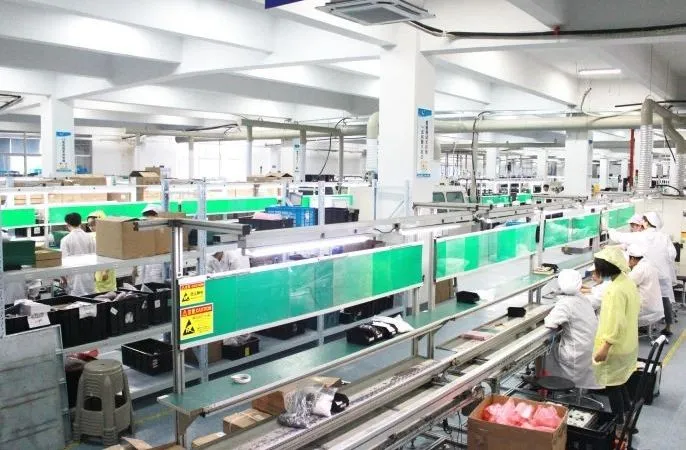

Independent Production

Self-production of key components, including PCBA and monitoring devices, ensuring strict quality control.

🏠

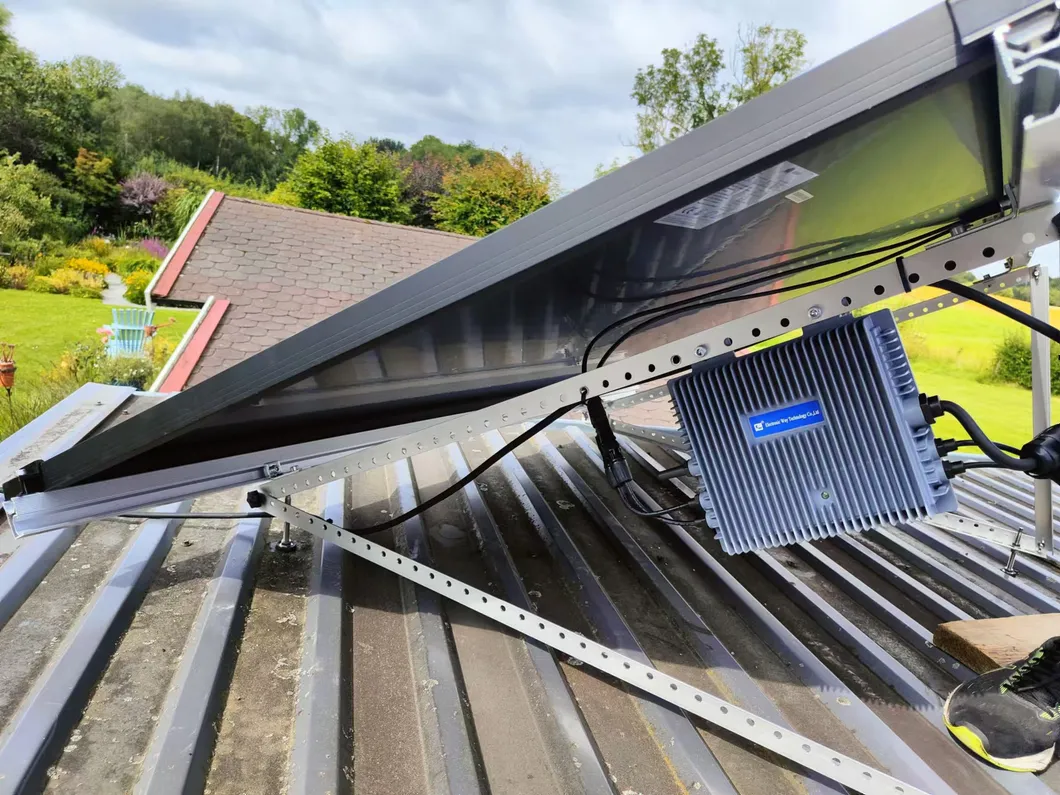

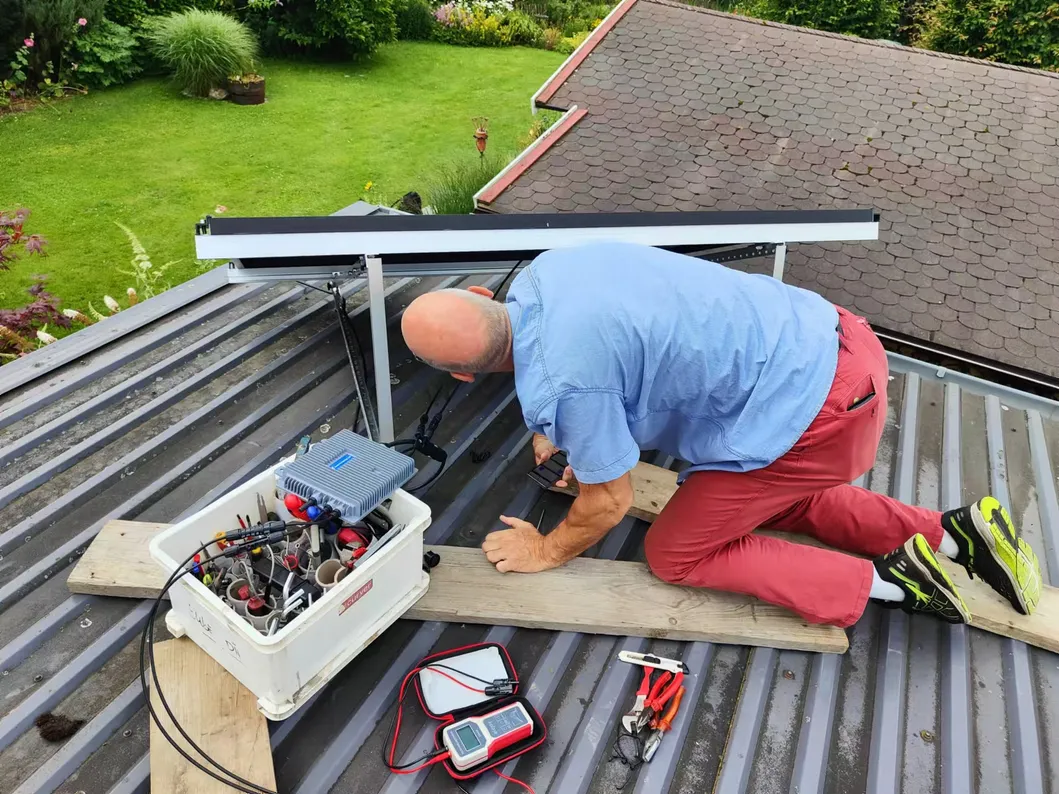

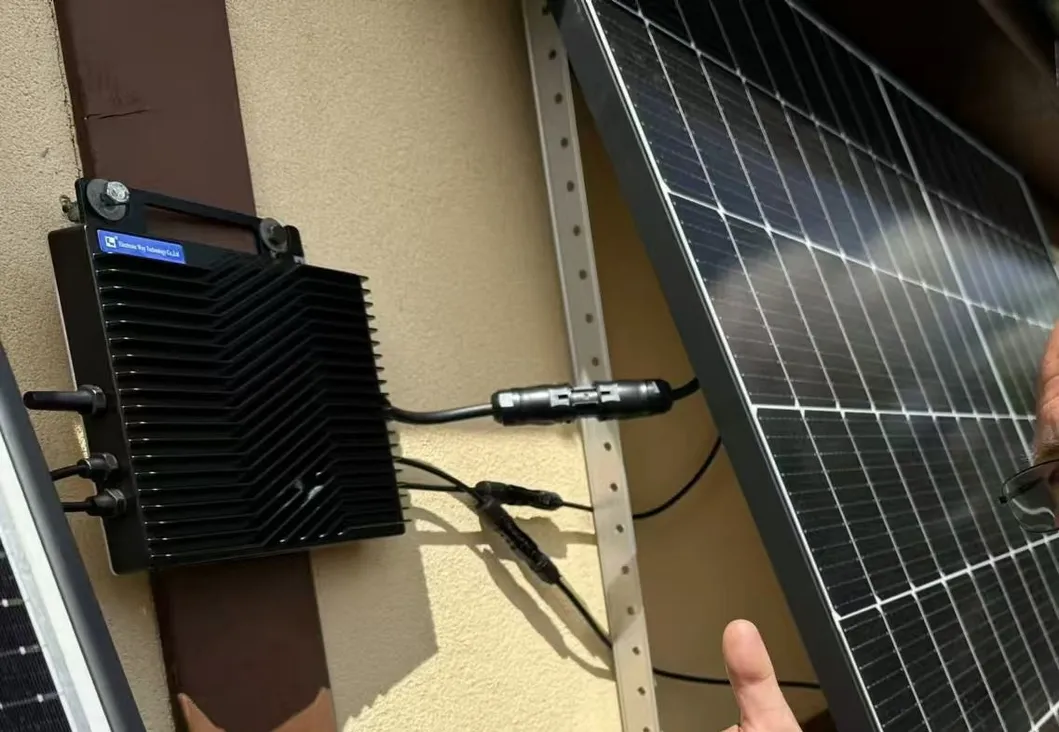

Installation Cases

📊

Product Parameters

Specifications	400W Series	800W Series	2000W Series
Input Data (DC)
Rec. Module Power [W]	300~550/MPPT	300~550/MPPT	300~550/MPPT
Start up Voltage [V]	18	18	18
MPPT Voltage Range [V]	17.5~55	17.5~55	17.5~55
Max. Input Current [A]	13.3	13.3	13.3
Output Data (AC)
Max. Cont. Power [VA]	400	800	2000
Nominal Output Current [A]	1.74	3.48	8.7
Nominal Voltage [V]	220/230/240, L/N/PE
Efficiency (CEC)	95.50%	95.50%	95.50%
Mechanical Data
Dimensions (WHD mm)	22718342	23323242	38023342
Weight [kg]	1.8	2	3.75

❓

Frequently Asked Questions

What is the night-time power consumption?

The microinverters are designed with extremely low night power consumption of less than 50mW, ensuring no wasted energy when the sun is down.

How does shading affect the system?

Each panel is equipped with an individual MPPT (Maximum Power Point Tracking). This means that if one panel is shaded, the others continue to operate at peak efficiency without system-wide losses.

Can these inverters withstand extreme weather?

Yes, they are IP67-rated waterproof and built to operate in temperatures ranging from -40°C to 70°C, making them suitable for almost any climate.

What is the expected lifespan and warranty?

The product is built with world-class components for a 30-year design life and comes with a 10-year warranty for peace of mind.

Are microinverters safer than traditional string inverters?

Yes, microinverters use low DC voltage per panel, which significantly minimizes the risk of high-voltage DC arcing and ensures a safer installation environment.

Are they compatible with different solar panel brands?

Absolutely. Our microinverters feature a wide power range and are compatible with almost all types and brands of photovoltaic modules on the market.
