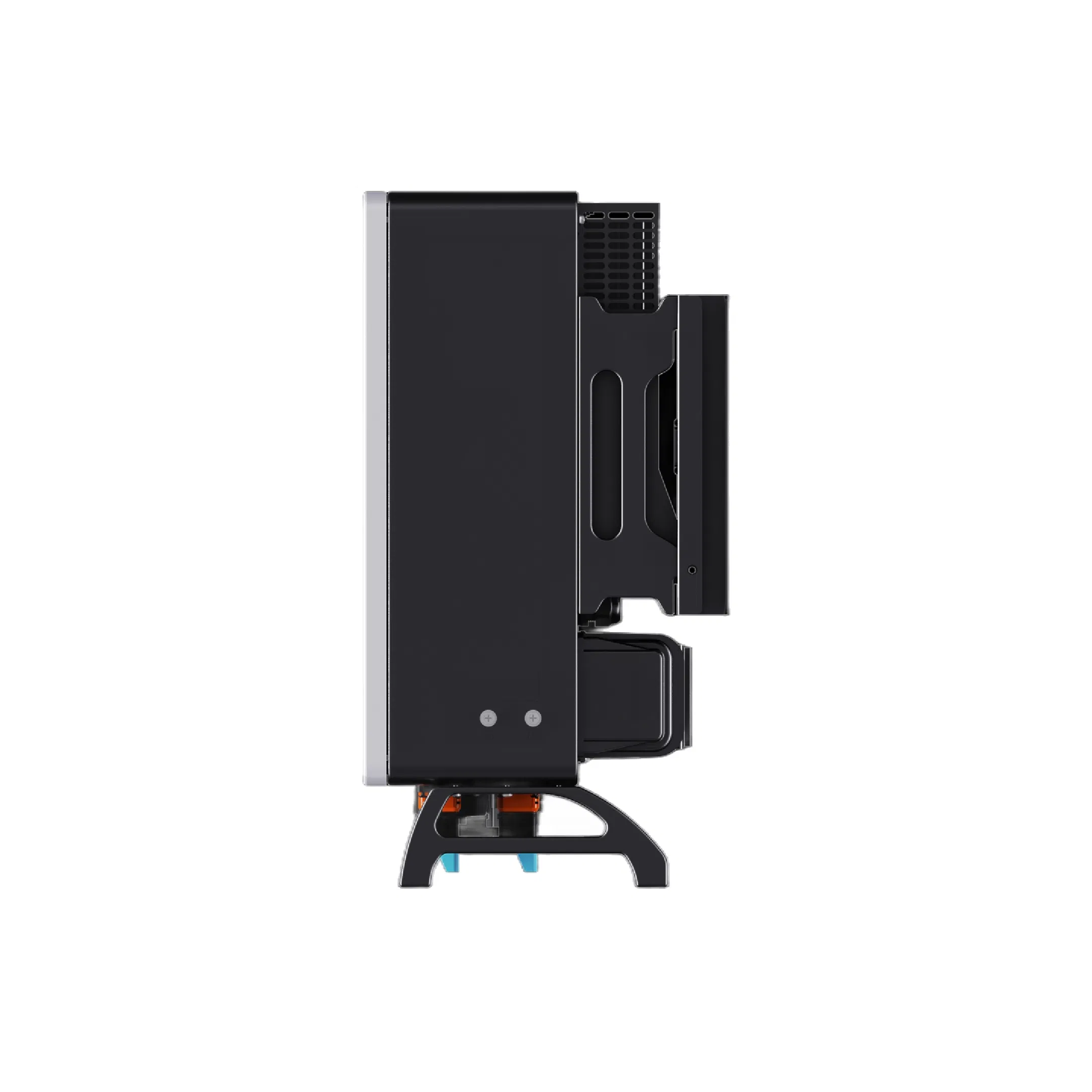

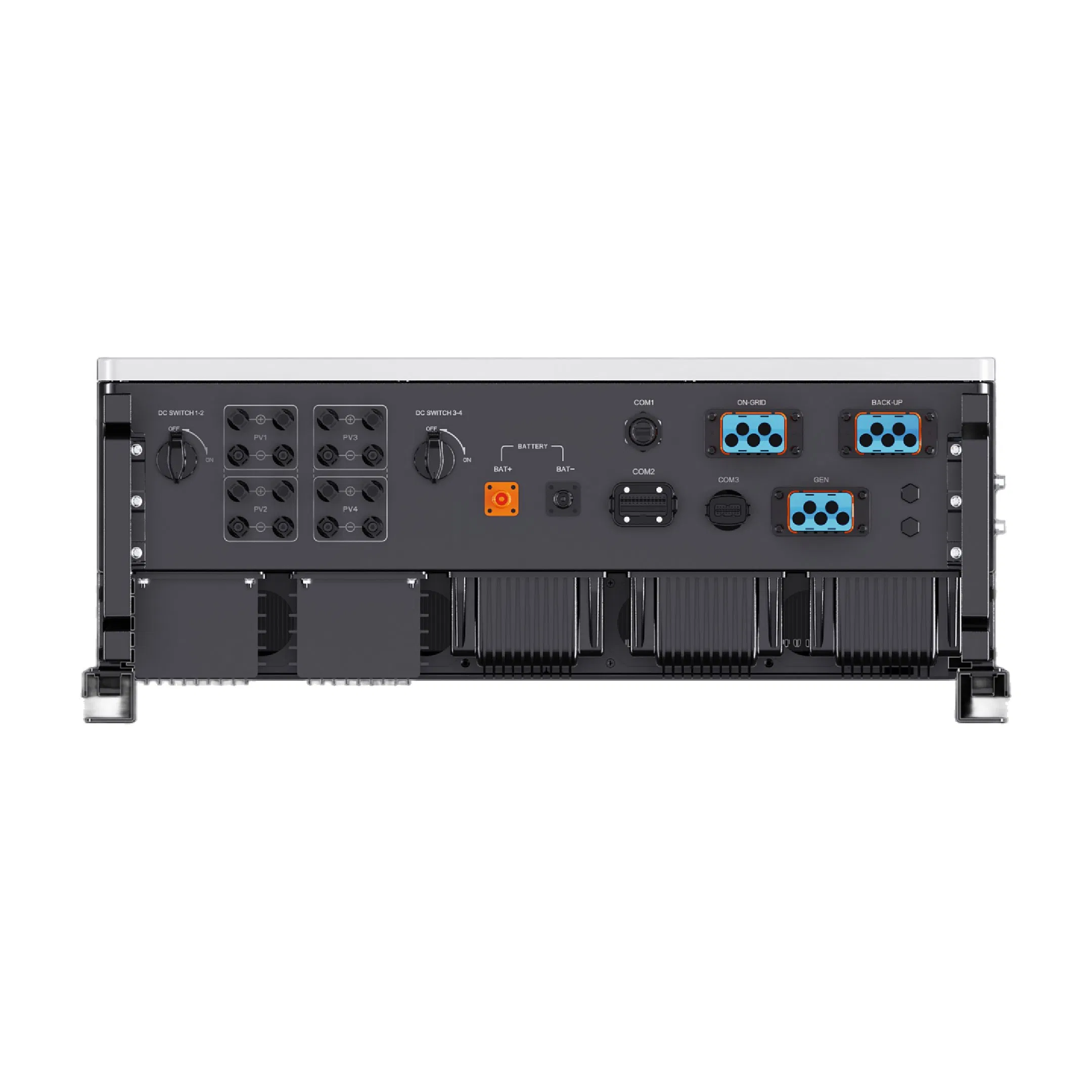

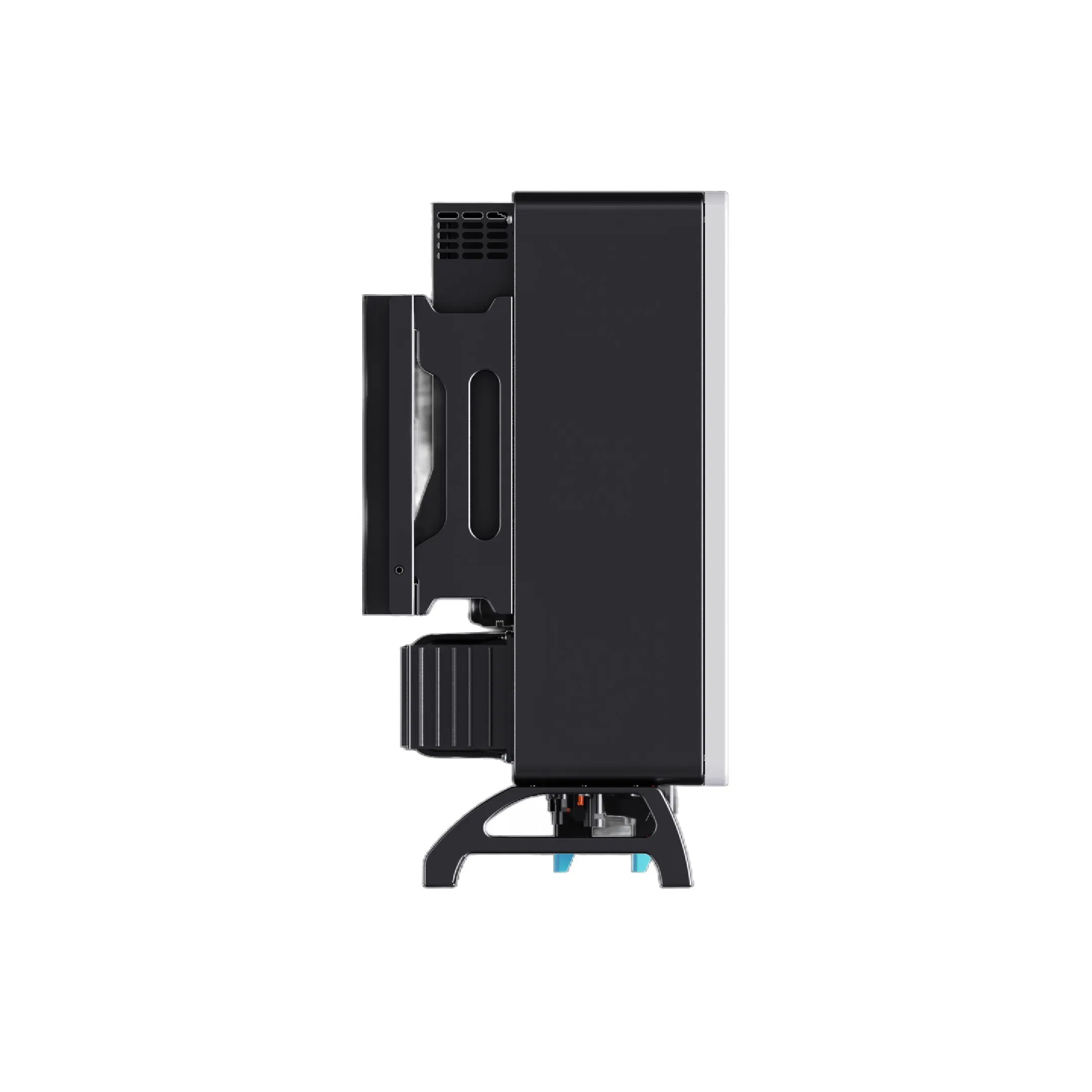

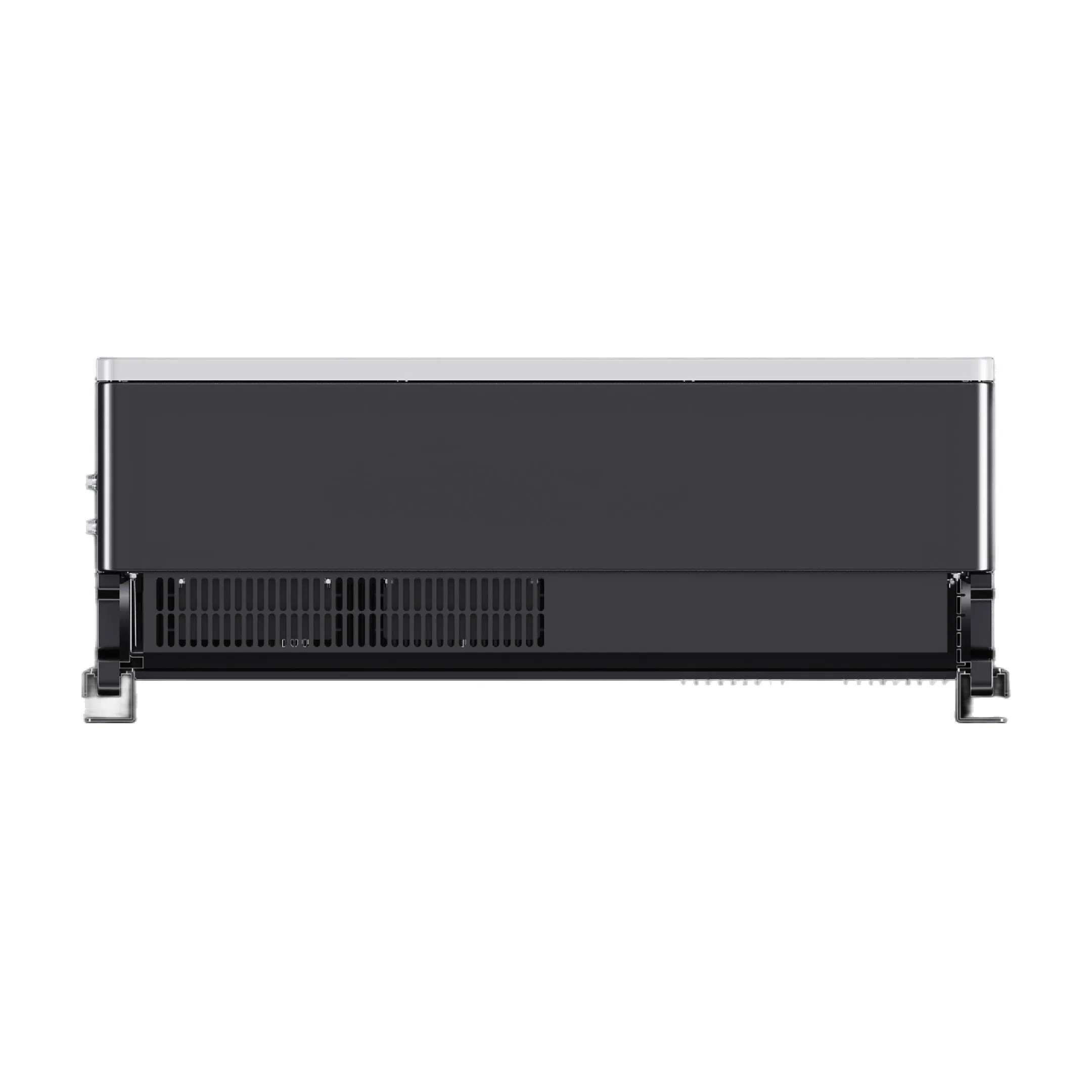

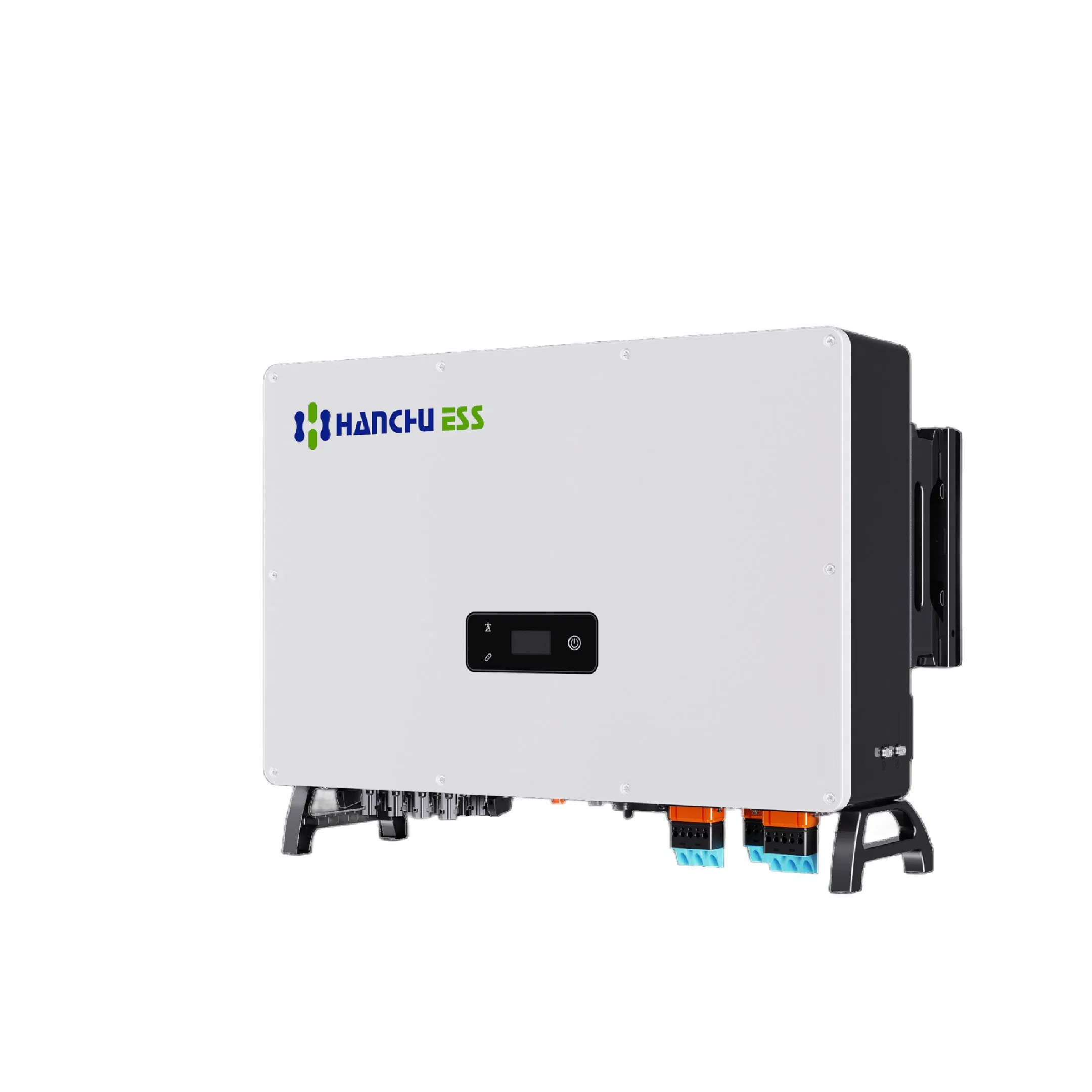

Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
1 / 5
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication
Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication

Advanced Solar Hybrid Inverter for Smart Grid Integration with Parallel Function and RS485 Communication

Customization: Available
Warranty: 5 Years
Nature of Source Flow: Active Inverter
Send Inquiry

Product Description

i

Basic Information

Model NO.
THREEPHASE CESS-HY-T-50K
Phase
Three
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Frequency
50Hz / 60Hz
Rated Voltage
3L/N/PE; 220/380V; 230/400V; 240/415V
Dimensions
800 × 620 × 300 mm
Weight
76.0 Kg
D

Product Description

Advanced Solar Hybrid Inverter
P

Products Display

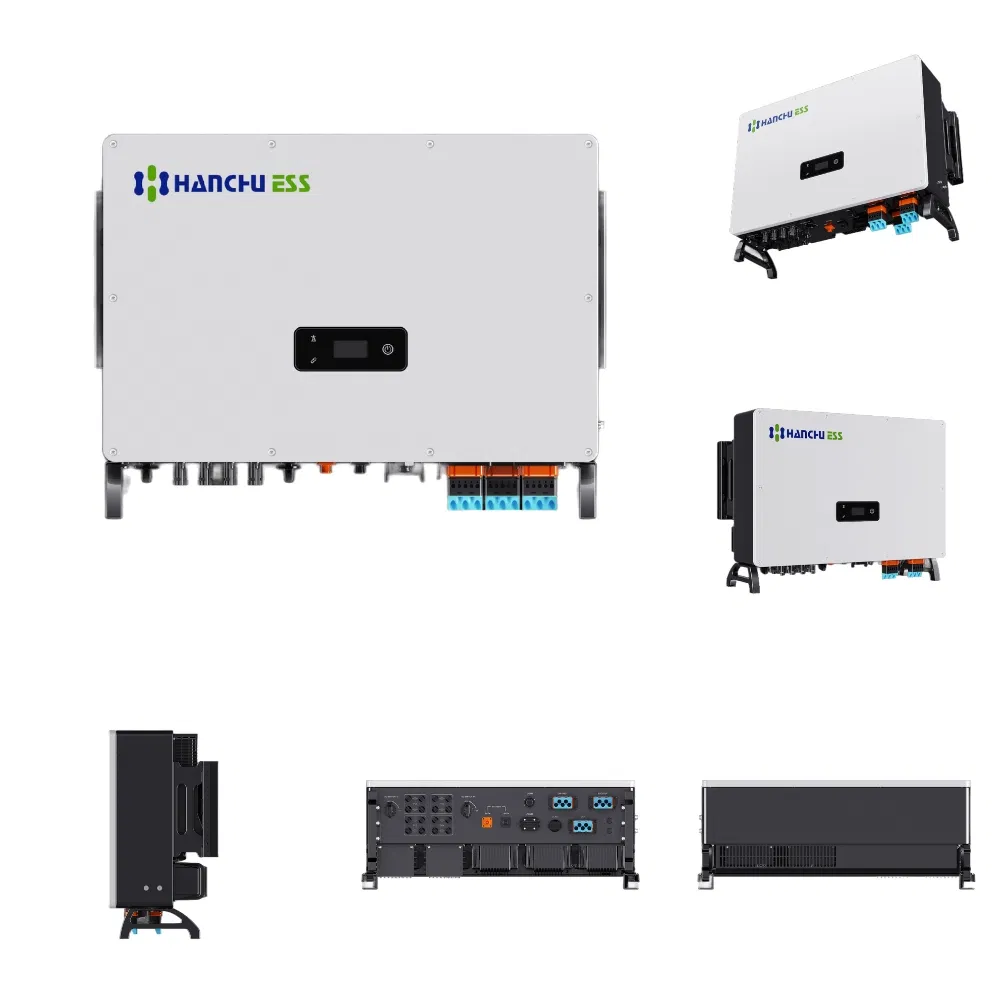

Product View 1 Product View 2 Product View 3
S

Technical Specification

ModelCESS-HY-T-50K
Product NameThree Phase Hybrid Inverter
Rated Power50.0 kW
Max. PV Input Power75.0 kW
MPPT Voltage Range200-850V
Number of MPPTs4
Max. PV Input Voltage1000V
Battery TypeLithium Battery (with BMS)
Battery Voltage Range135-750V
Max. Efficiency98.8%
Protection DegreeIP65
Cooling MethodSmart Fan
Operating Temperature-30~60°C
Communication InterfaceCAN, RS485, WiFi/LAN (Optional)
Installation MethodWall-mounted
C

Certifications & Quality

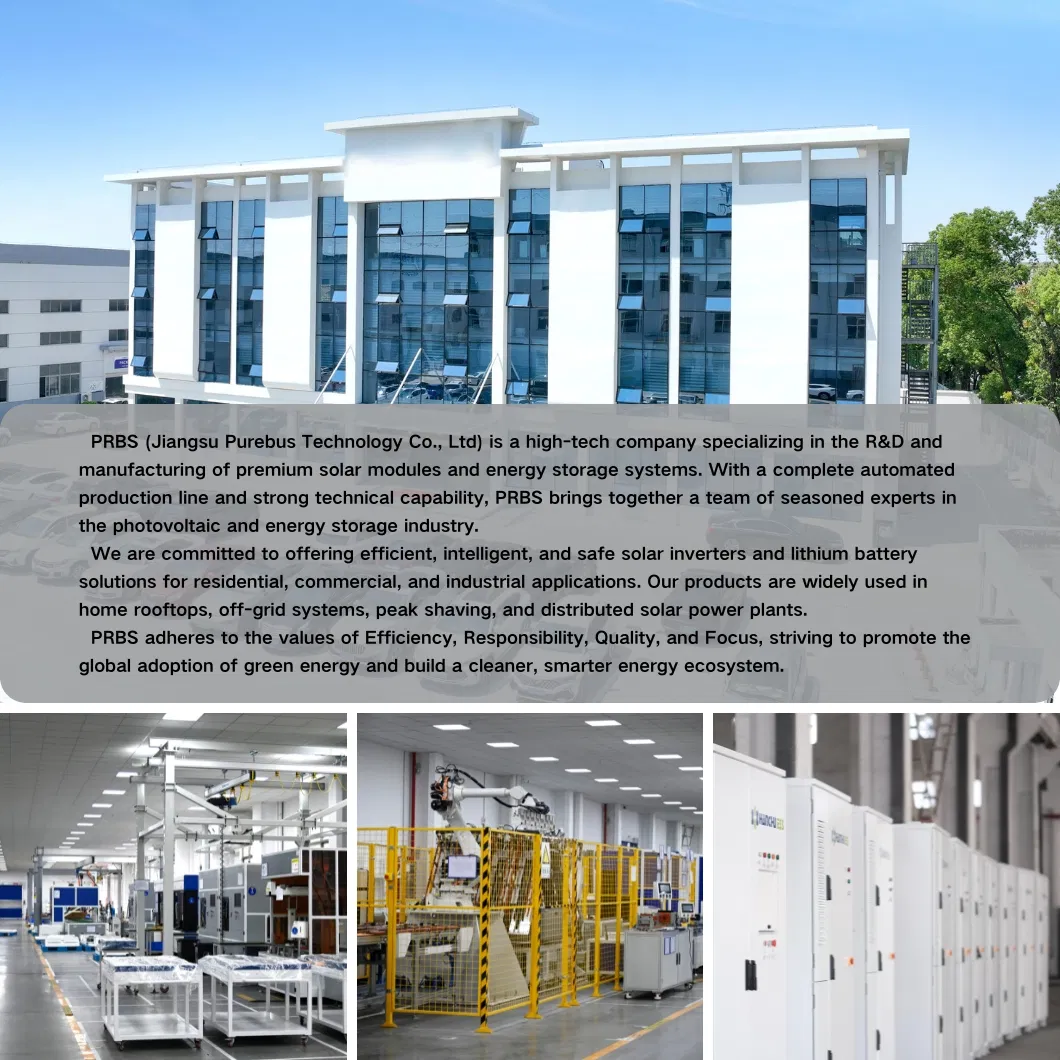

Quality Control
Product Certifications
L

Packaging & Shipping

Packaging Details
?

Frequently Asked Questions

Do these energy systems comply with international safety standards?
Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability with IP65 rated enclosures.
Can you provide customized configurations for specific projects?
Yes. Custom options include battery capacity, nominal voltage (LV 51.2V or HV 135-750V), and communication protocols such as CAN, RS485, Wi-Fi, and Ethernet.
What is the typical lead time for delivery?
Standard products can be shipped within 7-10 working days. For customized models or large-scale orders, the lead time is typically 20-30 days.
Are the systems compatible with various inverter brands?
Yes. Our energy storage systems support open protocols (CAN/RS485) and can be seamlessly integrated with a wide range of major hybrid inverter brands.
What kind of support is provided for installation?
The systems are designed for wall-mounted installation. We provide comprehensive configuration tools, wiring diagrams, and technical documentation to ensure a smooth setup process.
Do you support third-party quality inspections?
Absolutely. We welcome third-party inspections from organizations like SGS or TUV. Full test reports and compliance certificates are always provided before shipment.
