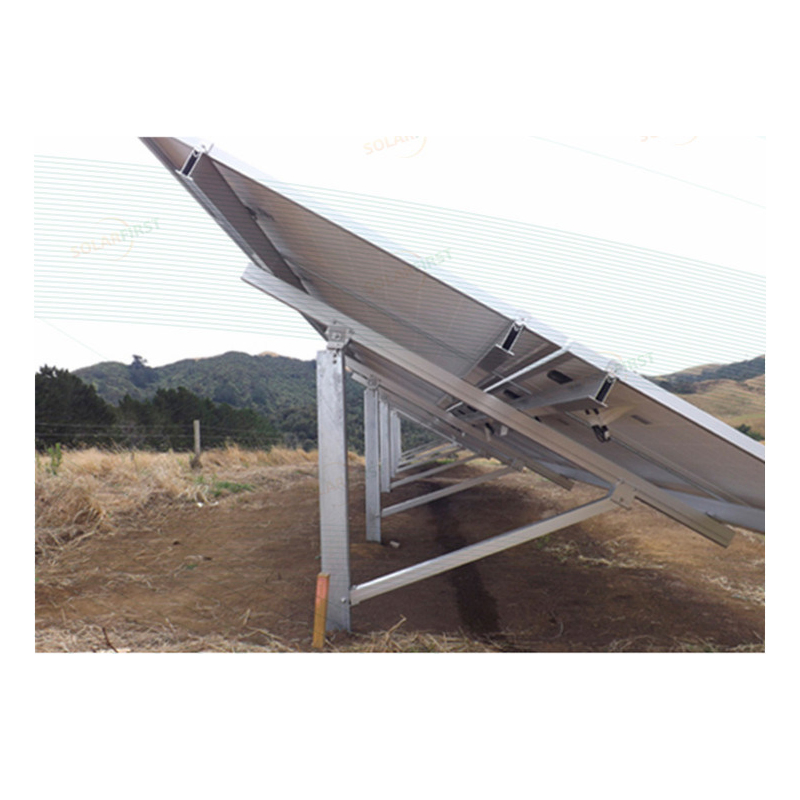

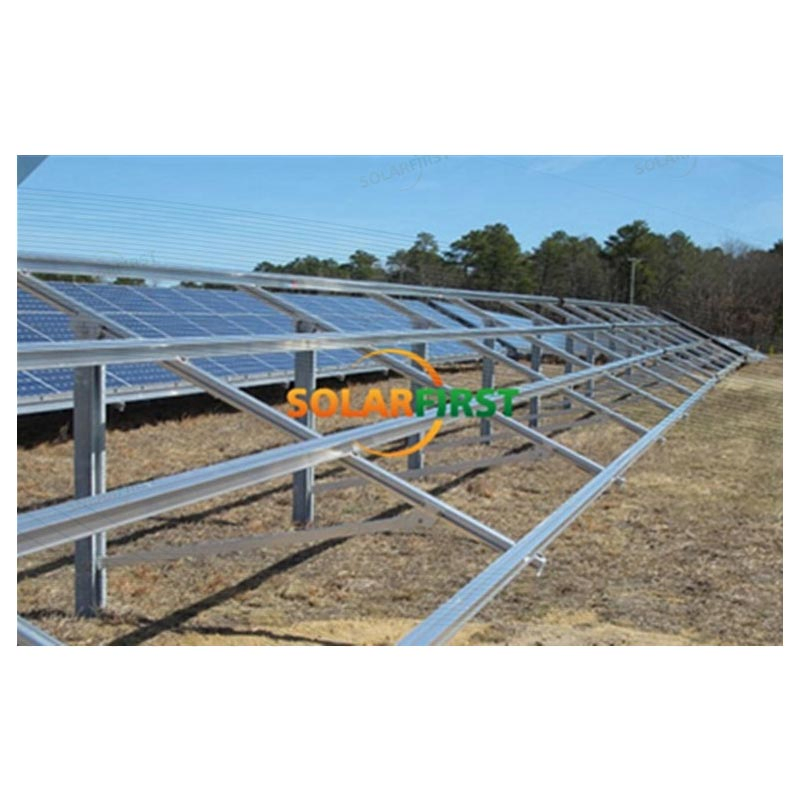

Aluminium Solar Panel Mounting Structure Solar Mounting System

1 / 5

Aluminium Solar Panel Mounting Structure Solar Mounting System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

SF-M11

Certification

ISO, TUV, CE

Application

Commercial

Material

Concrete

Type

Ground Bracket

Product Name

Solar Panel Ground Mounting Structure

Installation Site

Open Field

Color

Silver

Tilt Angle

0-45deg

Feature

Quick Installation

Surface Treatment

Aluminum Anodized

Mounting Type

Ground Solar Mounting

Origin

China

HS Code

7604210000

✓

Product Description

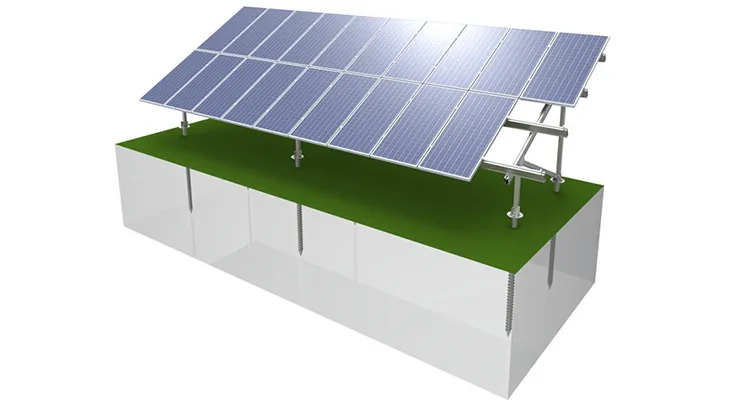

Solar Ground Mounting
Ground Screw Mounting Structure is widely applied for large solar farm, with fixed ground screw foundation or adjustable screw pile. The unique oblique spiral design can greatly ensure the stability of withstanding static load.

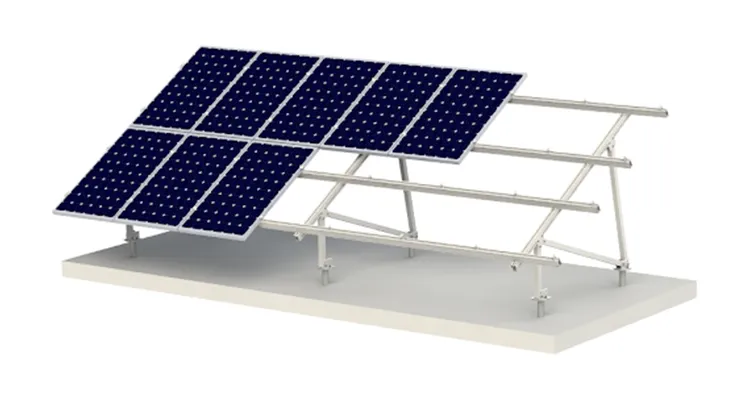

Advantage:
1. Anti-corrosion and anti-rust.
2. Ensure simple and fast installation.
3. Reduce labor costs.

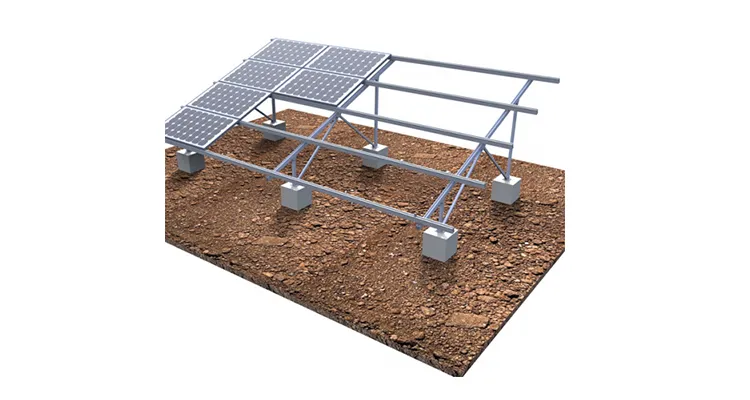

Technical Data:
1. Installation site: Open field ground mount
2. Foundation: Ground screw & Concrete
3. Mount tilt angle: 0-45 Degree
4. Main components: AL6005-T5
5. Accessories: Stainless steel fastening
6. Duration: More than 25 years

⚙

Technical Details

Installation Site	Open field
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	0-45 deg
Standards	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Warranty	10 Years Warranty and 25 Years Service Life

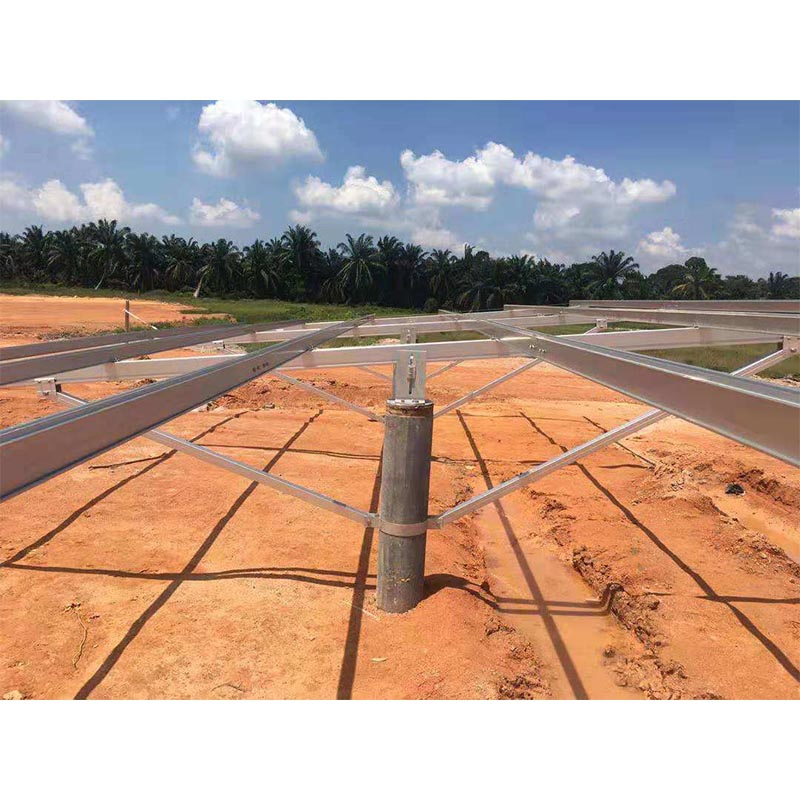

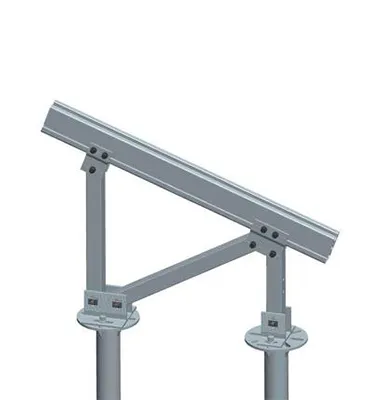

Screw Piles: High traction and pressure values; Installation by mini-digger machine.

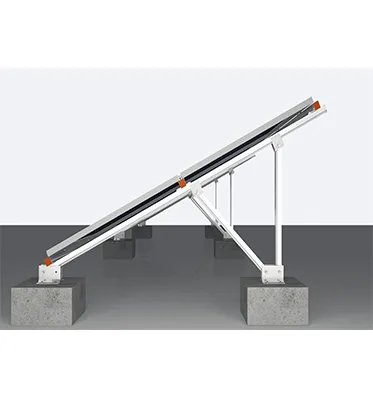

Concrete Base: Best suited where ground excavation is not permitted; Size adjusted based on static requirements.

★

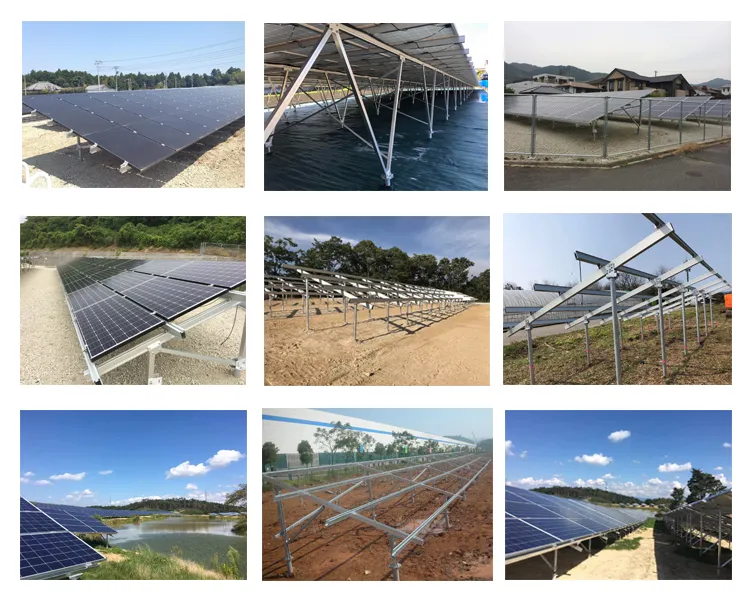

Project & Logistics

☀

Exhibition & Certifications

Frequently Asked Questions

What materials are used in the ground mounting structure?

The system primarily uses Anodized Aluminum AL6005-T5, Hot-Dip Galvanized steel Q235B, and SUS304 stainless steel fasteners to ensure maximum durability and corrosion resistance.

What is the expected service life of this system?

Our solar ground mounting structures are designed for a service life of more than 25 years, backed by a 10-year warranty.

Can this system withstand extreme weather conditions?

Yes, it is engineered to withstand wind loads of up to 60m/s and snow loads of up to 1.4kn/m2, meeting international standards like AS/NZS1170 and IBC 2006.

What types of foundations are compatible?

The system is versatile and supports both ground screw foundations (ideal for fast installation) and concrete bases (best for areas where excavation is restricted).

Is the tilt angle adjustable?

The system supports a tilt angle range of 0 to 45 degrees, allowing for optimization based on the specific latitude and solar requirements of your installation site.
