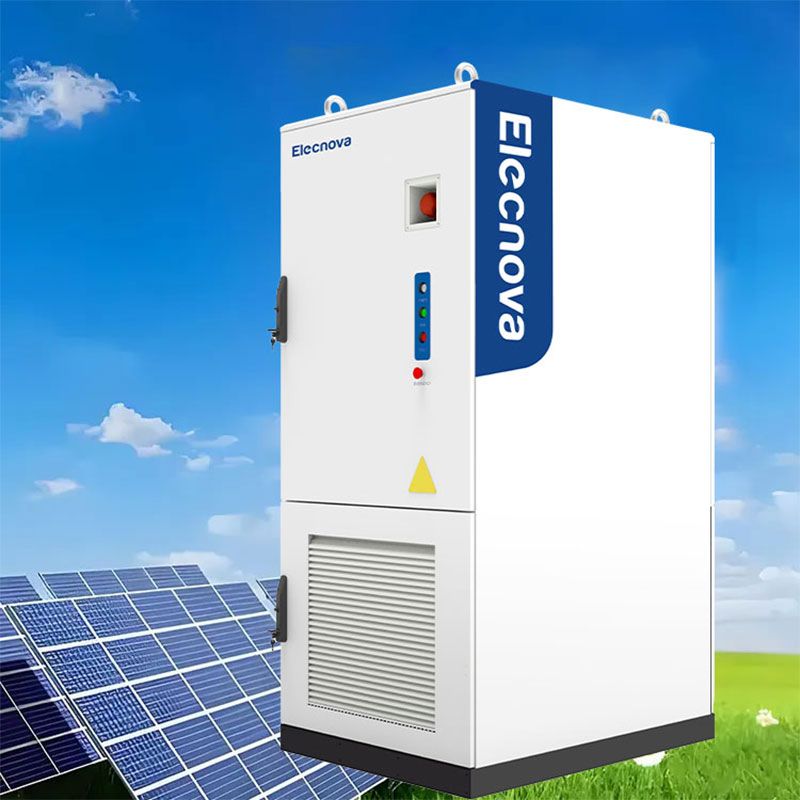

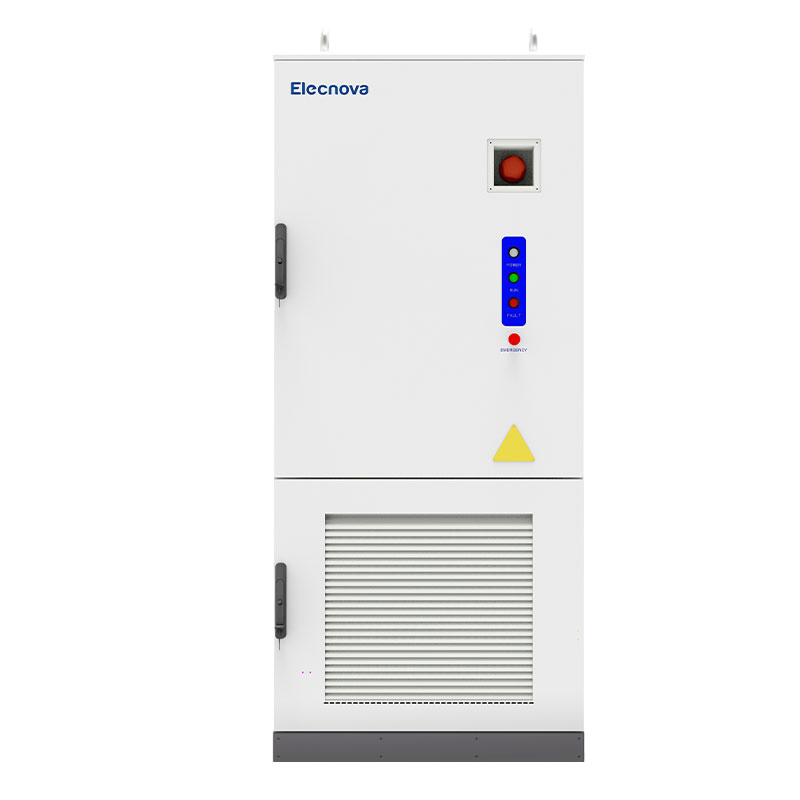

C&I Application Battery Energy Storage for PV Solar Peak Shaving

Customization: Available
Nominal Voltage: 728~936V DC
Warranty: 2 Years

Product Description

Basic Information
Model NO.

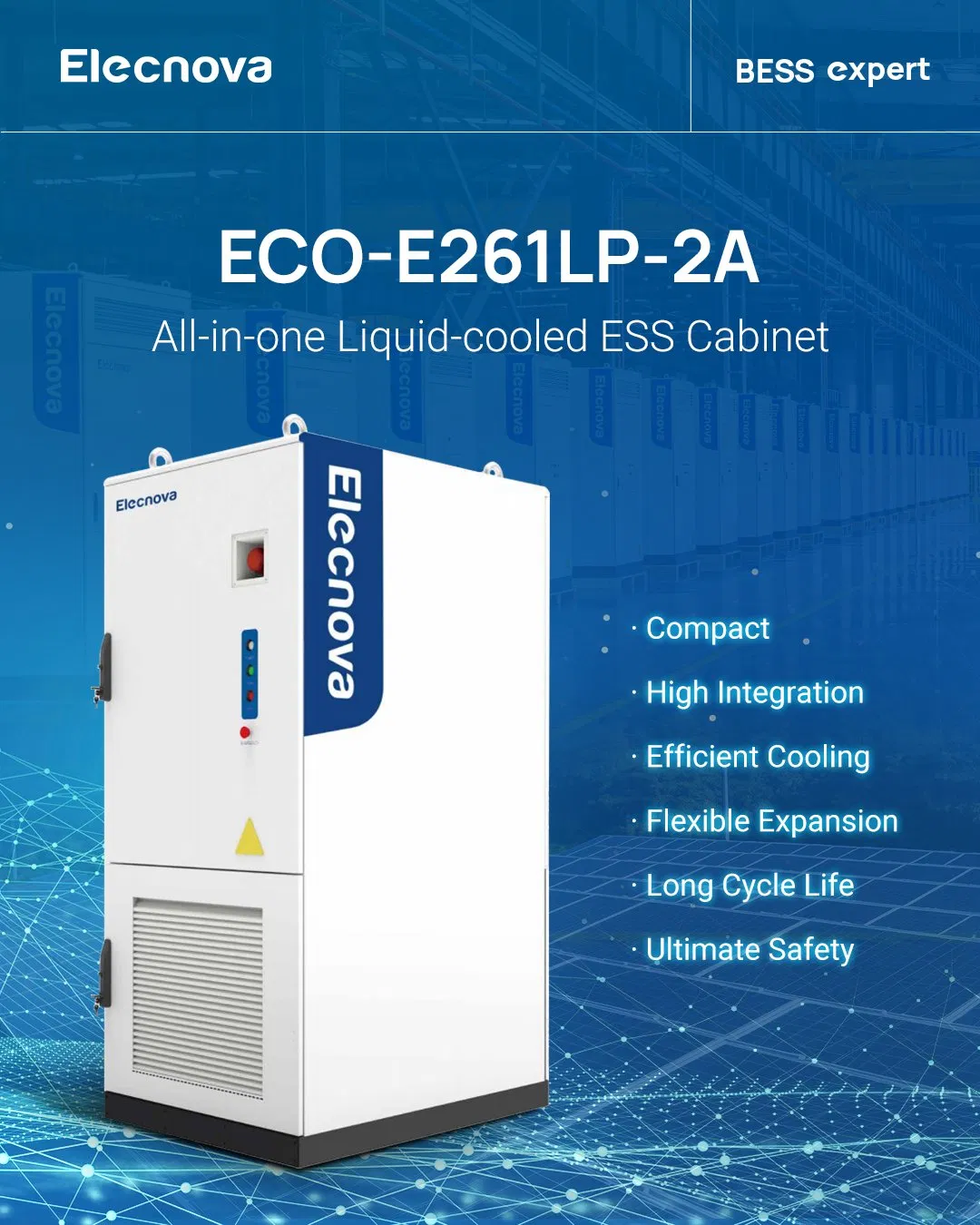

ECO-E261LP-2A
Nominal Capacity
100kw
Cycle Life
>8,000 Times
Battery Cell Type
LFP 3.2V/280ah
Battery Pack Config
46.59kwh/1p52s
System Configuration
232kwh/1p260s
Voltage Range
728~936V DC
Protection Level
IP65
AC Rated Power
116kw
AC Maximum Power
128kw (1min)
Grid Rated Voltage
400V AC
Origin
China
Product Description

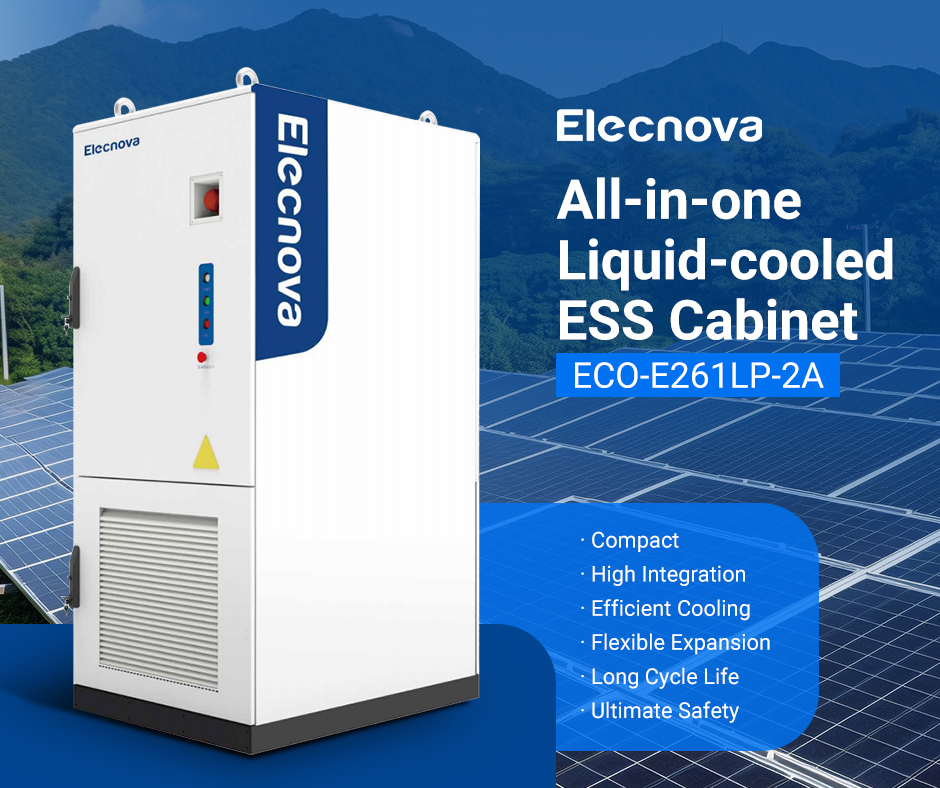

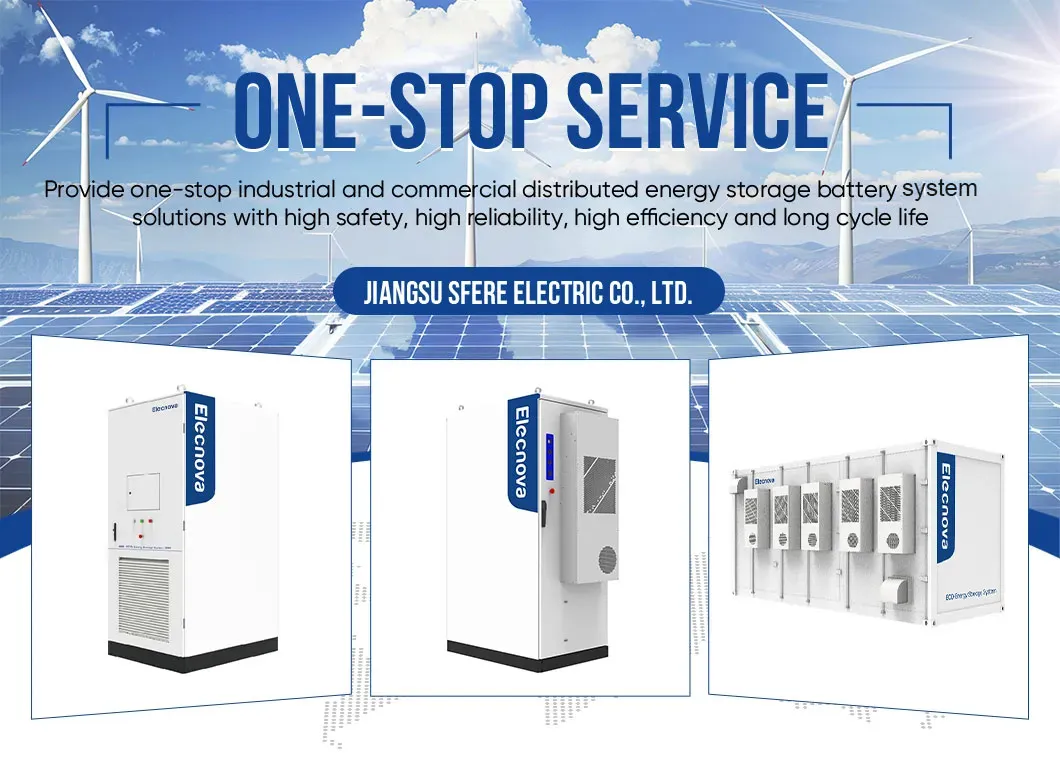

Battery Energy Storage System
PV Solar Peak Shaving
Product Parameters
Cell TypeLFP314Ah
PACK52.248kWh/1P52S
Battery System261.24kWh/1P260S
Voltage Range728~936Vdc
Rated Power (AC)125kW
Max. Power (AC)137kW
Efficiency≥90%
Cycle Life≥8,000 cycles
Ingress RatingIP55
CoolingActive liquid cooling
Operating Temp-25ºC~55ºC
Fire SafetyAerosol
Dimensions1,050*1,350*2,400 (mm)
Weight2,600kg
Company Profile

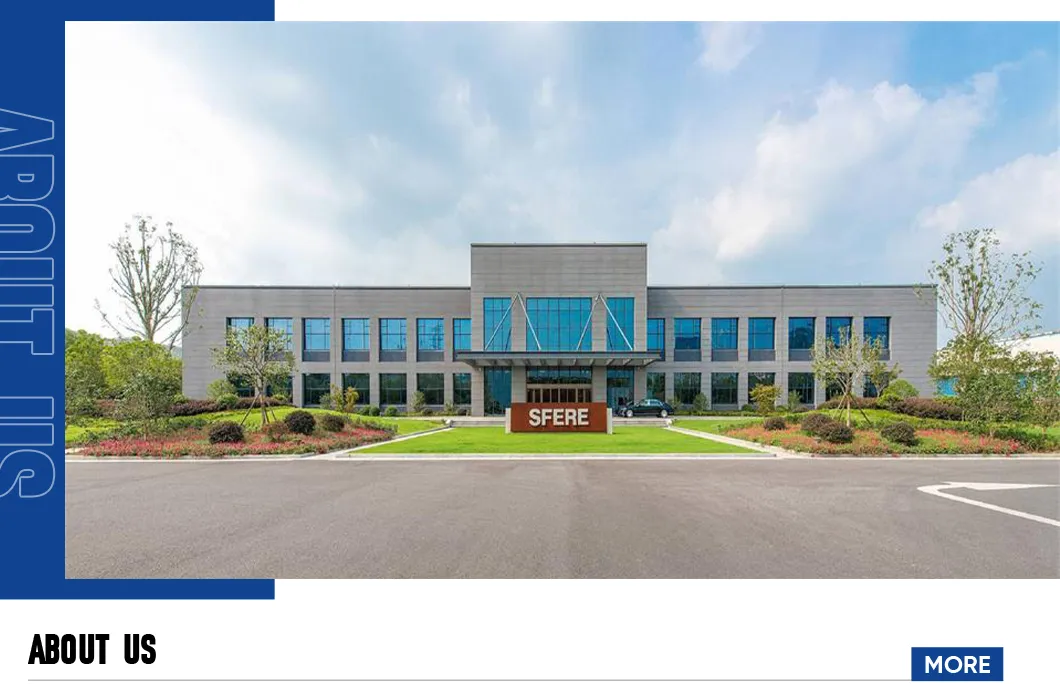

Manufacturing Facility

Our company integrates R&D, manufacturing, sales and service, and has a complete product ecosystem from smart terminal components, smart equipment to the Internet of Things platform. Our electrical application solutions empower users with intelligent and digital energy management, and provide reliable data services for energy saving and consumption reduction, energy safety and refined energy management.

We mainly have three series of products: power monitoring systems, power quality mitigation products, electrical component products, and energy storage systems. These are derived from abundant technology accumulation and have laid a solid foundation for a leading position in the industry.

Over the past decade, our company has been honored with many awards, such as High-tech Enterprise, Software Enterprise, and Engineering Center. We have obtained 122 invention and utility model patents and 42 software copyrights.

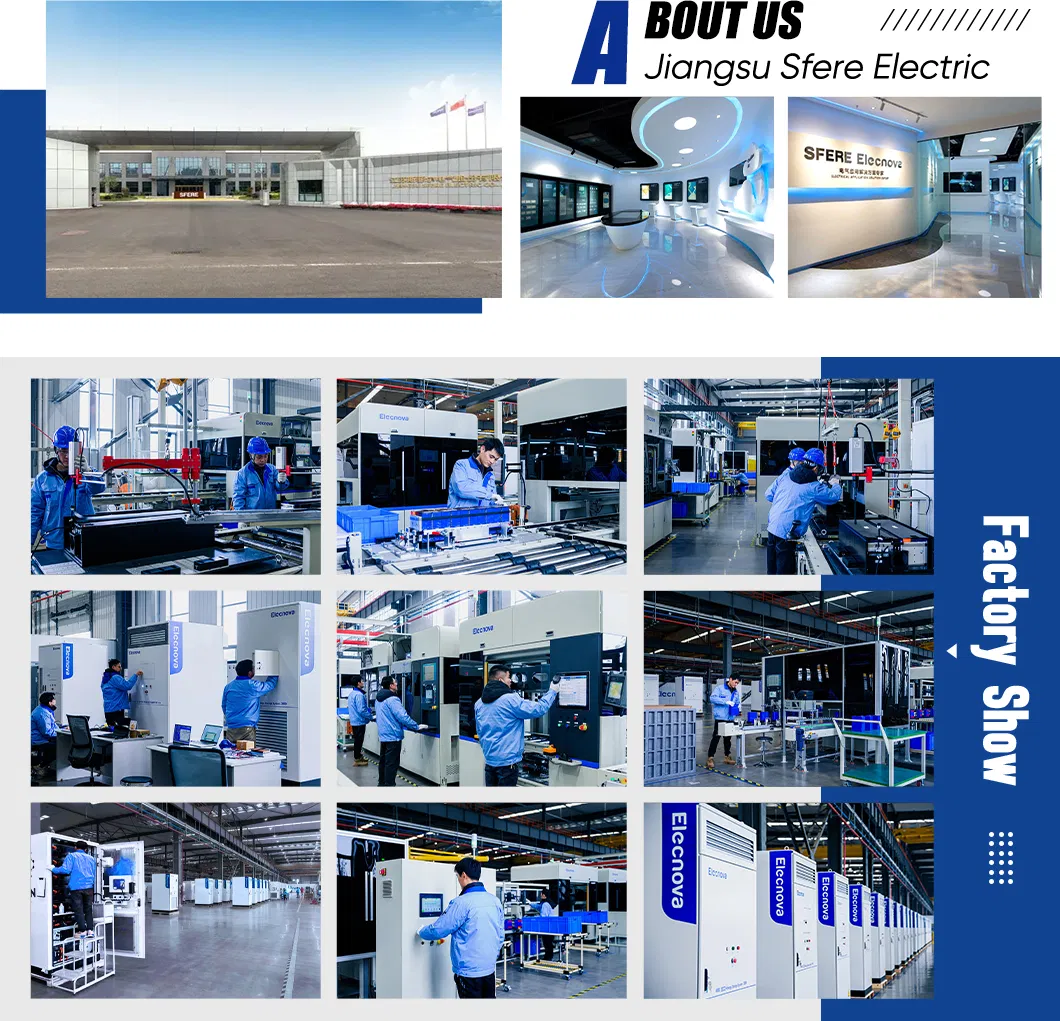

Production Line
Certificates & Exhibition

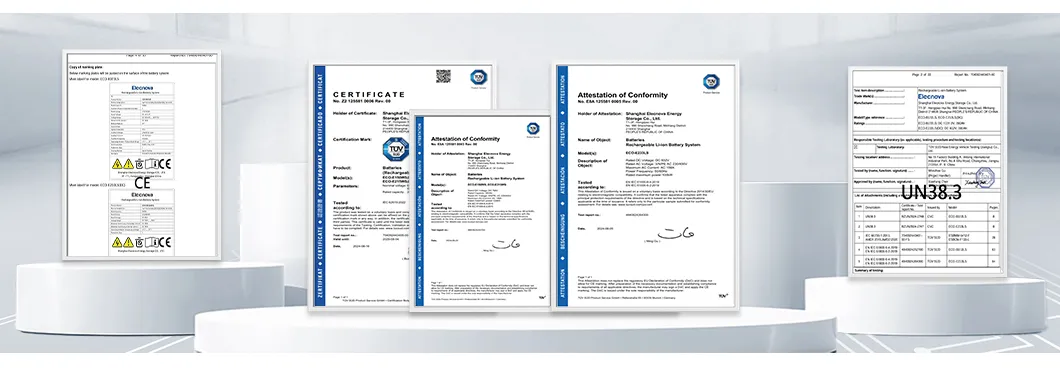

Certificates
Exhibition
Packaging & Shipping
Packaging and Shipping
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer. Our manufacturing center is located in China with over 600 employees, including 3 R&D centers and 1 CNAS lab.
Can you supply OEM & ODM services?
Yes, we welcome long-term strategic business partners to implement OEM & ODM projects.
Can you ship battery products by sea or by air?

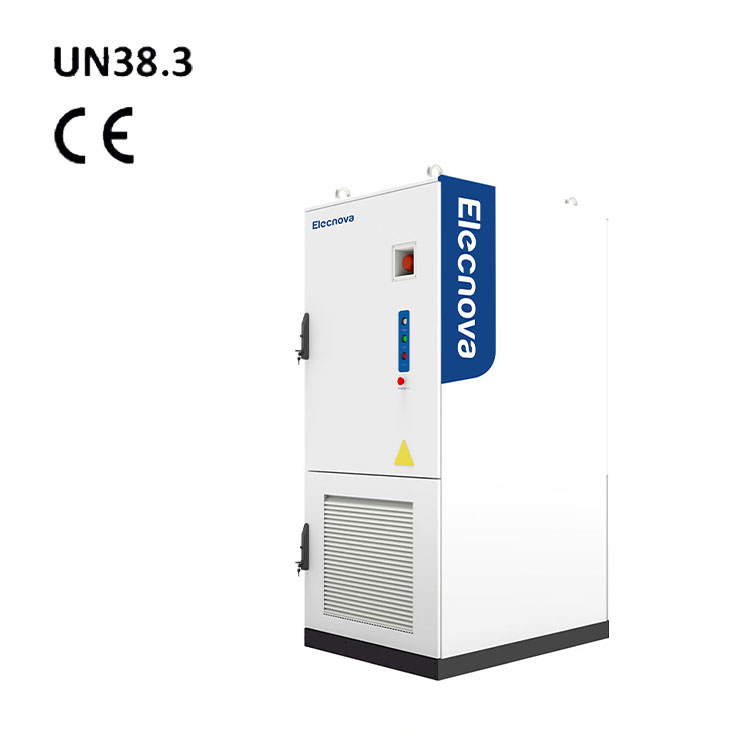

Our products have obtained the UN38.3 certification, which allows for international sea shipment.
How long is the warranty?
We provide warranties of 3, 5, or 10 years depending on different pricing tiers and conditions.
How do you provide after-sales service?
We have overseas affiliates and business partners worldwide to provide on-site maintenance services.
Can I get a sample?
Yes, please leave your contact information and our sales manager will contact you shortly.
