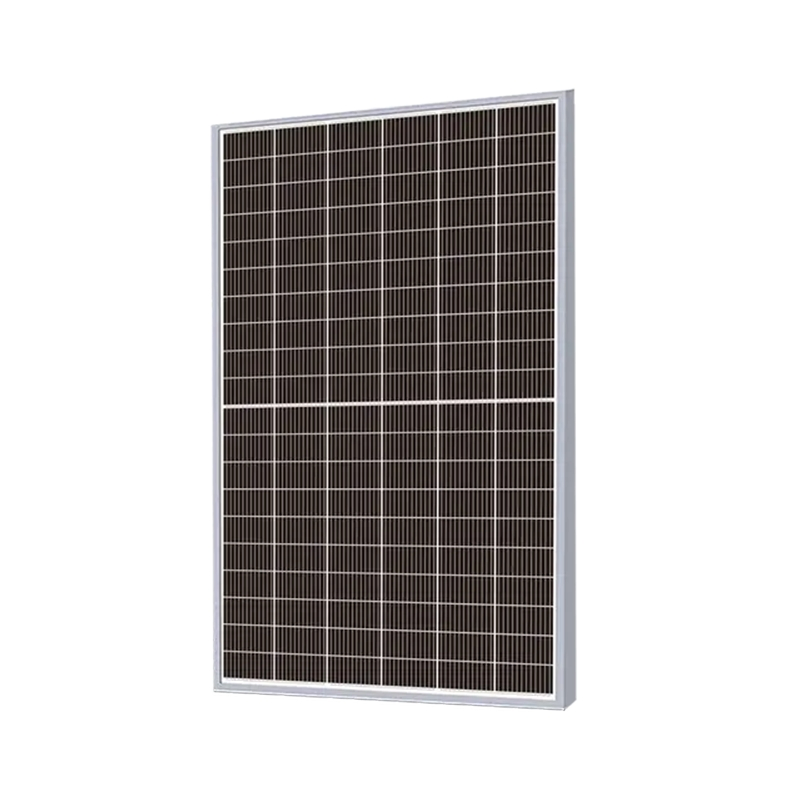

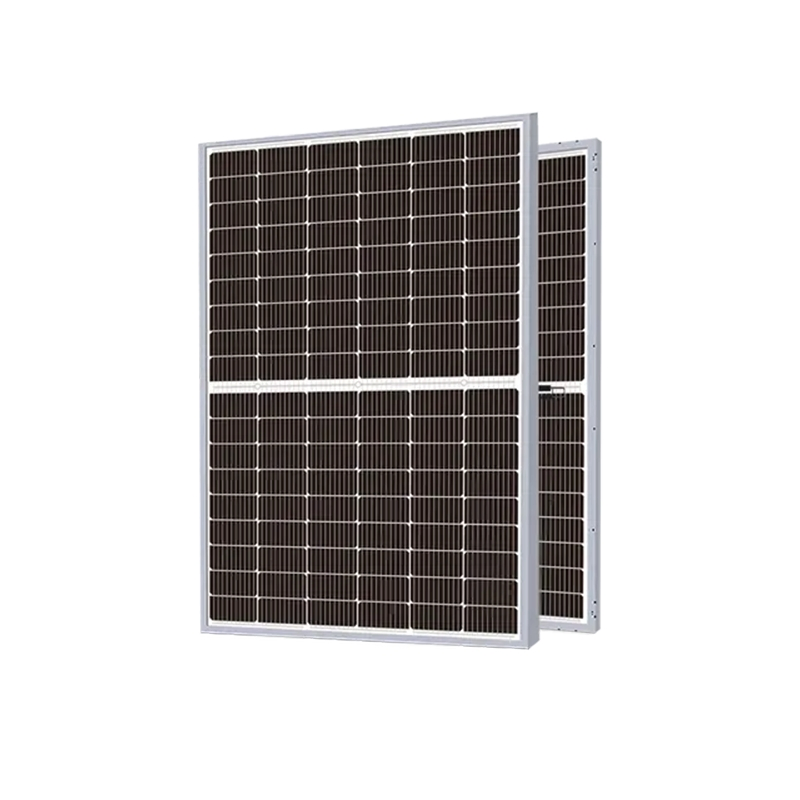

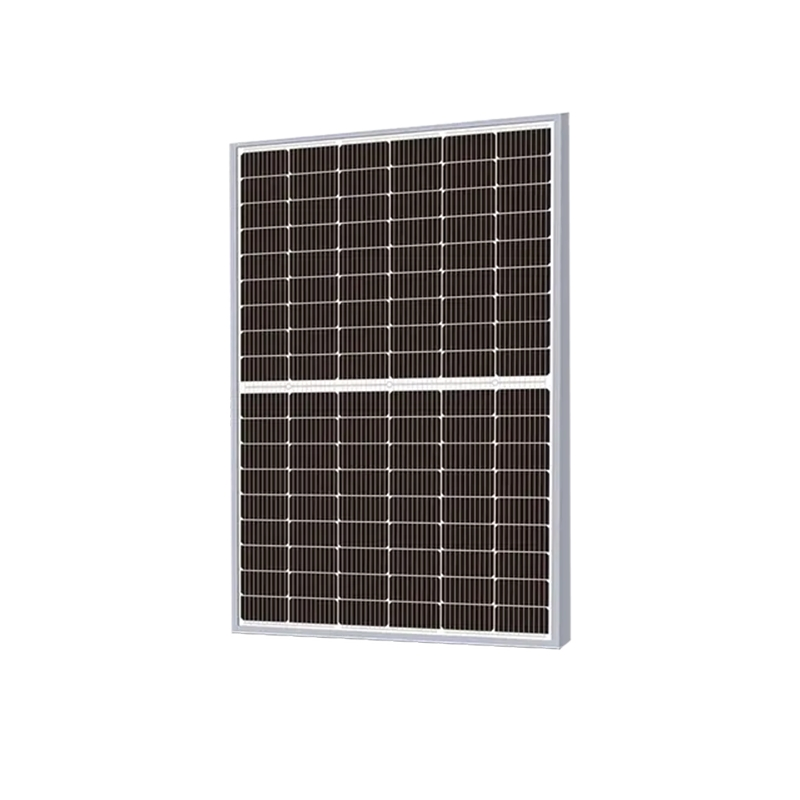

■ Basic Information
Model NO.
Solar Panel 550 - 585W
Module Type
Uhldd144-585/N W
Max Power Voltage (Vmp)
43.00 V
Max Power Current (Imp)
13.61 A
Open Circuit Voltage (Voc)
51.70 V
Short Circuit Current (Isc)
14.41 A
Solar Cells
N-Type Monocrystalline
Glass
2.0mm+2.0mm, High Transmission
Junction Box
IP68, 3 Diodes
■ Packaging & Delivery
Package Size
230.00cm * 112.00cm * 126.50cm
■ Product Highlights
✦
Excellent Cells Efficiency: SMBB technology reduces the distance between busbars and finger grid lines, maximizing power output.
✦
TIER 1 Global Brand: Bankable brand with independently certified advanced automated manufacturing processes.
✦
Bifacial Technology: Up to 25% additional power gain from the back side depending on the albedo.
✦
Superior Low-Light Performance: Higher power output in weak light conditions such as haze, clouds, and early morning.
✦
Stringent Quality Management: Reliability warranted by quality assurance systems that exceed standard certification requirements.
■ Certifications & Technical Drawings

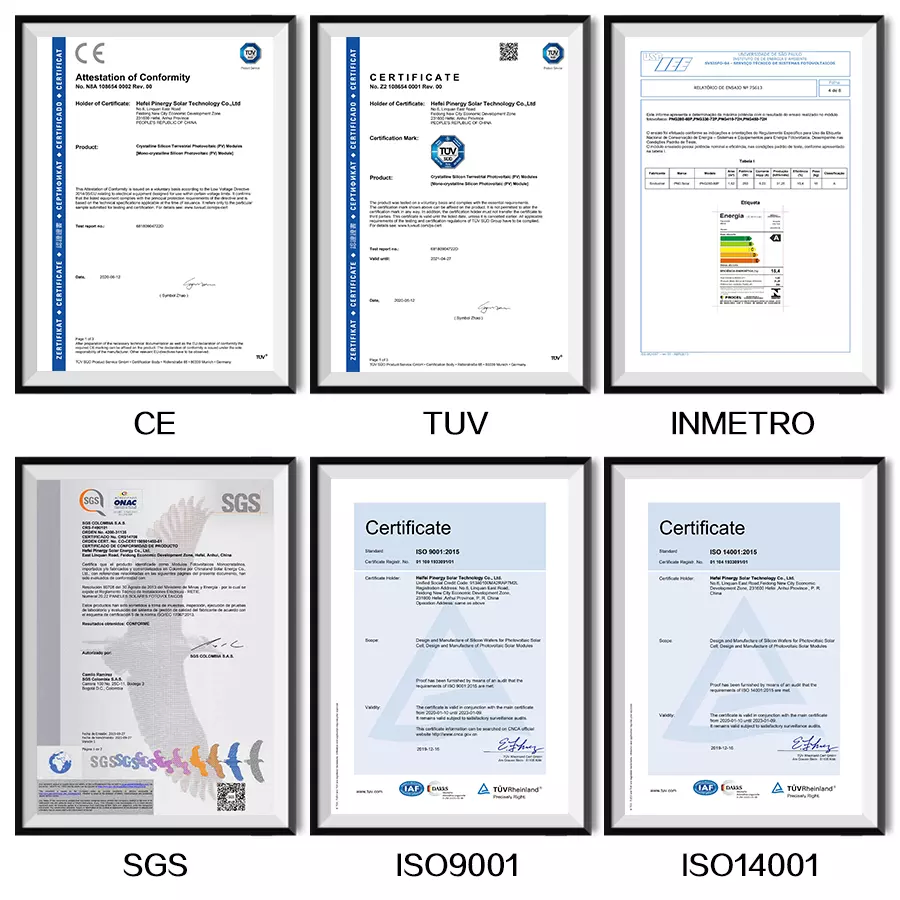

Certification of TUV, CE
■ Frequently Asked Questions
What are the advantages of N-Type Monocrystalline cells?
N-Type cells offer higher efficiency, lower degradation rates over time, and better performance in high-temperature environments compared to traditional P-type cells.
How much extra energy can Bifacial technology generate?
Bifacial modules can generate up to 25% additional power gain from the rear side, depending on the surface reflectivity (albedo) of the installation site.
What is SMBB technology in solar panels?
Super Multi-Busbar (SMBB) technology reduces the distance between busbars and finger lines, which decreases resistance losses and improves current collection for higher power output.
Are these solar panels certified for international use?
Yes, these modules are certified by TUV and CE, ensuring they meet rigorous international safety and performance standards.
How do these panels perform in cloudy or low-light weather?
These panels are designed with advanced glass and cell surface texturing that allows for excellent performance even under weak illumination, such as during morning or cloudy days.
What is the durability of the dual-glass structure?
The 2.0mm+2.0mm heat-strengthened glass provides superior protection against environmental factors like salt mist, ammonia, and high mechanical loads, extending the product's lifespan.
