Basic Information
| Model NO. |
HL-XWB11 T01100 |
Number of Cells |
34 Cells |
| Application |
Residential and Industry |
Condition |
New |
| Certification |
ISO, CE, IEC; Cei; VDE |
Material |

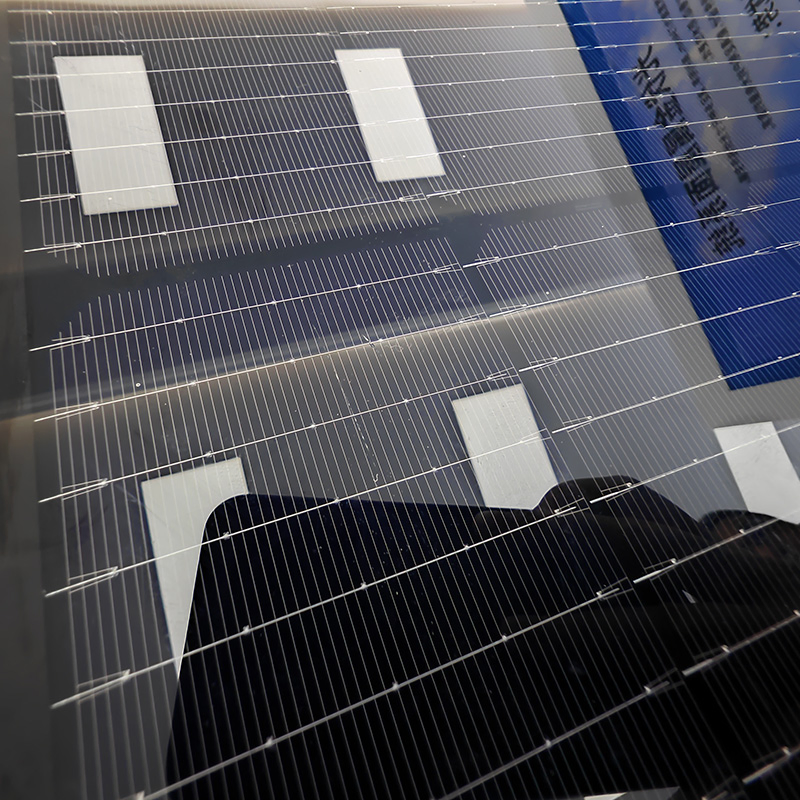

Single-Crystal Heterojunction 166×83mm |
| Weight |
8.5kg |
Packing |
31PCS/Pallet |
| Junction Box |
IP67/IP68 |
Output Cables |
4mm2, L: 300 mm (Customized) / UV Protection |
| Static Load |
Front 5400 PA / Back 2400 PA |
Glass |
2.0mm Ultra-White Heat-Strengthened Glass |
Product Description

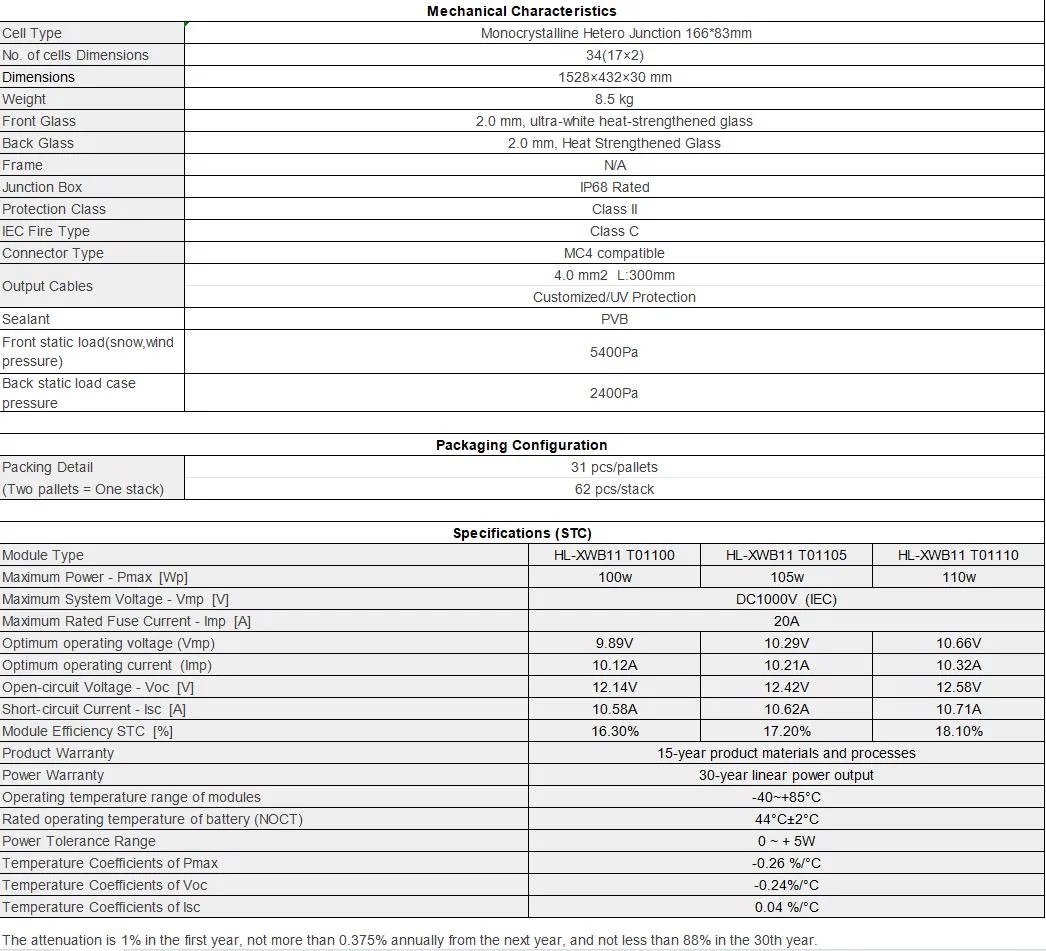

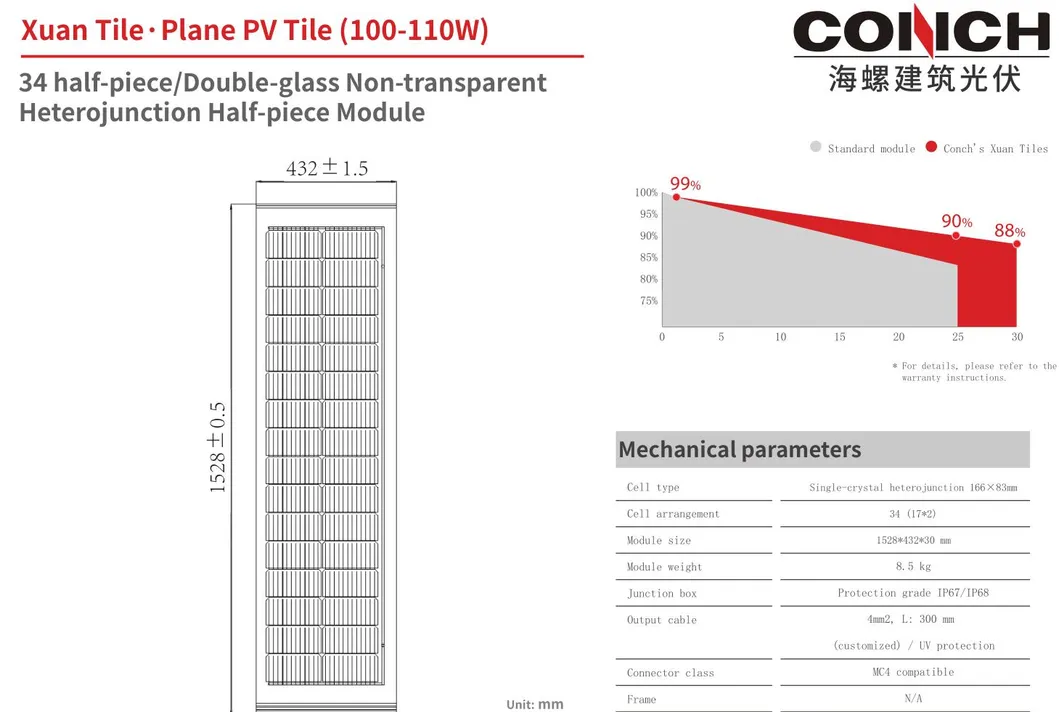

Product Parameters
| Mechanical Characteristics |
| Cell Type |
Monocrystalline Hetero Junction 166*83mm |
| Dimensions |

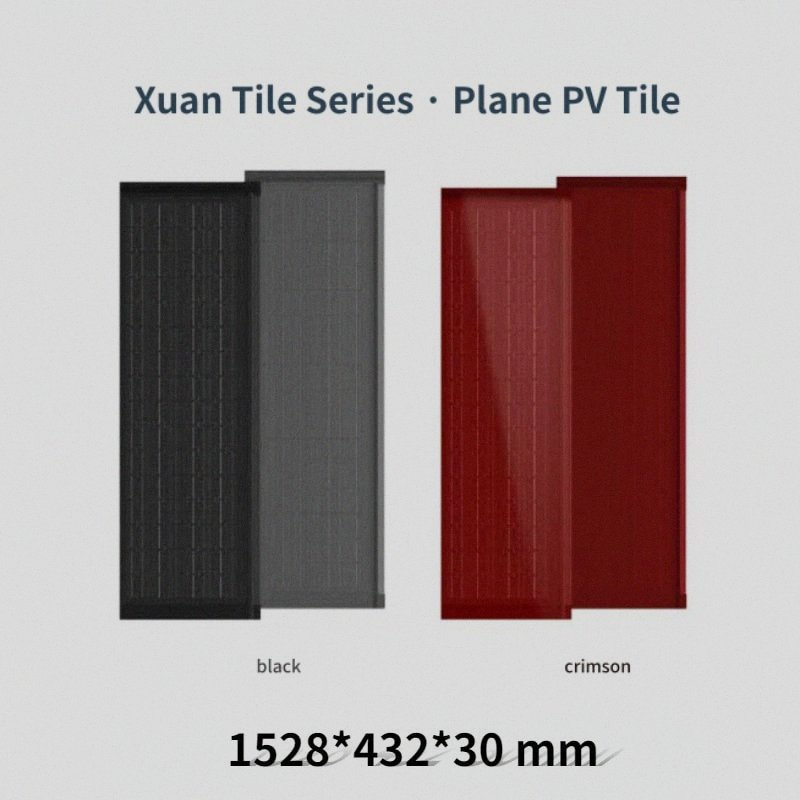

1528×432×30 mm |
Weight |
8.5 kg |
| Front Glass |
2.0 mm Heat-strengthened |
Back Glass |
2.0 mm Heat-strengthened |
| Electrical Specifications (STC) |
| Module Type |
HL-XWB11 T01100 |
HL-XWB11 T01105 |
HL-XWB11 T01110 |
| Max Power (Pmax) |
100W |
105W |
110W |
| Efficiency |
16.30% |
17.20% |
18.10% |
| Voltage (Vmp) |
9.89V |
10.29V |
10.66V |
| Current (Imp) |
10.12A |
10.21A |
10.32A |

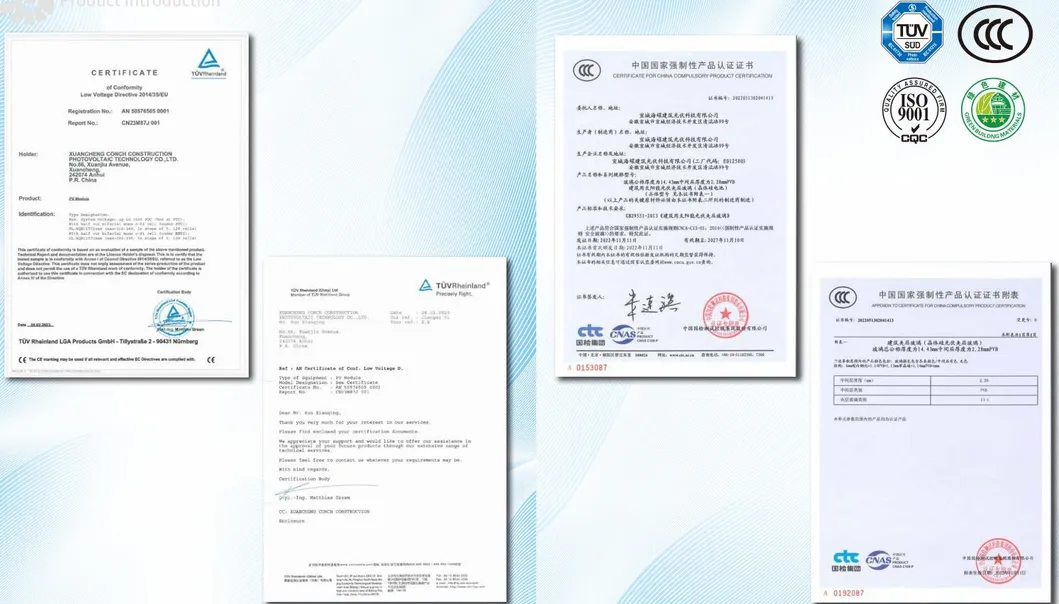

Certifications

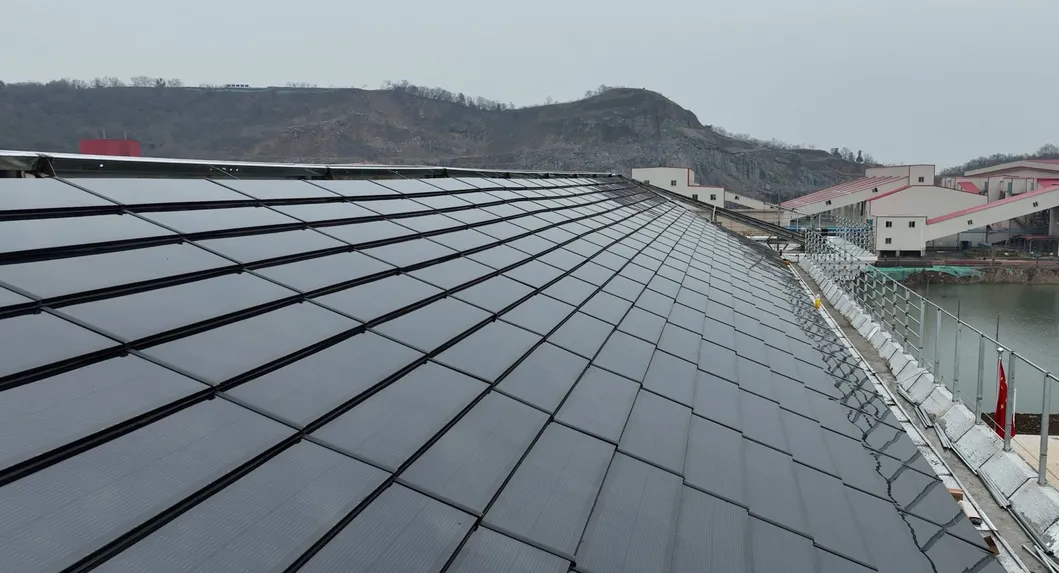

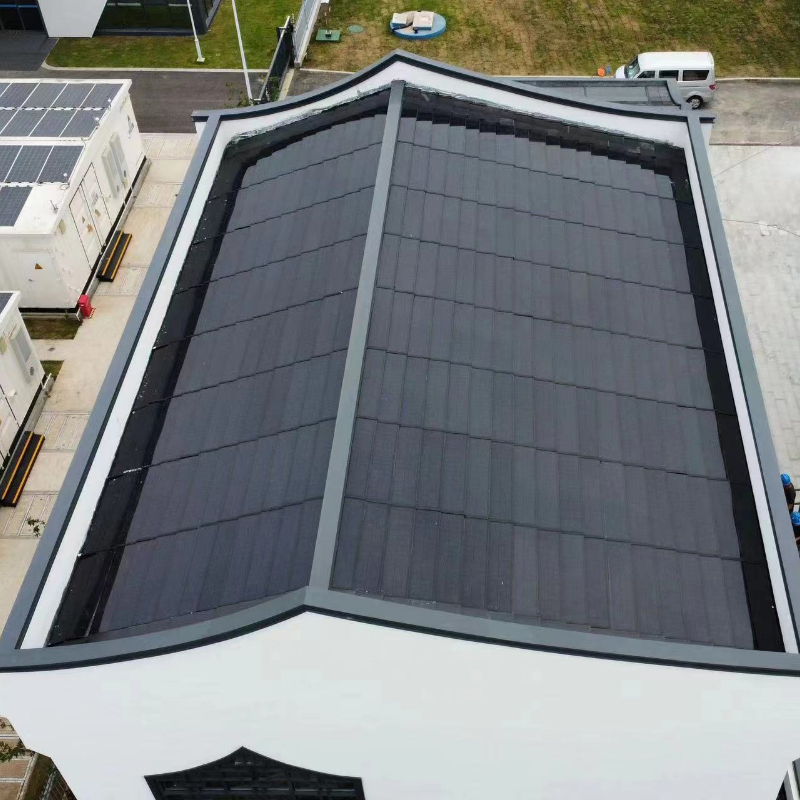

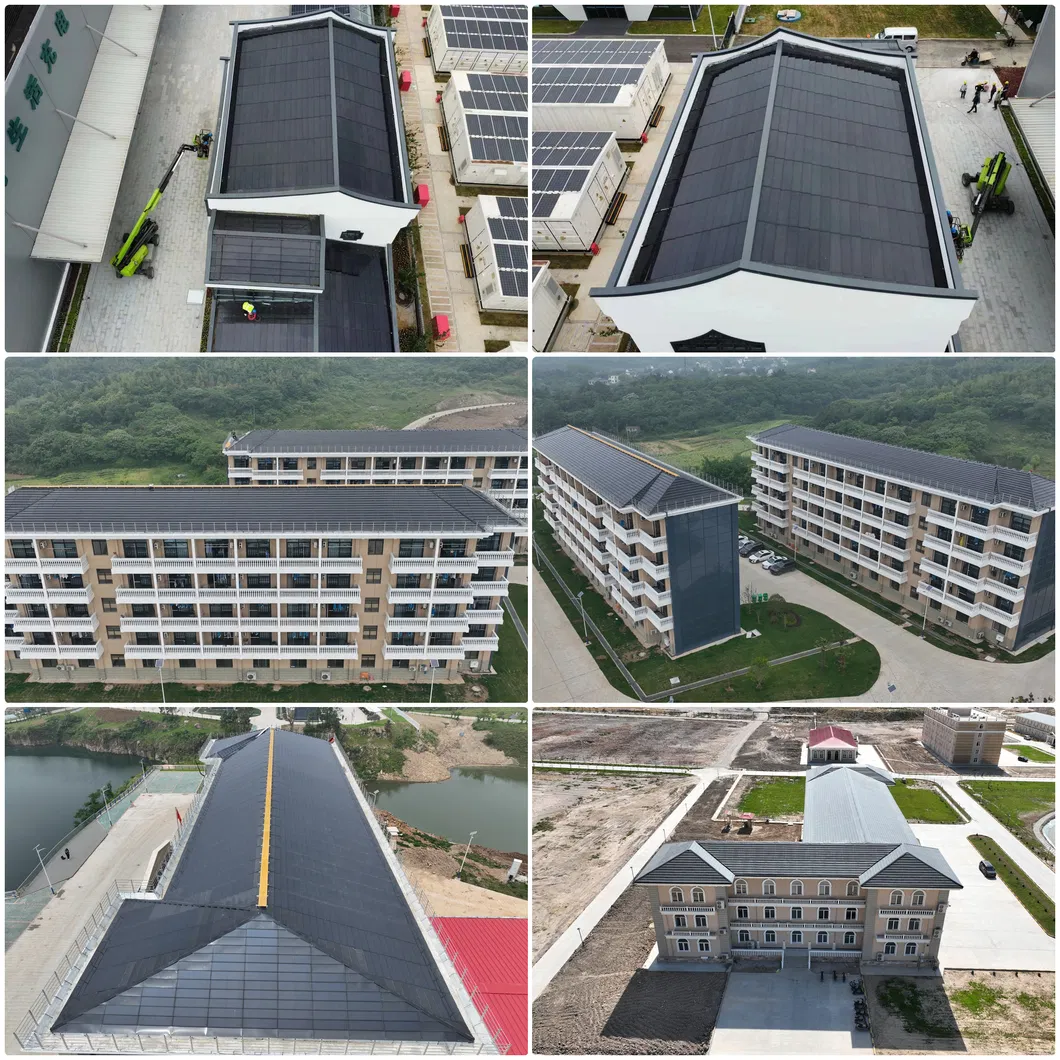

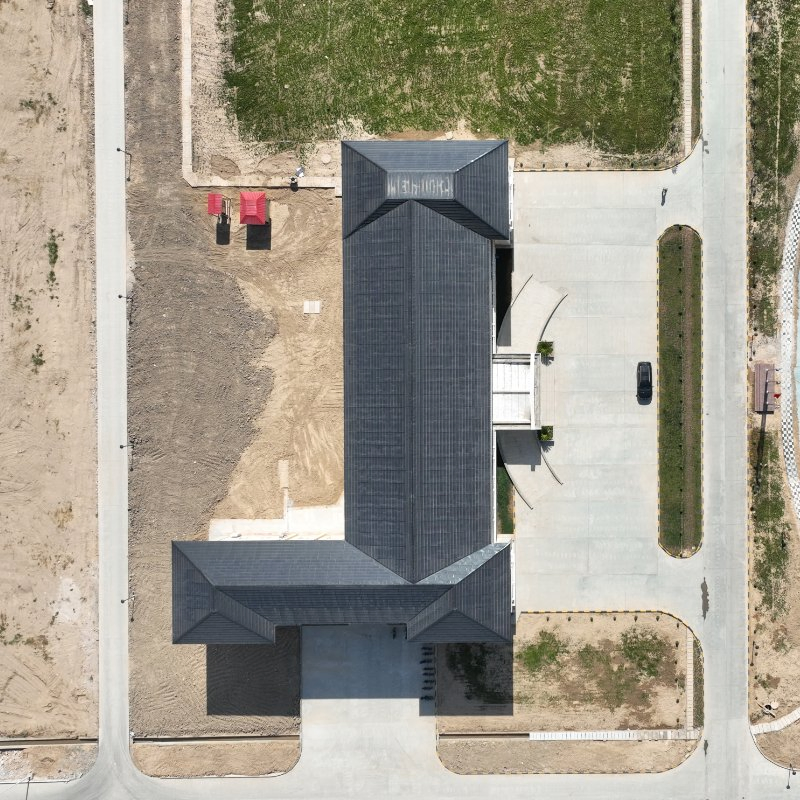

Project Case
Packaging & Shipping
Packing Detail: 31 pcs/pallets | 62 pcs/stack (Two pallets = One stack)
Company Profile
The company was founded in 1985. In 2023, the company achieved a total import and export volume of US$2.0 billion and sales revenue of 15 billion yuan. It is a member enterprise of a Fortune Global 500 group.
Being deeply engaged in foreign trade for 39 years, the company grows in step with global economic integration. It specializes in importing and exporting mechanical equipment, instruments, metal minerals, and new energy products. Key export categories include solar panels, energy systems, vehicles, and building materials.
As a Grade-A rated tax credit enterprise with an Authorized Economic Operator (AEO) certificate, the company maintains influential brands and large-scale business advantages in key regional markets.
Frequently Asked Questions
What are your main solar products?
We provide Solar Panels from Tier 1 brands, Solar Inverters (On-Grid/Off-Grid/Hybrid), Lithium Batteries (Rack/Stack/Wall mounted), and complete Solar Energy Systems for residential and commercial use.
What is the typical delivery time for orders?
Generally, delivery takes within 7-15 days. This varies based on the specific products. Please check with our service team for a detailed schedule.
What kind of payment terms do you accept?
We are flexible with payment conditions to suit our customers' needs.
How quickly can I get a response to my inquiries?
You can contact us online, and our sales team typically replies within 10 minutes during business hours.
What are the advantages of your company?
We have our own manufacturing facilities and maintain deep cooperation with leading brands like Longi, JA Solar, Jinko, Trina, Deye, and Growatt to provide competitive pricing and diverse choices.
What is the warranty period for your solar modules?
We offer a 15-year product warranty on materials and processes, and a 30-year linear power output warranty.
