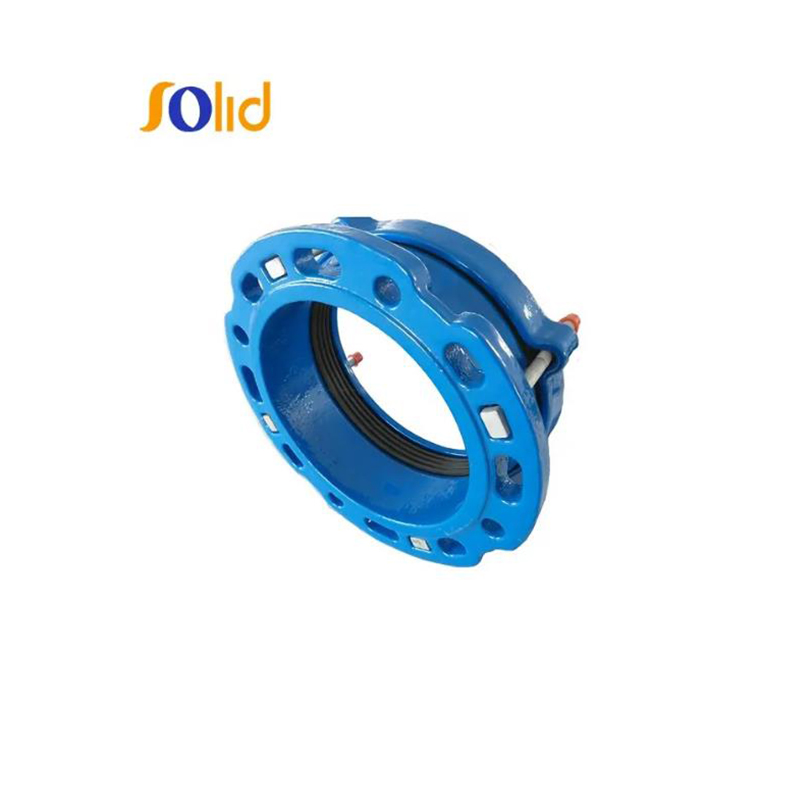

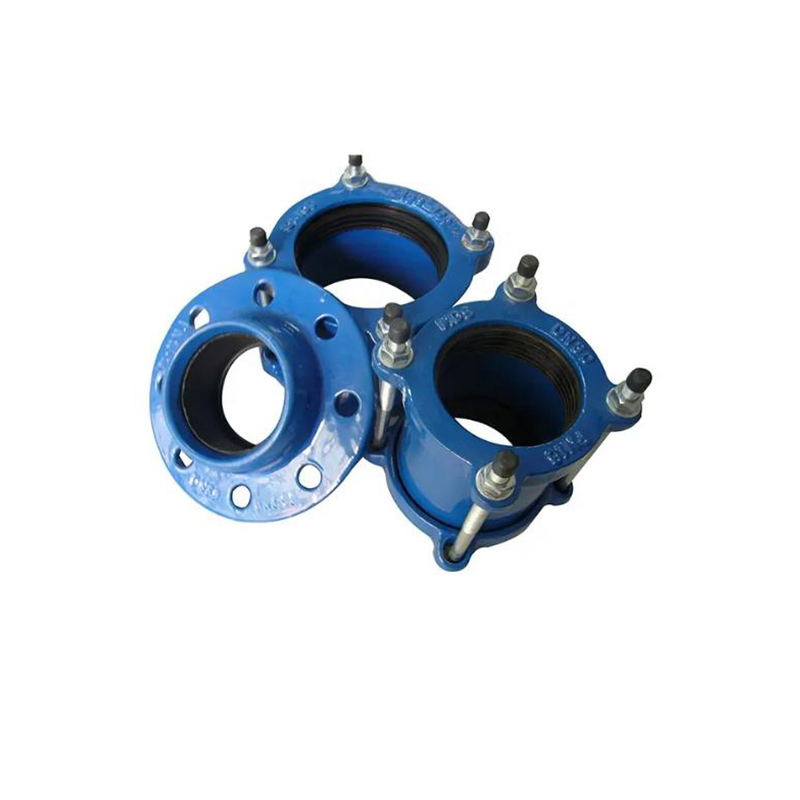

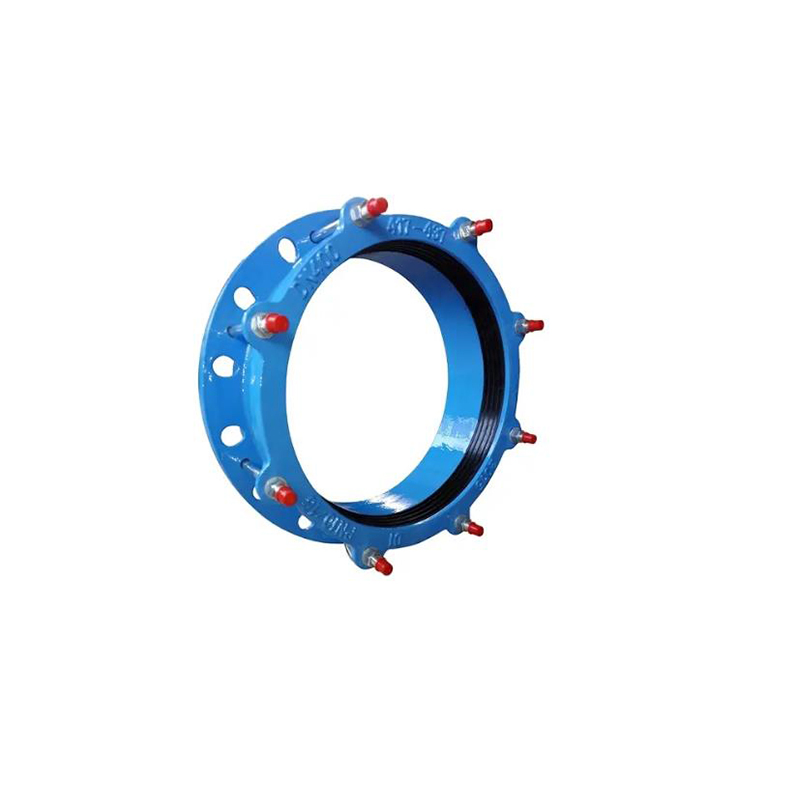

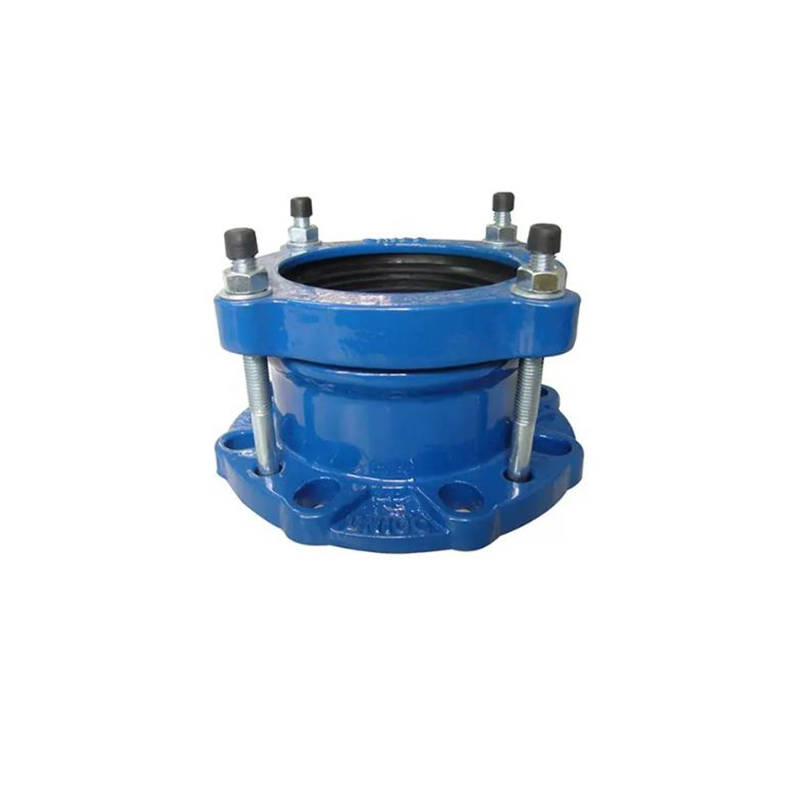

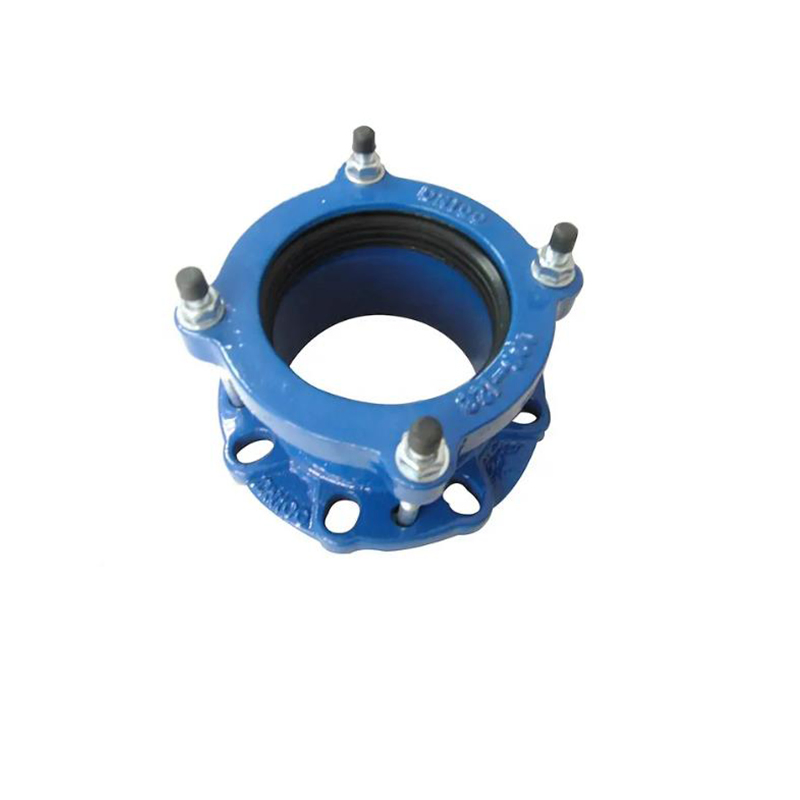

The Universal Flanged Adaptors are designed for pipelines. As a wide tolerance system, it will fit most standard pipe materials and therefore dramatically reduces the number of dedicated Flanged Adaptors which need to be stocked for maintenance purposes. It is suitable for steel, GRP, PVC, PE, Ductile Iron, Cast Iron and Asbestos Cement. When connecting PE pipes, it is important that pipe inserts are fitted to the PE pipes.
Available Range: From DN40mm - DN600mm.
| Specification | Unit Weight | Sealing Ranges (mm) | |
|---|---|---|---|
| Inches | mm | kgs | Range |
| 2" | 50 | 3.6 | 59~73 |
| 2 1/2" | 65 | 4.50 | 72~85 |
| 3" | 80 | 4.83 | 88~103 |
| 4" | 100 | 5.51 | 108~128 |
| 5" | 125 | 7.74 | 132~154 |
| 6" | 150 | 8.32 | 159~182 |
| 8" | 200 | 9.95 | 218~235 |
| 10" | 250 | 14.50 | 271~289 |
| 12" | 300 | 18.62 | 322~340 |
| 16" | 400 | 28.85 | 417~437 |
| 24" | 600 | 54.10 | 630~650 |
