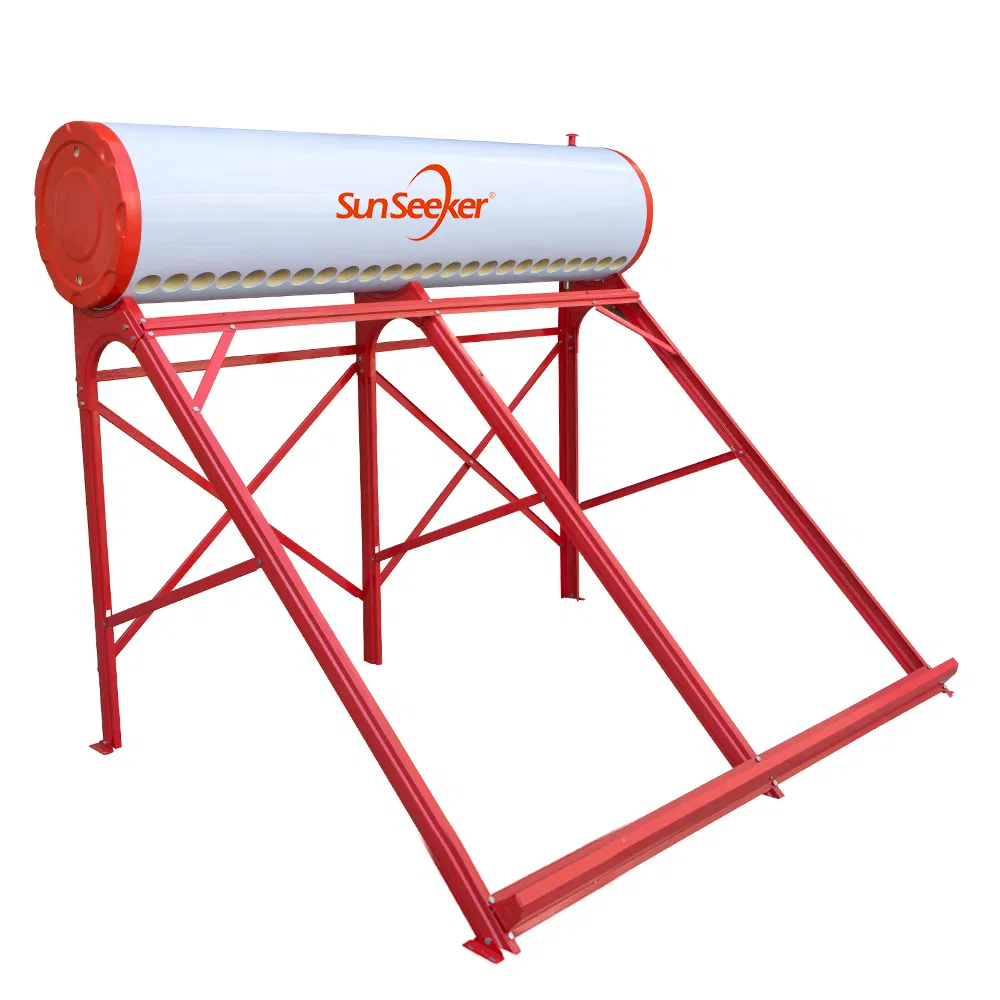

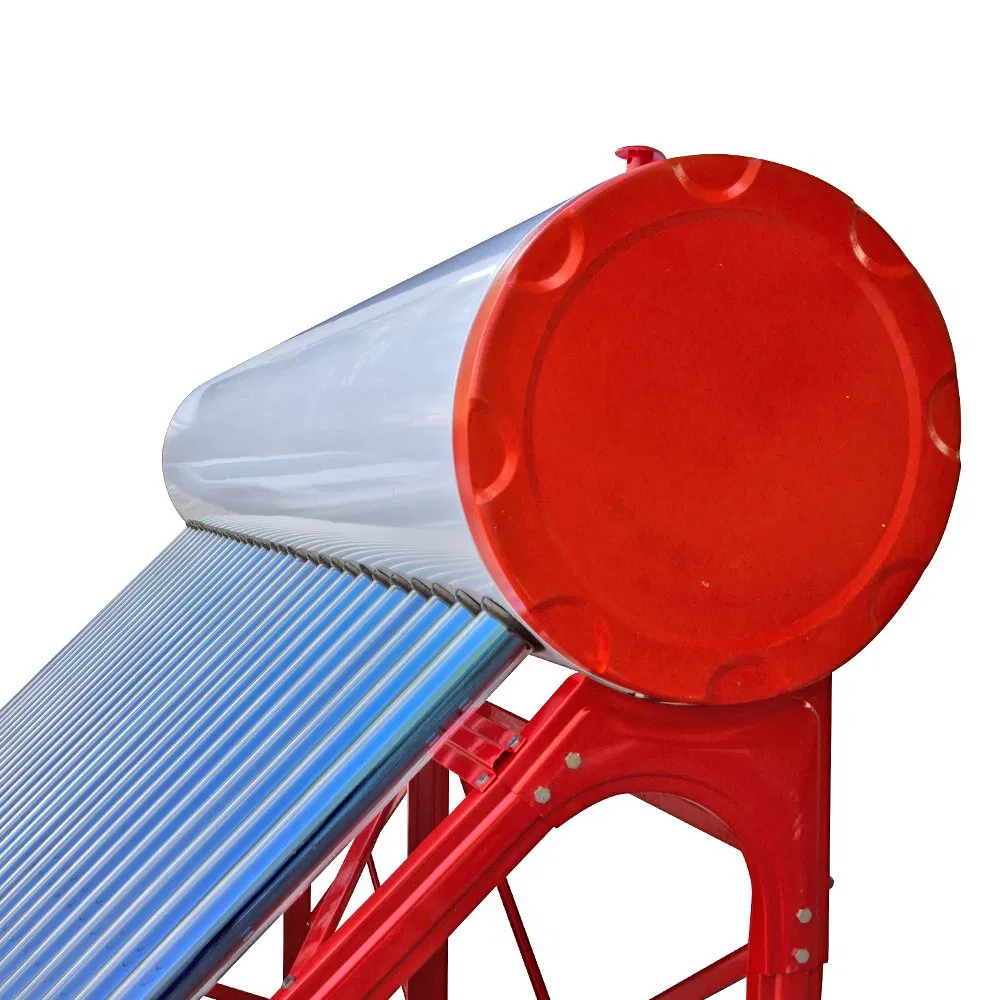

| Material Component | Specification Details |
|---|---|
| Inner Tank Material | 0.31mm-0.5mm thickness, Food Grade SUS304 |
| Outer Tank Material | 0.31mm thickness, Colorful Steel |
| Insulating Layer | 50mm thickness, 45kg/m³ High Density Polyurethane |

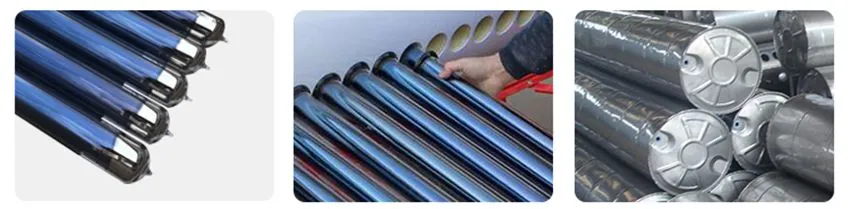

| Solar Collector Tube | 3.3 Borosilicate glass with Cu-SS-ALN/ANL coating |
| Vacuum Tube Size | 58mm / 1800mm |
| Bracket (Frame) | 1.2mm/1.5mm Galvanized Steel |
| Welding Technique | Argon Arc Welding |
| Item No. | Tube QTY | Tank Capacity | Effective Area | Application |
|---|---|---|---|---|
| ZY-1A-5810 | 10 | 100L | 1.04 m² | 3 People |
| ZY-1A-5815 | 15 | 150L | 1.46 m² | 4 People |
| ZY-1A-5820 | 20 | 200L | 2.08 m² | 5-6 People |
| ZY-1A-5824 | 24 | 240L | 2.50 m² | 6 People |
| ZY-1A-5830 | 30 | 300L | 3.13 m² | 7 People |
| ZY-1A-5840 | 40 | 400L | 4.17 m² | 8 People |
