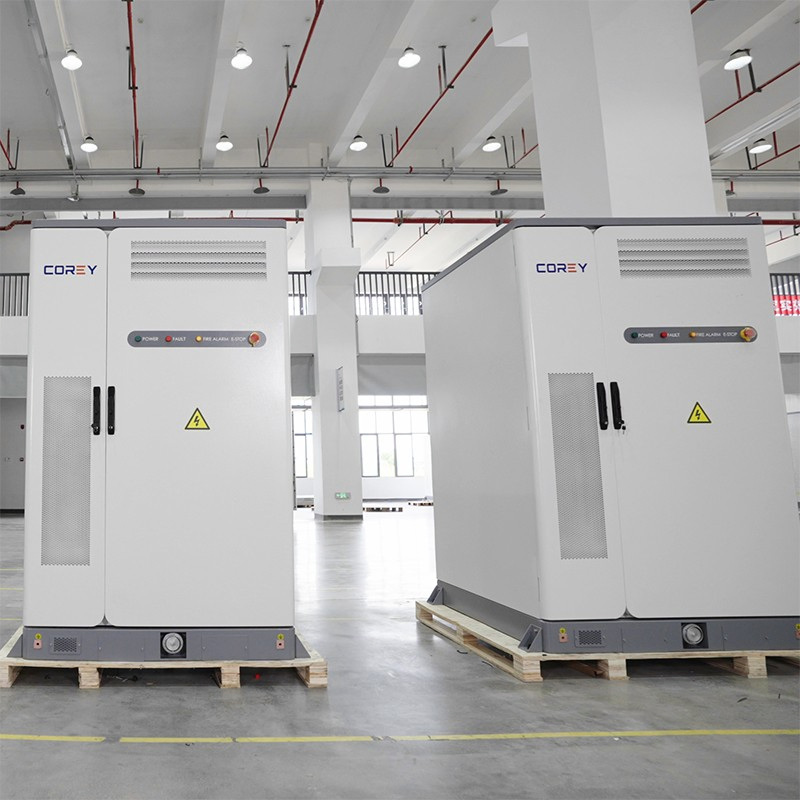

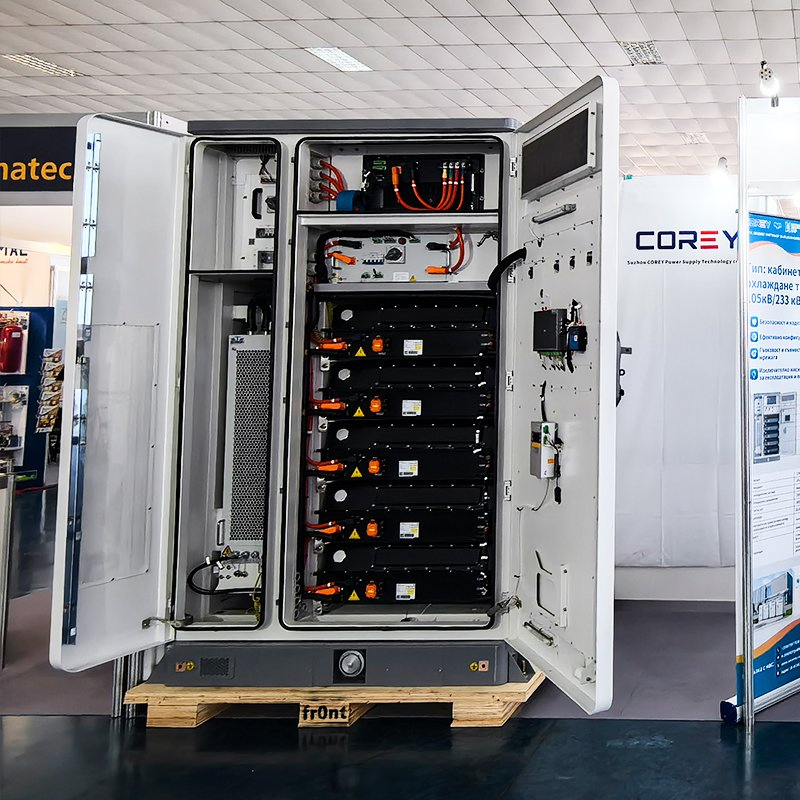

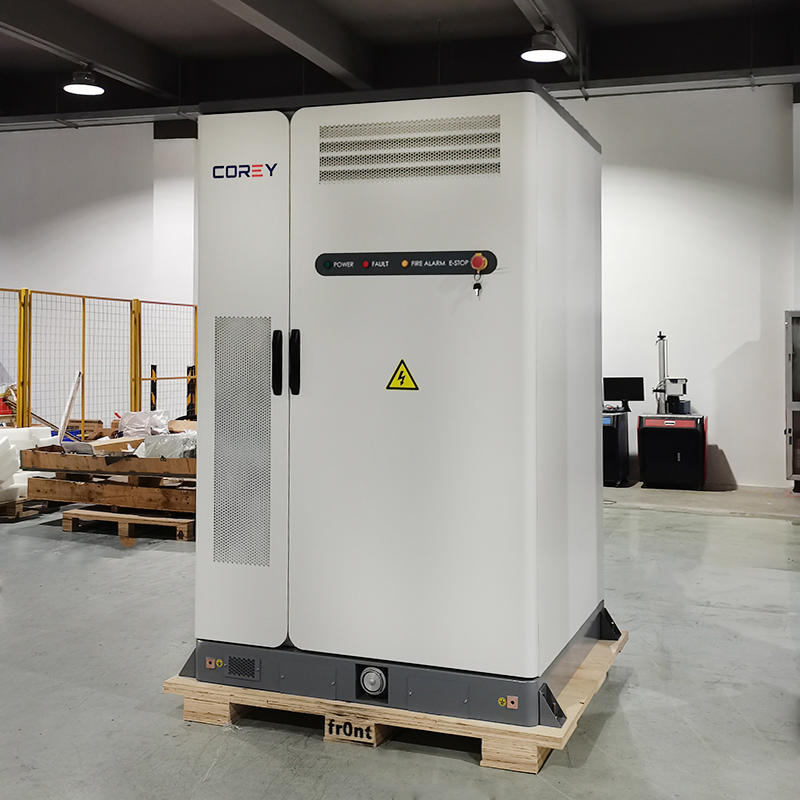

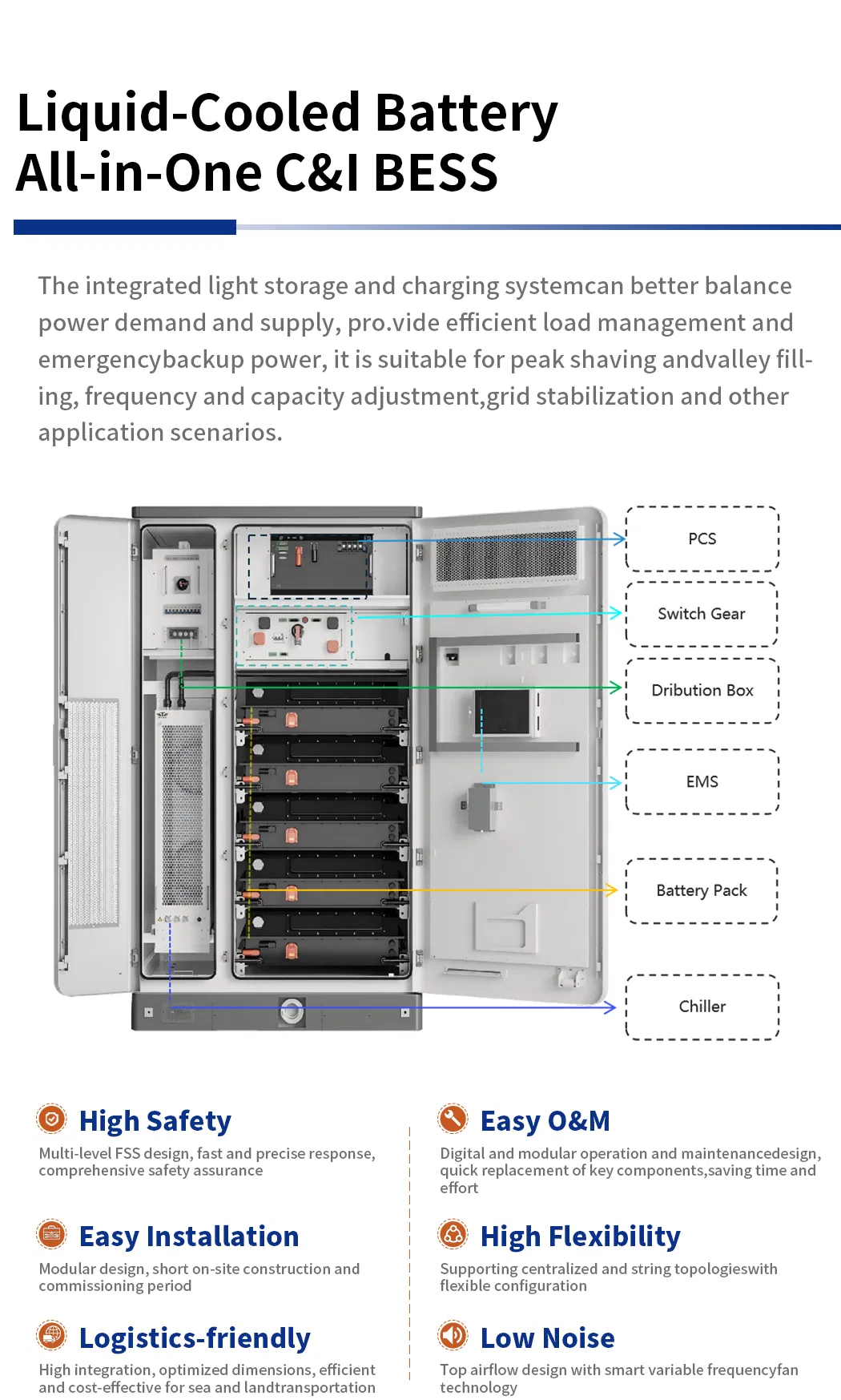

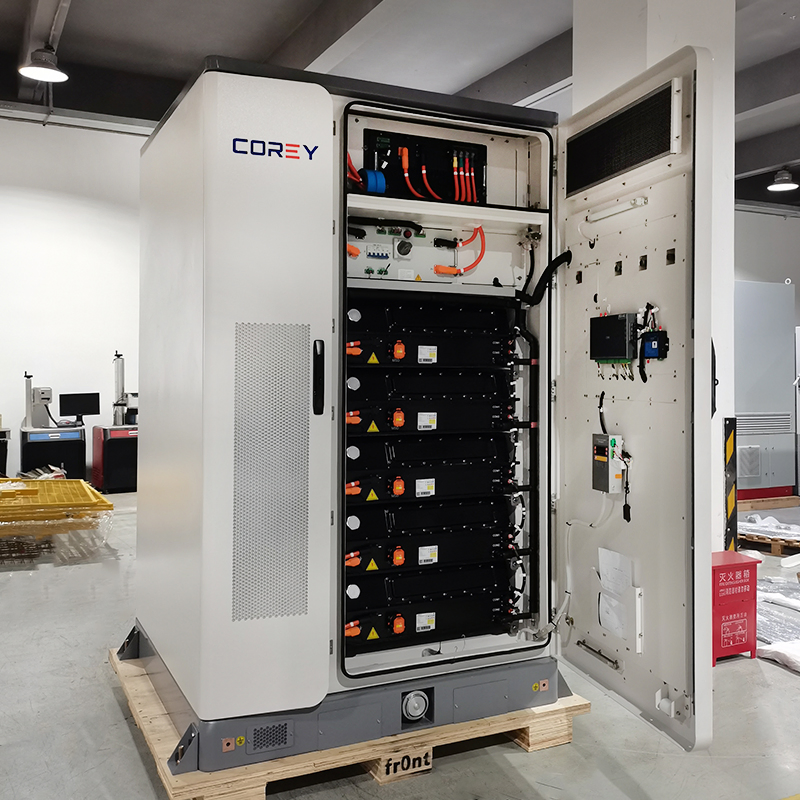

The commercial and industrial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. Divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.
Emergency backup power source ensuring continuous operation.
Modular design, expansion, and convenient installation.
Optimize energy usage and reduce operational costs.

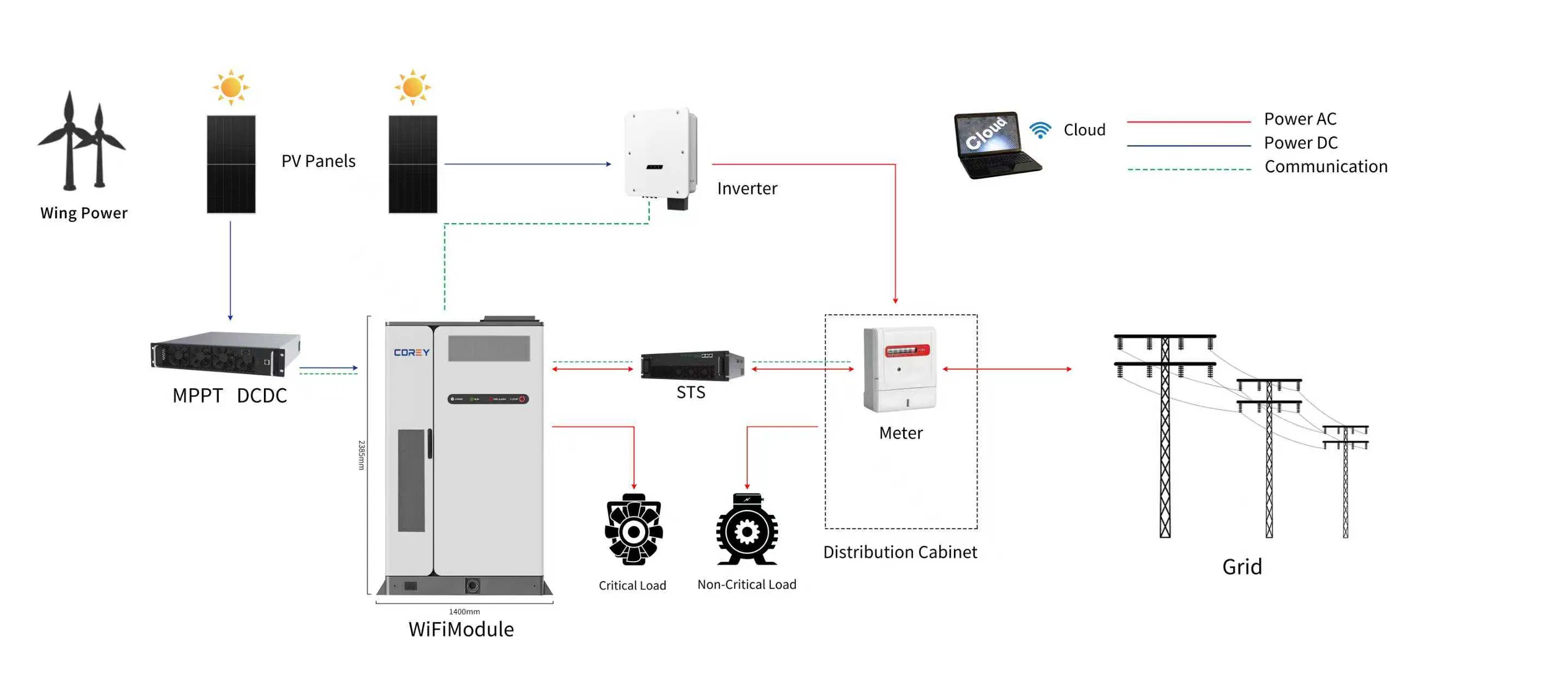

Grid-connected/off-grid switching with multiple protection.
| System Parameter | Specifications | |
|---|---|---|
| Battery Cell | LFP(LiFePO4) 3.2V 280Ah | |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Communication Interface | CAN/RS485/Ethernet/4G | |
| Fire Fighting | Aerosol (pack + cluster) + Water (cabinet) | |
| Operating Temperature | -20ºC ~ 50ºC (Discharge) | |
| AC Side | Details | |
| Rated Voltage | 230V/400V (±15%) | |
| Rated Frequency | 50/60 Hz | |
| Switching Time | 20ms (Optional) | |

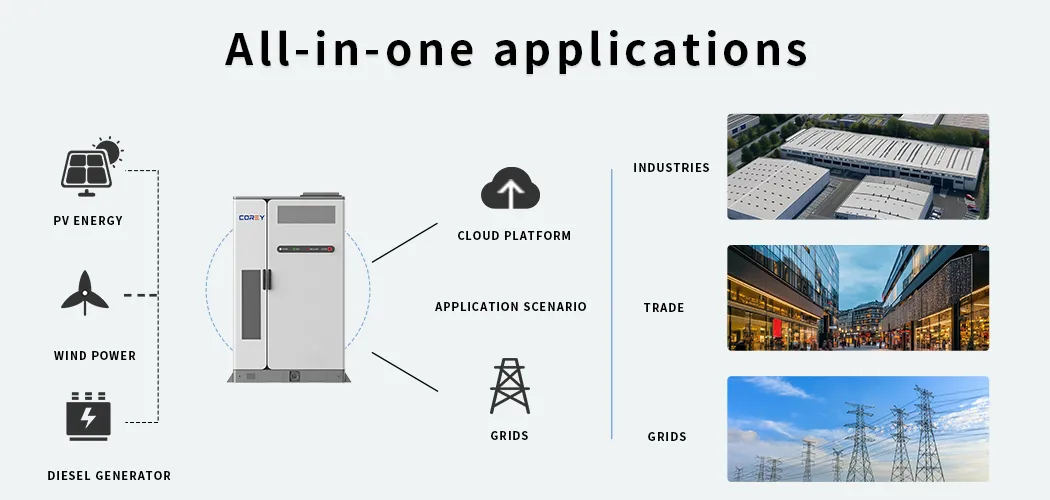

Ideal for commercial buildings, factory buildings, remote areas, and regions with power shortages.

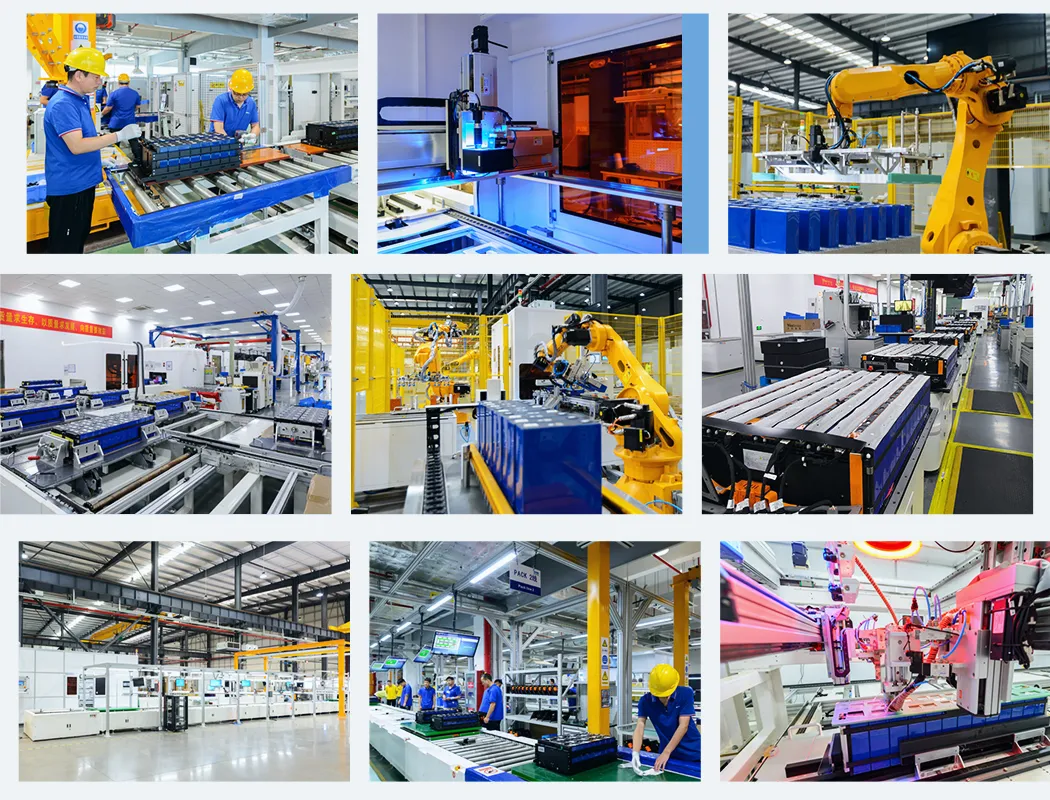

Specializing in automated intelligent equipment and laser welding technologies for lithium battery modules. We provide high-intelligence manufacturing solutions for top energy storage system integrators, committed to promoting clean energy transformation and zero-carbon power systems.
