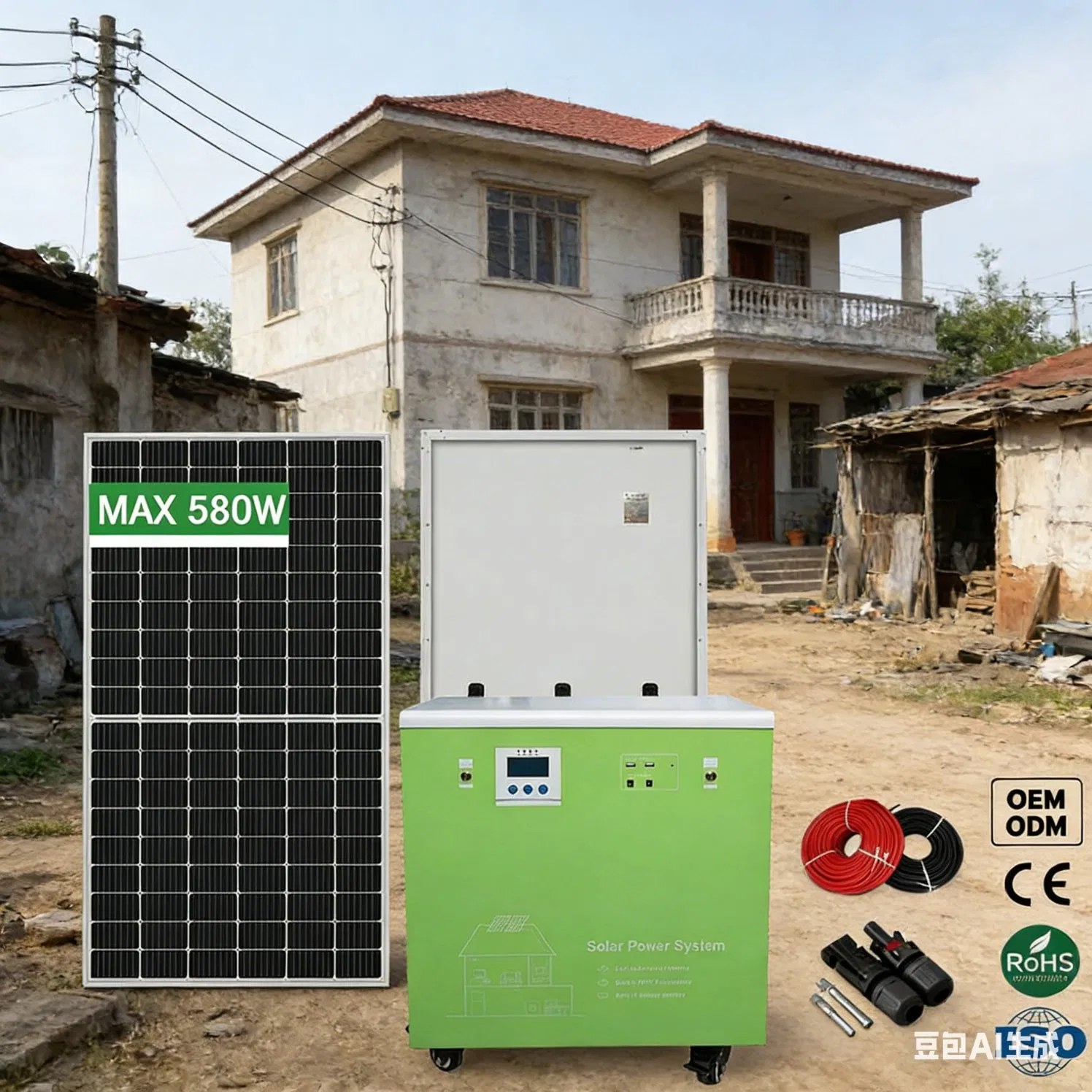

Space Efficiency Compact Design MPPT Tracking Solar Power System

1 / 5

Space Efficiency Compact Design MPPT Tracking Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

WON-SPS-01

Certification

ISO, CB, CE, RoHS

Application

Home, Industrial, Commercial

Rated Power

500W/1.5kw/3kw/6kw

Charging Mode

MPPT

Battery Type

Lead Acid / Lithium / Iron Lithium

Battery Lifespan

6 Years

Solar Panel Lifespan

25 Years

Efficiency

>85%

Transfer Time

<=4ms

★

Product Features

All-in-one Design: Inverter, controller, and battery all built-in for easy installation.

Pure Sine Wave: Continuous stable output with no loss to load.

Hybrid Mode: Dual charging via solar and grid (2-3 hours charging time).

LiFePO4 Battery: High-performance battery with up to 10 years lifespan.

Multiple Outputs: Supports 220V/110V AC, USB DC, and 12V DC.

Multi-protection: Built-in protection for overload, overvoltage, and high temperature.

📷

Product Gallery

⚙

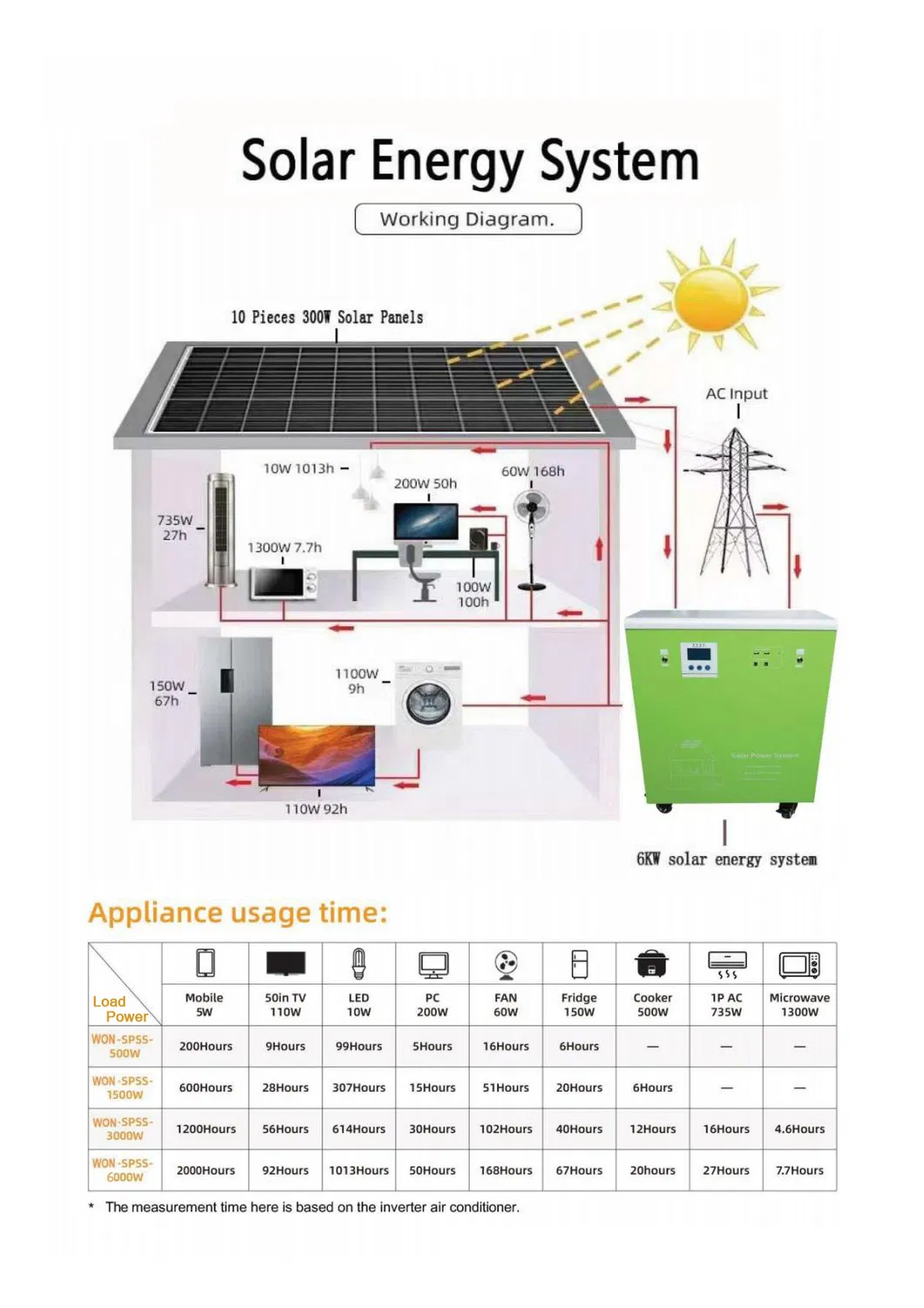

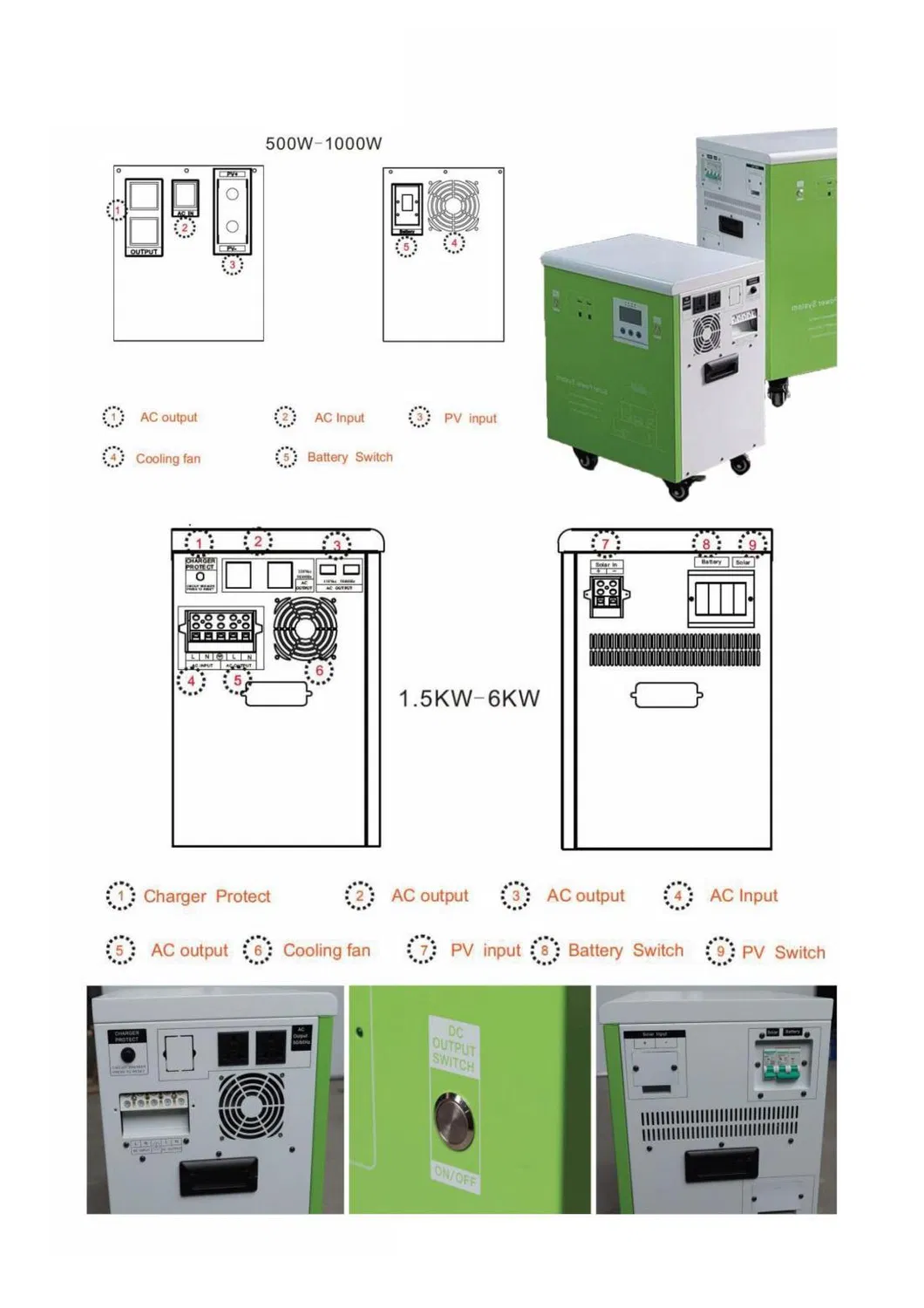

Wiring Diagram & Details

📋

Technical Specifications

Model	WON-SESS-AP500W	WON-SESS-AP1500W	WON-SESS-AP3000W	WON-SESS-AP6000W
Solar Panel (Optional)	100W 18V * 2pcs	250W 36V * 3pcs	300W 36V * 4pcs	300W 36V * 8pcs
Charging Mode	PWM	MPPT
Power Generation	~700WH/day	~2600WH/day	~4200WH/day	~8400WH/day
Battery Capacity	640WH	2176WH	4352WH	8704WH
Rated Power	500W	1500W	3000W	6000W
Net Weight	22KG	40KG	55KG	98KG

📦

System Components

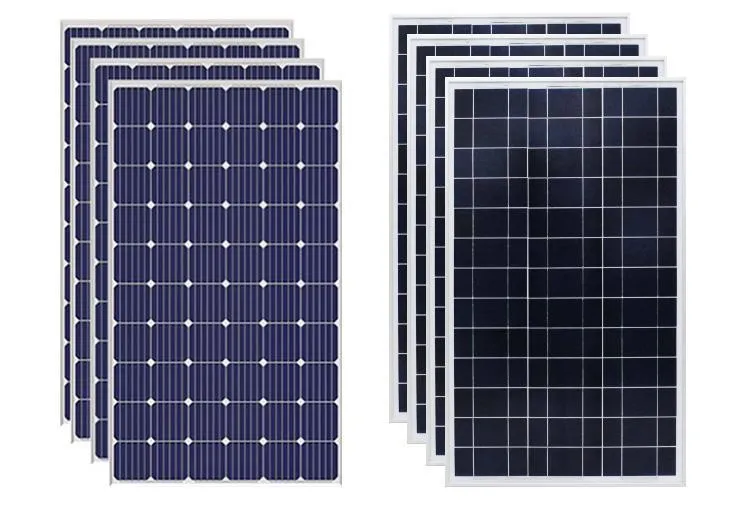

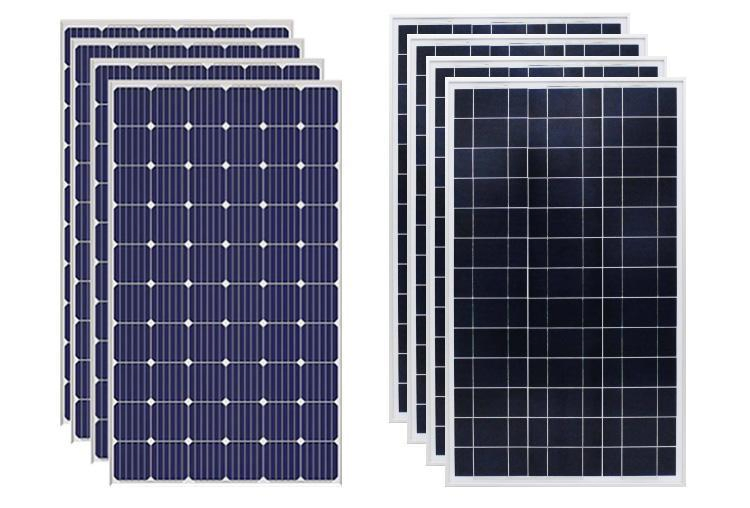

High Efficiency Solar Panels

A Grade mono cells with 21% conversion efficiency. Features anti-reflection tempered glass and anodic aluminium-alloy frame.

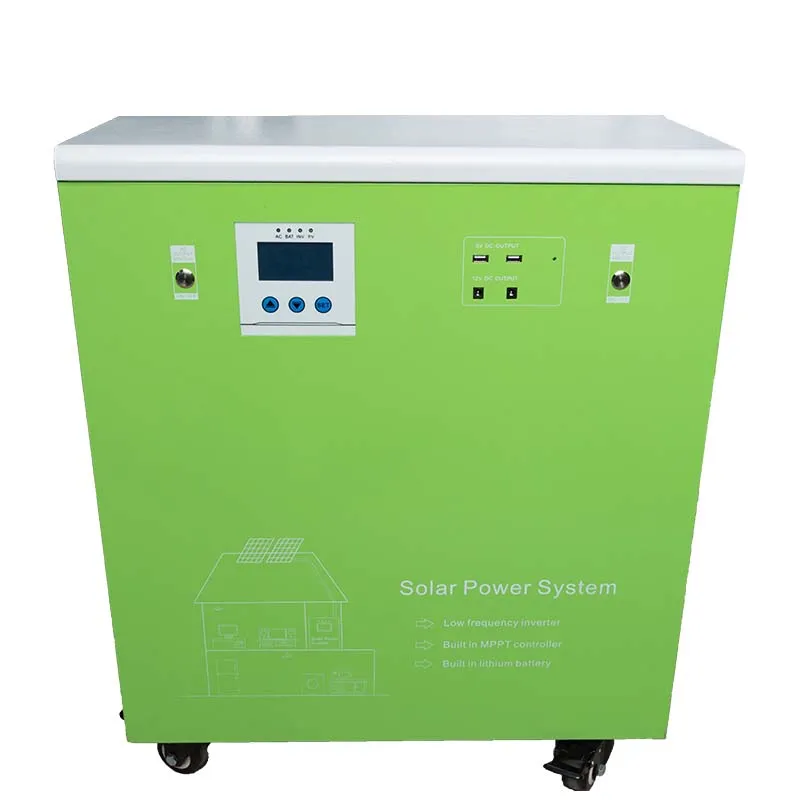

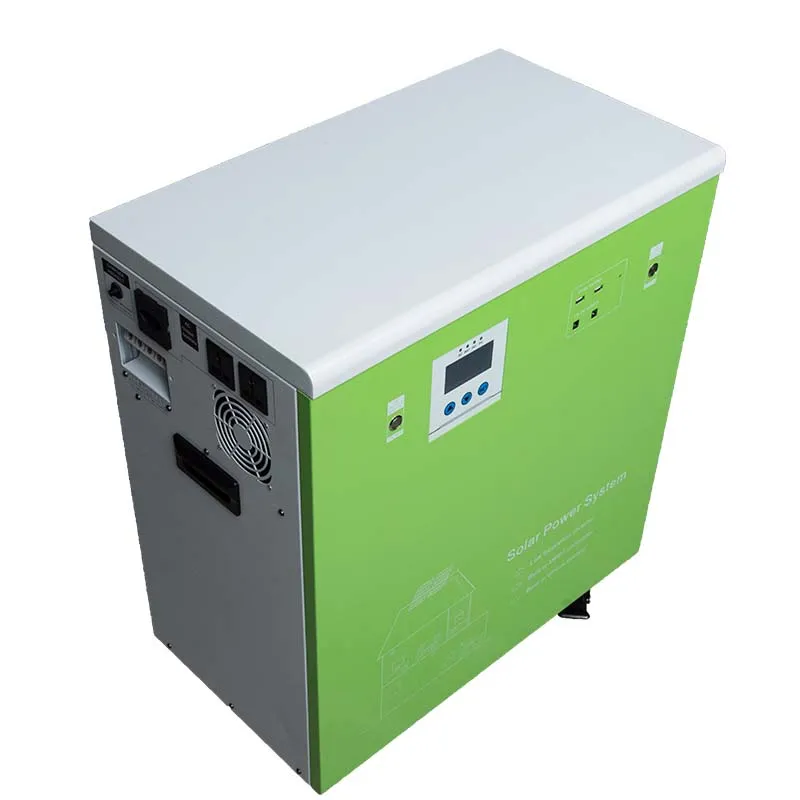

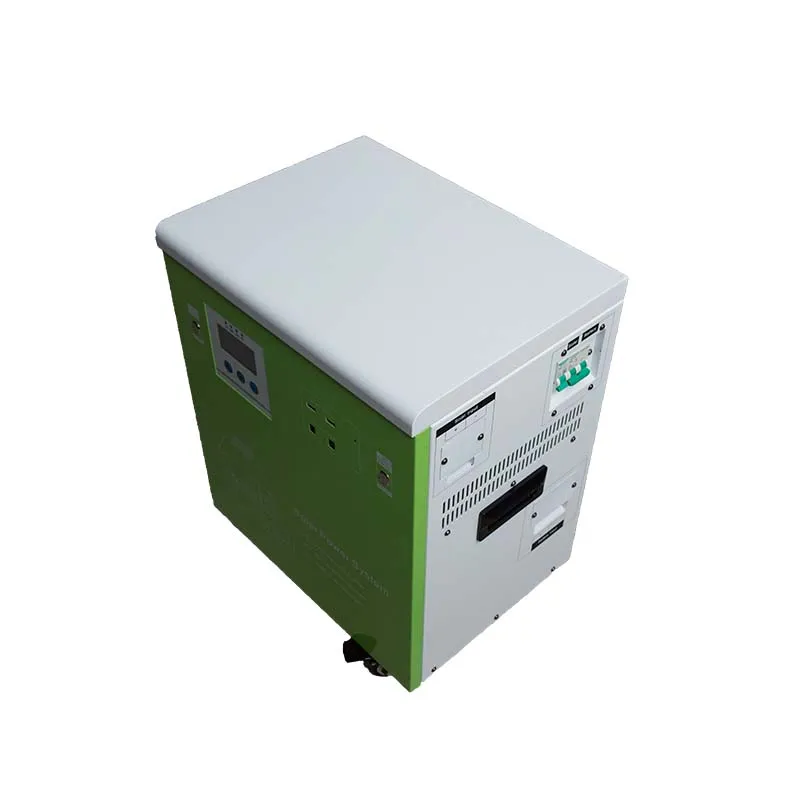

Solar Power Generator

MCU intelligent control technology with pure sine wave AC output and LCD display for real-time monitoring.

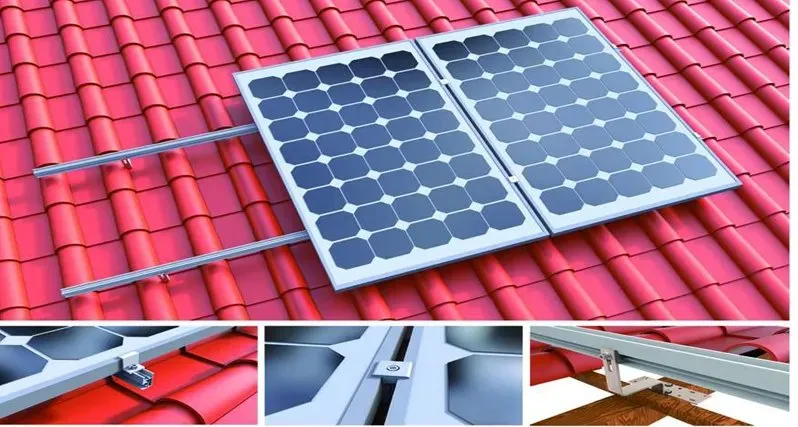

Mounting Structure

Anodized Aluminum suitable for pitched, flat, or tin roofs. Wind load up to 130mph.

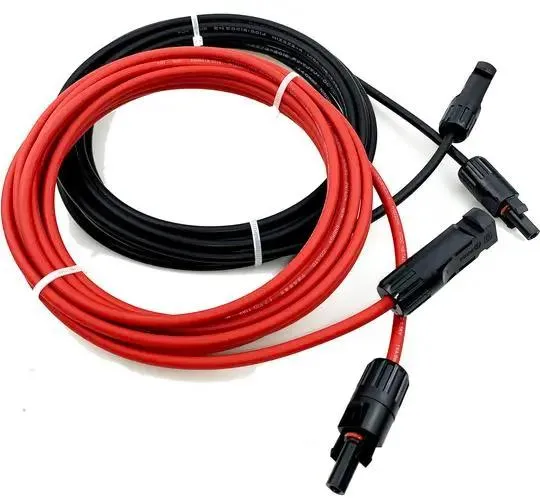

Connection Accessories

Includes 15m Photovoltaic cable and 10m AC plug for immediate setup.

🚢

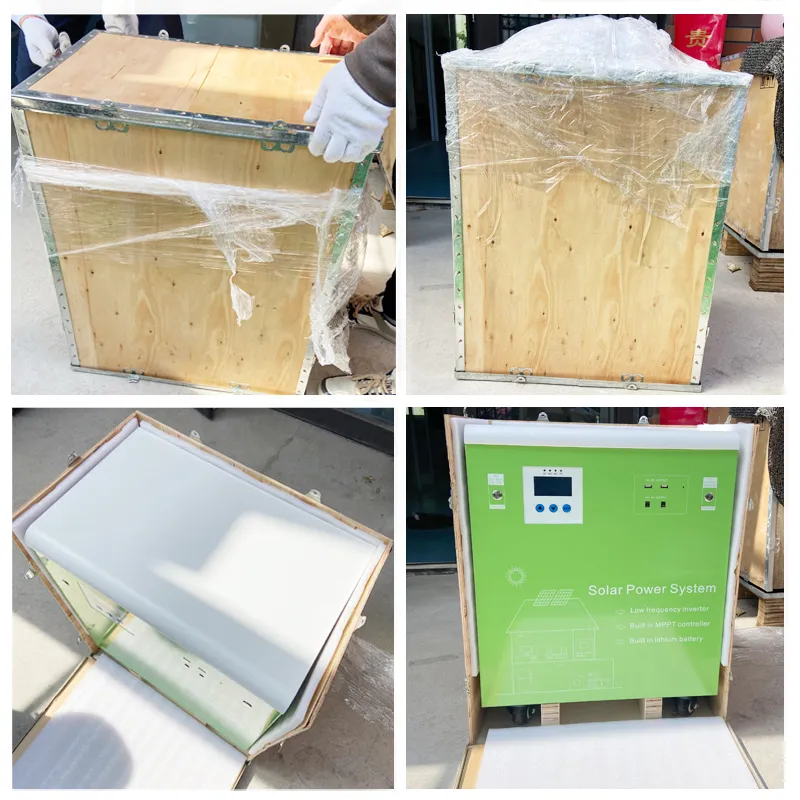

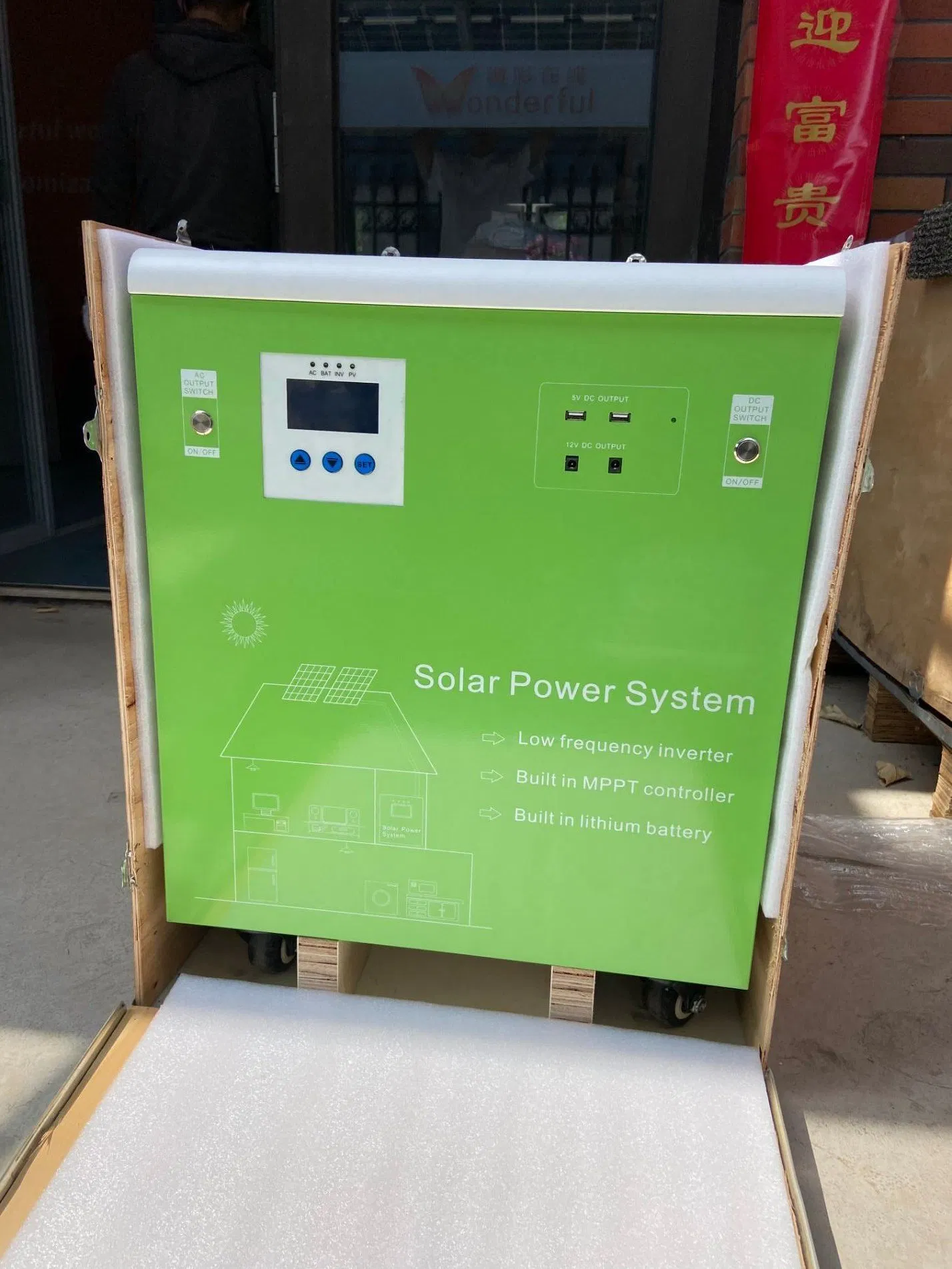

Packing & Shipping

Frequently Asked Questions

What is included in this solar energy system?

The system is an all-in-one solution that includes high-efficiency solar panels, a built-in MPPT controller, a pure sine wave inverter, and a long-life battery (LiFePO4 or Lead Acid).

How long does it take to charge the system?

In hybrid mode, the system can be charged via the grid in approximately 2-3 hours. Solar charging time depends on the panel configuration and sunlight conditions.

What is the expected lifespan of the components?

The solar panels are designed to last for 25 years, while the built-in batteries typically have a lifespan of 6 to 10 years depending on the battery type and usage.

Does the system provide protection against electrical faults?

Yes, the system features comprehensive automatic protection, including overload protection, overvoltage protection, low voltage alarms, and short circuit protection.

Can this system be used for industrial applications?

Absolutely. With rated power options ranging from 500W to 6kW, this system is suitable for home, commercial, and industrial environments.

What kind of maintenance is required?

The system is designed for low maintenance. We recommend periodic cleaning of the solar panels to ensure maximum efficiency and checking cable connections annually.
