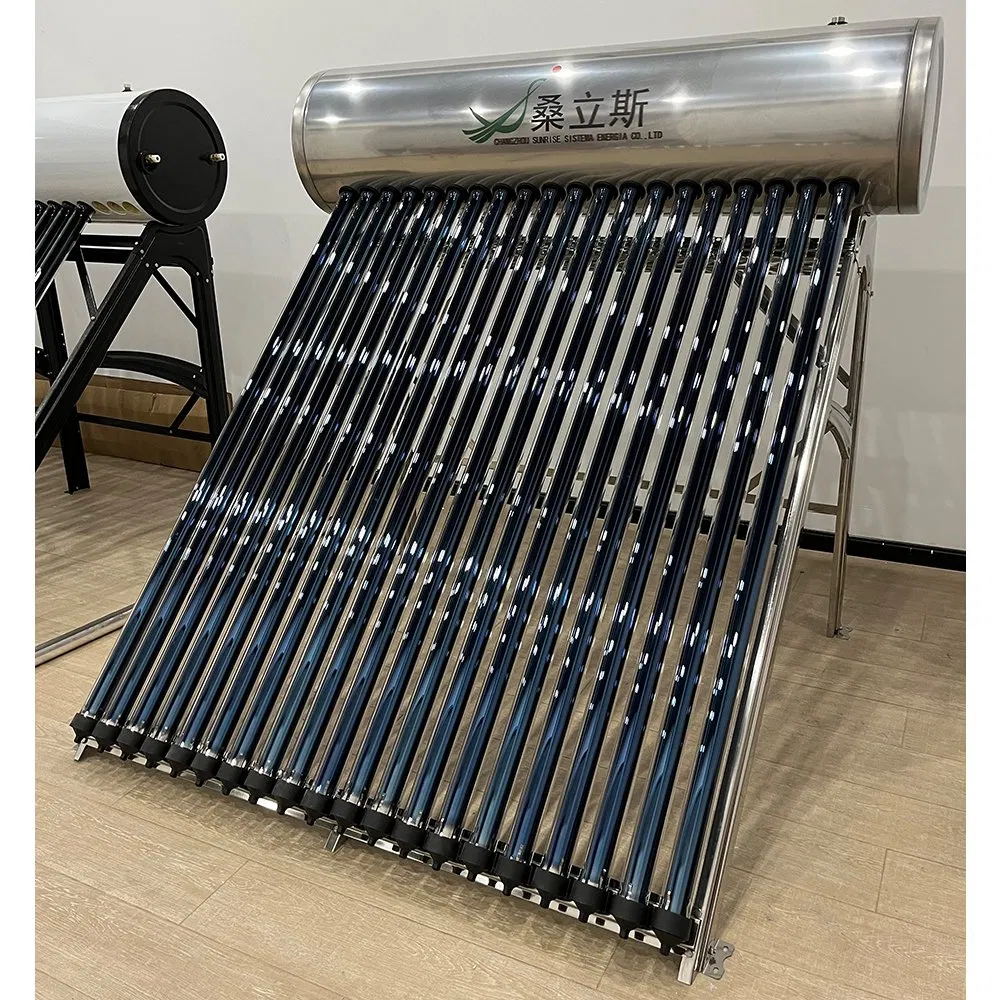

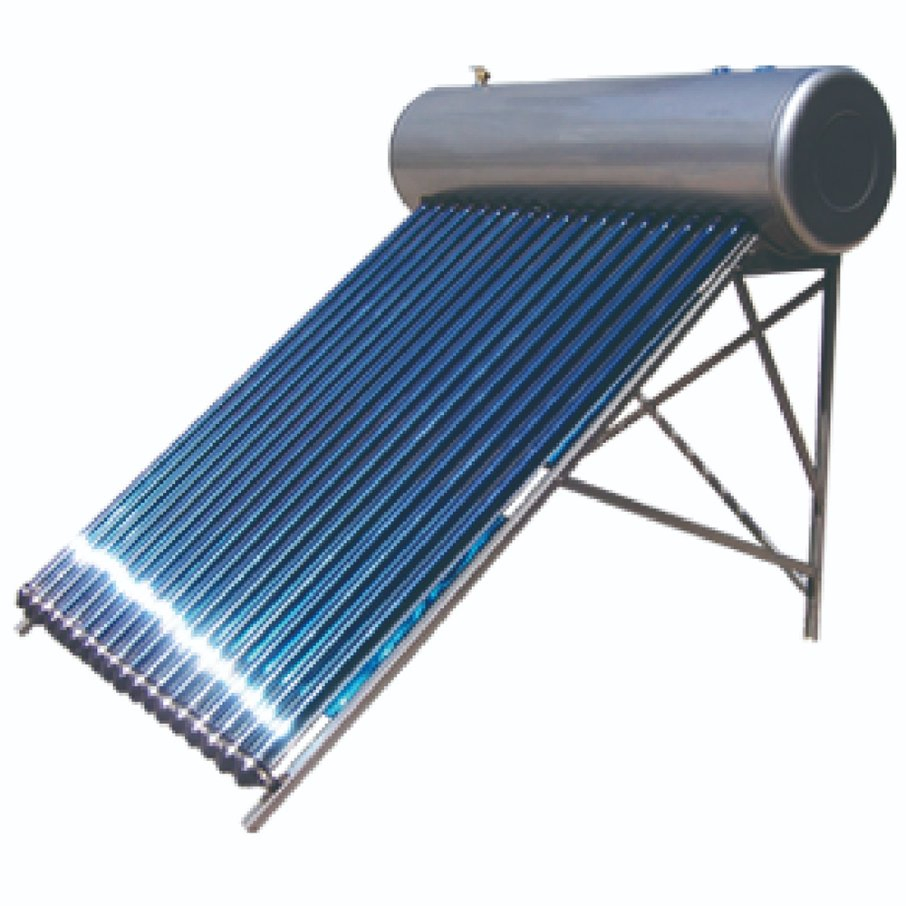

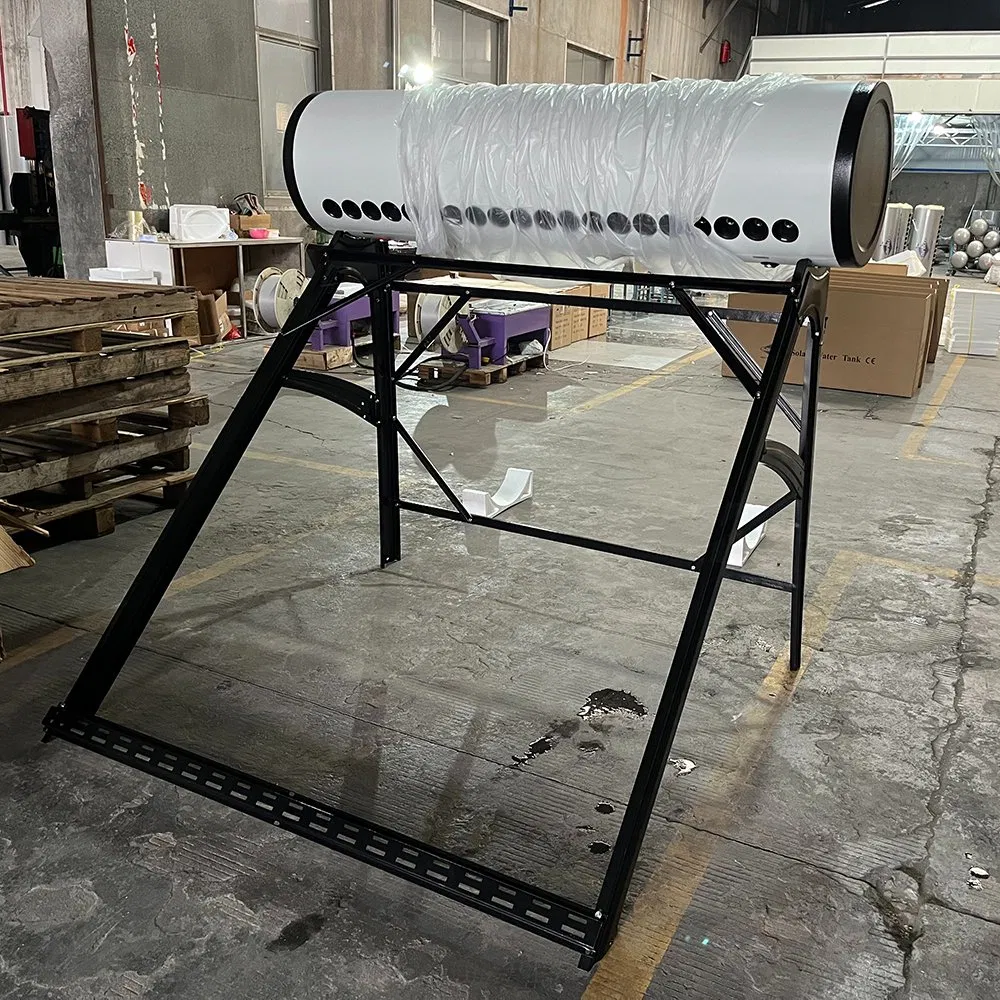

(CE, 12976 Solar Keymark Certificated) Compact Heat Pipe Pressurized Solar Water Heater High Pressure Solar Heater

Customization:	Available
After-sales Service:	5 Years
Warranty:	5 Years

Product Overview

Model NO.

SR-PC/PS

Max. Capacity

>200L

Structure

Compact Type

Pressure

Pressurized

Interior Material

Stainless Steel

Collector

Glass Vacuum Tube

Certification

CE, ISO9001

Power Source

Solar

Installation

Freestanding

Insulation

55mm Polyurethane Layer

Product Description

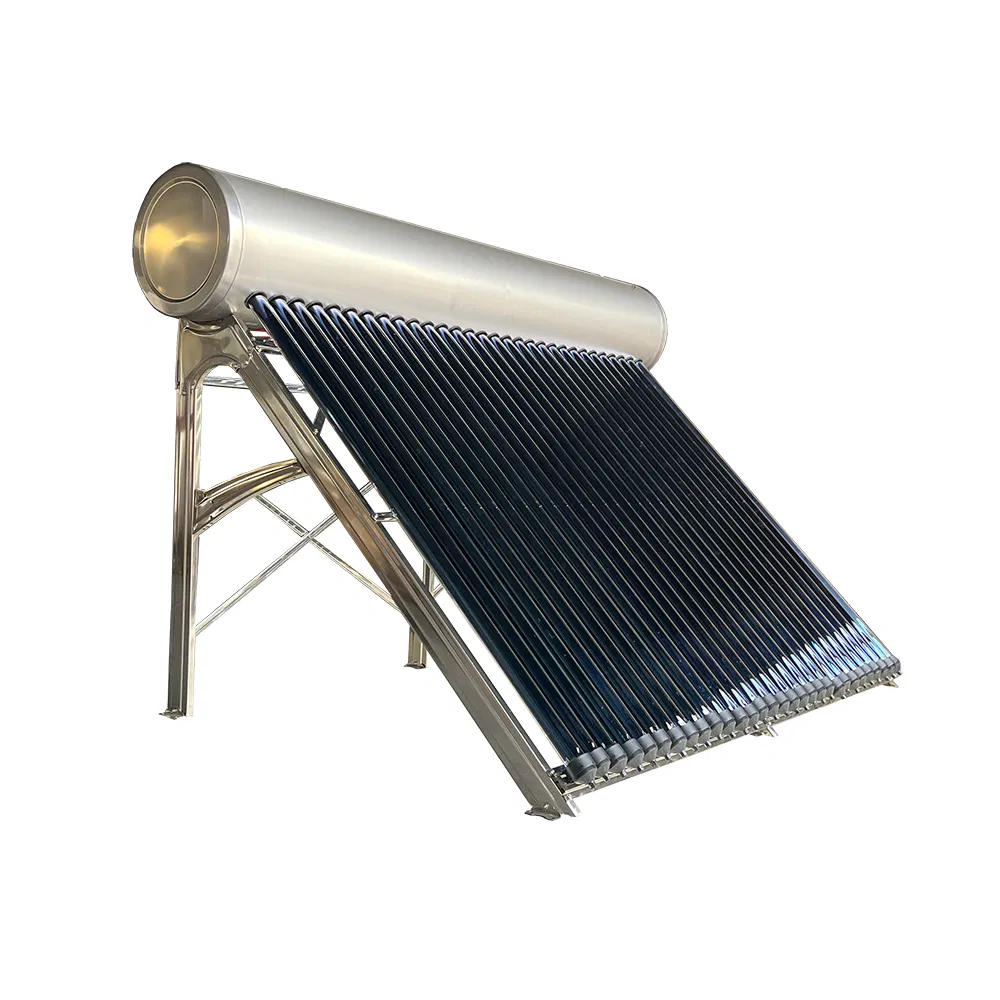

Compact Heat Pipe Pressurized Solar Water Heater

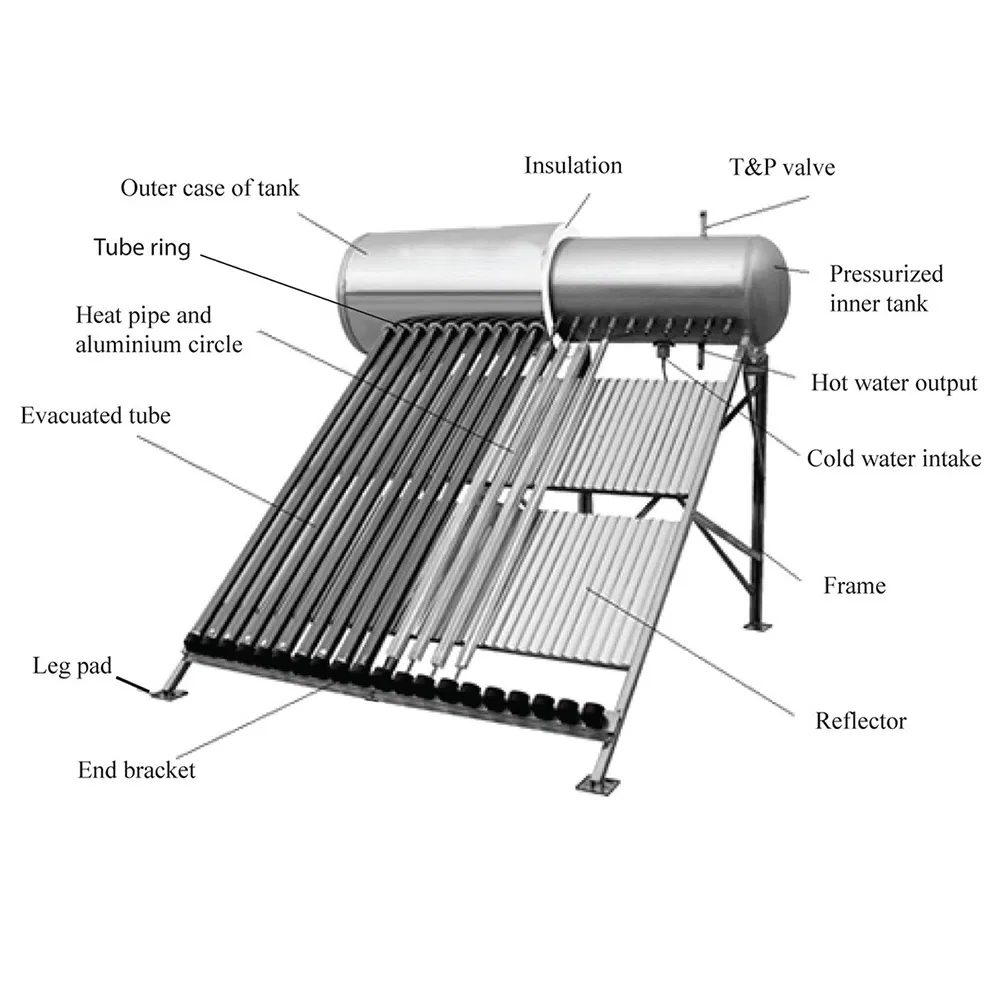

Working Principle:

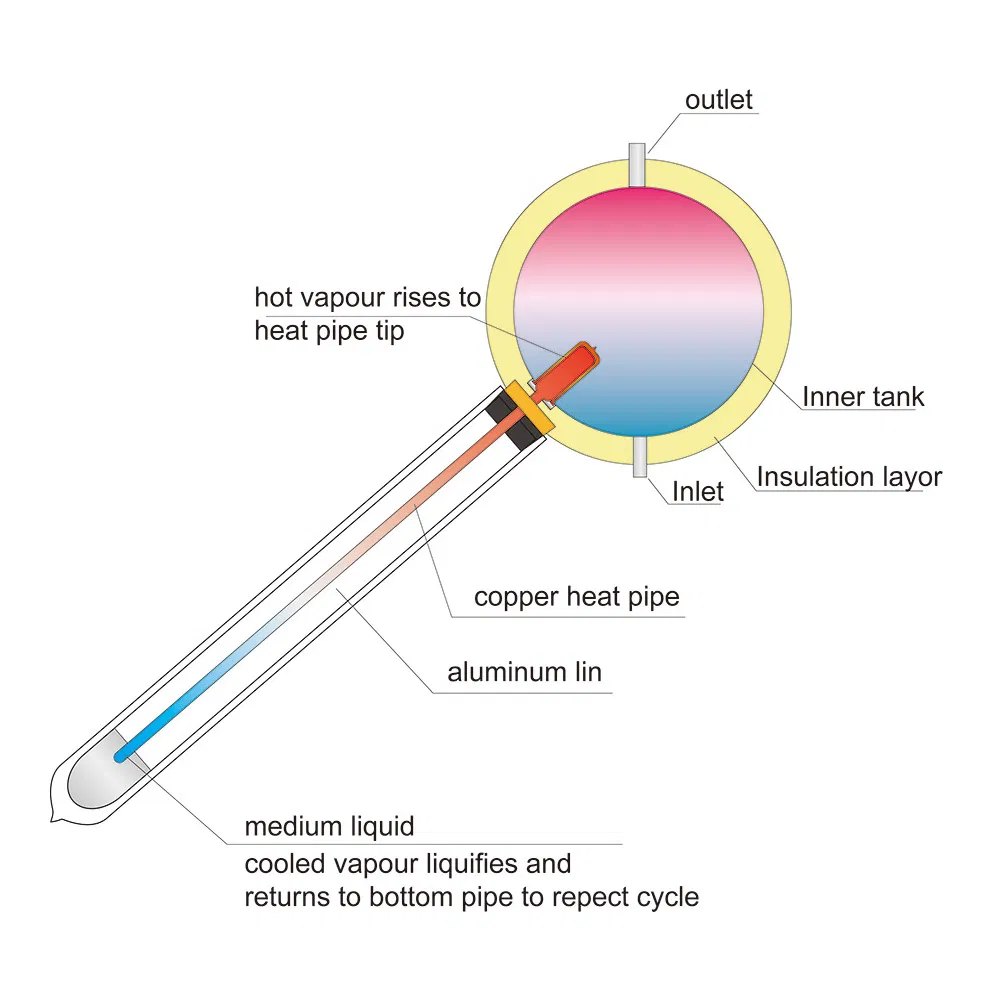

Vacuum tubes collect heat from sunshine, an aluminum ring inside transfers the heat to the heat pipe, which then transfers the heat to the water inside the tank. The system starts and transfers heat quickly even on cloudy and low radiation days. The daily average heat efficiency can reach up to 55%.

High thermal performance: Heat exchanging rate remains above 55% even in winter.
Efficiency: Heat collecting efficiency is at least 20% higher than common solar systems.
All-season operation: Works effectively in temperatures as low as -40ºC, avoiding tube freezing.
Reliability: No water flows through the tubes, preventing scale buildup and tube cracks. The system continues to function even if some tubes are damaged.
Automatic Pressure: Connects with water taps and works automatically at 0.6Mpa for a superior washing experience.
Safety: Equipped with a P/T valve to release pressure and temperature, protecting the tank.

Technical Parameters

Model	Tube Qty (pcs)	Absorb Area (m²)	Capacity (L)	Inner Tank	Outer Tank	Warranty
SR-PC/PS-10	10	1.4	100L	SUS304-2B	Painted Steel	5 Years
SR-PC/PS-15	15	2.08	143L	SUS304-2B	Painted Steel	5 Years
SR-PC/PS-20	20	2.85	185L	SUS304-2B	Painted Steel	5 Years
SR-PC/PS-24	24	3.41	220L	SUS304-2B	Painted Steel	5 Years
SR-PC/PS-30	30	4.25	271L	SUS304-2B	Painted Steel	5 Years

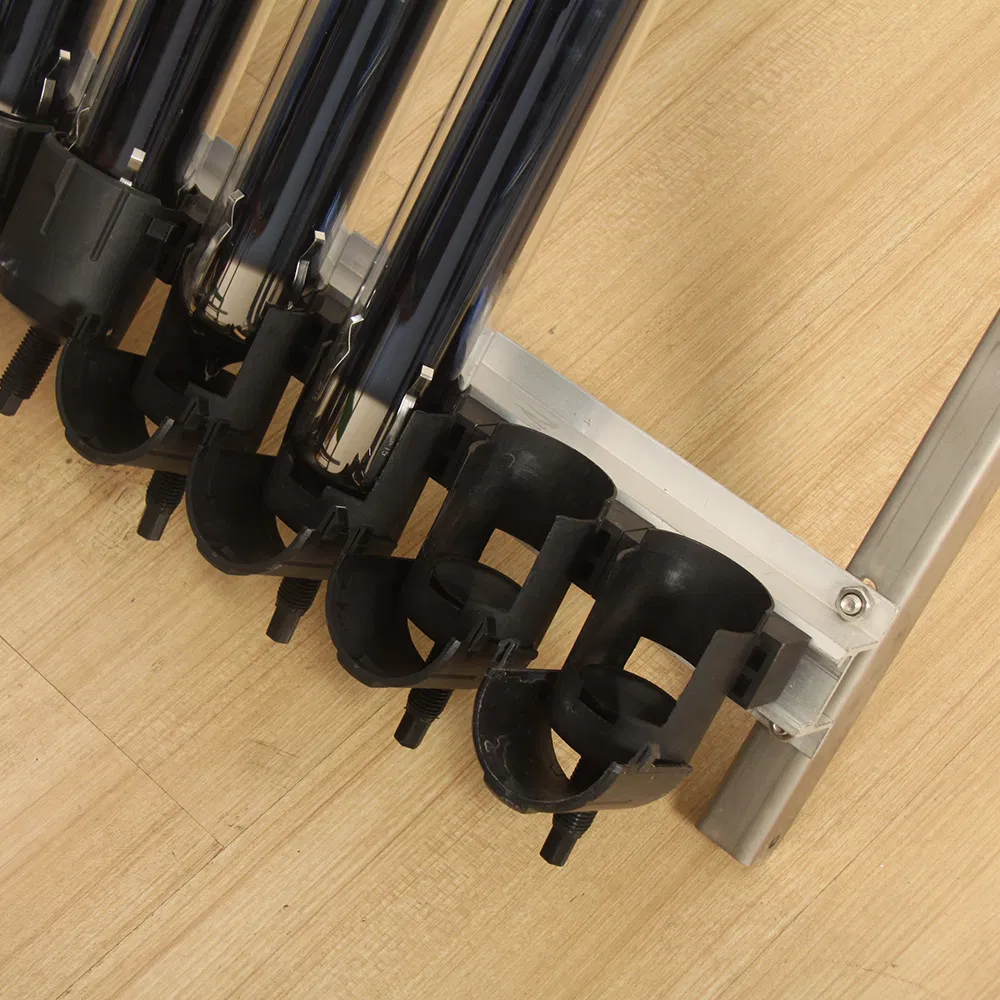

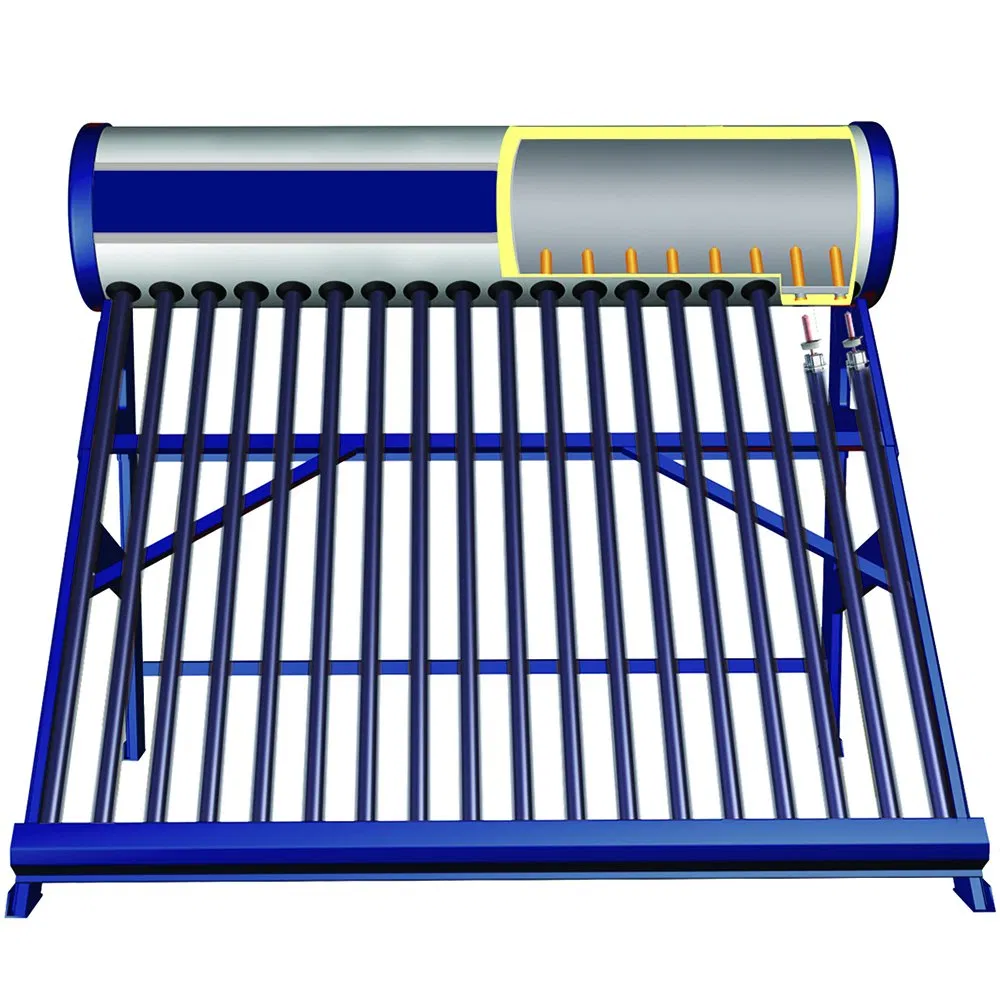

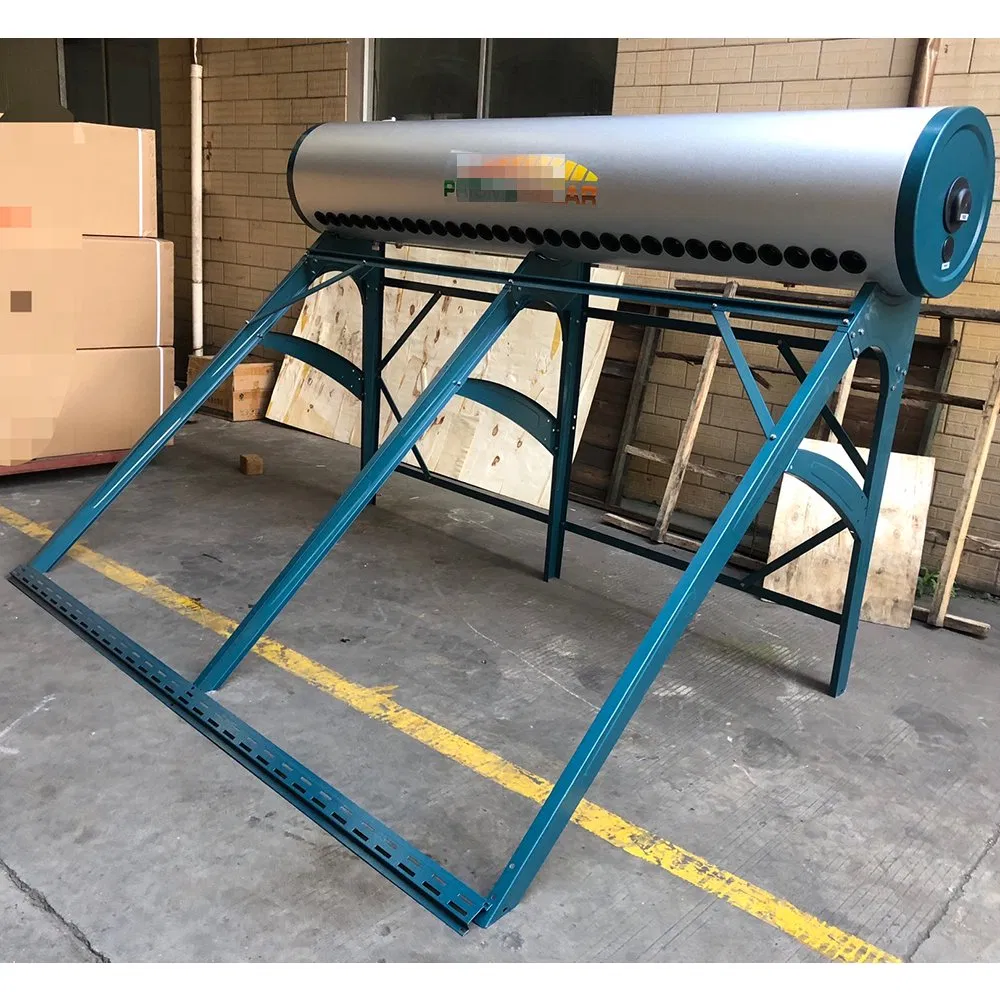

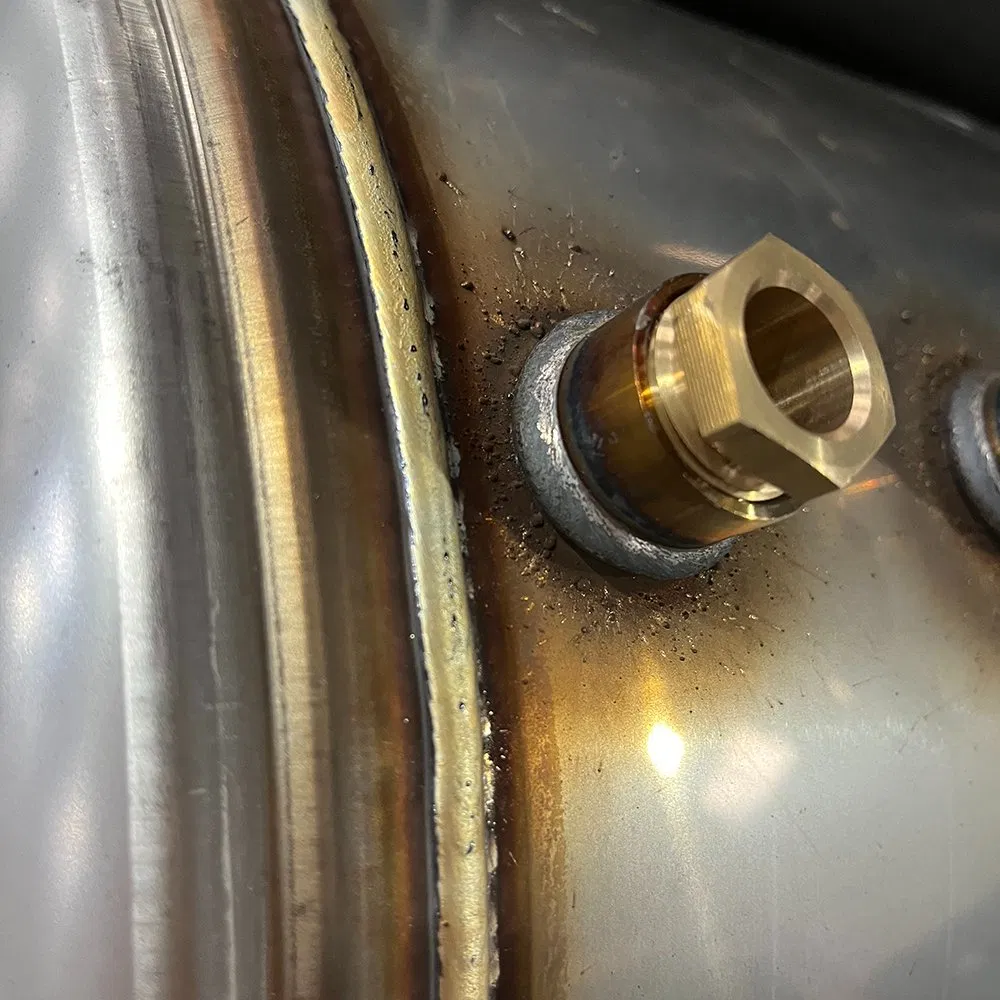

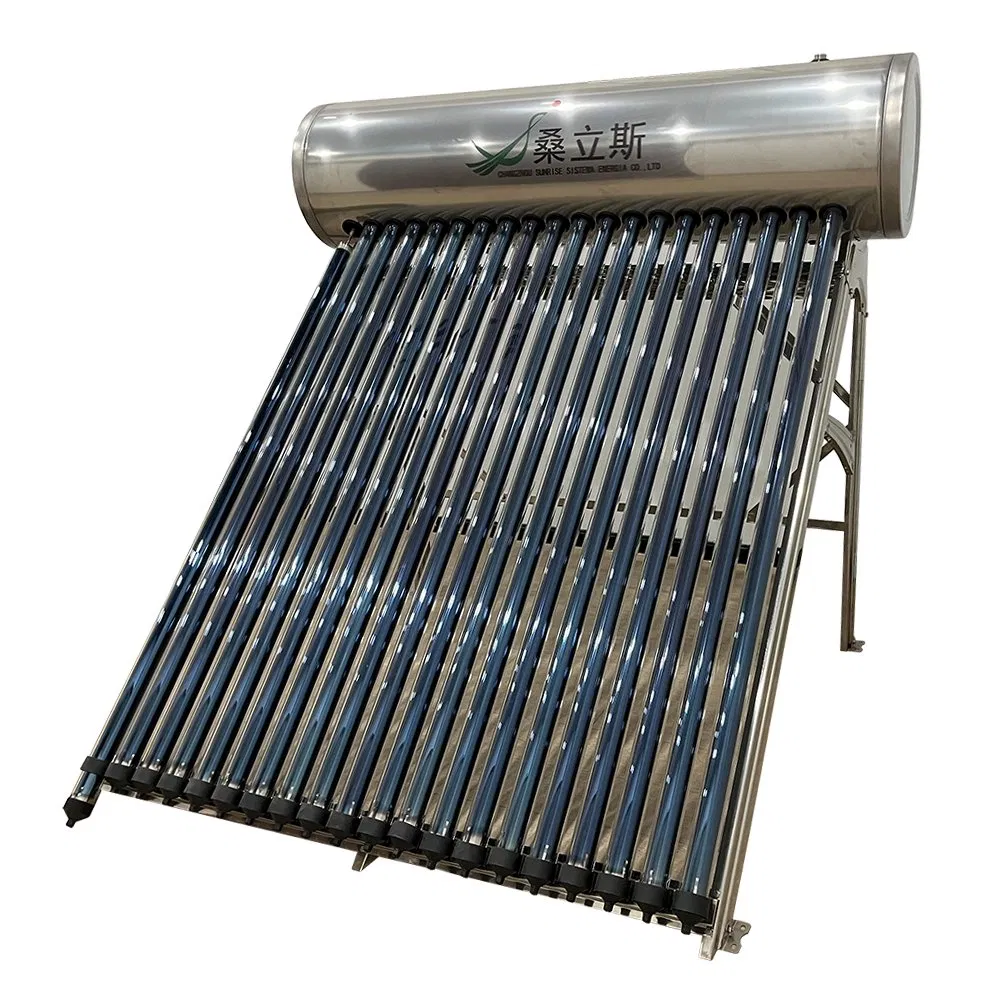

Detailed Photos

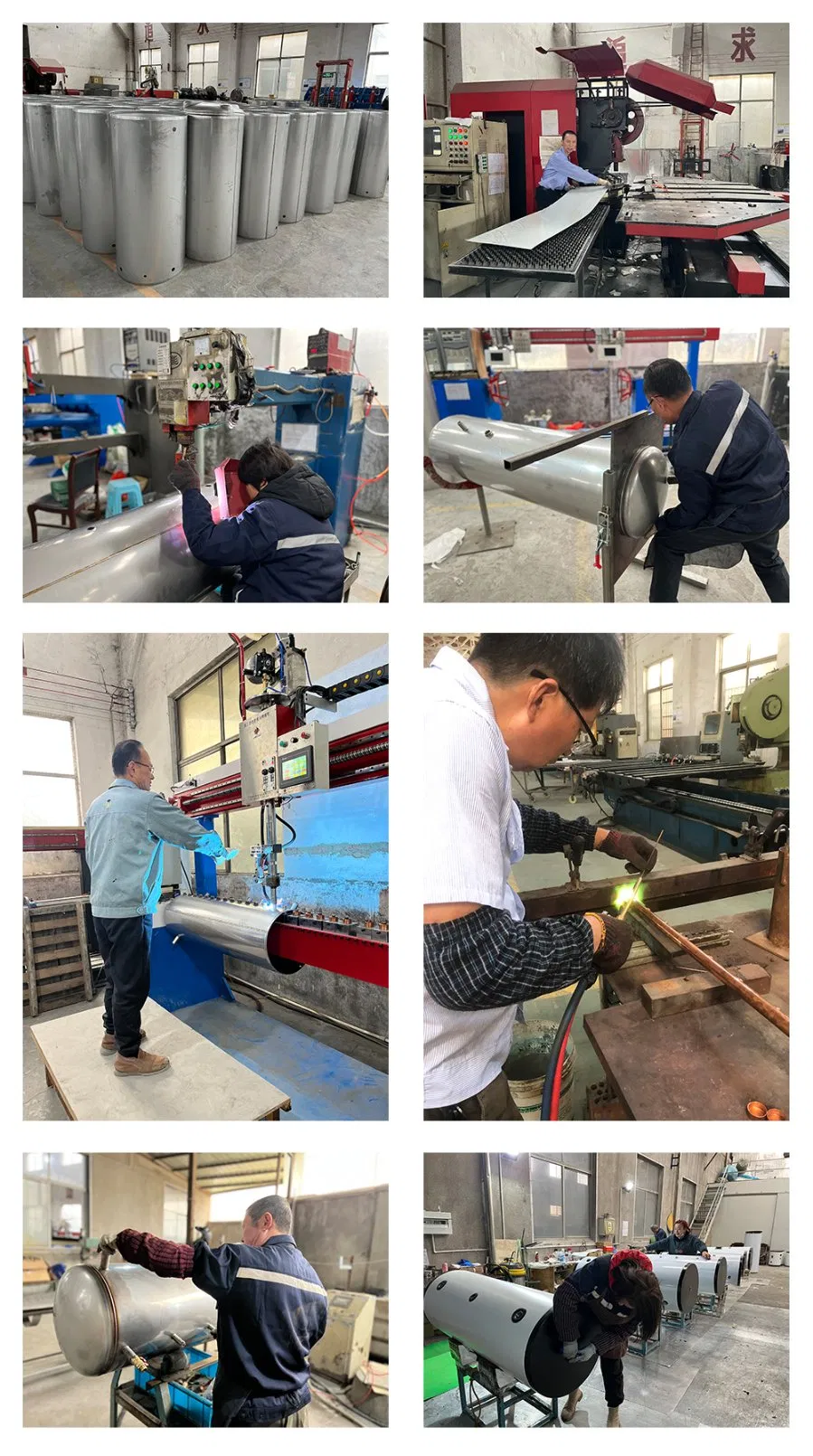

Packaging & Production

Why Choose Us?

Economic & Environmental: Sustainable energy solutions that reduce utility costs.
Durable Design: Long service life with high-quality stainless steel components.
Strict Quality Control: Every unit undergoes rigorous testing to ensure reliability.
Professional OEM/ODM: Full support for custom branding and design requirements.
Comprehensive Service: From pre-sale samples to dedicated after-sales support.

Frequently Asked Questions

Q: How does the heat pipe solar heater work in winter?

A: The vacuum tubes and copper heat pipes are highly efficient at capturing solar radiation. Even in temperatures as low as -40ºC, the system can maintain a heat exchanging rate above 55% without freezing.

Q: What is the warranty period for this system?

A: We provide a 5-year warranty for our solar water heaters, supported by our comprehensive after-sales service policy.

Q: Can I use this system with high-pressure water taps?

A: Yes, this is a pressurized system designed to work automatically with pressures up to 0.6Mpa (8 bar/116psi), providing a consistent and enjoyable water flow.

Q: What happens if one of the vacuum tubes breaks?

A: Because no water flows directly through the tubes, the system will continue to operate even if a tube is damaged. Replacing a tube is simple and does not require draining the tank.

Q: Do you offer OEM or custom branding services?

A: Yes, we provide full OEM and ODM services, including custom logo printing and specific material adjustments to meet your market needs.

Q: What is the typical lead time for production?

A: Generally, it takes 3-7 working days if the goods are in stock. For larger orders or non-stock items, the production time is typically 15-25 working days.
