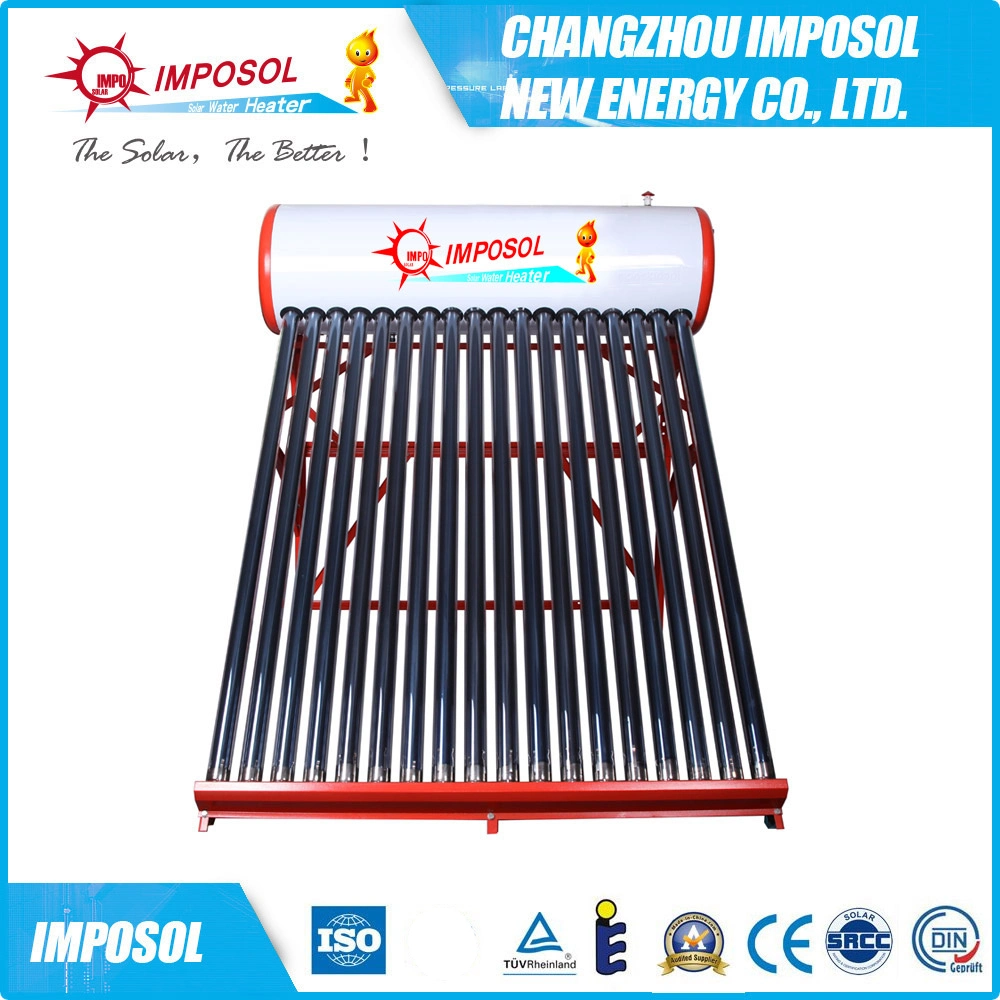

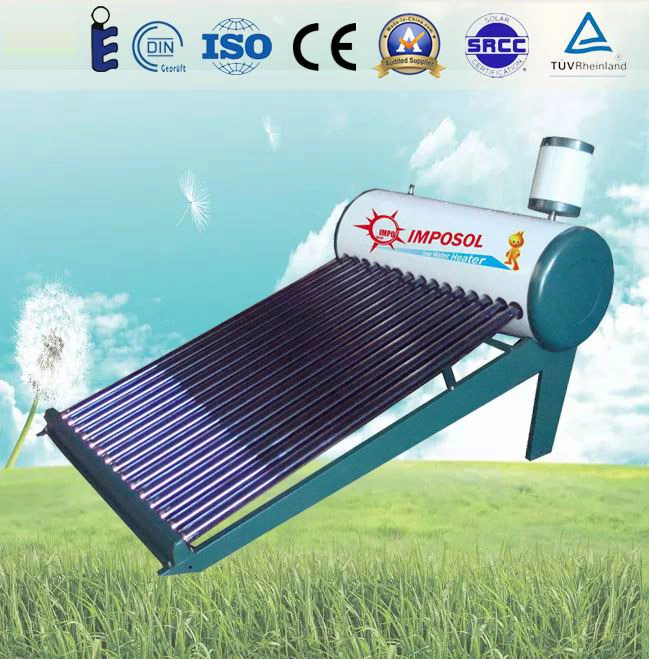

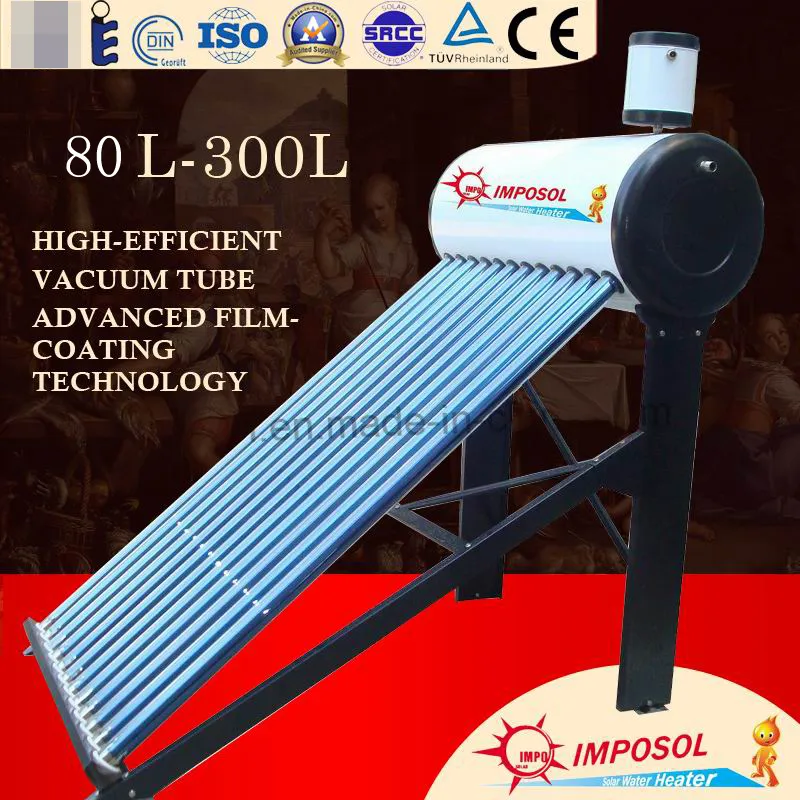

80L-300L Compact Non-Pressure Solar Water Heater with Keymark

1 / 5

80L-300L Compact Non-Pressure Solar Water Heater with Keymark

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

IPJG

Structure

Compact Type

Pressure

Unpressurized

Interior Material

Stainless Steel

Collector

Glass Vacuum Tube

Certification

CE, ISO9001, CCC, SRCC, SABS, Solar Keymark

Inner Tank

316L

Tube Quantity

Efficiency

300W/M2

Tube Size

58*1800mm

80L-300L Compact Non-Pressure Solar Water Heater with Keymark

🔍 Detailed Specifications

Inner tank: SUS304-2B or 316L food-grade stainless steel, laser welding technology
Vacuum tube: High efficient coating 58*1800/2000/2100mm vacuum tube, Hail resistance: 25mm-40mm
Outer tank: Painted/aluminum zinc coated steel/SUS 304 stainless steel, free welding technology
Insulation layer: High density polyurethane, 72 hours efficient heat preservation

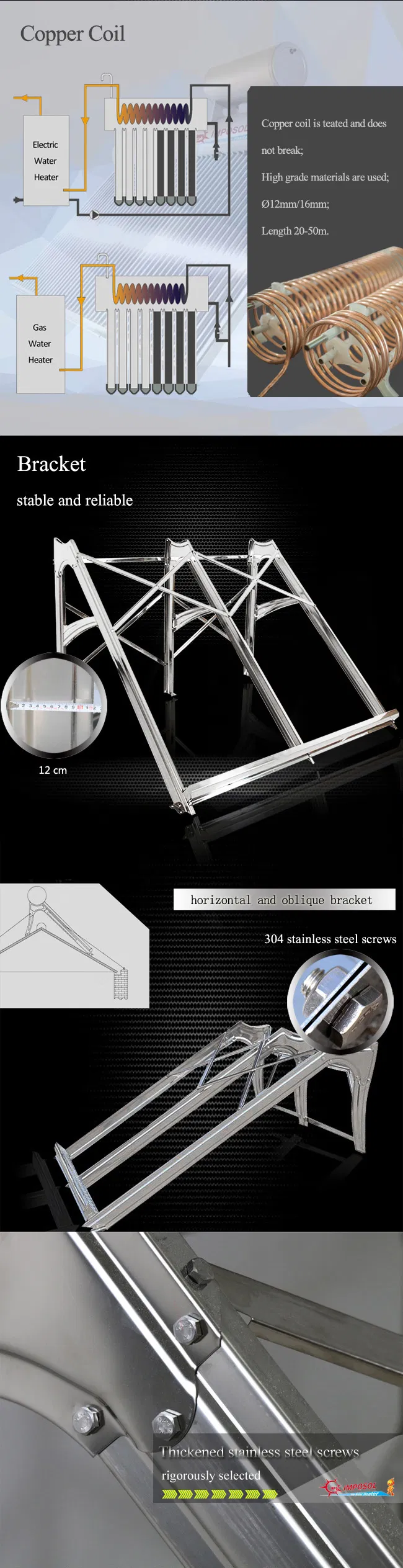

Frame: Stainless steel / Aluminum alloy / galvanized steel. anti-corrosive and anti-ultraviolet
Copper coil: Φ12mm/16mm, length 20-50m
Auxiliary tank: Feed-water tank 5L-70L
Accessories: Reflector / electric heater / anode magnesium stick / solar controller

✨ Key Features

Instant heat exchange; plentiful warm water for use
Fresh water quality and works with pressure
Output water temperature is stable, comfortable and soft for use
Hot and cold water flow is separated
Copper coil is tested high-grade material and does not break
Works intelligently and reliably

Technical Parameters

Model	Lighting Area(m2)	Vacuum Tube			Tank Net Capacity(L)	Overall Capacity(L)
Model	Lighting Area(m2)	Φ(mm)	L(m)	NO.	Tank Net Capacity(L)	Overall Capacity(L)
IPJG47581810	1.4	58	1800	10	85	116
IPJG47581812	1.68	58	1800	12	100	137
IPJG47581815	2.1	58	1800	15	125	172
IPJG47581820	2.8	58	1800	20	170	232
IPJG47581824	3.36	58	1800	24	200	274
IPJG47581830	4.2	58	1800	30	250	343
IPJG47581836	5.04	58	1800	36	300	412

Thermal Project Applications

Split villa water heater system
Independent project Systems
Senior household hot water system
Centralized collector heat storage system
Centralized collector household water heating system
Centralized collector water heating system

Frequently Asked Questions

What is the main material of the inner tank?

The inner tank is made of food-grade stainless steel SUS304-2B or 316L, ensuring water quality and durability.

How long can the tank preserve heat?

Thanks to the high-density polyurethane insulation layer, the system provides efficient heat preservation for up to 72 hours.

Is the system resistant to hail?

Yes, the high-efficiency vacuum tubes are designed with hail resistance for sizes ranging from 25mm to 40mm.

Can this solar water heater be used for large projects?

Absolutely. It is suitable for split villa systems, centralized collector systems, and independent household hot water projects.

What certifications do these products have?

Our solar water heaters are certified by CE, ISO9001, CCC, SRCC, SABS, and Solar Keymark.
