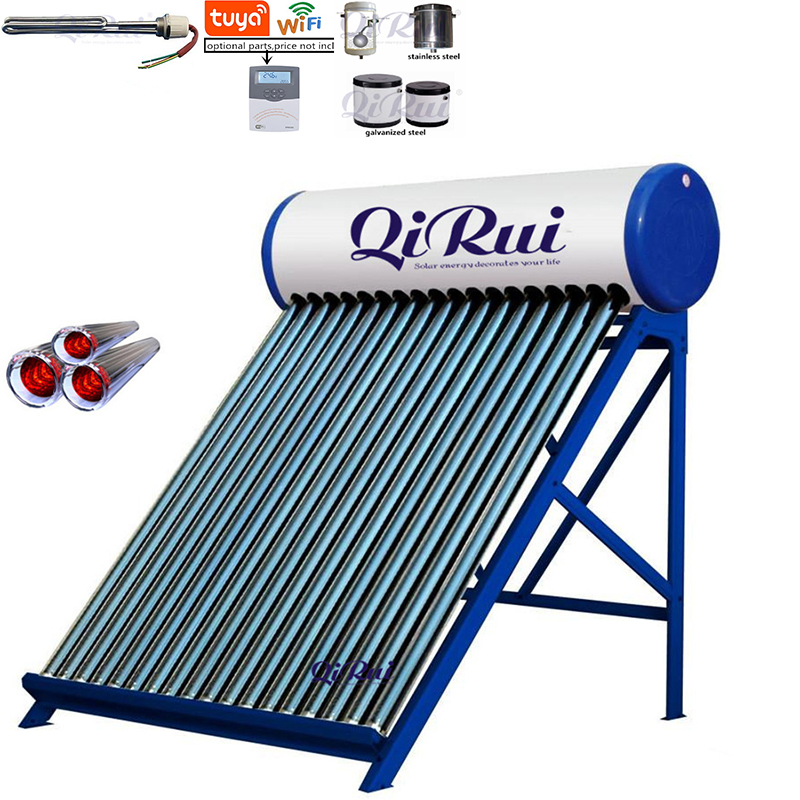

etc 50L-200L-300L-500L Water Heating System Best Price Direct Compact Termo Solar Evacuated Tube Solar Energy Hot Water Heater for Home Bath

Basic Information

Model NO.

CNP-58

Structure

Compact Type

Pressure

Unpressurized

Interior Material

Stainless Steel

Heat Preservation

72hours

Inner Tank

SUS304 or SUS316

Certification

CE, ISO9001, CCC

HS Code

8419120000

Product Description

High Efficiency Vacuum Tube Solar Energy Water Heater System

Available Capacities: 50L to 500L with CE Approval

📋

Free brand/LOGO print based on 20GP/40HQ quantity
1% free spare parts included
Factory audited by SGS, TUV and BV
Fast Delivery: 12 days after deposit
Full Certification: Europe Solar Keymark EN12976/CE/CCC/ISO9001/ISO14001

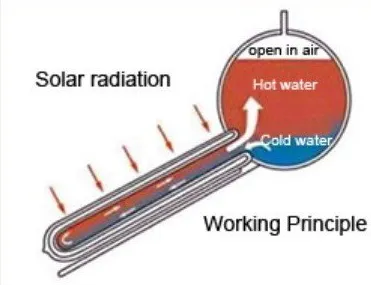

Work Principle

Thermo-siphon Effect

Through a thermo-siphon effect (in which hot water rises), hot water circulates between the collectors and the water tank while there is sun and is stored at the end of the day in an insulated tank.

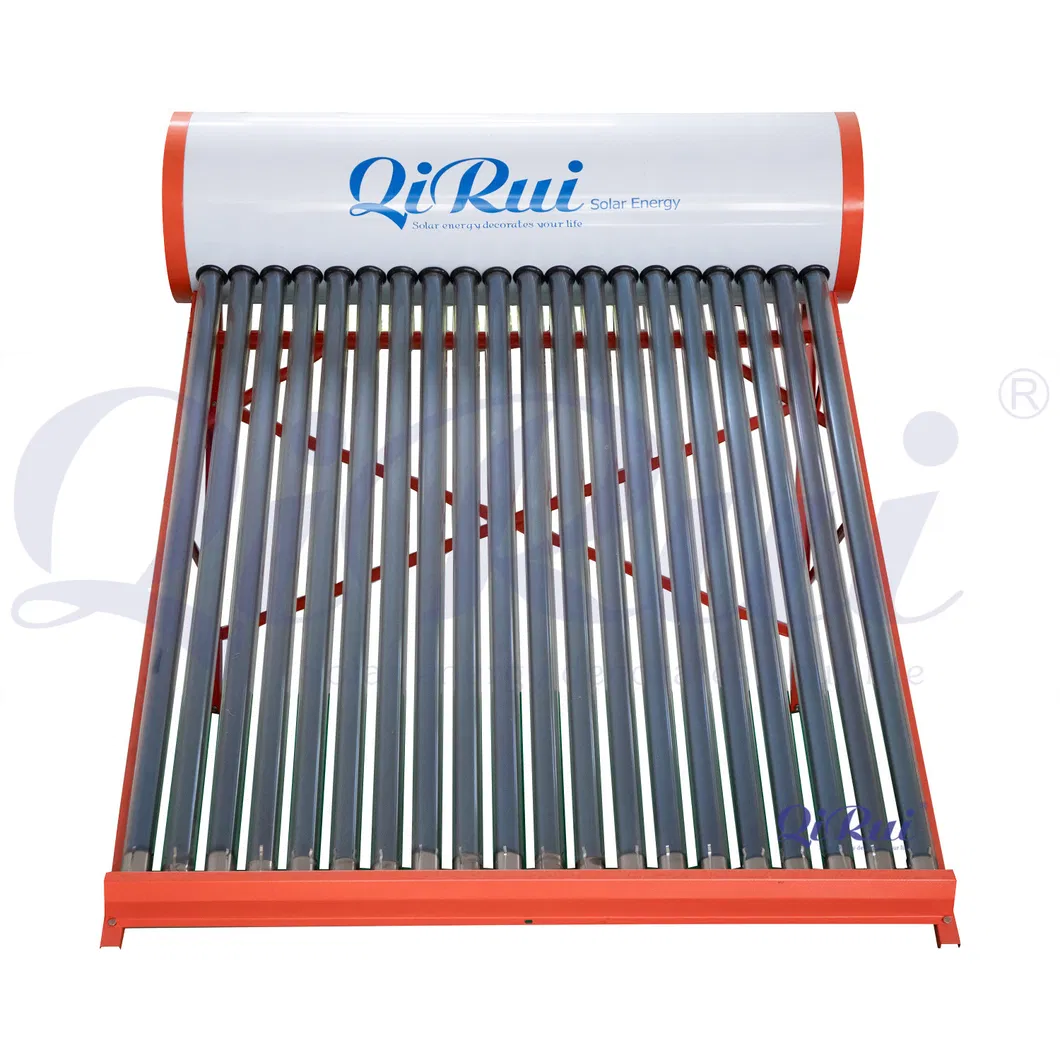

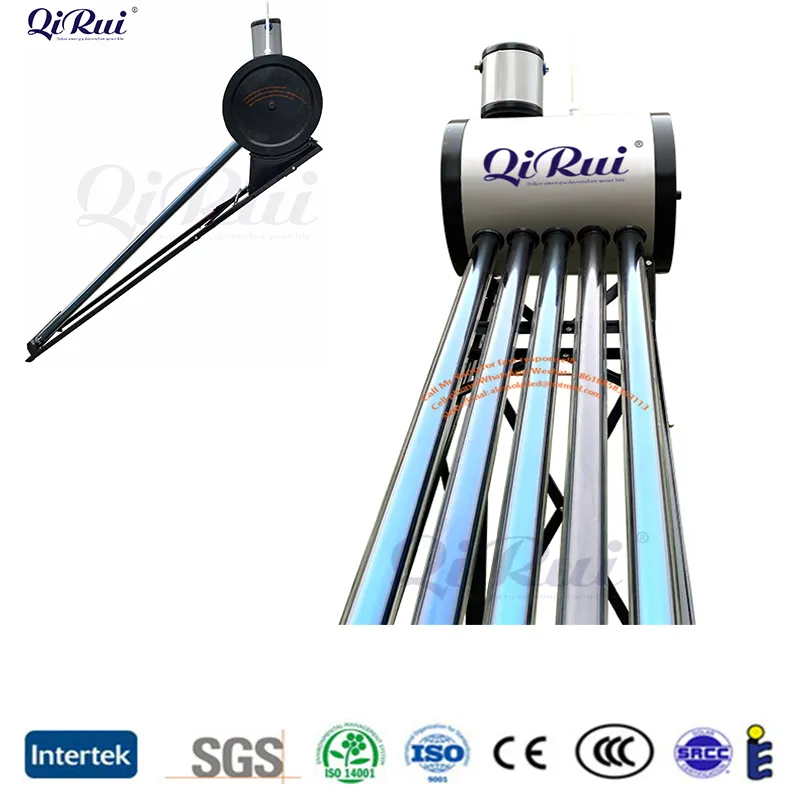

Detailed Photos

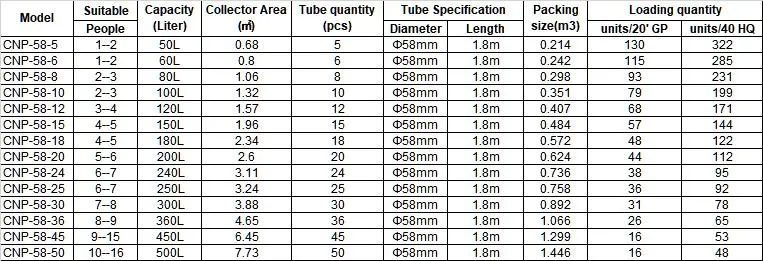

Technical Parameters

CAPACITY	From 6 tubes (60L) to 50 tubes (500L)
OUTER TANK	0.4mm Galvanized Steel / SUS304 Stainless Steel
INNER TANK	0.31mm - 0.6mm SUS304-2B / SUS316 Stainless Steel
INSULATION	50-60mm High-density Polyurethane Foamed
ELECTRICAL HEATER	1500W/2500W/3000W (Optional)
MAX PRESSURE	0.06 Mpa
GLASS TUBE	3.3 Borosilicate Glass (1.6mm thickness)
BRACKET	1.2mm Stainless steel / 1.6mm Aluminum / 1.5mm Galvanized

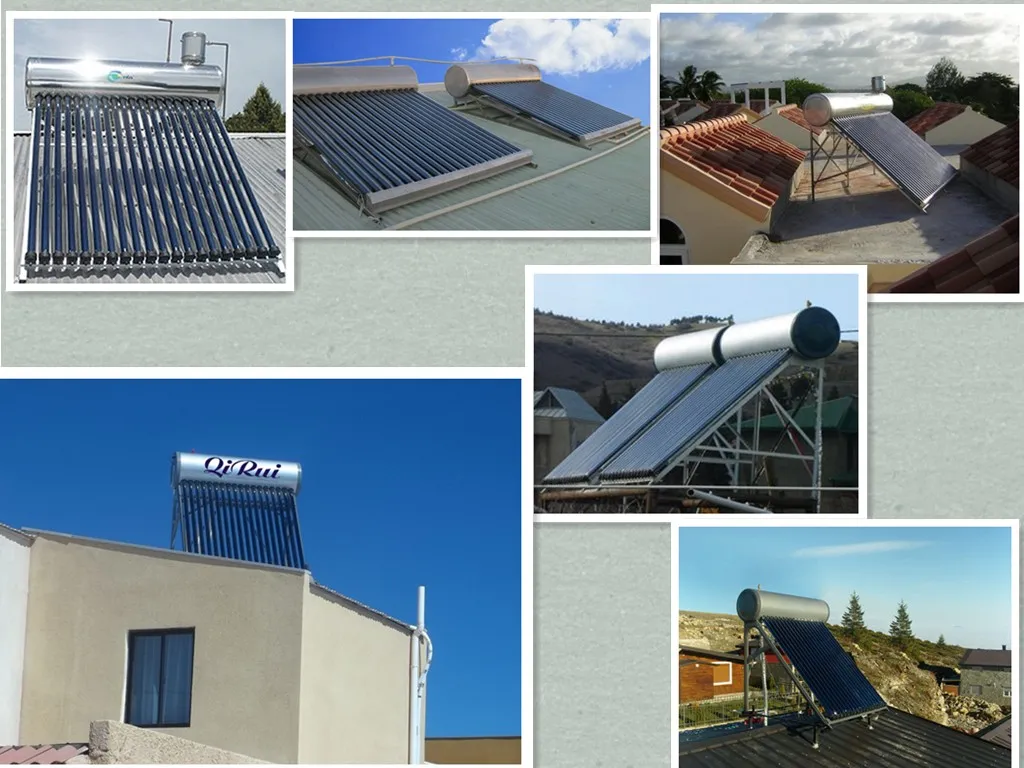

Installation Instructions

Suitable for both Flat Roof and Pitched Roof applications.

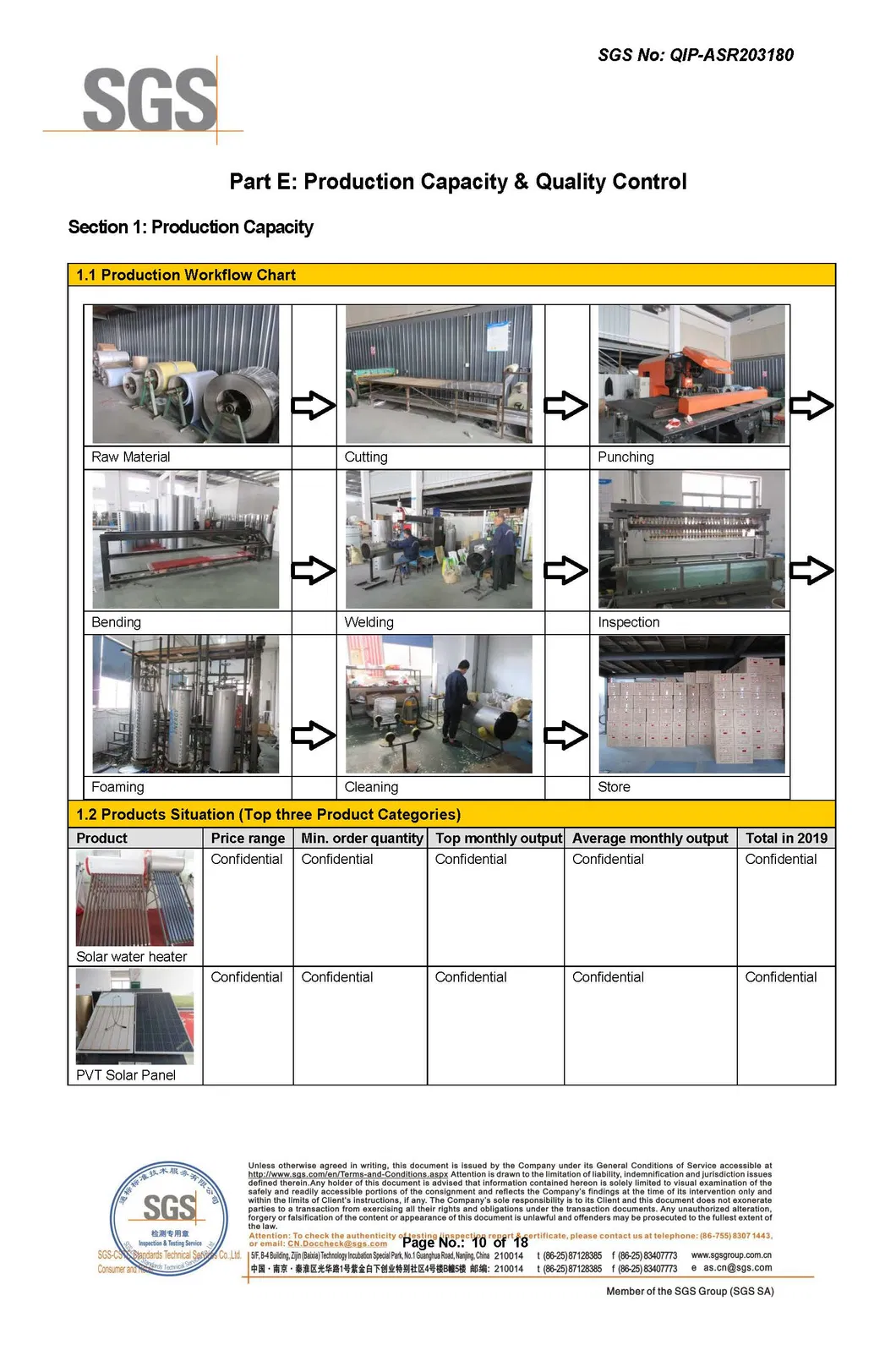

Quality Control & Our Service

Fast delivery: 40ft container in 7 days
Experienced technical sales support
Customized designs for different markets
Mixed loading support for other solar goods
Professional installation guides and training

Frequently Asked Questions

1. Is solar water heating a viable alternative to gas or electricity?

Solar should be seen as a supplement. A correctly sized system can provide 60%-70% of a household's hot water needs annually. The system can be automated to ensure hot water regardless of sunlight levels.

2. How long will it take to recoup my investment?

Depending on location and usage, costs can often be recouped in 4-5 years through reduced utility bills. Solar collectors are an affordable long-term investment for any household.

3. Can the solar collectors be used in cold conditions?

Yes. They can operate in temperatures as low as -30°C, though performance is reduced in extreme cold. Reliable heat output is still achieved in mild sub-zero conditions.

4. What happens if one of the tubes is broken?

Solar tubes are strong but easily replaced if broken. The system can continue to operate with several broken tubes, though efficiency will decrease until replaced.

5. Will water be heated on a cloudy day?

Yes. While output is reduced on overcast days, the collector still provides heating. Automated gas or electric boosting maintains the required temperature when needed.

6. How do I protect the system during subzero temperatures?

Freeze protection is implemented using a controller. When temperatures drop below 5°C, the pump circulates water periodically to warm the collector. In extremely cold areas, a closed loop system may be used.
