Product Description

Basic Information

Model NO.	Solar Panel and Storage Systems	Number of Cells	144(12*12)
Application	Industrial	Condition	New
Certification	EST, ISO, CB, CE	Material	Monocrystalline Silicon
Specification	300-750W	Origin	China
HS Code	854140	Package Size	227.80cm * 113.40cm * 0.30cm

★

Product Description

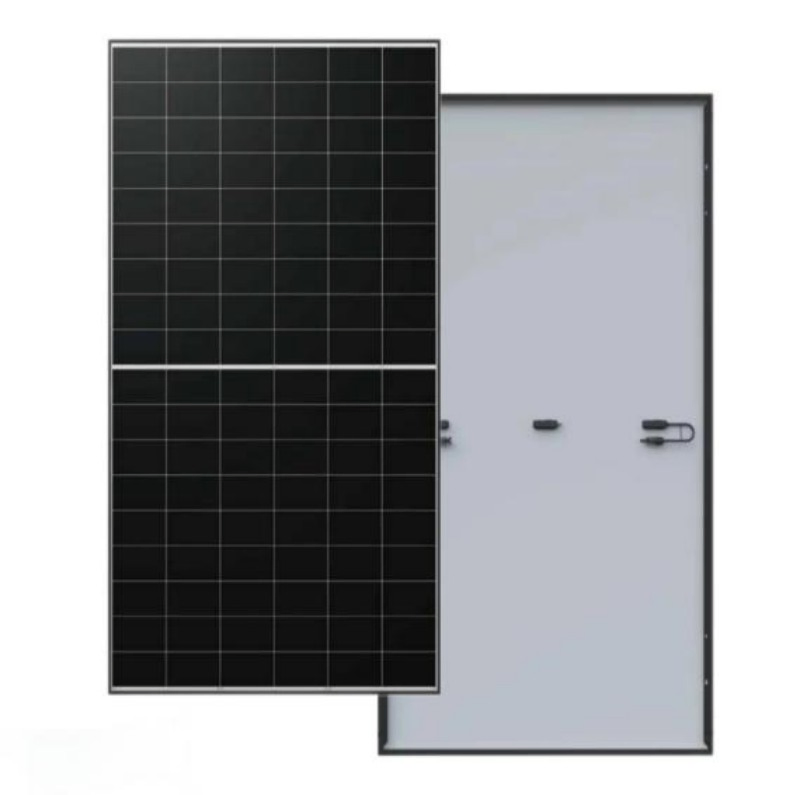

Photovoltaic (PV) modules, or solar panels, are key solar energy components that interconnect and hermetically package dozens to hundreds of PV cells—typically semiconductor-based (e.g., monocrystalline/polycrystalline silicon)—into one robust unit.

Shielded by tempered glass, EVA film, and a weatherproof backsheet, they resist harsh conditions (rain, dust, temperature swings) and last 25–30 years. Linked via wiring, multiple modules form a solar array, often mounted on sun-aligned adjustable racks to boost sunlight absorption.

⚙

Specifications

MECHANICAL CHARACTERISTICS		ELECTRICAL PARAMETERS (STC)
Model Type	182*91N Type Bifacial Mono	Power Class	ODA580-36V-MHD
No. of Cells	144 (12×12)	Max Power (Pmax)	580W
Dimensions	2278113430mm	Max Power Voltage (Vmp)	42.37V
Weight	32kg	Max Power Current (Imp)	13.69A
Front Glass	2.0mm AR coating tempered	Open-circuit Voltage (Voc)	51.02V±3%
Frame	Anodized Aluminium Alloy	Module Efficiency	22.45%

✔

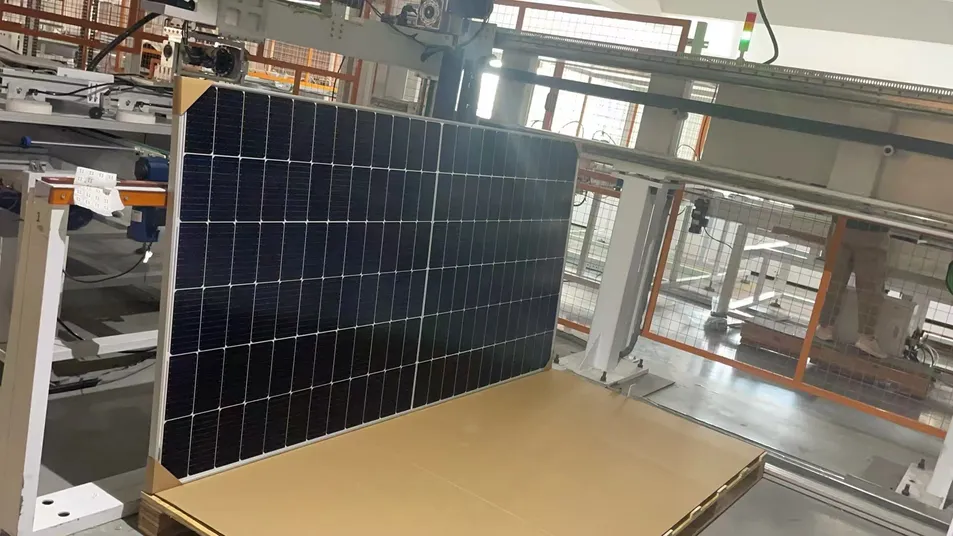

Product Features & OEM Services

01 SMBB Technology: Improved light trapping and current collection.

02 PID Resistance: Excellent anti-PID performance via material control.

03 Higher Output: 5-25% module power increase, lower LCOE.

04 Mechanical Load: Certified for 2400Pa wind / 5400Pa snow load.

OEM/ODM Service: Maximize sunlight harvest with high-efficiency panels (up to 22%+). Customization includes sizes (100W-700W+), frame styles, colors, and wattage adjustments.

✈

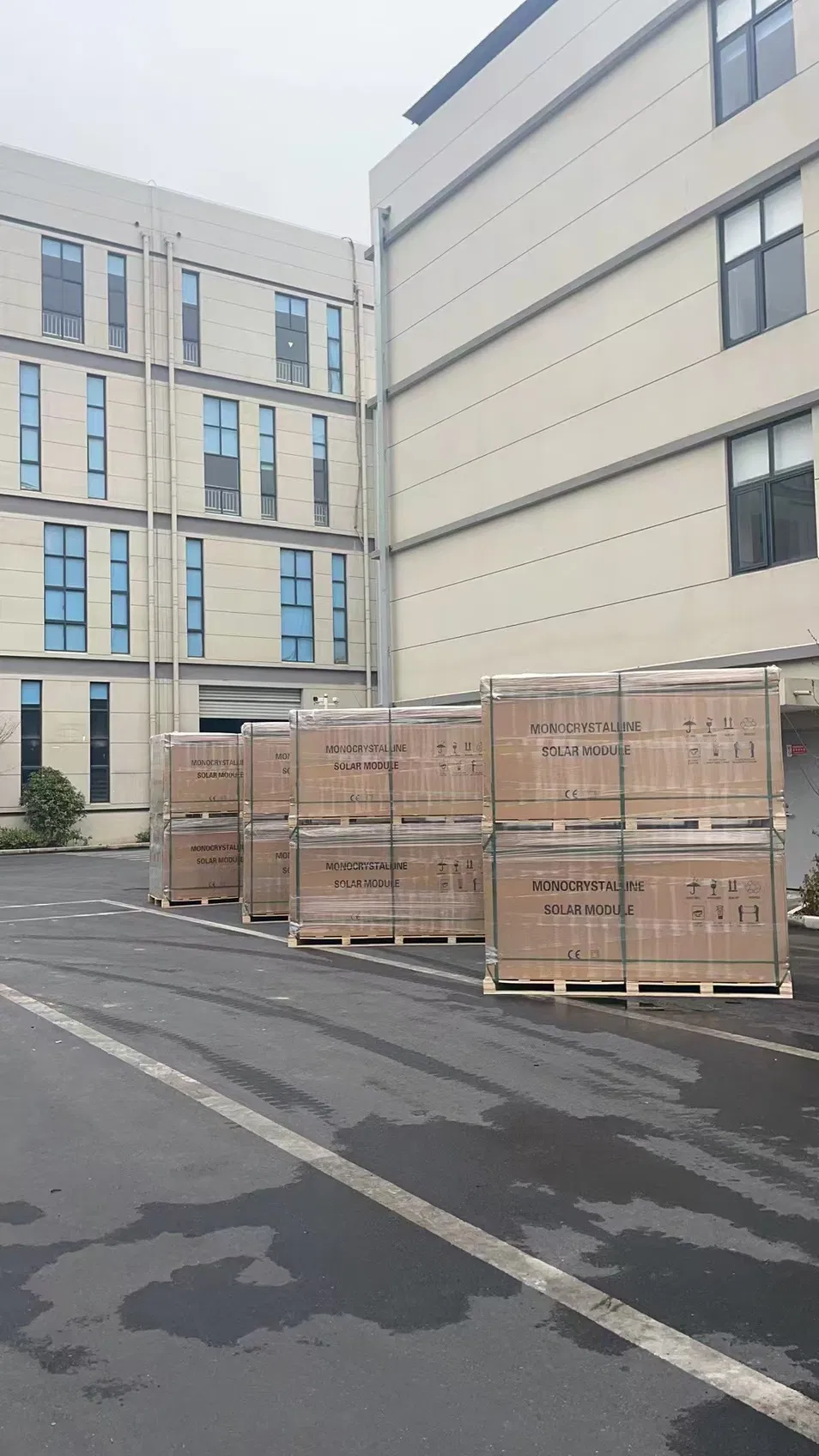

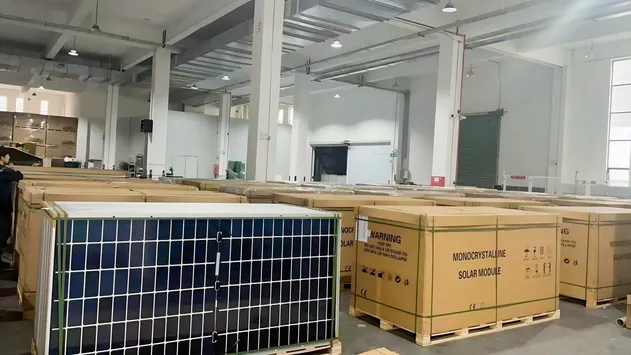

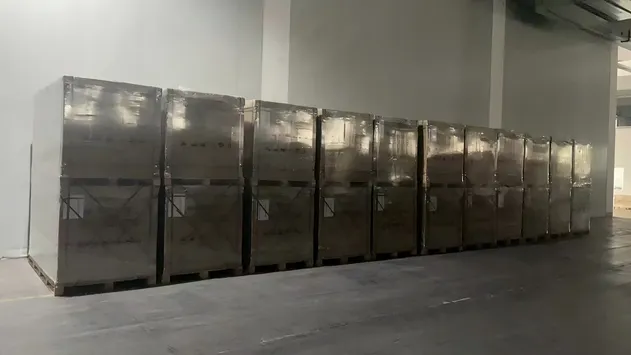

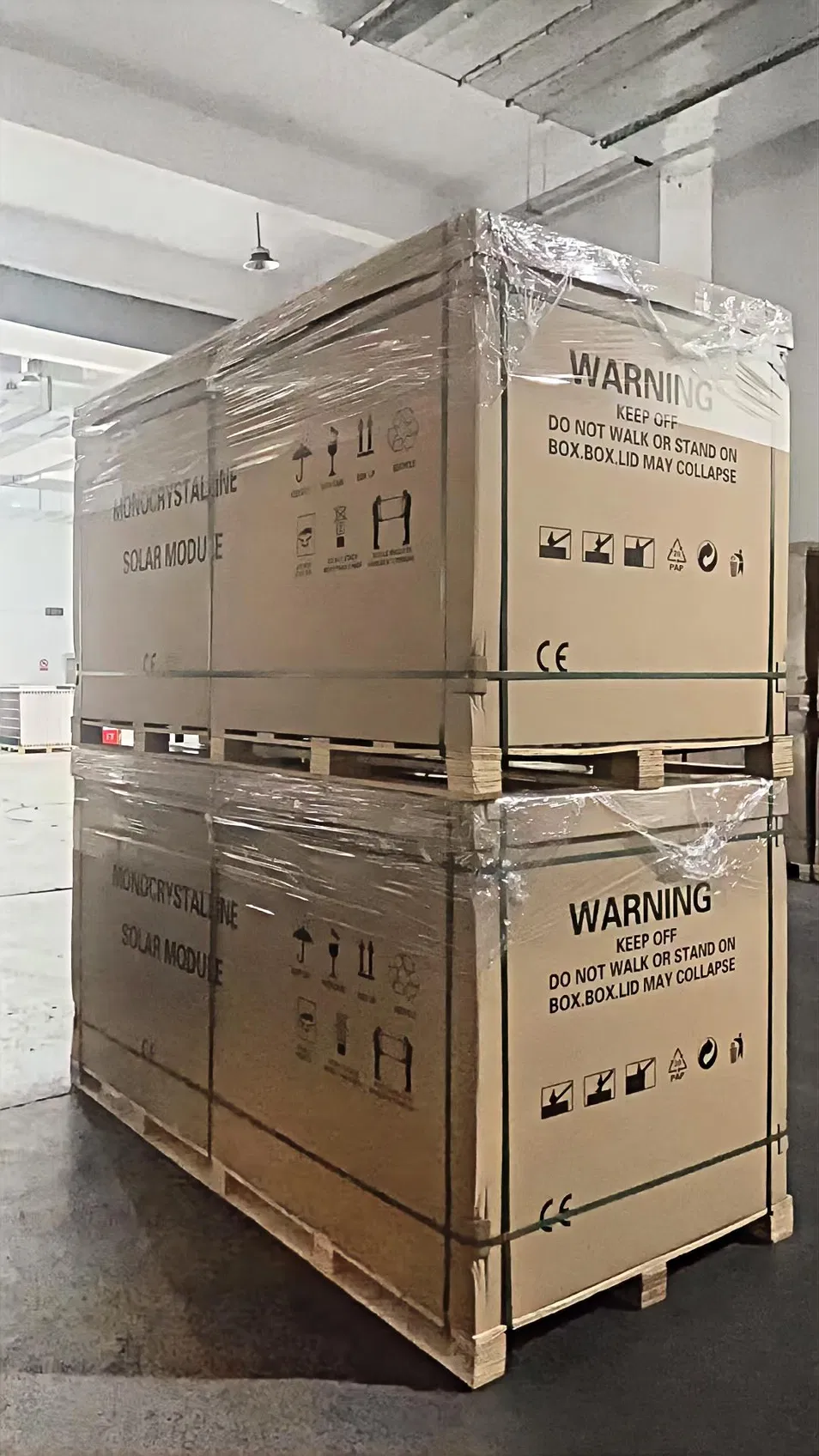

Packing & Delivery

FOB Port	Tianjin / European / Dubai Warehouse	Package Size	2278113430mm
Container 20FT	185 Pcs (5 Packages)	Gross Weight	34kg per unit
Container 40HQ	740 Pcs (20 Packages)	Lead Time	30-45 Days

📜

Certifications

🏢

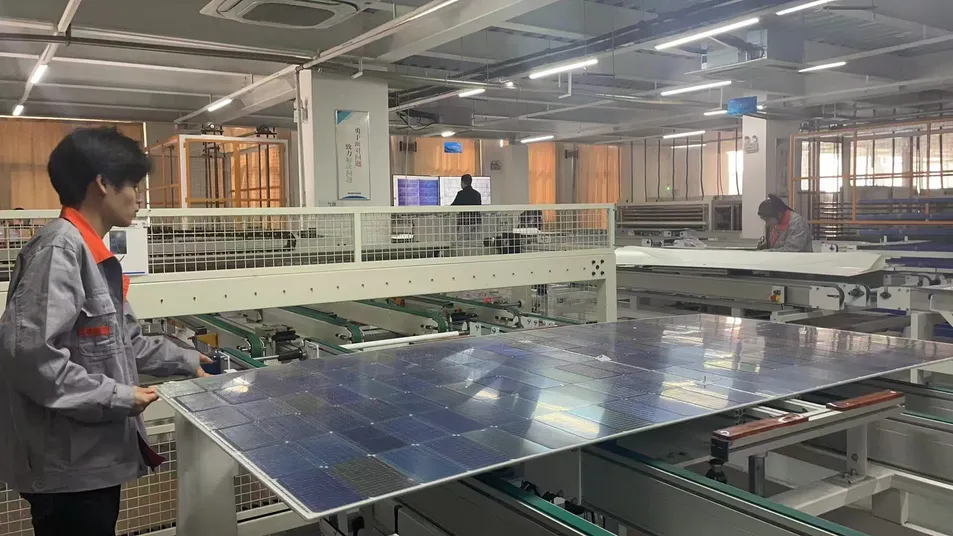

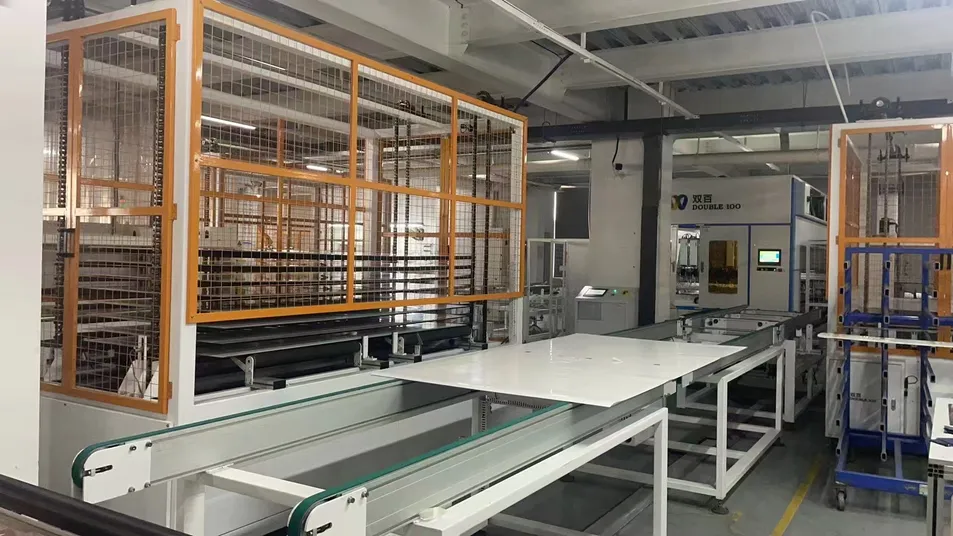

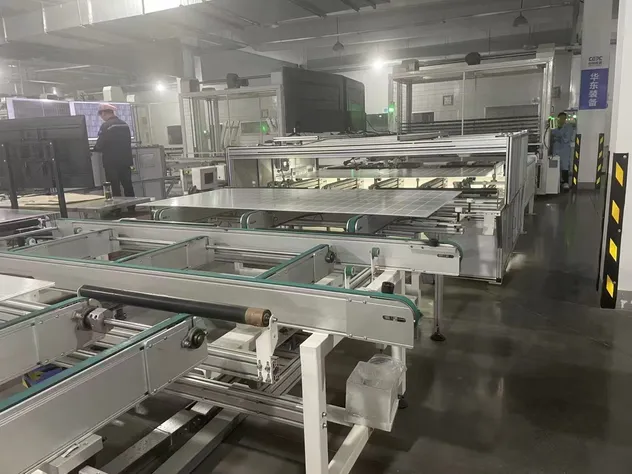

Manufacturing Capability

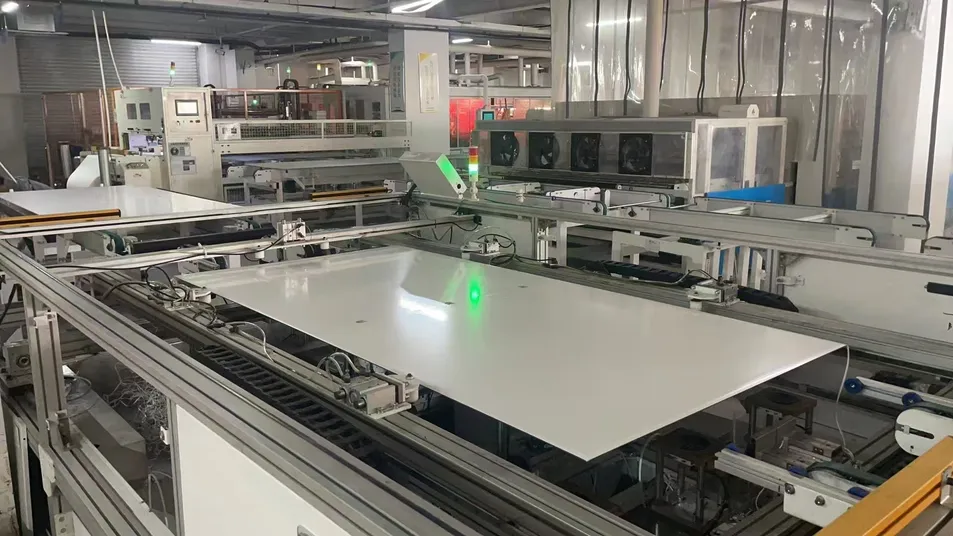

As a leading clean energy product manufacturer, we specialize in comprehensive solutions for photovoltaic systems and energy storage applications. Our facilities operate two fully automated production lines capable of producing 10,000 to 20,000 pieces daily. We are strategic partners to top-tier brands and provide end-to-end solar solutions for residential, commercial, and industrial projects globally.

Frequently Asked Questions

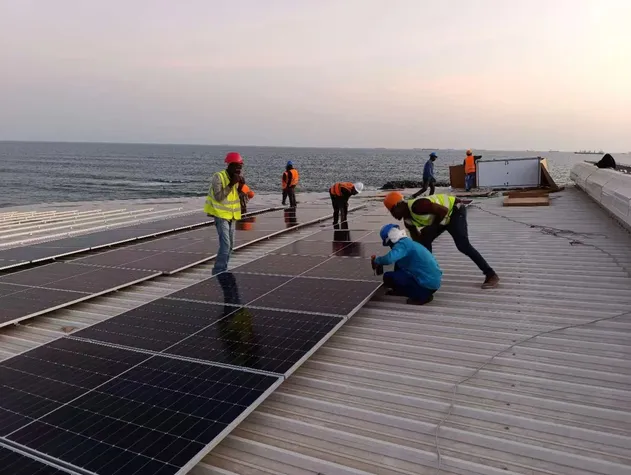

Q1: What are the primary installation requirements?

Ensure a tilt angle ≥15° (for latitude 40° regions), use galvanized brackets, and allow a 10mm thermal expansion gap between panels.

Q2: How is power degradation handled under warranty?

We provide on-site testing. There is an immediate replacement if measured power is less than 90% of the rated value, and free repair for degradation exceeding 10% within 25 years.

Q3: Does surface scratching affect the solar panel performance?

Minor scratches (≤3mm) are generally harmless, but regular cleaning is recommended. Deep scratches require replacement to prevent potential hot-spot damage.

Q4: Are custom sizes and colors available?

Yes, we offer 12V/24V/48V system-compatible sizes. While black matte is our standard color, custom colors can be provided with a surcharge.

Q5: What are the benefits of SMBB technology used in your modules?

SMBB (Super Multi Busbar) technology allows for better light trapping and improved current collection, which significantly enhances module power output and long-term reliability.

Q6: What certifications do your solar products hold?

Our products are fully certified for international standards, including EST, ISO, CB, and CE, ensuring safety and performance for global industrial and residential applications.
