Model NO.
S5 Series 3-8kW, 4-11HP
Source Flow
Active Inverter
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Protection Grade
IP65 Dust and Water Resistant
Package Size
404.00cm * 367.00cm * 195.00cm

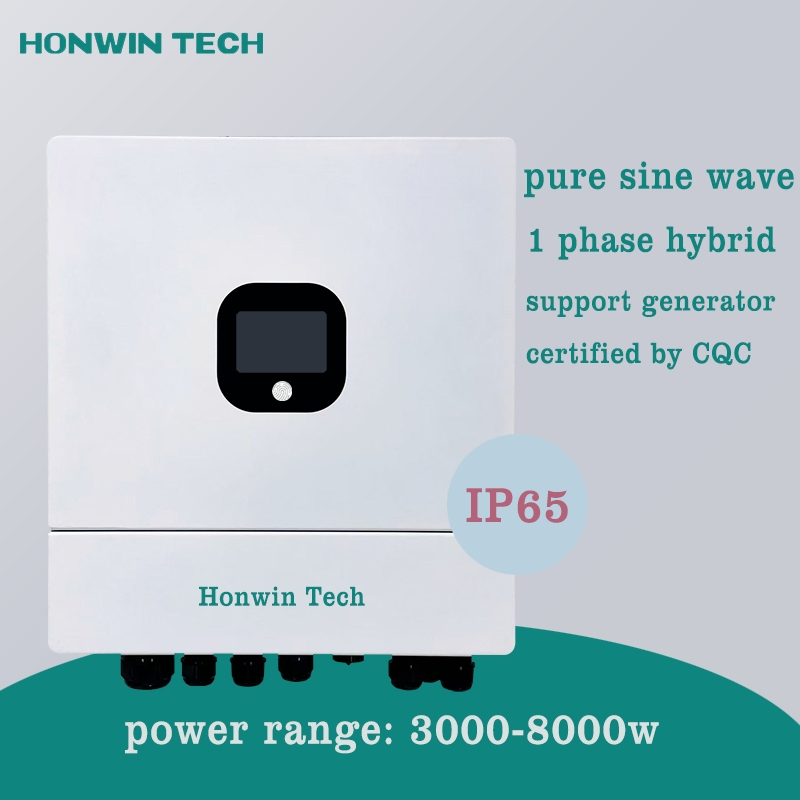

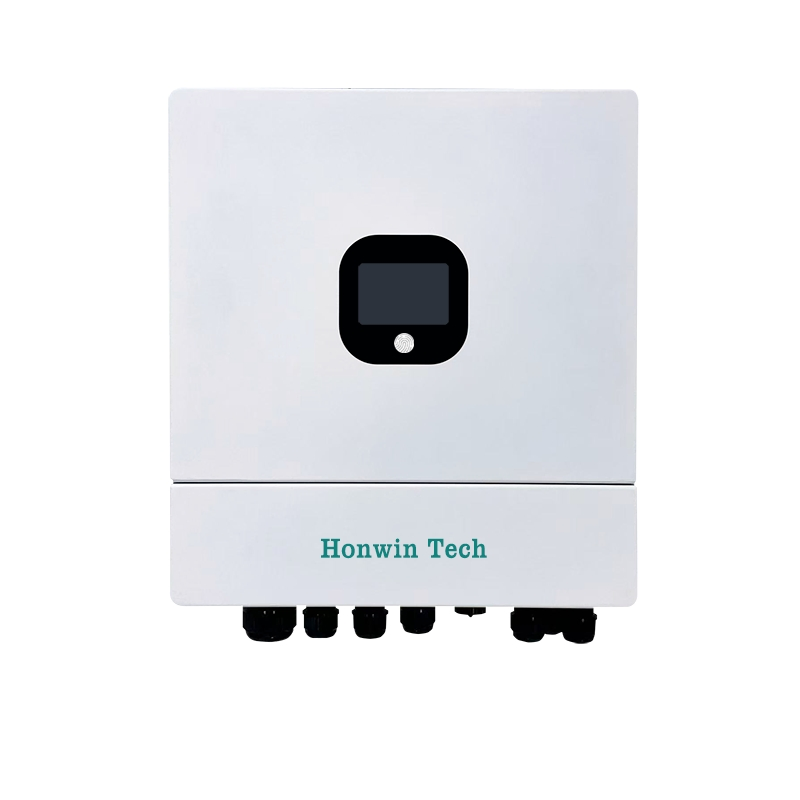

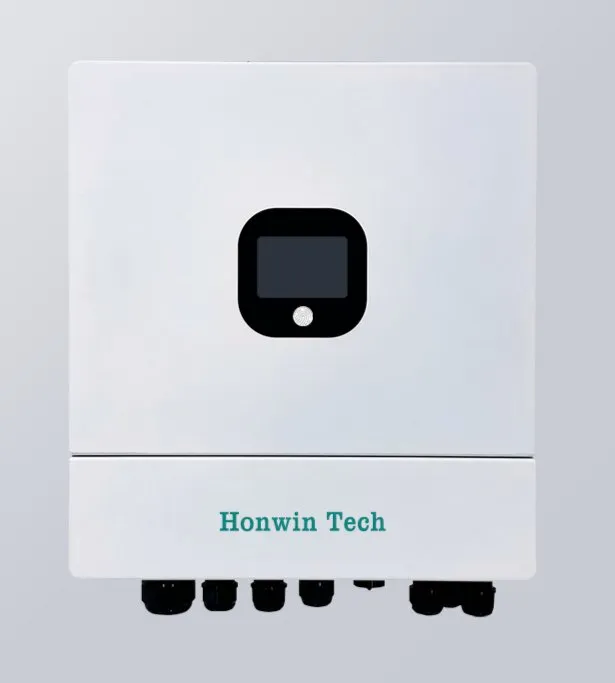

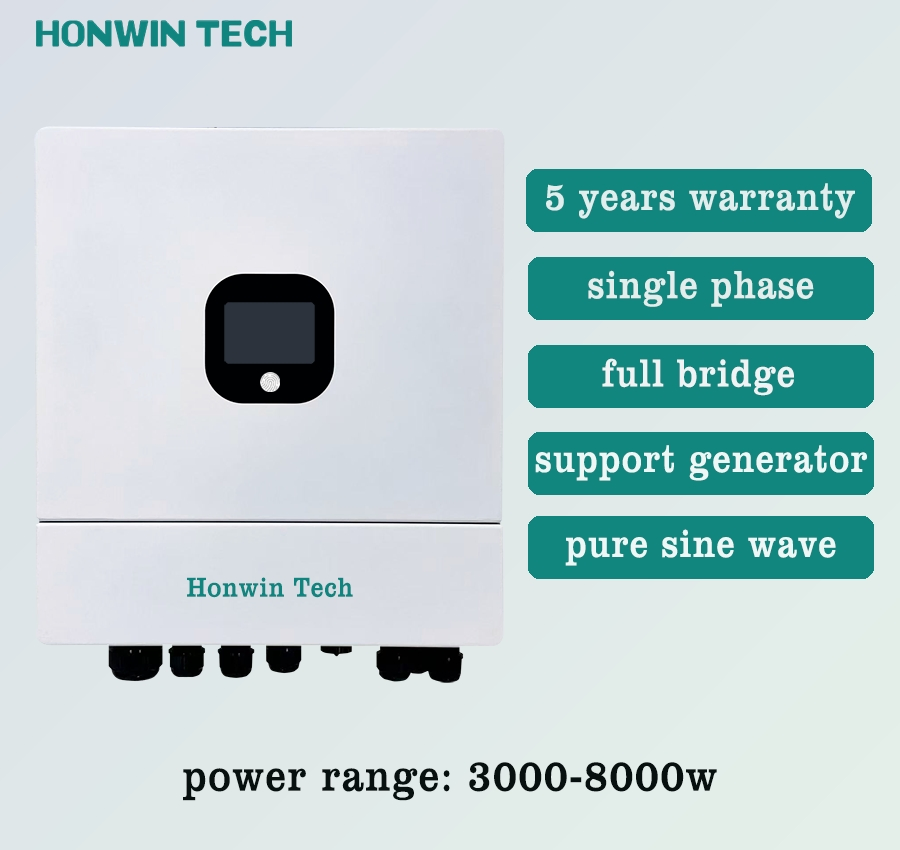

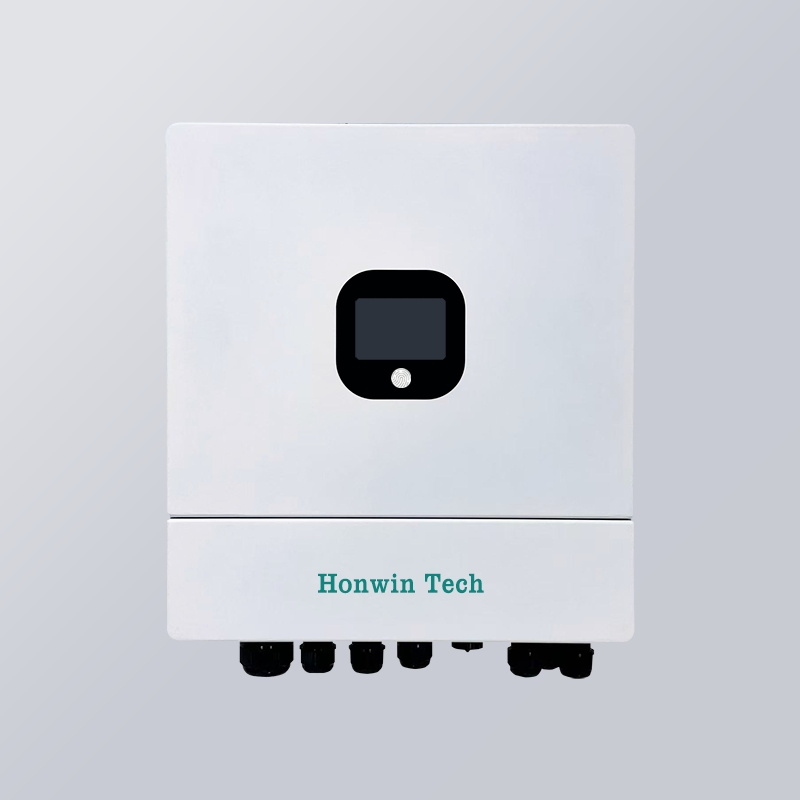

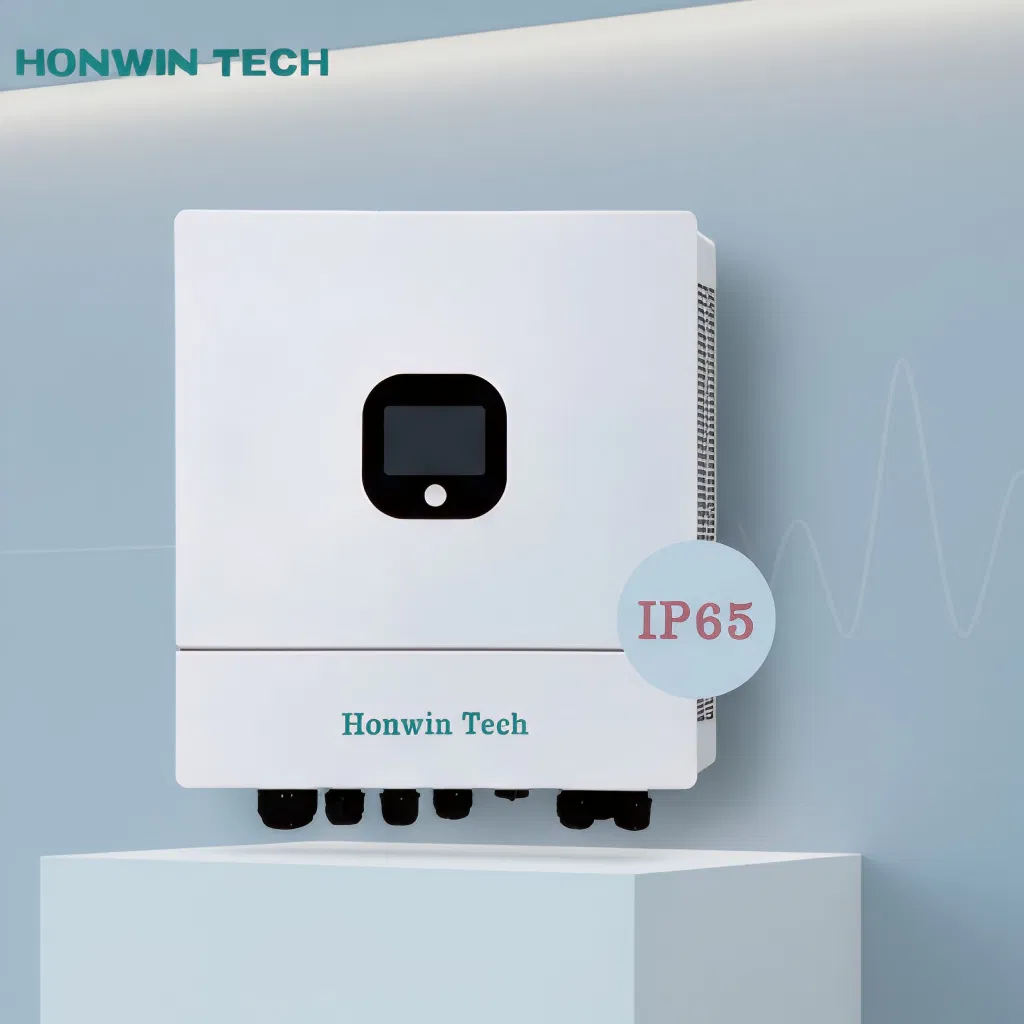

The S5 series household energy storage all-in-one machine is designed to provide you with an intelligent and convenient all-in-one photovoltaic energy storage solution. Based on advanced power conversion and energy storage technology, important components such as off-grid energy storage inverters, switch boxes, and batteries feature an elegant and unique appearance. They adopt a modular design, a simple internal wiring method, and are extremely convenient to install and use. With an intelligent and easy-to-operate working mode and a remote intelligent operating system, they can perfectly integrate into modern smart home life.
| Parameters |
S5-3K-S65 |
S5-3.68K-S65 |
S5-4K-S65 |
S5-5K-S65 |
S5-6K-S65 |
S5-8K-S65 |
| Efficiency |
| Max efficiency | 98.10% | 98.10% | 98.20% | 98.20% | 98.30% | 98.30% |
| MPPT efficiency | 98.90% | 98.90% | 98.90% | 98.90% | 98.90% | 98.90% |
| DC (PV) Input |
| Max. input power | 4500W | 5500W | 6000W | 7500W | 9000W | 12000W |
| Max. DC voltage | 550V |
| MPPT range | 90V ~ 550V |
| AC Output (Grid) |
| Rated power | 3000W | 3680W | 4000W | 5000W | 6000W | 8000W |
| Max. current | 13.6A | 16.7A | 18.4A | 22.7A | 27.2A | 36.4A |
| Battery Parameters |
| Battery type | Lithium battery / Lead-acid battery |
| Voltage range | 42V ~ 59V |
| Max. Charge current | 60A | 80A | 80A | 120A | 120A | 160A |
● Generator function Support
● DC/AC Surge Protection Class II
● Battery Over/Under Voltage
● Grid Over/Under Frequency
● Anti-islanding Protection
● Overheat Protection
● IP65 Protection Grade
● Smart Air Cooling
?
Frequently Asked Questions
Can I use my own logo or design on the product?
Yes, we offer OEM/ODM services; Your logo and design can be customized on the product to meet your branding requirements.

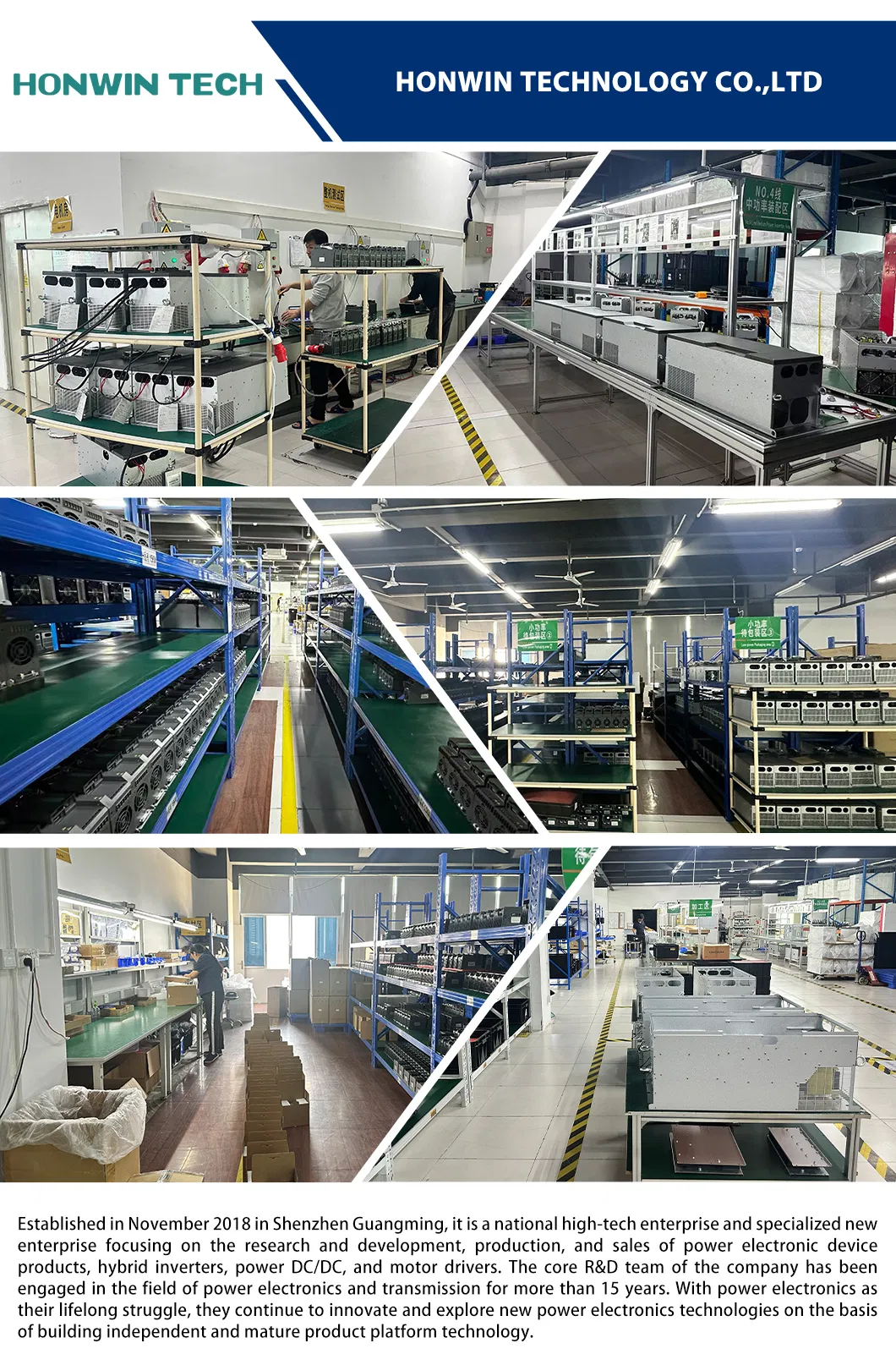

Do you have a manufacturing facility?
Yes, we are a professional manufacturer. We provide customers with comprehensive customization and OEM/ODM services through our specialized production lines.
Is it possible to obtain a sample?
Yes, samples are available for quality evaluation and testing purposes.
What is your monthly production capacity?
We operate five production lines with a capacity of approximately 3,000 units per month, allowing us to efficiently handle both standard and large-scale orders.
What is the typical dispatch time for orders?
Most products are kept in stock. For orders up to 100 units, we can typically arrange shipment within 15 days depending on the specific machine type.
What communication methods are supported?
The system supports multiple communication interfaces including CAN, CBMS, RS485/CAN for parallel connections, and RS485 for meter/CT integration.
