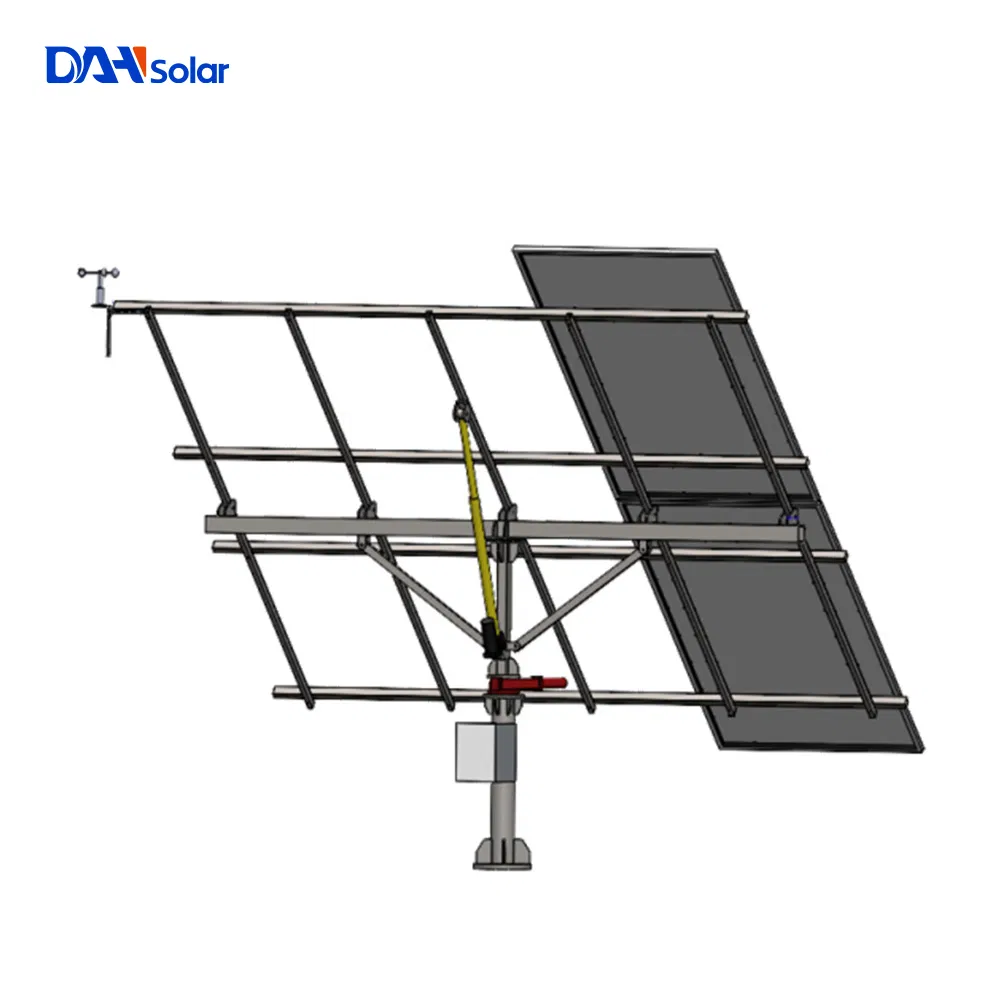

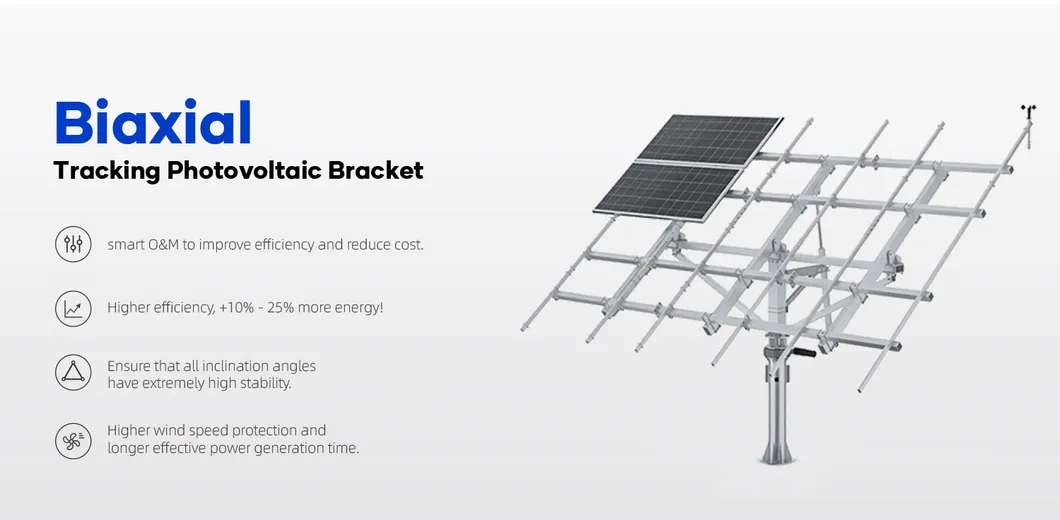

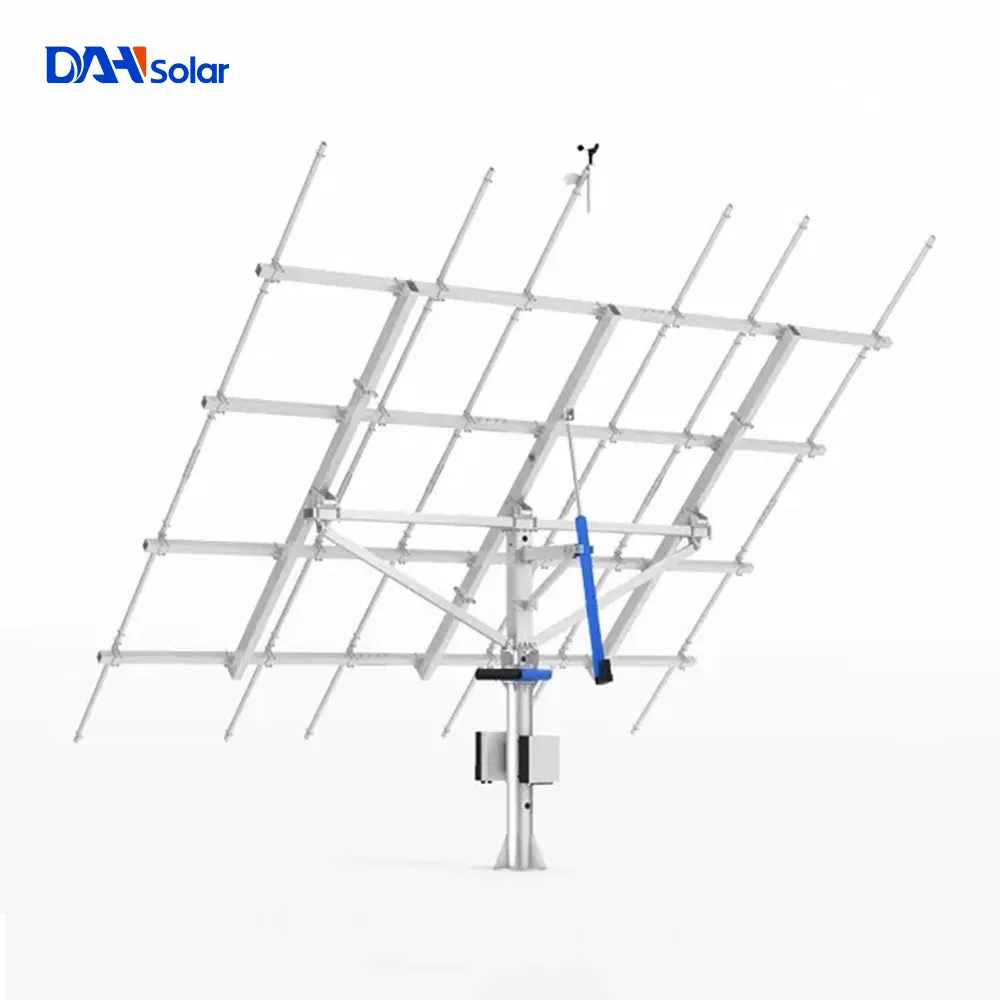

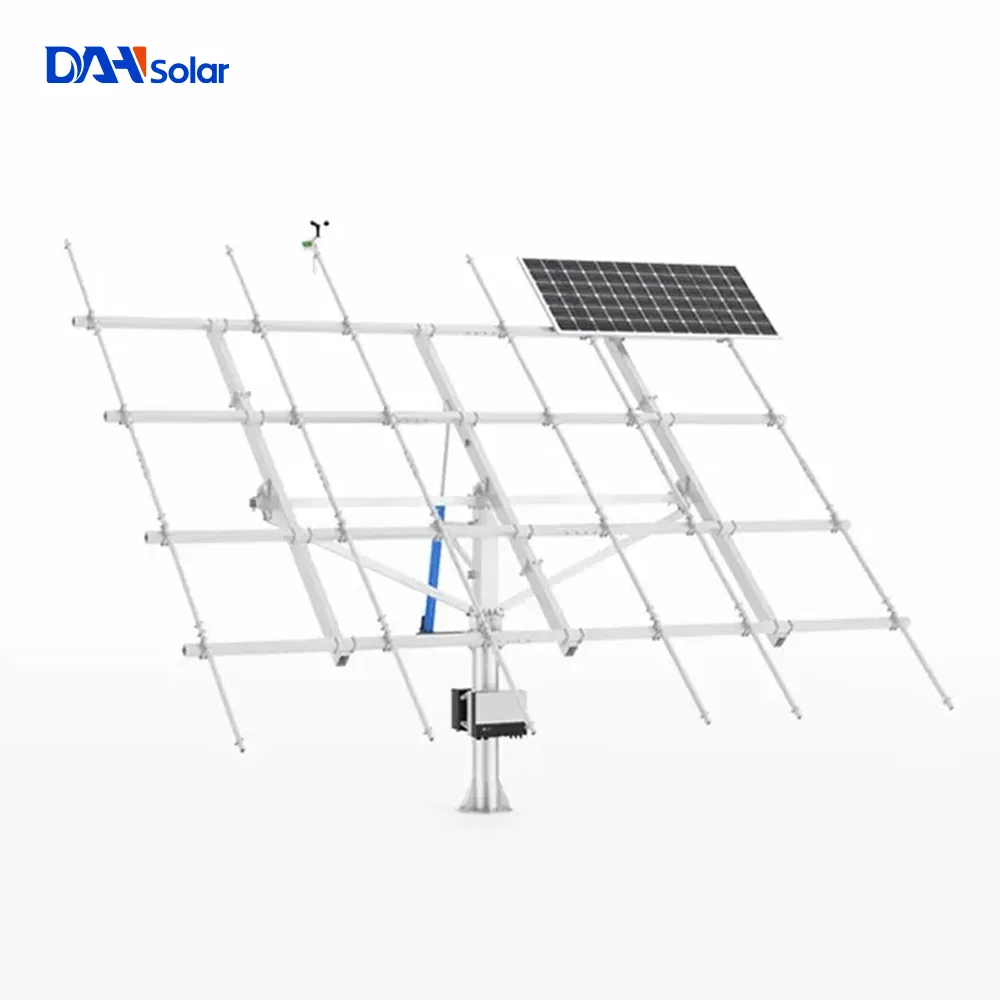

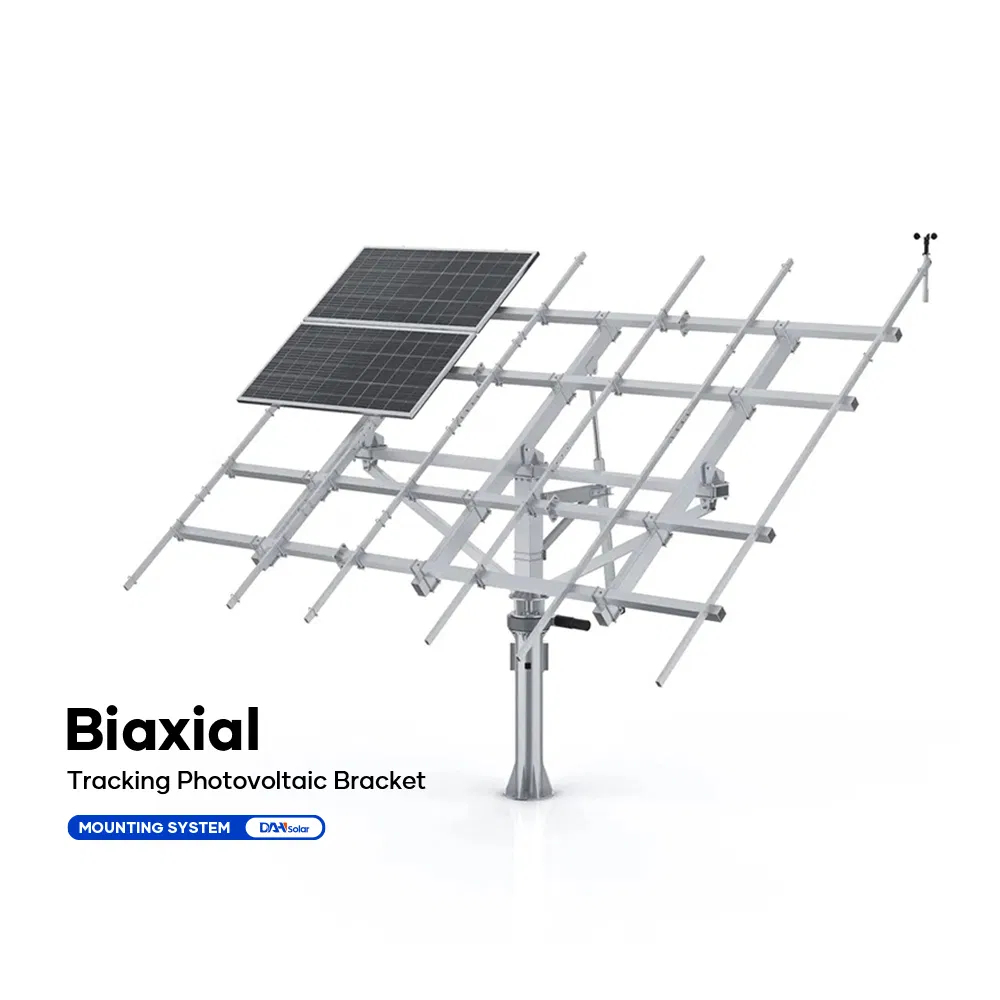

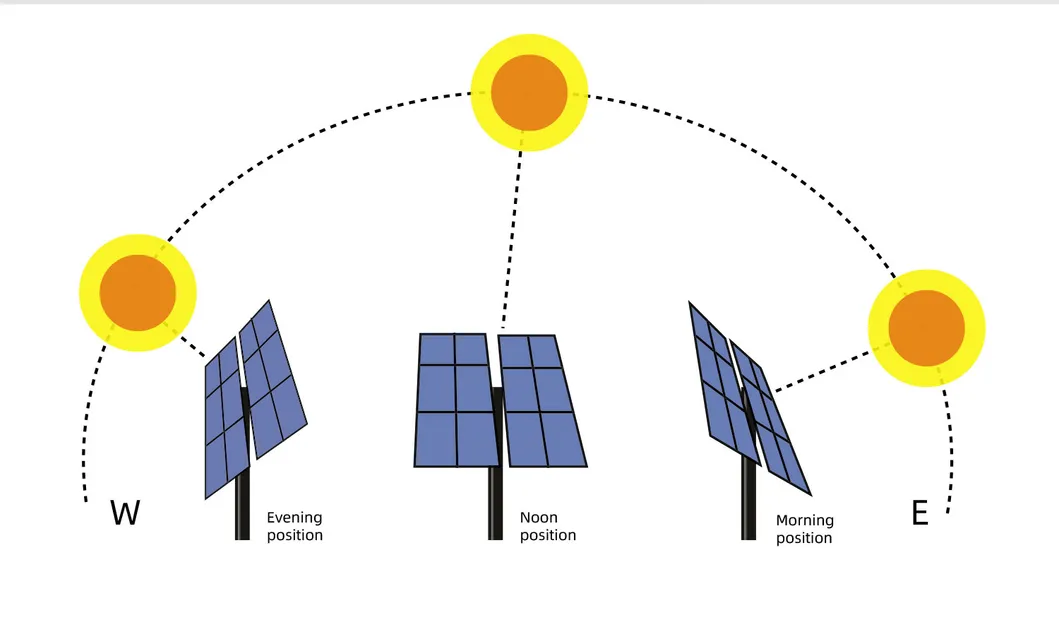

Dual axis solar tracking system has two axis tracking the azimuth angle and elevation angle of the sun. The control system can control the driving system track the sun according to the longitude, latitude and local time data downloaded by GPS device, keeps solar panels at best angle for receiving sunlight, so that it can makes full use of sunlight, promote the power generation capacity by 25%-40%, reduces your LCOE and bring more revenue for investors.
| Control mode |
Time + GPS |
| Average tracking accuracy |
0.1°- 2.0°(adjustable) |
| Gear motor |
24V/1.5A |
| Output torque |
5000 N·M |
| Tracking power consumption |
<0.02kwh/day |
| Azimuth angle tracking range |
±45° |
| Elevation angle tracking range |
45° |
| Max. wind resistance (horizontal) |
40m/s (standard 30m/s) |
| System guarantee |
3 years |
| Weight per set |
150 - 240 KGS |
| Total power per set |
1.5kW - 5.0kW |
?
Frequently Asked Questions
How much can the tracker increase power generation?
The dual-axis tracking system can improve power generation capacity by 25% to 40% compared to fixed brackets by maintaining the optimal angle for sunlight reception.
What control method does the system use?
The system utilizes a Time + GPS control mode, which tracks the sun accurately based on longitude, latitude, and local time data.
Is the system resistant to high winds?
Yes, it is designed for a maximum horizontal wind resistance of 40m/s (standard 30m/s) and can operate in winds up to 24m/s.
What are the power requirements for the tracker itself?
The system is highly efficient with a very low tracking power consumption of less than 0.02kwh per day.
What is the working temperature range?
The tracker is engineered to perform in extreme environments, with a working temperature range of -40℃ to +75℃.
What materials and certifications does the product have?
The structure is made of high-quality Galvanized Steel or Superdyma and holds both CE and TUV certifications for quality assurance.
