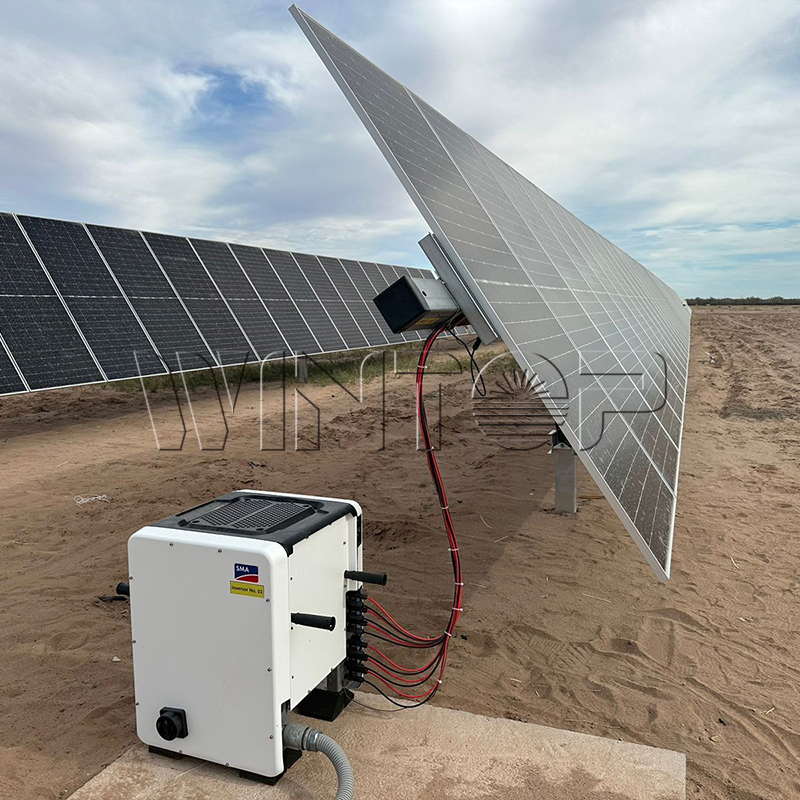

Single Axis Solar Tracker with Slew Drive
The solar tracking system is an advanced solution that optimizes the use of sunlight during the process of solar thermal and photovoltaic power generation. By tracking the sun's position, it significantly improves the efficiency of photoelectric conversion.

The multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. This system is engineered for quick and easy installation, providing a stable and reliable solution suitable for various large-scale solar power stations.

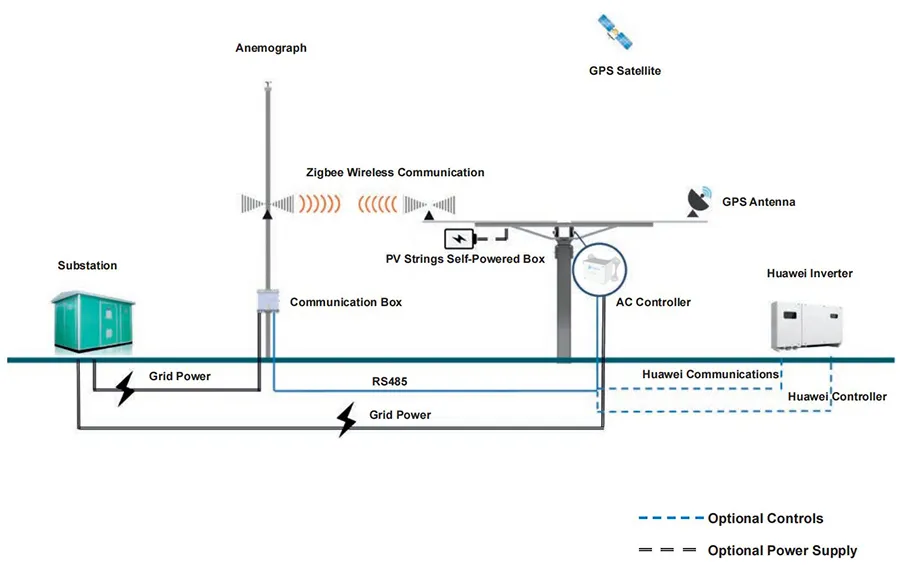

Electrical Principle:

• Fully compatible with 210mm high-efficiency modules.

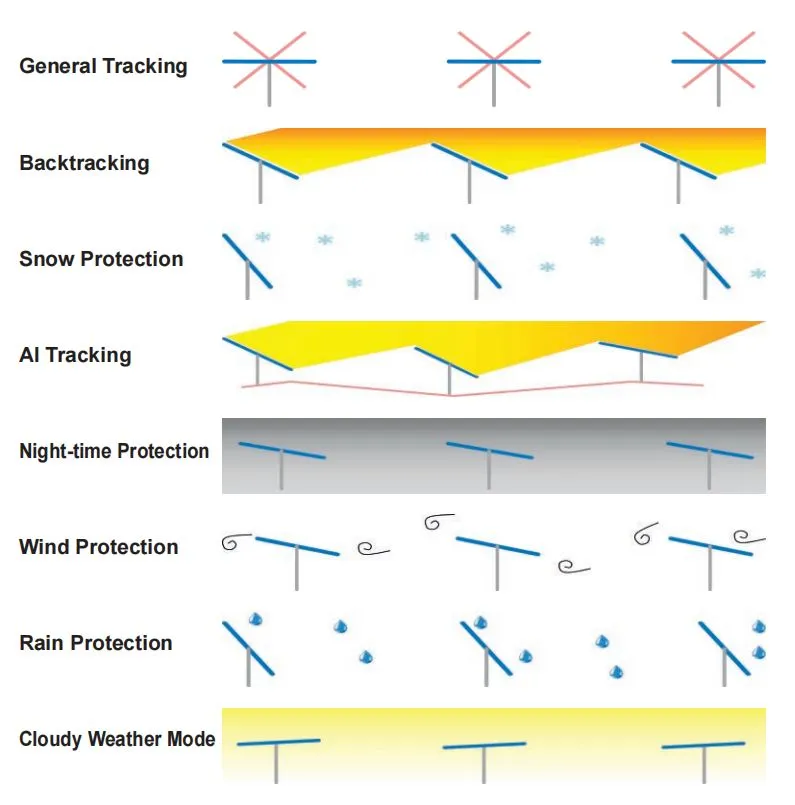

• Intelligent AI algorithm to maximize power generation.
• Adaptation to various terrains allowing a north-south slope up to 20%.
• Simplified installation process and low maintenance requirements.
• Power generation increase of 15-30% compared to fixed structures.
• Stable and reliable operation with slew drive technology.

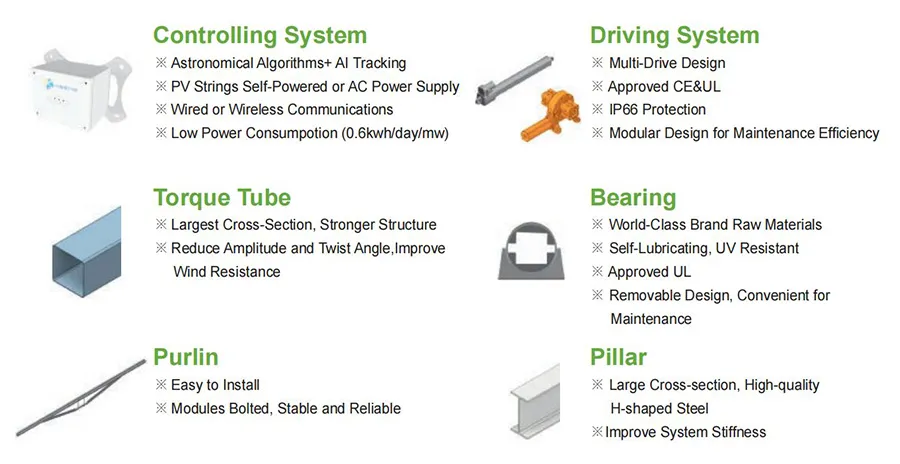

Main Structure Components:

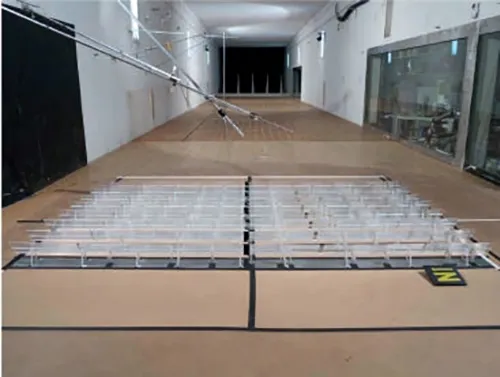

The system has undergone rigorous testing in partnership with CPP wind engineering services. By analyzing frequency and damping ratios, the system is optimized to resist resonance, flutter, and torsional divergence caused by aerodynamics.

• System Damping Ratio is significantly greater.
• Reduce Amplitude on Modules by 50%.
• Reduce the Force on Torque Tube and Pillars by 50%.
• Optimized Wind Resistance System.

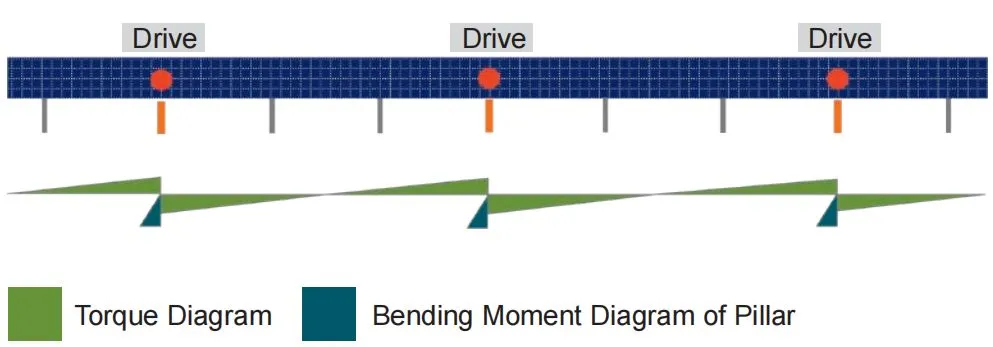

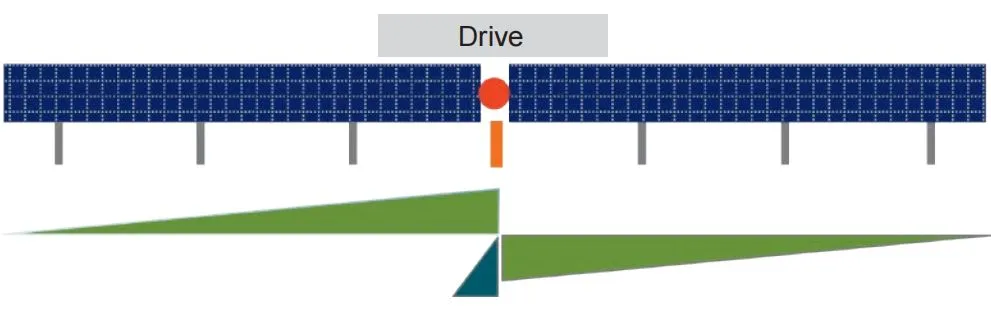

Tracking System Comparison (Traditional vs Multi-drive):

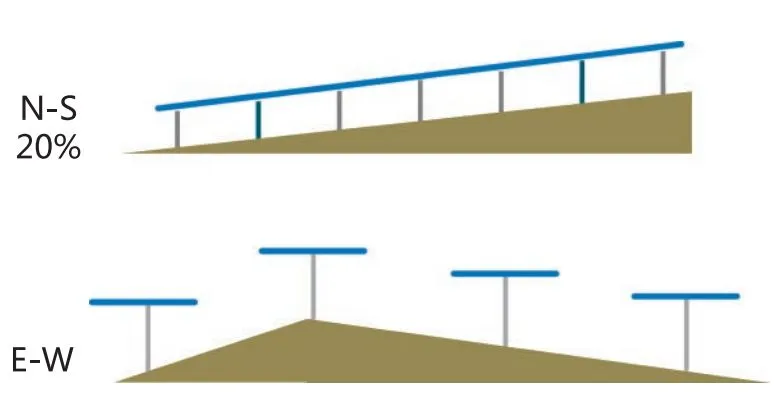

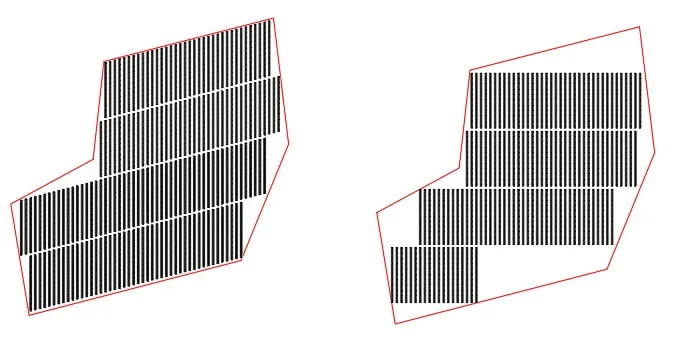

The flexible layout allows for full utilization of irregular land, supporting up to 20% North-South slopes and unlimited East-West slopes.
