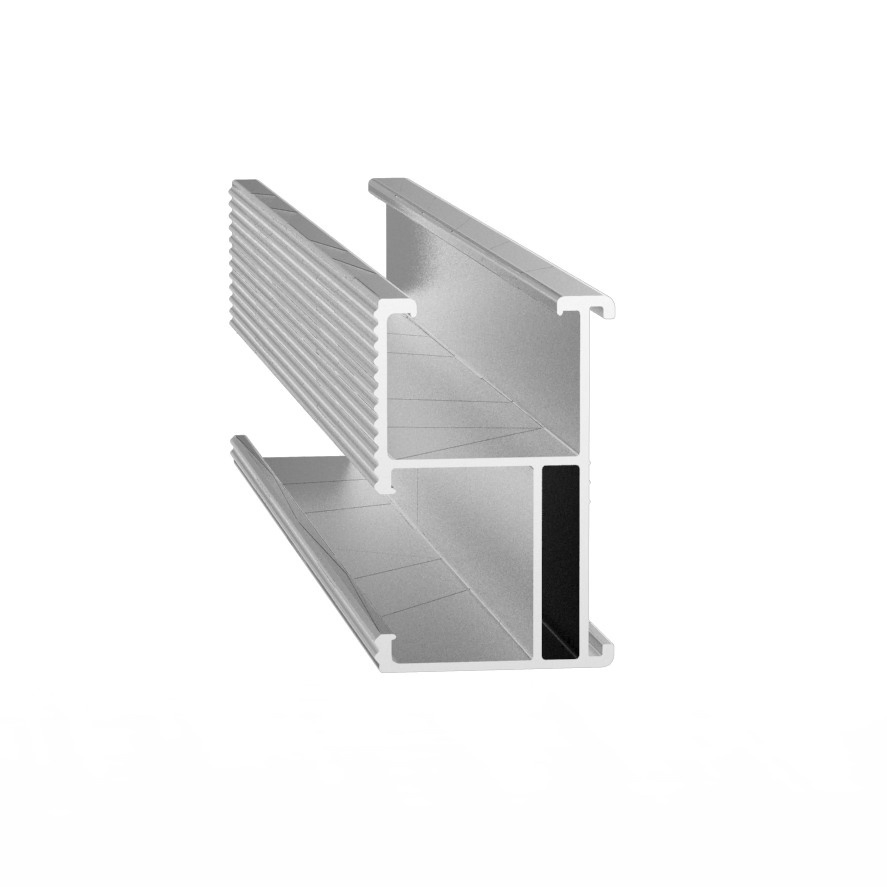

Durable PV Ground Mounting System for 6005 T5 Solar Panels

📋

Basic Information

Model NO.

APV762

Certification

CE

Application

Industrial

Material

Aluminum Alloy

Type

Ground Bracket

Thickness of Module

30-50 mm

Wind Load

60 M/S

Snow Load

1.4 Kn/M2

Adjustable Angle

15~50 Degree

Foundation

Ground, Balcony, Roof, Wall

Finishing

Clear Anodized/Mill Finish

Capacity

3000 Tons / Month

☀️

Product Description

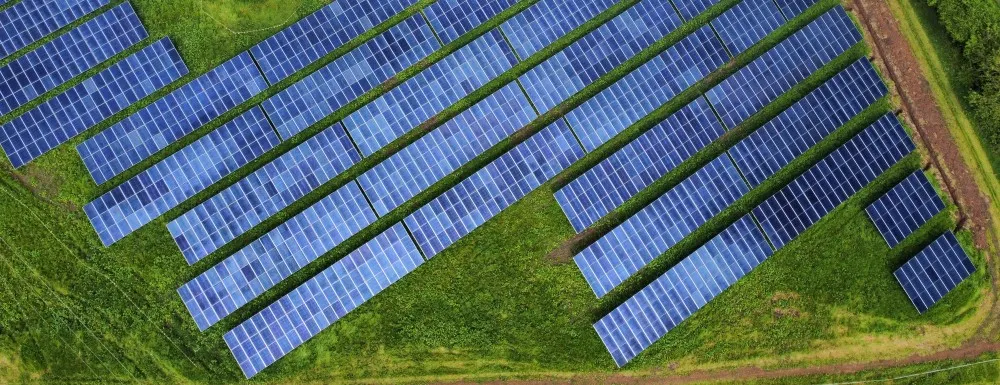

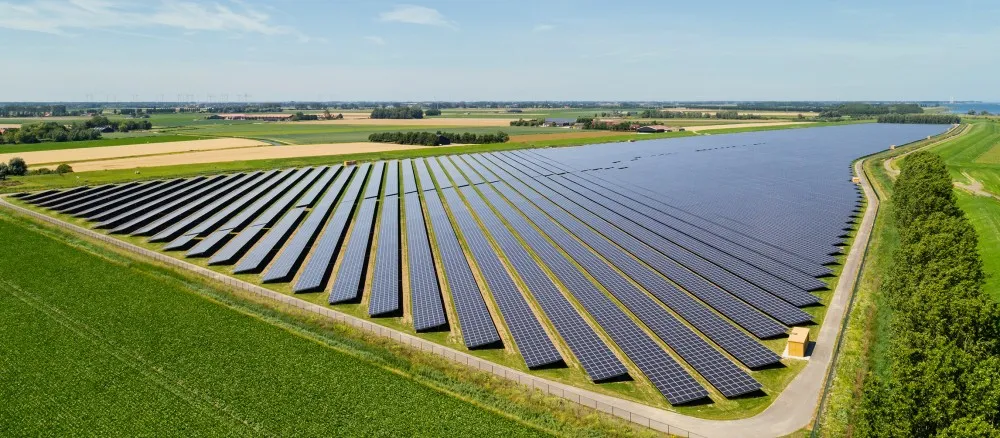

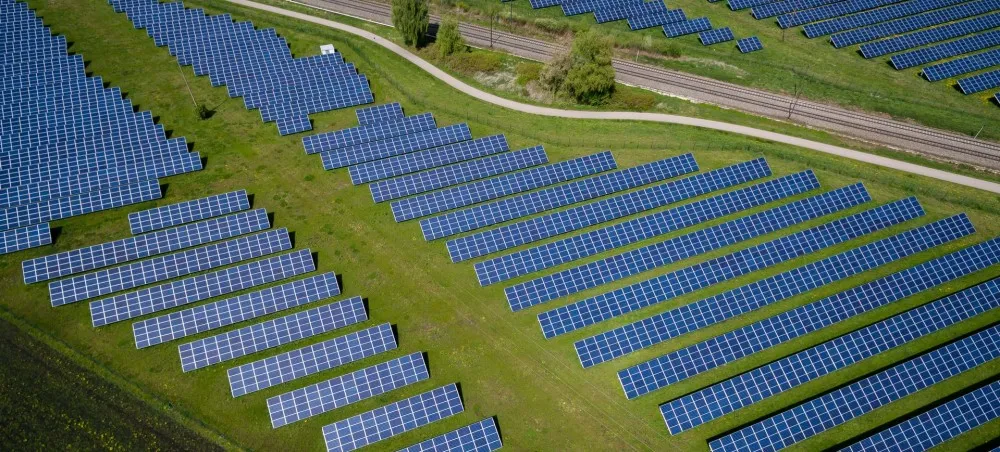

Ground mount solar racking systems typically consist of a metal structure, concrete base, and specialized components to secure solar panels. These systems are ideal for large-scale commercial PV power stations.

Based on location, geography, and weather conditions, ground solar mounting systems are categorized into three types:

✔
Fixed Tilt System: The most economical solution with a fixed structure requiring minimal maintenance.
✔
Single Axis Tracking: Utilizes an electric motor to move panels in one direction, tracking the sun throughout the day.
✔

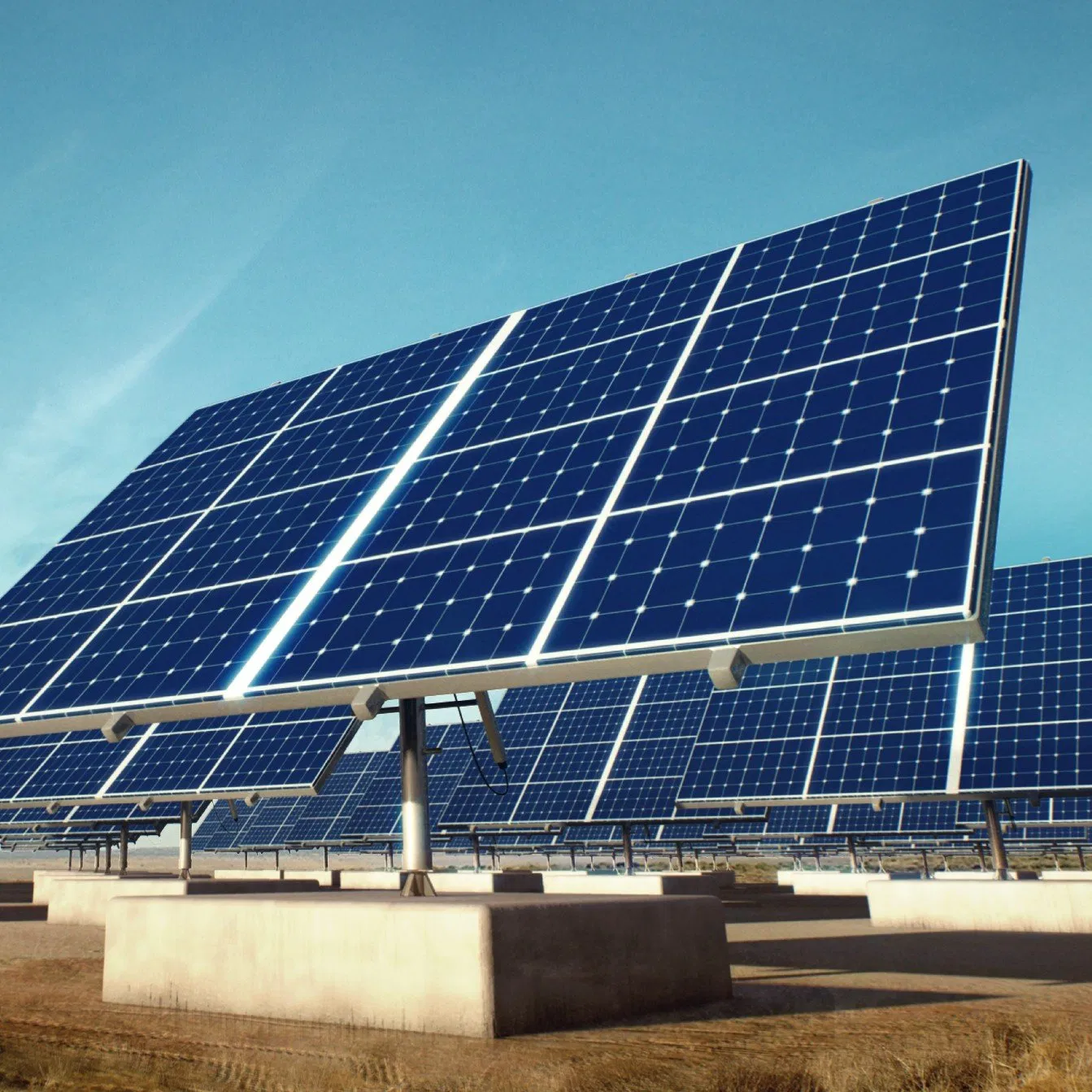

Dual-Axis Tracking: Tracks the sun both horizontally and vertically to maximize PV power production.

The photovoltaic panel racking system consists of three core parts: the base (support), the structure (tailor-made rack), and clamps (fasteners). Key advantages include:

🔹
Wide Adaptation: Suitable for various terrains, including uneven or sloping surfaces.
🔹
Durability: Made from 6005 T5 anodized aluminum alloy to withstand high winds and heavy snow.
🔹
Economic Efficiency: Lightweight materials reduce labor and installation costs.
🔹
Easy Maintenance: Accessible design makes repairs and cleaning simple.

📸

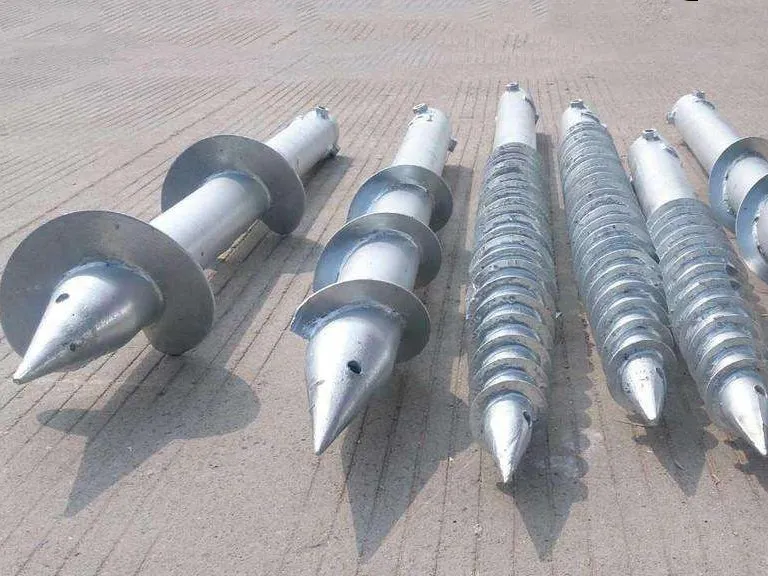

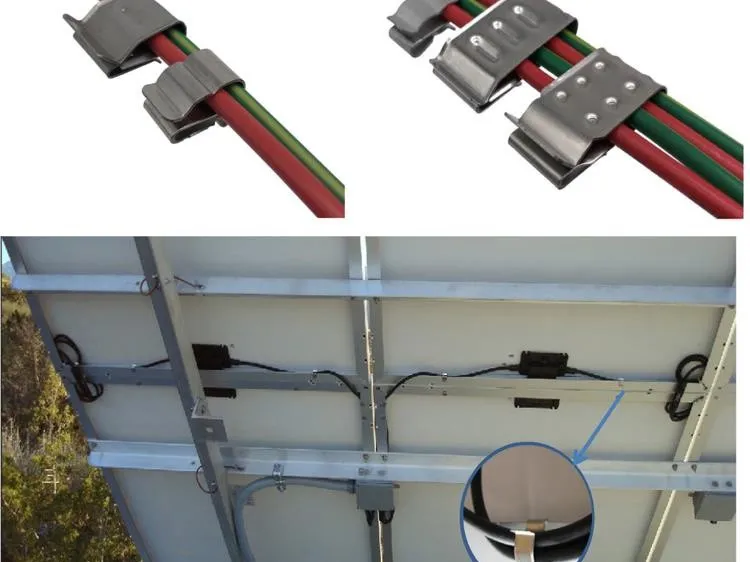

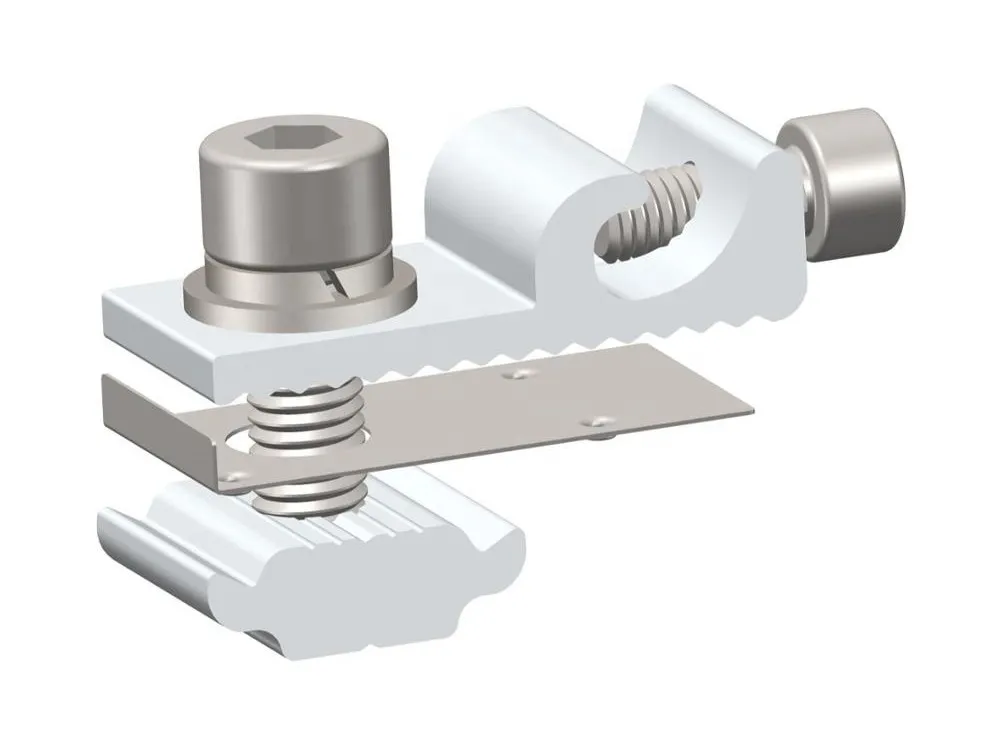

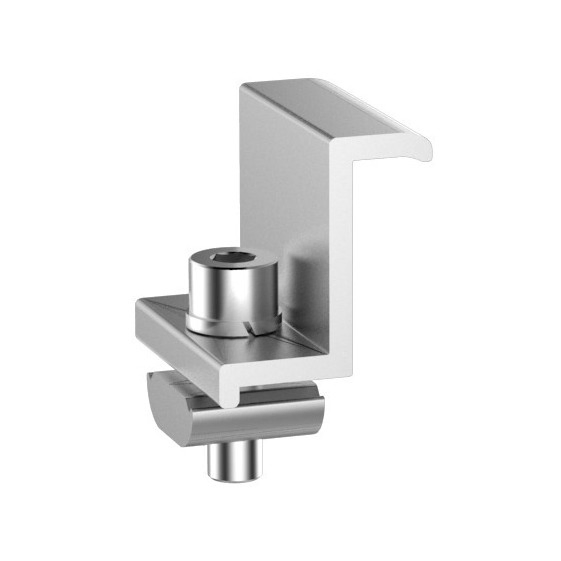

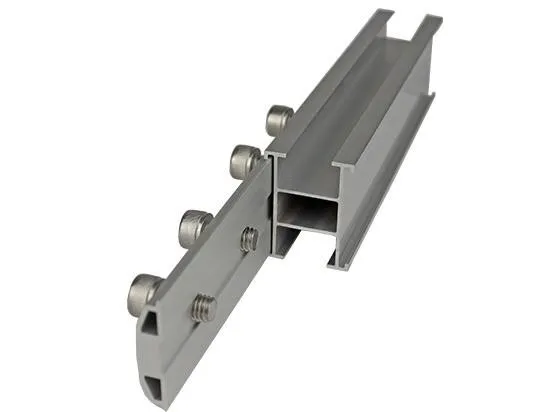

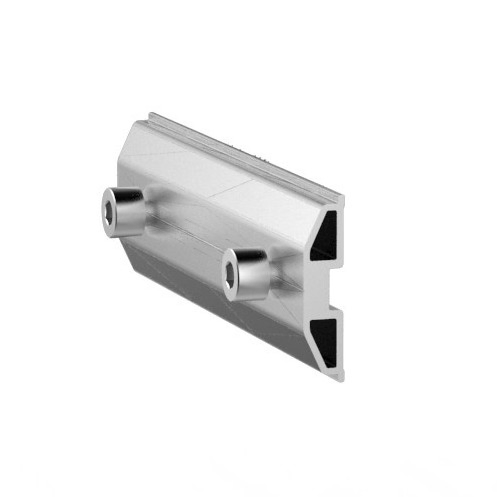

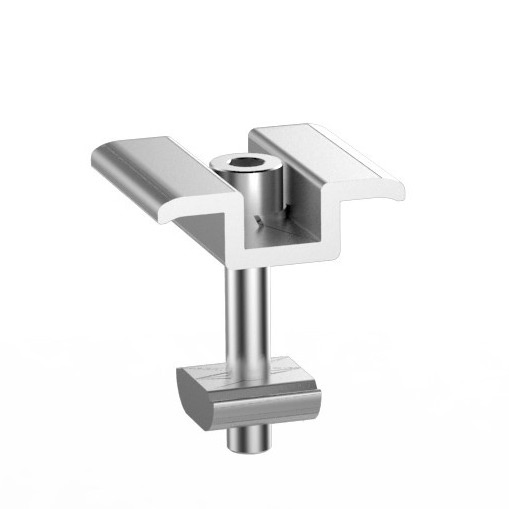

Detailed Photos

⚙️

Product Parameters

Mount Type	Customized mounting system
Standard	AS/NZS 1170
Applicable Module	Framed or frameless panel
Wind load	Up to 218Kmph (60m/s)
Snow load	Up to 30psf (1.4KN/m2)
Module Thickness	30-50 mm
Adjustable Angle	15~50°
Material	Aluminum alloy 6063 T5
Warranty	10 years

📦

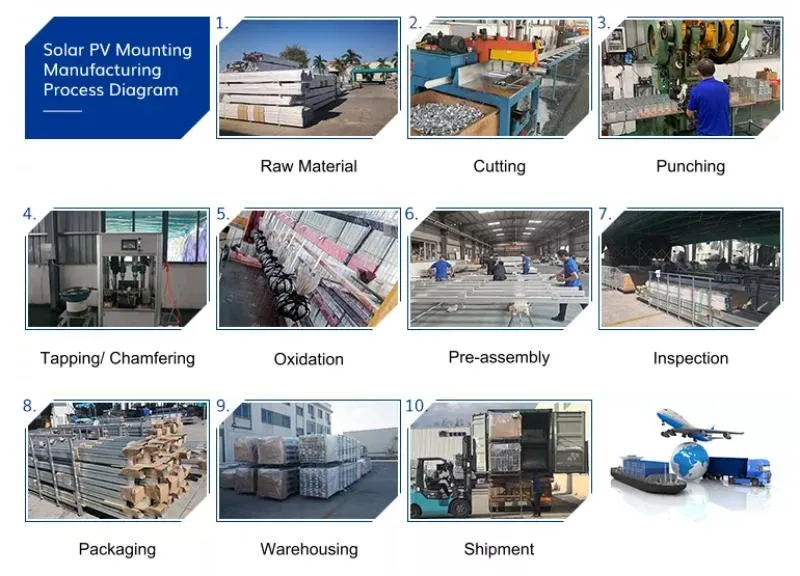

Packaging & Shipping

🏆

Why Choose Our System

💎
Experienced: Years of expertise in solar mounting solutions, understanding market and customer needs.
💎
High Quality: Made of premium materials using advanced technology for maximum durability.
💎
Professional Service: Comprehensive technical consultation, installation guidance, and maintenance support.
💎
Global Reach: Products recognized and praised across the United States, Europe, Australia, and Asia.

❓

Frequently Asked Questions

What materials are used for the ground solar mounting system?

The systems are mainly constructed from 6005 T5 aluminum alloy extrusions, with some components using carbon steel or zinc-magnesium-aluminum alloys for enhanced durability.

What factors must be considered before installation?

Key factors include geographic location, local weather history, wind and snow loads, panel size/weight, and the required tilt angle for optimal energy generation.

How much wind and snow load can the brackets withstand?

Our systems are engineered to withstand wind speeds up to 60m/s and snow loads up to 1.4KN/m2, depending on the specific structural design and local requirements.

What is the typical warranty for these racking systems?

Generally, solar racking systems offer a service life of 15-25 years, with standard product warranties typically covering around 10 years.

What kind of maintenance is required?

The system requires regular cleaning and periodic checks of bolts, nuts, and fasteners. Inspections are especially recommended after severe weather events like typhoons or heavy snow.

Does the installation require a license?

Yes, most regions require permits from local government authorities. It is essential to check local regulations and policies before starting the installation.
