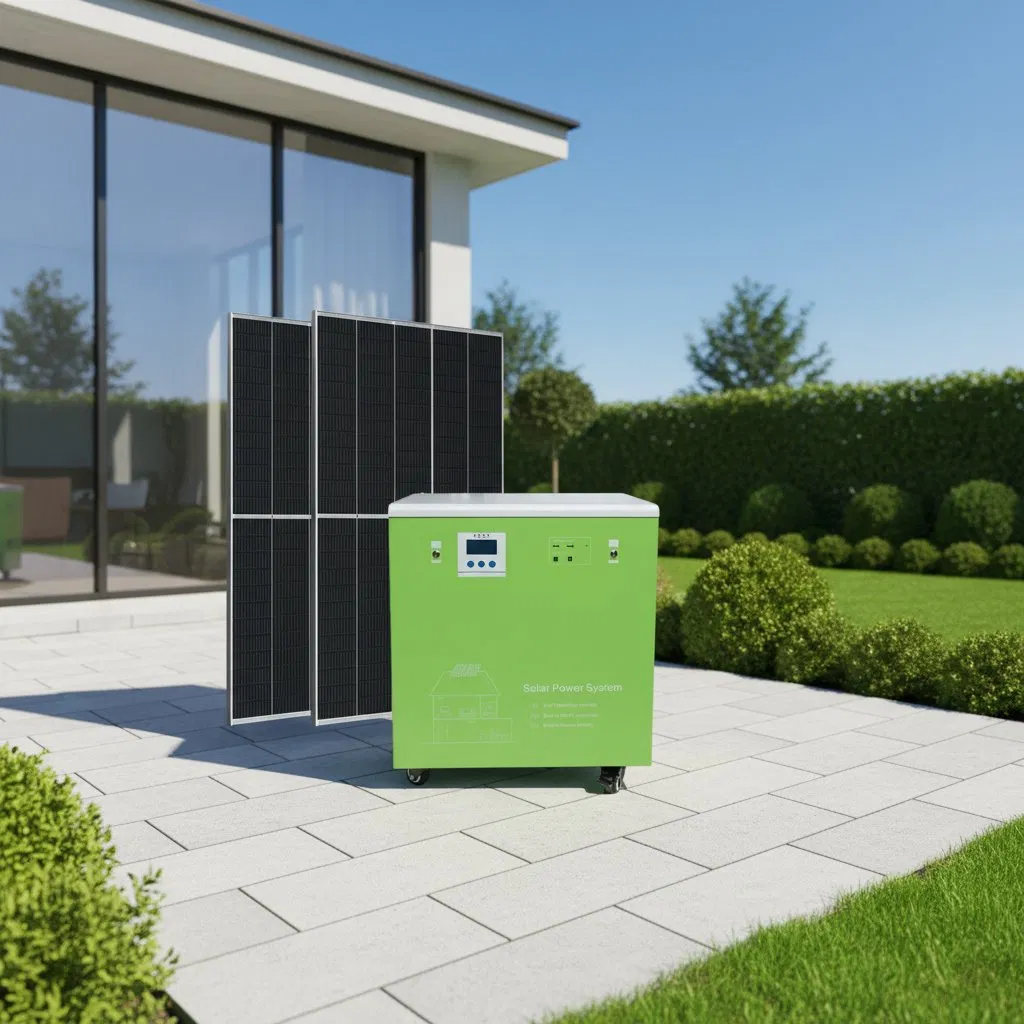

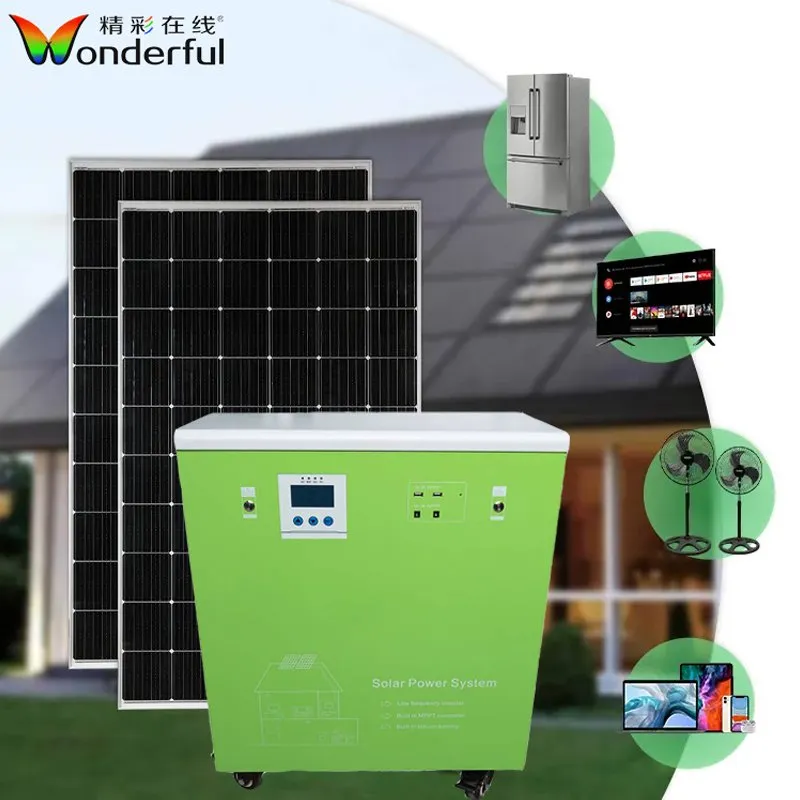

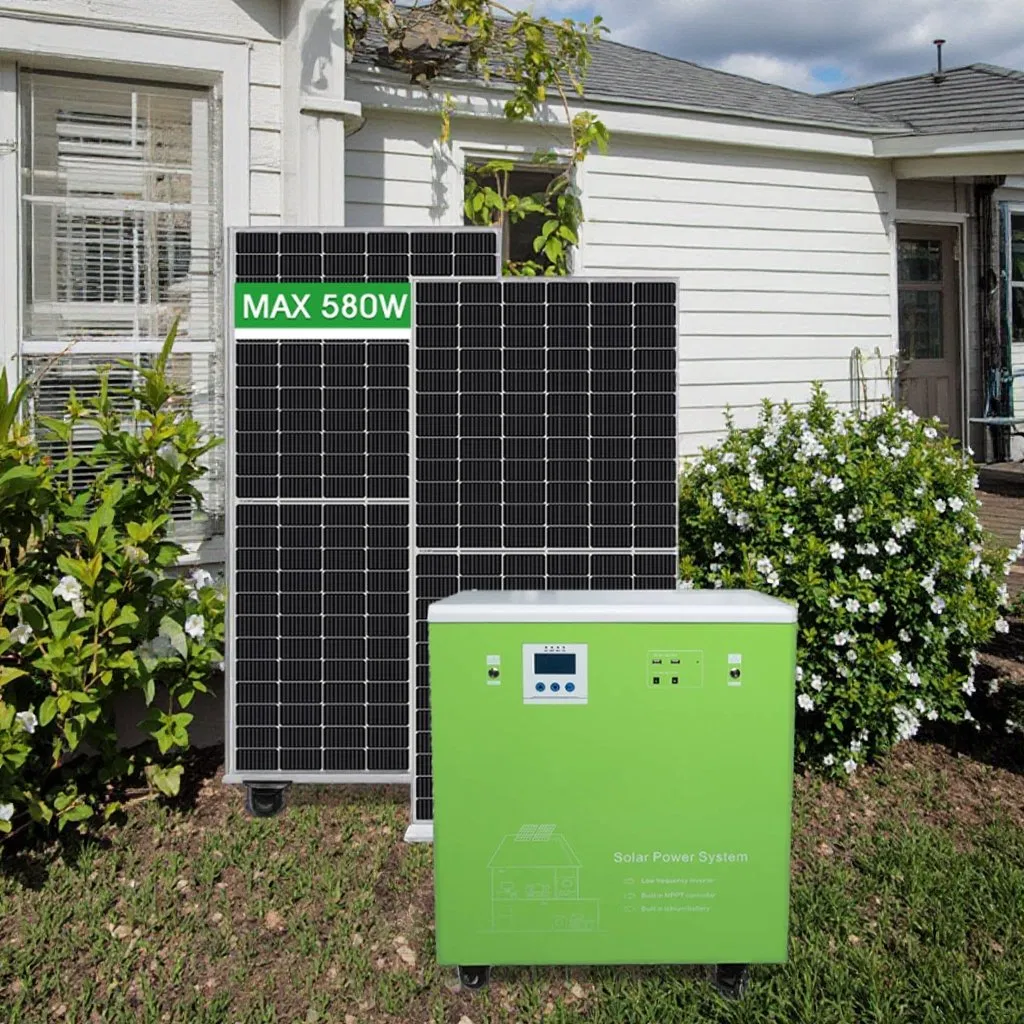

Eco-Friendly Integrated off Grid Solar Power System Backup Power for Home

1 / 5

Eco-Friendly Integrated off Grid Solar Power System Backup Power for Home

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

WON-SPS-01

Condition

New

Certification

ISO, CB, CE, RoHS

Application

Home, Industrial, Commercial

Rated Power

500W/1.5kw/3kw/6kw

Charging Mode

MPPT

Battery Type

Lead Acid / Lithium / Iron Lithium

Transfer Time

<=4ms

Solar Panel Lifespan

25 Years

Battery Lifespan

6 Years

Efficiency

>85%

Origin

China

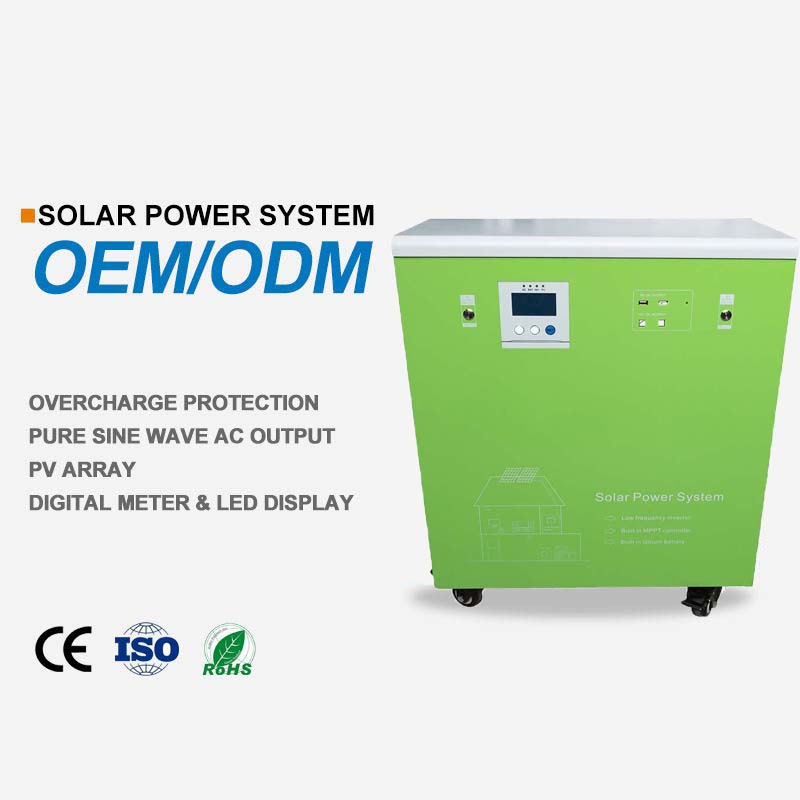

🌟 Product Features

All in one design: inverter, controller and battery all built-in, easy to use and install.
Continuous stable pure sine wave: no loss to load.
Hybrid mode: can be charged by solar as well as grid, charging time is around 2-3 hours.
LiFePO4 battery: 10 years lifespan.
Multiple outputs: 220V/110V AC, USB DC, 12V DC.
Multi-protection: Overload, overvoltage, low voltage, high temperature, etc.

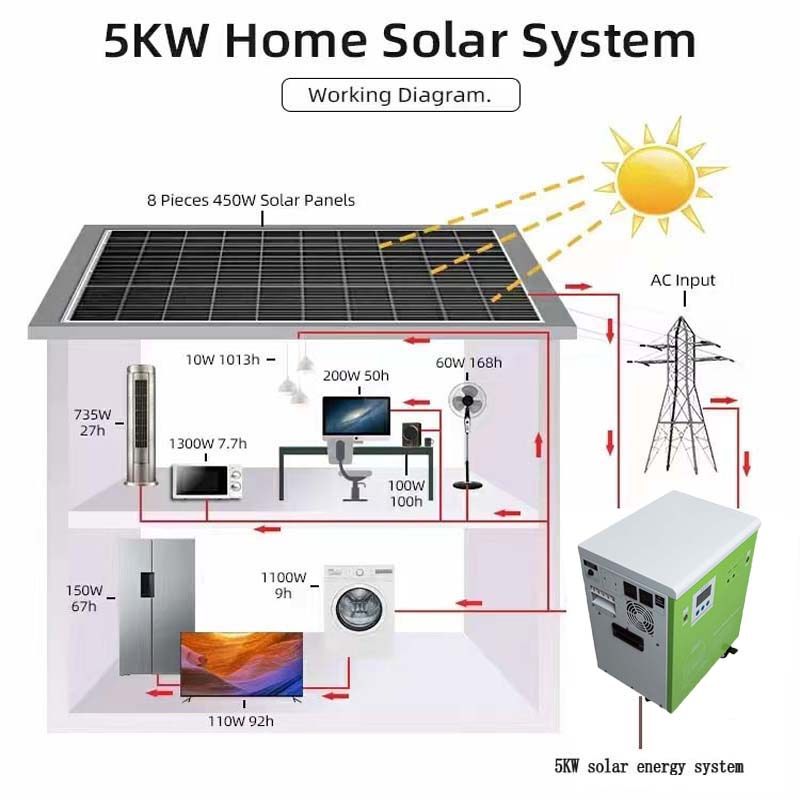

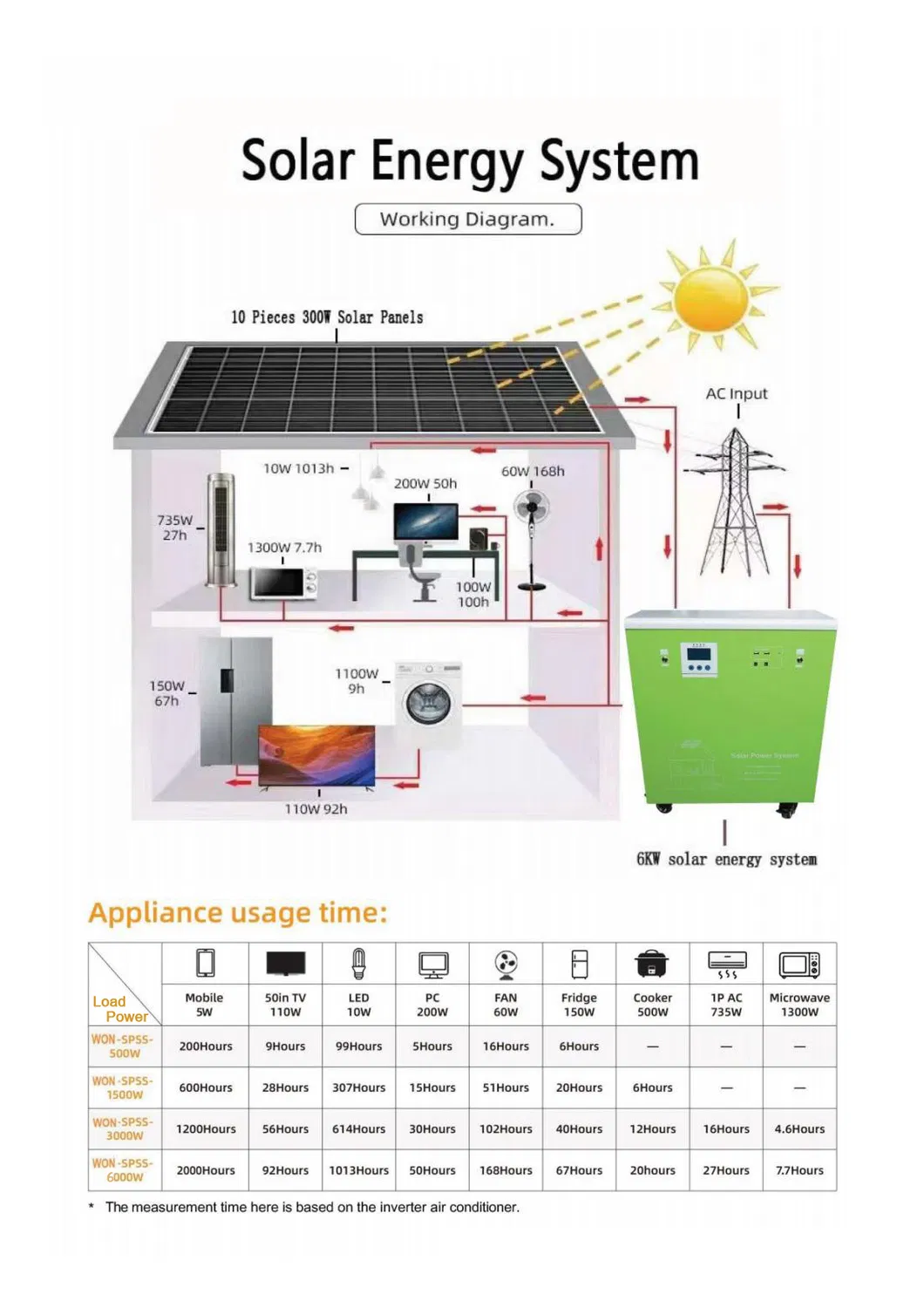

🔌 Wiring Diagram

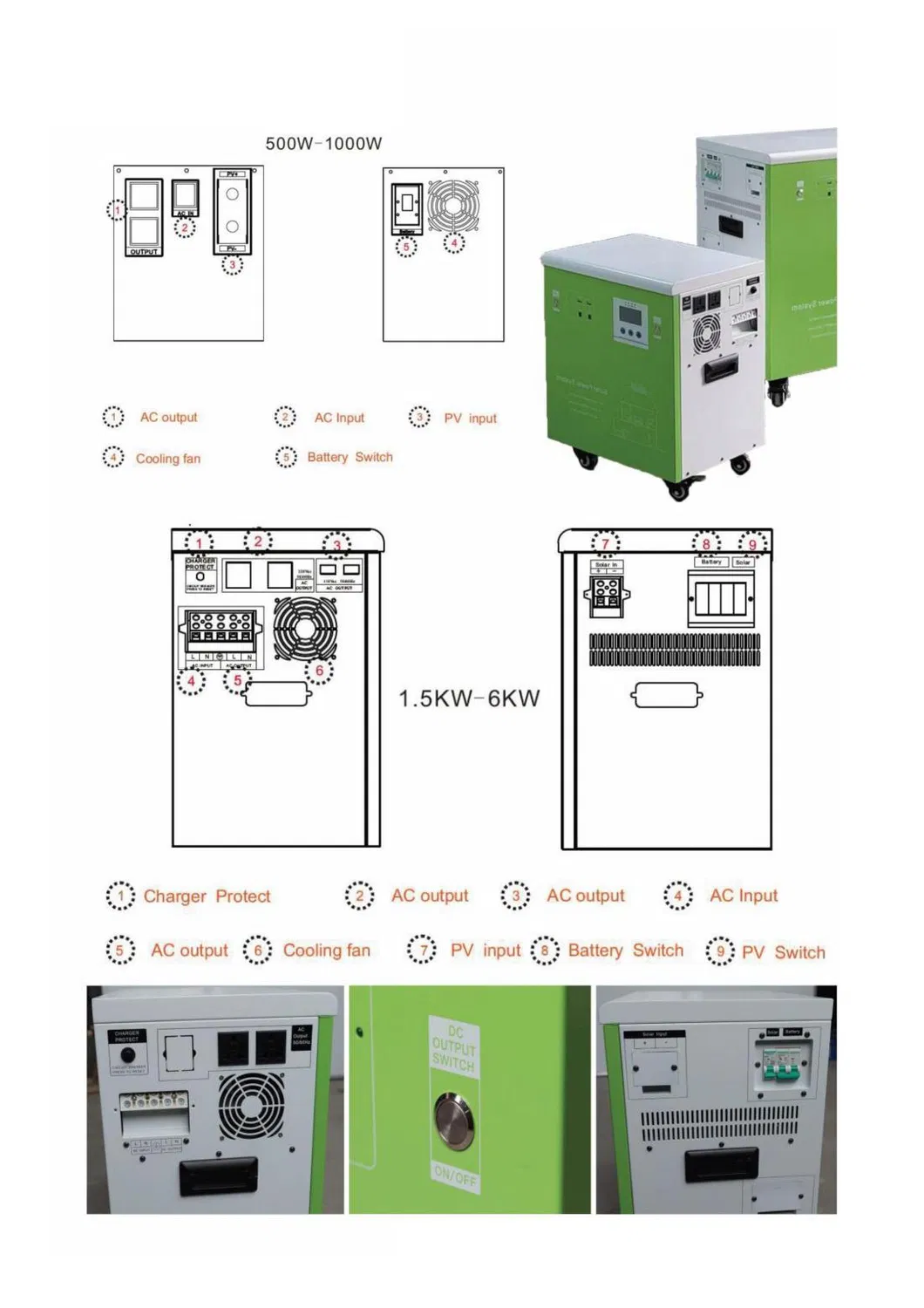

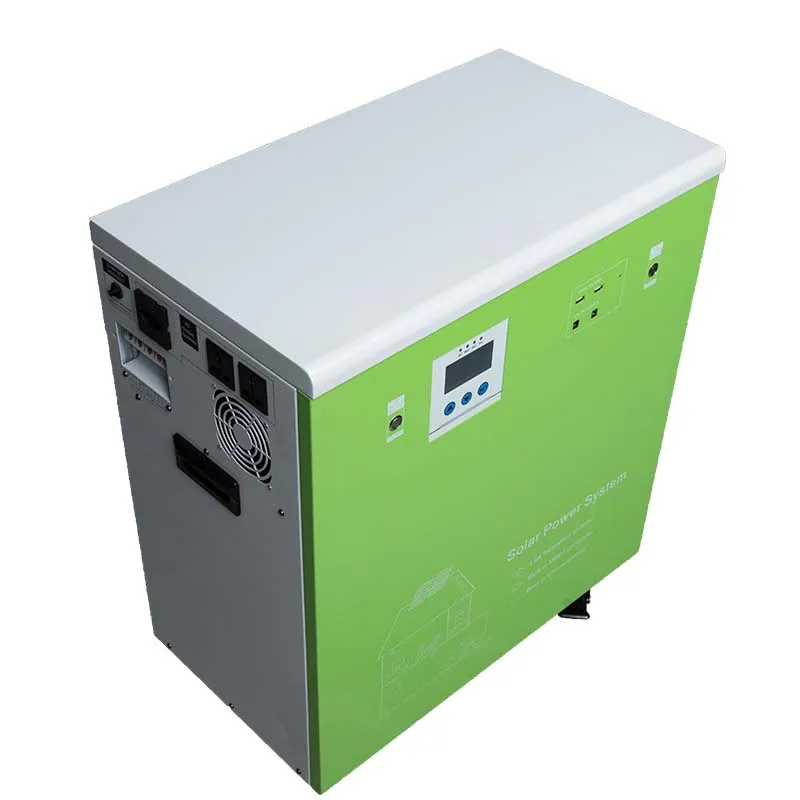

🔍 Product Details

📋 Technical Specifications

Model		WON-SESS-AP500W	WON-SESS-AP1500W	WON-SESS-AP3000W	WON-SESS-AP6000W
Solar Panel	Optional Panel	100W 18V * 2pcs	250W 36V * 3pcs	300W 36V * 4pcs	300W 36V * 8pcs
	Charging Mode	PWM	MPPT	MPPT	MPPT
	Generation	~700WH/day	~2600WH/day	~4200WH/day	~8400WH/day
System	Battery Capacity	640WH	2176WH	4352WH	8704WH
	Rated Power	500W	1500W	3000W	6000W
	Product Size	430235300mm	585310505mm	585310505mm	680315732mm
	Net Weight	22KG	40KG	55KG	98KG

⚙️ Component Breakdown

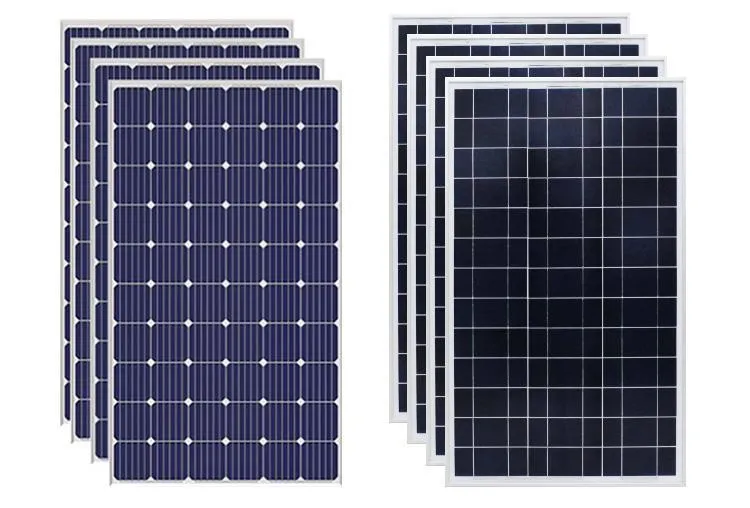

Solar Panels: High efficiency A Grade mono cells, 21% conversion efficiency, anti-reflection tempered glass.

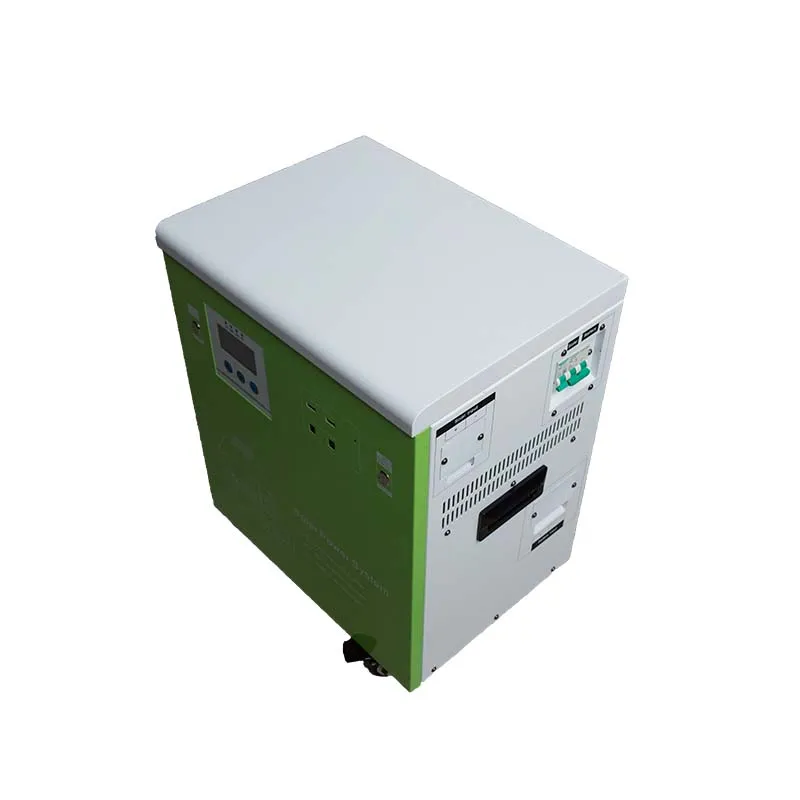

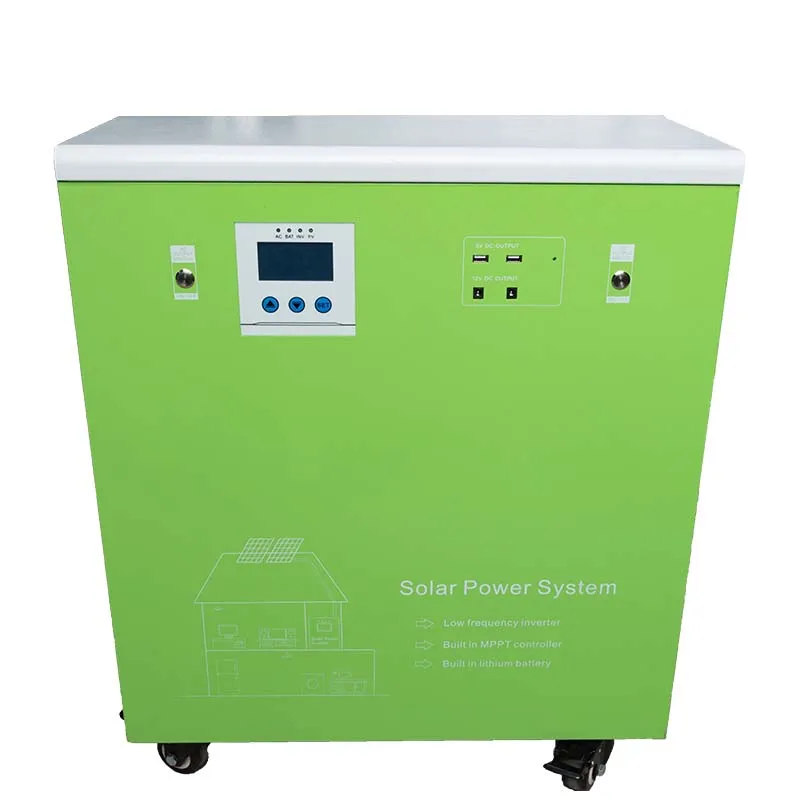

Solar Generator: MCU intelligent control, pure sine wave AC output, LCD display, and automatic protection.

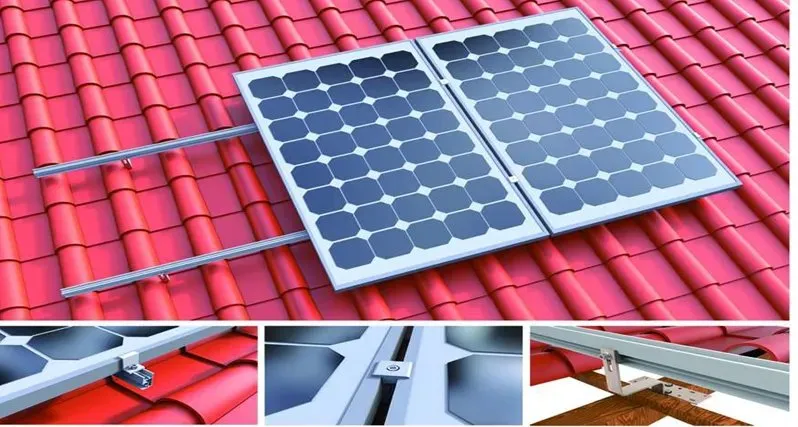

Mounting Structure: Anodized Aluminum for pitched/flat roofs or ground, wind load up to 130mph.

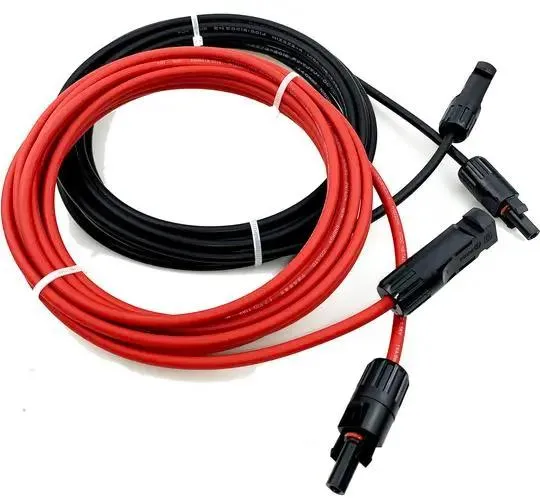

Accessories: Includes 15m Photovoltaic cable and 10m AC plug for complete installation.

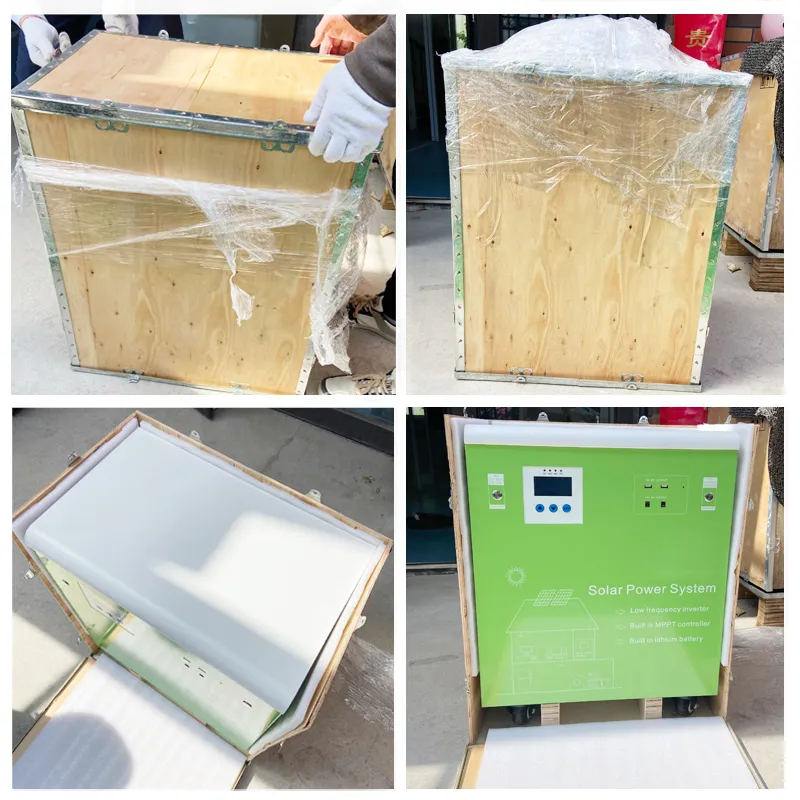

📦 Packing & Shipping

❓ Frequently Asked Questions

What is the advantage of the "All-in-one" design?

The all-in-one design integrates the inverter, solar controller, and battery into a single unit. This makes the system extremely easy to install and use, reducing space requirements and setup complexity.

How long does it take to charge the system?

In hybrid mode, the system can be charged via the power grid in approximately 2-3 hours. It can also be charged by solar panels throughout the day.

What is the lifespan of the battery and solar panels?

The LiFePO4 batteries are designed for a 10-year lifespan, while the high-efficiency solar panels have a lifespan of approximately 25 years.

Does the system provide stable power for sensitive electronics?

Yes, the system provides a continuous stable pure sine wave AC output, ensuring no loss or damage to sensitive electronic loads.

What safety protections are included?

The system features multi-protection technology, including safeguards against overload, overvoltage, low voltage, and high temperature, along with automatic alarms.

What types of batteries can be used with this system?

The system is compatible with Lead Acid, Lithium, and Iron Lithium (LiFePO4) batteries, offering flexibility based on your energy needs.
