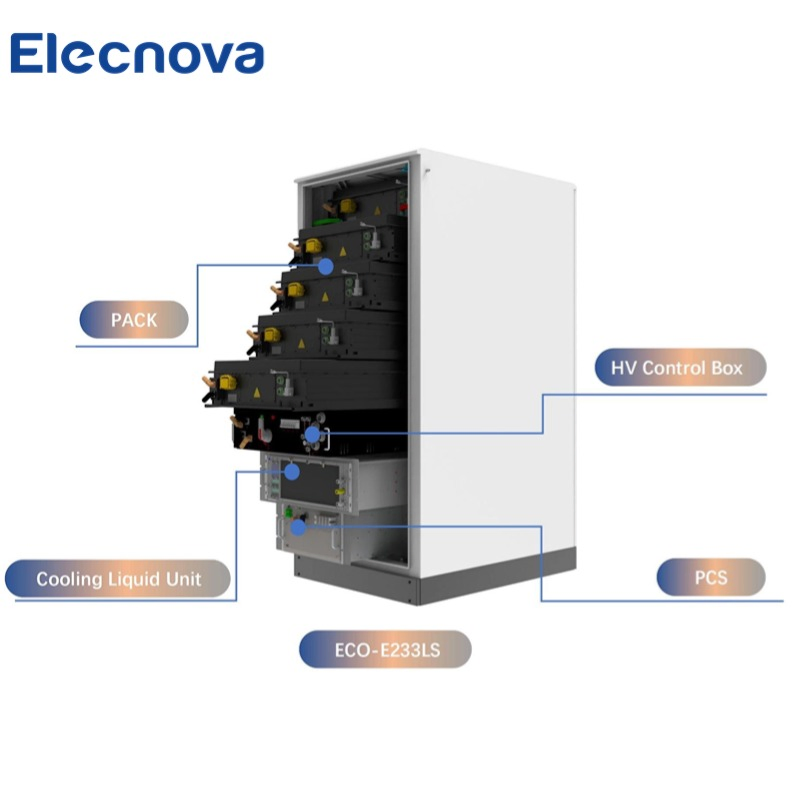

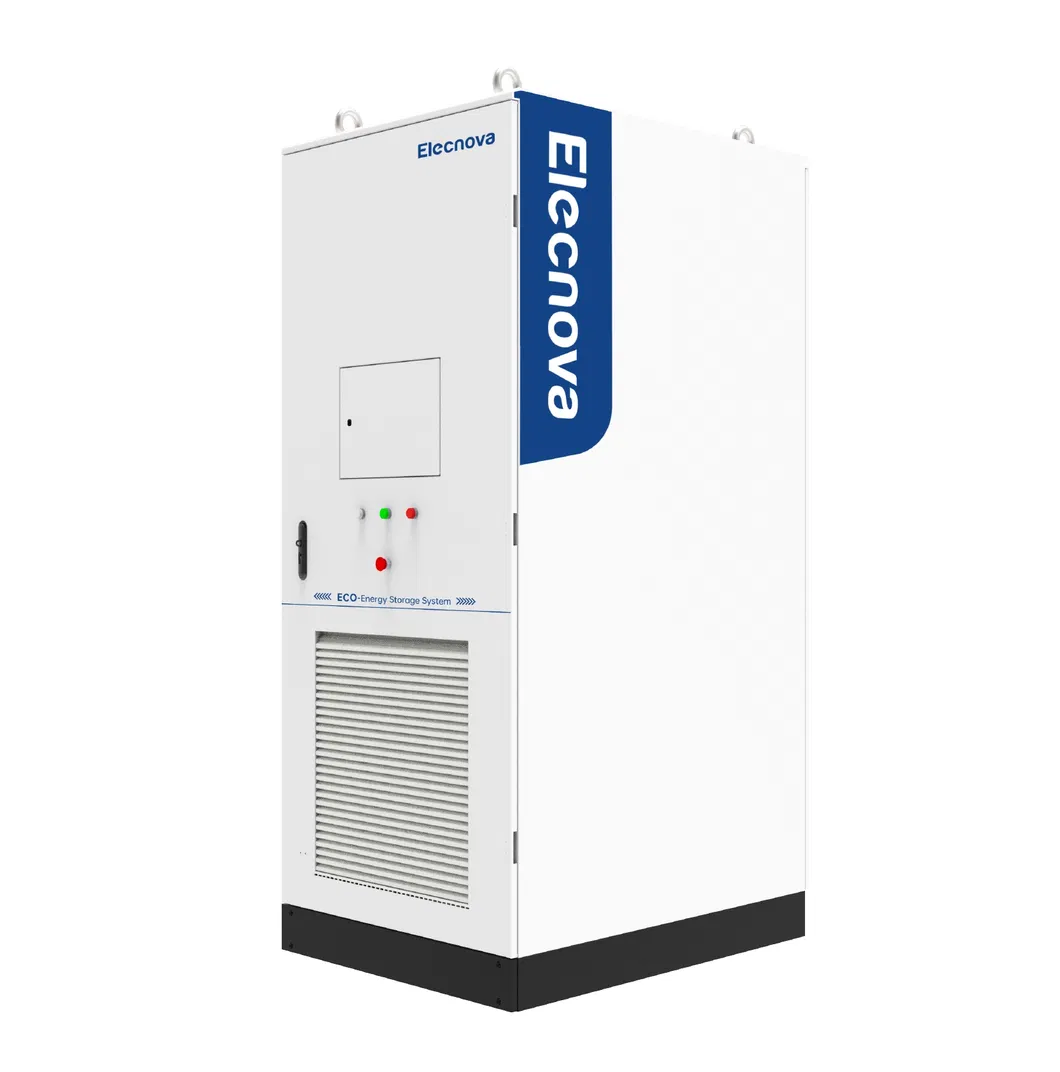

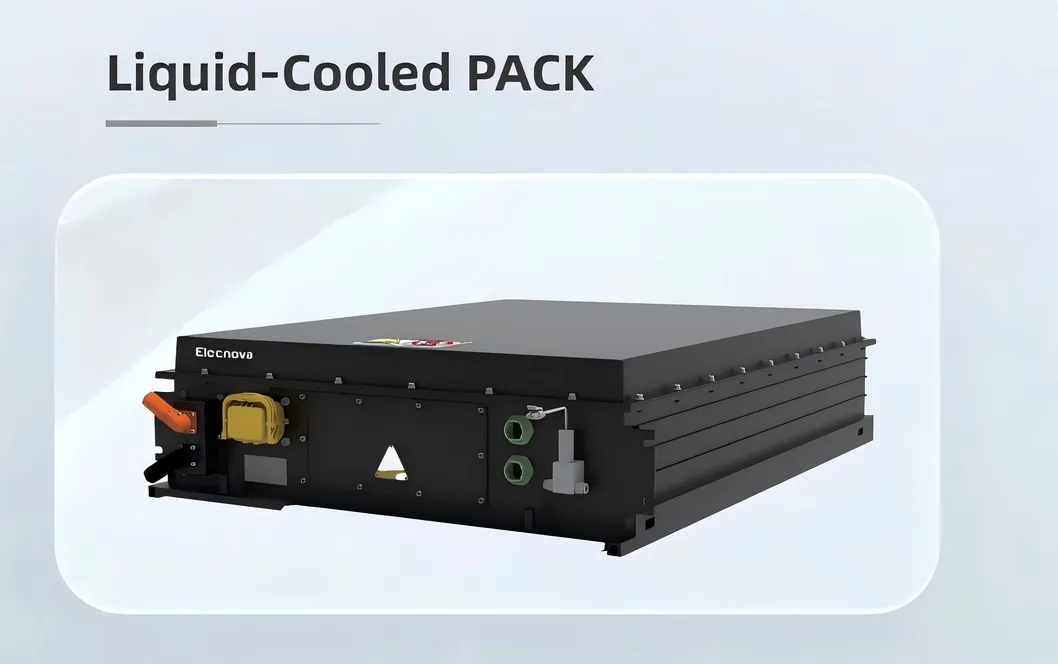

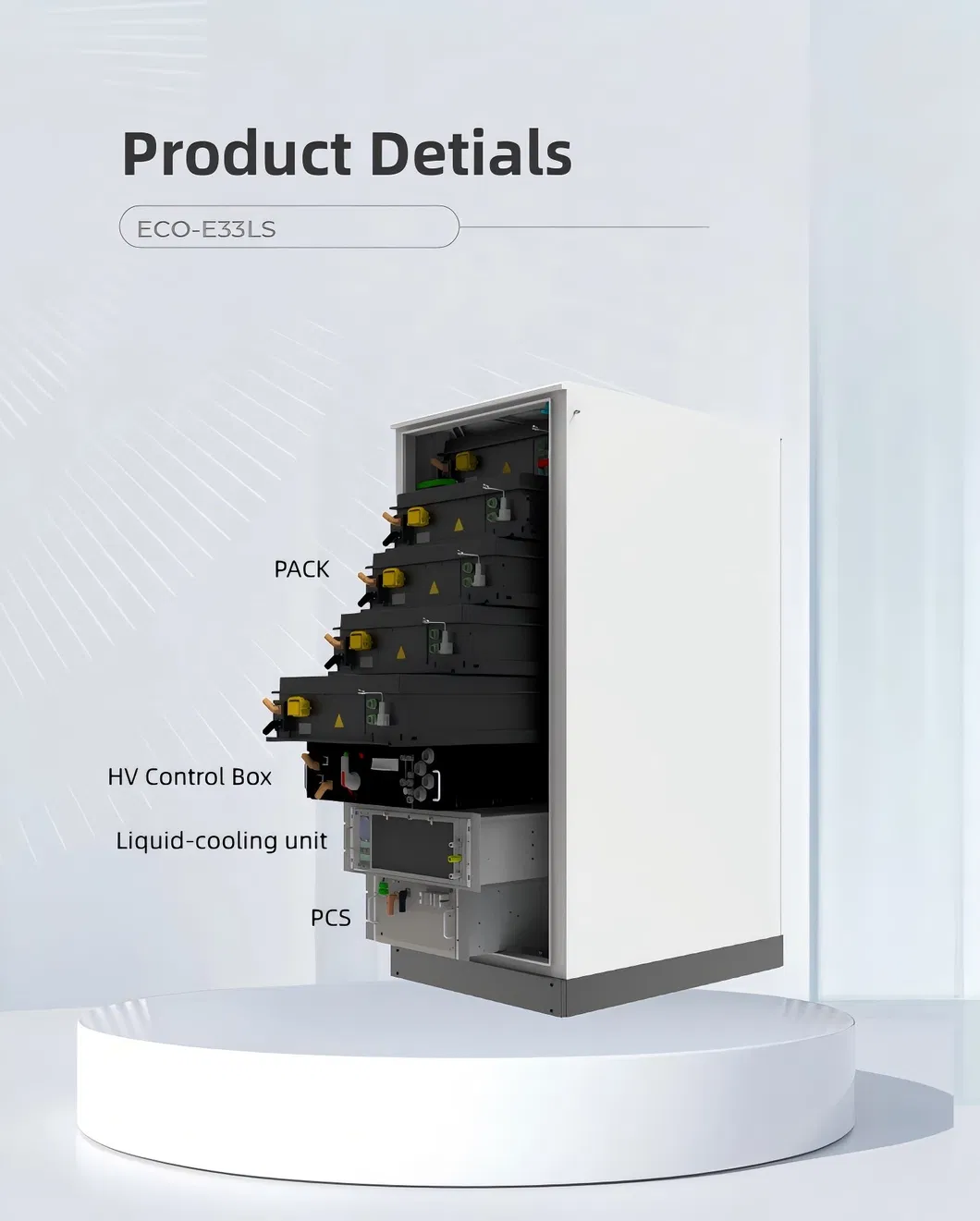

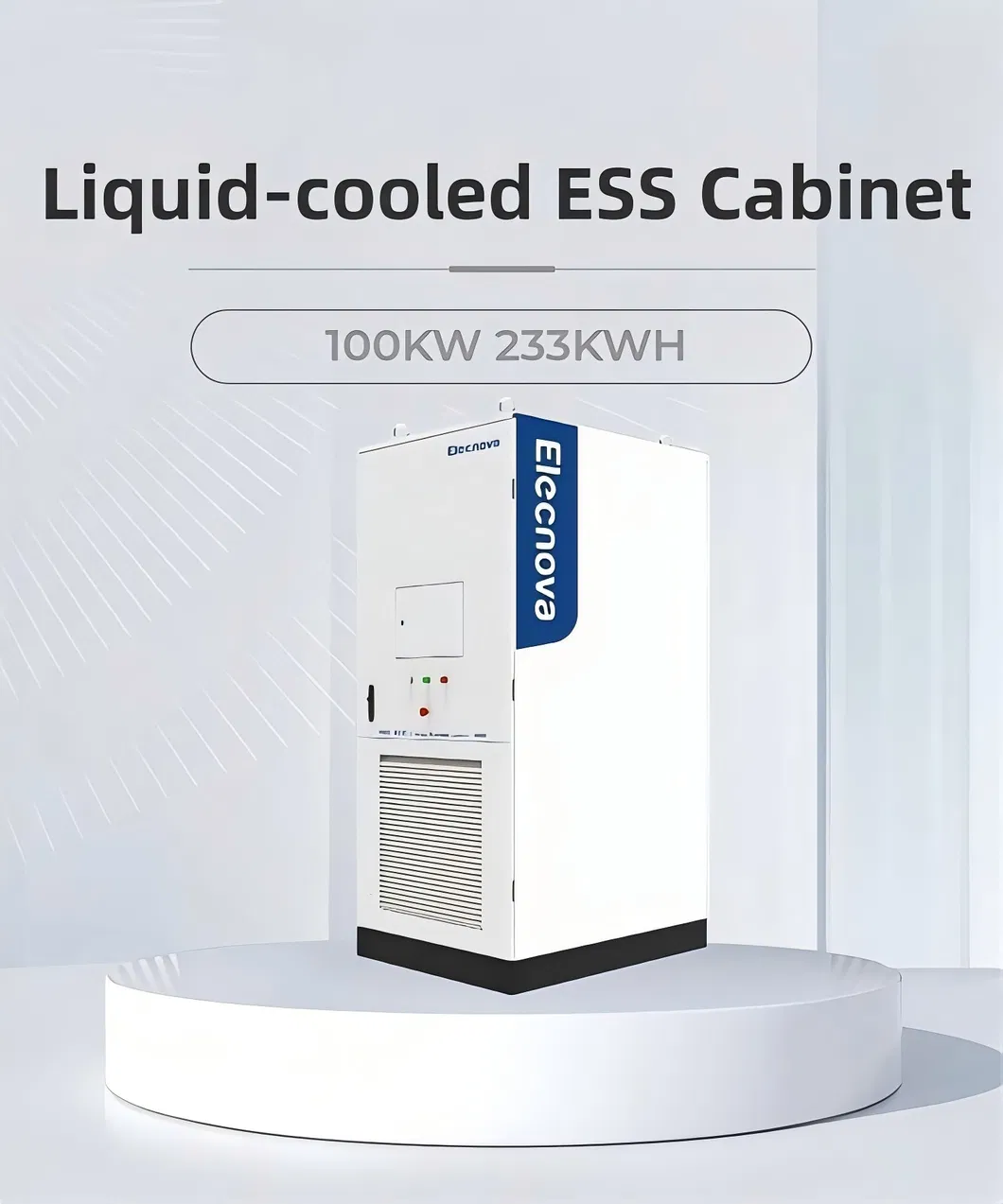

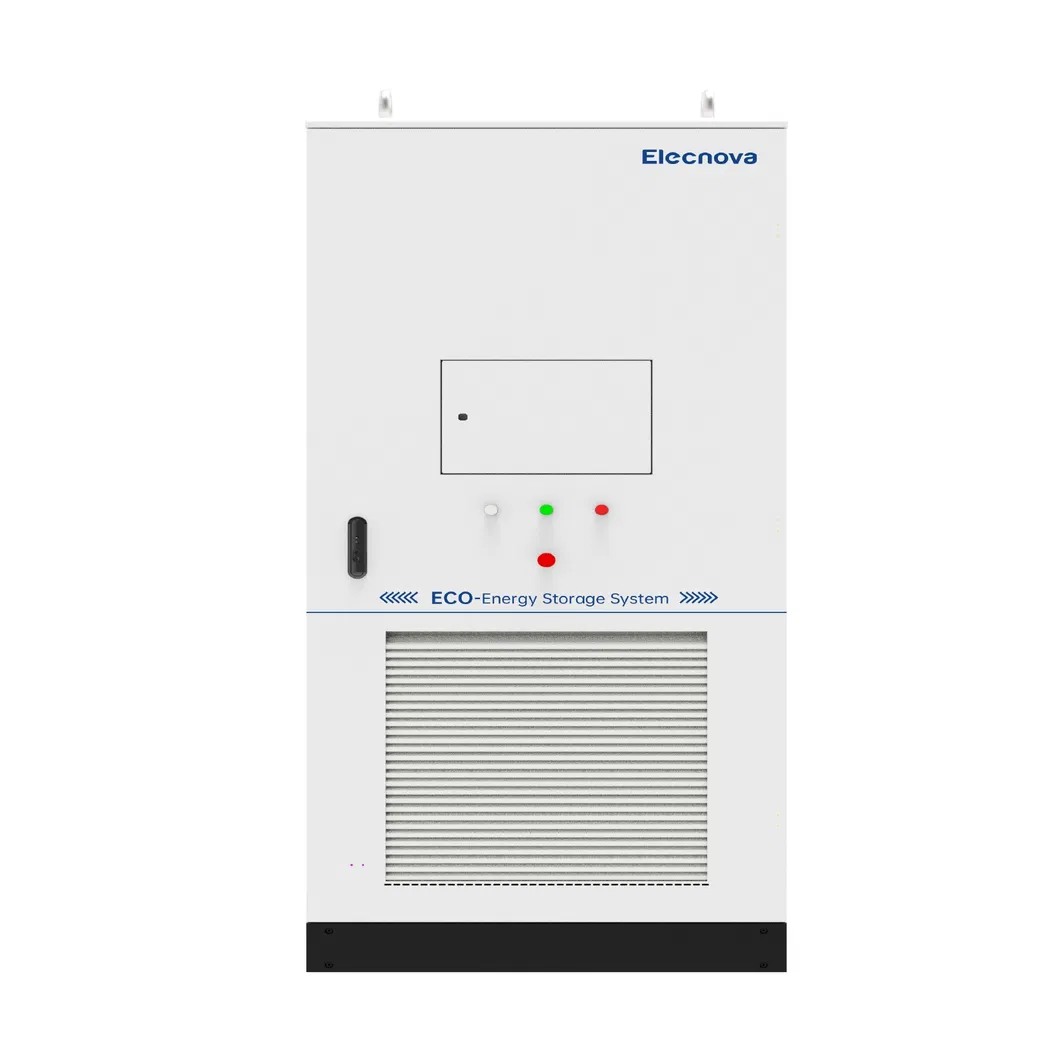

This 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP280Ah |

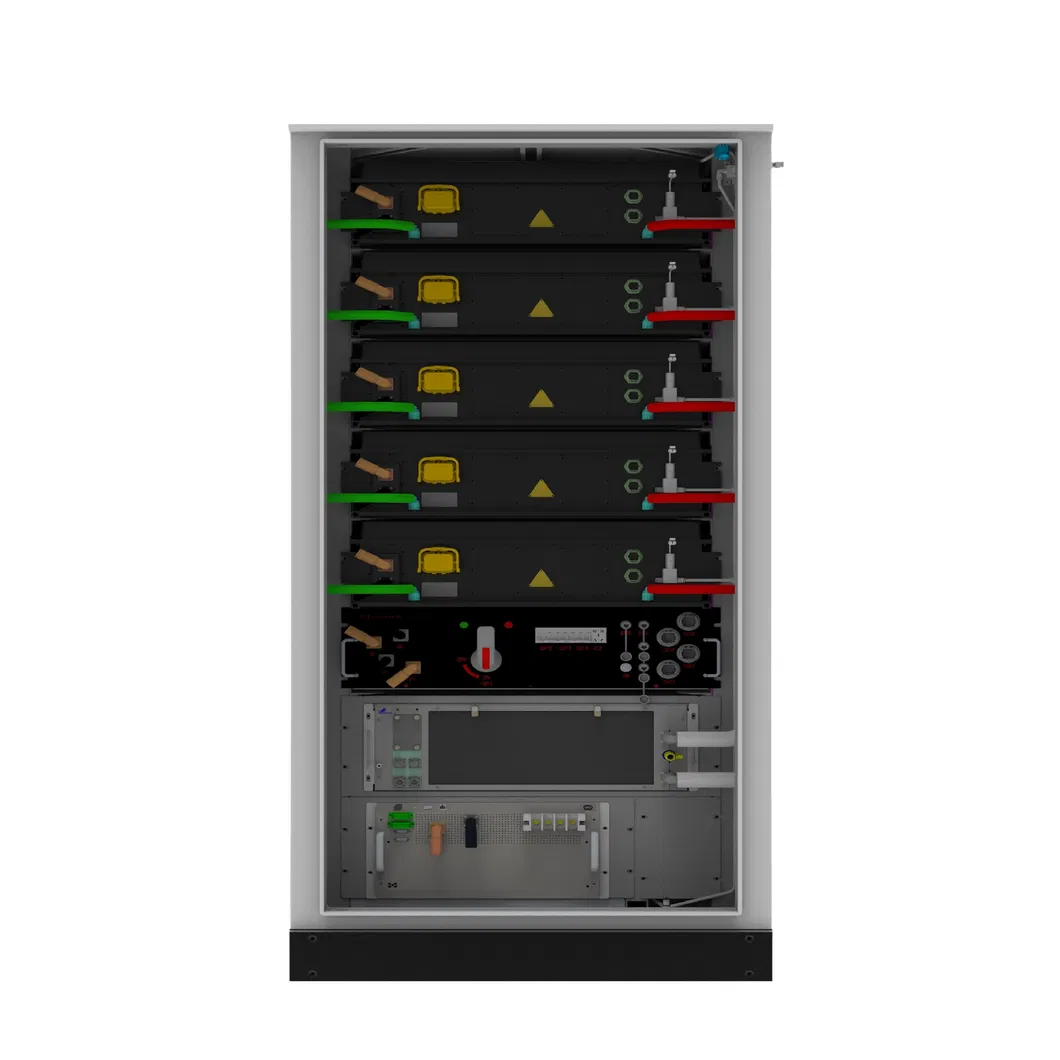

| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Specifications | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | <3% |
| Nominal Voltage | 400Vac/3P+N+PE |
| General Information | |

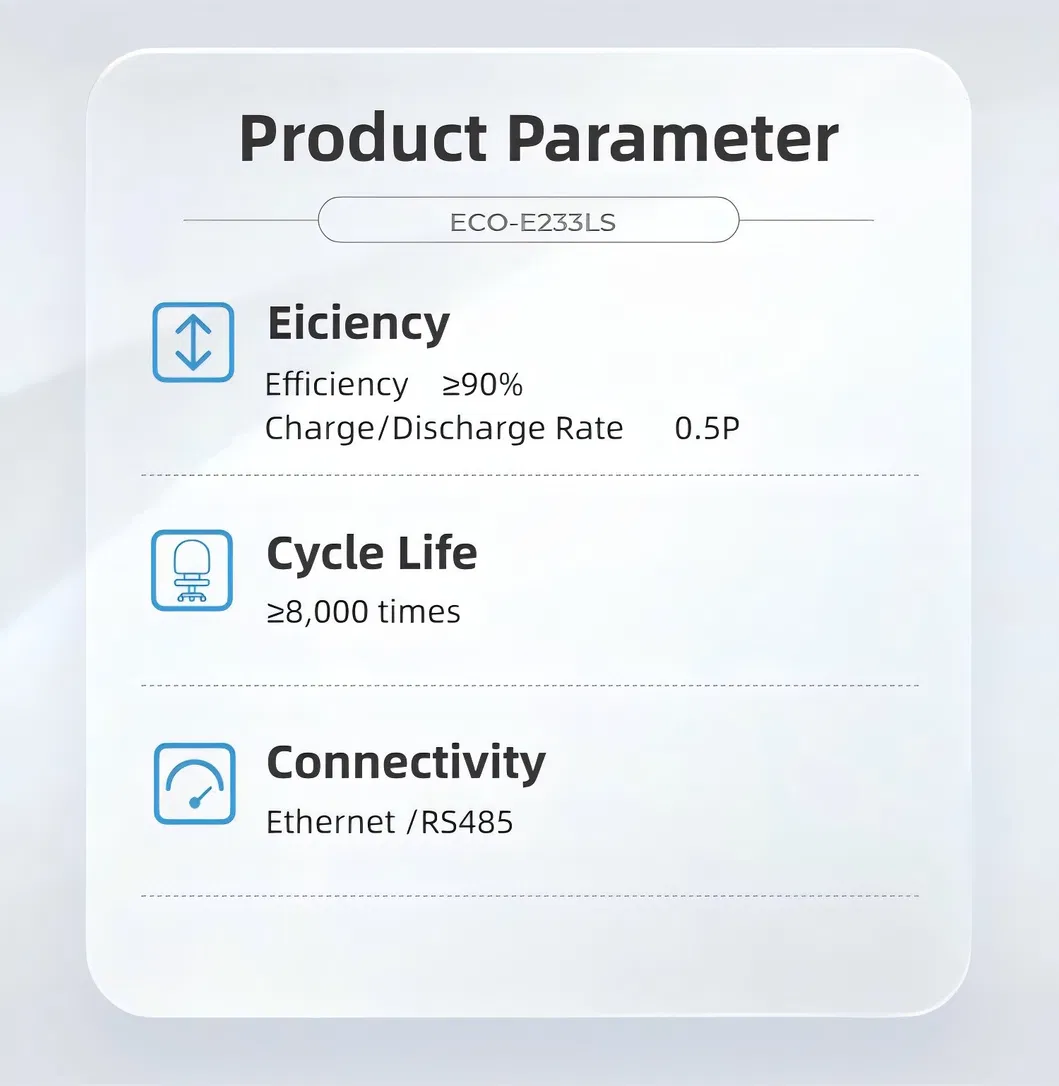

| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Operating Temperature | -25ºC~55ºC |
| Ingress Rating | IP55 |
| Cooling | Active liquid cooling |

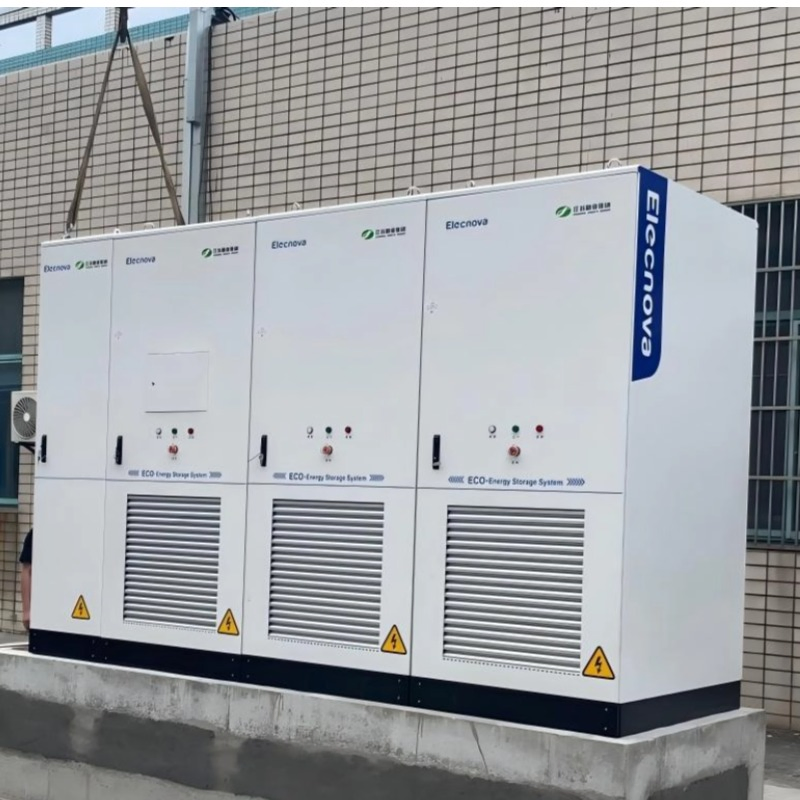

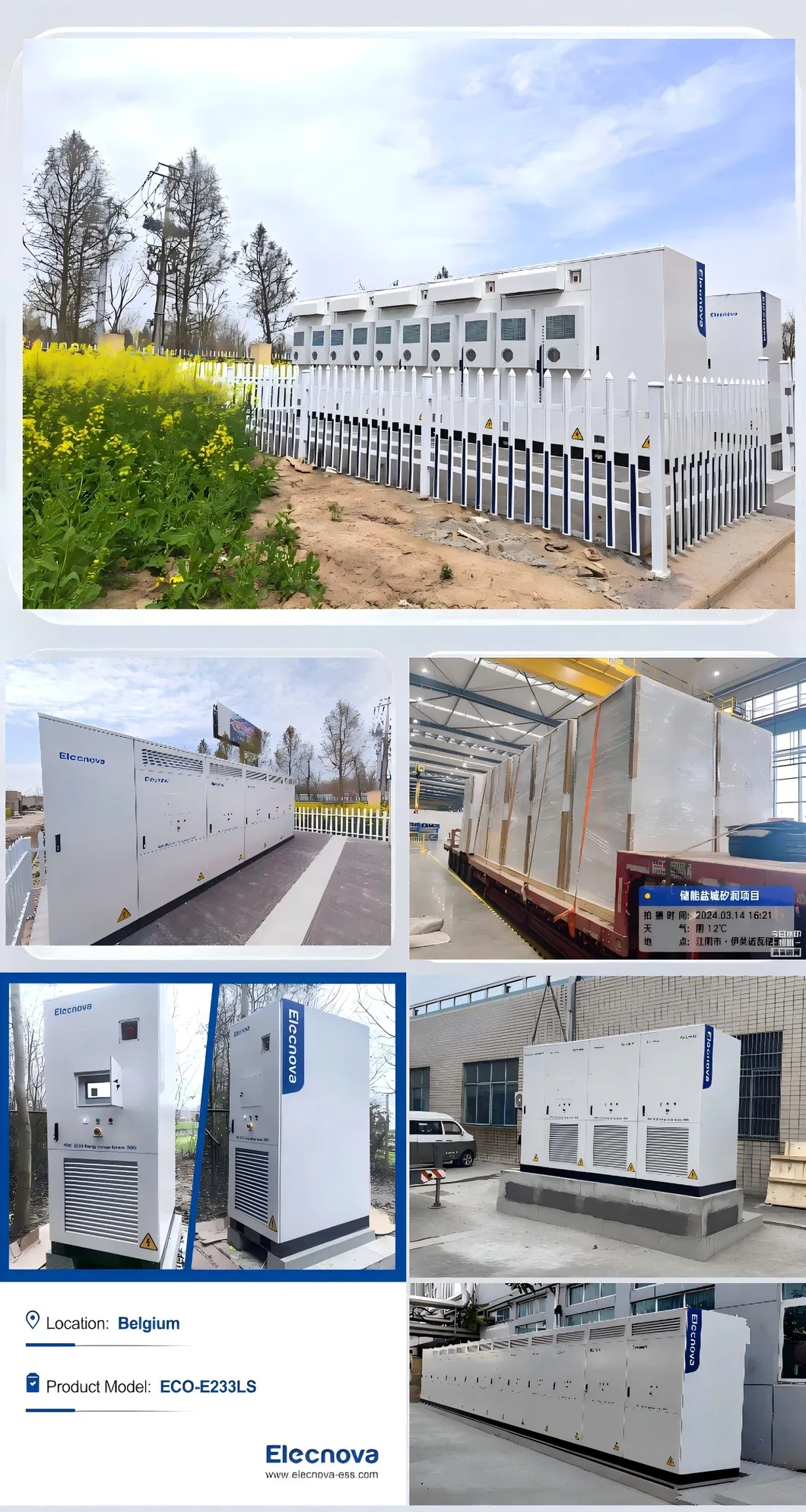

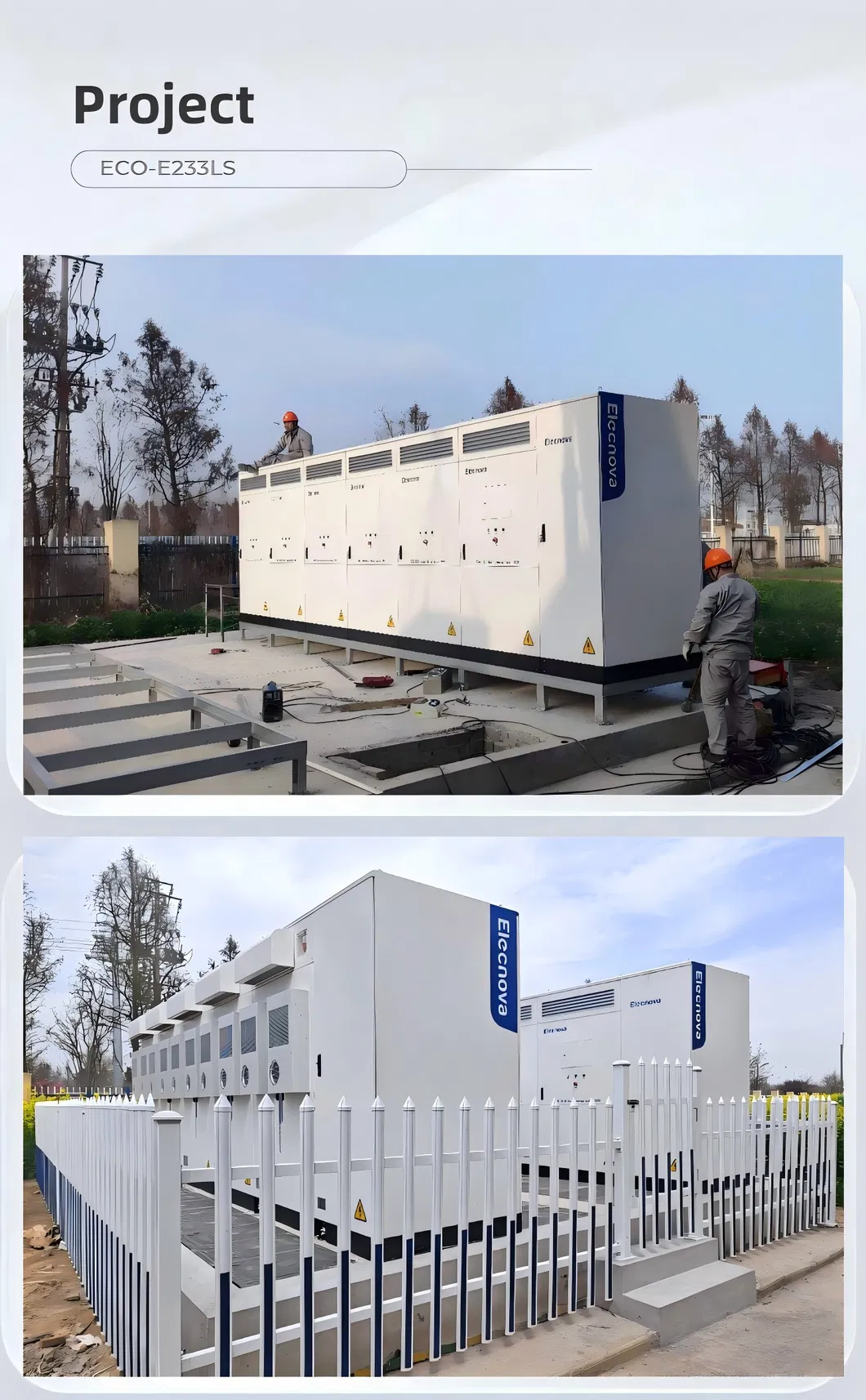

Energy storage projects successfully connected to the grid! Utilizing advanced energy storage technology and equipment characterized by high efficiency, stability, and safety.

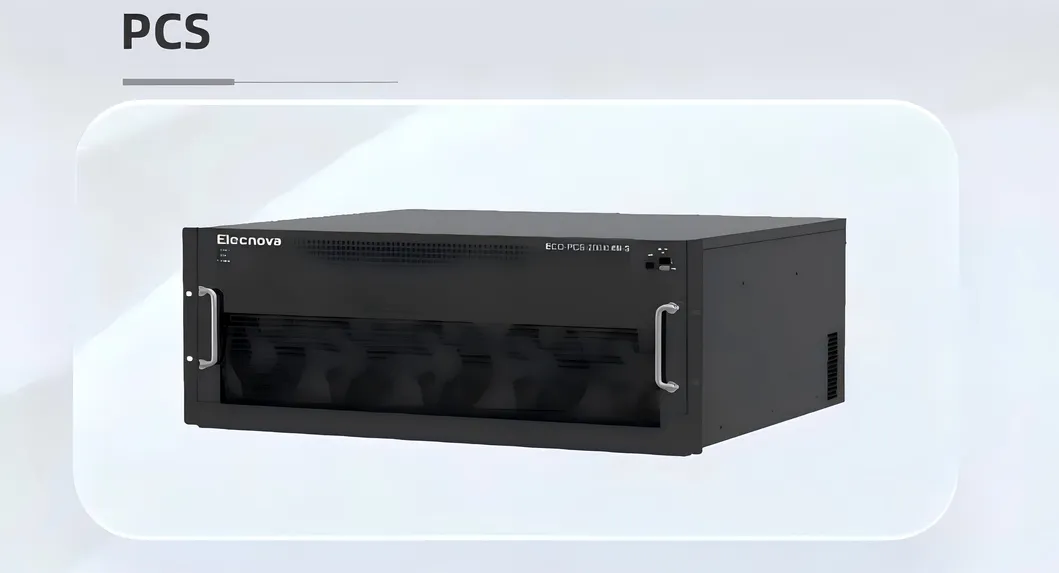

A technology-based enterprise focusing on overall solutions for energy storage systems. We possess comprehensive supporting capabilities for the system integration of PACK, PCS, and BMS. Committed to providing high-quality customized products for various energy consumption scenarios on the power generation side, grid side, and user side.
