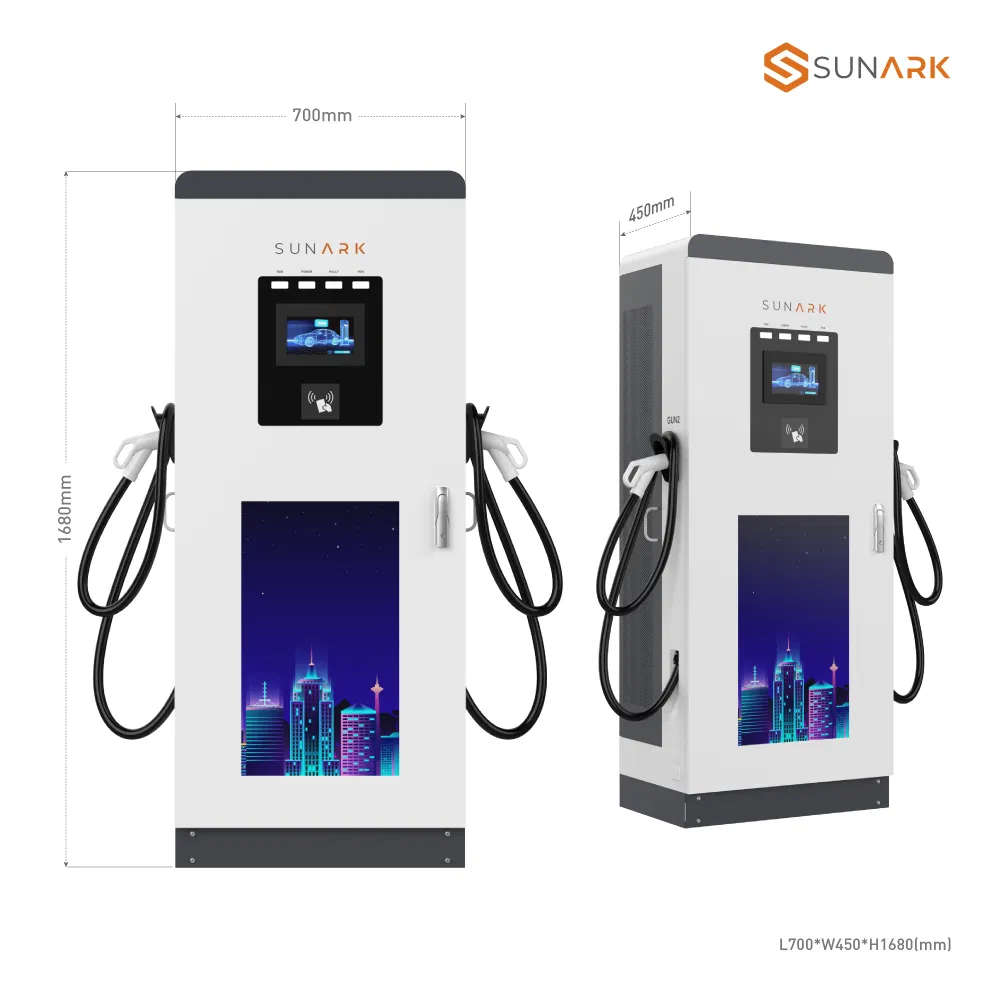

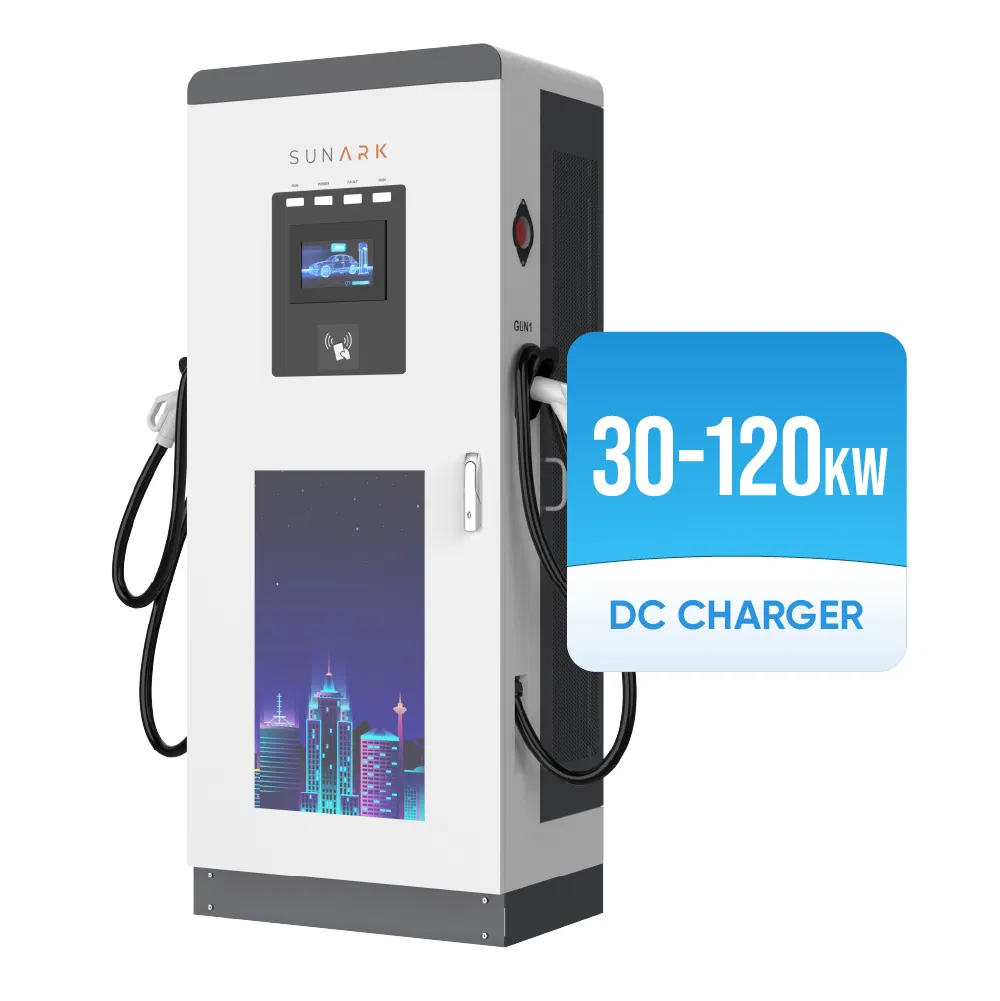

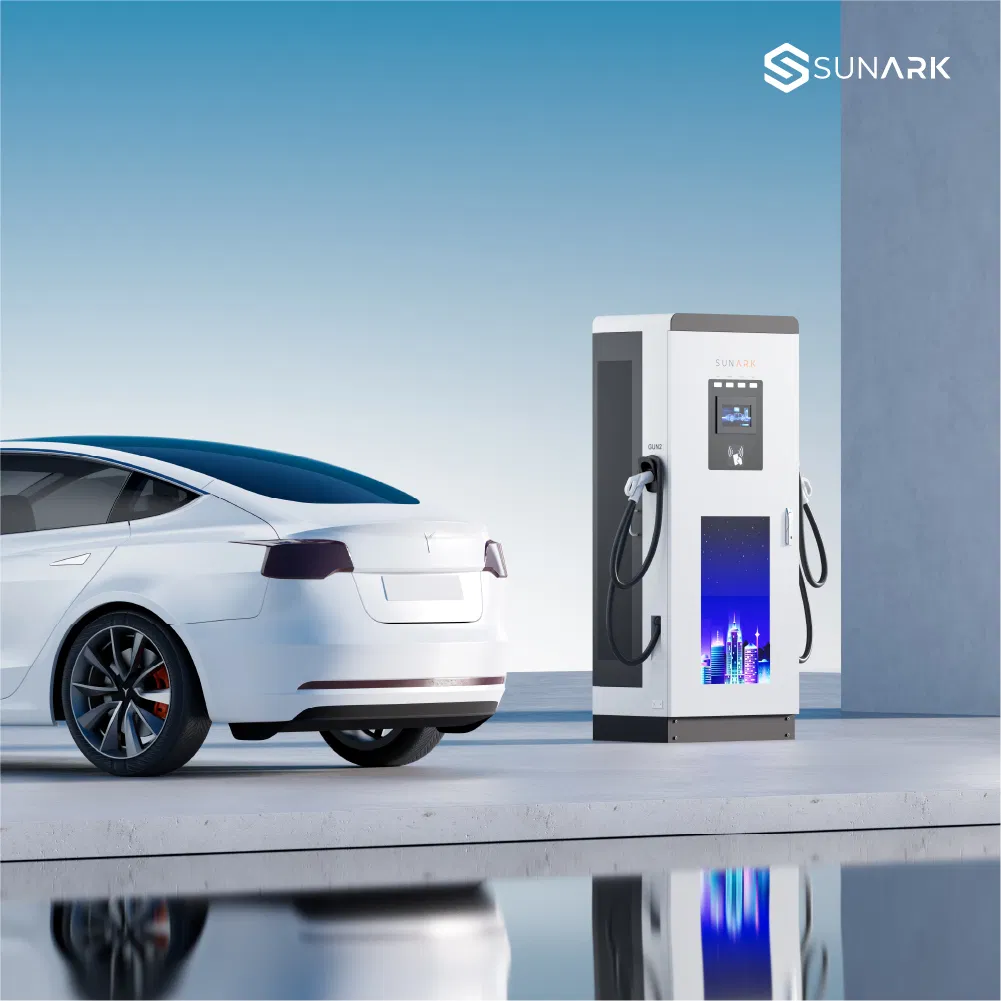

Electric Car Vehicle EV Solar Charging Station 50kw 60kw 80kw 40kw DC Fast Floor Mounted Charging Stations

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Floor Type

Product Description

i

Basic Information

Location
Private Use / Public Use
Charging Interfaces
One Pile with Multiple Charges
EV Charger Type
DC Fast Charging
Charger Capacity
30/40/50/60/80/100/120kw
Mounting
Ground-Mounted
Cooling System
Air-Cooled
IP Ratings
IP 54
Display
7 Inches Touch Screen
User Authentication
QR Code / RFID Card / Password
Protocol
OCPP 1.6J (Optional)
Communication
Ethernet / 3G / 4G / WiFi
Certificates
IEC 62196, IEC 61851, SAE J1772

Product Description

EV Charging Station Overview

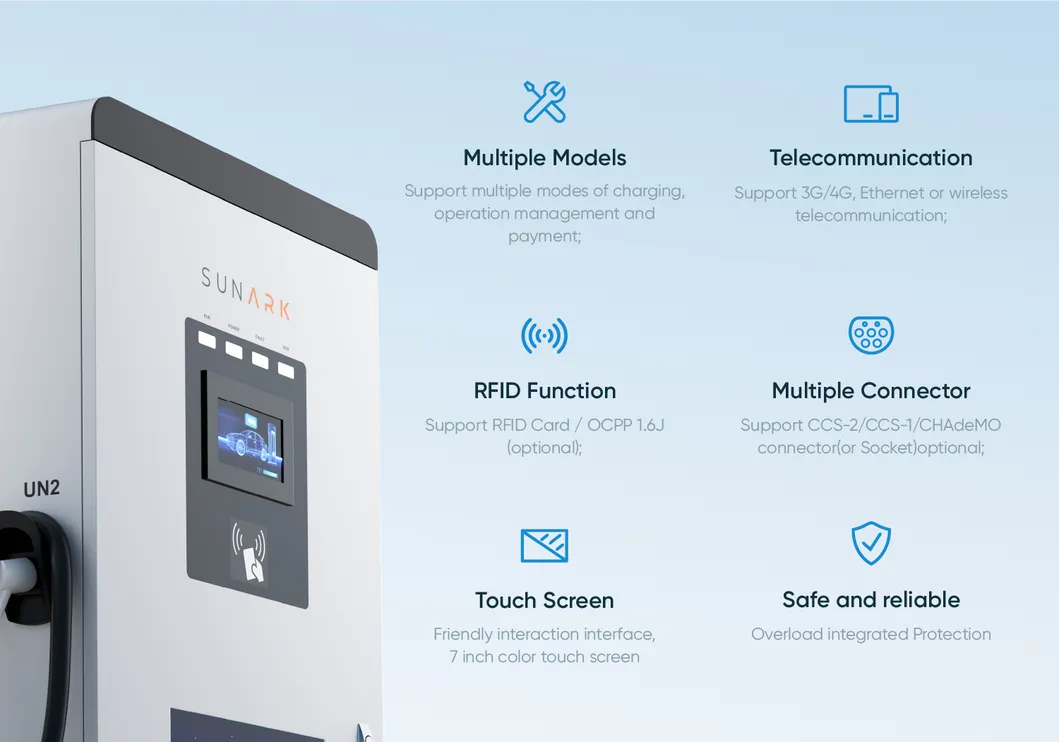

DC Fast Charging Station
Technical Specifications (30KW - 80KW)
Capacity 30KW 40KW 50KW/60KW 80KW
Input Voltage AC380V±15% (Three-Phase, 5 Wire)
Output Voltage DC200-750V / DC150-500V(JIS)
Max Current 125 Amp 150 Amp 200 Amp
Safety Over/Under Voltage, Surge, Leakage, Short Circuit, Over Temp Protection

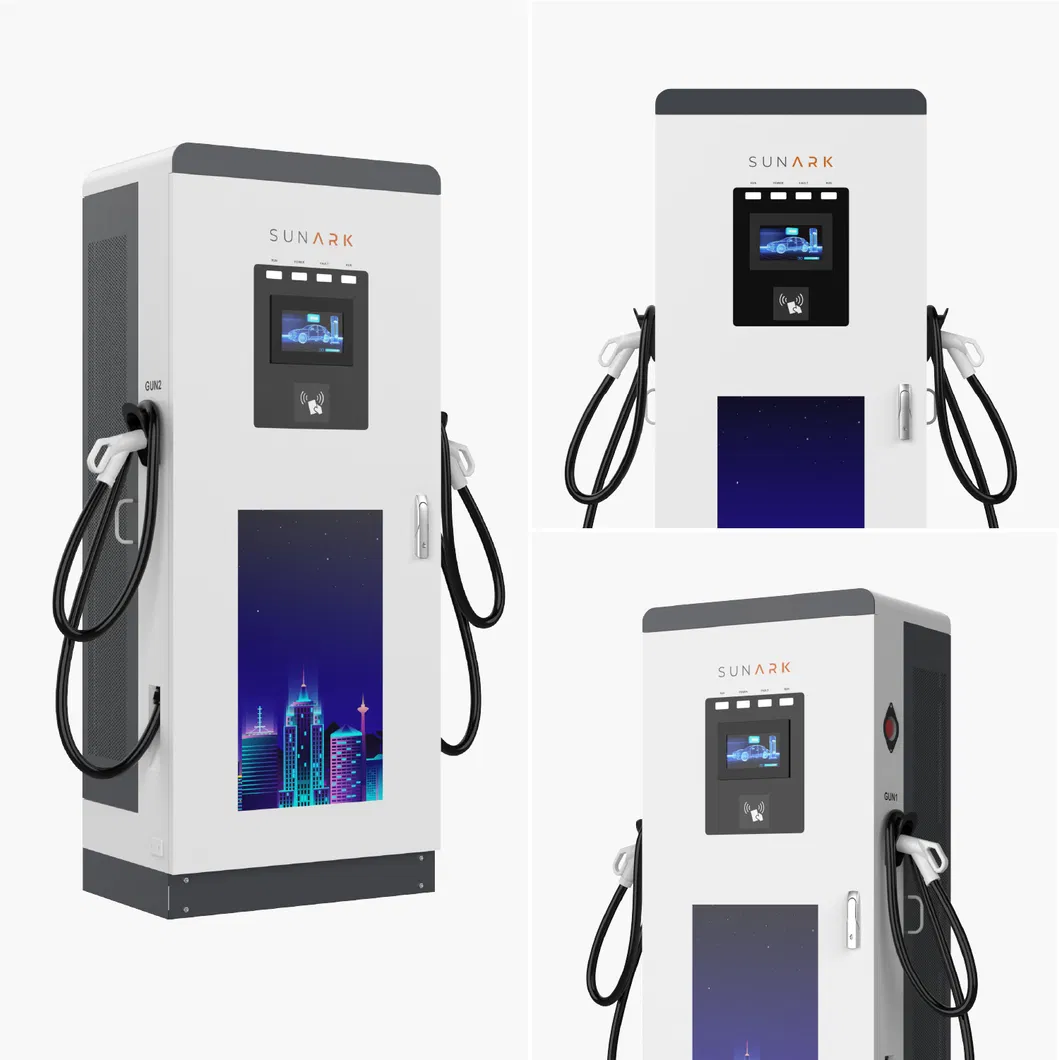

EV Charger Details

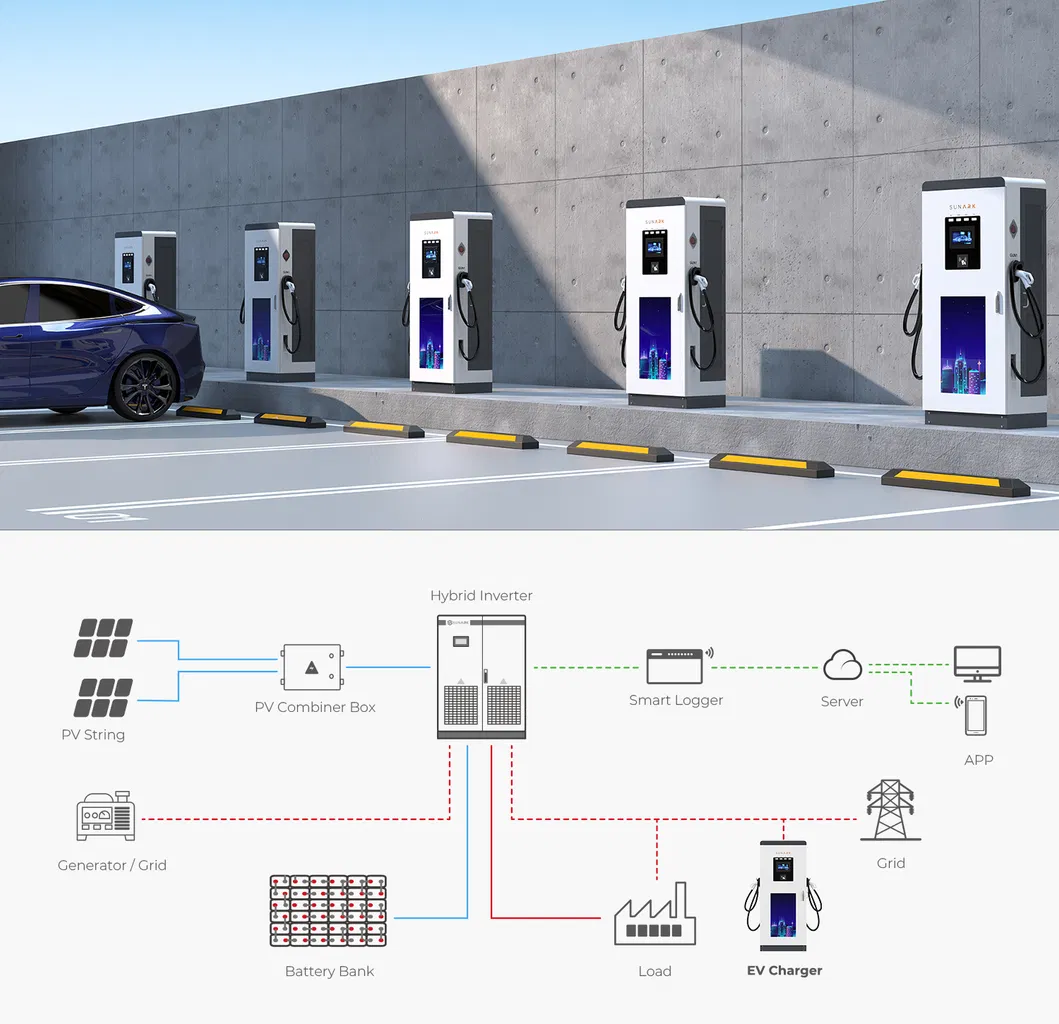

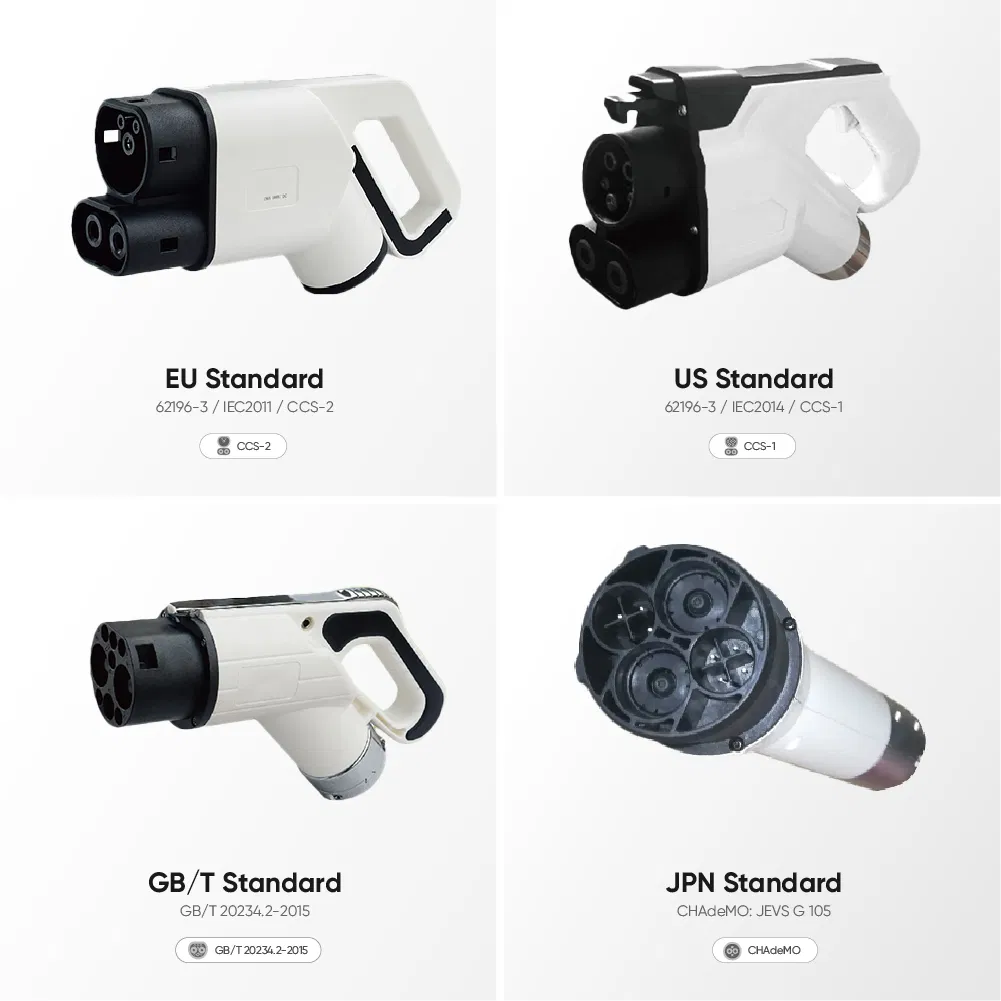

EV Charger Interface

Products Series

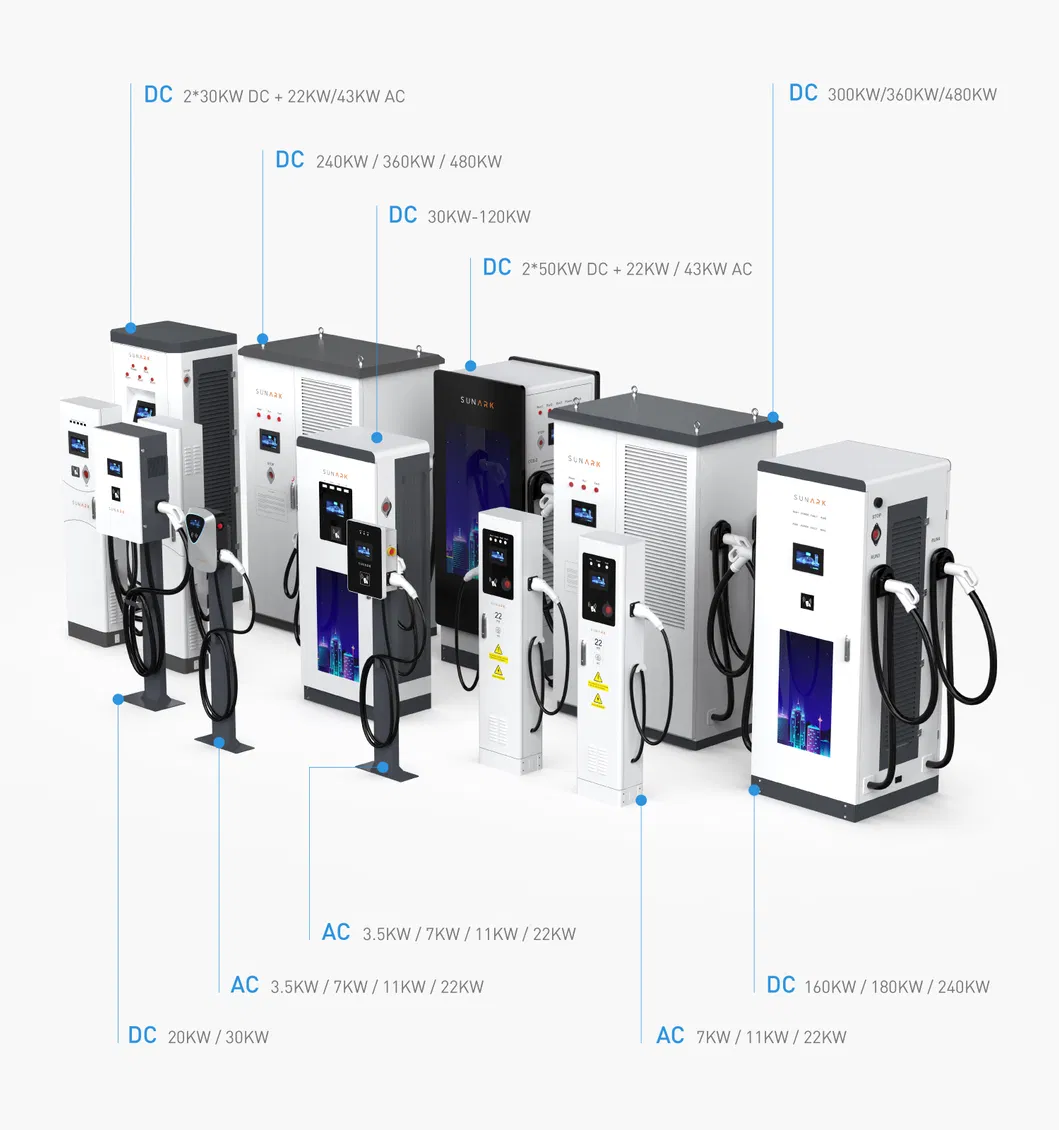

Product Series Map

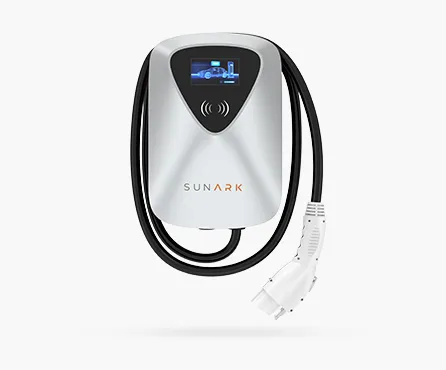

AC 3.5-22KW
AC 3.5-22KW Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Output Voltage: 220~240V, 380-415V
Connector: CCS1/2, CHAdeMO

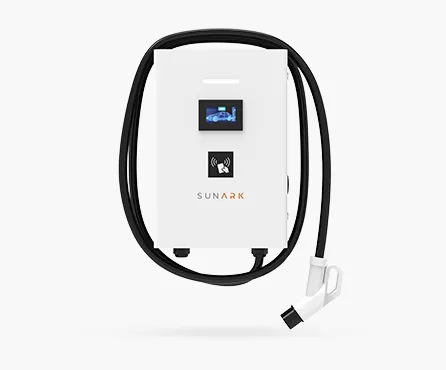

DC 20-30KW Rated Power: 20/30KW
Output Current: 80/125A
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO
DC 20-30KW
DC 30-80KW

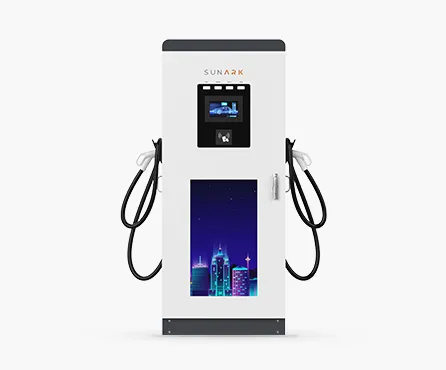

DC 30-80KW Rated Power: 30/40/50/60/80KW
Output Current: 125/150/200A
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO
DC 90-240KW Rated Power: 90/100/120/160/180/240KW
Output Current: 200A*2
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO
DC 90-240KW

Factory & Certificates

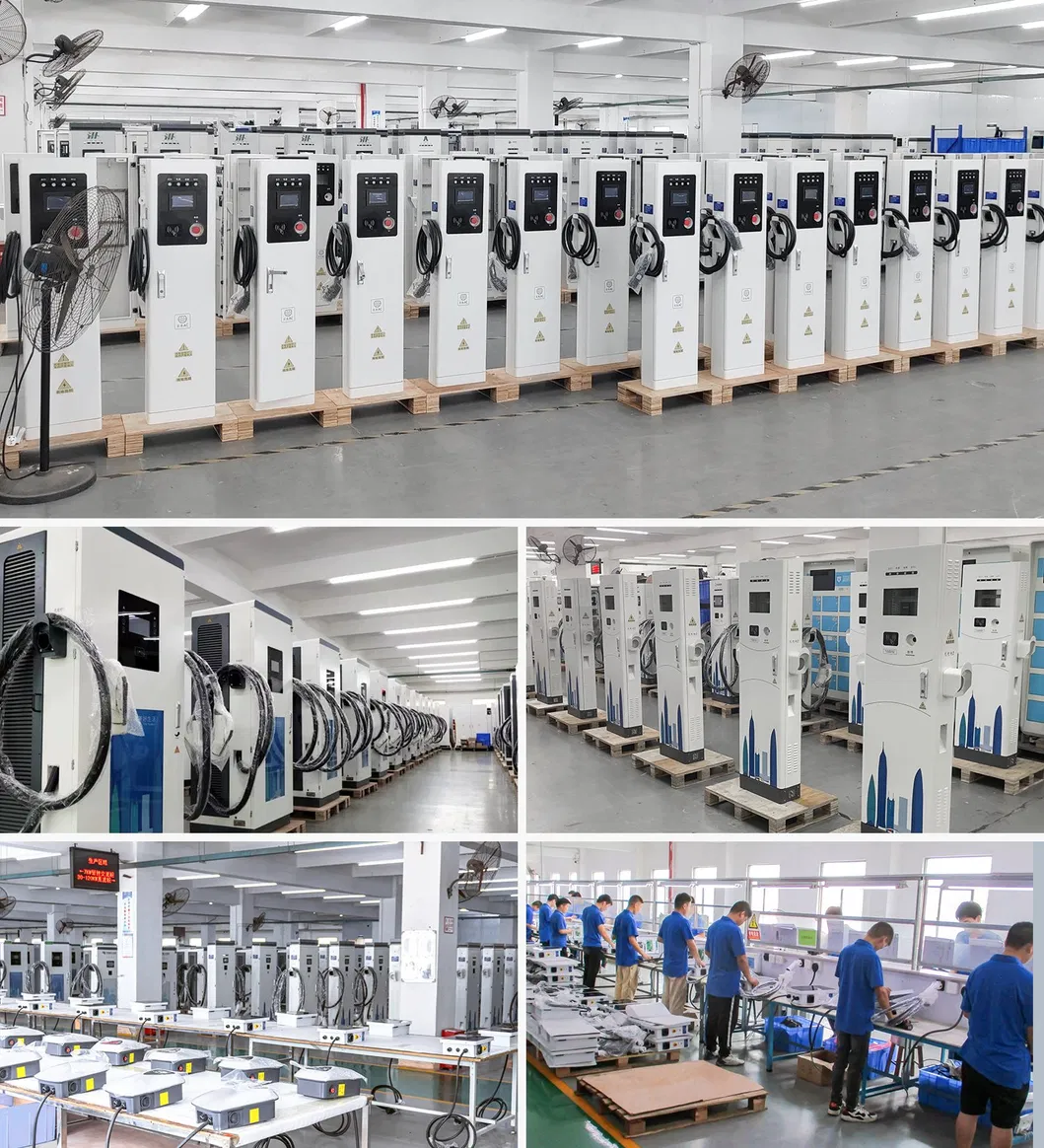

Factory View 1

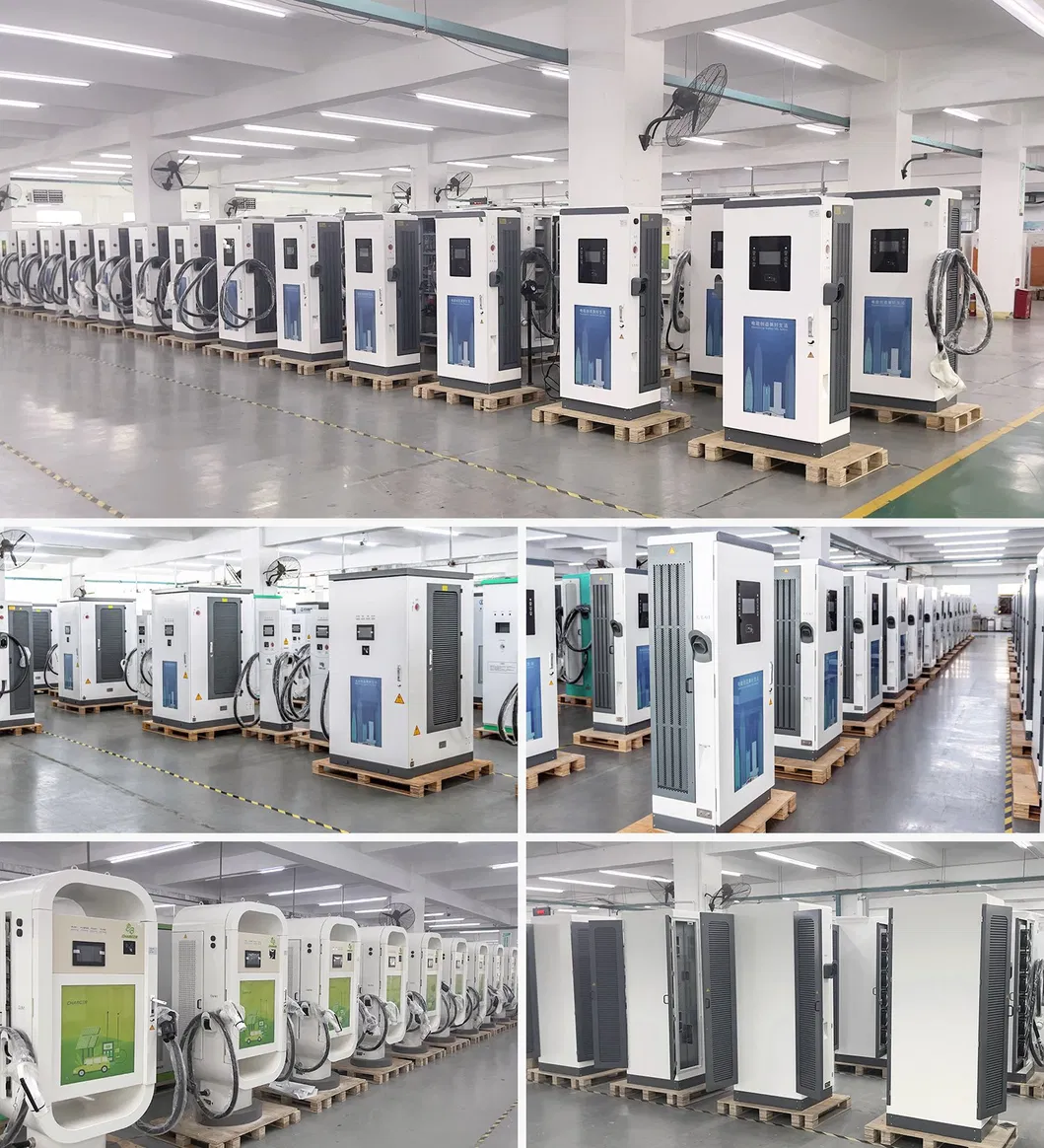

Factory View 2
Certificates
🏢

Company Profile

Company Building

Our company is a professional manufacturer established since 2002, specializing in environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries. By introducing and developing advanced technology, we adopt the world's most advanced production equipment and testing measures to ensure long product life, high energy density, and environmental protection features.

As a high-tech enterprise, we operate multiple manufacturing bases with approximately 2,000 employees, including research experts with over 40 years of experience. We invest heavily in scientific research to overcome battery technology challenges, ensuring our products meet and exceed international standards with numerous national and international patents.

Production Line
R&D Center
?

Frequently Asked Questions

What charging capacities are available for the DC fast chargers?
We offer a wide range of capacities including 30KW, 40KW, 50KW, 60KW, 80KW, 100KW, and up to 120KW to suit different charging needs.
What are the protection levels of these charging stations?
The stations are rated IP54, providing excellent protection against dust and water. They also include over-current, over-voltage, surge, and leakage protection.
How do users authenticate themselves to start charging?
Users can authenticate via QR Code scanning, RFID Card, or by entering a password on the 7-inch touch screen.
Does the charger support remote management?
Yes, the chargers support the OCPP 1.6J protocol (optional) and can connect to a CMS via Ethernet, 3G/4G, or WiFi.
Which electric vehicle standards are compatible?
Our chargers are compatible with major international standards including IEC 62196, IEC 61851, SAE J1772, and CHAdeMO.
