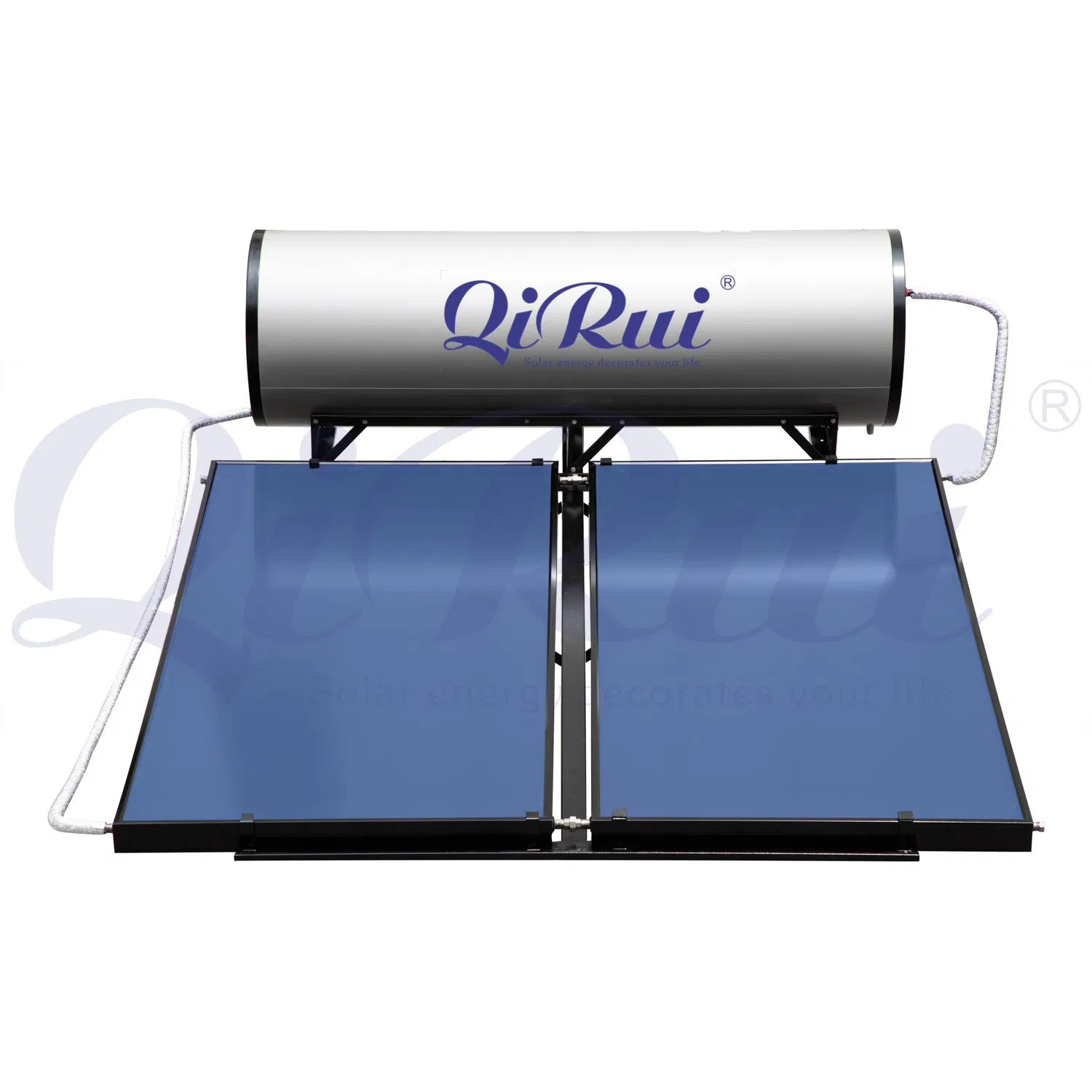

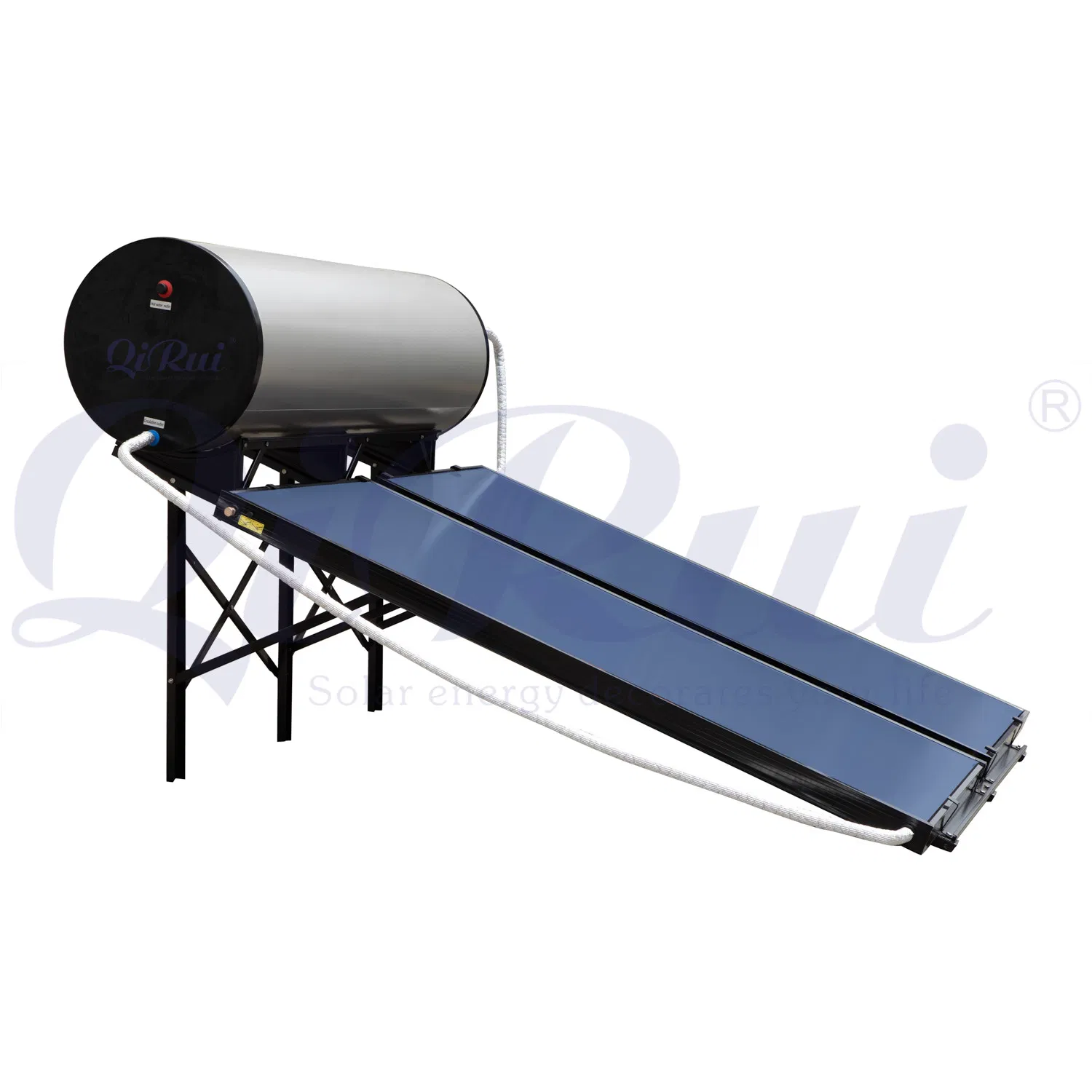

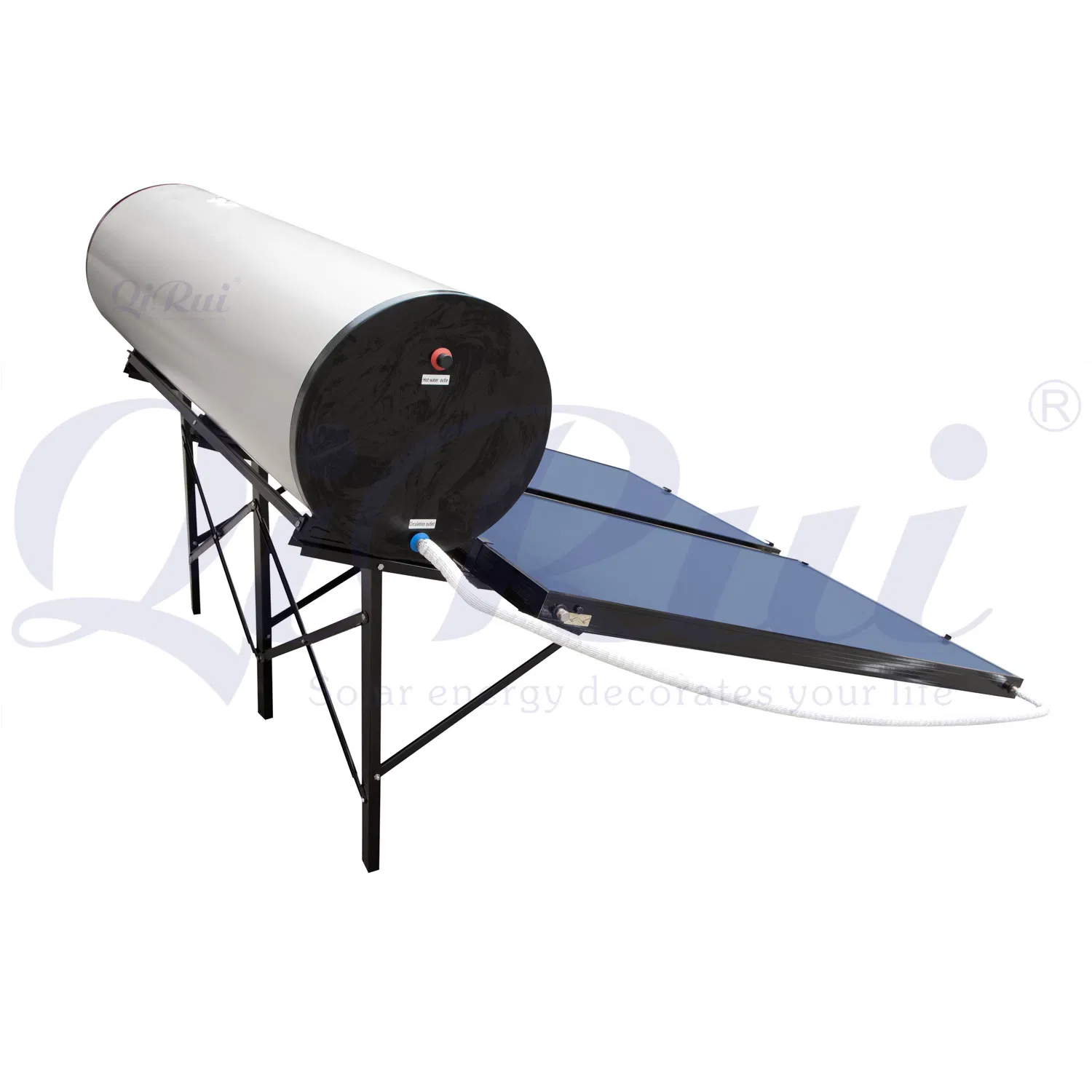

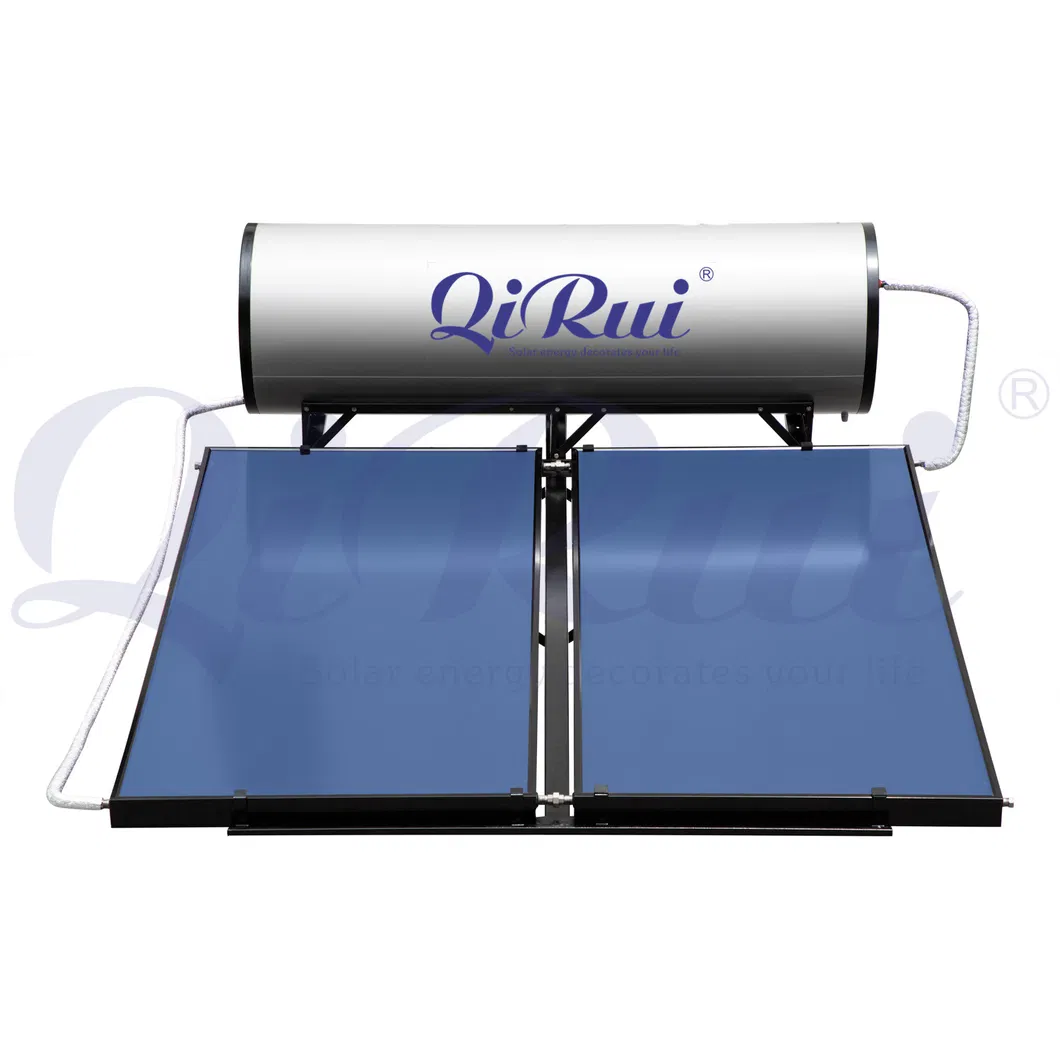

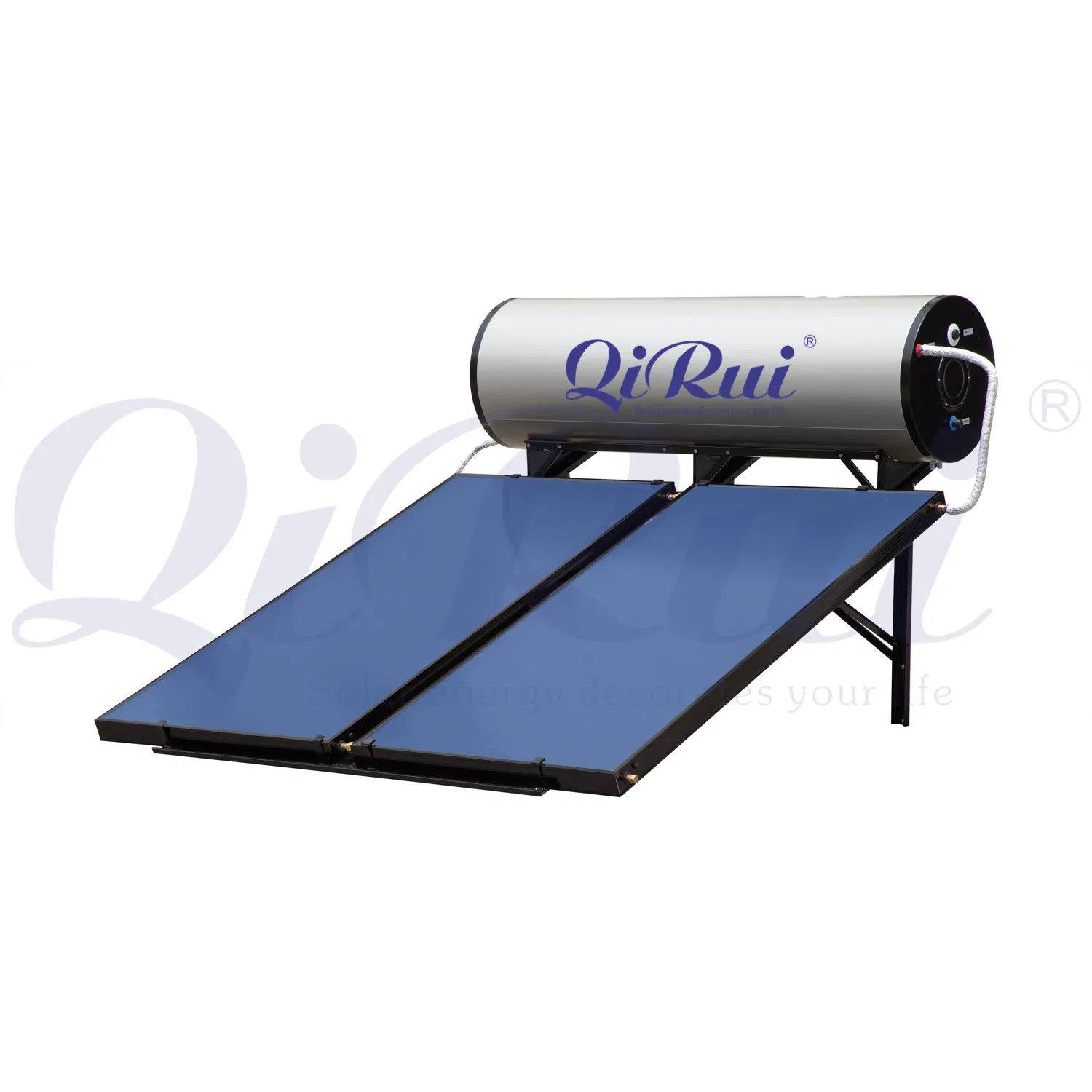

100L 150L 200L 250L 300 Liter Enamel Jacket Tank High Pressure Solar Geyser Flat Plate Panel Hot Water Heater
Basic Specifications
| Model NO. |
PFTP-300 |
Structure |
Compact Type |
| Pressure |
Pressurized |
Interior Material |
Stainless Steel |
| Collector Components |
Flat-plate |
Composition |

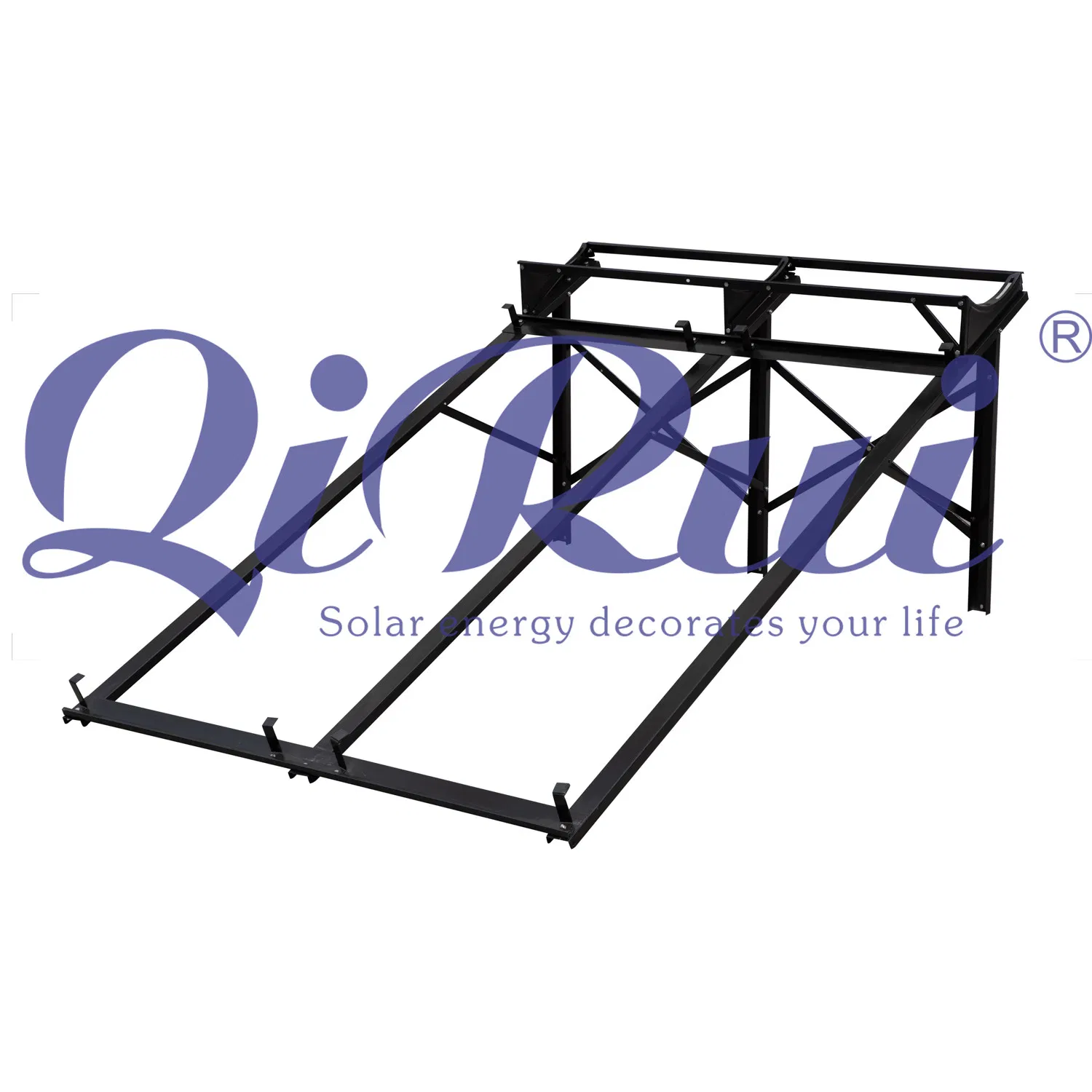

Bracket |
| Certification |
CE, ISO9001, CCC |
Solar Collector Size |
2000 X 1000 X 80mm |
| Absorber Material |
Titanium Selective Coating |
Insulation |
Polyurethane (72 Hours) |
| HS Code |
8419191000 |
Capacity |
100L to 500L |
Quick Guidance
- ✔ Free brand/LOGO print based on bulk quantity
- ✔ 1% free spare parts included
- ✔ Factory audited by SGS, TUV and BV
- ✔ Flexible Payment: T/T, L/C, Western Union
- ✔ Fast Delivery: Within 12 days
- ✔ Certified Quality: Solar Keymark EN12976/CE/CCC
Work Principle
Through a thermo-siphon effect (in which hot water rises), the liquid circulates between the flat plate solar collectors and the water tank jacket (heat exchanger), ensuring the water in the tank is heated efficiently and consistently.

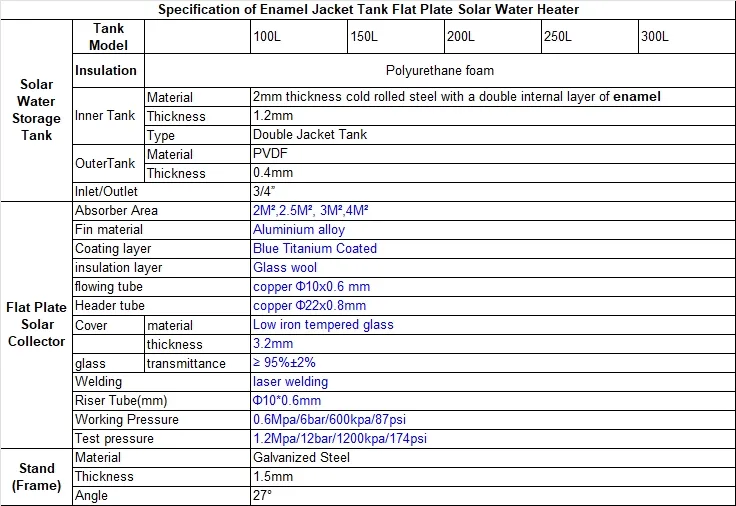

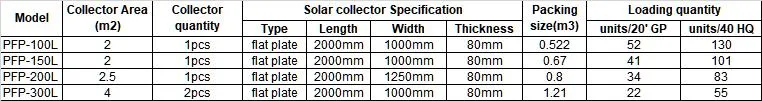

Product Parameters
Professional Services
- 🚀 Fast Delivery: 40ft containers delivered within 7 days.
- 🎧 Sales Support: Experienced team for fast confirmation of all technical questions.
- 🌍 Market Expertise: Custom designs tailored for different global markets.
- 📦 Combined Loading: Assistance with loading other goods in the same container.
- 🛠 Technical Guide: Full installation guidance and training provided.
- 🏷 Customization: Logo printing on water tanks and shipping cartons.
Frequently Asked Questions
Is solar water heating a viable alternative to gas or electricity?
Solar should be seen as a supplement. While it cannot totally replace gas or electric heating on low-sunlight days, a correctly sized system can provide 60%-70% of a household's annual hot water needs.
How long will it take to recoup my investment?
In a normal household spending 25% of its electricity bill on water heating, the full cost may be recouped as quickly as 4-5 years through reduced energy bills.
Can these solar collectors be used in cold conditions?
Yes. Collectors can be used in temperatures as low as -30°C, although performance is reduced in extreme cold. Excellent output is still achieved in mild sub-zero conditions.
Will water be heated on a cloudy day?
Yes. Although output is reduced on overcast days, it still provides heating. Automated systems ensure you have hot water regardless of weather via electric or gas boosting when needed.
Can I use a solar collector with my existing hot water system?
Normally yes. Retrofit valves allow connection to existing cold water inlets, or an additional storage tank can be installed to pre-heat water before it enters your existing unit.
Is the solar collector a fire hazard during hot, dry weather?
No. Components are high-temperature rated and non-flammable (stainless steel, aluminium, glass). Systems include a temperature relief valve to prevent exceeding 99°C / 212°F.
