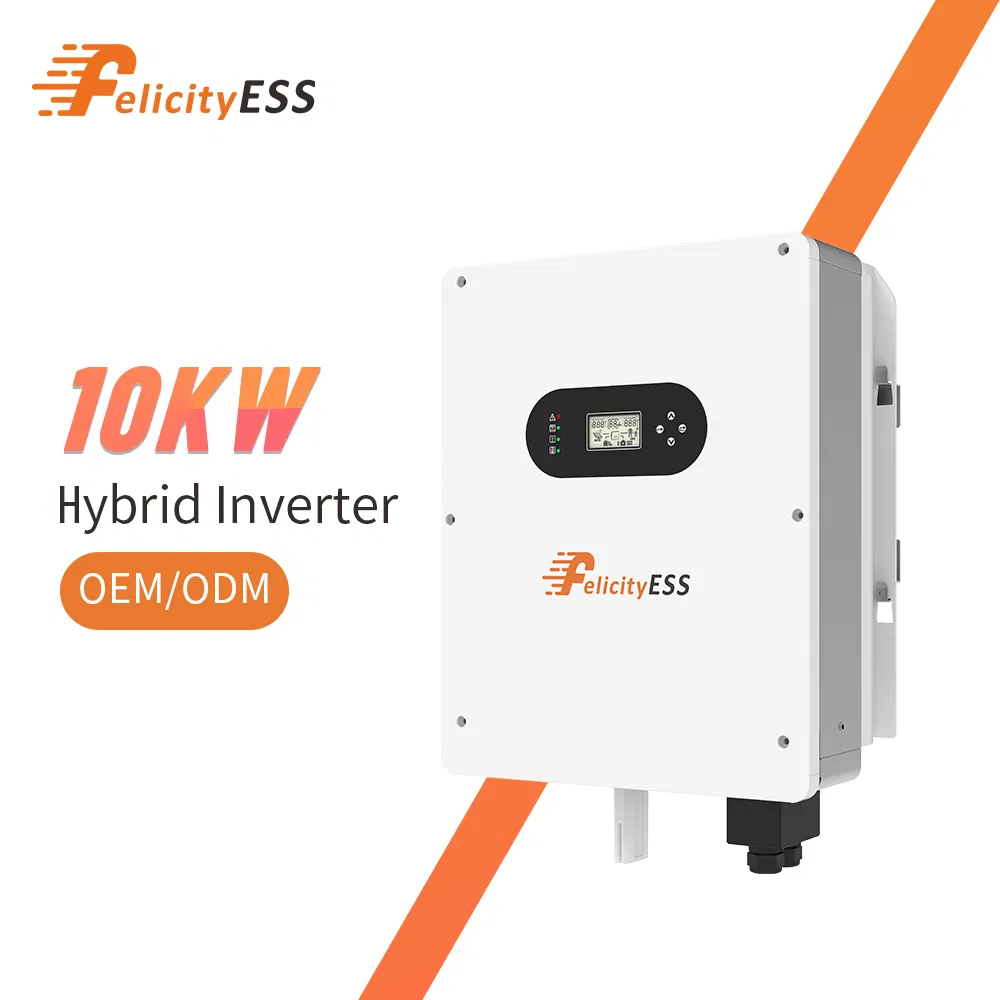

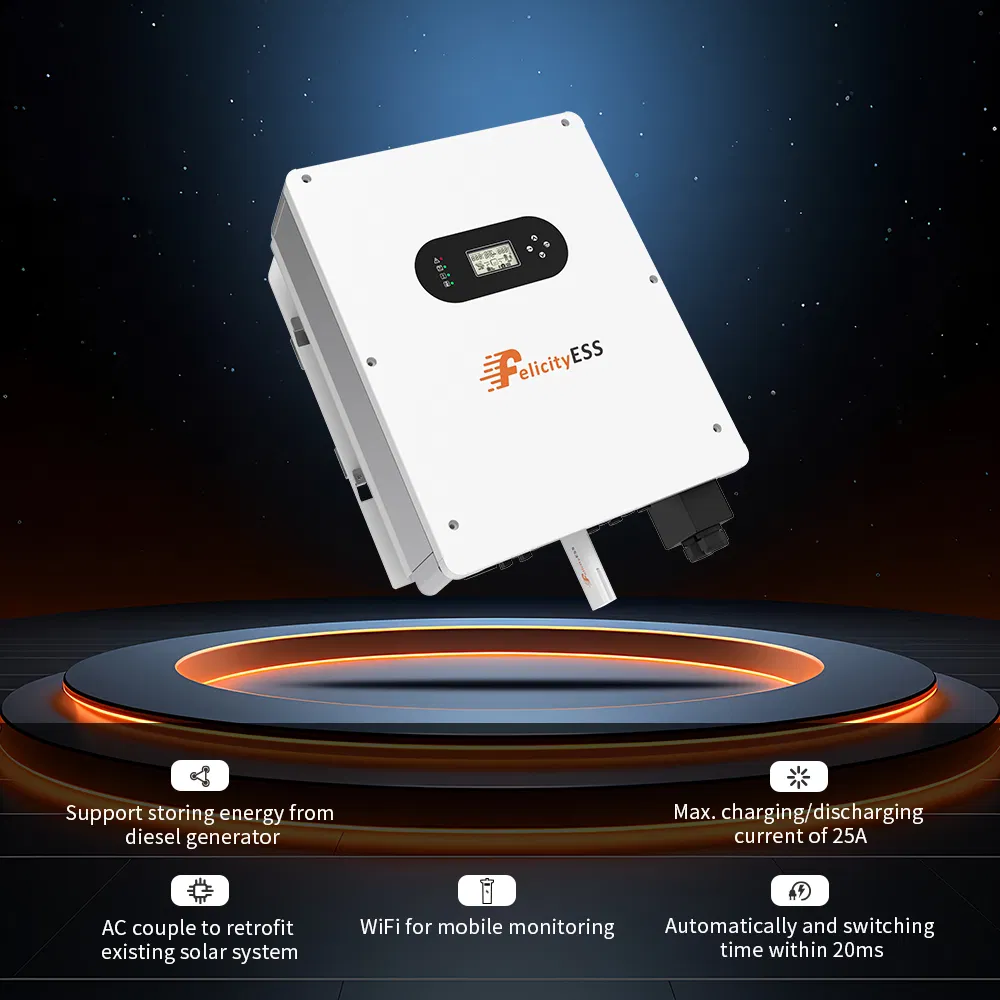

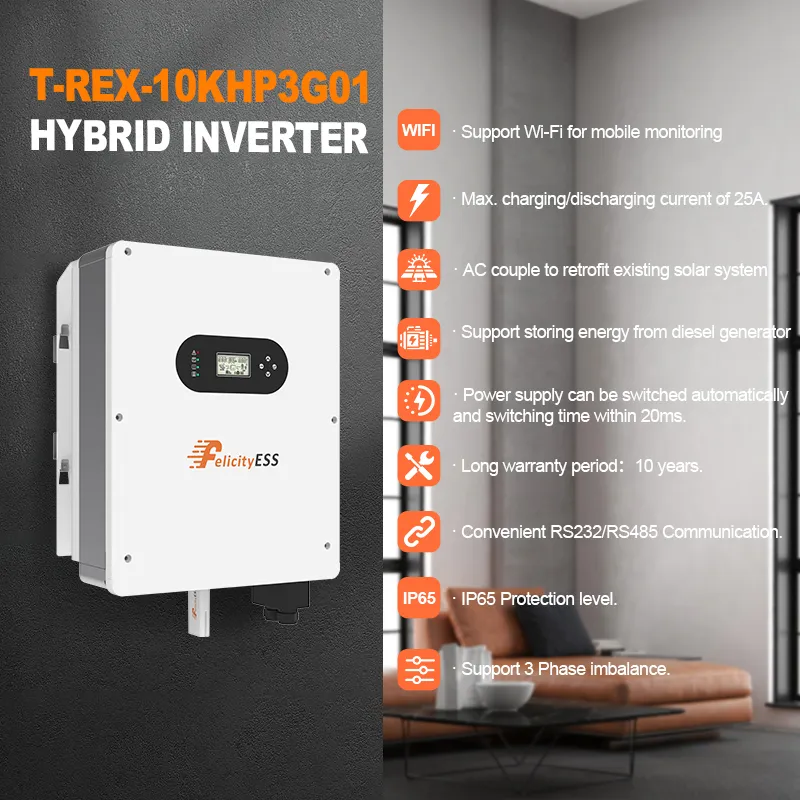

This 10kw Hybrid Solar Inverter is designed for both off-grid and on-grid solar energy power systems. Featuring split-phase technology, it provides high-efficiency power conversion and intelligent energy management for residential and commercial applications.
| Battery & DC Input Data | |
| Model | T-REX-10KHP3G01 |
| Battery Voltage Range | 180V~580V |
| Max Charging Current | 25A |
| Max Recommended PV Power | 13000W |
| Max PV Voltage | 900V |
| MPPT Voltage Range | 200V-850V |
| Grid & AC Output Data | |
| Nominal Input Voltage | 230/400Vac (Three Phase) |
| Max AC Output Power | 10000W |

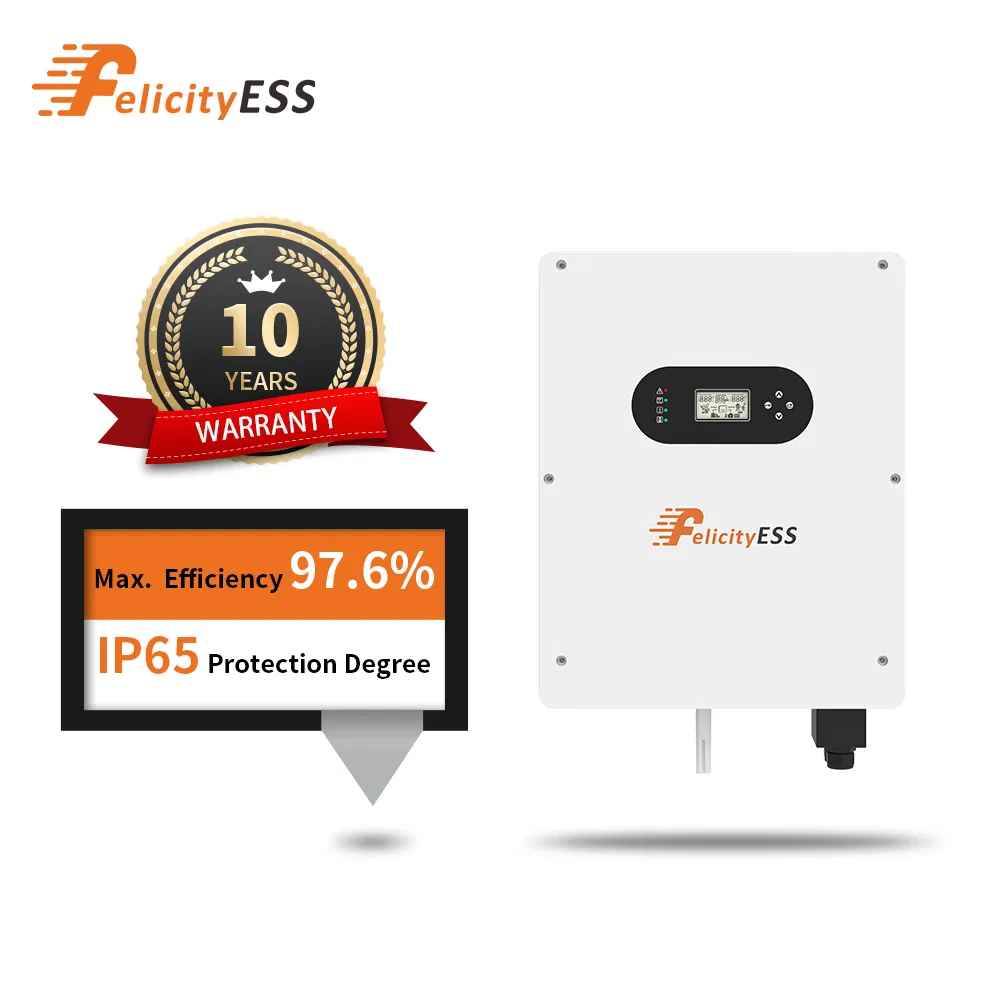

| Max Efficiency | 97.6% |
| MPPT Efficiency | 99.9% |
| General & Protection | |
| Operating Temperature | -25°C ~ 60°C |

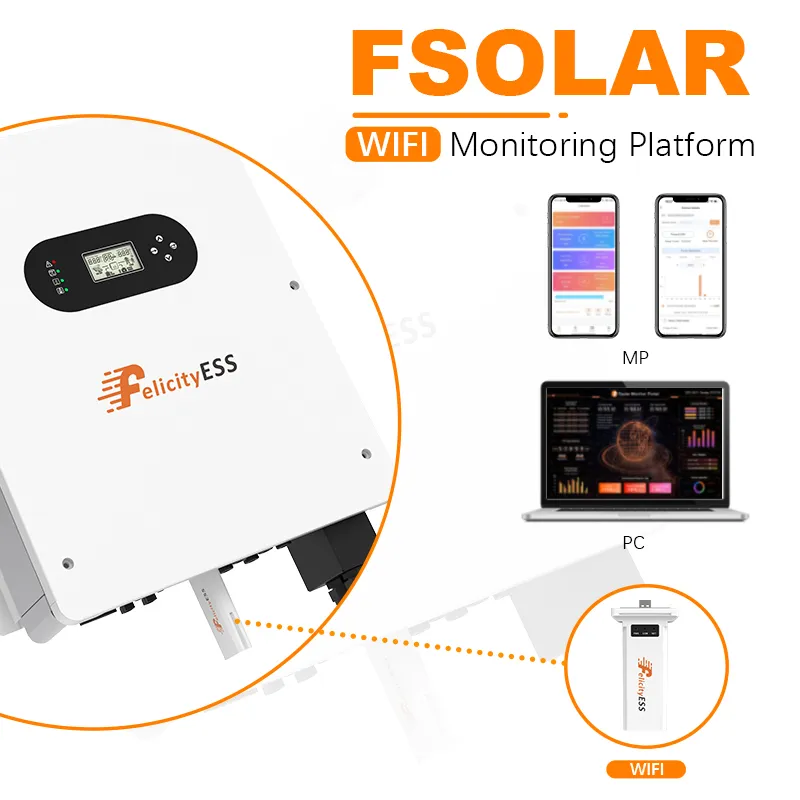

| Communication | RS232 / RS485 / CAN / WiFi / GPRS |
| Warranty | 10 Years |

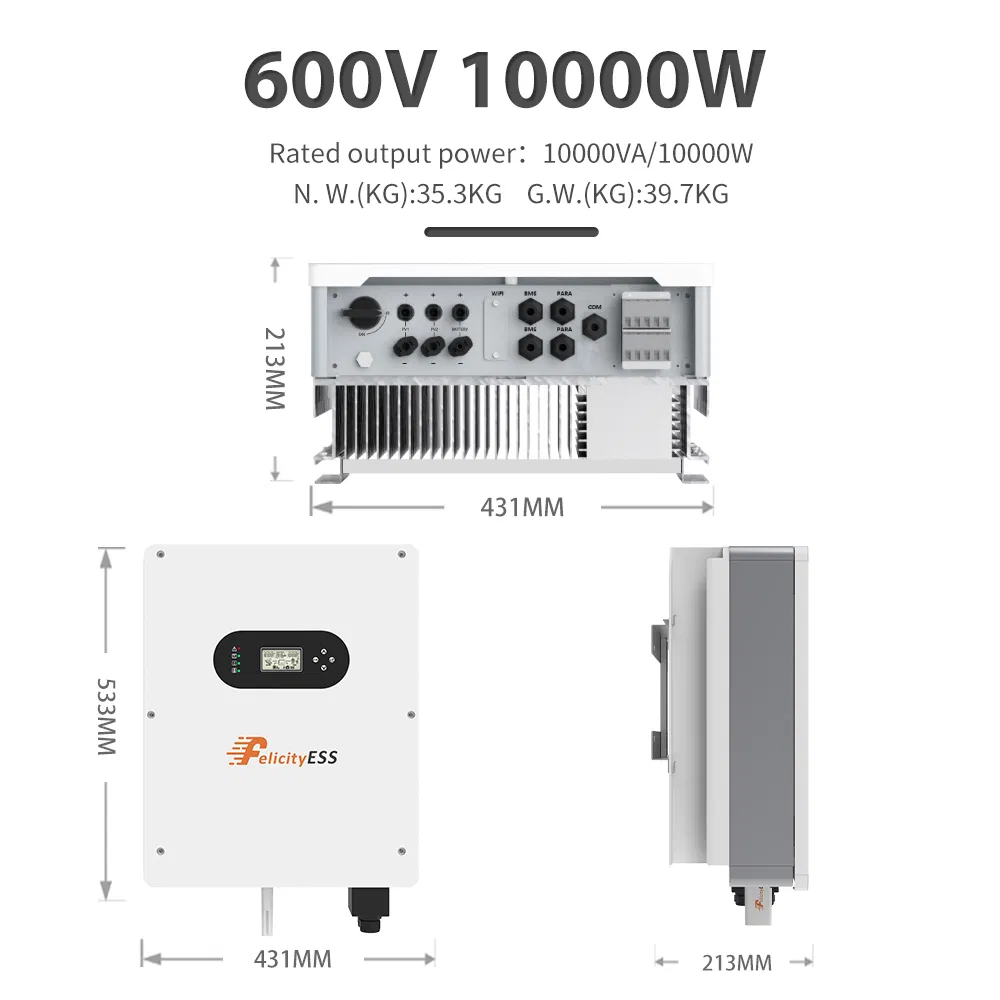

| Net Weight | 35.3KG |

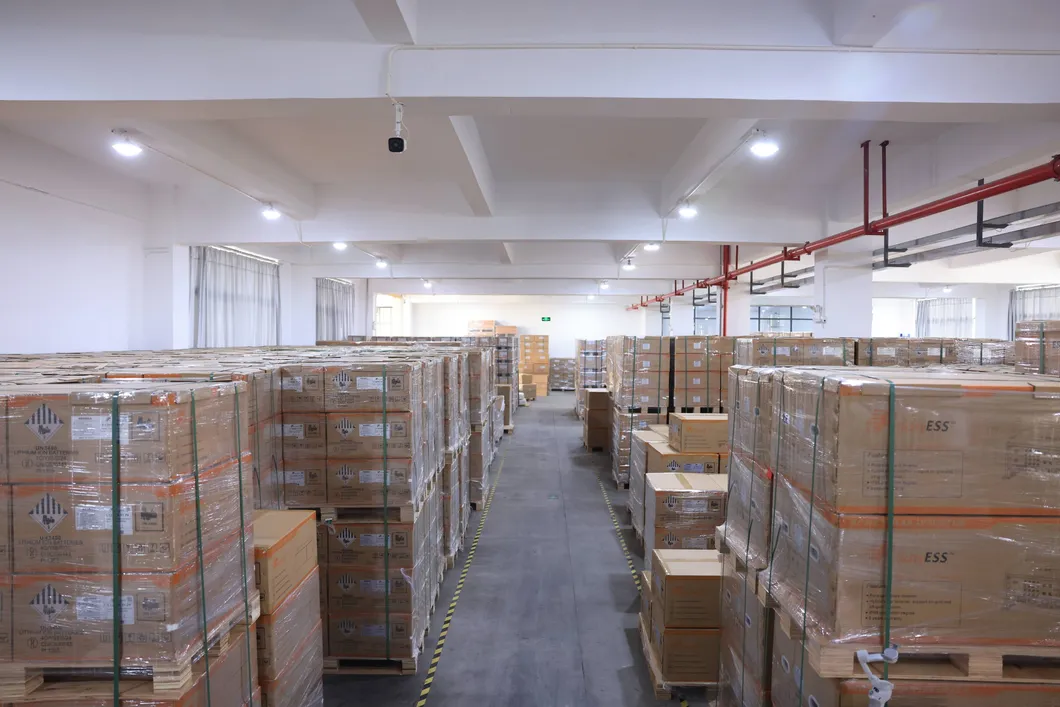

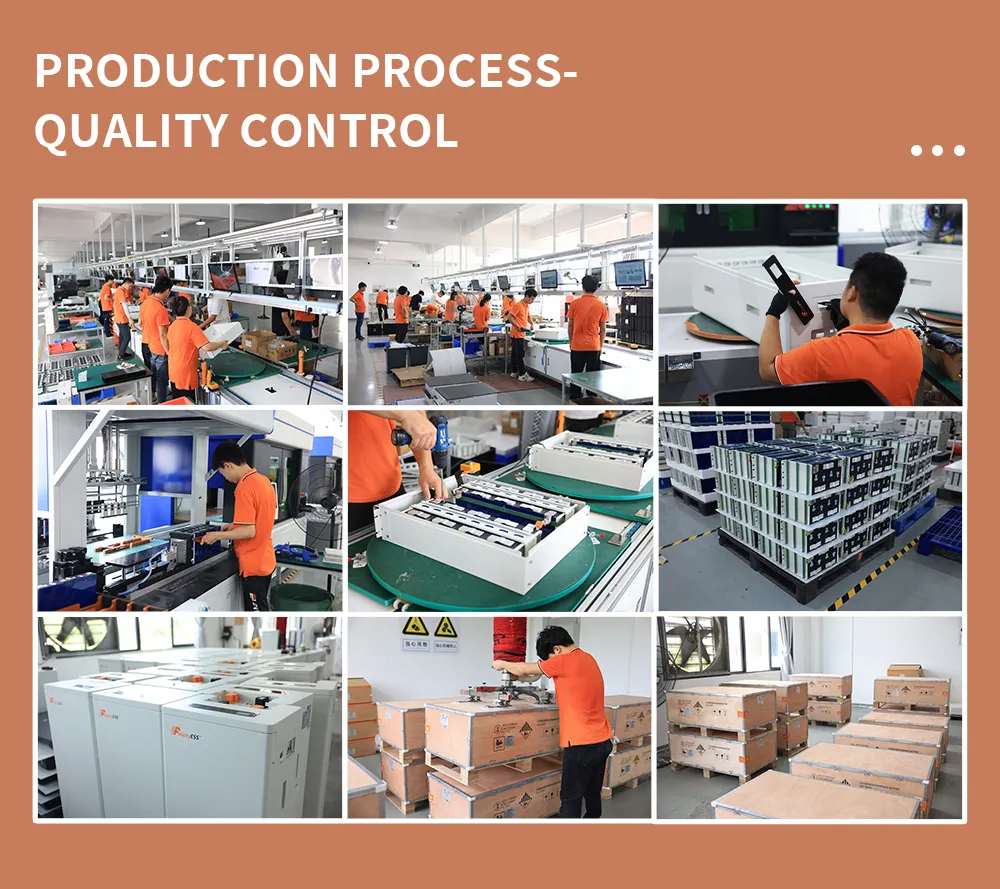

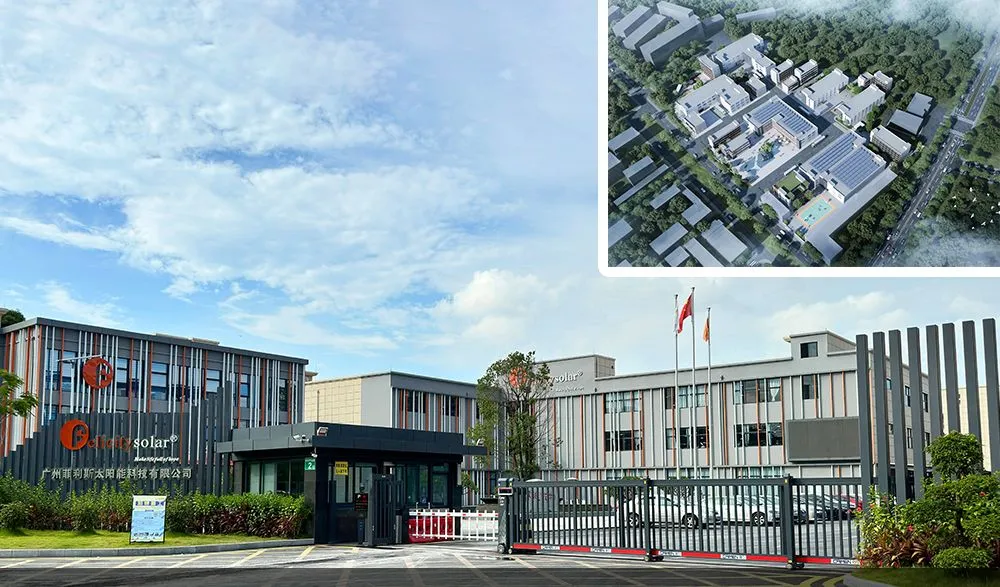

Our production facility spans 40,000 square meters with over 1,000 skilled employees, ensuring rigorous quality control and efficient energy storage solutions for homes and businesses.
