| Model NO. | IVGM10048 | Nature of Source Flow | Active Inverter |
| Phase | Three | Output Power | 10kw |
| Certification | CE, ROHS, ISO9001 | Type | DC/AC Inverters |
| Power Source | Solar Power, Grid | Battery Type | Li-Lon/Lead-Acid |
| MPPT Voltage Range | 100V-500V | Max. Efficiency | 97.6% |
| Battery Input Data | |
| Battery Voltage Range | 40V~60V |
| Max. charging/discharging current | 200A/200A |
| Max. power | 10000W |
| DC Input Data (PV Side) | |
| Max. recommended PV power | 13000W |
| Max. PV voltage | 900V |
| MPPT voltage range | 200V-850V |
| Number of MPPT trackers | 2/1 |
| AC Output Data | |

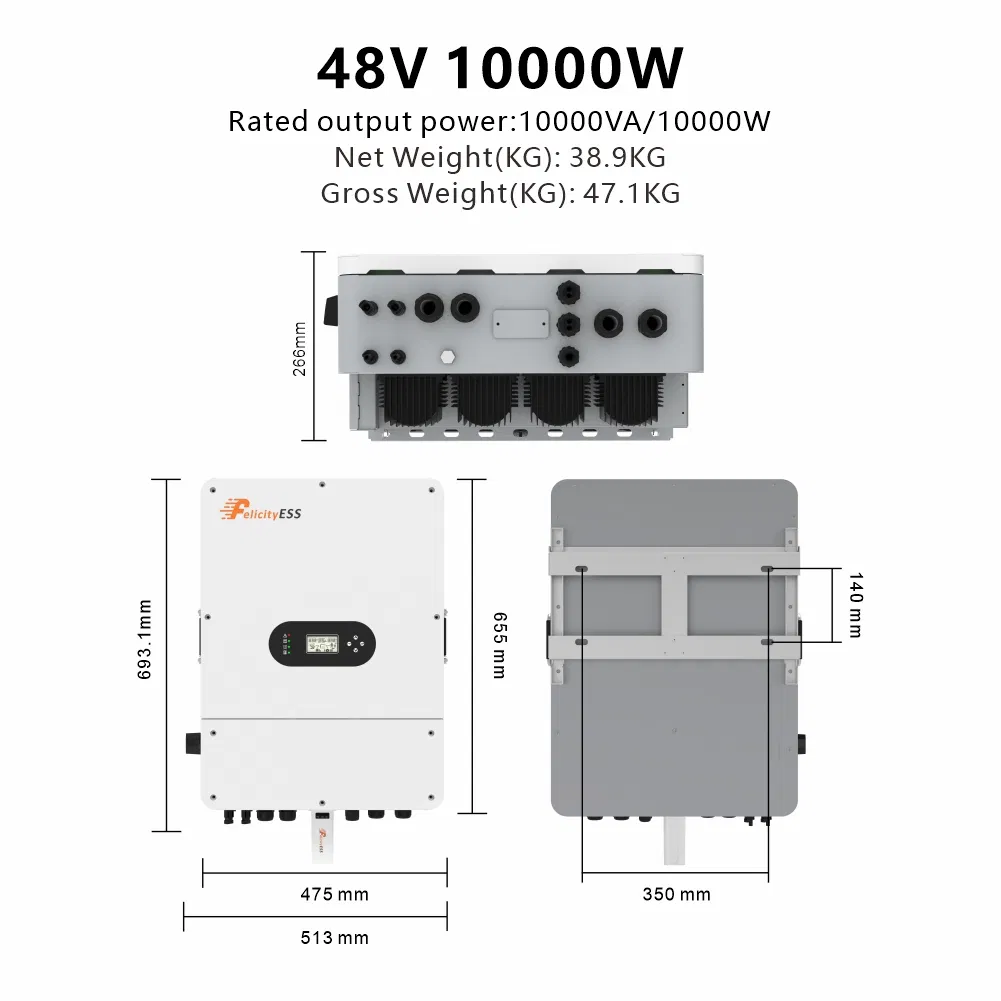

| Rated output power | 10000VA/10000W |
| Rated AC output voltage | L1/L2/L3/N/PE, 230/400Vac |

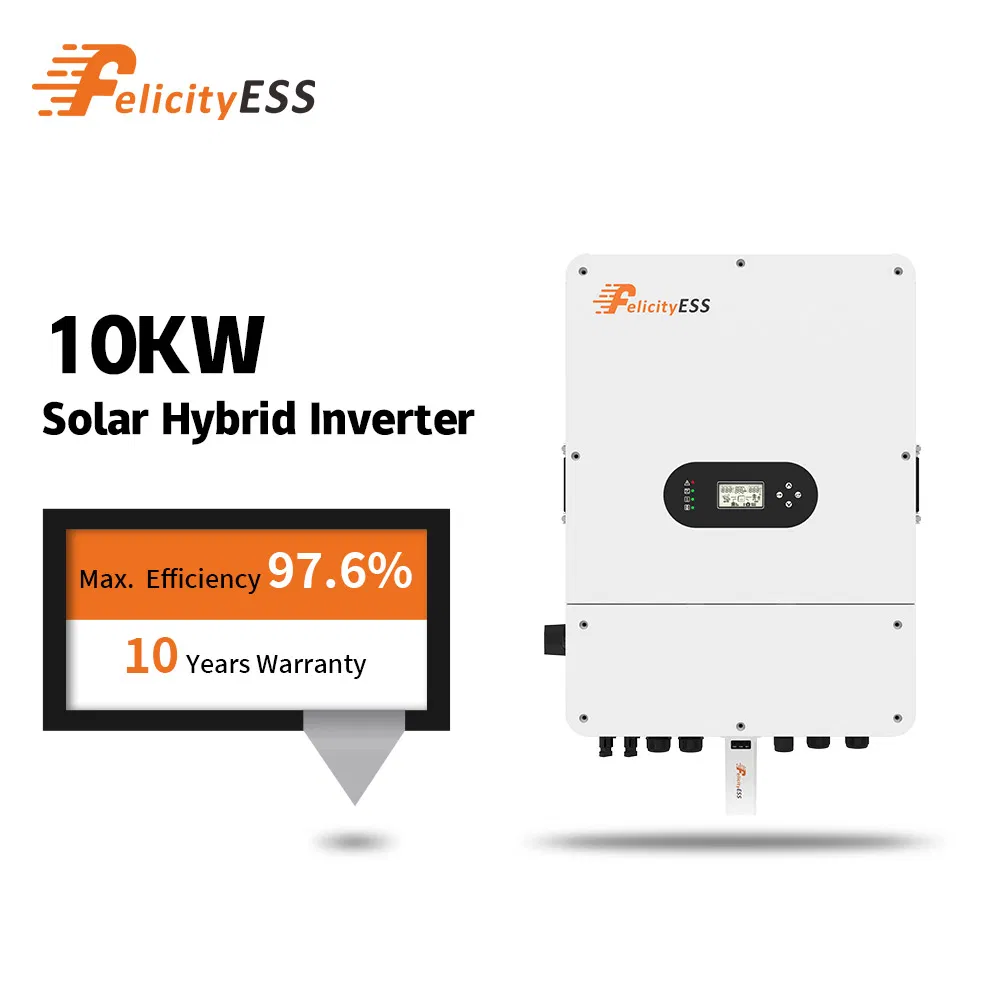

| Max. Efficiency | 97.6% |
| General Data | |
| Protection degree | IP65 |
| Communication | RS232/RS485/CAN |
| Warranty | 10 years |
We provide a comprehensive English manual and step-by-step videos covering machine disassembly, assembly, and operation for our customers.

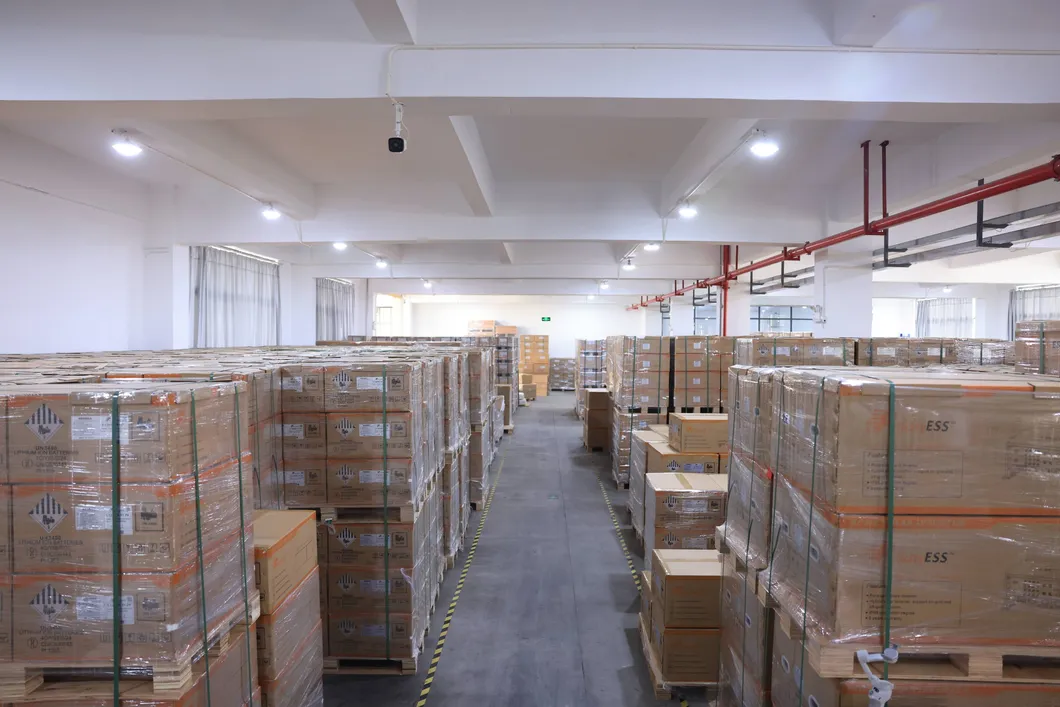

Items can be shipped via sea, air, or express delivery. We help customers choose the most suitable shipping service based on their location and urgency.
Professional technical engineers are available to address pre-sales and post-sales issues. Assistance is available online via major communication platforms or through on-site support if necessary.
Yes, we offer customization for product specifications, machine color, and unique design patterns to meet specific market requirements.
The inverter comes with a 10-year warranty, ensuring long-term reliability and peace of mind for energy storage systems.

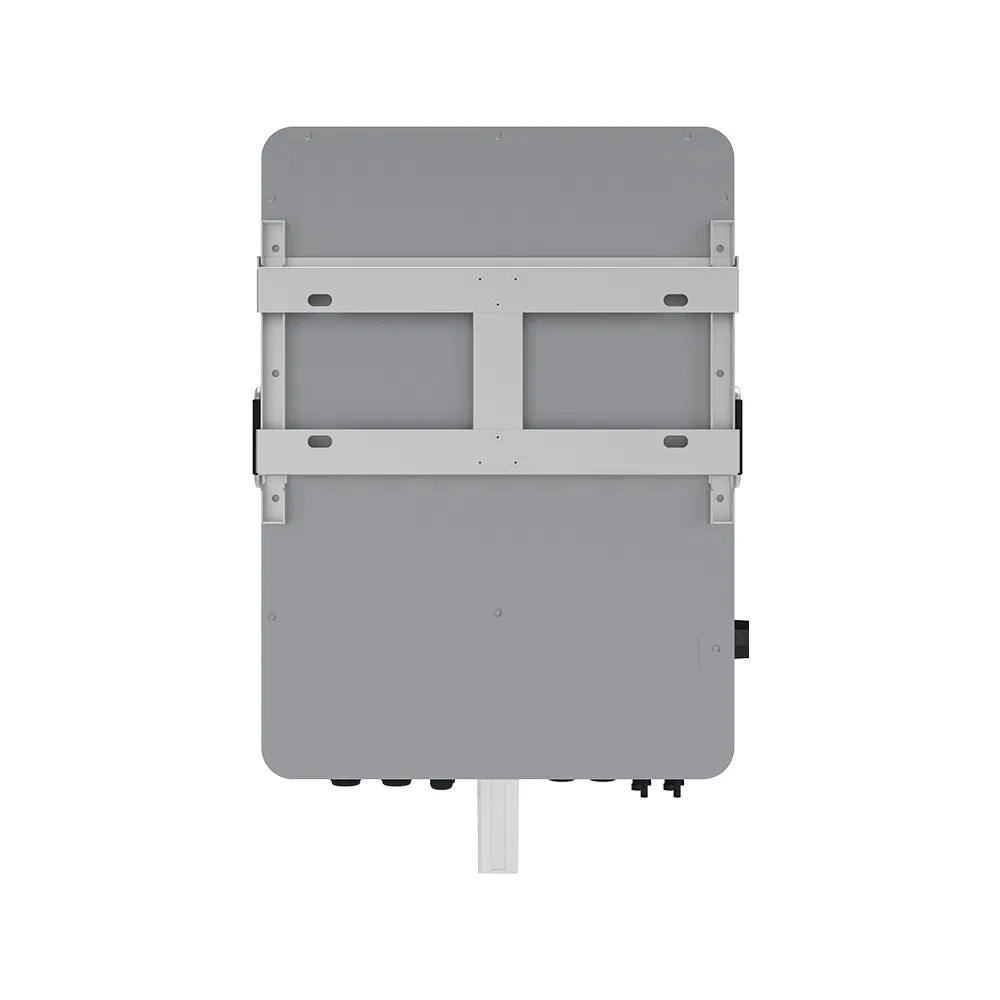

Yes, the unit features IP65 protection, making it highly resistant to dust and water, suitable for wall-mounted outdoor installations.
