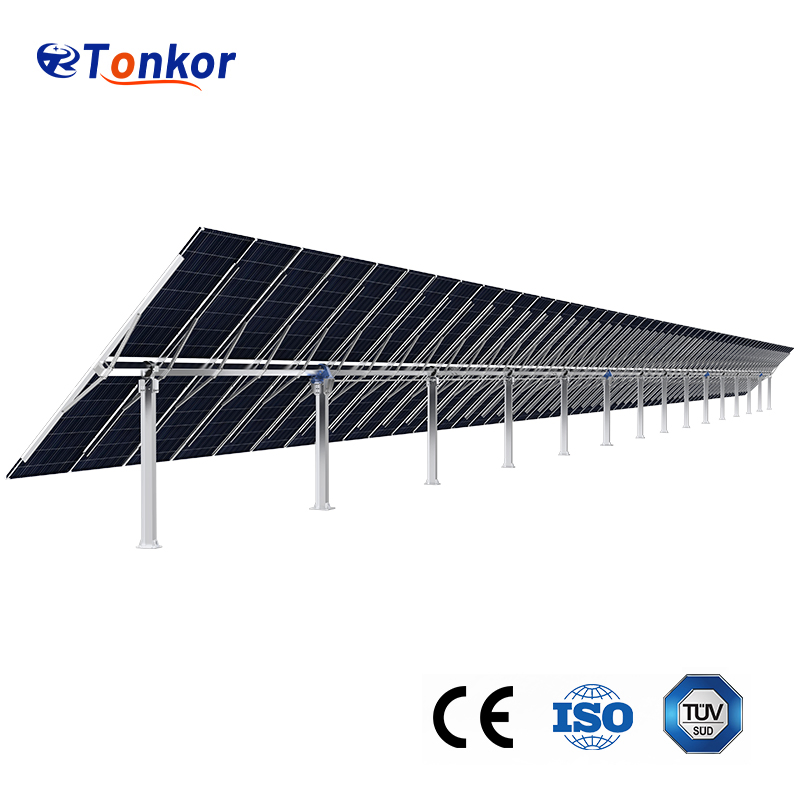

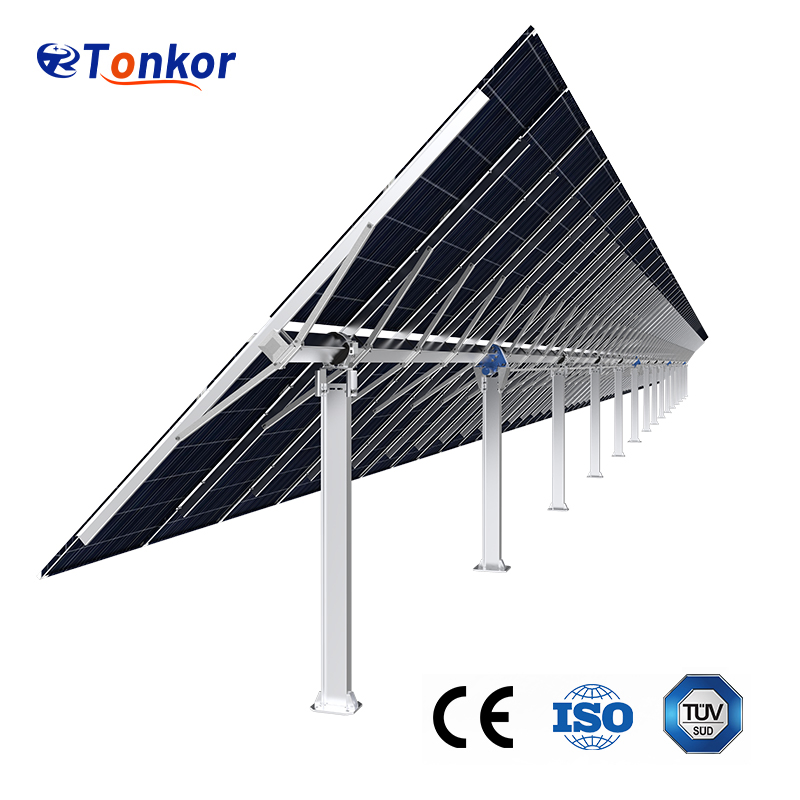

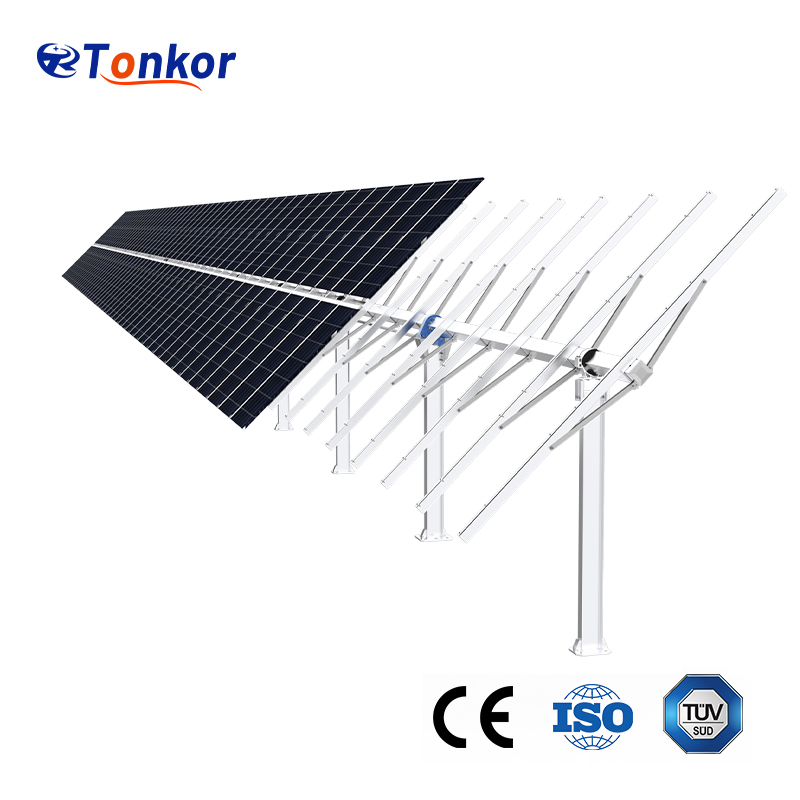

Flat Single Axis Solar Tracker Complete System Manufacturer of Solar Tracking Solutions From China

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
TK-ZZ-12
Certification
ISO, TUV, CE
Application
Solar Mounting System
Type
Tracking Bracket
Wind Load
60m/S
Snow Load
1.4kN/M2
Product
Single Axis Solar Tracking System
Tracking Range
±60°
Motor Type
24V DC Motor
Production Capacity
1,000,000W/Month
Solar Tracking Solutions

Product Introduction

The single-row horizontal single-axis tracking system features a one-row module layout and incorporates an intelligent AI tracking algorithm to maximize energy production. By continuously adjusting the module angle according to real-time solar positions and weather conditions, the system enhances operational efficiency and captures more daily irradiation. Compared with fixed-tilt mounting structures, this tracker typically delivers an additional 10%–15% energy yield, making it an ideal choice for ground-mounted solar plants seeking higher performance, lower LCOE, and improved project returns.

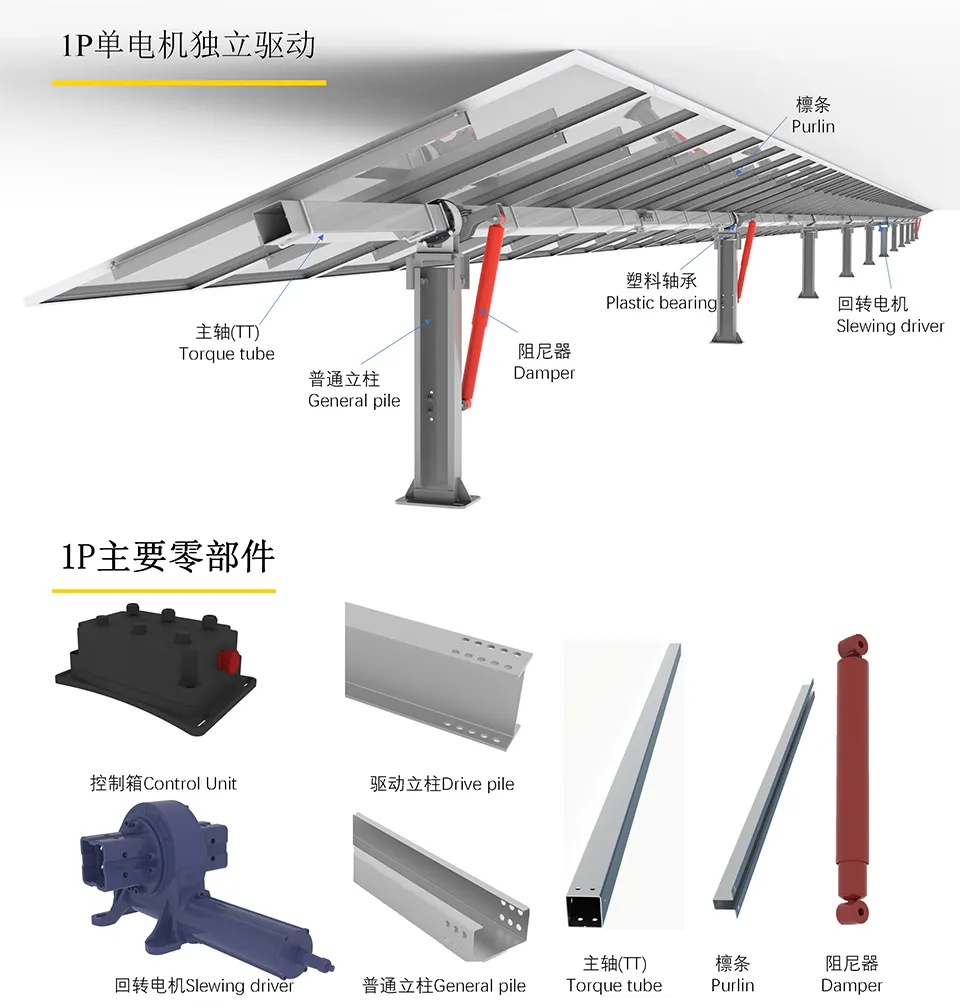

System Analysis

Product Specifications

Parameter Specification Details
Tracking TypeSingle-row Independent Drive Tracking System
Tracking Angle±60°
Tracking Accuracy±2°
Drive TypeSingle-point rotary motor drive 24V DC brushed motor
System Length≤90m
Wind Resistance47m/s (ASCE 7-10) 3s-gust
Daily Power Consumption≤0.08kWh
Protection LevelIP65
Operating ModesHigh-wind protection / Maintenance / Reverse tracking / Heavy-snow / Flood mode
Communication MethodRS485 / Zigbee / LoRa
Power Supply MethodString / AC / Independent module power supply
Operating Temperature-30°C to 60°C
Slope RequirementNorth–south 20%, East–west unlimited
Structural MaterialsHot-dip galvanized / Galvanized-aluminum-magnesium / Polymer

Features & Benefits

Module Compatibility: Fully compatible with 210-size solar modules, providing strong structural support for large-format panels.
AI Algorithm: Built-in intelligent AI tracking algorithm boost overall energy yield based on real-time environmental conditions.
Terrain Adaptability: Excellent adaptation, supporting north–south slopes of 10% to 20%.
Maintenance: Simplified installation and low-maintenance design with modular components.
High Efficiency: Delivers 15%–30% higher energy generation compared with fixed-tilt systems.
Separator

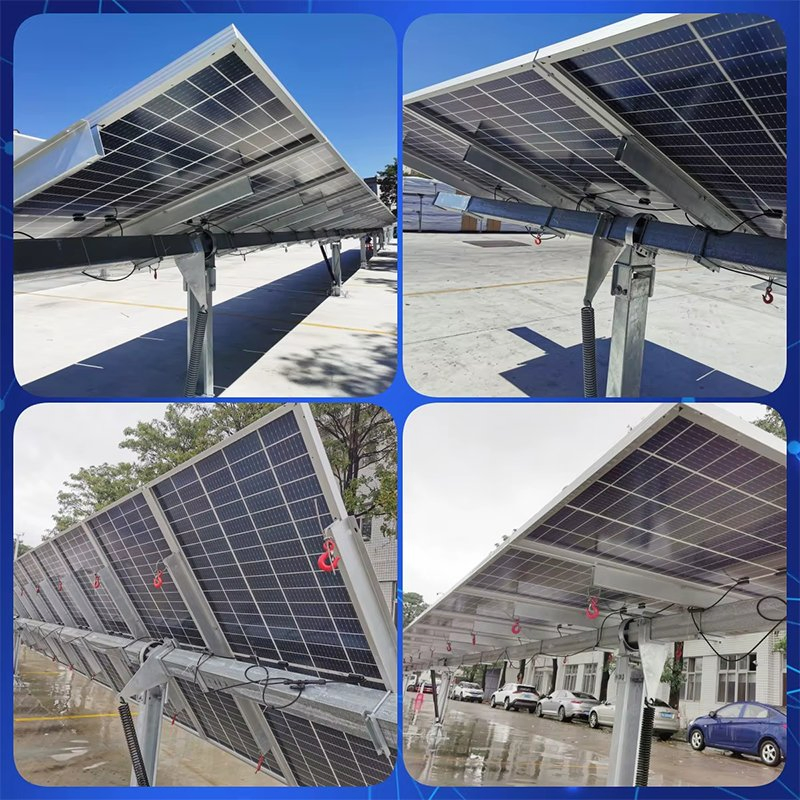

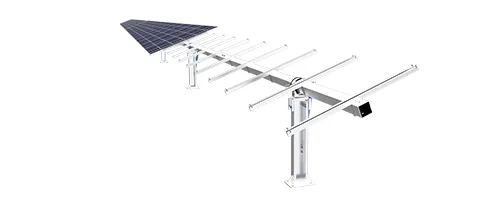

Installation 1

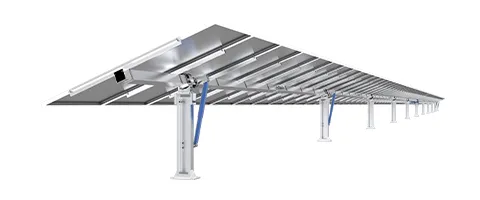

Installation 2

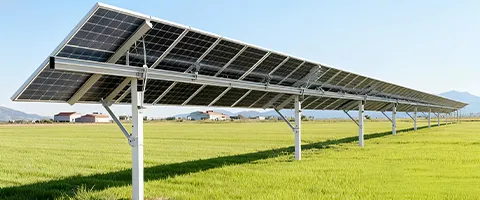

Tech Detail 1
Tech Detail 2

Corporate Profile

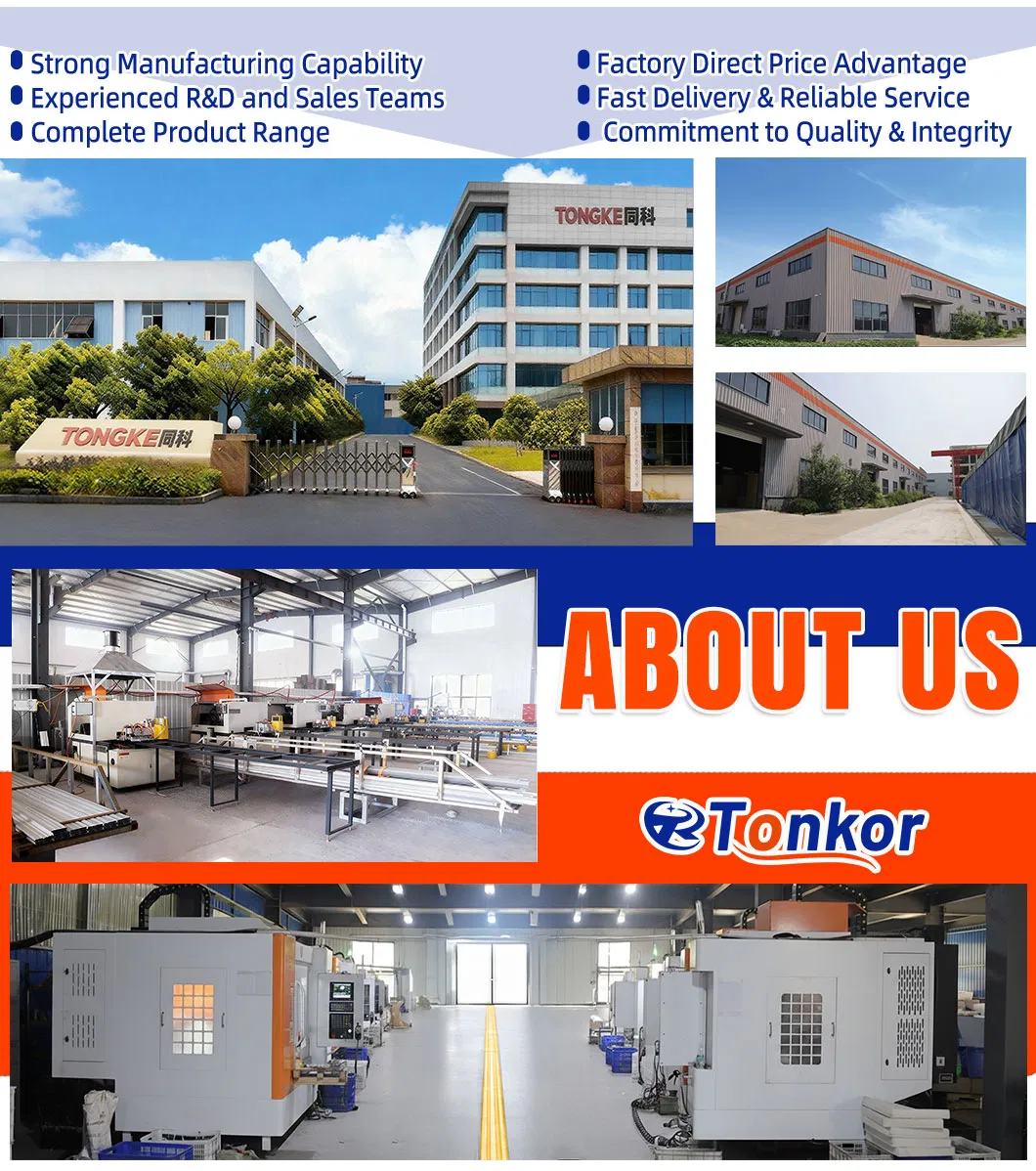

Factory Overview
Established in 2015, we are a high-tech enterprise specializing in solar mounting systems and integrated energy storage solutions. We combine R&D, production, project engineering, and international trade to deliver world-class renewable energy products. Our modern manufacturing base spans over 20,000 m², equipped with automated lines for extrusion, cutting, stamping, and galvanizing. Operating under a strict ISO 9001 quality system, our products are exported to more than 30 countries across Southeast Asia, the Middle East, Europe, and South America.

Certifications & Global Presence

Product Certifications
Exhibition Photo
Global Cooperation

Packaging & Shipping

Packaging Process

Frequently Asked Questions

Are you a professional manufacturer?
Yes, we are a professional manufacturer focusing on aluminum and carbon steel solar mounting structures for ground, roof, and carport projects with years of industry experience.
Can the mounting systems be customized for specific projects?
Absolutely. Customization is provided based on project drawings, terrain conditions, and specific load requirements. We offer both OEM and ODM services.
How is product quality ensured?
All products are manufactured under the ISO 9001 quality system. Materials are hot-dip galvanized or anodized for superior corrosion resistance, following strict inspection procedures.
What is the standard delivery time?
Standard systems are typically delivered within 10–20 working days after deposit. All components are packed with protective materials on steel pallets for safe transport.
What kind of warranty do you provide?
We provide a 15-year warranty for structural components and offer long-term technical support, including detailed installation guidance.
What are the power supply options for the tracker?
The system supports multiple power supply methods, including string power supply, standard AC power supply, or independent solar module power supply.
