Choose The Goodwe 12kw Hybrid Inverter to Effortlessly Manage Photovoltaics (PV) and The Power Grid, and Enjoy a Smart Energy Lifestyle

Customization: Available
Nominal Voltage: 230V
Warranty: 5 Years

Product Description

📋 Basic Product Information
Nominal CapacityIP65
Cycle Life6000-10000
Transport PackageCarton
Specification55*47*15cm
OriginChina
HS Code8504403090
Production Capacity3000 Units/Year
📦 Packaging & Delivery
Package Size58.00cm * 50.00cm * 17.00cm
Package Gross Weight24.000kg
⚡ Product Description & Features

This is a multifunctional PV Hybrid Inverter integrated with a MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module. It is perfect for off-grid backup power and self-consumption applications, capable of working with or without batteries.

Rated power 8KW to 12KW, power factor 1.0
2 strings of MPPT, Max. PV array power 10000W to 15000W
MPPT Voltage range 60Vdc-480Vdc, 550Voc
Built-in ATS for automatic grid and generator switching
CAN/RS485 for BMS communication support

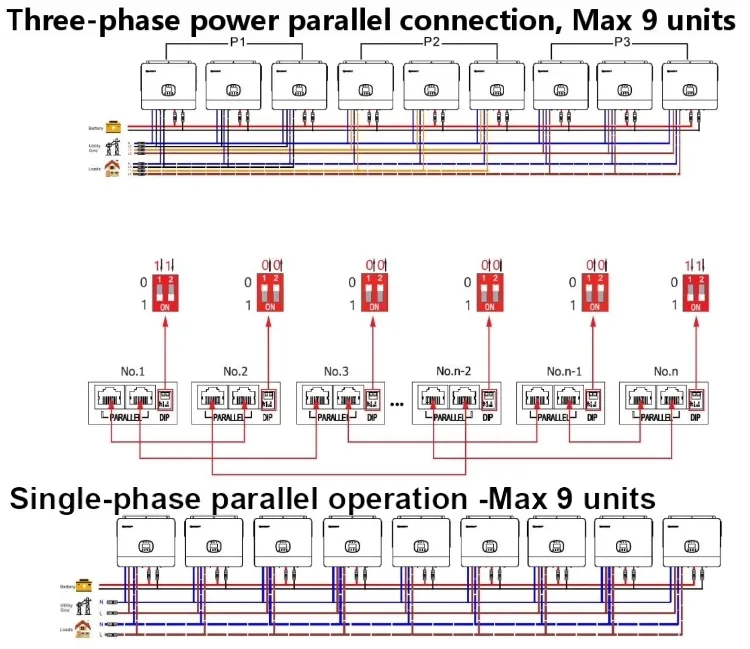

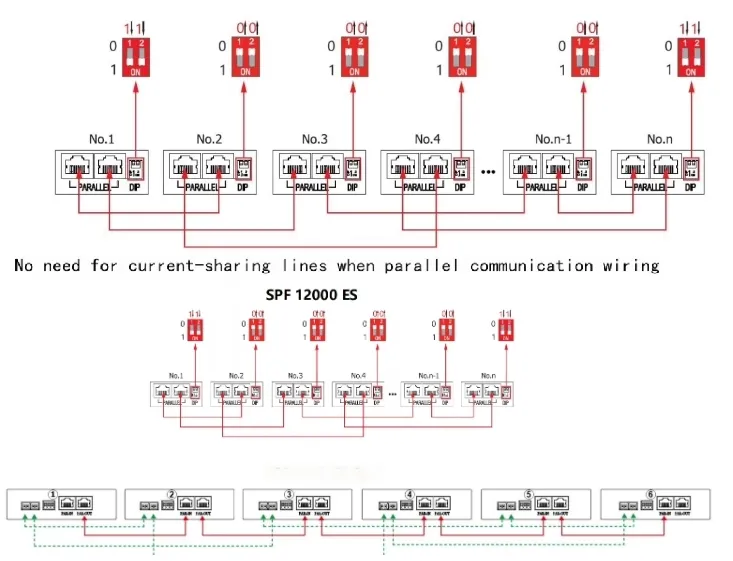

Parallel operation up to 9 units (with battery)
Grid peak shaving and zero exporting capability
Dual outputs for enhanced load management
📊 Technical Parameters
Parameter Item Specification Details
Maximum Photovoltaic Input Power15000W
Maximum DC Voltage550V
MPPT Operating Voltage Range60V-480V
Rated Output Power12000W
Rated Voltage (Grid)230V
Maximum Charge/Discharge Current250A / 280A
Battery TypeLFP (Lithium Iron Phosphate)
Switching Period< 20ms (Single) / < 30ms (Parallel)
Maximum Conversion Efficiency96.5%
Dimensions (W/H/T)550 / 465 / 150 mm
Protection LevelIP20
Communication MethodWIFI / 4G (Optional)
🖼️ Product Gallery

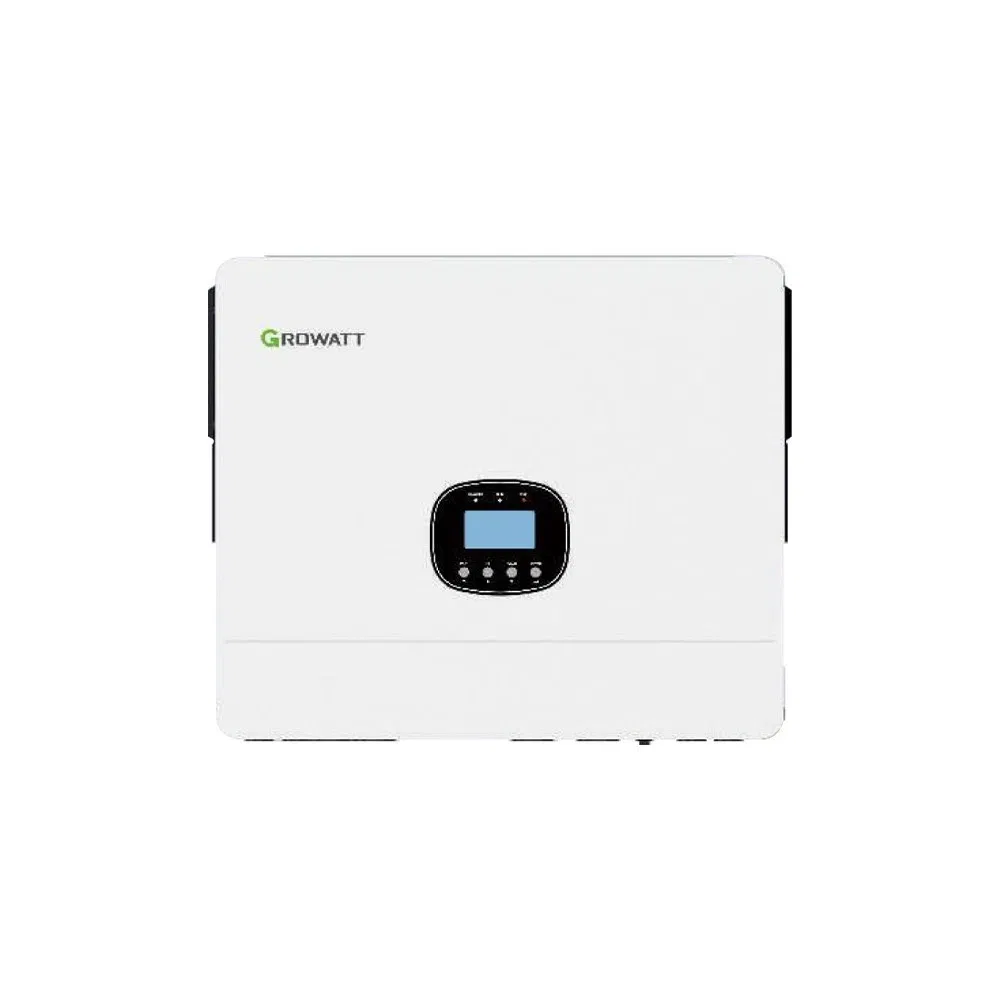

Hybrid Inverter Display
Inverter Components

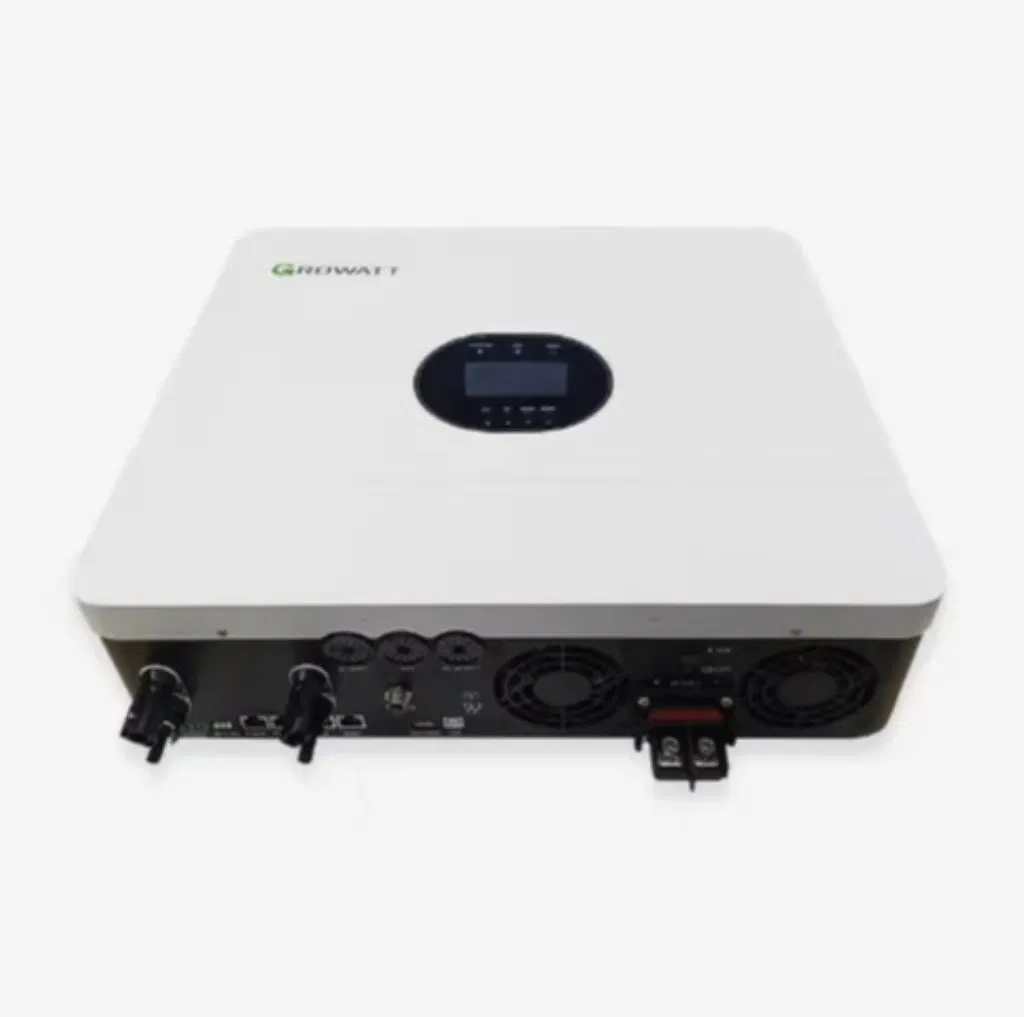

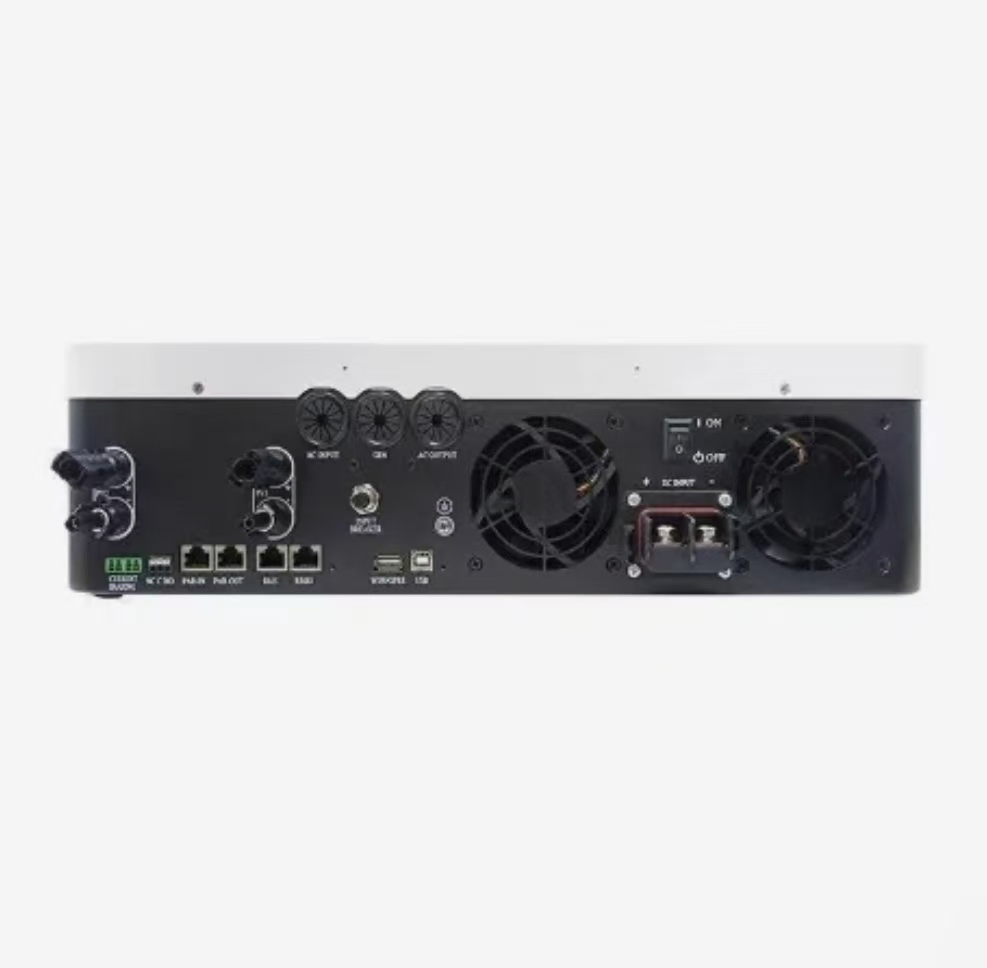

Inverter Interface
Packaging Process
Delivery Ready
🎥 Video Overview
🌱 Sustainability & Vision

Adhering to a development philosophy of "green, technology, low-carbon, and wisdom," the focus remains on providing high-quality, high-performance, and reliable energy storage solutions. By integrating photovoltaic system applications and smart operation maintenance, the goal is to achieve global sustainable development and a "carbon-neutral" future through innovative energy solutions.

❓ Frequently Asked Questions
What brands of components are used in your systems?
The inverters are independently developed for optimal performance. Battery packs utilize Class A battery cells, assembled and debugged under strict quality control. For solar panels, we distribute world-leading brands like Jinko.
Can I use my existing solar panels or batteries with this inverter?
Yes, it is compatible. However, we need to verify the technical parameters (power capacity, age, brand, and maximum load) of your existing equipment to ensure seamless integration. Providing photos of product labels helps in confirmation.
What is the lifespan and warranty of the energy storage batteries?
Using Class A cells, the battery degradation rate will not exceed 20% over 10 years under normal load conditions. We offer a 5-year warranty period covering free maintenance or replacement for any issues.
Can I run solar panels alone without a battery?
While technically possible with this hybrid inverter, it is not recommended. Energy storage batteries ensure system stability during sudden lighting fluctuations (like cloud cover), preventing power system instability.
Does this inverter support parallel operation for larger loads?
Yes, the system supports parallel operation for up to 9 units, provided batteries are connected. This allows for significant scaling of power capacity as your energy needs grow.
How can I monitor the performance of the system?
The inverter supports wireless monitoring via optional WIFI or 4G modules, allowing you to track energy production and consumption data in real-time through dedicated platforms.
