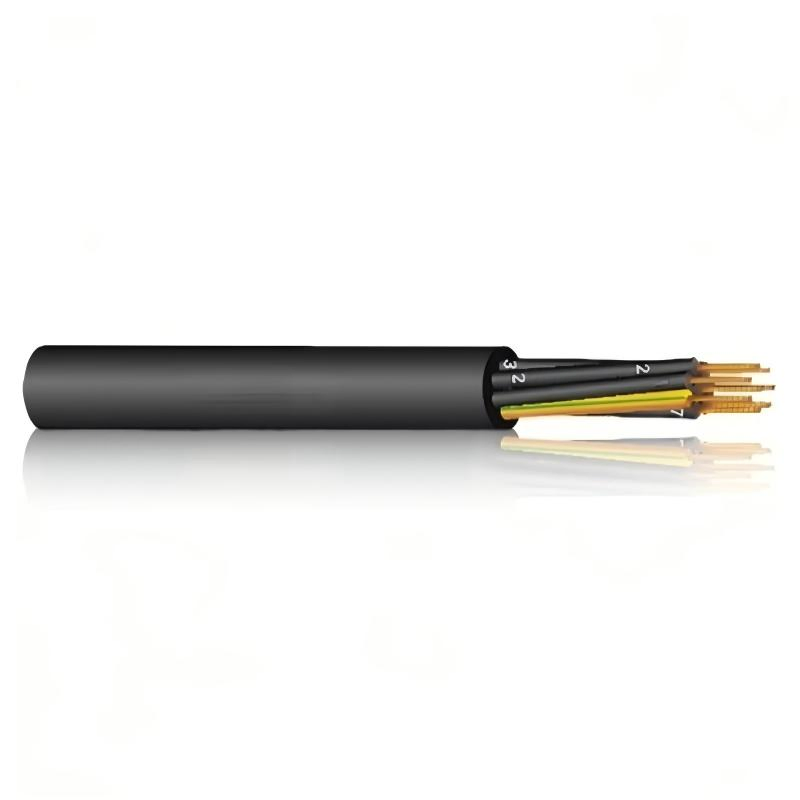

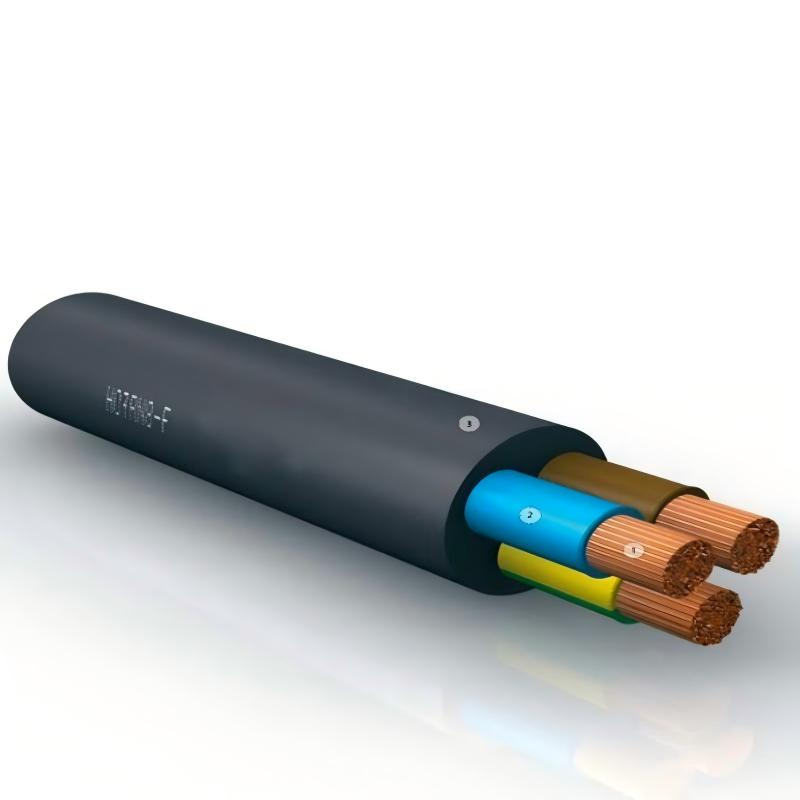

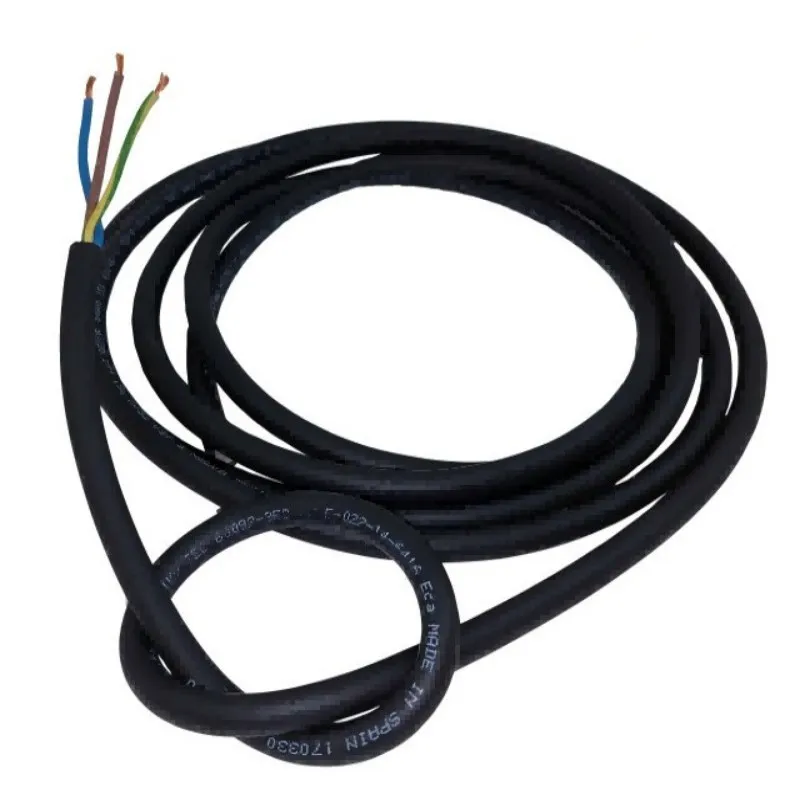

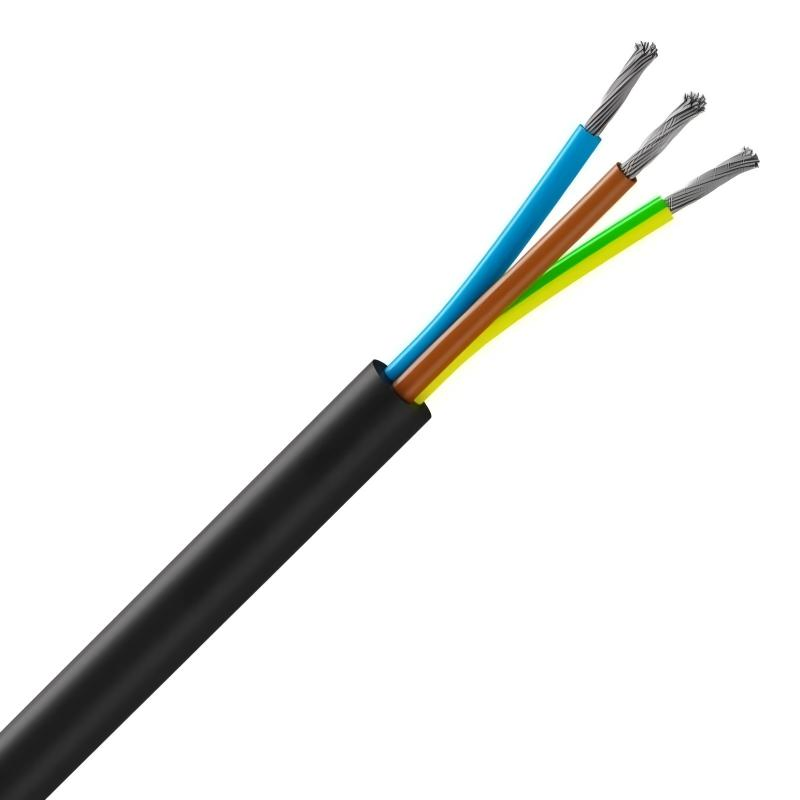

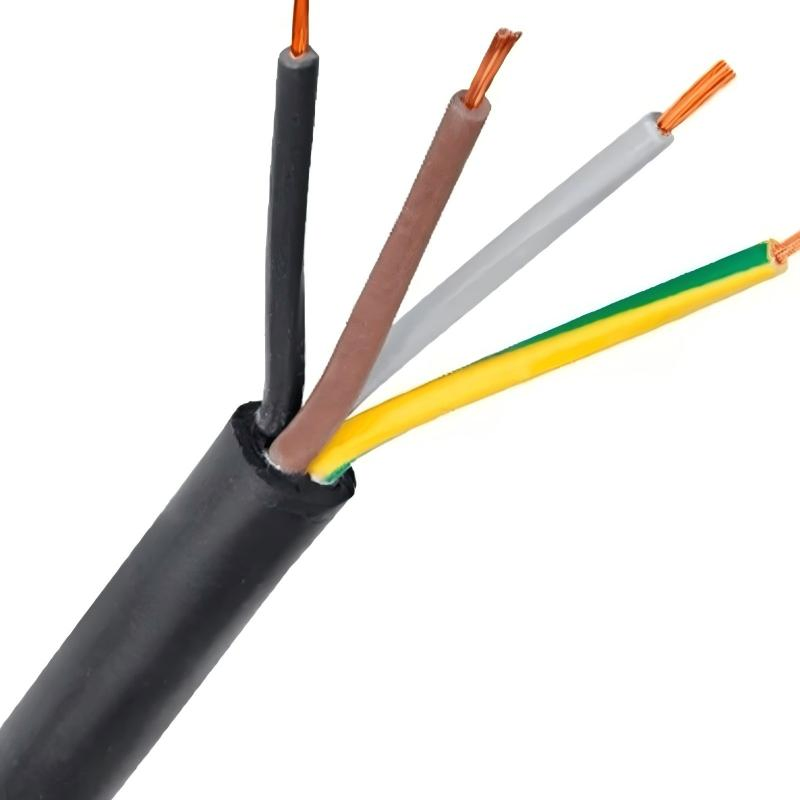

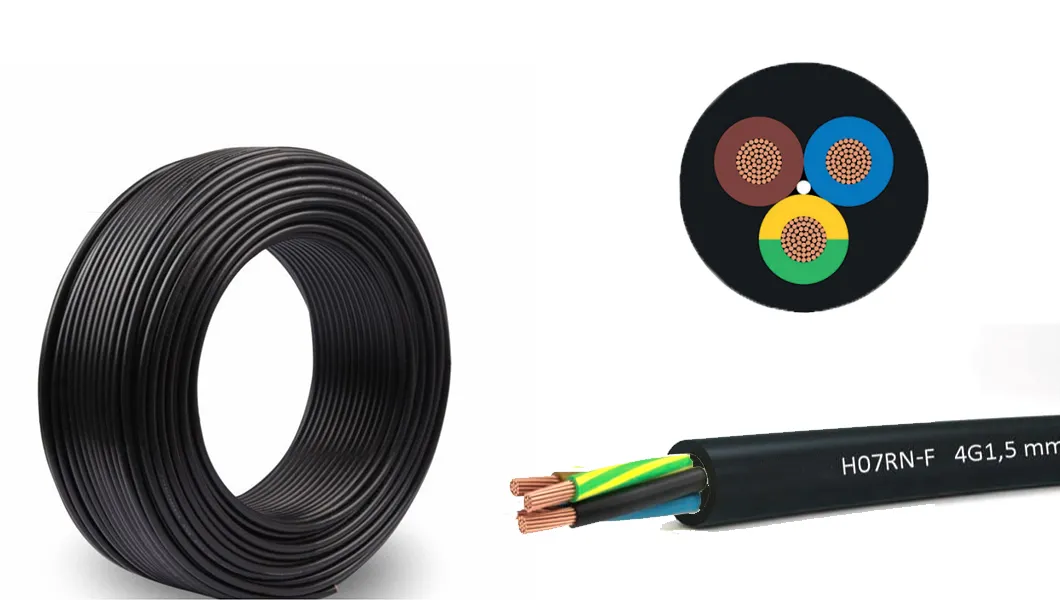

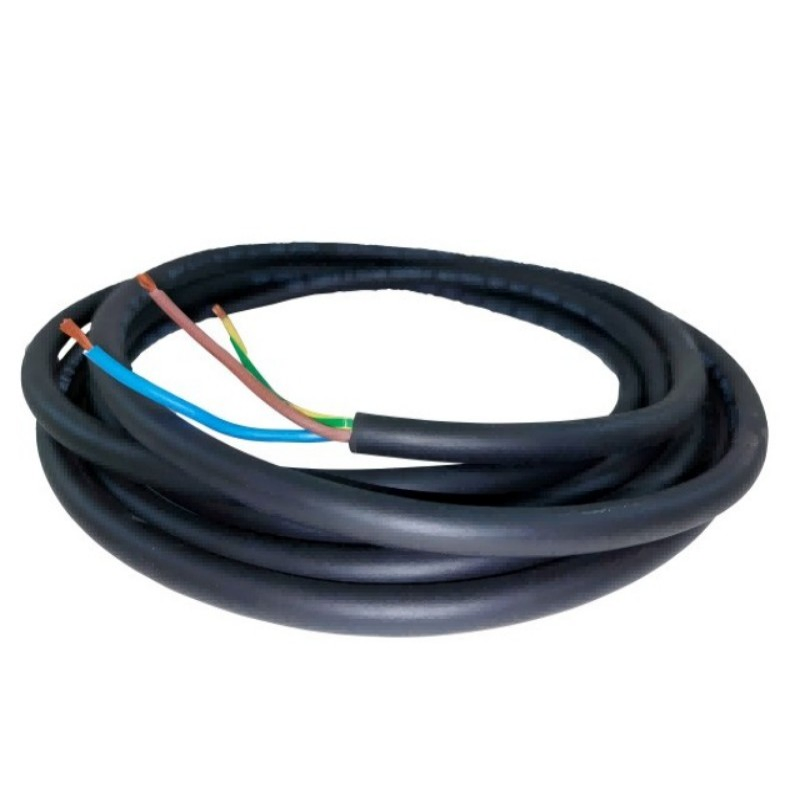

H05RN-F/H07RN-F Low Voltage Copper Conduct Rubber Cable
Designed for connecting electrical tools and lamps, these cables provide excellent flexibility and resistance for both indoor and outdoor environments.
| Component | Specification |
|---|---|
| Conductor | Plain copper, flexible class 5 |
| Insulation | Vulcanized rubber compound |
| Outer Sheath | Synthetic rubber compound |
| Test Voltage | 2500 V |
| Temperature Range | -25°C to +60°C |
| Bending Radius | Fixed: 4D | Mobile: 8D (D = external diameter) |
| Type: H05RN-F | Type: H07RN-F | ||||
|---|---|---|---|---|---|
| Core * Section (mm²) | Outer Dia. (mm) | Weight (kg/km) | Core * Section (mm²) | Outer Dia. (mm) | Weight (kg/km) |
| 2*0.75 | 6.8 | 68.5 | 1×1 | 5.2~6.5 | 50 |
| 2*1 | 7.3 | 81.2 | 1×1.5 | 5.7~7.1 | 65 |
| 3*1.5 | 9.4 | 142.3 | 1×6 | 7.9~9.8 | 145 |
| 4*2.5 | 12.1 | 252.8 | 3×2.5 | 10.9~14.0 | 225 |
| 5*1.5 | 11.3 | 213.3 | 3×16 | 21.8~27.6 | 1014 |
Our professional production line and complete testing systems ensure the stability of product quality. We specialize in a wide range of flexible cables, including drag chain cables, tensile wear-resistant coil cables, and robot arm cables. These products are designed for extreme environments, covering applications in railways, oil and gas plants, petrochemical industries, ports, and mining tunnels.
