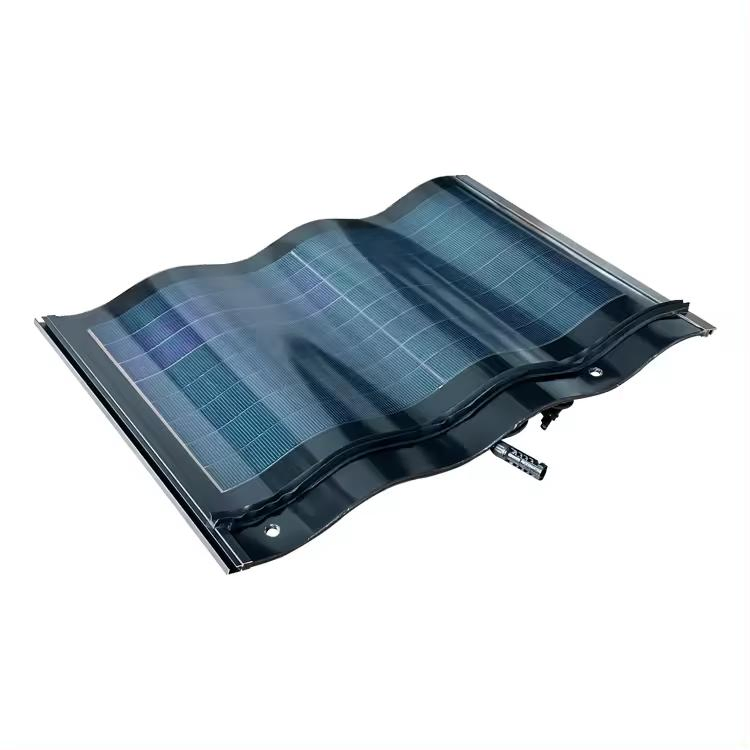

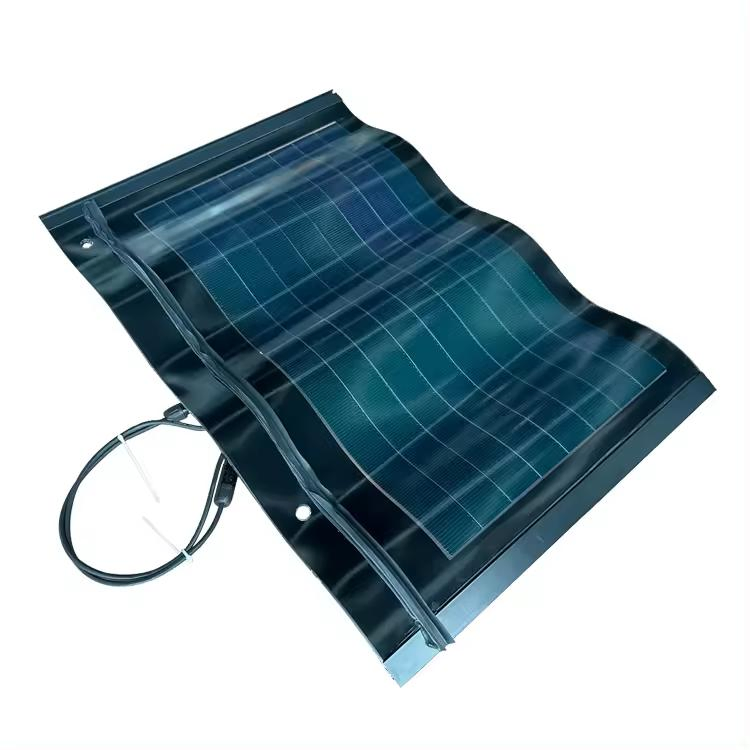

Environmentally friendly building materials. The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
| Physical Parameters | |||
| Product model | H W - M QSB-V1 | Color | Black and Grey |

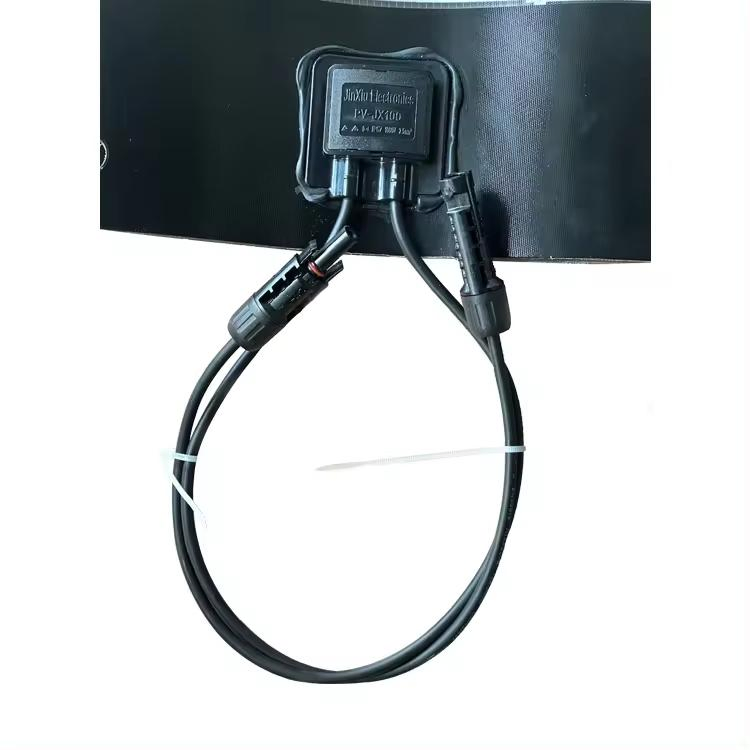

| Length / Width | 709mm / 500mm | Junction box | IP67 (39*46*16.6mm) |
| Weight | 10(±0.5)Kg | Cable Connecter | MC4 |
| Electrical Property Parameters | |||
| Core type | CIGS | Open-circuit voltage | 10.6V |
| Power | 30W (one piece) | Current under PMPP | 3.5A |
| Short-circuit current | 4A | Voltage under PMPP | 8.6V |
| Performance & Certification | |||
| Loading rate | 2400 Pa | Fireproofing rate | Class A |
| Operating temp | -40°C to +85°C | Certifications | 3C/CQC/ISO9001/Rohs |
