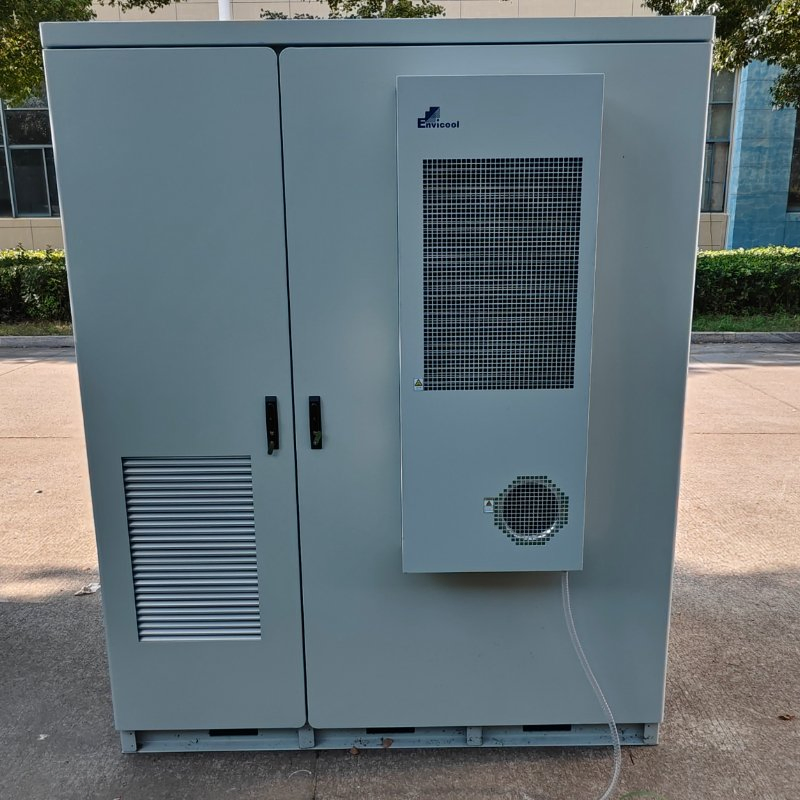

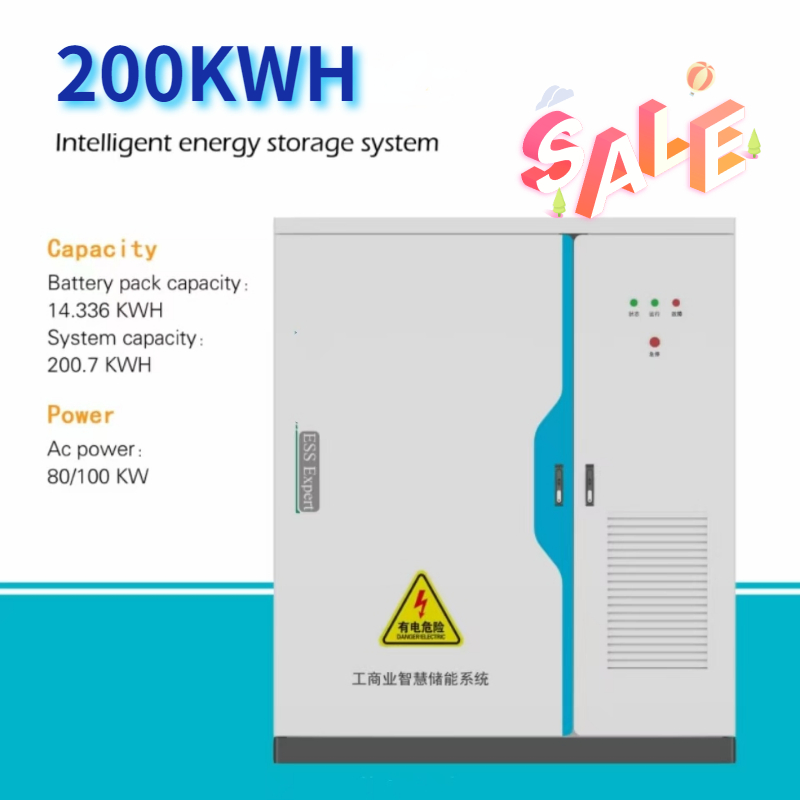

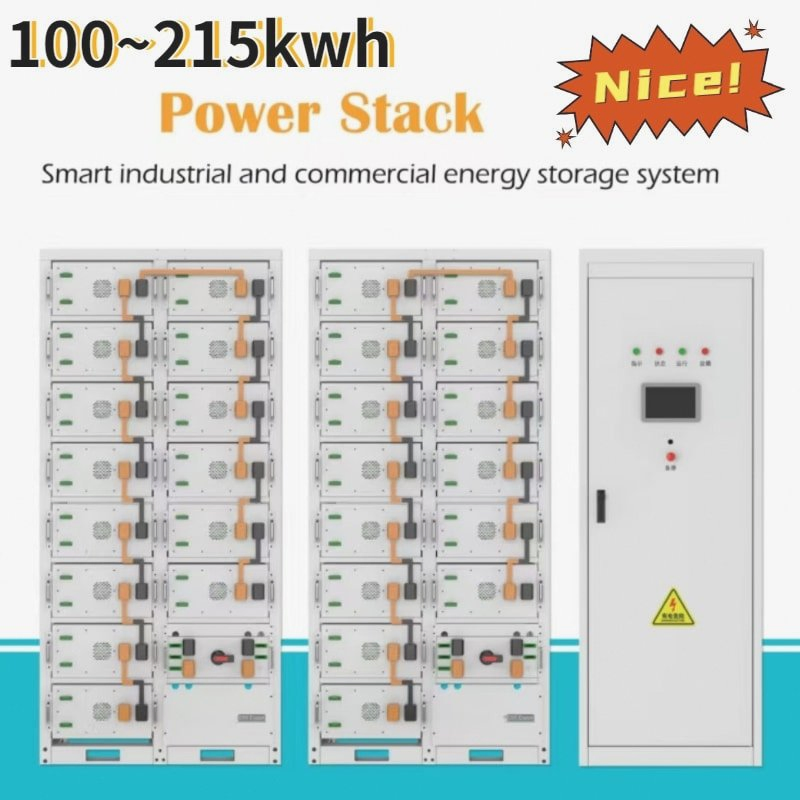

High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
1 / 5
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh

High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Energy Storage System Overview
Distributed air-cooled outdoor cabinet is an energy storage system used in industry and commerce widely. It can store electricity converted from solar energy, wind energy and other renewable energy sources. It adopts air/liquid cooling technology, which is cost-effective and easy to maintain and repair.
Basic Specifications
Model NO.
ATESSOT100-215KWH
Nominal Capacity
100~215kwh
Cycle Life
More Than 6000 Cycles
Battery Type
Lithium Iron Phosphate
Degree of Protection
IP54
Cooling
Air Conditioning Air Cooling
Designed Life
More Than 10 Years
Total Weight
1.25t
Technical Parameters
INTELLIGENT ENERGY STORAGE SYSTEM
Model ATESSOT50-100KWH ATESSOT100-200KWH
System Data
Dimension(WxDxH) 1500x1100x2080 mm 1760x1100x2080 mm
Weight(incl. battery) 1.25 t 2.05 t
Rated Power 30/50 KW 80 /100 KW
System Capacity 100.352 KWH(MAX) 200.7 KWH
Temperature Range -25°C ~ +50°C
Battery Pack Data
Battery Module Capacity 14.336 KWH
Rated Voltage 51.2 V
Certification IEC62619, IEC61000, UN38.3, MSDS
Performance Advantages

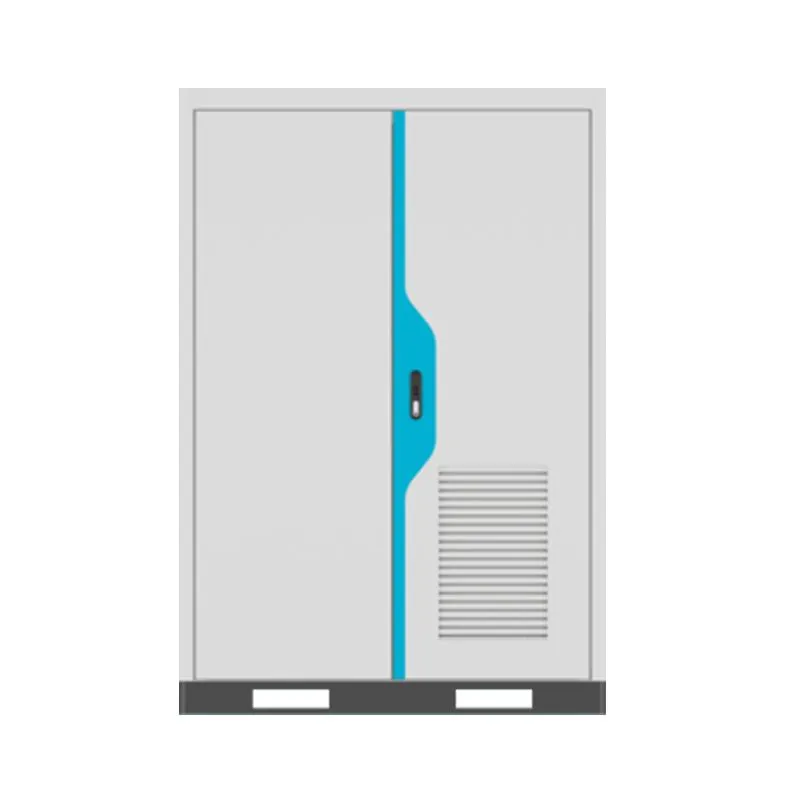

Capacity 100KWH

100.352 KWH System

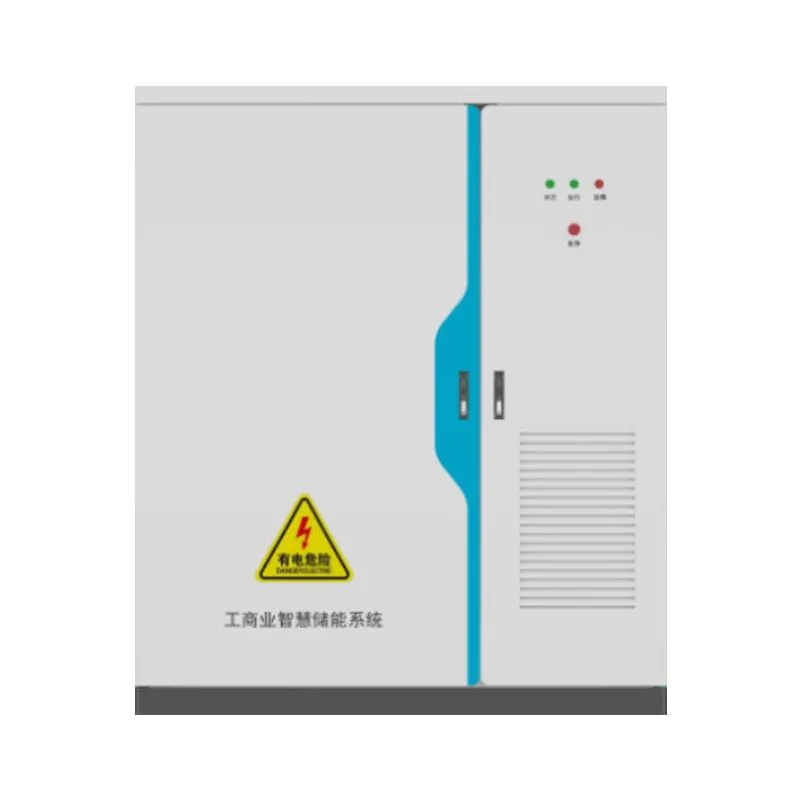

Capacity 200KWH

200.7 KWH System

  • Building block design for scalability
  • Flexible arrangement and installation
  • Hierarchical management of battery system
  • Real-time monitoring of smoke and temperature
  • Double-layer insulation design
  • Multiple intelligent security systems
  • Multi-point real-time monitoring (BMS & EMS)

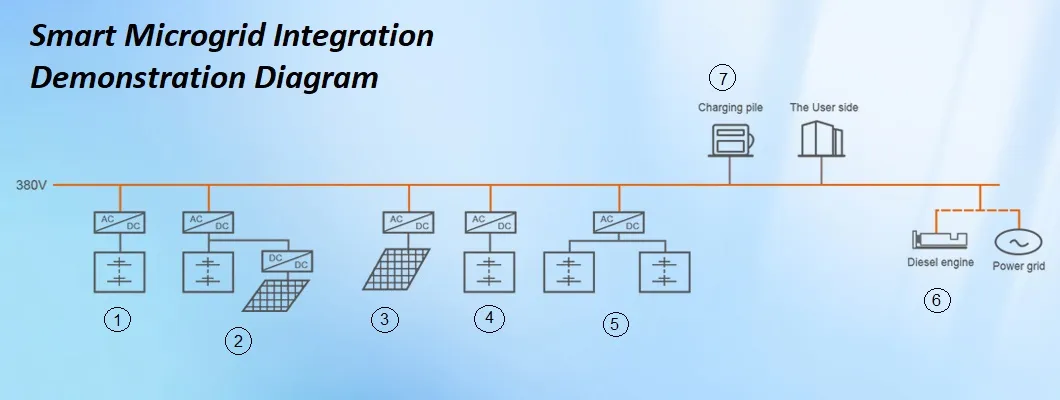

Logic Diagram
Detailed Photos

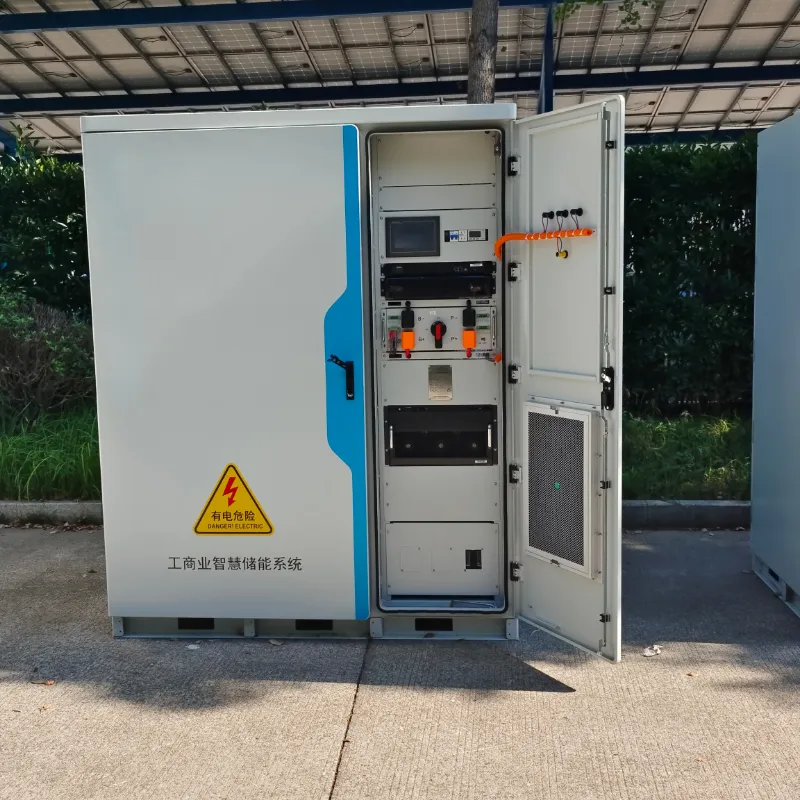

Detail 1

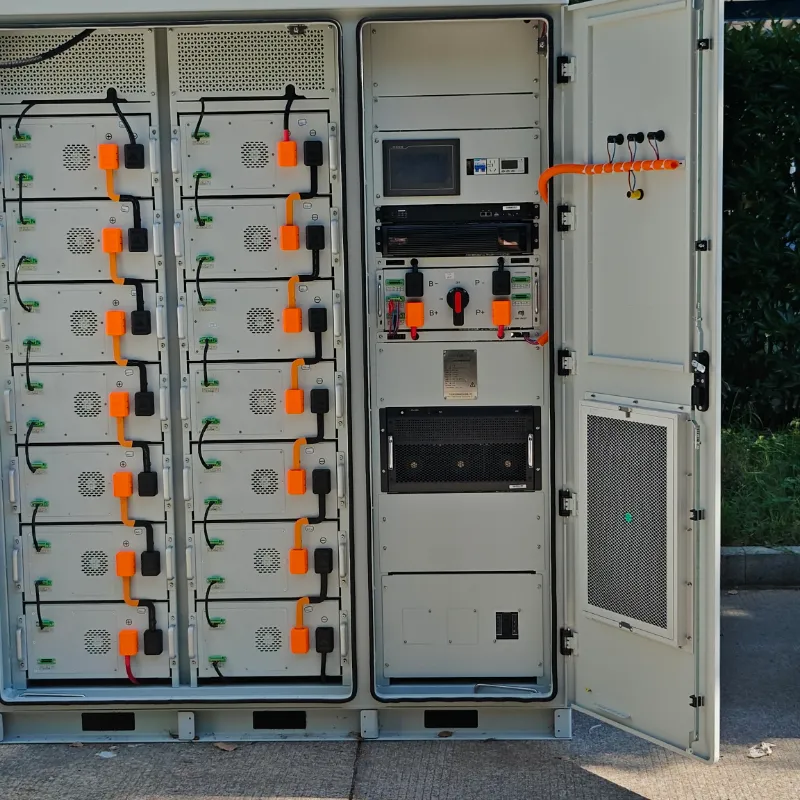

Detail 2
Detail 3

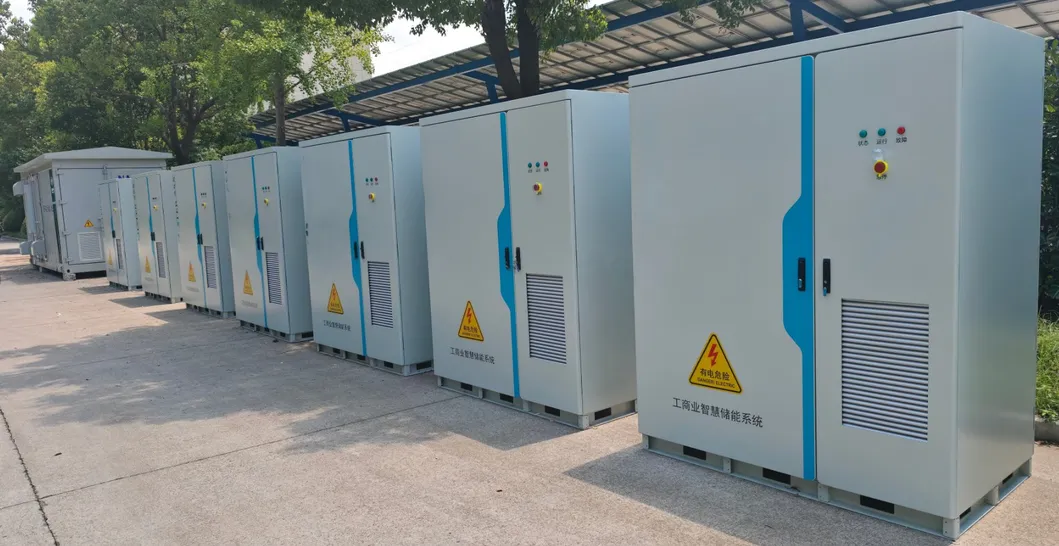

System Structure
Packaging & Shipping
Packing 1
Packing 2
Shipping Logistics

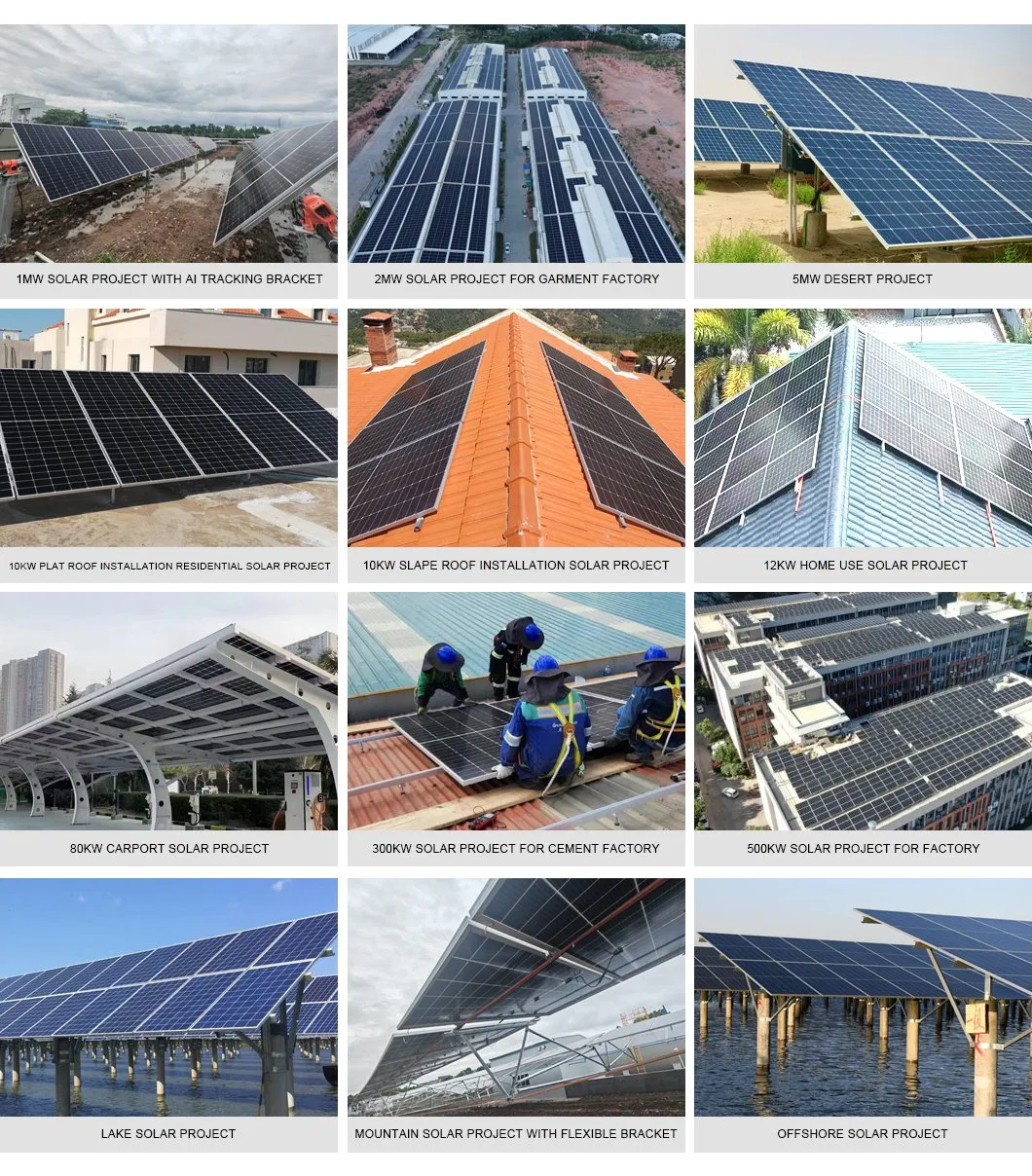

Project Cases
Project Case Study
Certifications
Product Certifications
Frequently Asked Questions
What is the expected cycle life of this energy storage system?
The system features a cycle life of more than 6000 cycles at 25ºC, ensuring long-term reliability for industrial and commercial use.
What type of battery technology is used in these cabinets?
We utilize high-safety Lithium Iron Phosphate (LiFePO4) batteries, known for their thermal stability and long life.
Can the system be installed outdoors?
Yes, the cabinet is designed with an IP54 protection rating and features a double-layer insulation design, making it perfectly suited for outdoor environments.
How is the temperature regulated within the cabinet?
The system uses advanced air conditioning air cooling technology to maintain optimal operating temperatures for the battery modules.
What safety monitoring features are included?
The system includes a multiple intelligent security system with real-time monitoring of smoke, temperature, and multi-point real-time monitoring via BMS and EMS.
Which certifications does the product hold?
The system is fully certified with IEC62619, IEC61000, UN38.3, and MSDS for safe transport and operation.
