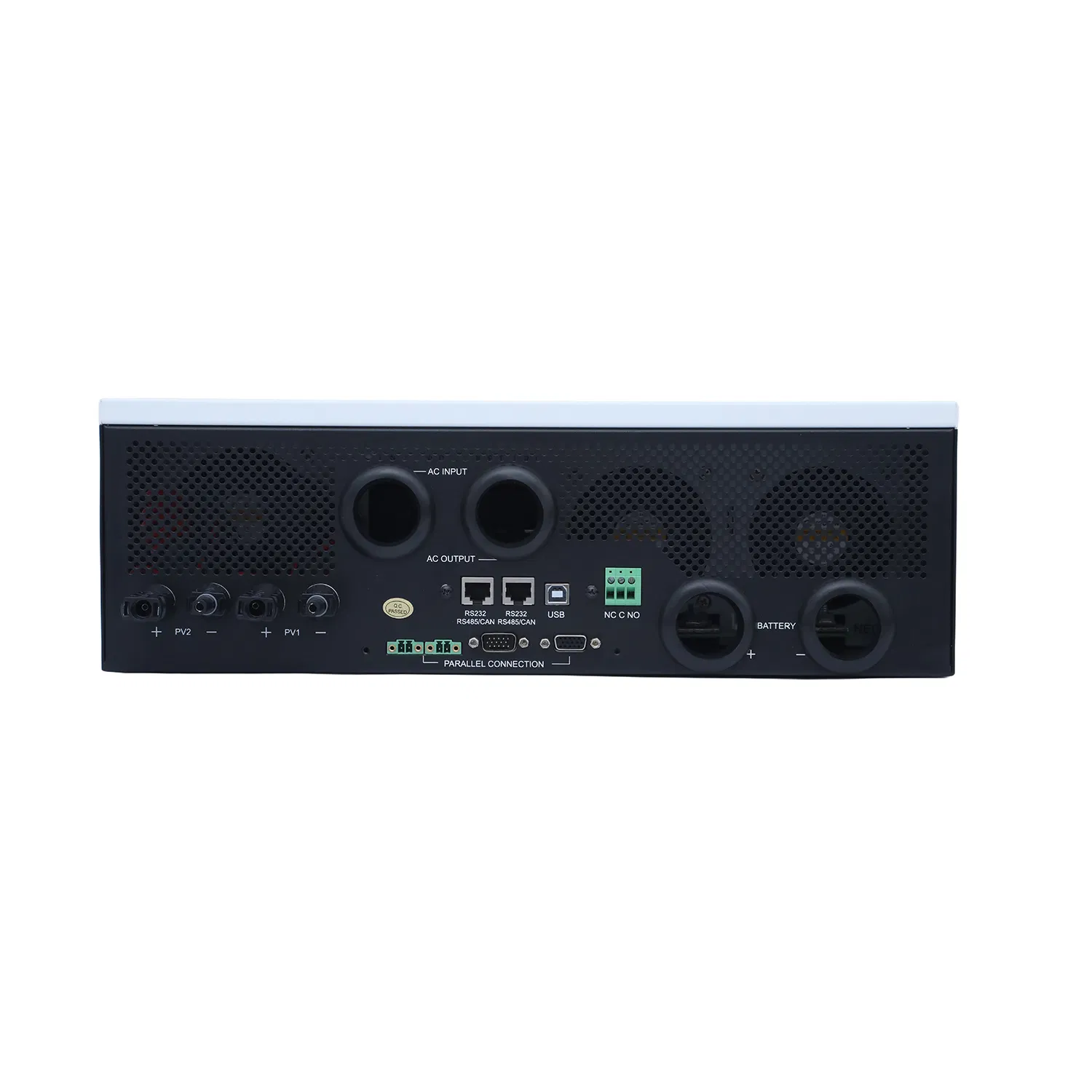

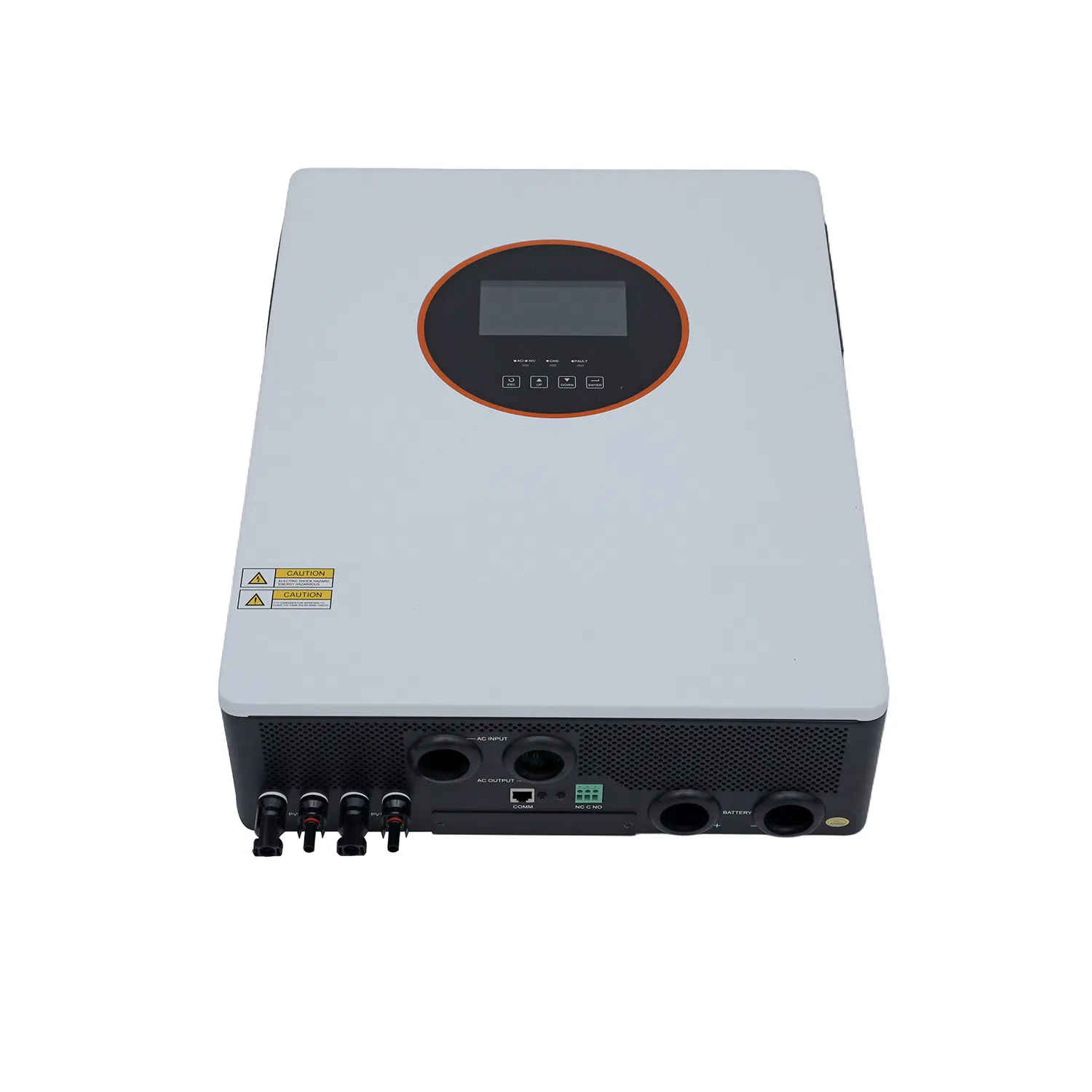

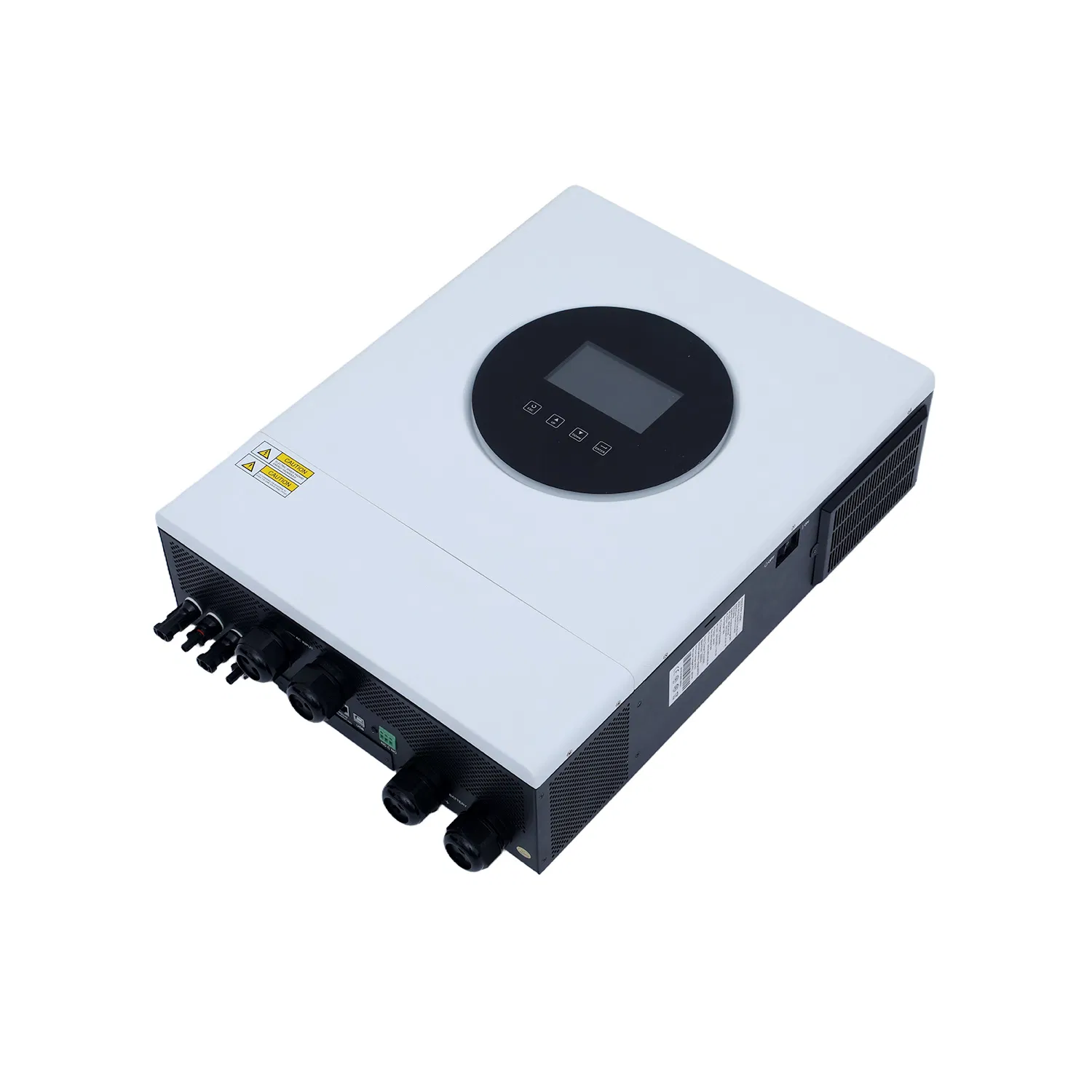

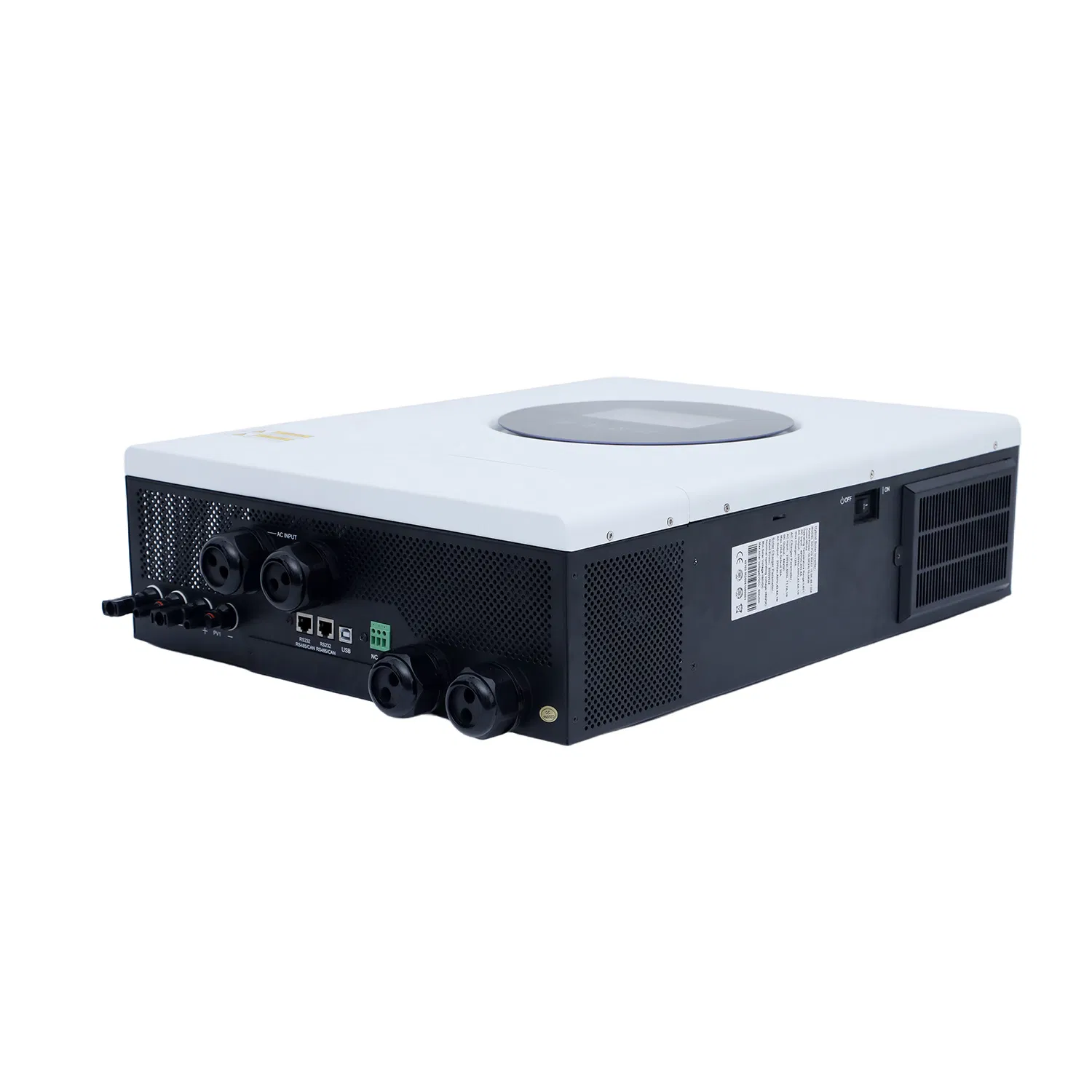

High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
1 / 5
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

Customization: Available
After-sales Service: Yes
Warranty: 24-Month
Send Inquiry

Product Description

Technical Specifications

Model NO.
PVM 5.5kw
Nature of Source
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power, Wind Power
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Voltage
230VAC
Frequency Range
50Hz/60Hz (Auto)
Efficiency
90%-93%
Work Without Battery
Yes
Solar Charger
80A / 120A
PV Voltage Range
120-500V
Package Size
53cm * 41cm * 20cm

Product Overview

High Frequency 4000W / 5500W / 6200W Pure Sine Wave Hybrid Solar Inverter

Hybrid Inverter

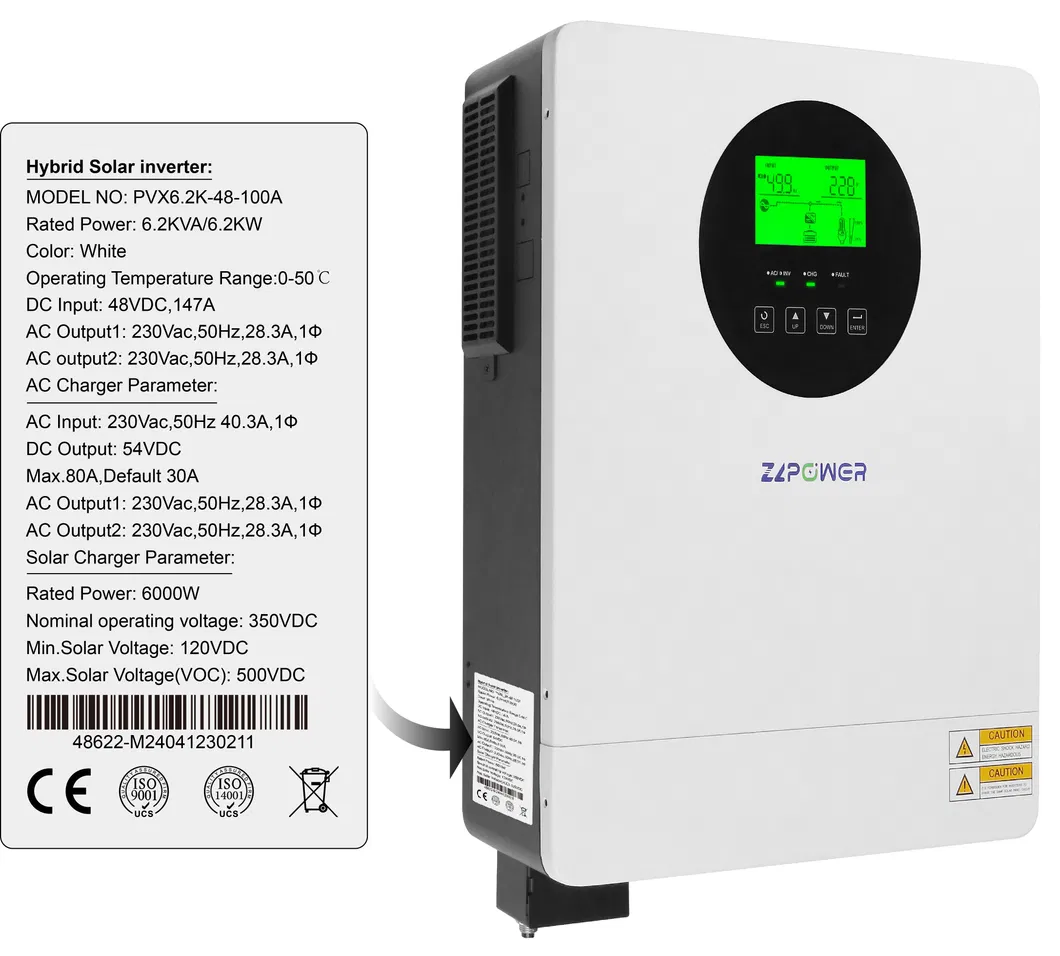

Solar Inverter System

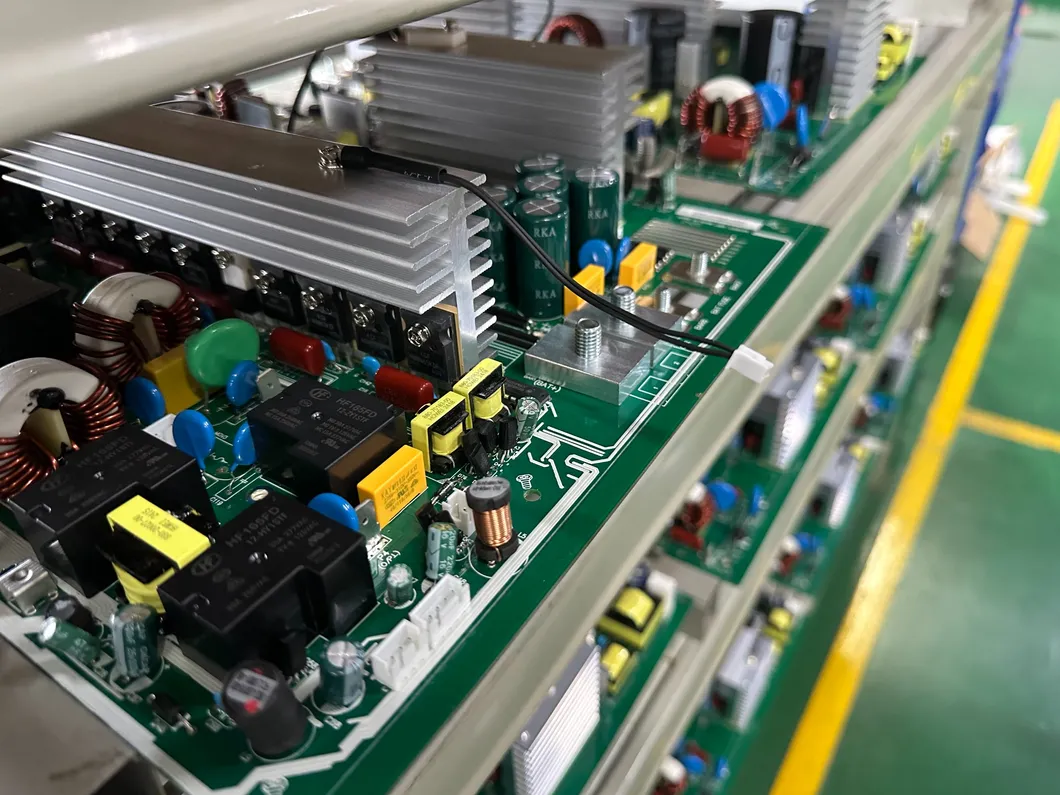

MPPT Controller
High Efficiency Output Voltage: 230Vac±5%, Max PV Array Open Circuit Voltage: 500VDC, MPPT Voltage Range: 120VDC~450VDC.
Battery Compatibility Supports 48V Lead-Acid (Seal, AGM, Gel, Flooded) and Lithium batteries. Capable of running without a battery.
Smart LCD Display Configurable input voltage range and battery charging priority via user-friendly LCD settings.
Full Protection Includes Overload, Over temperature, and Short circuit protection with an intelligent variable speed fan.

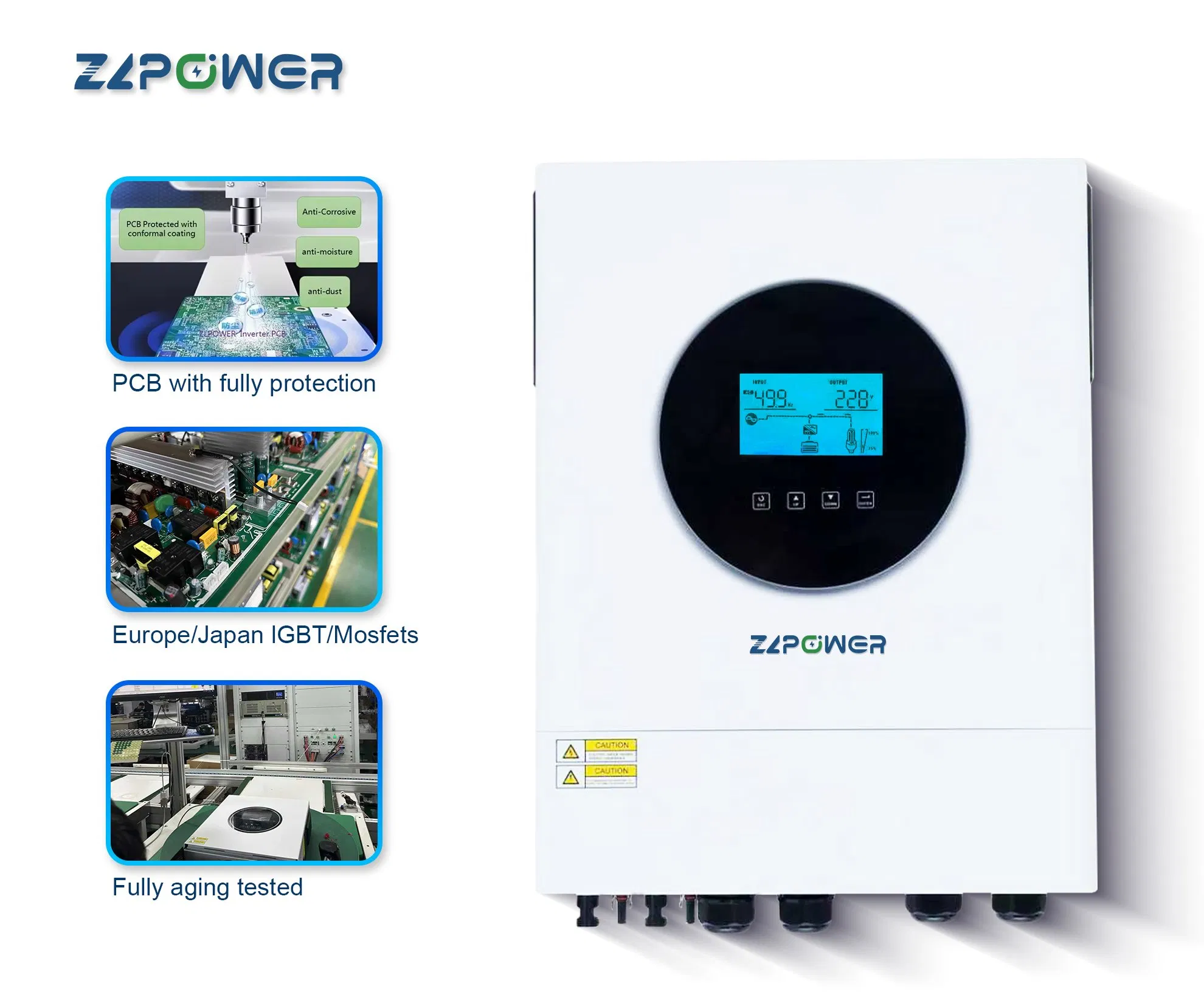

Inverter Features

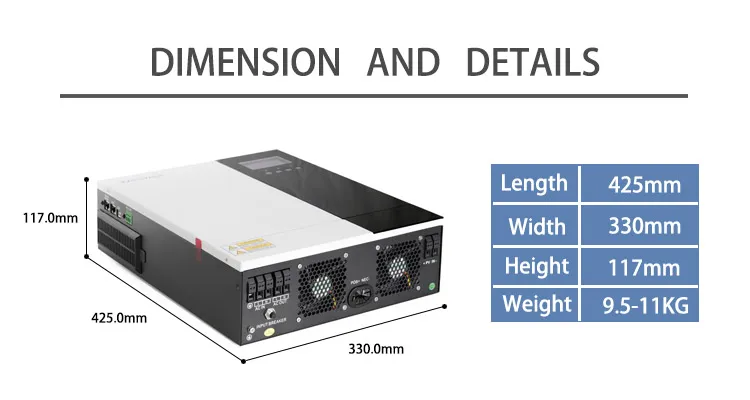

Inverter Connection

Comparison Table

MODEL PVM4000-24 PVM6000-48
Rated Power 4000W / 4200W 6000W / 6200W
Input Voltage 230VAC
Surge Power 7000VA 11000VA
Battery Voltage 24VDC 48VDC
Max PV Array Power 6000W 7000W
MPPT Voltage Range 120~450VDC
Net Weight 9.5 kg 10.6 kg

About Our Factory

We are a national high-tech enterprise established in 2007, specializing in the research, manufacturing, and exporting of UPS, power inverters, and hybrid solar inverters. Our capacity ranges from 400VA to 400KVA, satisfying diverse customer requirements. With ISO9001, ISO14001, CE, and ETL certifications, we ensure product stability and innovation across global markets including Europe, Africa, Asia, and the Americas.

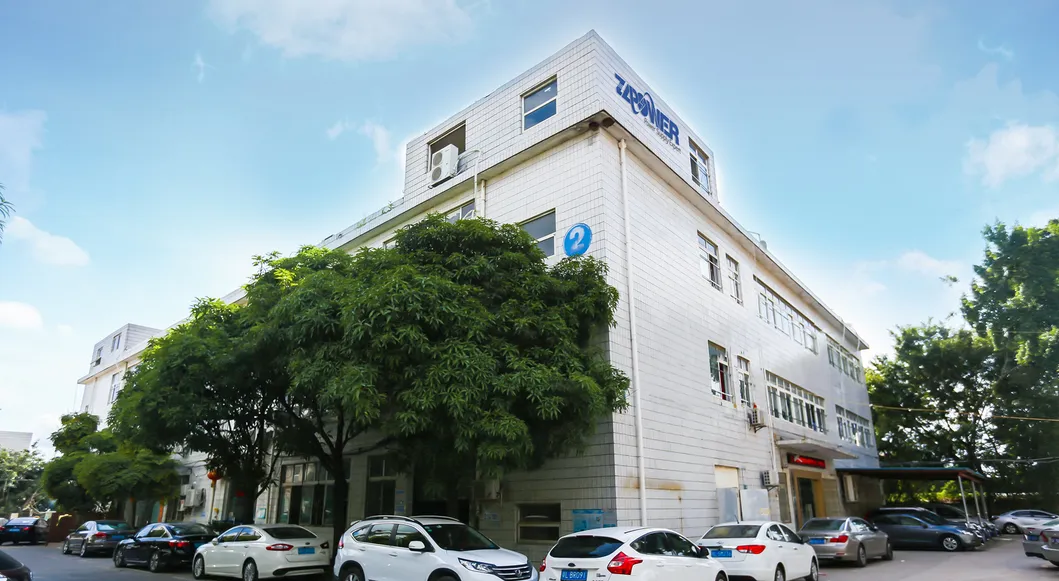

Factory View

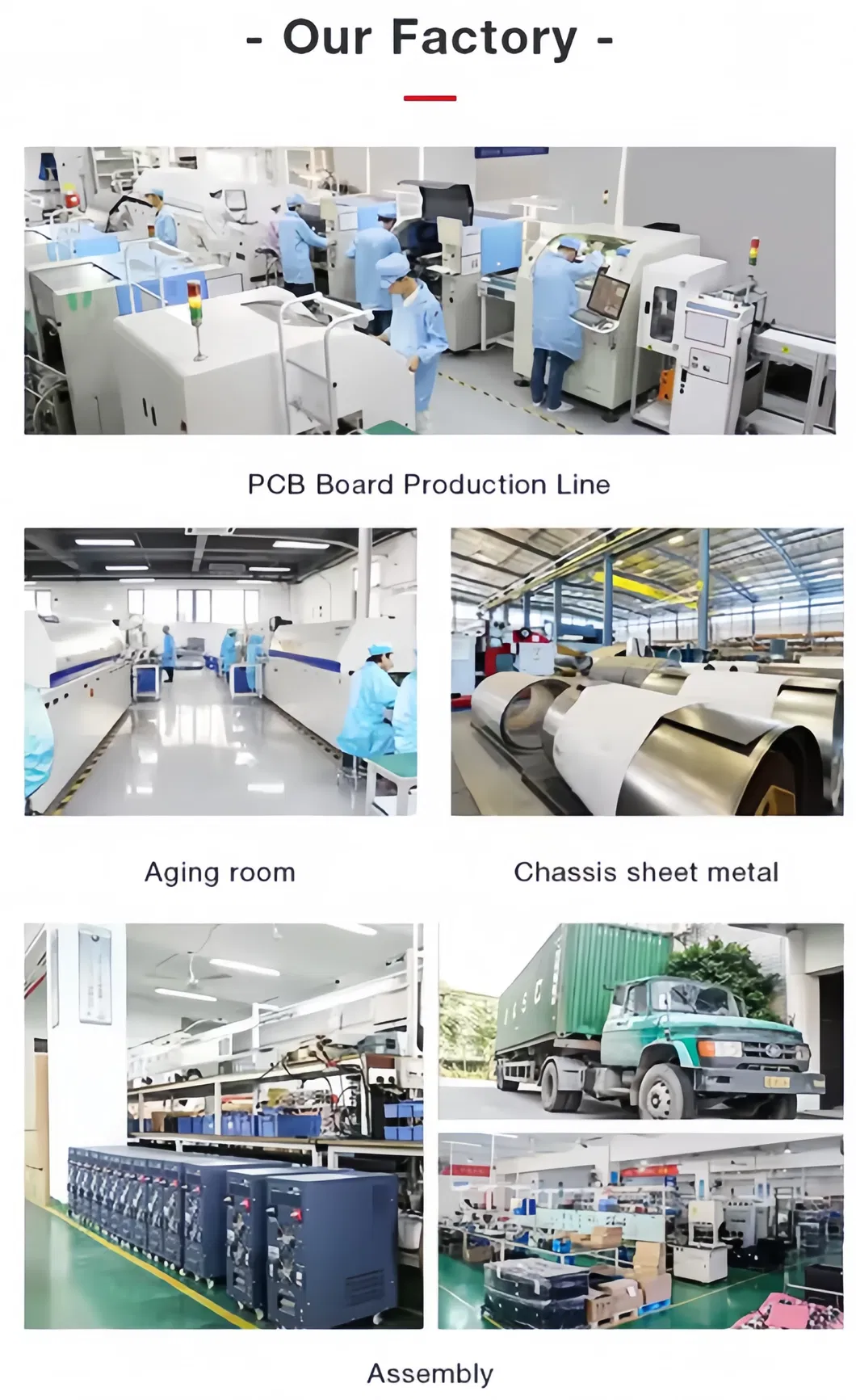

Production Line

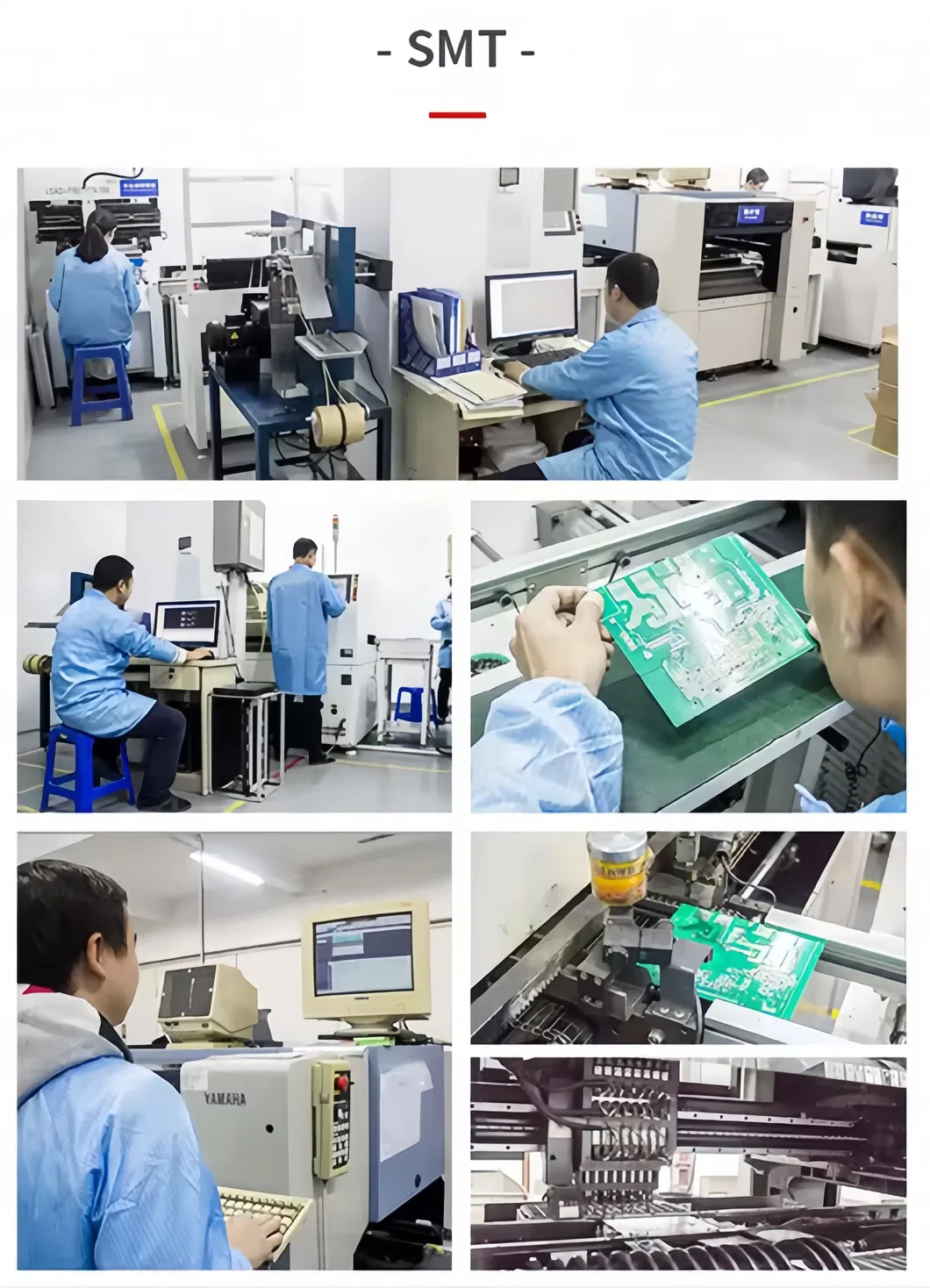

Quality Control

Global Exhibitions

Exhibition 1
Exhibition 2
Exhibition 3

Frequently Asked Questions

What is a hybrid solar inverter?
A hybrid solar inverter combines the functions of a solar inverter and a battery inverter. It manages power from solar panels, batteries, and the utility grid simultaneously to ensure energy independence and cost efficiency.
How long is the typical delivery time?
Usually, it takes about 3-5 days for samples and 10-15 days for bulk production orders.
Can the inverter operate without a battery?
Yes, this high-frequency hybrid inverter is designed to operate with or without a battery connected, providing flexibility for different system setups.
Do you support OEM orders?
Yes, we provide free OEM services including logo placement, depending on the order quantity.
What is your monthly production capacity?
Our total production capacity reaches up to 10,000 pieces per month, depending on the specific model.
Does the inverter connect to the utility grid?
Yes, it is a complementary solar and utility inverter. It combines inverting, charging, and an AC auto-transfer switch into one unit, and can also be charged by a generator.
