High Frequency Solar Inverter 1000W True Sine Wave Inverter with Remote

1 / 5

High Frequency Solar Inverter 1000W True Sine Wave Inverter with Remote

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

YX-1KUS (removable)

Input Voltage

12V / 24V

Output Voltage

110V / 220V

Waveform

Pure Sine Wave

Frequency

50Hz or 60Hz

Efficiency

91%

Warranty

18 Months

Specification

355x180x88mm

Origin

China

Production Capacity

10000/Month

Product Description

1000W Pure Sine Wave Inverter with Transfer Switch (Removable Display)

1000W continuous pure sine wave power and 2000W surge power.
Ultra-clean pure sine wave power with less than 3% total harmonic distortion.
Quickly switch between city power and battery power automatically with the included 16A transfer switch.

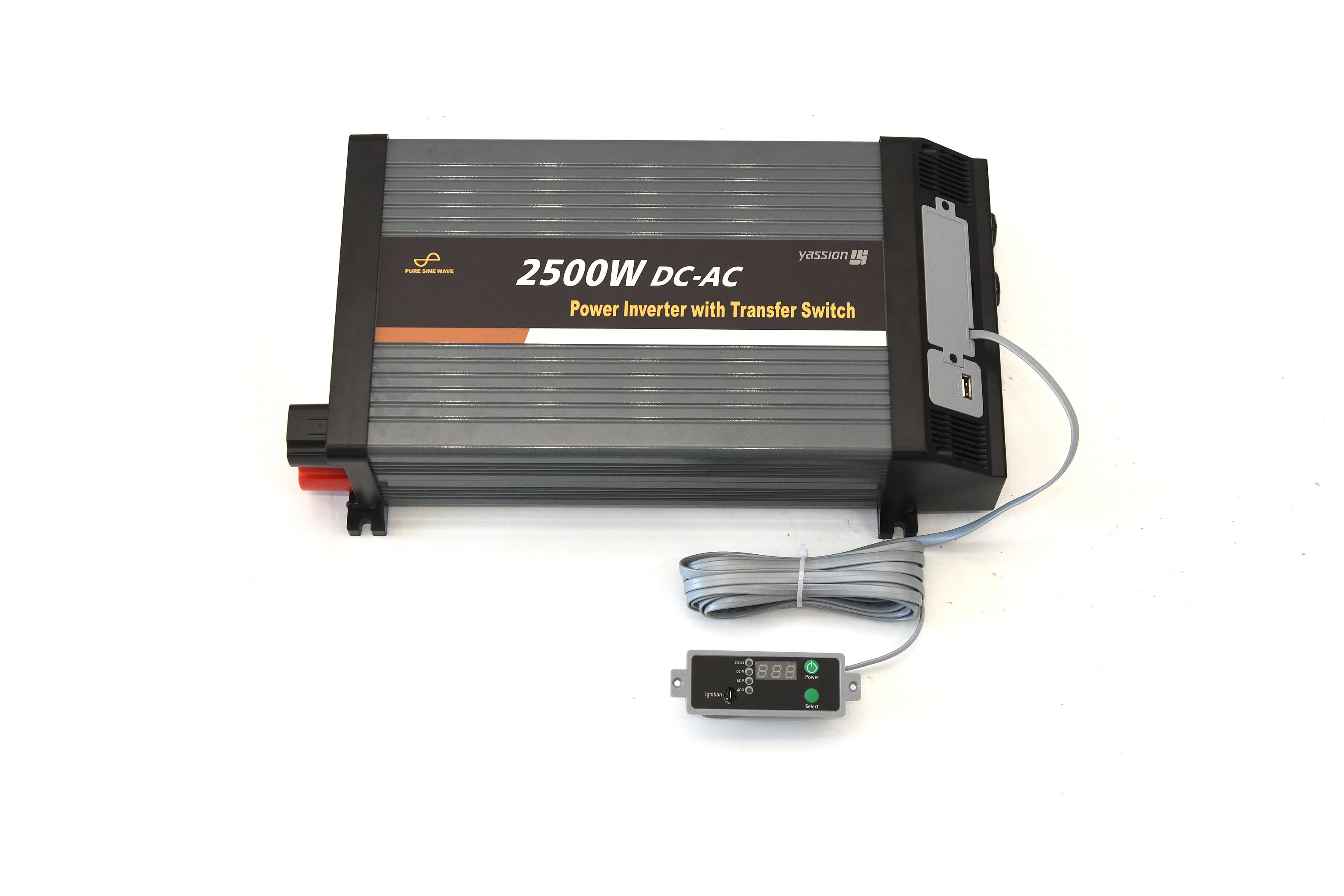

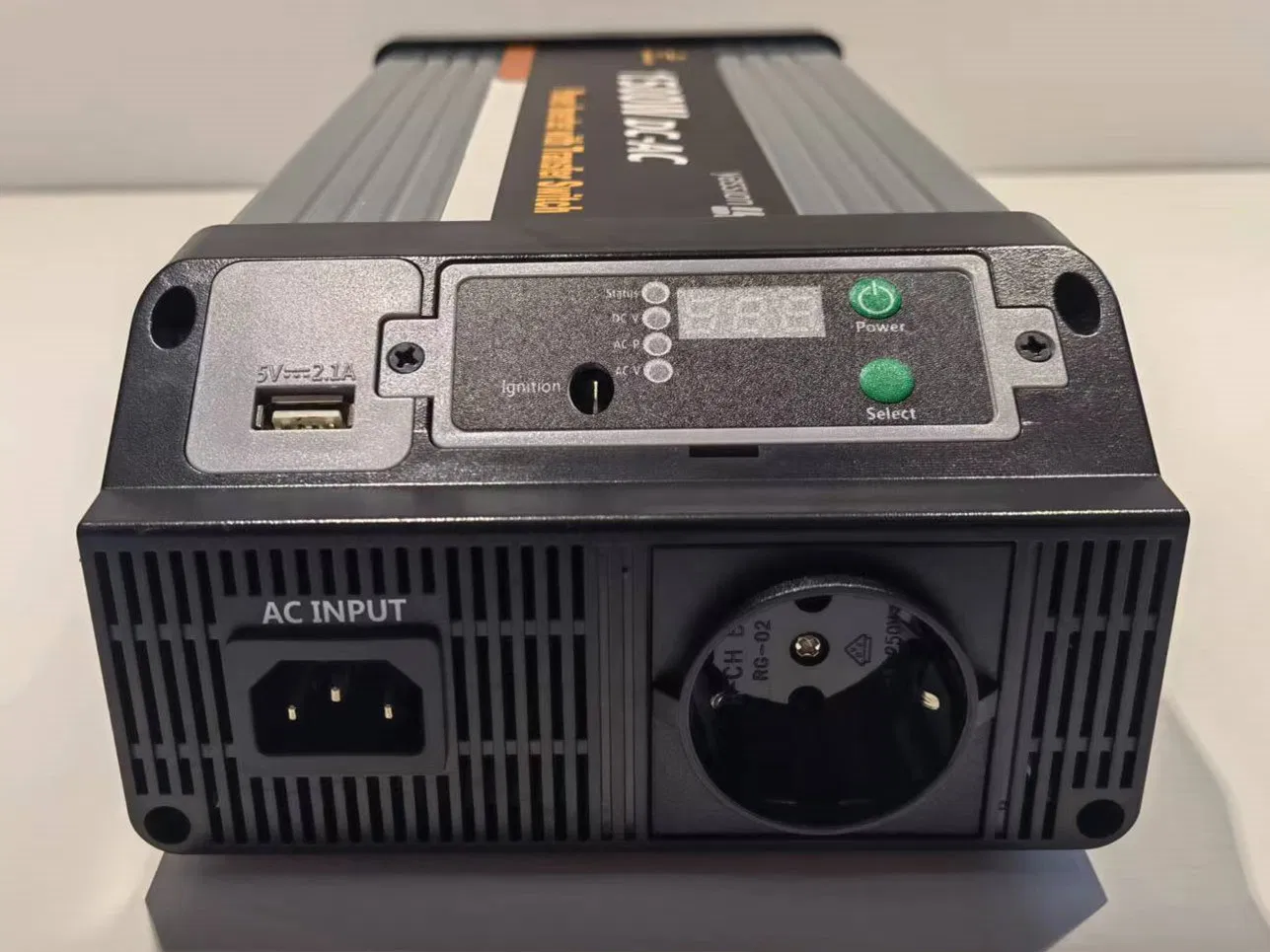

Removable display can be mounted remotely for convenient control and monitoring.
Compact and lightweight design using high-frequency switching technology.
Digital display shows DC/AC voltage, output power, and protection codes.
Reliable performance backed by an 18-month warranty.

Protection Features

Over & Under Voltage Protection

Over Temperature & Load Protection

Short Circuit & Reverse Polarity

What's in the Box

1000w pure sine inverter with transfer switch, 2x battery cables (black and red), an AC cable with plug, a 5m remote cable, a user manual, a car ignition port, and a set of spare fuses.

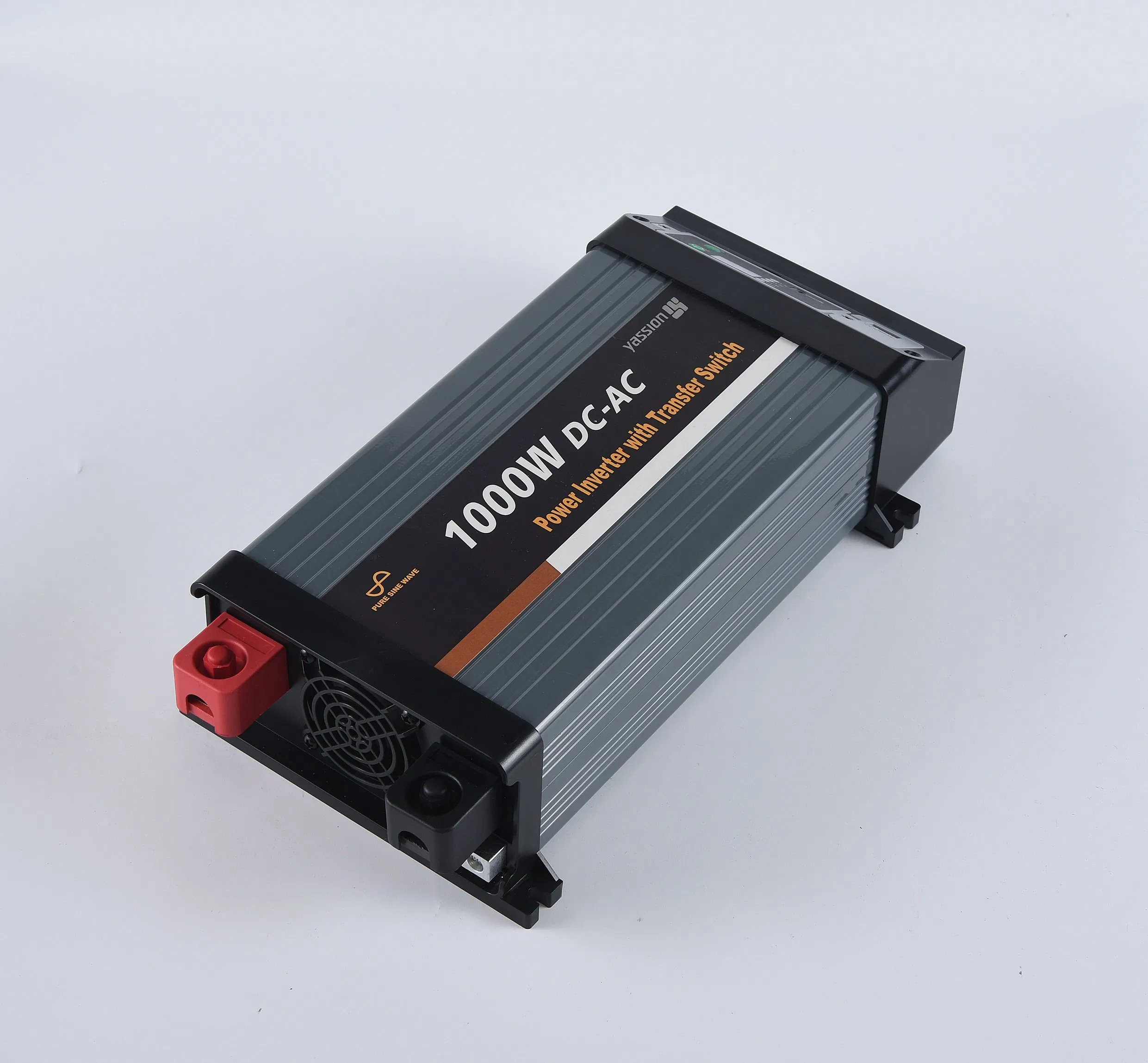

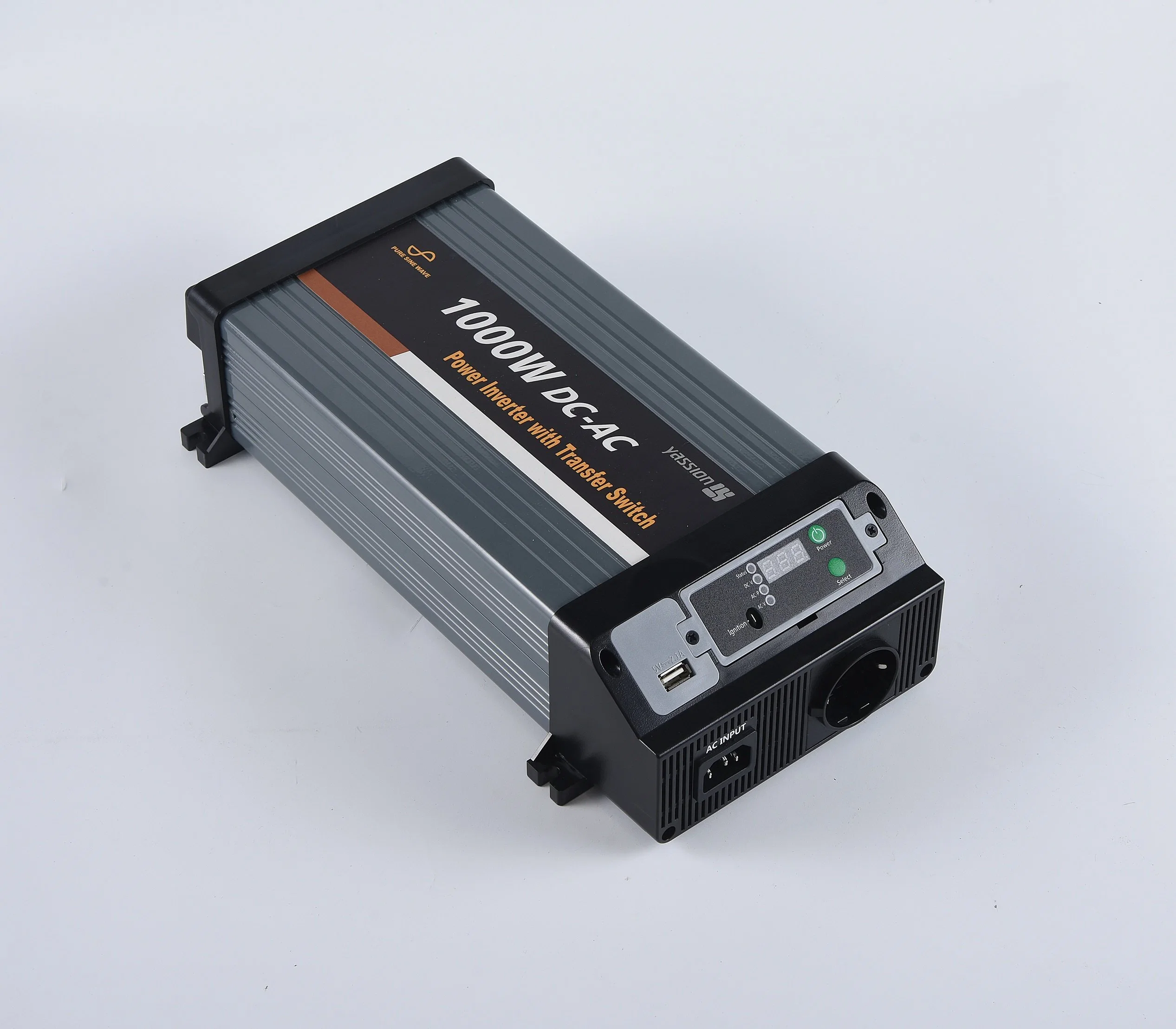

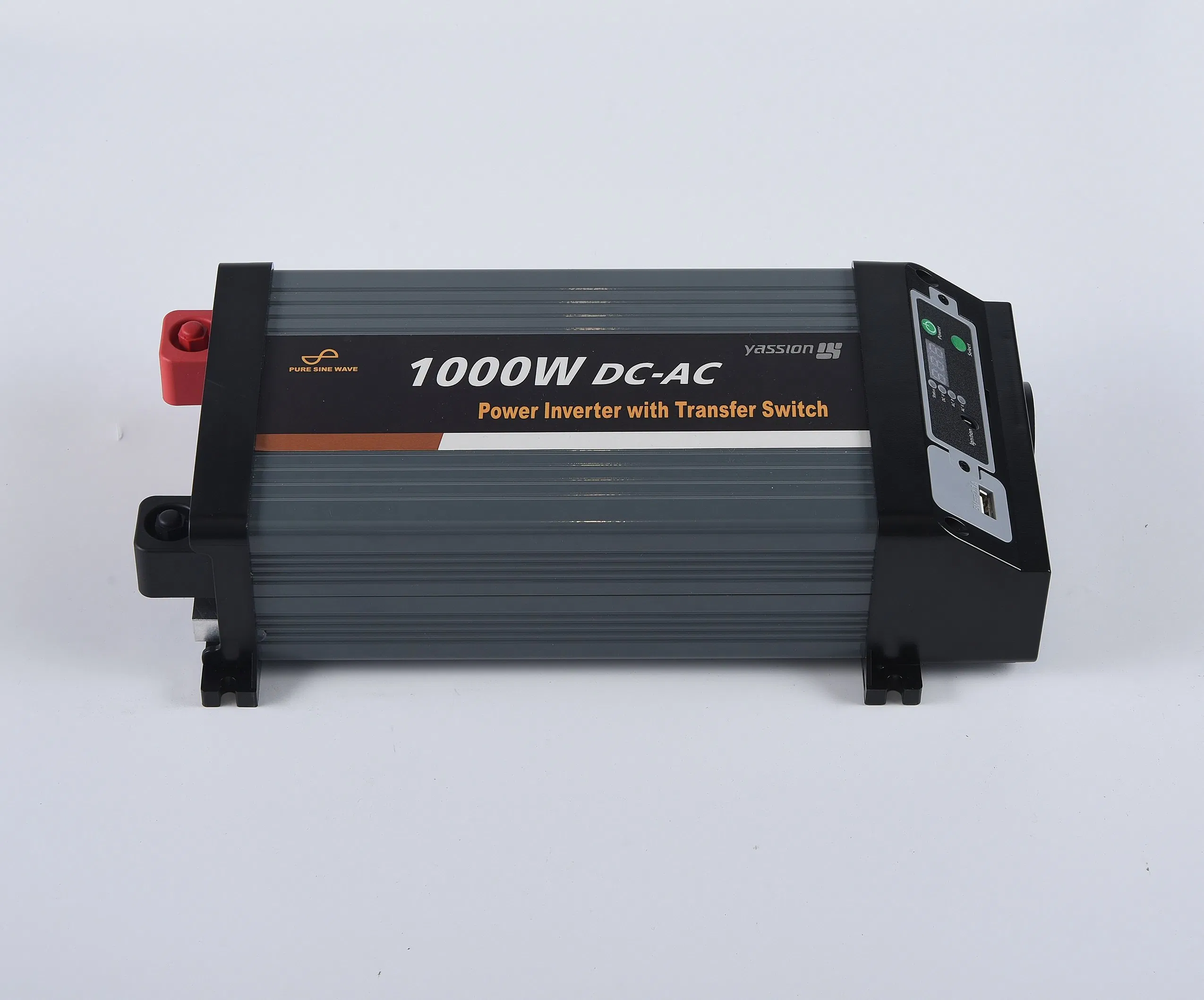

Detailed Photos

Product Parameters

Model	YX-1KUS-1-1	YX-1KUS-2-1	YX-1KUS-1-2	YX-1KUS-2-2
Continuous Power	1000W
Peak Power	2000W
DC Voltage	DC12V	DC24V	DC12V	DC24V
AC Voltage	100V/110V/120VAC ± 3V		220V/230V/240VAC ± 3V
No Load Current	1A	0.5A	1A	0.5A
Efficiency	Up to 91%
Transfer Time	Less than 30ms
Cooling Way	Intelligent cooling fan

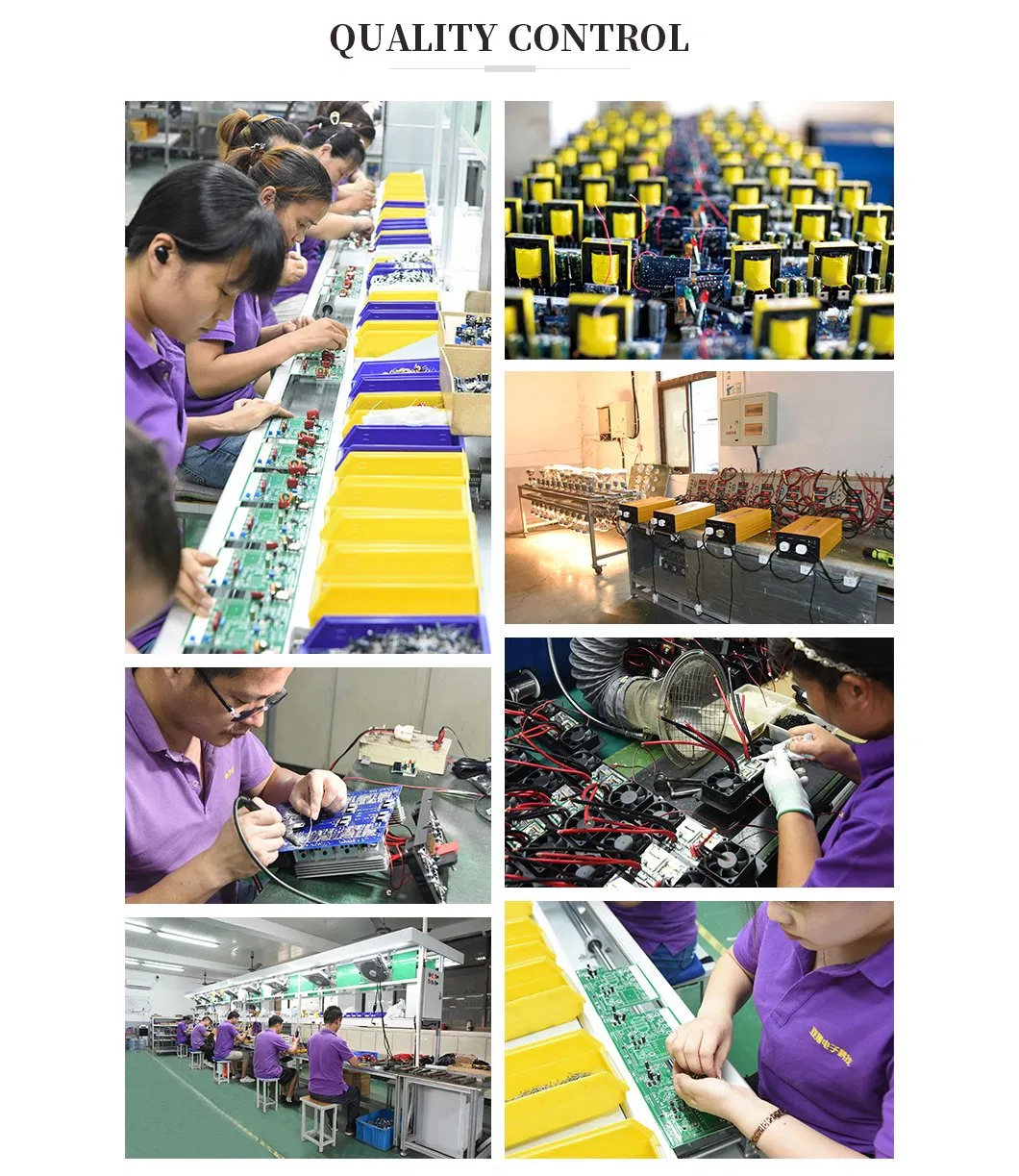

Production Showcase

Frequently Asked Questions

Q1: What is a Pure Sine Wave Inverter and why do I need one?

A Pure Sine Wave Inverter provides high-quality electricity, similar to city power. It is essential for sensitive electronic equipment like laptops, medical devices, and appliances with motors, ensuring they run smoothly without interference or damage.

Q2: How does the automatic transfer switch work?

The built-in 16A transfer switch allows the inverter to automatically toggle between city power (utility) and battery power. When utility power is available, it bypasses the battery; when utility power fails, it switches to battery power in less than 30ms.

Q3: Can the digital display be moved?

Yes, this model features a removable display. You can mount the display panel in a more accessible location using the included 5m remote cable, allowing you to monitor the system without being near the inverter itself.

Q4: What should I do if the error code F01 appears?

Code F01 indicates low voltage shutdown. The inverter will protect the battery from over-discharging. Once the battery voltage returns to a normal level, the inverter can be manually reset or may auto-recover if configured.

Q5: What is the benefit of high-frequency switching technology?

High-frequency technology allows the inverter to be significantly lighter and more compact compared to traditional low-frequency inverters while maintaining the same 1000W power output, making it ideal for mobile or space-constrained applications.

Q6: Is this inverter suitable for vehicle use?

Yes, it includes an ignition function port. You can connect it to the vehicle's ignition system so the inverter starts and shuts down automatically when the vehicle starts or stops.
