5-20 Kwh Home Supply Solar Electrical Residential Commercial MPPT BMS Lithium Ion Battery Stacked Energy Storage Systems

1 / 5

5-20 Kwh Home Supply Solar Electrical Residential Commercial MPPT BMS Lithium Ion Battery Stacked Energy Storage Systems

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.AS-15KW-HYBRID

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial

SpecificationNormal, OEM

System TypeHome Solar Power System

Inverter TypeHybrid Solar Inverter

Production Capacity4500 sets Per Month

Packaging & Delivery

Package Size100.0cm * 55.0cm * 30.0cm

Gross Weight35.000kg

Package TypeCarton/Wooden Box

Product Description

Hybrid Storage Solar Power System Parameters

Hybrid Inverter (KW)	3.6kw	5kw	8kw	10kw	12kw
550W Mono Solar Panel (Pcs)	6	10	14	20	24
PV Combiner Box (Set)	1	1	1	1	1
Battery Specs	48V 100/200AH Lead Acid Gel/ AGM
DC Cable (m)	200	200	200	400	400

Hybrid Inverter (KW)	30KW	50KW	100KW	120KW	150KW
550W Mono Solar Panel (Pcs)	56	96	200	240	280
Lead Acid Battery Bank	336V-438V 200Ah Series
DC Cable (m)	400	600	800	800	1000

Note: Product dimensions and physical appearance are nominal. Specifications may change from time to time for product improvement.

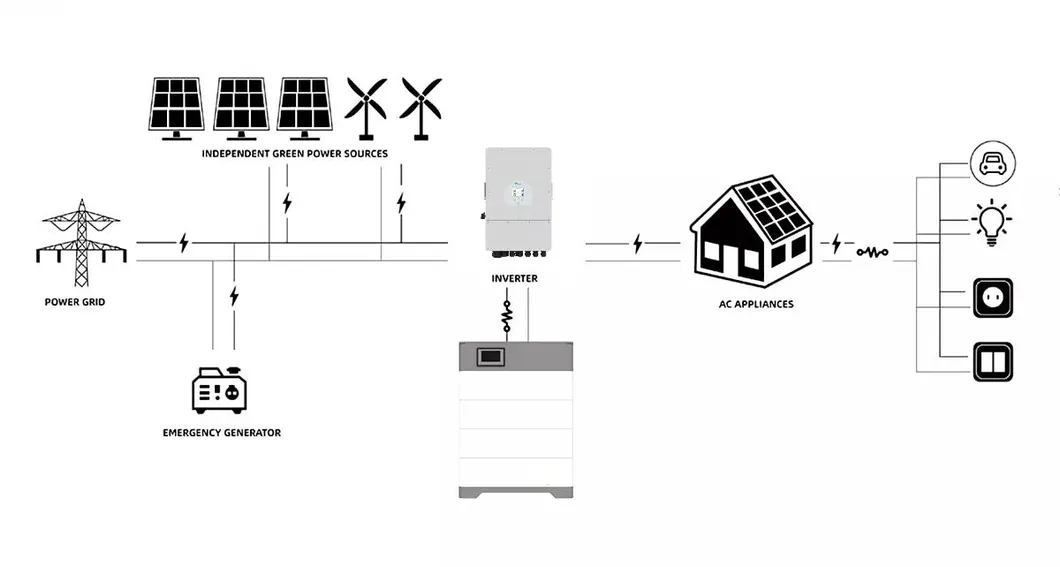

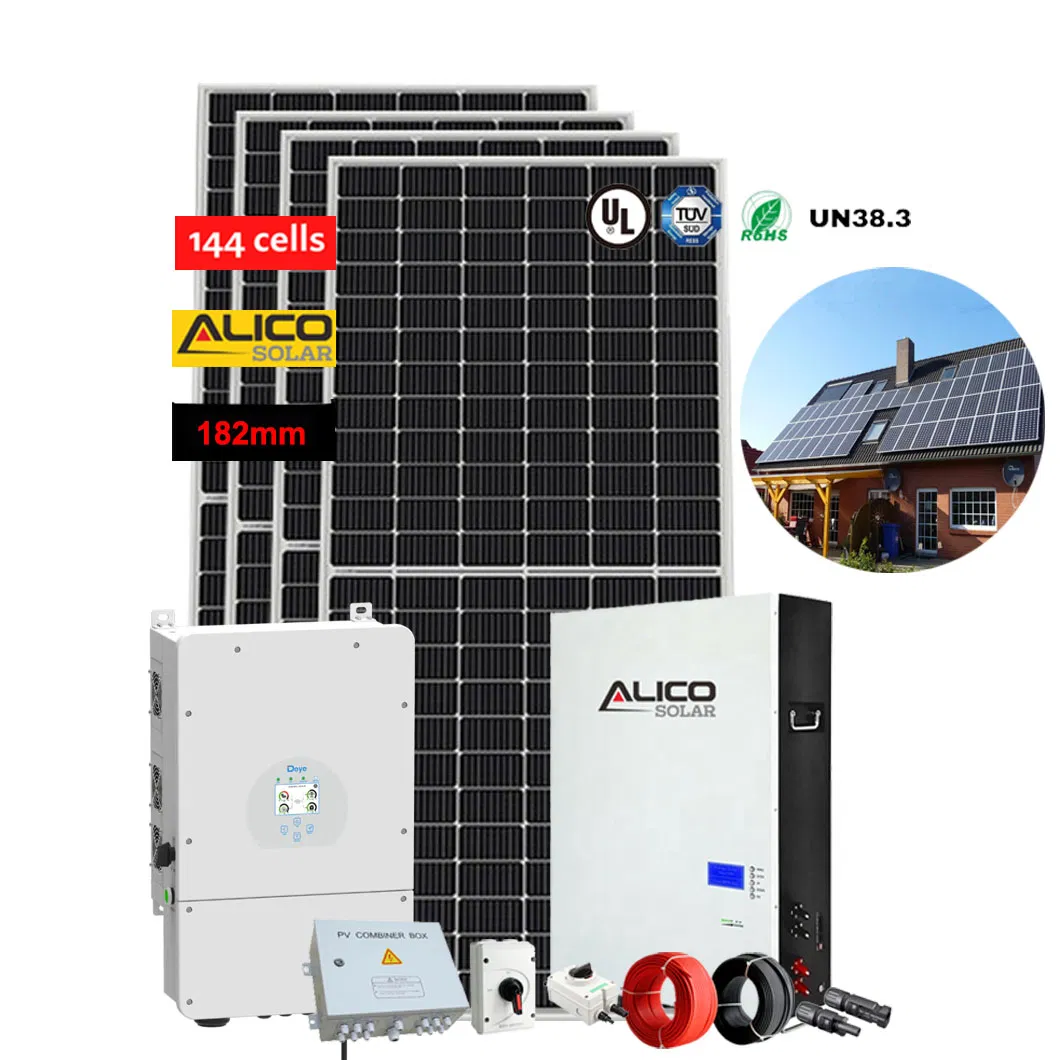

Hybrid Solar System Configuration

1. Solar Panel

2. Hybrid Inverter

3. Switch Box

4. Power Meter

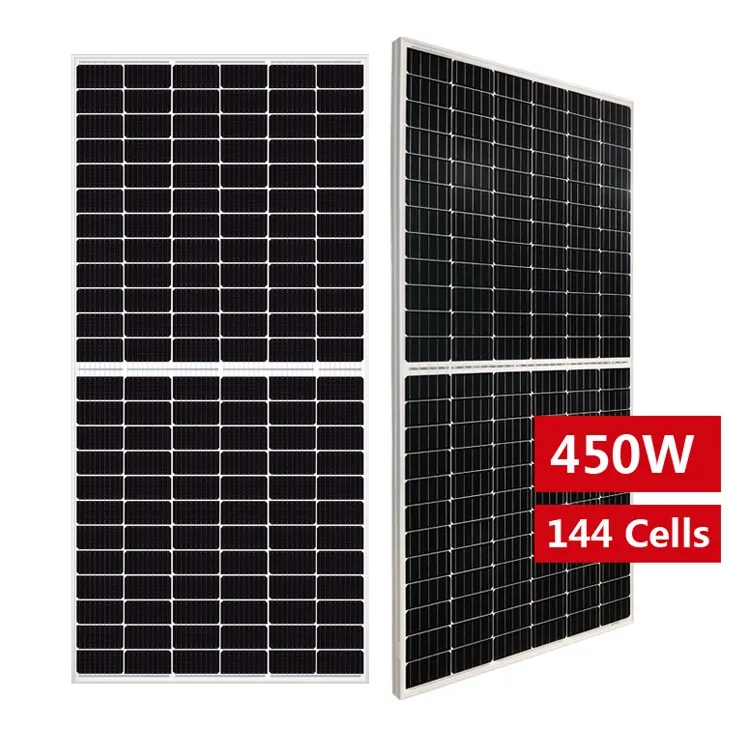

Monocrystalline Solar Panel

Peak Power: 455W
High Efficiency Half-Cell Technology
Open Circuit Voltage: 44.95V
Dimensions: 2108*1048*35mm
Weight: 24kg

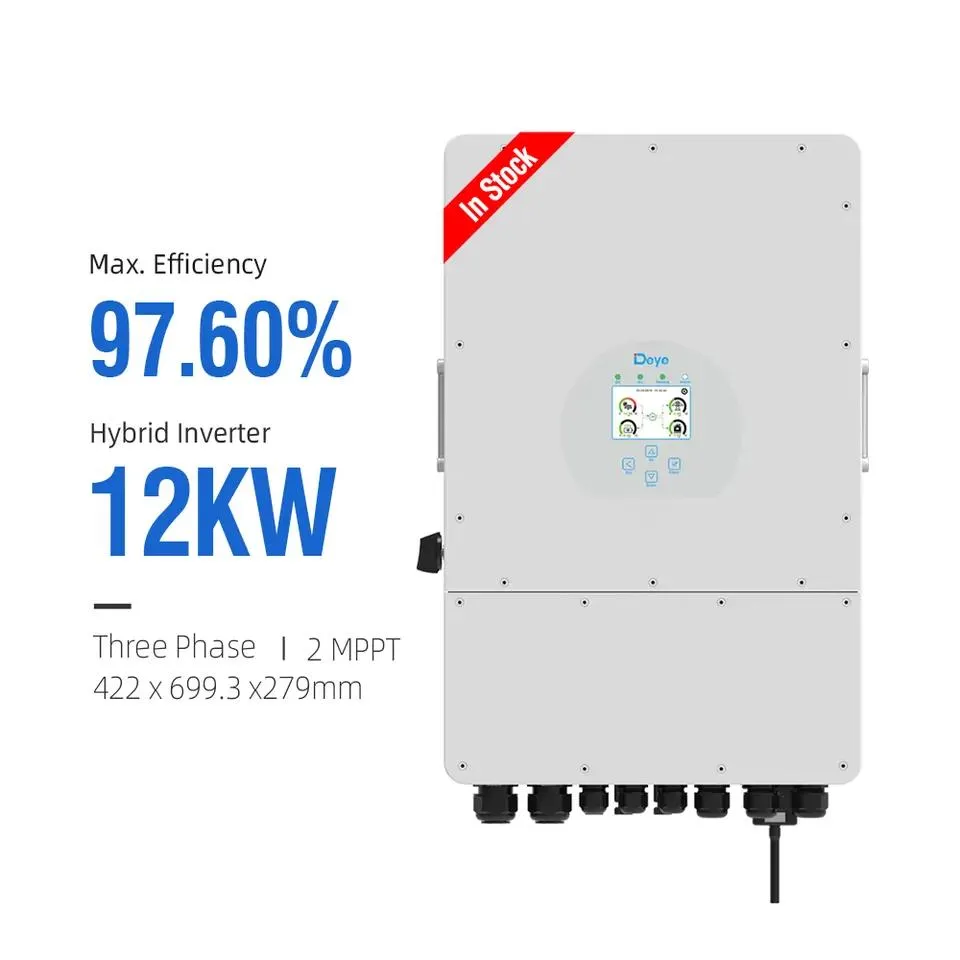

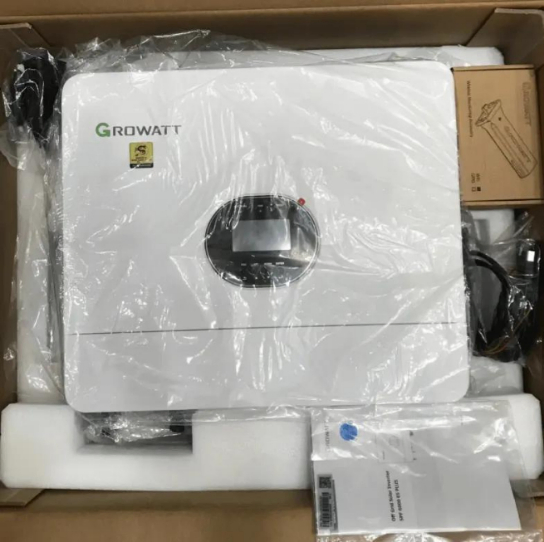

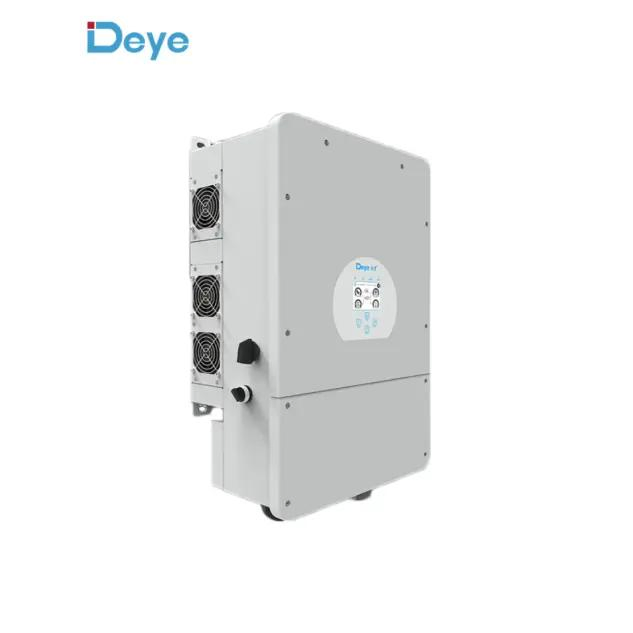

Hybrid Solar Inverter

All-in-one hybrid functionality
Seamless on/off grid transfer
Programmable working modes
Remote monitoring & Control
Parallel capability for increased capacity

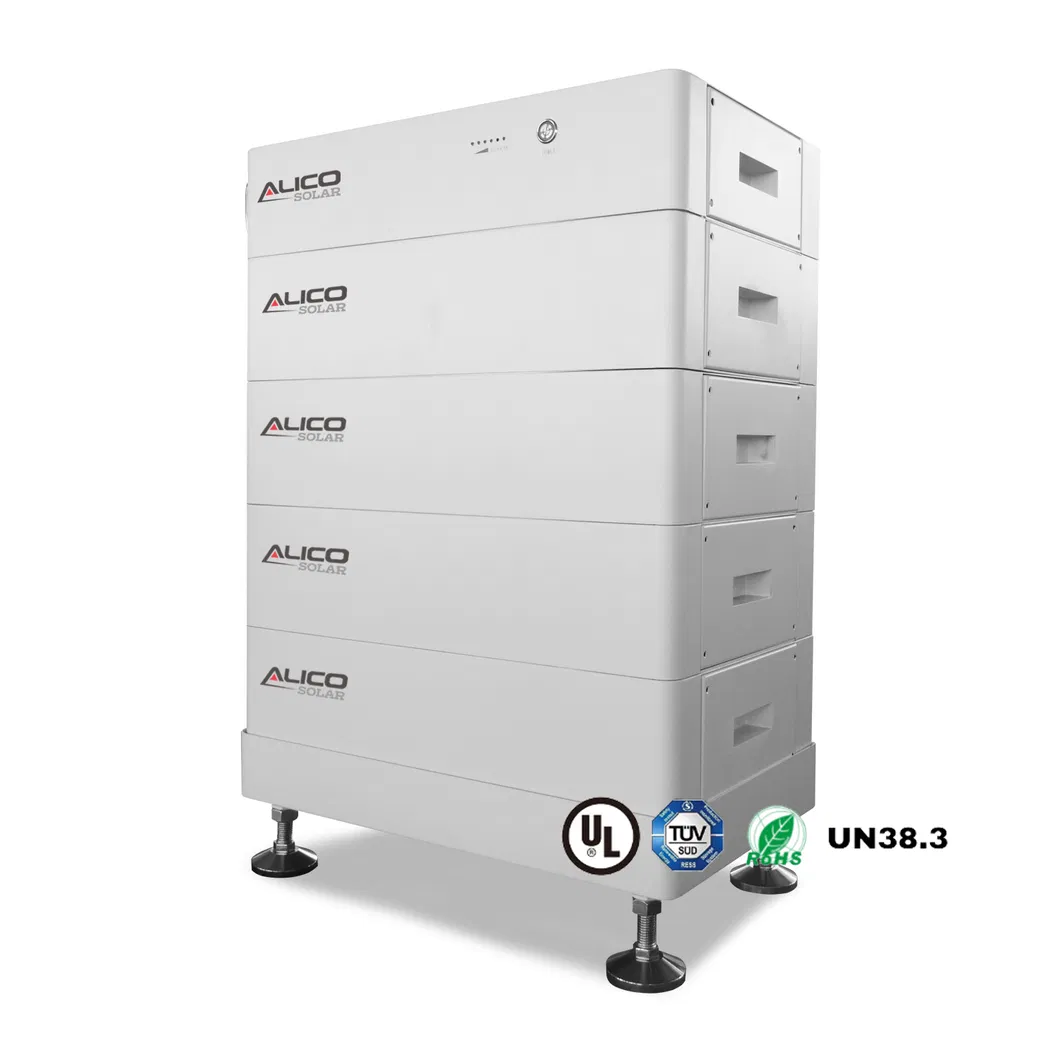

Lithium Storage Battery

Modular & Stacked design for easy installation
Capacity: 2.56kwh to 25.6kwh
Cobalt-free LiFePO4 safety
Wide Operating Temp: -10°C to 50°C

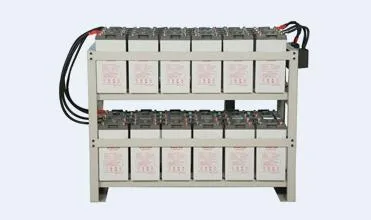

Lead Acid GEL/AGM Battery

Capacity options up to 250AH
Nominal Voltage: 12V
Depth of Discharge: 80%
Stable discharge performance

Remote Monitoring & Mounting

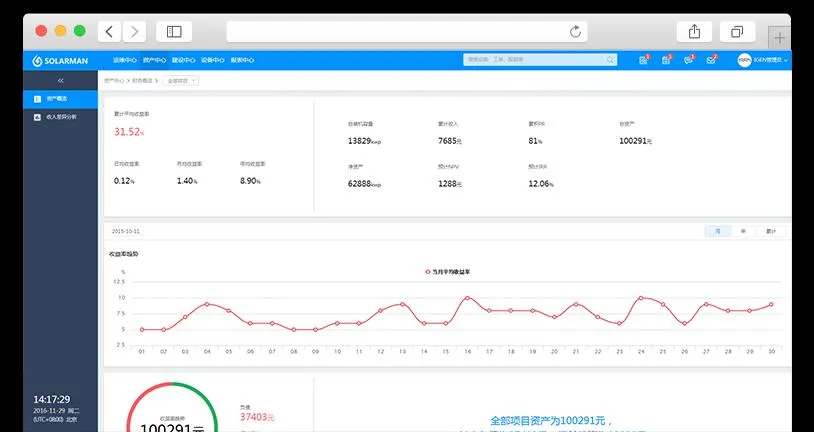

Monitoring System

Real-time data access via Wi-Fi, Lan, or GPRS. Available for PC, iOS, and Android.

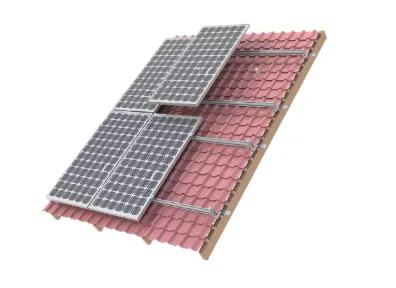

PV Mounting System

Support for Roof or Ground. High-grade AI6005 & SUS304 components for durability.

Accessories & Tools

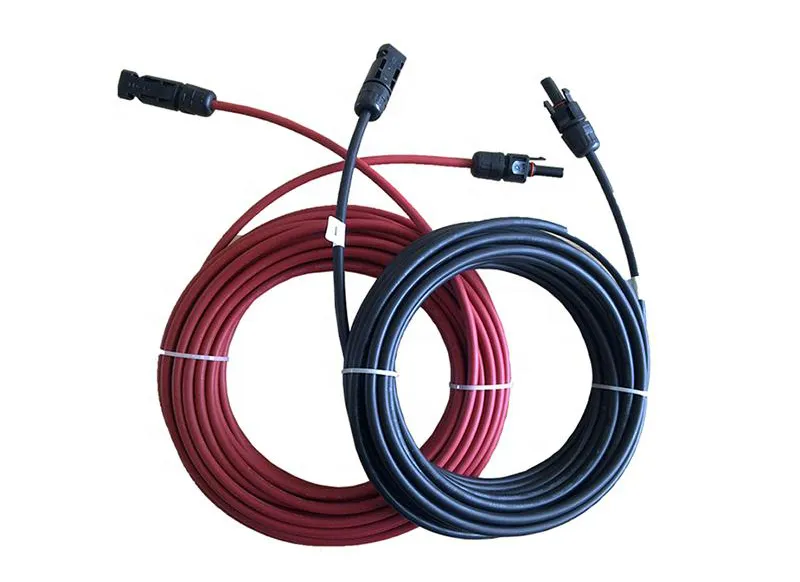

AC/DC Cables & Connectors
Combiner Boxes & Circuit Breakers

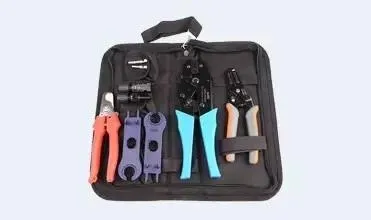

Professional Installation Tools (Crimpers, Strippers)

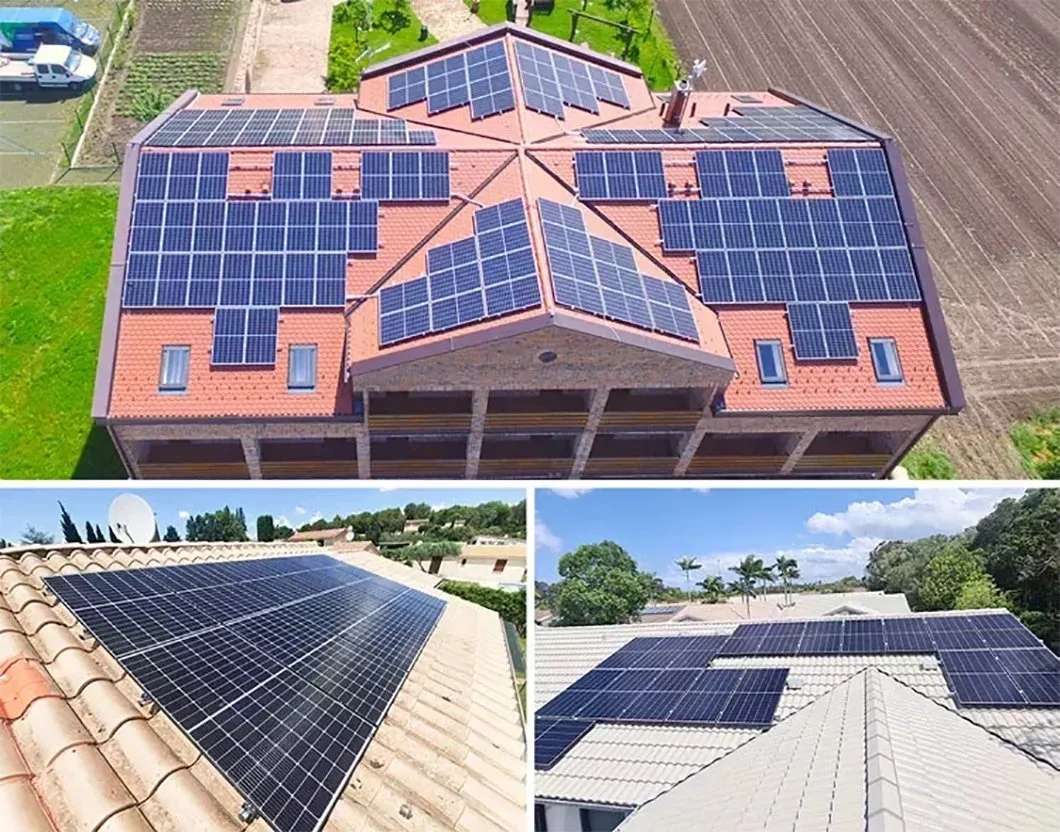

Projects Gallery

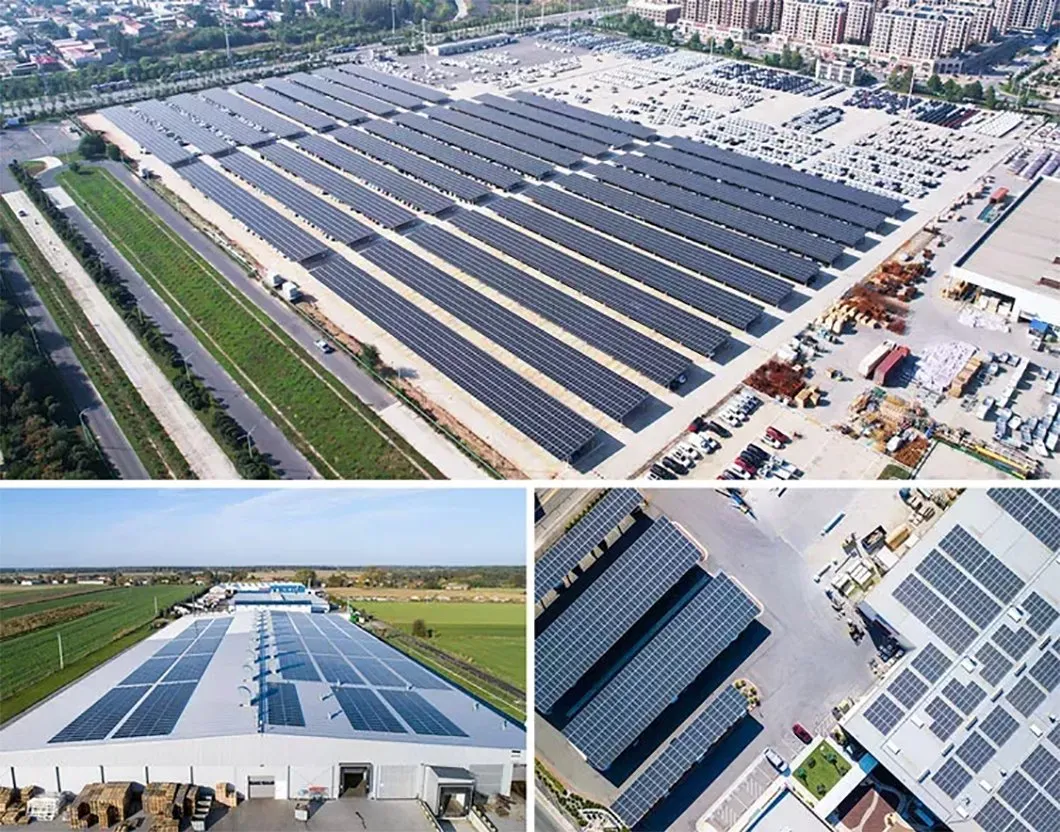

Commercial Metal Roof Solar Plant

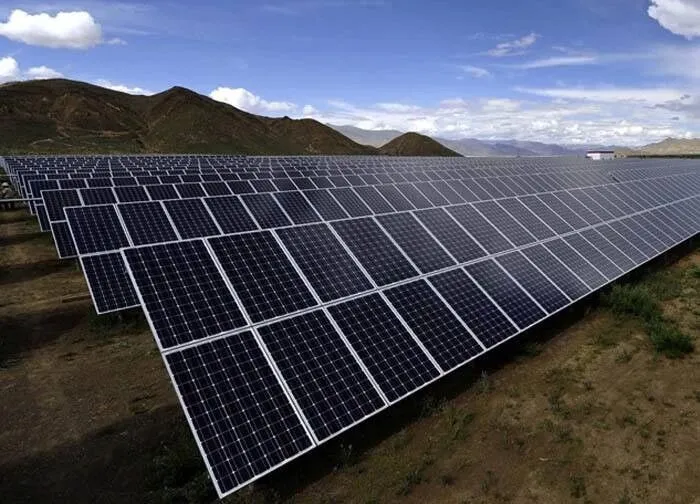

20MW Ground Plant (USA)

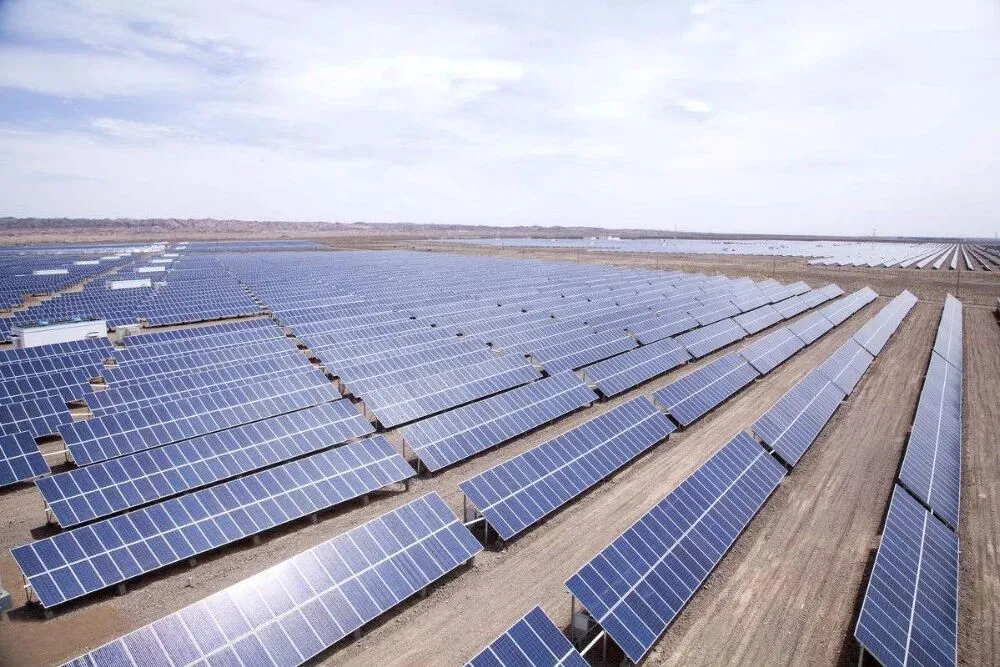

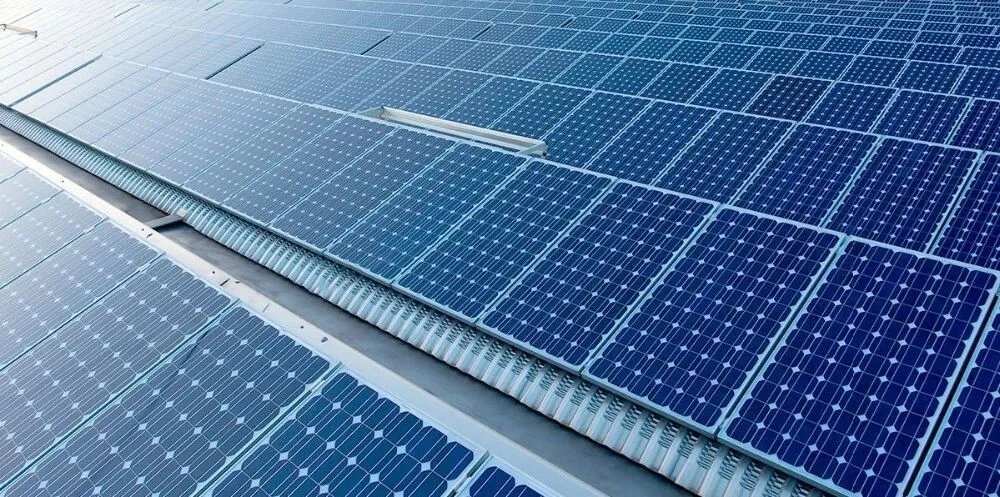

50MW Solar Plant (Brazil)

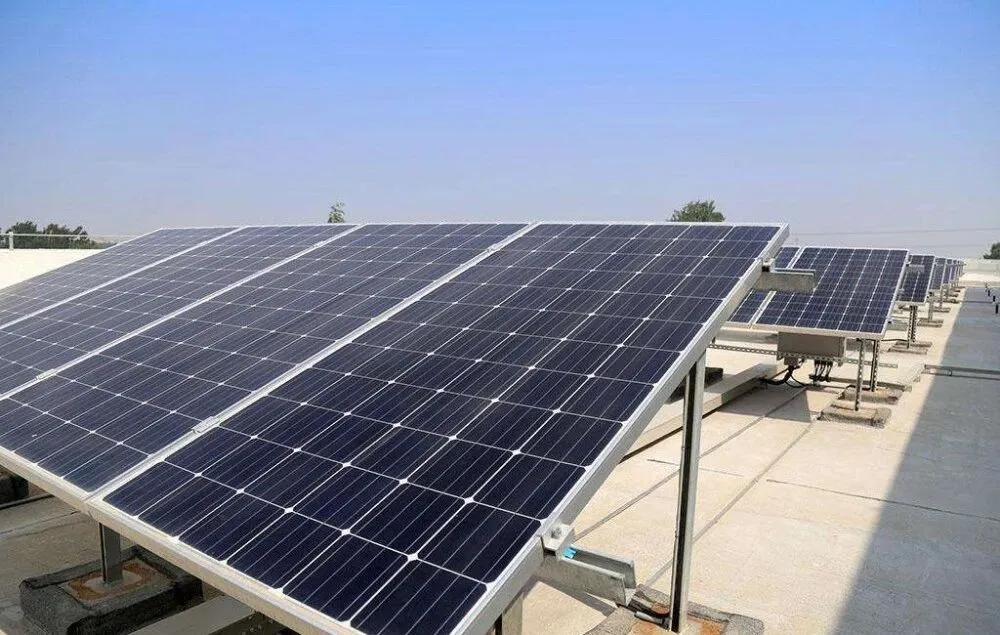

20KW Solar Plant (Mexico)

Frequently Asked Questions

Q1: What are the main benefits of a hybrid solar system? A hybrid system combines solar panels with battery storage and grid connection, allowing you to use solar energy day and night while having a grid backup. It optimizes self-consumption and provides power during outages.

Q2: Can I choose between Lithium and Lead-Acid batteries? Yes, our systems are designed to be compatible with both modern LiFePO4 lithium batteries (stacked/modular) and traditional Lead Acid GEL/AGM batteries to fit different budgets and requirements.

Q3: Is the system suitable for both residential and commercial use? Absolutely. Our systems range from 3.6KW for small residential homes up to 150KW for large-scale industrial or commercial applications.

Q4: How does the remote monitoring system work? The system includes a data logging stick that connects via Wi-Fi, LAN, or GPRS. You can monitor real-time energy production and system status through a dedicated app on your smartphone or PC.

Q5: What is the lifespan of the solar panels? Our high-efficiency monocrystalline solar panels are built to last over 25 years, maintaining excellent performance throughout their lifecycle with minimal maintenance.

Q6: Are the mounting systems customized for different roof types? Yes, we provide customized mounting brackets for various scenarios, including metal roofs, asphalt shingle roofs, and ground-mounted systems.
