Huawei Sun2000 150ktl Mg0 150kw Solar Inverter 988 Percent Efficiency 7 MPPT Trackers IP66 Protection High Reliability for Industrial PV Plants

1 / 5

Huawei Sun2000 150ktl Mg0 150kw Solar Inverter 988 Percent Efficiency 7 MPPT Trackers IP66 Protection High Reliability for Industrial PV Plants

Customization:	Available
After-sales Service:	Yes
Warranty:	5years

Send Inquiry

Product Description

Basic Information

Model NO.

SUN2000-150KTL-MG0

Nature of Source Flow

Passive inverter

Phase

Three

Output Power

>1000W

Certification

CE, ROHS, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Weight

102 Kg

Cooling Method

Smart Air Cooling

Protection Degree

IP66

Specification

1000 x 710 x 395 mm

Product Description

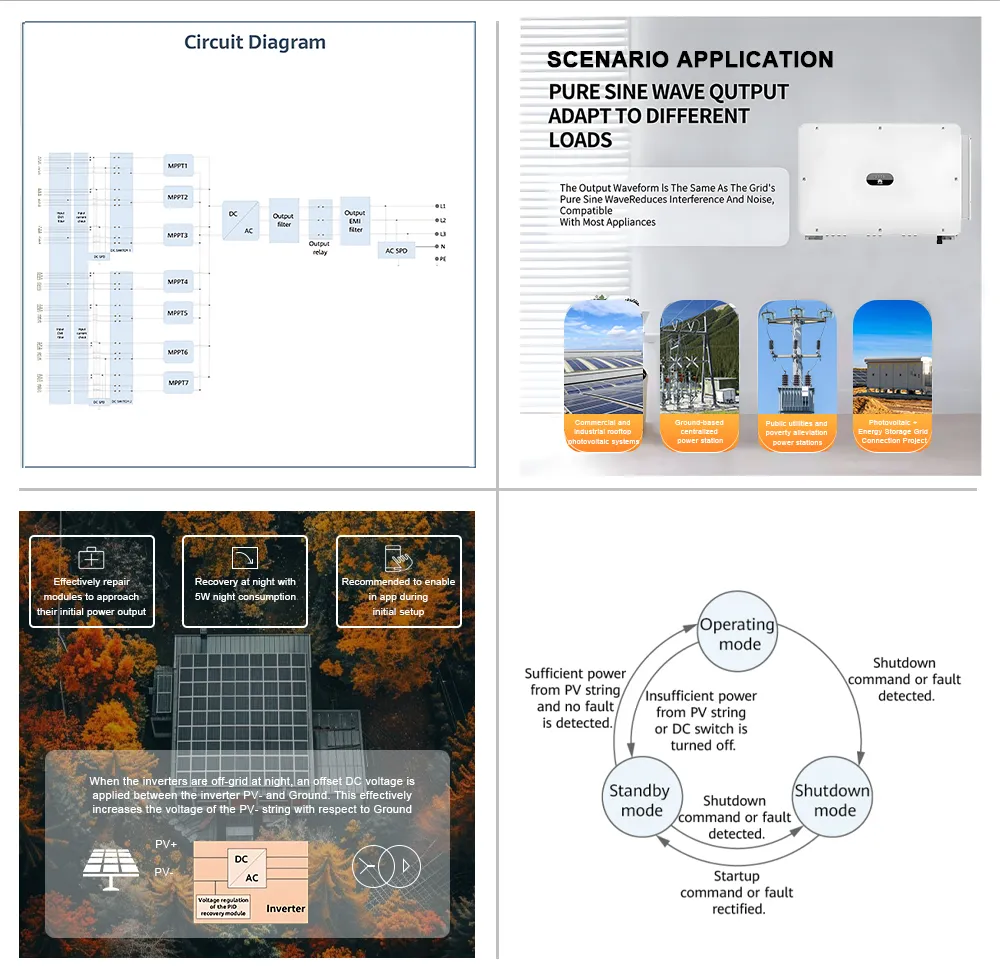

Working Principle

Product Parameters

Technical Specification	SUN2000-150K-MG0
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	48A
Max. Short Circuit Current per MPPT	66A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V
Number of MPP trackers	7
Output
Nominal AC Active Power	150,000 W
Max. AC Apparent Power	165,000 VA
Nominal Output Voltage	380 V/400 V/480Vac
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Output Current	253.2 A @380 V, 240.5 A @400 V
Adjustable Power Factor Range	0.8 leading... 0.8 lagging

Packaging & Shipping

Package Size

105.00cm * 76.00cm * 45.00cm

Package Gross Weight

105.000kg

Certifications

Global Cooperation

Frequently Asked Questions

How to choose the right inverter for my project?

Please define your specific power demands and grid requirements. Our technical team can then recommend the most efficient inverter model tailored to your industrial or residential needs.

What is the main difference between Mono and Poly solar panels?

Monocrystalline panels feature higher efficiency as they are made from high-grade single-crystal silicon. Polycrystalline panels are more cost-effective to produce and involve a simpler manufacturing process with less silicon waste.

What are the typical delivery lead times?

Standard sample orders are typically processed within 7 days. For bulk industrial orders, the delivery timeframe is generally around 15 days depending on the order volume.

What kind of warranty is provided for the solar equipment?

We typically provide a 10-year standard warranty on solar panels, complemented by a 25-year linear output power warranty to ensure long-term performance reliability.

How do you handle technical support and after-sales service?

Our professional engineering team provides 24-hour online support. We aim to address and provide solutions to any operational issues within 1 hour to minimize downtime.

Is the SUN2000-150KTL-MG0 suitable for harsh environments?

Yes, with an IP66 protection rating and an operating temperature range of -25°C to 60°C, this inverter is designed for high reliability in various industrial PV plant conditions.
