Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
1 / 5
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System
Hybrid Solar Energy System 20kw Solar Power System

Hybrid Solar Energy System 20kw Solar Power System

Customization: Available
After-sales Service: Yes
Warranty: 5years
Send Inquiry

Product Description

Basic Information
Model NO.:BR-SHS20KW
Condition:New
Certification:ISO, CE
Application:Home, Commercial
Specification:Normal
Package:Carton Box
Origin:China
Capacity:50,000 sets/Year
Instruction of Solar System
Hybrid Solar Energy System

The 20KW OFF GRID SOLAR SYSTEM is widely used in the following applications:

  • Mobile equipment such as motor homes and ships.
  • Civilian life in remote areas without electricity (plateaus, islands, pastoral areas, border posts) for lighting and appliances.
  • Rooftop solar power generation systems.
  • Photovoltaic water pumps for drinking and irrigation from deep wells.
  • Transportation field: beacon lights, signal lights, high-altitude obstacle lights.
  • Communication fields: Unattended microwave relay stations, optical cable maintenance, and broadcasting power supplies.
Product Presentation

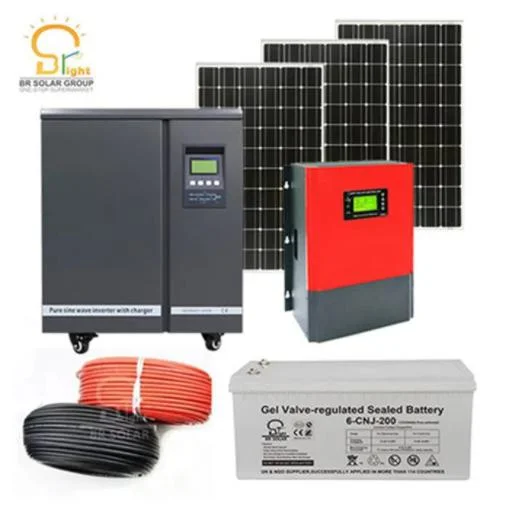

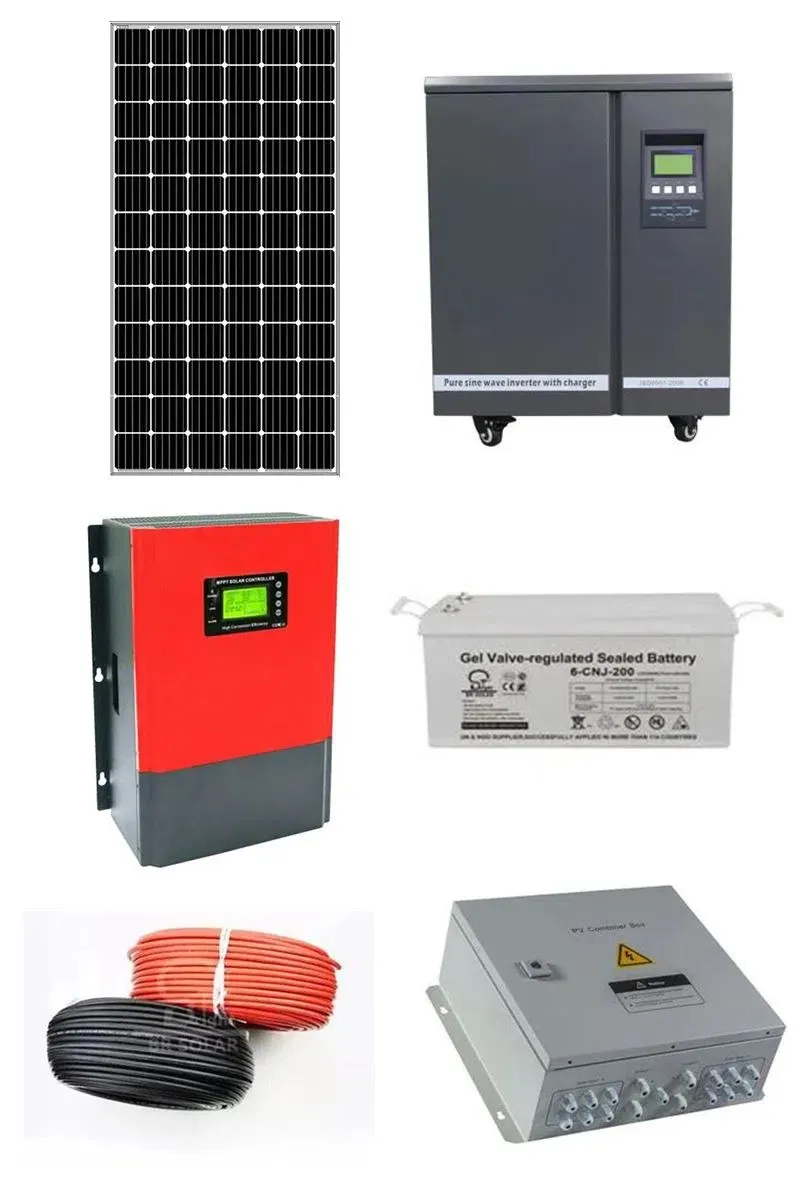

20KW Solar Power System Components

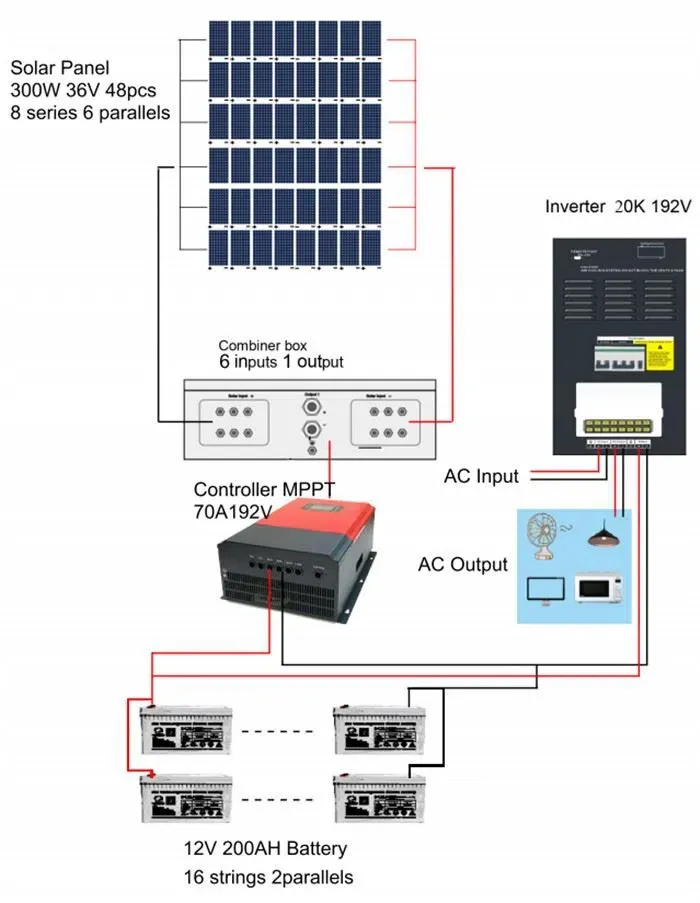

Technical Layout
Technical System Configuration
No. Name Specification Qty Remarks
1Solar panelMono 300W48 Pcs8 strings x 6 parallels
2Solar BatteryGel 12V 200AH32 Pcs16 strings x 2 parallels
3Inverter20KW DC192V-AC220V1 SetPure sine wave, LCD display, AC input/output 220VAC
4Solar ControllerBR-192V-70A1 SetOvercharge/Over-discharge protection

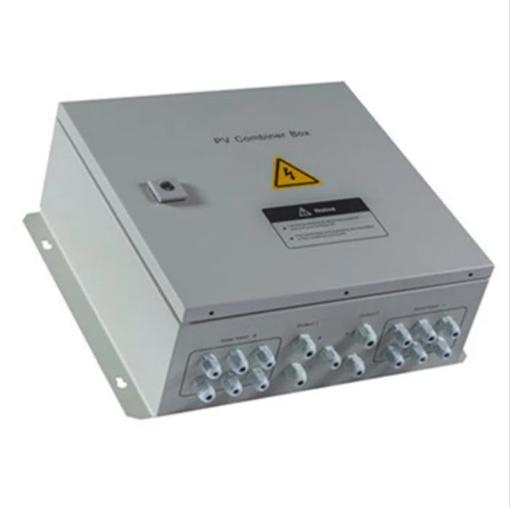

5PV Combiner BoxBR 6-11 Pc6 inputs, 1 output
6ConnectorMC46 PairsIncludes extra fittings
7Panel BracketHot-dip Zinc14400WC-shaped Steel Bracket
8Battery RackStandard1 Set-
9PV Cables4mm2400MPanel to Combiner Box
10BVR Cables16mm220MCombiner Box to Controller
11BVR Cables25mm22 SetsController to Battery
12BVR Cables35mm22 SetsInverter to Battery
Component Specifications

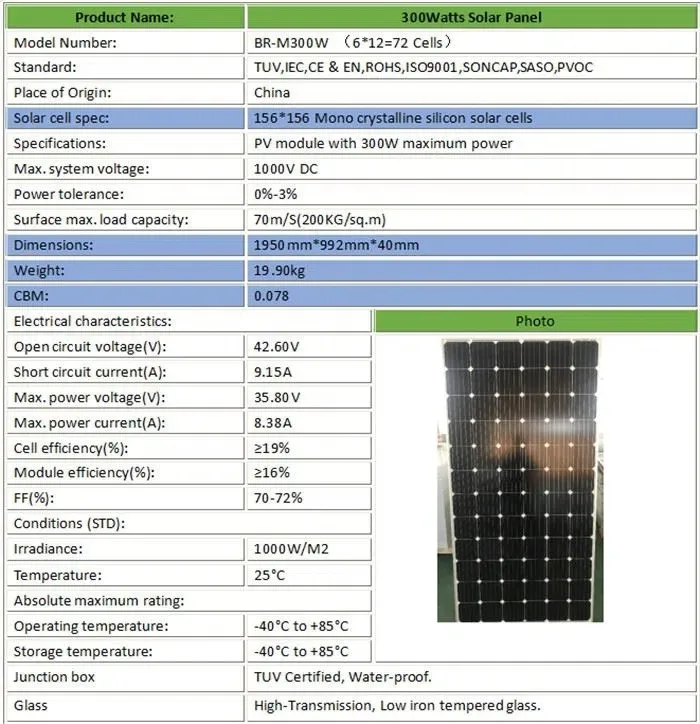

300W Solar Panel Specs

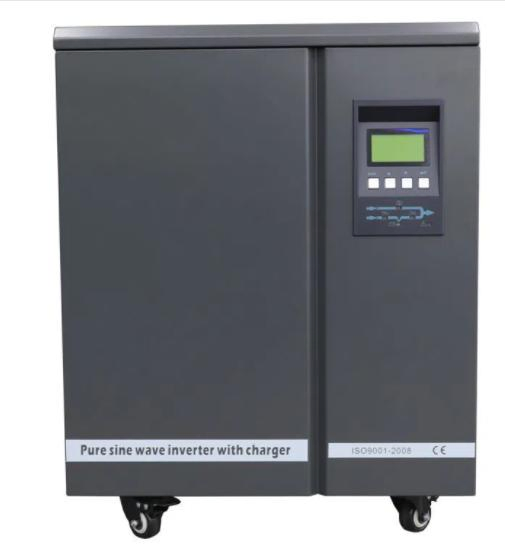

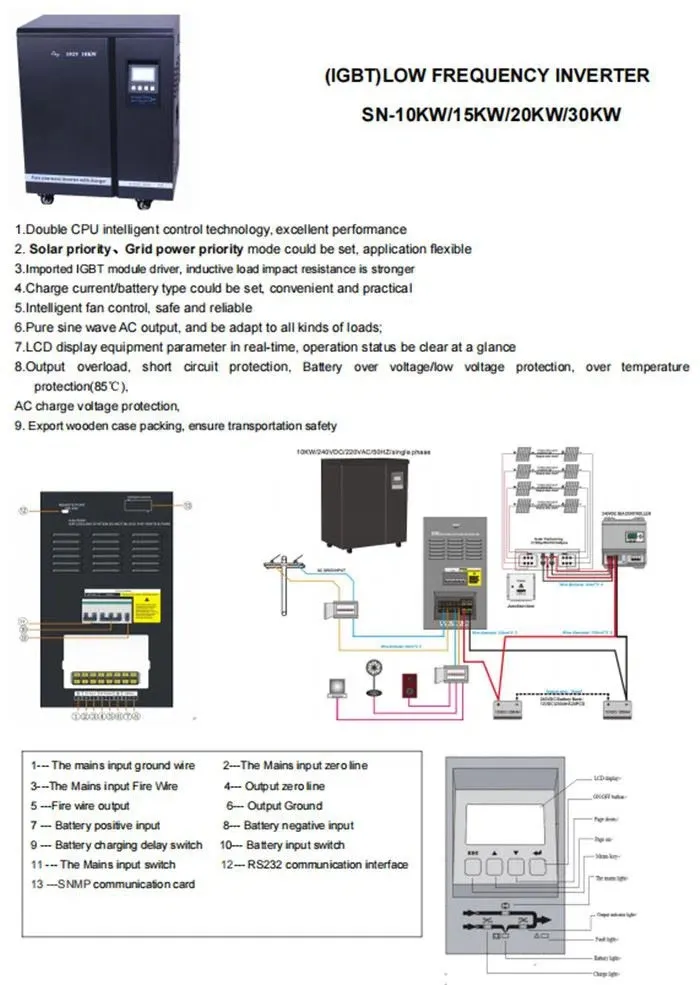

20KW Inverter Specs
Model SN-10KW SN-15KW SN-20KW SN-30KW
Rated power10KW15KW20KW30KW
Battery Rated Voltage96V/192V/240V192VDC/240VDC384VDC
Output WaveformPure sine wave
Efficiency>88%>91%
Switching Time< 4ms

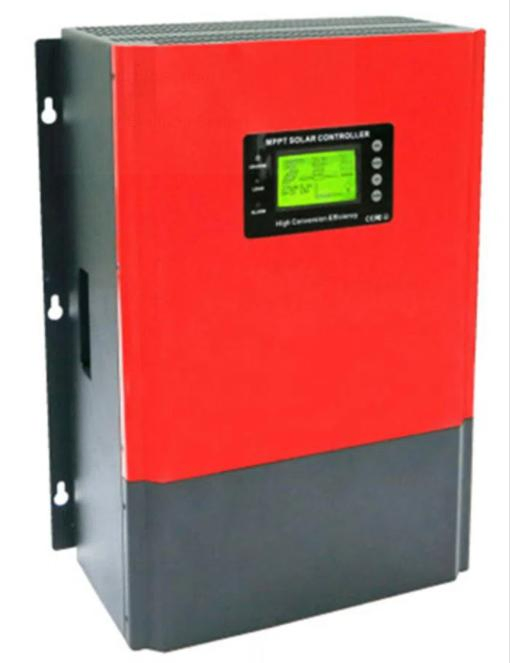

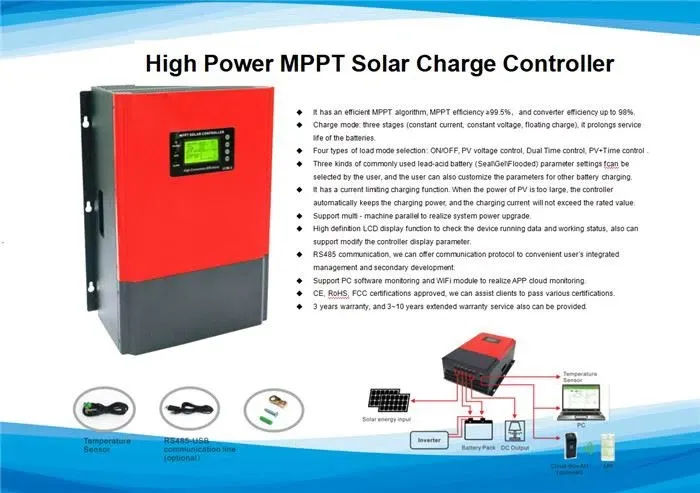

MPPT Controller

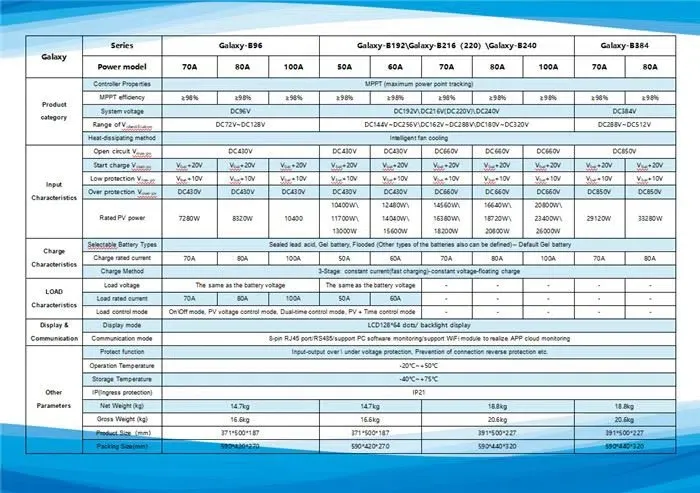

MPPT Controller Details

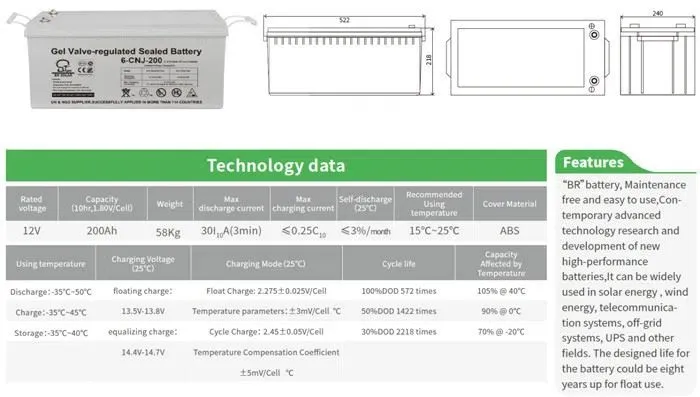

Battery Specs
Project Cases & Packing

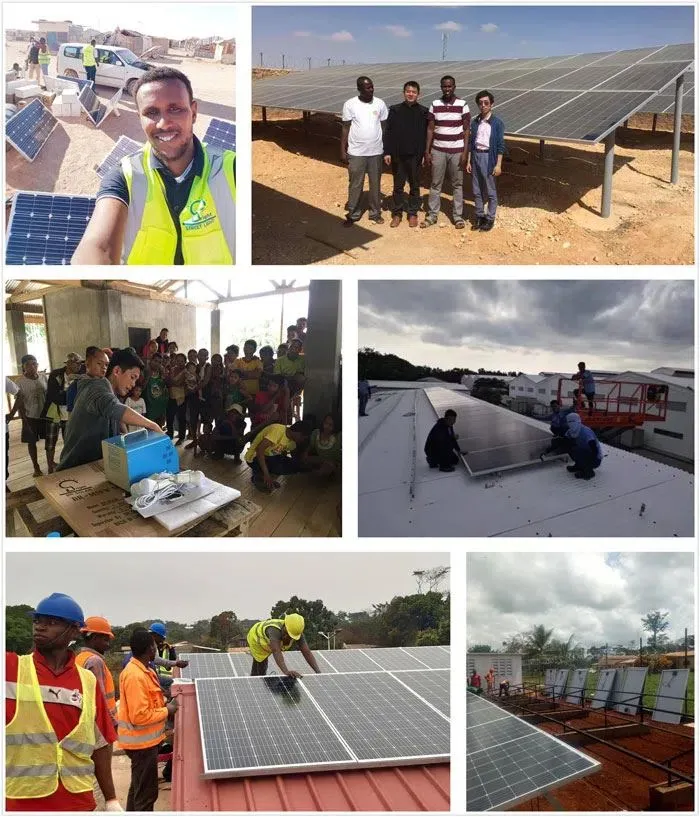

Solar Project Picture
Product Packing
Certificates
Certification Showcase
Official Certificates

Note for Procurement:

Minimum Order Quantity (MOQ) for each model is 10 units. The standard production lead time is approximately 15-20 working days.

FAQ
1. What are the primary applications for the 20KW off-grid solar system? This system is ideal for remote areas without power grid access, including residential homes, commercial buildings, islands, border posts, and mobile equipment like motor homes and ships.
2. Can the system power water pumps for irrigation? Yes, it is specifically designed to support photovoltaic water pumps for drinking water and irrigation in areas lacking electricity.
3. What type of batteries are included in the package? The standard configuration includes 32 pieces of Gel 12V 200AH batteries, connected in a 16 string x 2 parallel arrangement.
4. Is the inverter output compatible with sensitive electronics? Yes, the system uses a pure sine wave inverter, which provides high-quality, stable power suitable for all types of civilian and commercial electronic devices.
5. What certifications does this solar energy system hold? The system and its components are ISO9001:2015, CE, EN, RoHS, IEC, FCC, TUV, and SONCAP approved.
6. Does the system support backup input from other sources? The inverter supports both Grid and Diesel generator input to ensure continuous power supply even during extended periods of low sunlight.
