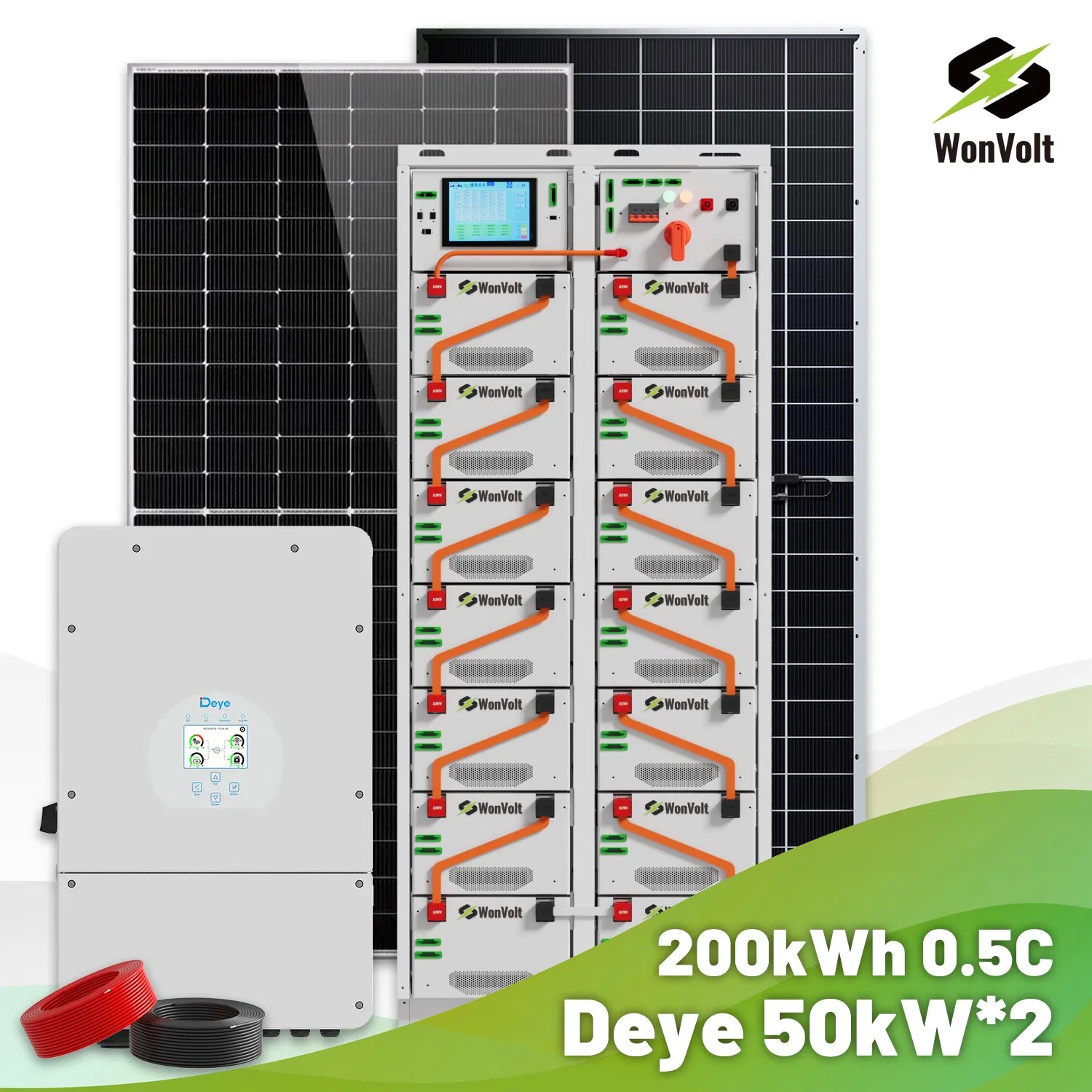

Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
1 / 5
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System
Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System

Hybrid Solar System 60kwp 120kw 100kwh 150kwh Solar Energy System 80kw 160kw Solar Panel System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
WV-200KW-400KWh-C
Certification
ISO, CB, CE, Un38.3 MSDS
Application
Home, Industrial, Commercial, Microgrid
Cycle Life
10000 Times and up Lithium Battery
Nominal Capacity
100kw/225kwh Solar Battery
AC Output
380V/400V/415V/480V/220V
Battery Type
LiFePO4/Lithium Solar Storage Battery
Support
UPS/Black Start/Dg
Mounting
Metal Rooftop, Tile Rooftop or Ground
Capacity
50000sets/Year

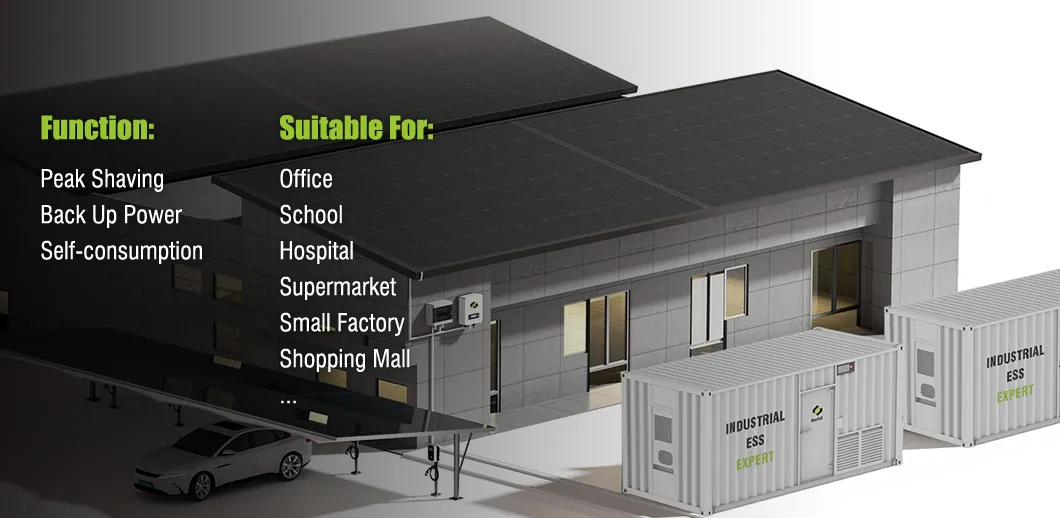

Commercial Energy Storage System

Commercial ESS

System Configuration

Equipment Model 30KW/46kWh 50KW/100kWh 100KW/201kWh
N type Solar Panel WV-72KUN605-H8NS 51pcs 96pcs 170pcs

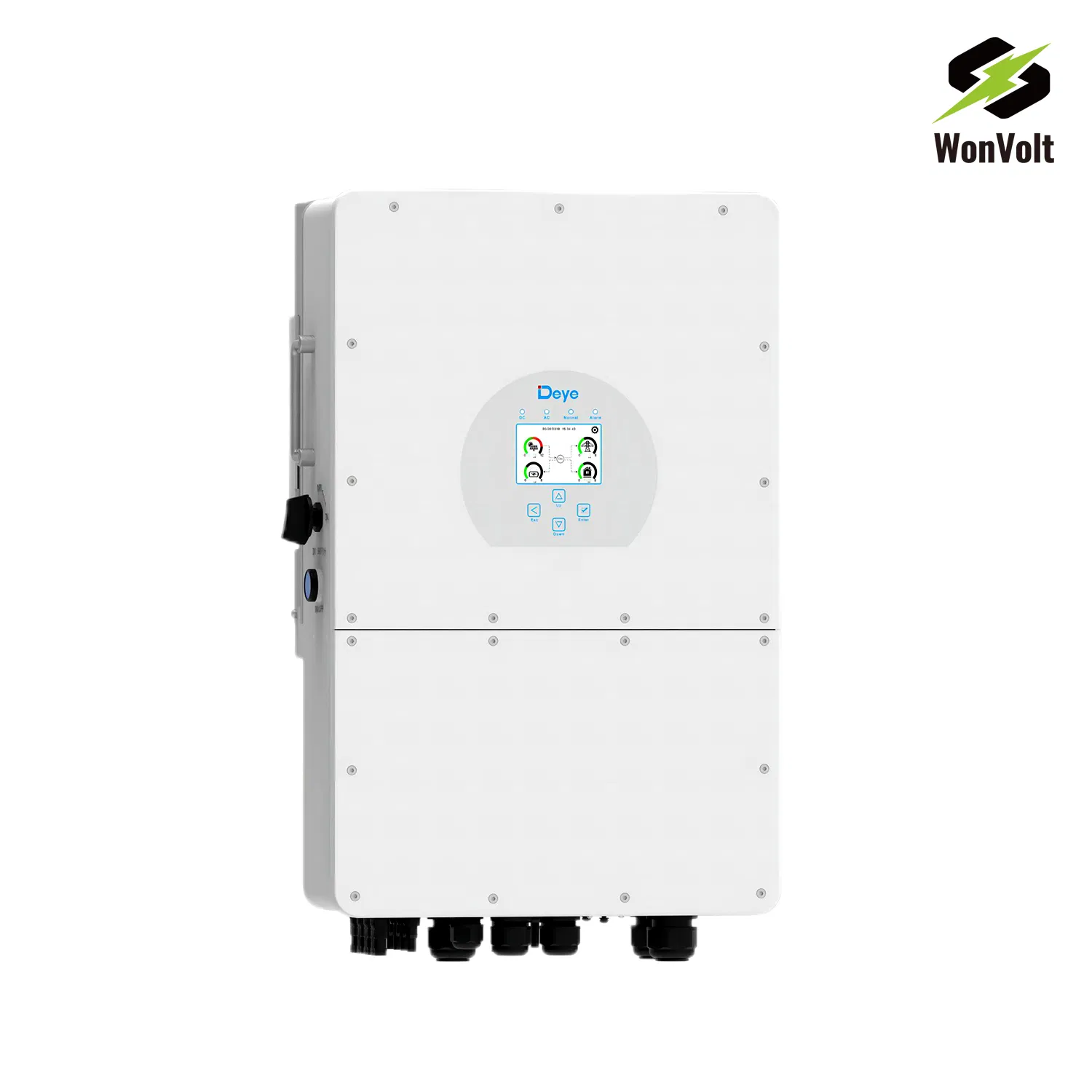

Hybrid Inverter 220/380/480VAC 30KW 50KW 100KW
Lithium Ion Battery WV51280H 46kWh 100kWh 201kWh

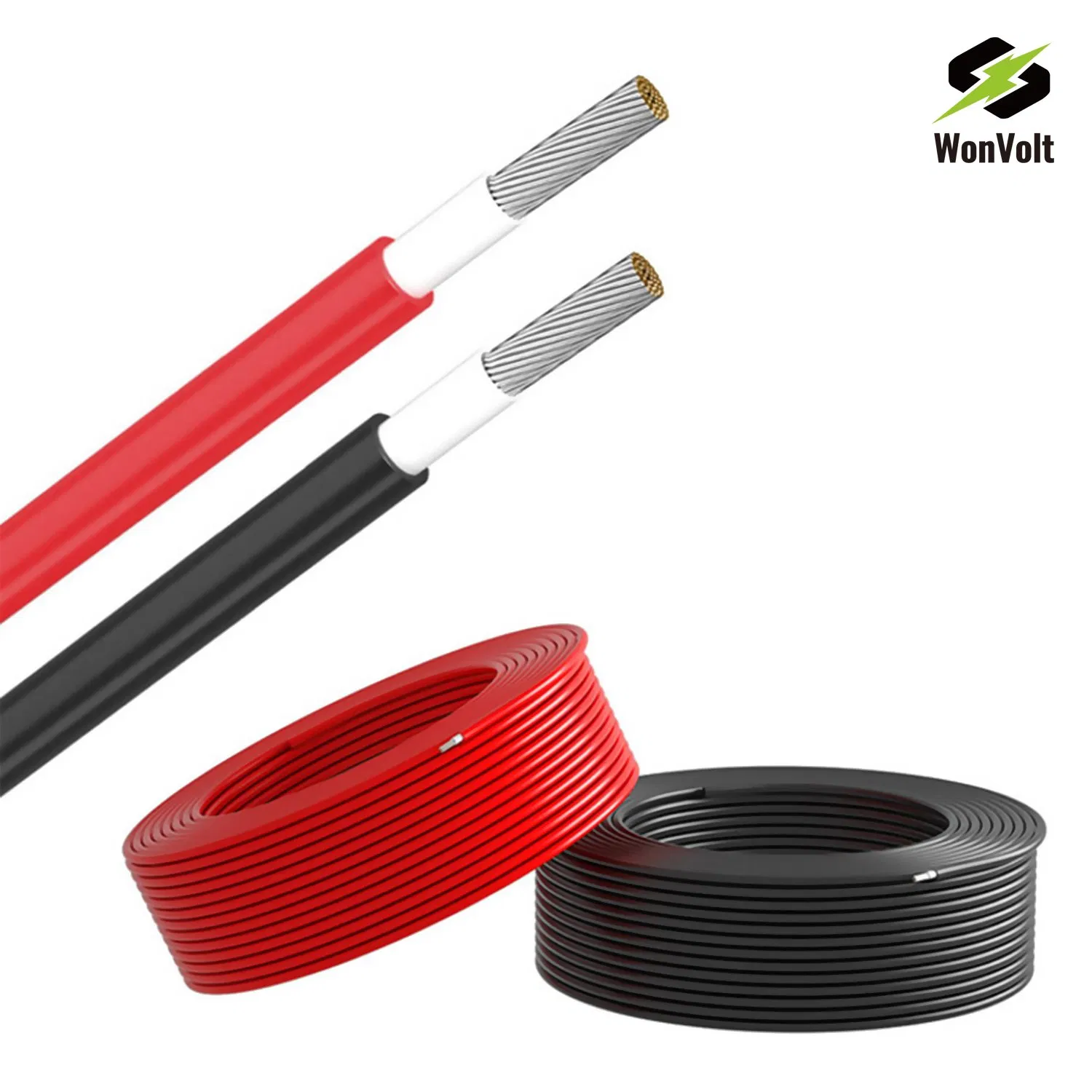

PV Cable PV1-F 1*4/6mm2 300m 600m 1000m
Equipment Model 150KW/286kWh 250KW/559kWh 500KW/1075kWh
N type Solar Panel WV-72KUN605-H8NS 255pcs 420pcs 840pcs
Hybrid Inverter 220/380/480VAC 150KW 250KW 500KW
Lithium Ion Battery WV51280H 286kWh 559kWh 1075kWh
PV Cable PV1-F 1*4/6mm2 1500m 2500m 5000m

Key Components

Solar Panel N type Monofacial or Bifacial dual glasses solar pv panel 420W-750W optional, black frame or silver frame.
Solar Inverter Stand alone off grid solar system and hybrid on off grid solar system, 1KW-100MWH storage systems. Supports single phase and three phases (208V/220V/380V/480VAC).
Battery Storage System 0.5C or 1C battery cell lithium battery solutions, battery cluster with BMS, EMS optional.
BESS Container & Cabinet Outdoor cabinet or container (10ft, 20ft, 40ft) with IP65 protection, fire protection, and ventilation systems.

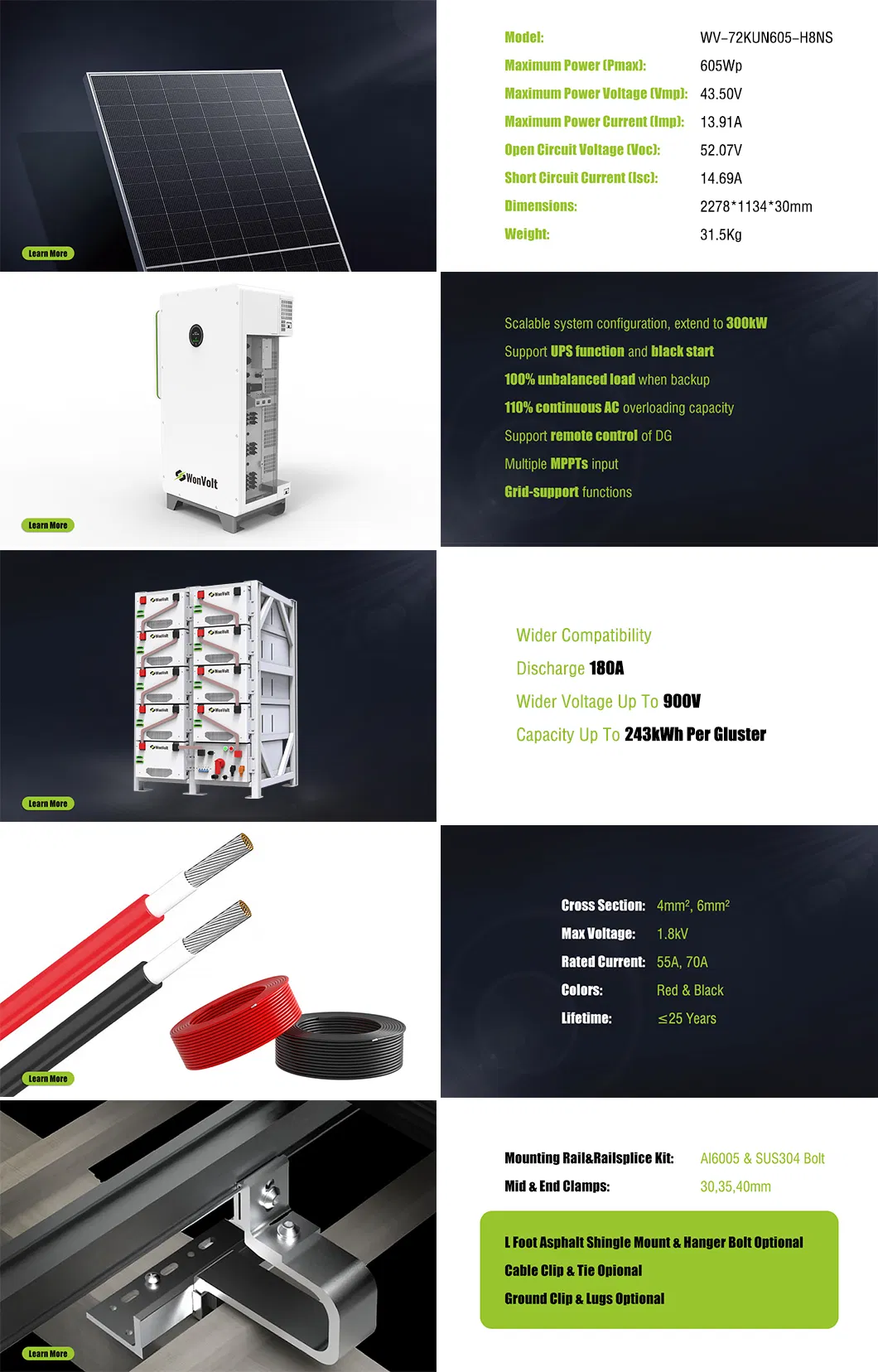

Detailed Description

Technical Support

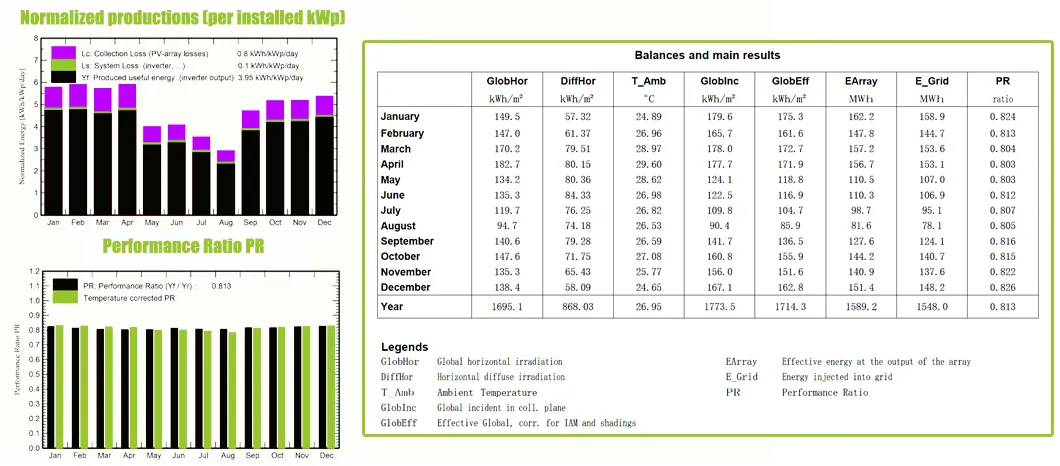

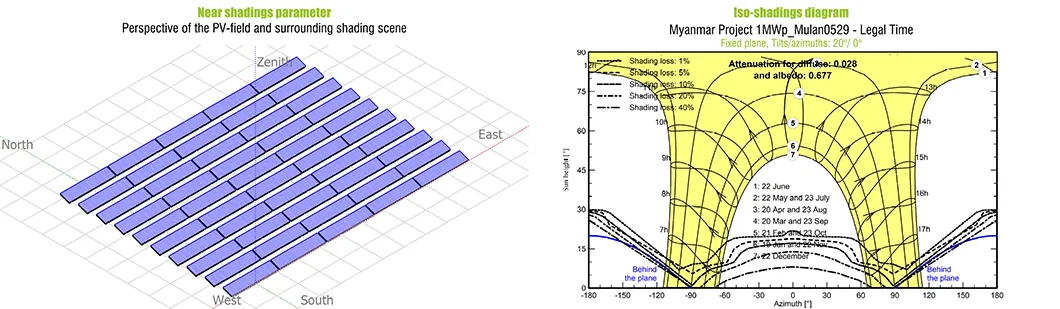

Technical Detail 1 Technical Detail 2 Technical Detail 3

Production Facility

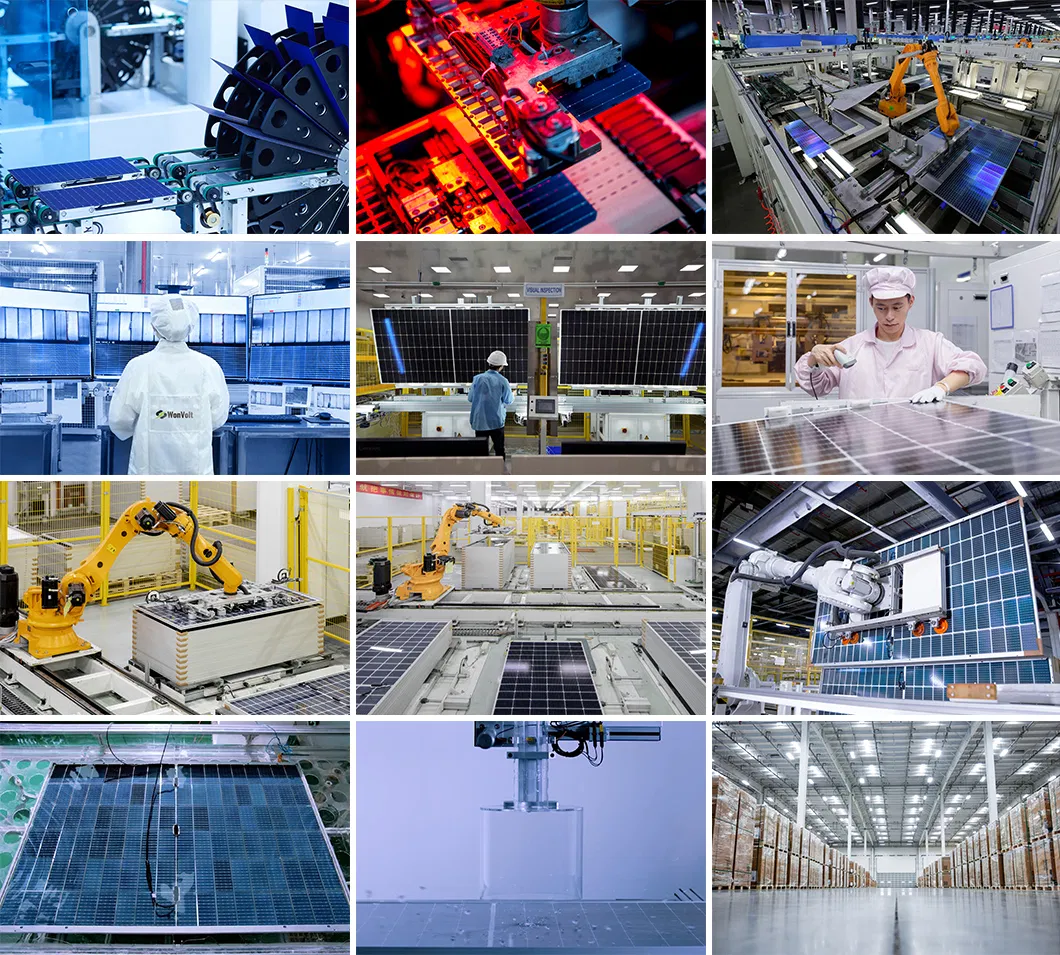

Factory View

Reference Projects

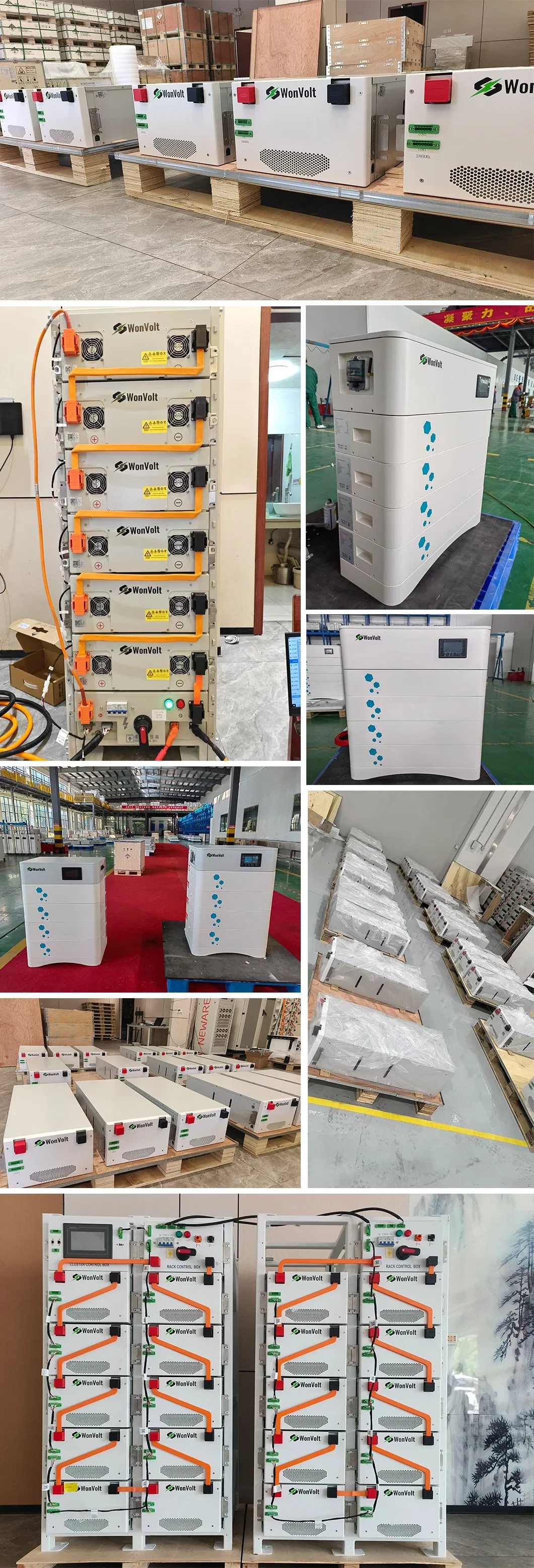

Project 1 Project 2

Hybrid Solar Energy Storage Systems for Home, Commercial, and Industrial Applications

Frequently Asked Questions

What is the cycle life of the lithium battery system?
The system utilizes high-quality LiFePO4 cells providing a cycle life of 10,000 times and up, ensuring long-term reliability for commercial and industrial use.
Can the system be customized for specific power requirements?
Yes, we offer customized energy storage solutions ranging from 30KW/46kWh up to 500KW/1075kWh and even multi-MWH containerized systems.
What applications is this Energy Storage System (ESS) suitable for?
It is designed for a wide range of applications including residential homes, industrial factories, commercial buildings, schools, hospitals, and microgrid projects.
Does the system support backup power and black start?
Absolutely. The system supports UPS functionality, black start capabilities, and can integrate with diesel generators (DG) to ensure uninterrupted power supply.
What kind of solar panels are included in the configuration?
The system typically includes high-efficiency N-type Mono solar modules (550W, 600W, or 720W), which offer better performance and slower degradation.
Is the storage system protected against outdoor environmental conditions?
Yes, our outdoor ESS solutions come in integrated cabinets or containers with IP65 ratings, featuring built-in fire protection and ventilation systems.
