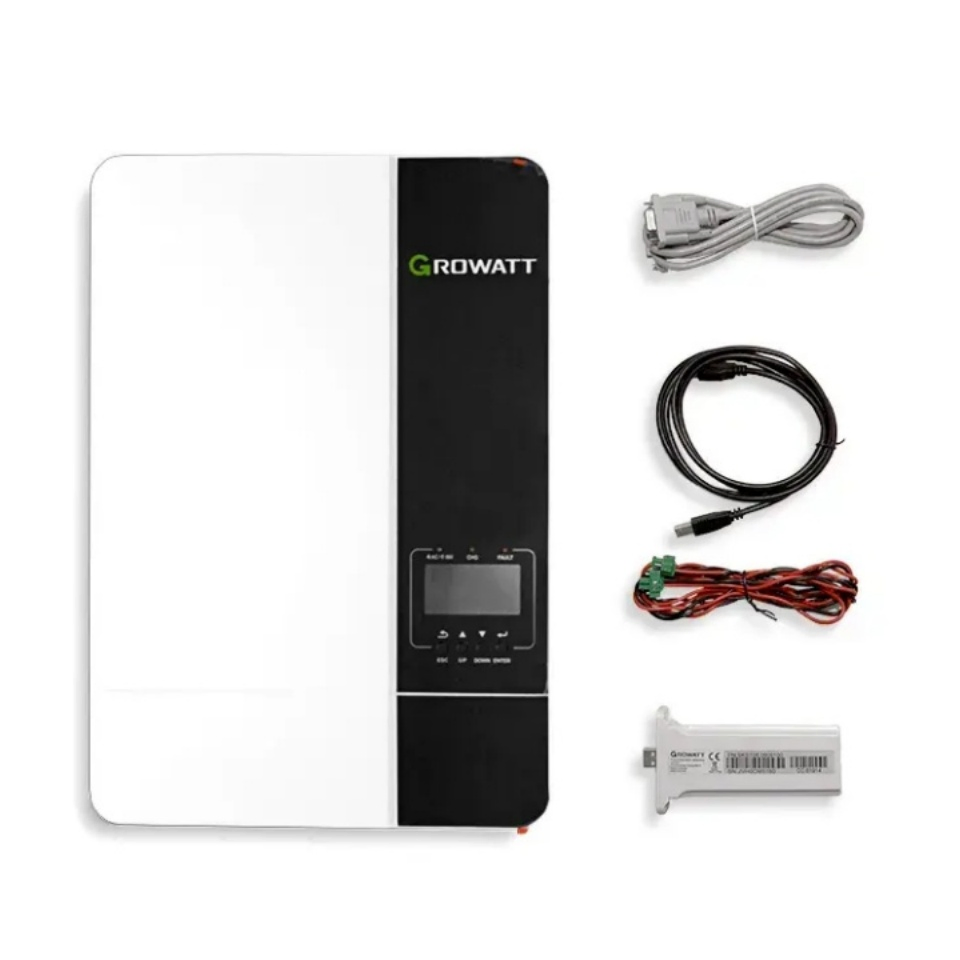

Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
1 / 5
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System
Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System

Optional WiFi/GPRS Remote Monitoring Hybrid Solar Inverter off-Grid Inverter with Energy Storage System

Customization: Available
After-sales Service: 5/10years
Warranty: 5/10years
Send Inquiry

Product Description

Basic Specifications

Model NO.SPF 5000ES
Output Power>1000W
PhaseSingle
CertificationCE
Nature of Source FlowActive Inverter
Efficiency (Peak)93%
MPPT Range120VDC ~ 430VDC
Battery TypeLead Acid/ Lithium

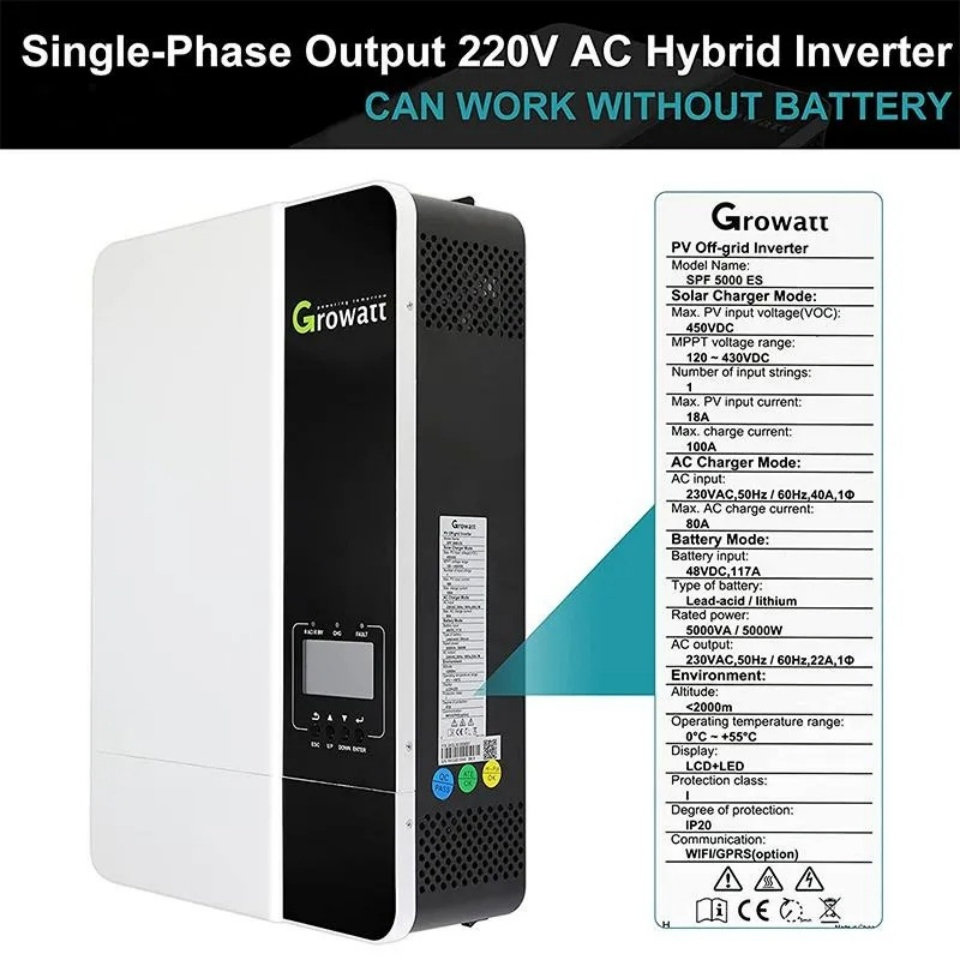

Hybrid Solar Inverter Overview

Hybrid Solar Inverter Overview
Inverter Features

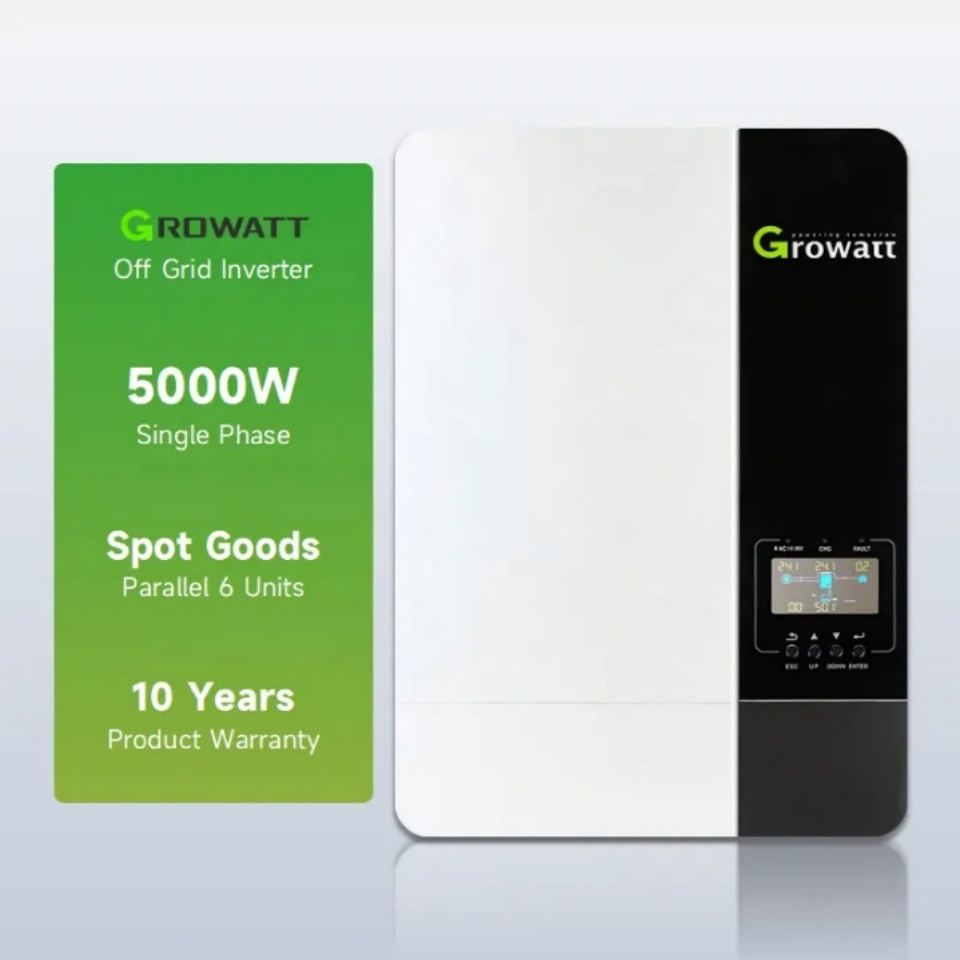

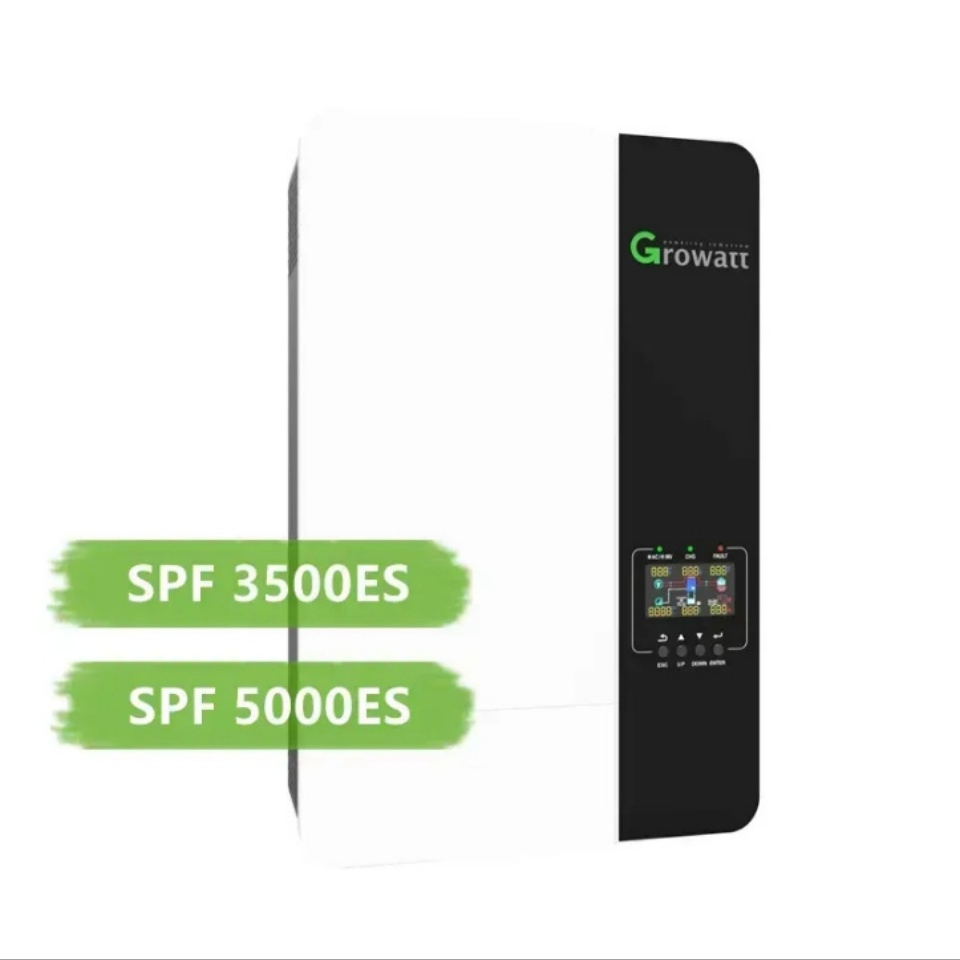

The Growatt SPF3500~5000ES is a 230VAC output voltage off-grid inverter designed for backup power and self-consumption applications. With a maximum PV input voltage up to 450VDC, it can work efficiently with or without a battery, significantly saving system investment costs.

Key Features

✔Integrated MPPT charge controller for optimized solar intake.
✔Flexible operation: Works with or without batteries.
✔High PV Input: Supports voltage up to 450V DC.
✔Parallel Capability: Expand capacity up to 30kW (6 units).
✔Remote Monitoring: Optional WiFi/GPRS for real-time tracking.
✔Smart Scheduling: Flexibly set inverter charging and discharging times.

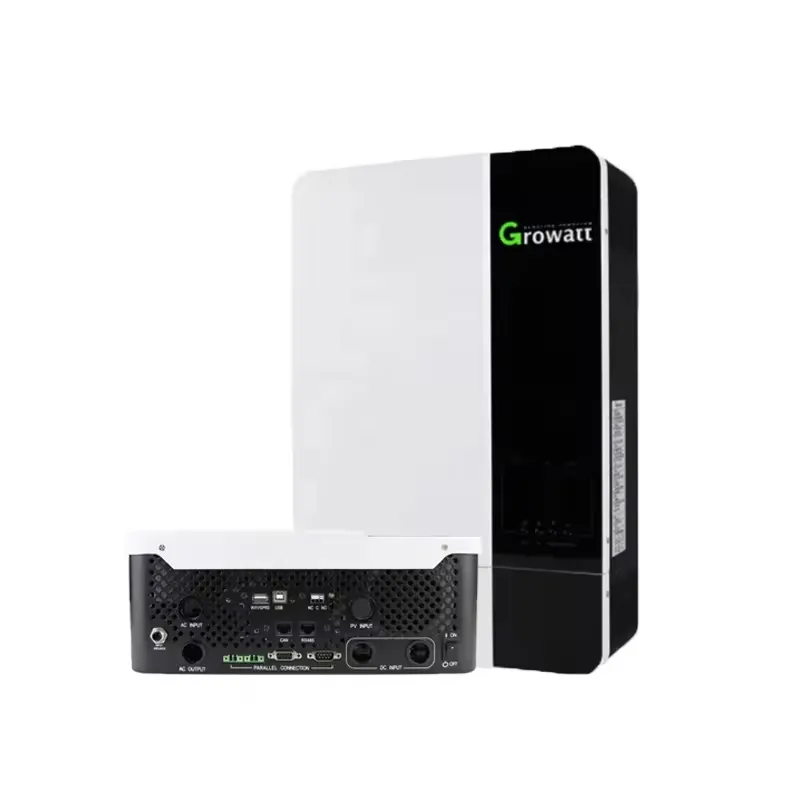

Inverter Selling Points
System Connection

Product Datasheet

Model Name SPF 3500ES SPF 5000ES
INVERTER OUTPUT
Rated Power3500VA/ 3500W5000VA/ 5000W
Surge Power7000VA10000VA
AC Voltage Regulation230VAC ± 5% @ 50/60Hz
WaveformPure sine wave
SOLAR CHARGER
Max. PV Array Power4500W6000W
MPPT Voltage Range120VDC ~ 430VDC
Max. Solar Charge Current80A100A
PHYSICAL

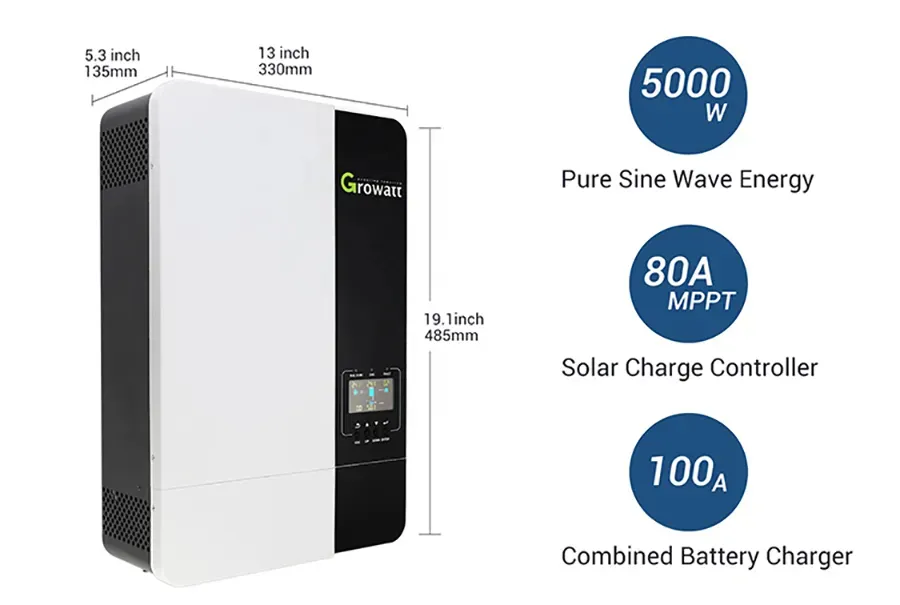

Dimension (W/H/D)330/485/135mm
Net Weight12kg

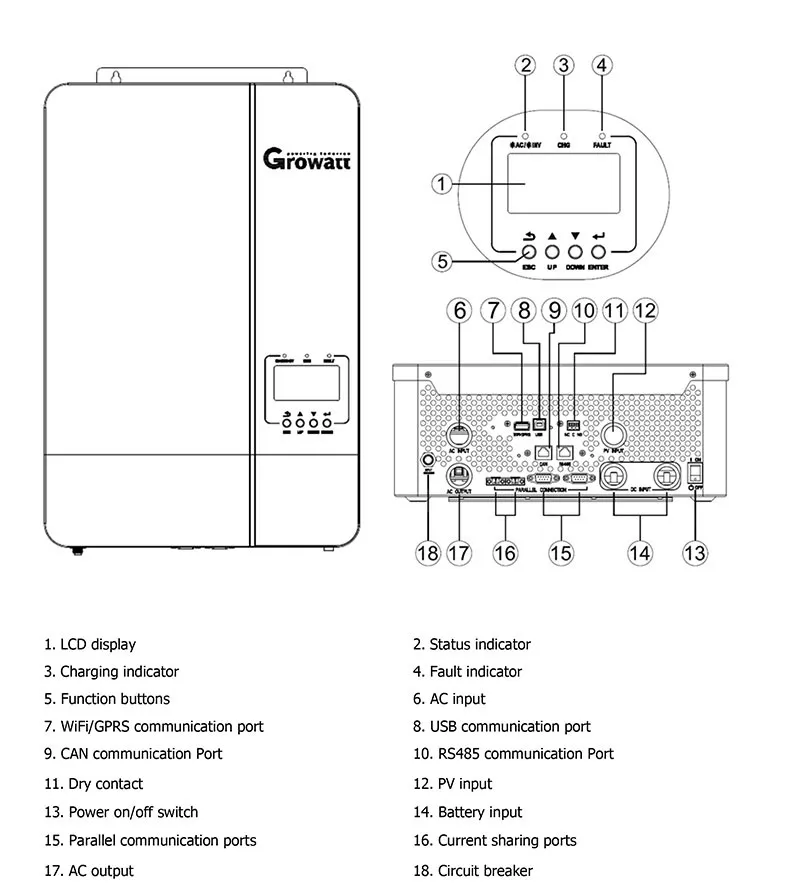

Parallel Connection Diagram

Inverter Range Options

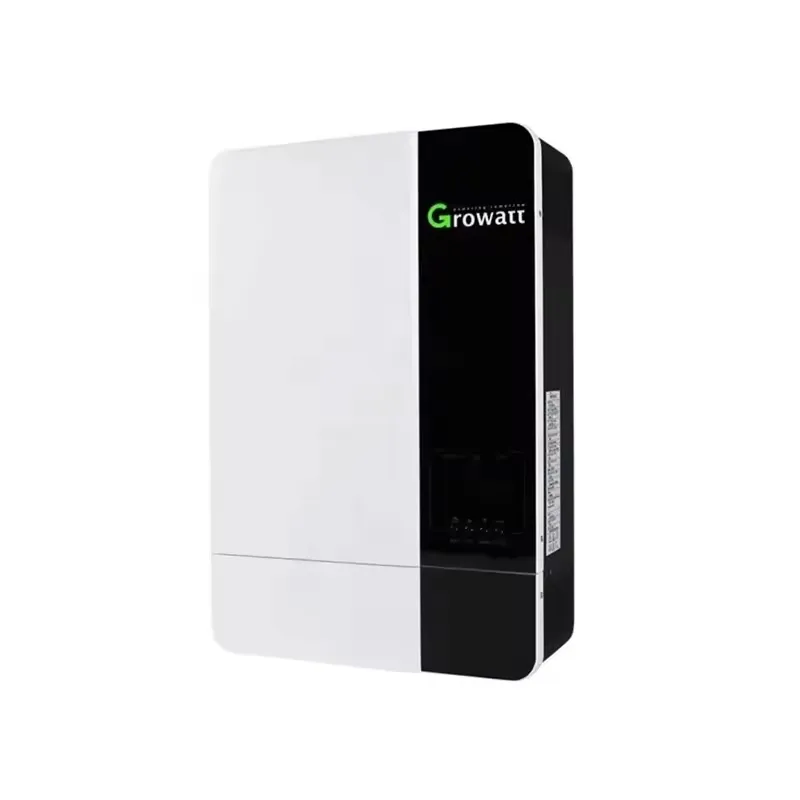

Off Grid Inverter

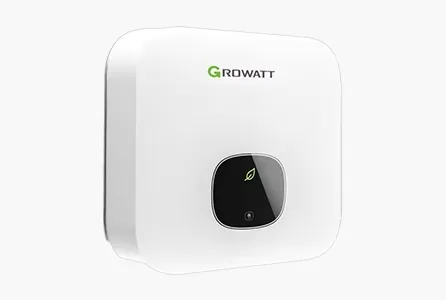

On Grid Inverter 3-6KW

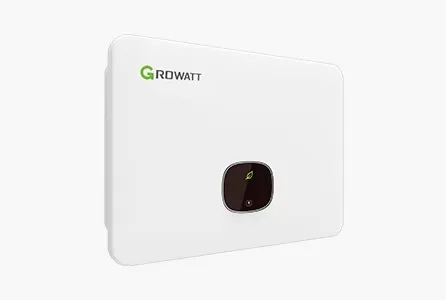

On Grid Inverter 15-40KW

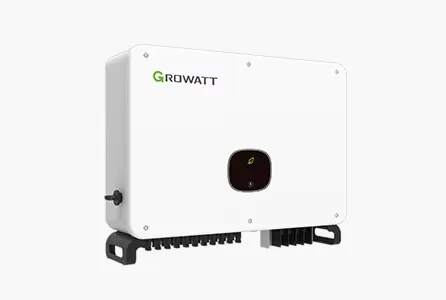

On Grid Inverter 50-70KW

Quality Assurance

Certifications
Packaging

Frequently Asked Questions

What types of solar products do you offer?
We provide a comprehensive range of solar products, including high-efficiency solar panels, hybrid and off-grid inverters, lithium-ion power walls, gel batteries, and complete all-in-one solar energy system solutions tailored to your needs.
Can this inverter work without a battery?
Yes, the SPF series inverters are designed with flexibility in mind. They can operate in a battery-less mode, utilizing PV energy directly to power the load, which helps in reducing the initial system investment.
How many units can be connected in parallel?
The system supports parallel operation for up to 6 units, allowing for a total capacity expansion of up to 30kW, making it suitable for both residential and light commercial applications.
What is the typical lead time for orders?
Standard products are generally kept in stock and can be dispatched within 5-15 working days. For bulk orders, the production timeline will be negotiated to ensure timely delivery to our customers.
Do you provide technical support after purchase?
We offer lifetime online technical support. Whether it's installation guidance or troubleshooting, our team is available via video calls and messaging platforms to assist you.
How do you ensure the quality of your inverters?
Quality is managed through rigorous pre-production samples and a final 100% inspection before shipment. Our products are CE certified and come with traceable logs for reliable long-term operation.
