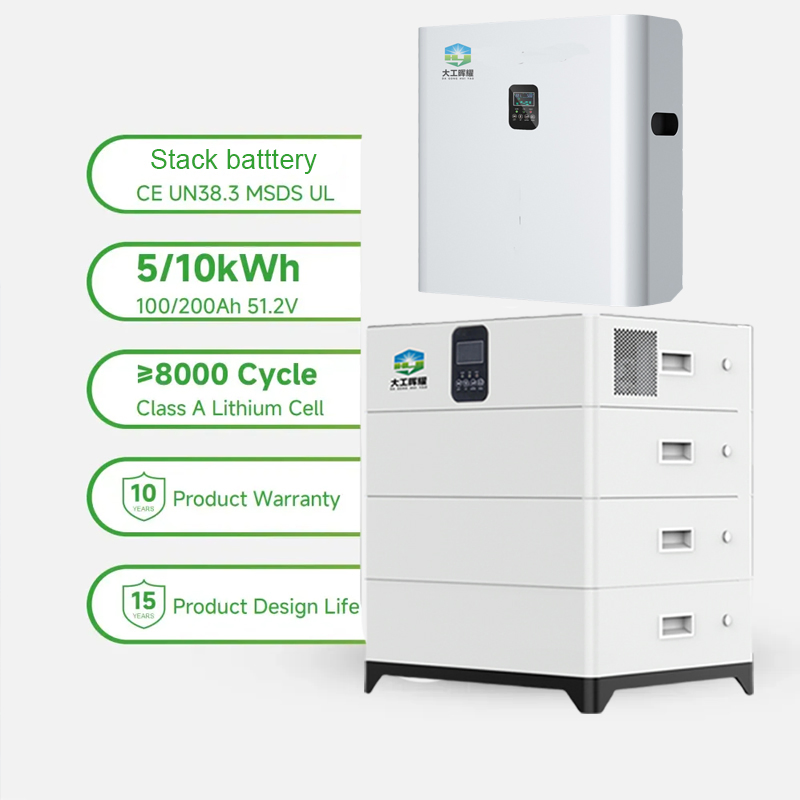

48V 5kw 10kw 15kw Hybrid System Kit Wall-Mounted 20kw 25kw 30kw off Grid Solar Power Energy System Storage Home Lithium

Customization:	Available
Weight:	50kg
Warranty:	5years

Basic Information

Model NO.

HY-10000W

Cycle Life

6000 Times

Nominal Capacity

5kwh-60kwh

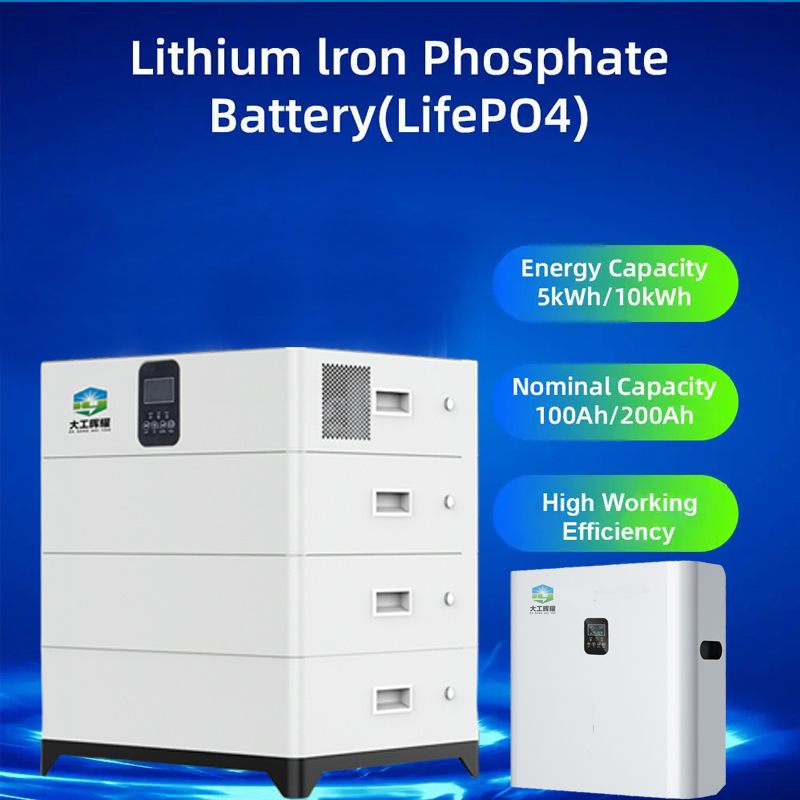

Material

LiFePO4

Battery Cell

Grade a+

BMS

Yes

Voltage

51.2V

Cell Capacity

100ah

Package Size

600.00cm * 530.00cm * 220.00cm

Gross Weight

50.000kg

Product Description

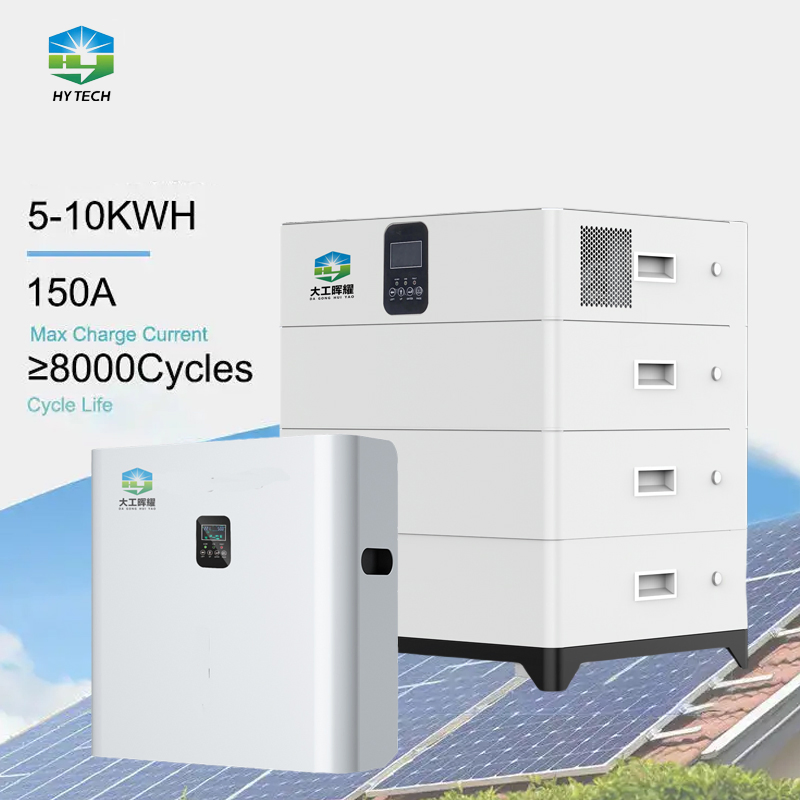

Battery Module Stacking Design

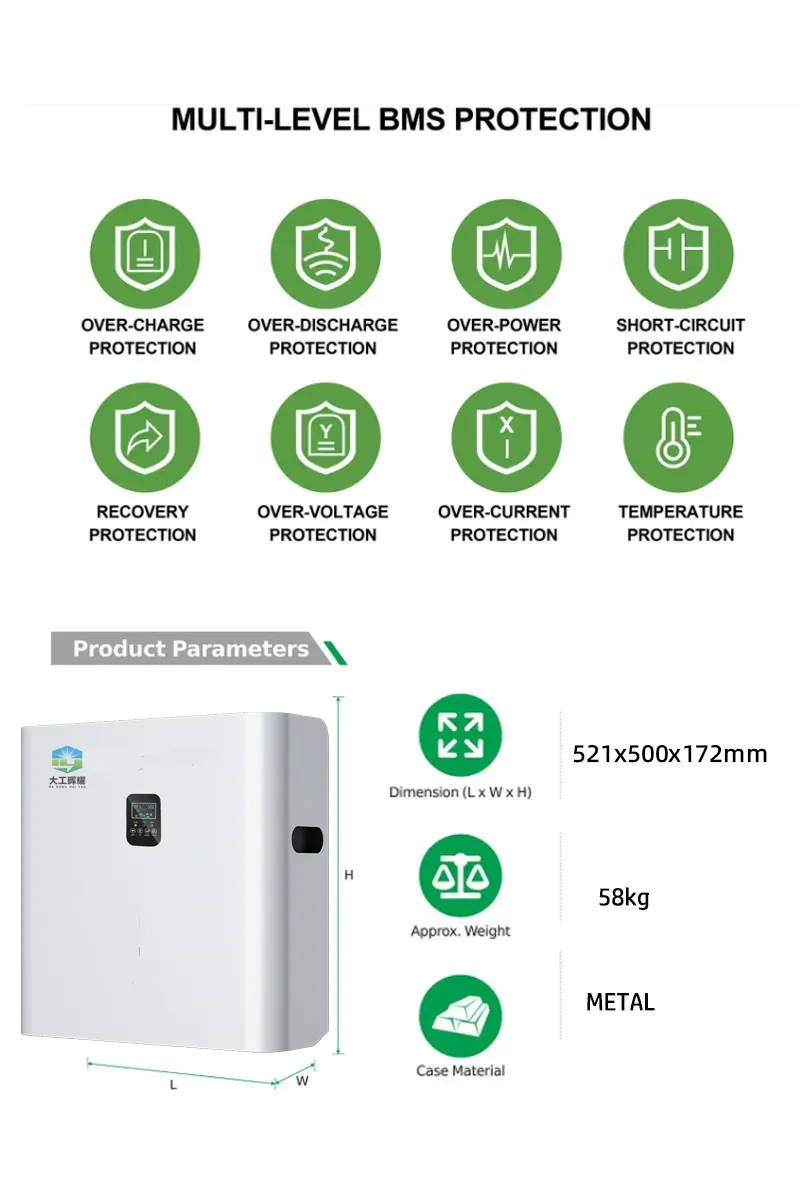

Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Modular design allows users to flexibly adjust battery capacity based on household energy needs.

Core Advantages

Supports parallel connection of 15 batteries with a capacity of up to 150KWH.
Easy to install with complete accessories: power cables, connectors, communication cables, wall brackets, and hole positioning stickers.
Strict 100% vibration and aging tests ensure safety and authentic capacity.
Clean and neat design with no visible surface screws; features an internal small cooling fan for safety.
Internal all-copper material for low resistance and minimal heat generation.

Communication & Connectivity

Utilizes CAN bus or RS485 for high anti-interference in complex electromagnetic environments. Supports multiple protocols and software upgrades.

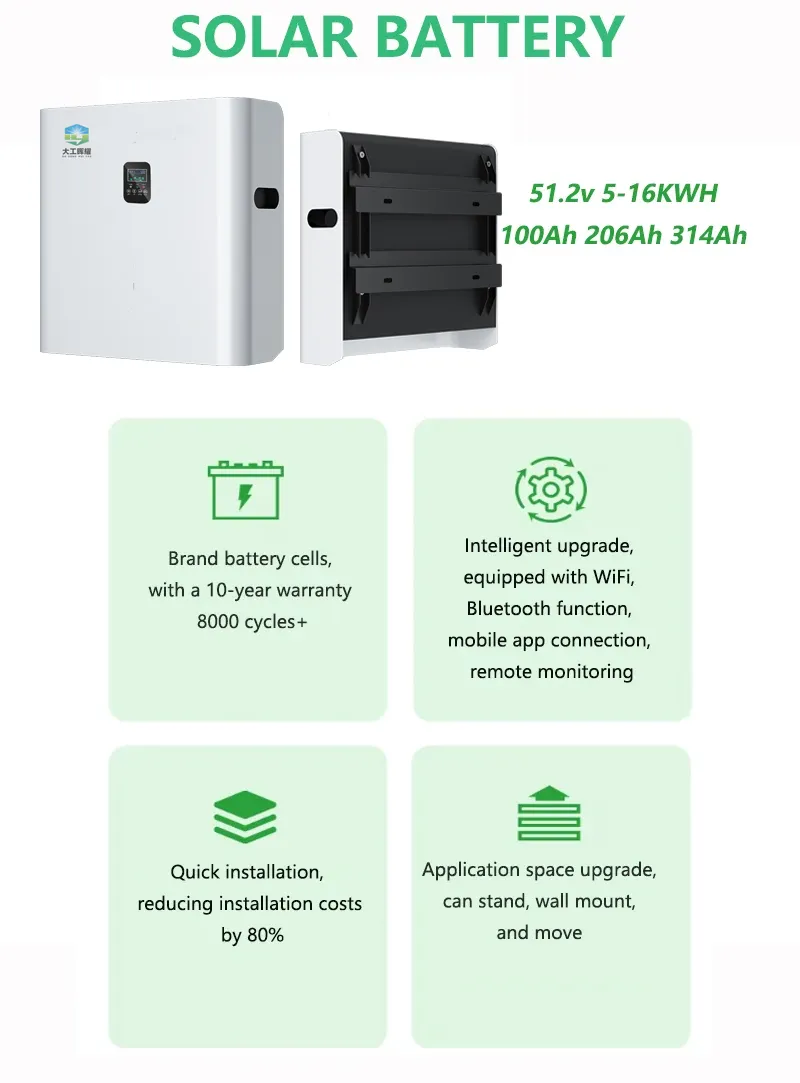

Product Features

High Energy Density: Powerful energy storage capabilities.
Compact & Lightweight: Space-saving design and easy handling.
Scalability: Supports up to 15 units parallel connection (up to 75-150 kWh total).
Versatile Scenarios: Suitable for homes, data centers, factories, and office buildings.

High-quality Battery Cells

Meets various household needs: appliances, kitchen electricity, and EV charging.

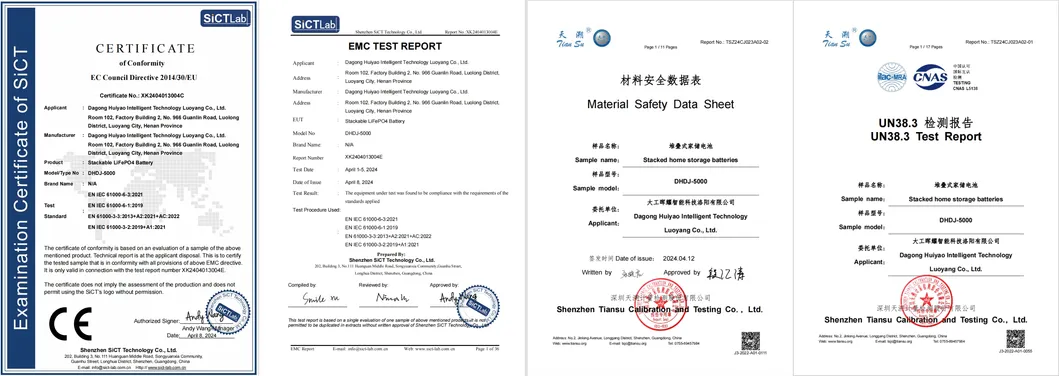

Certifications

ISO 9001 | CE | UN38.3 | MSDS

Packaging & Shipping

Our products use specialized, customs-approved hazardous packaging to ensure compliance with international dangerous goods transportation standards (UN38.3). We hold certifications for safe land and sea transport.

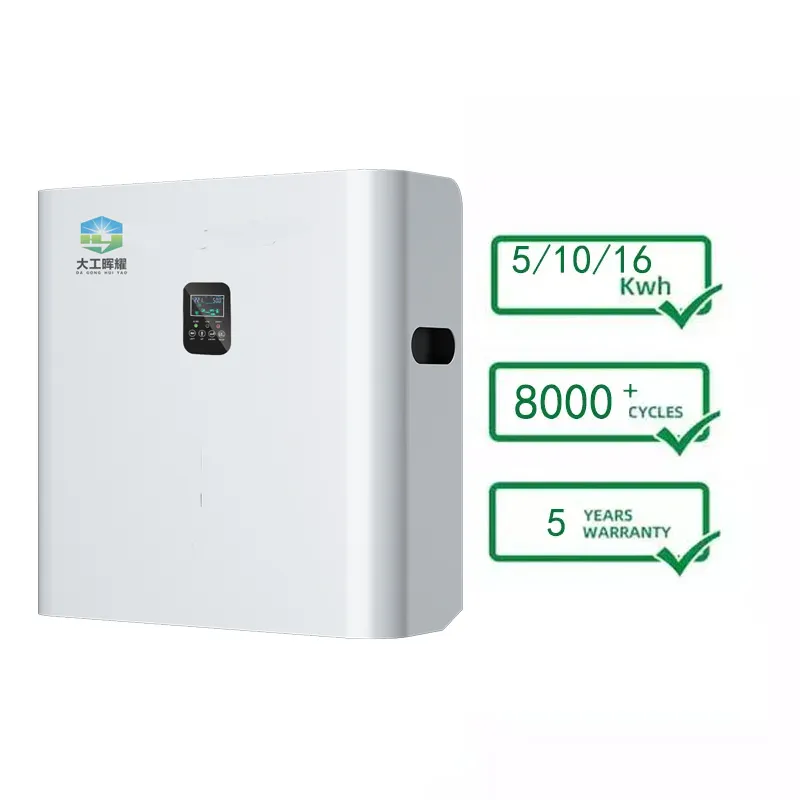

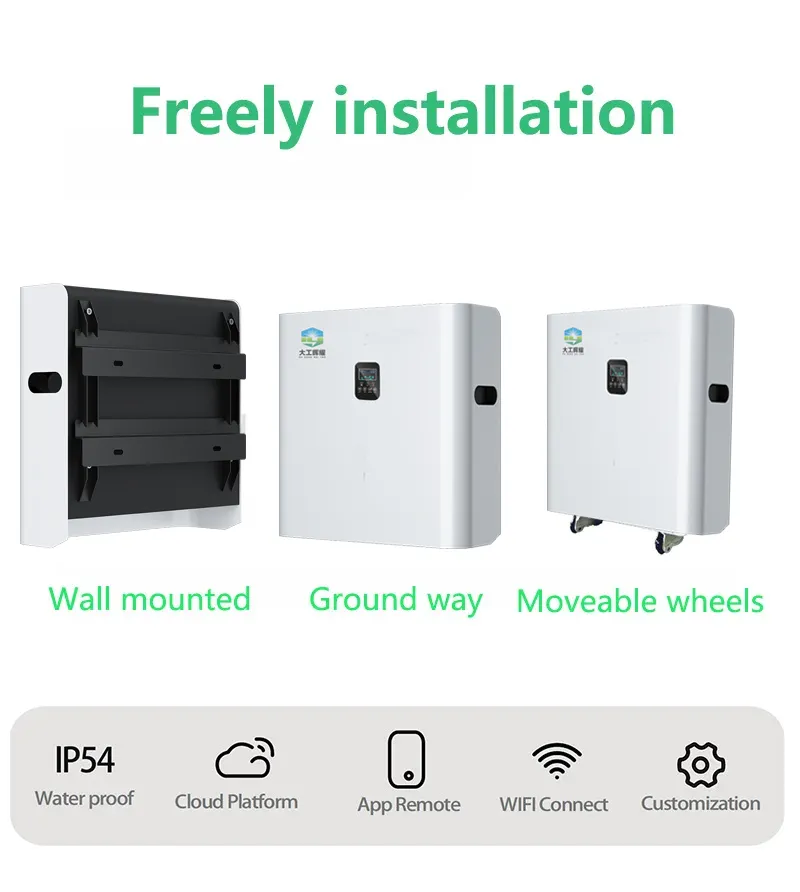

Installation Instructions

Step 1

Unboxing Preparation: Open packaging and remove battery units easily.

Step 2

Stacking Batteries: Use expansion screws to secure metal parts to the wall.

Step 3

Parallel Connection: Connect the battery units in parallel for stable power output.

Step 4

Communication Cable: Connect the cable to the BMS for real-time monitoring.

Step 5

Connecting to Power: Integrate into the PV, mains electricity, and output systems.

Frequently Asked Questions

Are adjustments required during initial system startup?

The system is pre-set at the factory; no electrical or mechanical adjustments are required. The system will automatically adapt.

What maintenance is required during operation?

No manual parameter changes are needed. You can monitor the system via the built-in LCD screen or an optional WIFI module connected to an APP.

How do I calculate battery needs for 4000 kWh/year consumption?

4000kWh/year ÷ 365 days ≈ 10.9kWh/day. You should choose a configuration based on this daily requirement or use our standard packages.

What is the core business scope?

We specialize in solar energy systems and components, including high-efficiency inverters and Lithium (LiFePO4) batteries.

What is the after-sales policy?

Within the warranty period, product defects are replaced free of charge. Outside the period, replacements are offered at a 20% discount on the original price.

How long is the quoted price guaranteed?

Pricing is typically guaranteed for a period of 15 days.
