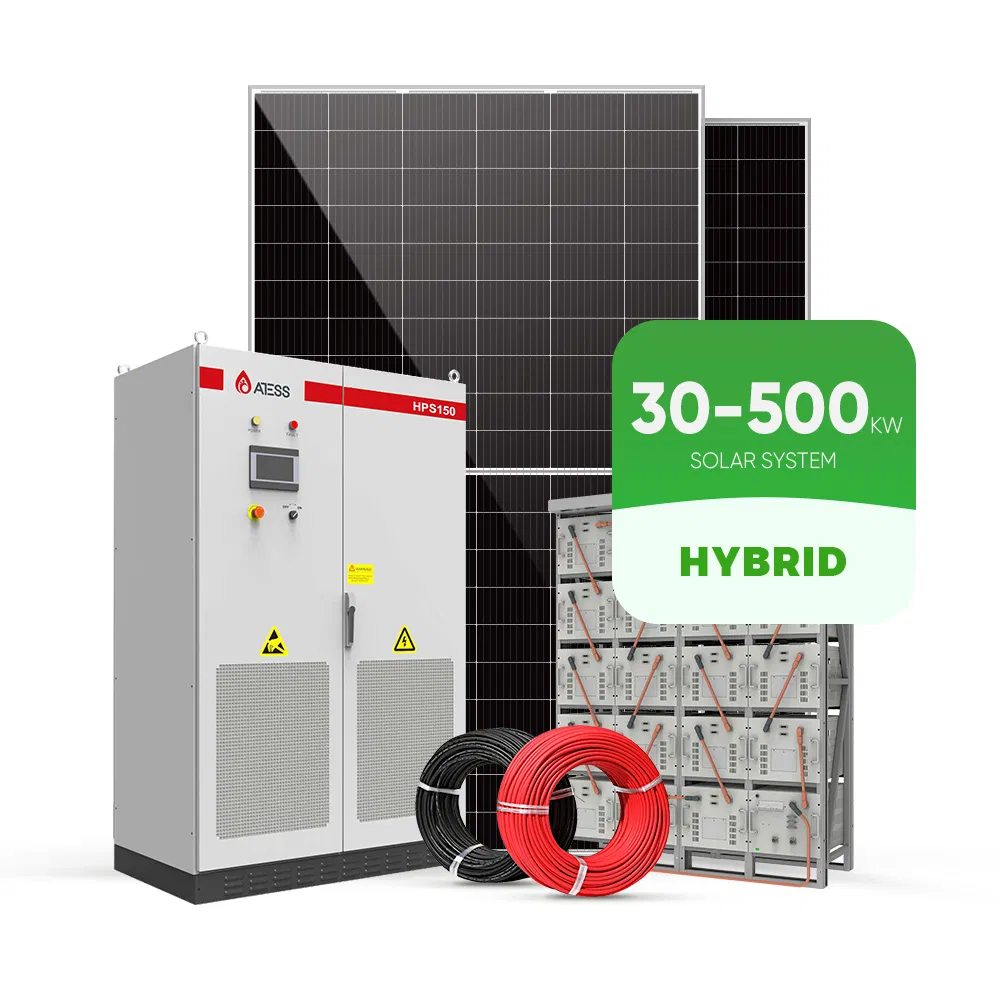

Complete Set Hybrid Solar Power System 50kw 60kw Water Pump Irrigation System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LF30-500KW-HY

Condition

New

Certification

ISO, CB, CE, TUV

Application

Industrial, Commercial

Inverter

Pure Sine Wave Inverter

Controller Type

MPPT

System Type

Hybrid Solar PV System

Battery Type

Lead-Acid, Lithium Ion

Solar Panel

Mono Perc Solar Panels

Load Power

30-500kw

Output Voltage

380-415V

Output Frequency

50/60Hz

Product Description

⚡

Complete Set Hybrid Solar Power System 50KW-500KW for Water Pump Irrigation & Industrial Use

⚙️

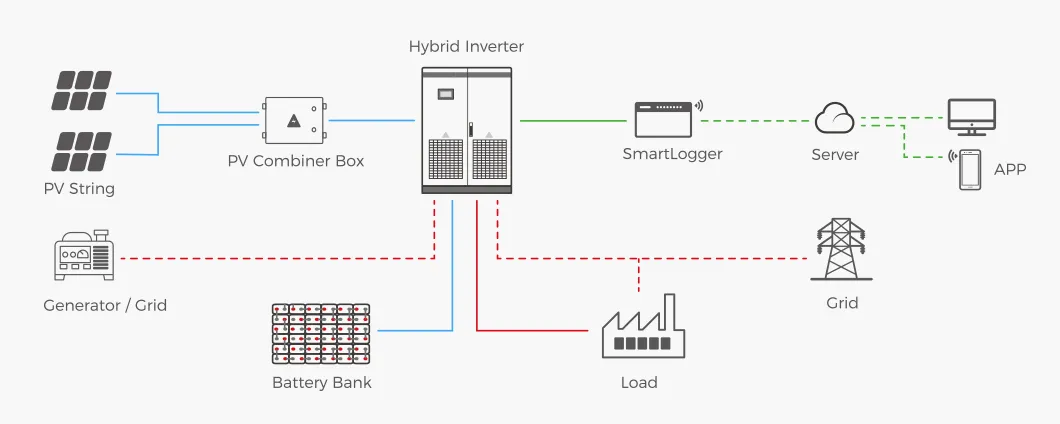

How It Works: Seamless Integration of Solar, Battery, and Grid

System Configurations

Component	LF-30KW-HY	LF-50KW-HY	LF-100KW-HY
Mono 550W Solar Panel	55 Pieces	91 Pieces	180 Pieces
PV Combiner Box	1 Piece (5 In 1 Out)	1 Piece (7 In 1 Out)	4 Pieces Total
Hybrid Inverter	HPS30	HPS50	HPS100
LiFePo4 Battery Bank	30Kwh	50Kwh	100Kwh
DC Cable 4mm2	500m	1000m	1500m
Mounting System	Customized Based On Installation Site

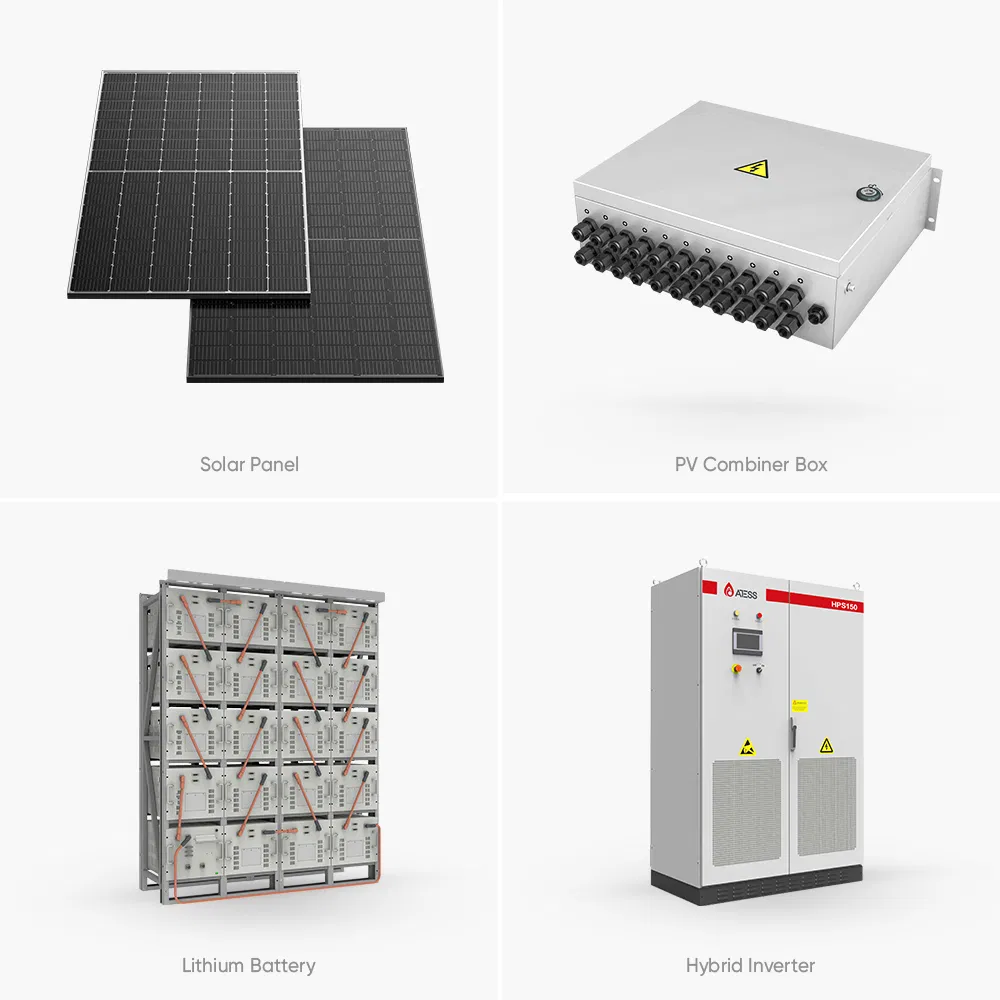

Core Components Detail

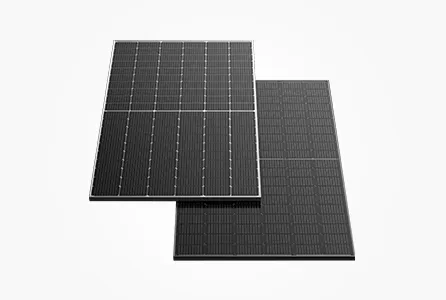

Half Cut Mono 560W Solar Panel: High efficiency, 2279x1134x35mm, 26.9kg.

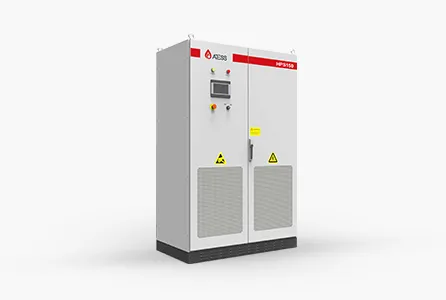

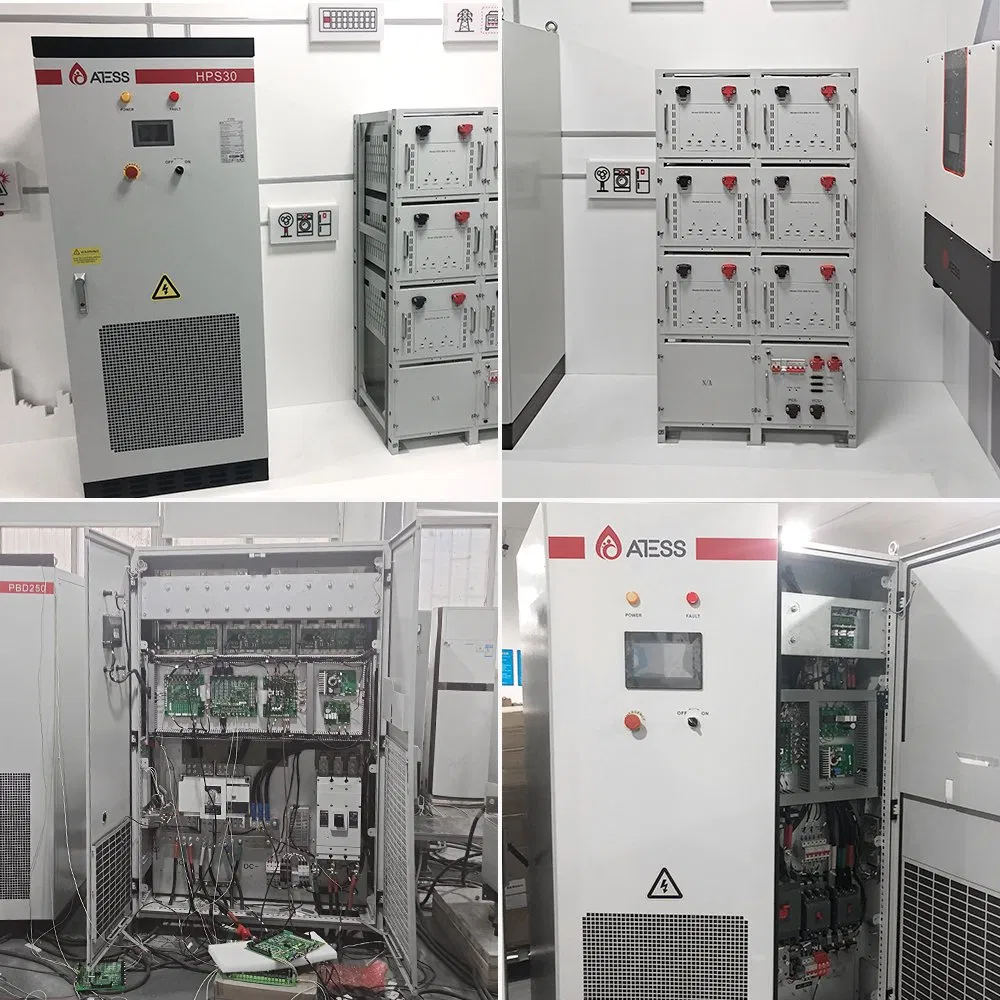

Hybrid Solar Inverter: 48V low voltage, transformer isolation, max 240A charging.

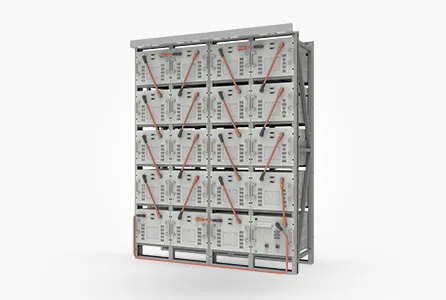

LiFePo4 Battery: High density LFP cells, 3-level BMS protection, safe and reliable.

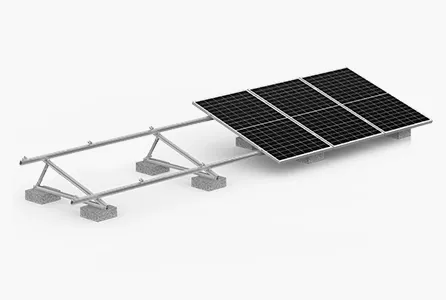

PV Mounting System: AI6005 & SUS304 materials, customized for roof/ground.

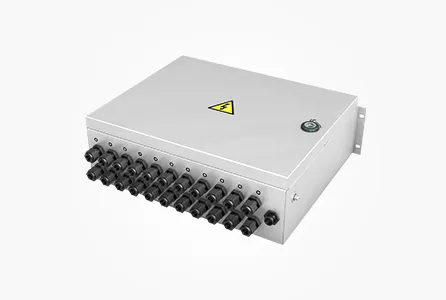

PV Combiner Box: IP65 rated, 1000VDC rated voltage, robust protection.

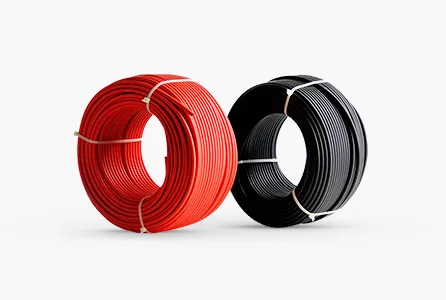

DC Cable & Connectors: 4mm2/6mm2 TUV certified, 25-year lifetime.

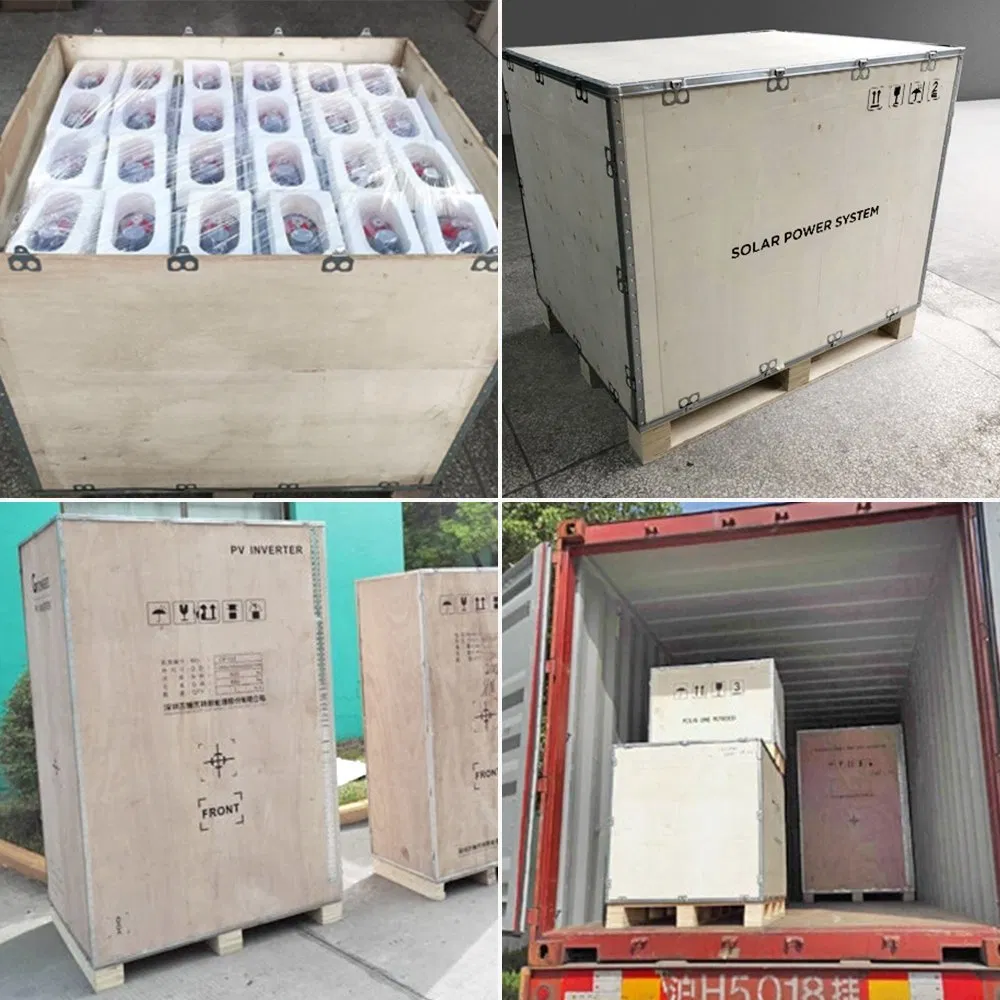

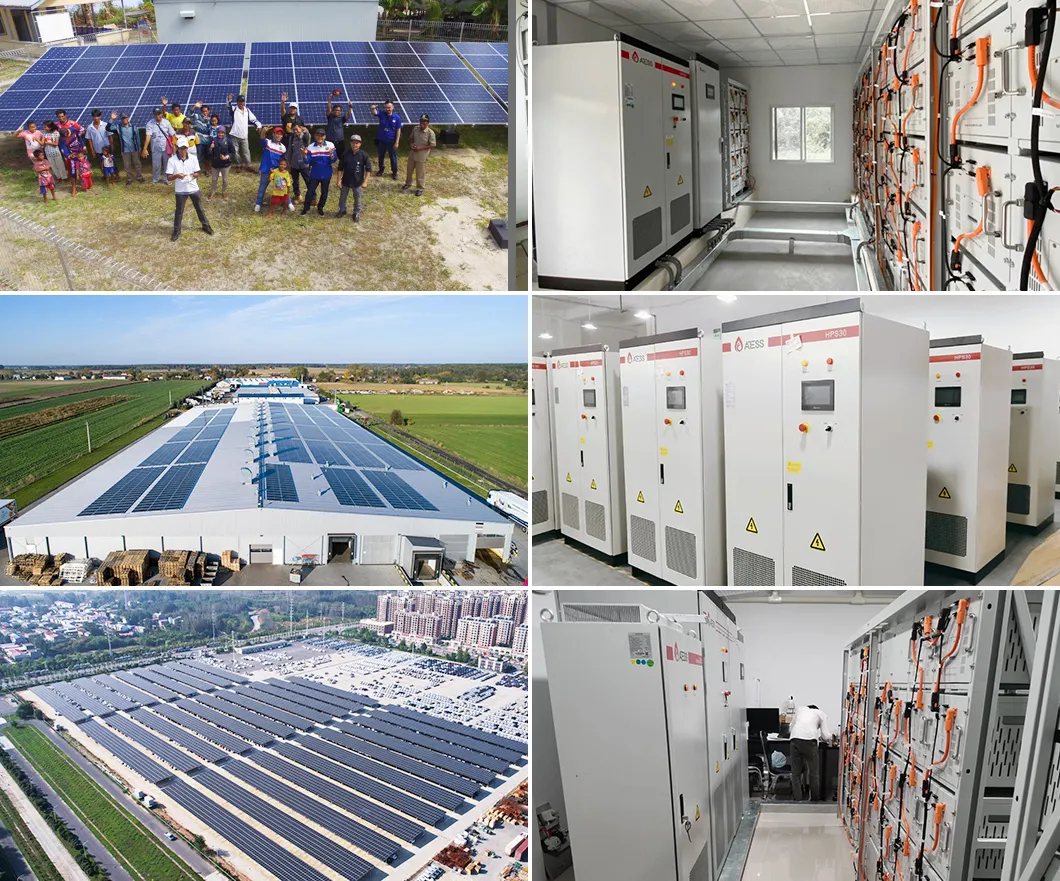

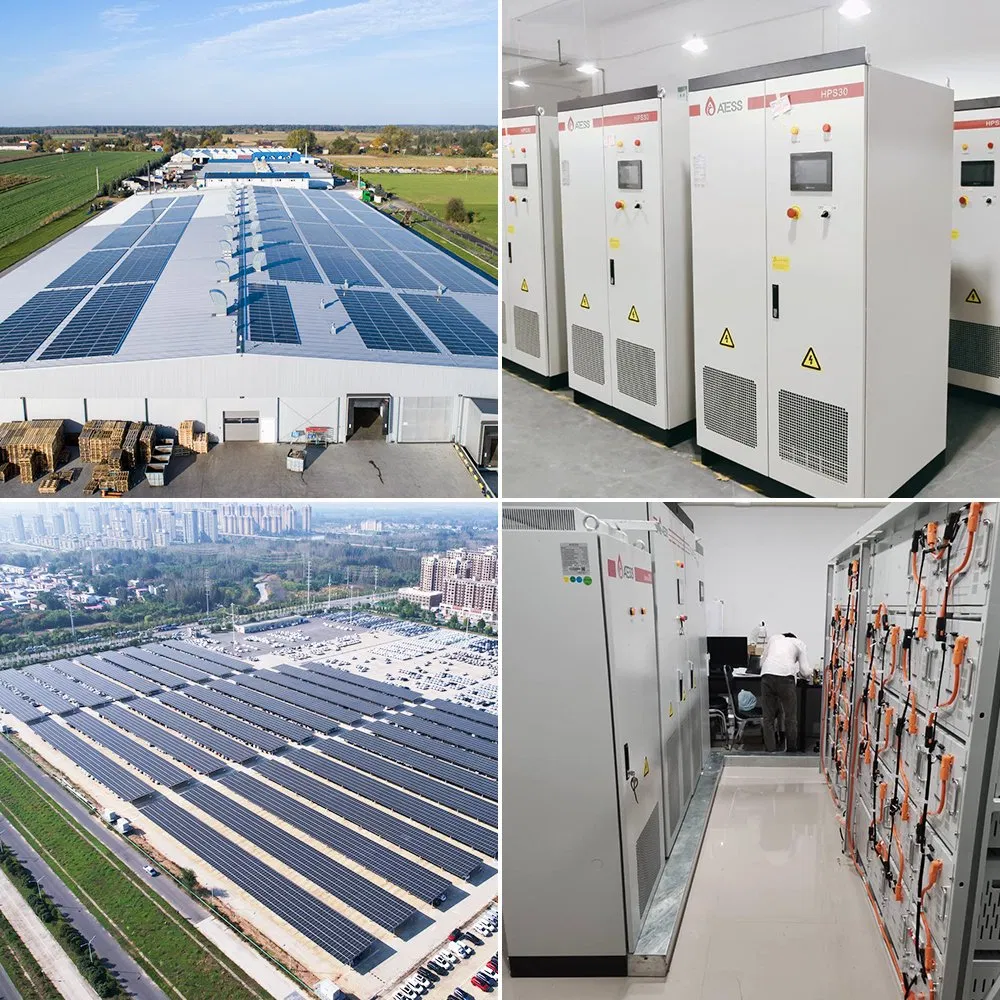

Packaging & Project Cases

Frequently Asked Questions

What are the main advantages of a hybrid solar system?

A hybrid system combines the benefits of on-grid and off-grid systems. It allows you to store excess solar energy in batteries for use at night or during power outages while still being connected to the grid for supplementary power.

Can this system power industrial water pumps for irrigation?

Yes, the system is specifically designed for industrial and commercial applications, providing stable 380V-415V output, making it ideal for large-scale agricultural irrigation and water pumping projects.

How long do the LiFePO4 batteries last?

The high-voltage LiFePO4 batteries used in our systems are designed for long-term durability, typically offering over 6,000 cycles, which translates to a lifespan of 10-15 years depending on discharge depth and environment.

Is the mounting system suitable for all types of terrain?

Our mounting systems are fully customized. Whether you are installing on a flat concrete roof, a pitched metal roof, or directly on the ground, we provide the specific rails and clamps required for a secure fit.

What kind of maintenance does the system require?

Solar systems are generally low-maintenance. We recommend cleaning the panels periodically to remove dust and checking the electrical connections once a year. The hybrid inverter and BMS provide remote monitoring to track performance.

Does the system come with all necessary installation tools?

Yes, the complete set includes essential PV installation tools such as wire cable cutters, strippers, and MC4 assembly/disassembly tools to facilitate a professional installation.
